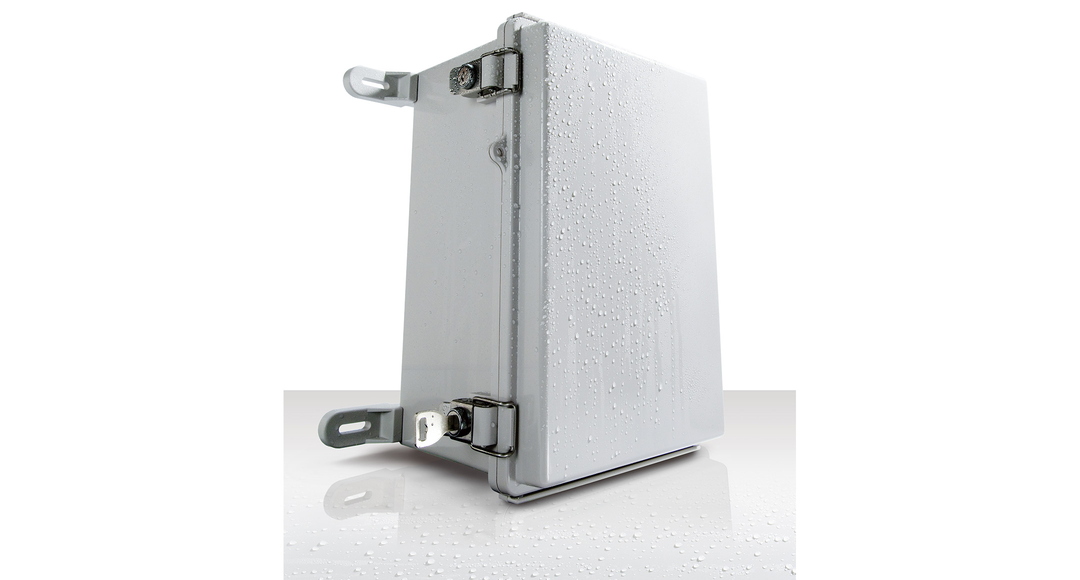

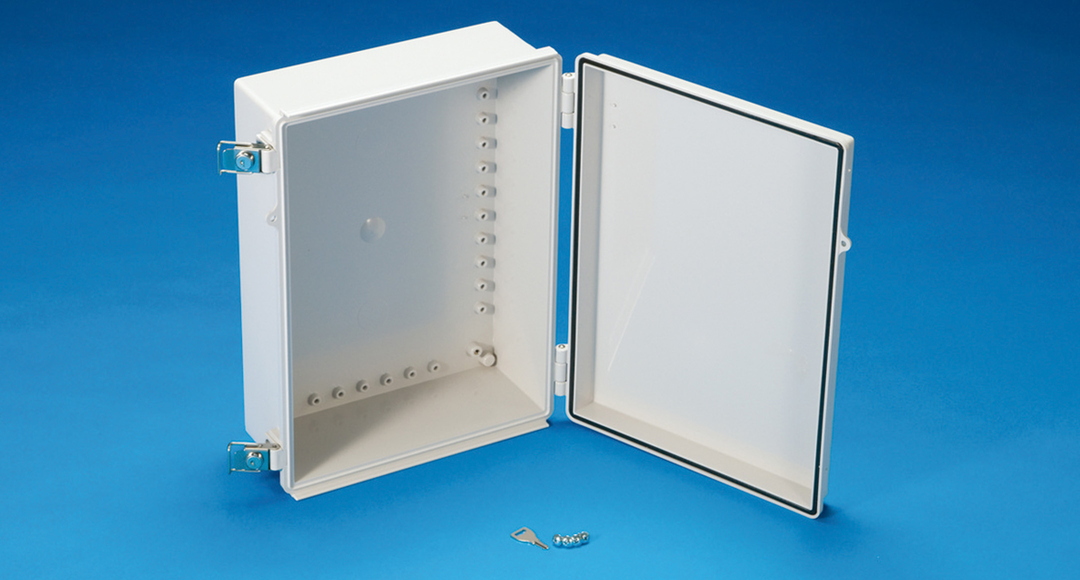

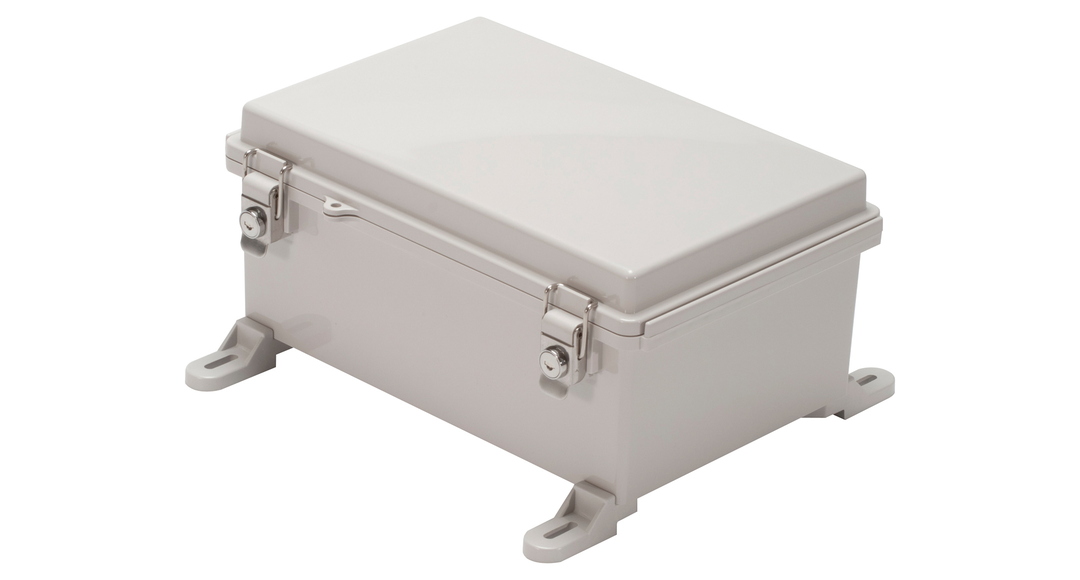

IP65 hinged polycarbonate enclosure equipped with key lock latch.
Made of light gray UL94V-0 polycarbonate, which has good heat resistance properties.

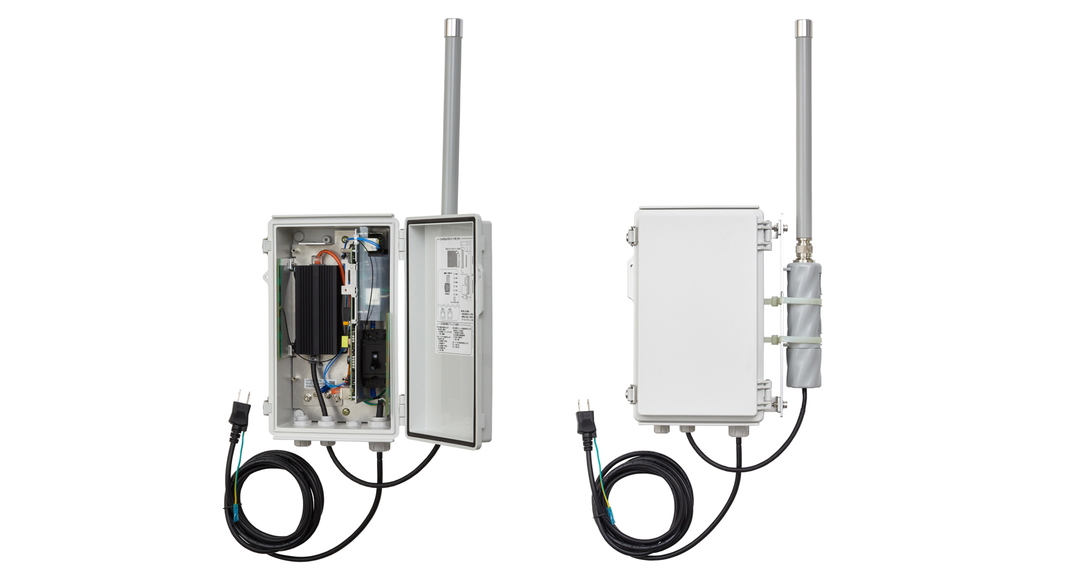

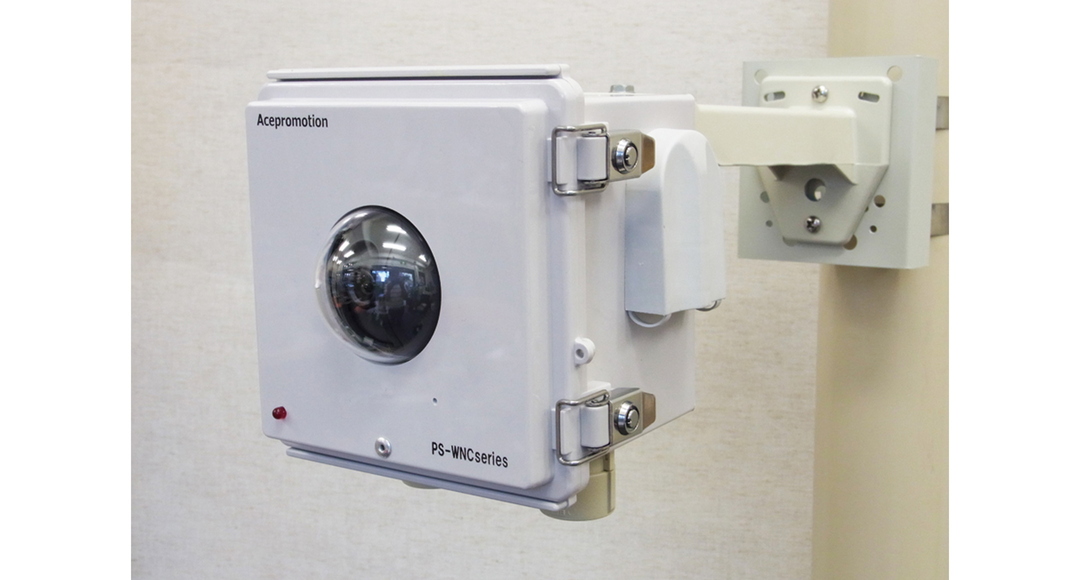

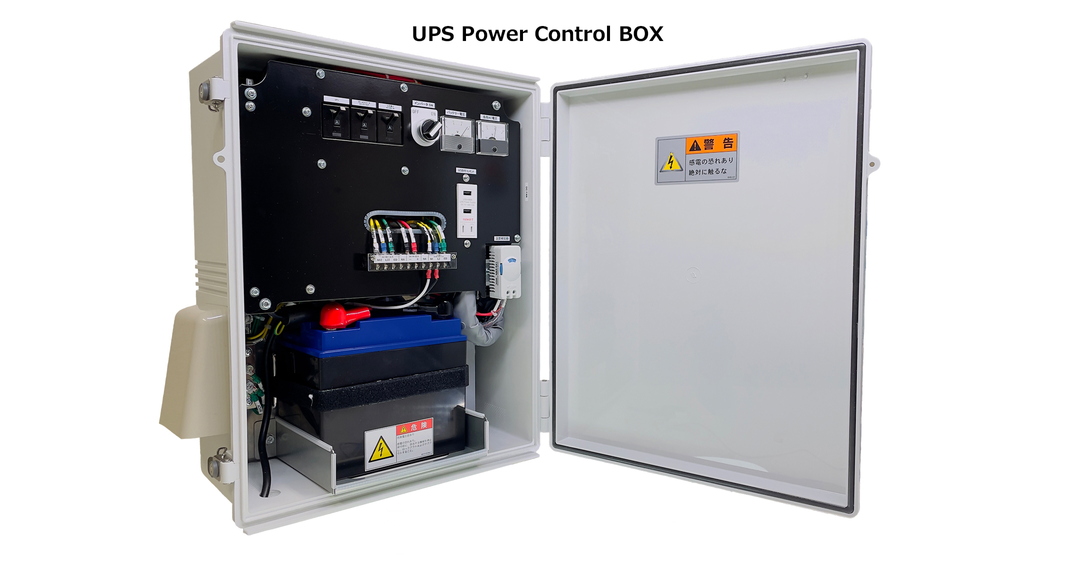

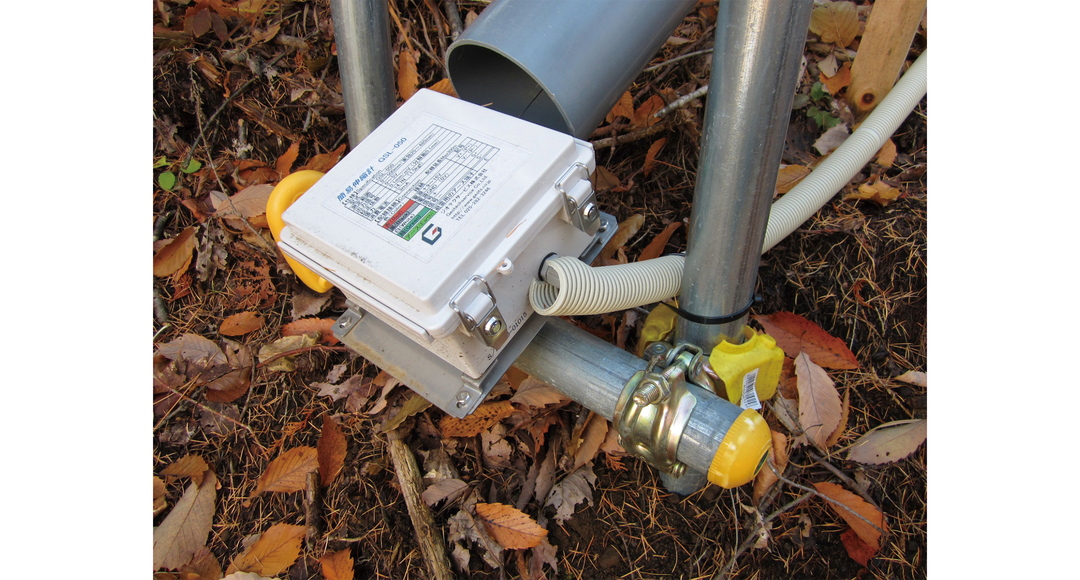

Applicable for various uses in fields such as Network communication, PV junction box, Power switchboard, FA, and so on.

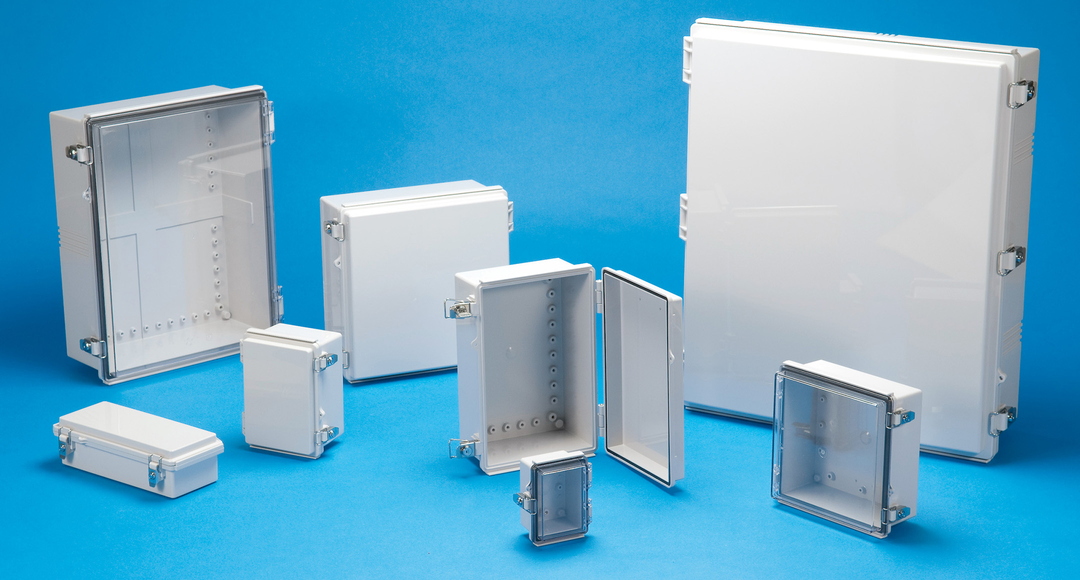

【Line-up】
Light gray cover types : 50 different sizes
Transparent cover types : 46 different sizes

Protection Class : IP65 (equivalent to NEMA6 rating)
Operating Temperature：-20℃～+75℃
Flammability：UL94V-0

【Material】
Top cover (G color type)・Base : Polycarbonate
Color / Similar matching：2 Light gray / Munsell 5GY8.5/0.5
Top cover (T color type) ：Polycarbonate / Transparent
Gasket ：Polyurethane

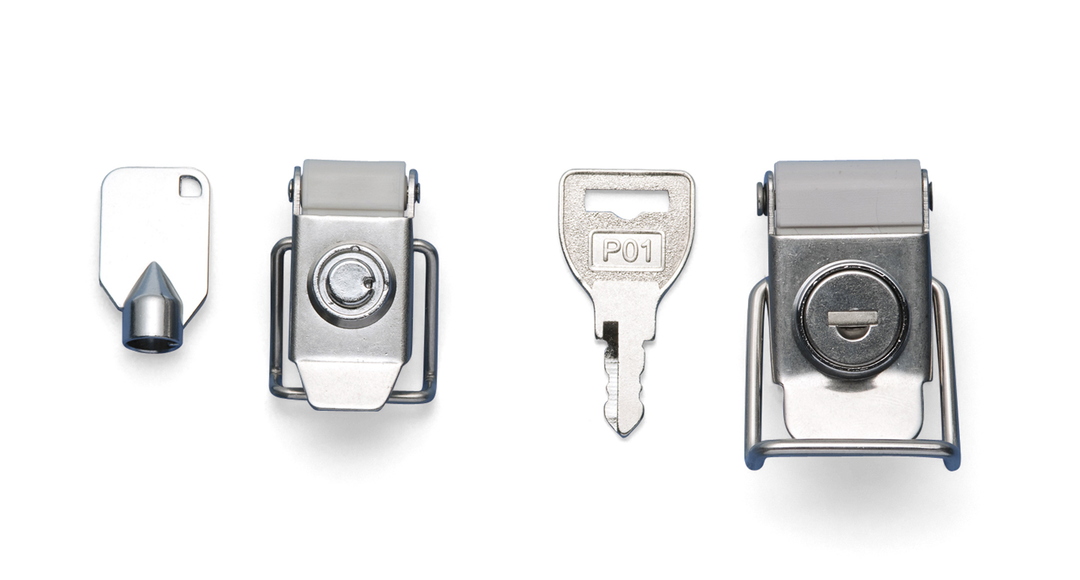

Latch：Stainless steel

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Color / Similar matching Inventory status MOQ PDF DXF DWG
W H D w h d
BCPK091207S 90 70 120 66 56.5 96 242 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK091207T 90 70 120 66 56.5 96 237 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK091208S 90 85 120 66 71.5 96 264 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK091208T 90 85 120 66 71.5 96 261 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK101507S 100 70 150 76 56.5 126 339 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK101507T 100 70 150 76 56.5 126 337 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK101508S 100 85 150 75.5 71.5 125.5 360 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK101508T 100 85 150 75.5 71.5 125.5 335 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK112107S 110 75 210 85.8 61.6 185.8 437 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK112107T 110 75 210 85.8 61.6 185.8 444 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK112110S 110 100 210 84.9 86.5 184.9 501 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK112110T 110 100 210 84.9 86.5 184.9 509 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK112607S 110 75 260 85.8 61.5 235.8 520 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK112607T 110 75 260 85.8 61.5 235.8 528 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK112610S 110 100.5 260 85.1 87.2 234.9 585 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK112610T 110 100.5 260 85.1 87.2 234.9 594 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK131508S 135 85 155 110.5 71.5 130.5 430 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK131508T 135 85 155 110.5 71.5 130.5 421 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK131808S 135 85.5 185 110.4 72.2 160.4 474 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK131808T 135 85.5 185 110.4 72.2 160.4 475 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK131810S 135 100.5 185 110.4 87.1 160.4 471 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK131810T 135 100.5 185 110.4 87.1 160.4 478 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK151509S 150 90 150 125.7 75.5 125.7 419 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK151509T 150 90 150 125.7 75.5 125.7 422 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK151512S 150 120.5 150 124 106 124 507 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK151512T 150 120.5 150 124 106 124 508 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK162110S 160 100 210 134 86.6 184 563 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK162110T 160 100 210 134 86.6 184 721 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK162113S 160 130 210 134 116.5 184 630 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK162113T 160 130 210 134 116.5 184 639 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK162610S 160 100 260 135.1 86.6 235.1 728 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK162610T 160 100 260 135.1 86.6 235.1 738 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK162613S 160 130 260 134 116.6 234 805 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK162613T 160 130 260 134 116.6 234 825 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK172210S 170 105 220 144.9 90.8 194.9 664 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK172210T 170 105 220 144.9 90.8 194.9 681 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK172211S 170 110.5 220 144.9 96.1 194.9 664 Light gray / Munsell 5GY8.5/0.5 Discontinued - Sold out PDF DXF DWG
BCPK172211T 170 110.5 220 144.9 96.1 194.9 681 Transparent Discontinued - Sold out PDF DXF DWG
BCPK172711S 170 110.5 270 144.9 96.1 244.9 771 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK172711T 170 110.5 270 144.9 96.1 244.9 794 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK192810S 190 100.5 280 165.3 84.1 255.3 875 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK192810T 190 100.5 280 165.3 84.1 255.3 900 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK192814S 190 141 280 164.2 124.6 254.2 1065 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK192814T 190 140 280 164.2 124.6 254.2 1094 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK203013S 200 130 300 173.5 113.6 273.6 1090 Light gray / Munsell 5GY8.5/0.5 Discontinued - Sold out PDF DXF DWG
BCPK203013T 200 130 300 173.5 113.6 273.6 1119 Transparent Discontinued - Sold out PDF DXF DWG
BCPK203013SN 200 130 300 173.2 114 273.2 1090 Light gray / Munsell 5GY8.5/0.5 Soon to be available. PDF DXF DWG
BCPK203013TN 200 130 300 173.2 114 273.2 1097 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK203015S 200 150 300 173.5 133.6 273.5 1182 Light gray / Munsell 5GY8.5/0.5 Discontinued - Sold out. PDF DXF DWG
BCPK203015T 200 151.5 300 173.5 135.1 273.5 1214 Transparent Discontinued - Sold out. PDF DXF DWG
BCPK203015SN 200 150 300 173.5 133.8 273.5 1179 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK203015TN 200 150 300 173.5 133.8 273.5 1178 Transparent BTO (built-to-order) 1 carton (12 pcs) PDF DXF DWG
BCPK203018S 200 180.5 300 172.4 164.1 273.5 1295 Light gray / Munsell 5GY8.5/0.5 Discontinued - Sold out. PDF DXF DWG
BCPK203018T 200 180.5 300 172.5 164.1 272.5 1330 Transparent Discontinued - Sold out. PDF DXF DWG
BCPK203018SN 200 180 300 172.5 163.8 272.5 1295 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK203018TN 200 180 300 172.5 163.8 272.5 1323 Transparent BTO (built-to-order) 1 carton (12 pcs) PDF DXF DWG
BCPK212110S 210 100 210 185.1 86.6 185.1 743 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK212110T 210 100 210 185.1 86.6 185.1 756 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK212113S 210 130 210 184 116.6 184 822 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK212113T 210 130 210 184 116.6 184 847 Transparent BTO (built-to-order) 1 carton (10 pcs) PDF DXF DWG
BCPK253515S 250 150 350 222.5 135.3 322.5 1559 Light gray / Munsell 5GY8.5/0.5 Discontinued - Sold out. PDF DXF DWG
BCPK253515T 250 150 350 222.5 135.3 322.5 1606 Transparent Discontinued - Sold out. PDF DXF DWG
BCPK253515SN 250 150 350 222.1 134 322.3 1513 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK253515TN 250 150 350 222.1 134 322.3 1510 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK253518S 250 181.5 350 222.5 163.8 322.5 1670 Light gray / Munsell 5GY8.5/0.5 Discontinued - Sold out. PDF DXF DWG
BCPK253518T 250 181.5 350 222.5 163.8 322.5 1720 Transparent Limited inventory. PDF DXF DWG
BCPK253518SN 250 180 350 222.5 163.8 322.5 1670 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK253518TN 250 180 350 222.5 163.8 322.5 1673 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK282813S 280 130.5 280 254 113.6 254 1391 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK282813T 280 130.5 280 254 113.6 254 1433 Transparent BTO (built-to-order) 1 carton (12 pcs) PDF DXF DWG
BCPK283813S 280 130 380 254 113.6 354 1811 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK283813T 280 130 380 254 113.6 354 1733 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK303015S 300 151 300 273 134.3 273 1670 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK303015T 300 151 300 273 134.3 273 1682 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK303018S 300 181 300 272.5 164.3 272.5 1782 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK303018T 300 181 300 272.5 164.3 272.5 1795 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK304012S 300 120 400 274.5 103.6 374.5 1858 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK304012T 300 121 400 274.5 103.6 374.5 1872 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK304015S 300 150 400 273.5 133.6 373.5 1912 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK304015T 300 150 400 273.5 133.6 373.5 1926 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK304018S 300 181 400 272.5 164.6 372.5 2083 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK304018T 300 181 400 272.5 164.6 372.5 2098 Transparent BTO (built-to-order) 1 carton (6 pcs) PDF DXF DWG
BCPK353515S 350 150 350 323.6 133.6 323.6 2067 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK353515T 350 150 350 323.6 133.6 323.6 1999 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK353518S 350 181 350 322.5 164.6 322.5 2175 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK353518T 350 181 350 322.5 164.6 322.5 2163 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK354512S 350 120 450 316.7 103.3 416.7 2442 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK354512T 350 120 450 316.7 103.3 416.7 2429 Transparent BTO (built-to-order) 1 carton (8 pcs) PDF DXF DWG
BCPK354516S 350 160 450 308.7 142.6 414.7 2863 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK354516T 350 160 450 308.7 142.6 414.7 2848 Transparent BTO (built-to-order) 1 carton (6 pcs) PDF DXF DWG
BCPK354520S 350 201 450 309.3 183.6 414.8 3156 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK354520T 350 201 450 309.3 183.6 414.8 3140 Transparent BTO (built-to-order) 1 carton (4 pcs) PDF DXF DWG
BCPK405016S 400 160 500 360.4 144 466.6 3149 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK405016T 400 160 500 360.4 144 466.6 3152 Transparent BTO (built-to-order) 1 carton (6 pcs) PDF DXF DWG
BCPK405020S 400 201 500 359.4 184 465.5 3725 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK405020T 400 201 500 359.4 184 465.5 3729 Transparent BTO (built-to-order) 1 carton (4 pcs) PDF DXF DWG
BCPK406018S 400 181 600 358.6 163.8 565.9 4159 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK406018T 400 181 600 358.6 163.8 565.9 4164 Transparent BTO (built-to-order) 1 carton (4 pcs) PDF DXF DWG
BCPK406023S 400 231 600 356.9 213.8 564.1 4639 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK406023T 400 231 600 356.9 213.8 564.1 4645 Transparent BTO (built-to-order) 1 carton (4 pcs) PDF DXF DWG
BCPK506018S 530 185 630 476.8 163.6 576.8 5339 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK506018T 530 185 630 476.8 163.6 576.8 6151 Transparent BTO (built-to-order) 1 carton (2pcs) PDF DXF DWG
BCPK506025S 530 255 630 474.6 233.6 574.6 7136 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK506025T 530 255 630 474.6 233.6 574.6 8220 Transparent BTO (built-to-order) 1 carton (2 pcs) PDF DXF DWG
BCPK507018S 530 188 730 477 166.1 677 7470 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK507025S 530 258 730 475 236 676.2 8260 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK608018S 630 188 830 575 165.6 777 9880 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG
BCPK608028S 630 288 830 573.5 265.8 773.5 11610 Light gray / Munsell 5GY8.5/0.5 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for HINGED PLASTIC BOX - BMP series
DETAILS
１

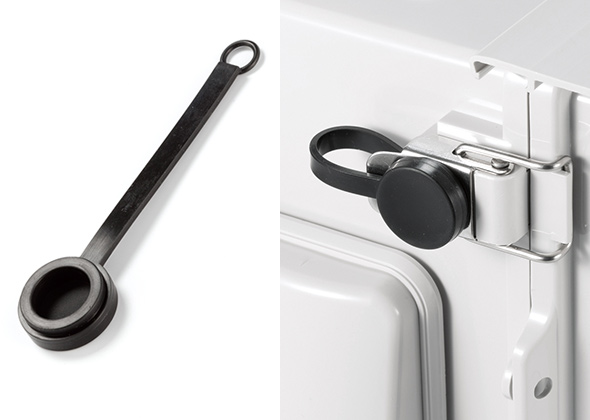

DUST PROTECTION CAP for BCPK series
DETAILS
１
MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series
DETAILS
１
STAINLESS STEEL BRACKET for HINGED BOX - CK series
DETAILS
１

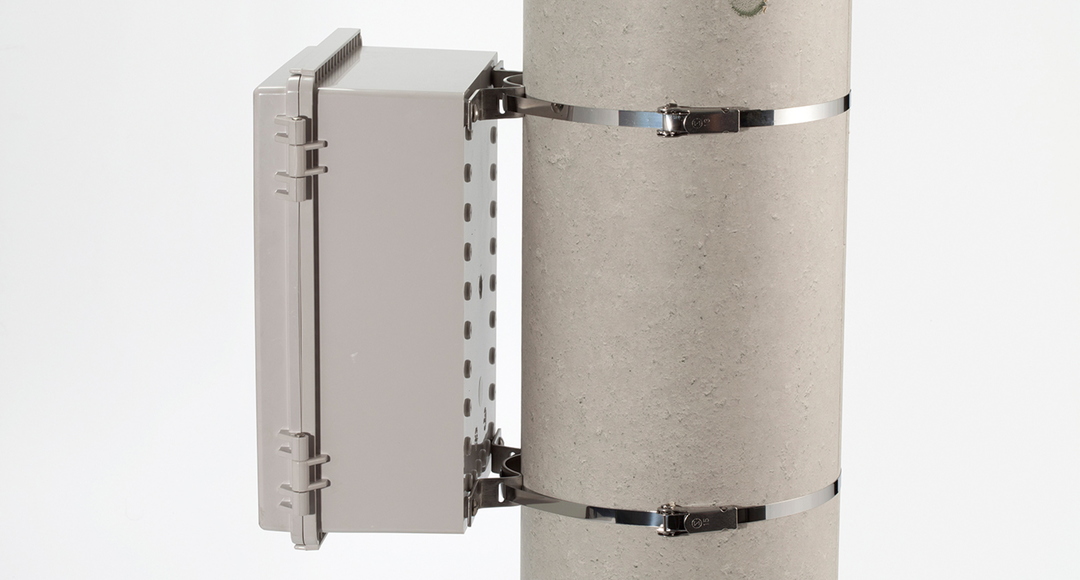

POLE MOUNT BRACKET for HINGED PLASTIC BOX
DETAILS
１
OUTDOOR ROOF for HINGED PLASTIC BOX
DETAILS
１
LOW-COST VENTILATION PLUG - CVP series
DETAILS
１
GORETEX PROTECTIVE VENT - PMF series
DETAILS
１
VENTILATION LOUVER - V series
DETAILS
１
DIN RAIL for BCAP・BCAR・BCPC・BCPK・BCPR series
DETAILS
１
POLYAMIDE CABLE GLAND - RM series
DETAILS
１
WEATHERPROOF CABLE GLAND - RMW series
DETAILS
１
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
１
STRAIN RELIEF CABLE GLAND - RSP series
DETAILS

SIMILAR PRODUCT

１
IP65 LATCH-HINGED POLYCARBONATE BOX - BCPC series
DETAILS
１
IP65 LATCH-HINGED ABS PLASTIC BOX - BCAP series
DETAILS
１
IP65 PLASTIC BOX with OUTDOOR ROOF - BCAR series
DETAILS
１
IP65 POLYCARBONATE BOX with OUTDOOR ROOF - BCPR series
DETAILS
１
IP65 HINGED STAINLESS STEEL BOX - SSM series
DETAILS
１
ALUMINIUM BOX WITH HINGED DOOR - FCW series
DETAILS
１
PROTECTOR CASE with KEY LOCK - NKK series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

High speed CNC milling

DETAILS

Laser marking

DETAILS

Digital inkjet printing

DETAILS
