IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series


UPC Series -PDF

CATEGORY:IP68 waterproof polycarbonate enclosure, Plastic enclosure with hinged door, Polycarbonate box, Ourdoor box, Plastic enclosure with hinged door, Electrical plastic enclosure

IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series1
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series2
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series3
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series4
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series5
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series6
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series7

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
UPC172213G 172 134 223 134.8 104.9 118 1026 PDF DXF DWG
UPC232818G 225 185 276 185.8 155.7 169 1736 PDF DXF DWG
UPC283318G 276 185 326 236.8 155.7 219 2204 PDF DXF DWG
UPC333818G 326 185 377 286.8 155.7 270 2866 PDF DXF DWG
UPC384323G 378 235 429 337.8 206.5 321 3829 PDF DXF DWG
UPC434829G 431 286 482 388.8 257.3 372 4902 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG STP
UMP1722 PDF DXF DWG
UMP2328 PDF DXF DWG
UMP2833 PDF DXF DWG
UMP3338 PDF DXF DWG
UMP3843 PDF DXF DWG
UMP4348 PDF DXF DWG

OPTIONAL PARTS

1
Mounting plate for UPC
DETAILS
1
OMS-1 MOUNTING SCREW for UPC
DETAILS
1

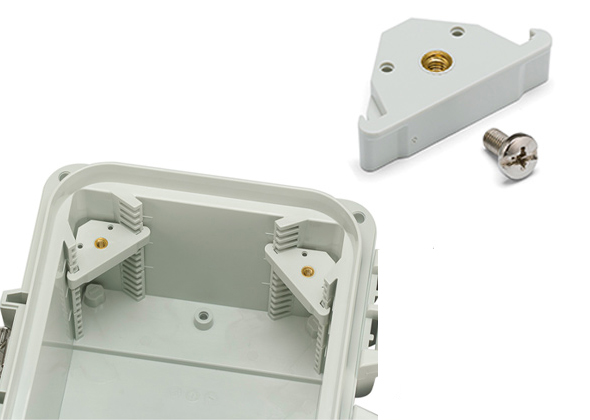

UEL-1 MOUNTING PLATE CORNER BRACKET for UPC
DETAILS
1

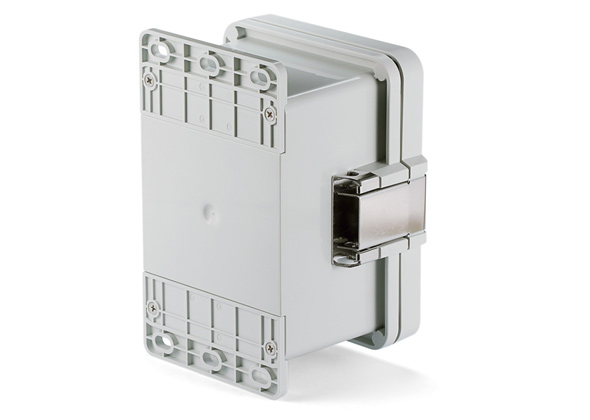

Wall Mounting bracket for UPC
DETAILS
1
POLE MOUNTING BRACKET - WGMB-2SW
DETAILS
1
POLE MOUNTING BRACKET for UPC
DETAILS
1
HINGED INSPECTION WINDOW - IW series
DETAILS
1
GORETEX PROTECTIVE VENT - PMF series
DETAILS
1
LOW-COST VENTILATION PLUG - CVP series
DETAILS
1
VENTILATION LOUVER - V series
DETAILS
1

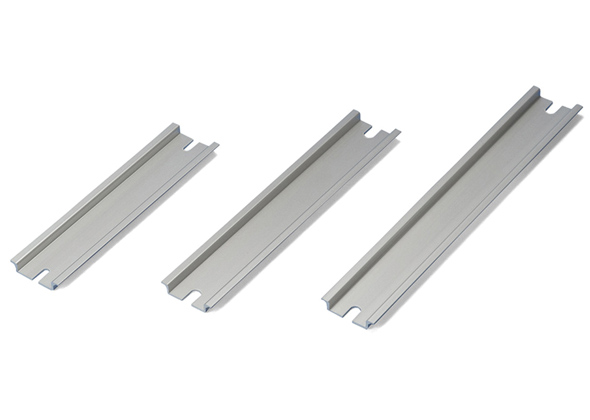

DIN RAIL - FDR series
DETAILS
1
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
1
WEATHERPROOF CABLE GLAND - RMW series
DETAILS
1
STRAIN RELIEF CABLE GLAND - RSP series
DETAILS
1
ADHESIVE STANDOFF - AST series
DETAILS
