19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series

AUPR Series -PDF

CATEGORY：Aluminum enclosure,19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series1

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series2

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series3

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series4

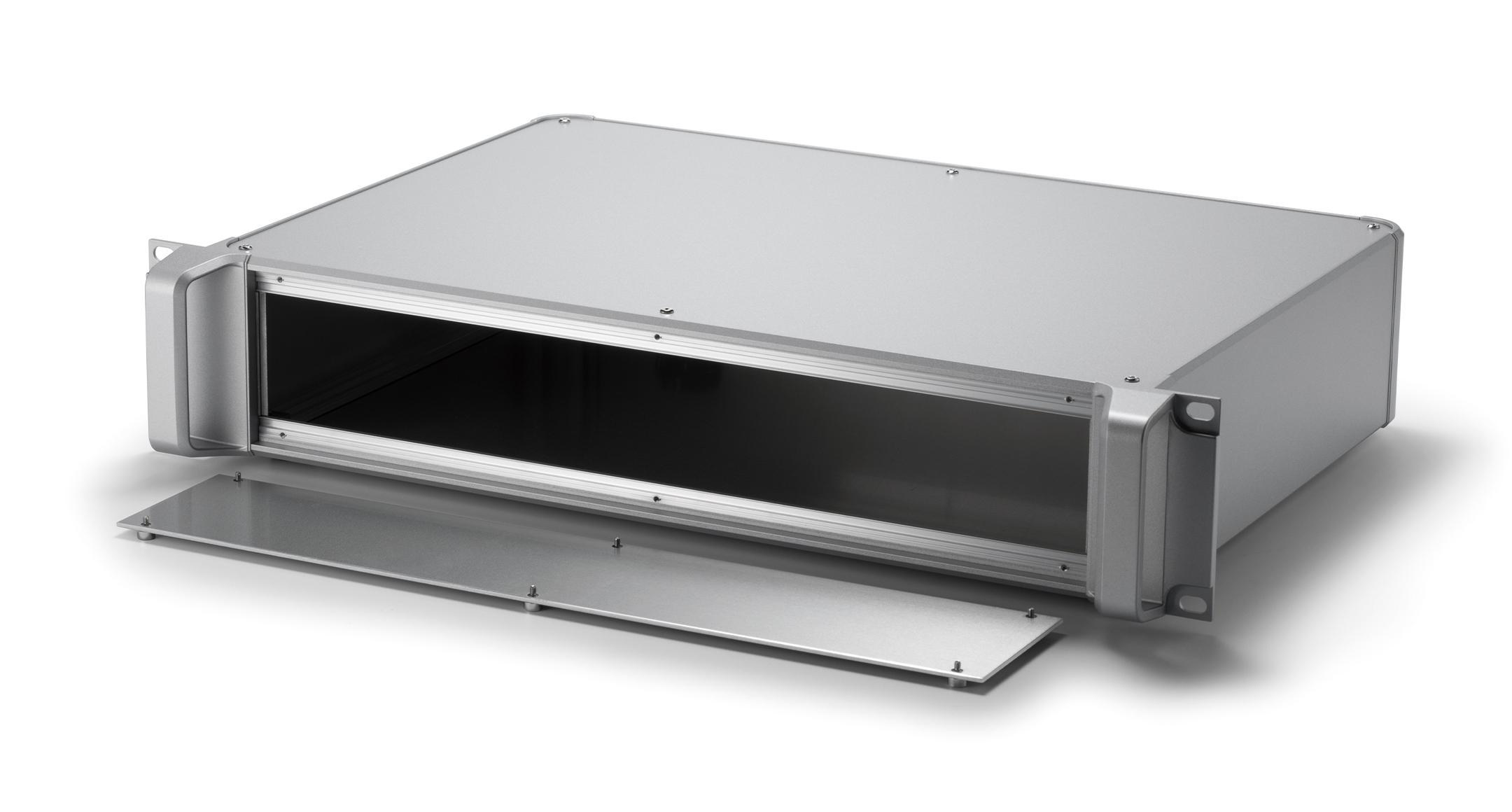

19” rack mount enclosure with detachable panels.
The inner surface is unfinished, allowing the enclosure to be conductive.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.

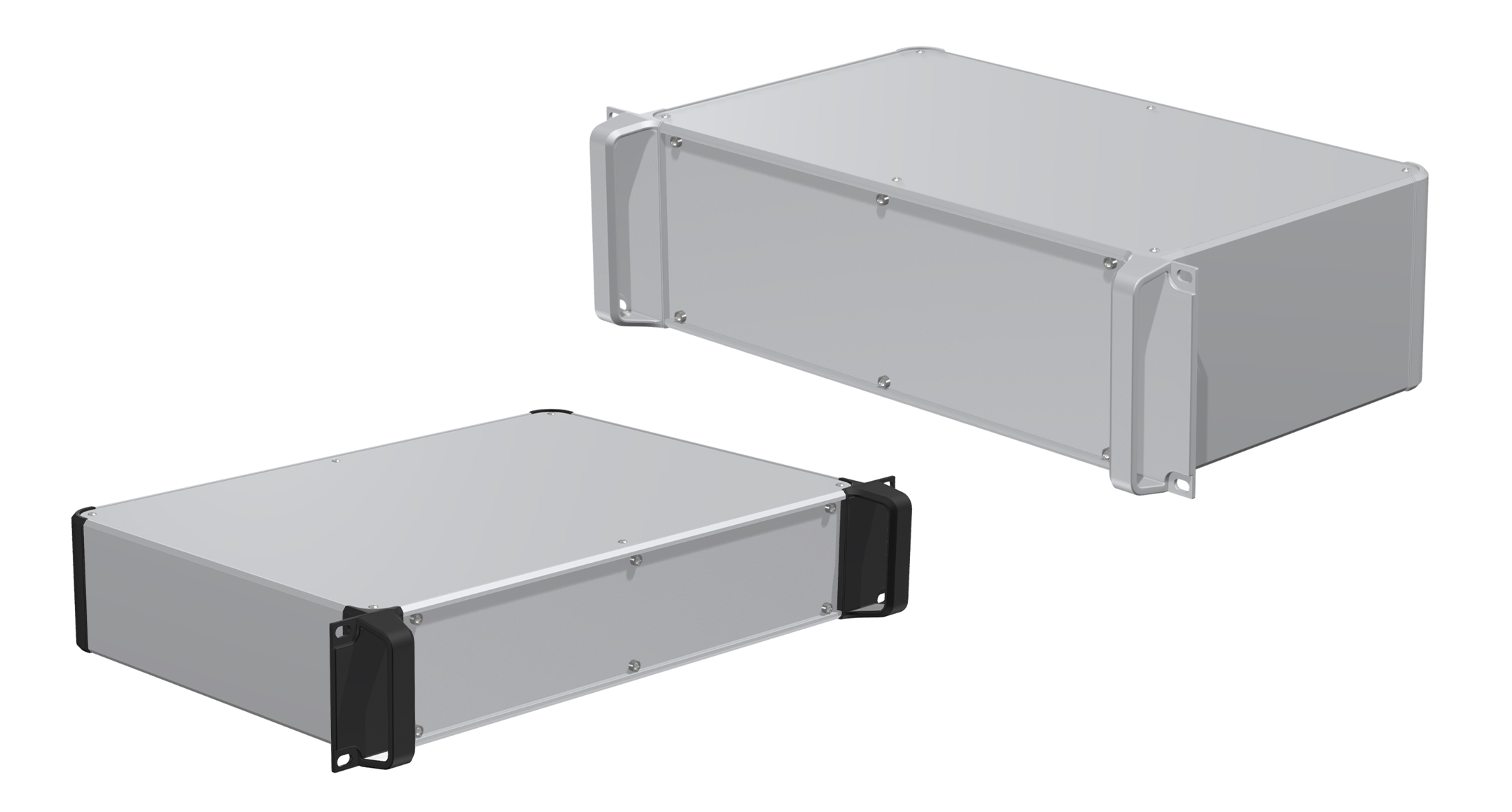

A large selection of 21 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.

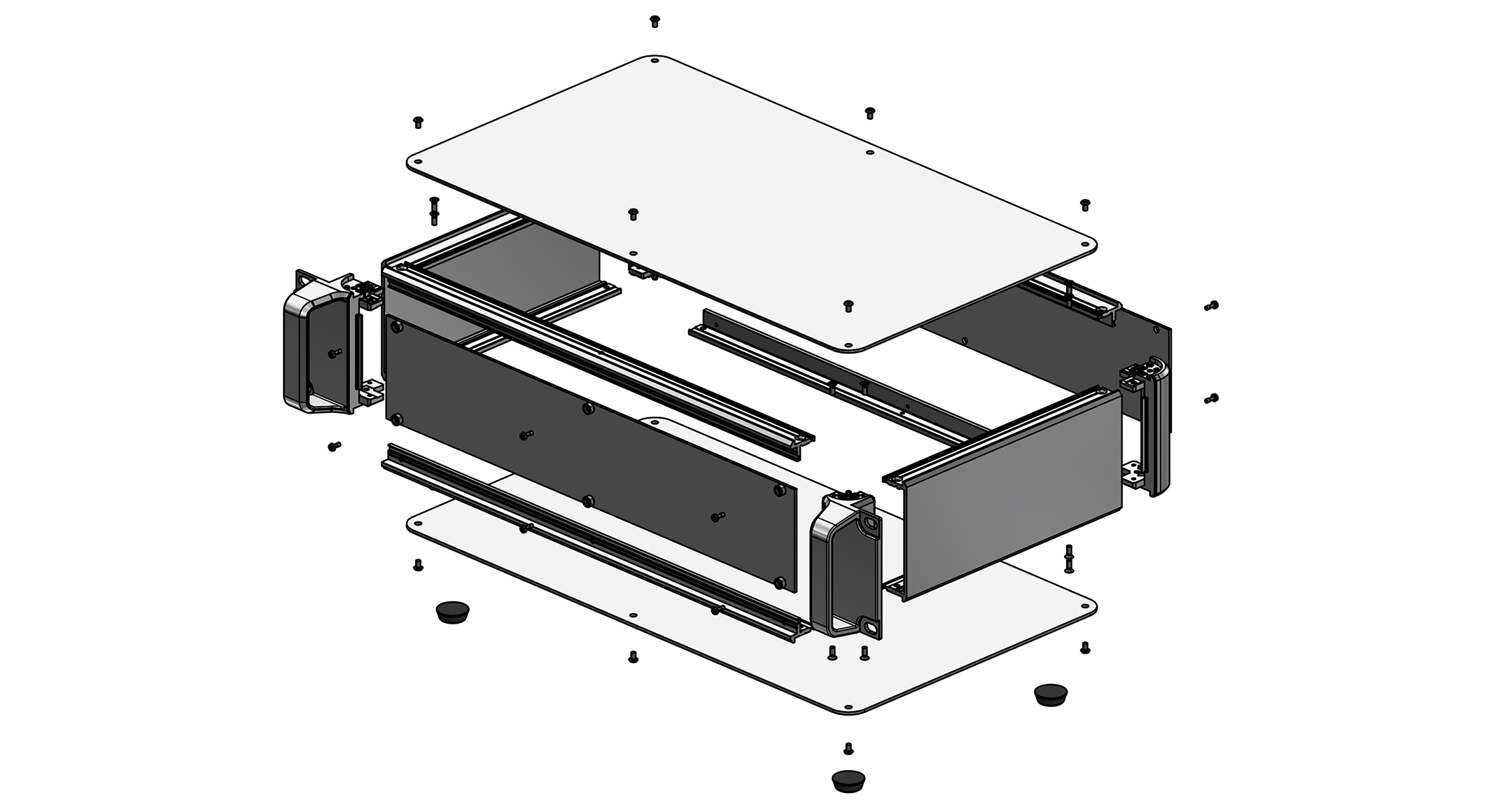

3Dview - AUPR88-43-30P-SB 3Dview - AUPR 133-43-25P-SS Exploded View

COLOR TYPE

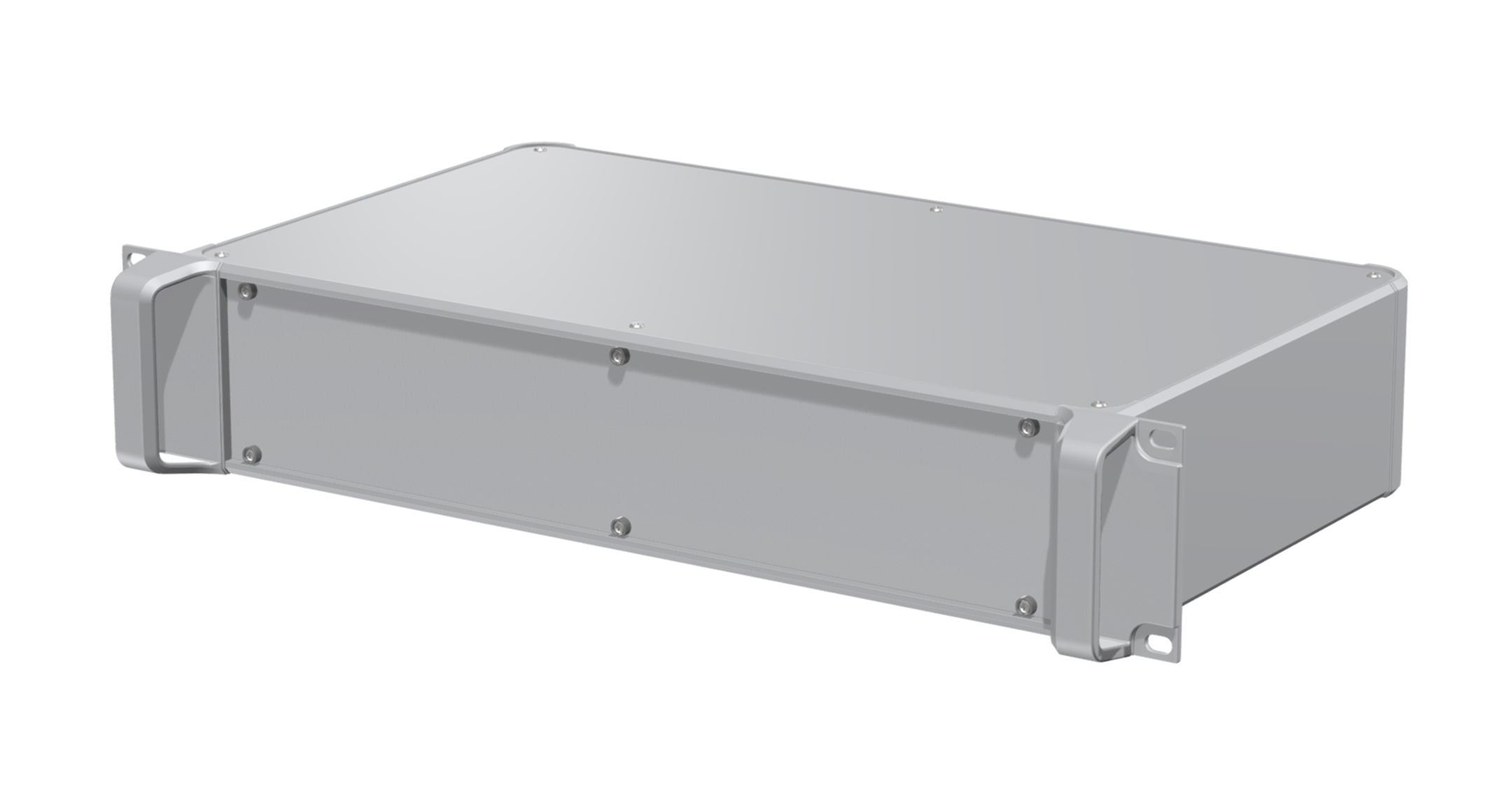

SSSilver/Silver(Handle・Corner block)

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series:Silver/Silver(Handle・Corner block)

SBSilver/Black(Handle・Corner block)

19” RACK MOUNT ENCLOSURE WITH DETACHABLE PANELS - AUPR series:Silver/Black(Handle・Corner block)

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Weight (kg)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Weight (kg)	PDF	DXF	DWG	STP
AUPR88-43-16□-□□	430	88	160	423	81	146	2.1	PDF	DXF	DWG
AUPR88-43-20□-□□	430	88	200	423	81	186	2.3	PDF	DXF	DWG
AUPR88-43-25□-□□	430	88	250	423	81	236	2.6	PDF	DXF	DWG
AUPR88-43-30□-□□	430	88	300	423	81	286	2.9	PDF	DXF	DWG
AUPR88-43-36□-□□	430	88	360	423	81	346	3.3	PDF	DXF	DWG
AUPR88-43-43□-□□	430	88	430	423	81	416	3.7	PDF	DXF	DWG
AUPR88-43-50□-□□	430	88	500	423	81	486	4.2	PDF	DXF	DWG
AUPR133-43-16□-□□	430	132.5	160	422	125.5	146	2.5	PDF	DXF	DWG
AUPR133-43-20□-□□	430	132.5	200	422	125.5	186	2.7	PDF	DXF	DWG
AUPR133-43-25□-□□	430	132.5	250	422	125.5	236	3.1	PDF	DXF	DWG
AUPR133-43-30□-□□	430	132.5	300	422	125.5	286	3.5	PDF	DXF	DWG
AUPR133-43-36□-□□	430	132.5	360	422	125.5	346	3.9	PDF	DXF	DWG
AUPR133-43-43□-□□	430	132.5	430	422	125.5	416	4.4	PDF	DXF	DWG
AUPR133-43-50□-□□	430	132.5	500	422	125.5	486	4.9	PDF	DXF	DWG
AUPR177-43-16□-□□	430	177	160	422	170	146	2.8	PDF	DXF	DWG
AUPR177-43-20□-□□	430	177	200	422	170	186	3.1	PDF	DXF	DWG
AUPR177-43-25□-□□	430	177	250	422	170	236	3.5	PDF	DXF	DWG
AUPR177-43-30□-□□	430	177	300	422	170	286	3.9	PDF	DXF	DWG
AUPR177-43-36□-□□	430	177	360	422	170	346	4.4	PDF	DXF	DWG
AUPR177-43-43□-□□	430	177	430	422	170	416	5	PDF	DXF	DWG
AUPR177-43-50□-□□	430	177	500	422	170	486	5.5	PDF	DXF	DWG

Mounting plate (Option)	PDF	DXF	DWG	STP
Mounting plate (Option)	PDF	DXF	DWG	STP
AUC43-16	PDF	DXF	DWG
AUC43-20	PDF	DXF	DWG
AUC43-25	PDF	DXF	DWG
AUC43-30	PDF	DXF	DWG
AUC43-36	PDF	DXF	DWG
AUC43-43	PDF	DXF	DWG
AUC43-50	PDF	DXF	DWG
AUC43-16	PDF	DXF	DWG
AUC43-20	PDF	DXF	DWG
AUC43-25	PDF	DXF	DWG
AUC43-30	PDF	DXF	DWG
AUC43-36	PDF	DXF	DWG
AUC43-43	PDF	DXF	DWG
AUC43-50	PDF	DXF	DWG
AUC43-16	PDF	DXF	DWG
AUC43-20	PDF	DXF	DWG
AUC43-25	PDF	DXF	DWG
AUC43-30	PDF	DXF	DWG
AUC43-36	PDF	DXF	DWG
AUC43-43	PDF	DXF	DWG
AUC43-50	PDF	DXF	DWG
