Custom sized aluminum utility box stylishly designed with the beveled edges, composed of extruded aluminum frames, aluminum panels and ABS corner joints.
Suitable for touch panel display, industrial control equipment, and various other devices.

Custom width / length(depth) from 75 to 1,000mm in 1mm intervals.
7 sizes of height can be selected：38・50・63・75・100・125・150ｍｍ
4 different color combinations can be specified.
CUSTOM SIZE WEB QUOTATION  3D View (Silver & Gray)  3D View (Black)  3D View (Silver & Black)  3D View (Black & Silver)  Exploded view 

COLOR TYPE

GSSilver/Gray

CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Silver/Gray

BSSilver/Black

CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Silver/Black

BXBlack/Silver

CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Black/Silver

BBBlack/Black

CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Black/Black
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Silver/Gray
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Silver/Black
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Black/Silver
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions PDF DXF DWG
W D H
FCS□-□-38 ・ W75-389mm, D75-389mm Available 75 to 389mm by 1mm intervals Available 75 to 389mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W75-389mm, D390-590mm Available 75 to 389mm by 1mm intervals Available 390 to 590mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W75-389mm, D591-1000mm Available 75 to 389mm by 1mm intervals Available 591 to 1000mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W390-590mm, D75-389mm Available 390 to 590mm by 1mm intervals Available 75 to 389mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W390-590mm, D390-590mm Available 390 to 590mm by 1mm intervals Available 390 to 590mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W390-590mm, D591-1000mm Available 390 to 590mm by 1mm intervals Available 591 to 1000mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W591-1000mm, D75-389mm Available 591 to 1000mm by 1mm intervals Available 75 to 389mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W591-1000mm, D390-590mm Available 591 to 1000mm by 1mm intervals Available 390 to 590mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-38 ・ W591-1000mm, D591-1000mm Available 591 to 1000mm by 1mm intervals Available 591 to 1000mm by 1mm intervals 38mm PDF DXF DWG
FCS□-□-50 ・ W75-399mm, D75-399mm Available 75 to 399mm by 1mm intervals Available 75 to 399mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W75-399mm, D400-600mm Available 75 to 399mm by 1mm intervals Available 400 to 600mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W75-399mm, D601-1000mm Available 75 to 399mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W400-600mm, D75-399mm Available 400 to 600mm by 1mm intervals Available 75 to 399mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W400-600mm, D400-600mm Available 400 to 600mm by 1mm intervals Available 400 to 600mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W400-600mm, D601-1000mm Available 400 to 600mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W601-1000mm, D75-399mm Available 601 to 1000mm by 1mm intervals Available 75 to 399mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W601-1000mm, D400-600mm Available 601 to 1000mm by 1mm intervals Available 400 to 600mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-50 ・ W601-1000mm, D601-1000mm Available 601 to 1000mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 50mm PDF DXF DWG
FCS□-□-63 ・ W75-399mm, D75-399mm Available 75 to 399mm by 1mm intervals Available 75 to 399mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W75-399mm, D400-600mm Available 75 to 399mm by 1mm intervals Available 400 to 600mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W75-399mm, D601-1000mm Available 75 to 399mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W400-600mm, D75-399mm Available 400 to 600mm by 1mm intervals Available 75 to 399mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W400-600mm, D400-600mm Available 400 to 600mm by 1mm intervals Available 400 to 600mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W400-600mm, D601-1000mm Available 400 to 600mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W601-1000mm, D75-399mm Available 601 to 1000mm by 1mm intervals Available 75 to 399mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W601-1000mm, D400-600mm Available 601 to 1000mm by 1mm intervals Available 400 to 600mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-63 ・ W601-1000mm, D601-1000mm Available 601 to 1000mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 63mm PDF DXF DWG
FCS□-□-75 ・ W75-399mm, D75-399mm Available 75 to 399mm by 1mm intervals Available 75 to 399mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W75-399mm, D400-600mm Available 75 to 399mm by 1mm intervals Available 400 to 600mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W75-399mm, D601-1000mm Available 75 to 399mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W400-600mm, D75-399mm Available 400 to 600mm by 1mm intervals Available 75 to 399mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W400-600mm, D400-600mm Available 400 to 600mm by 1mm intervals Available 400 to 600mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W400-600mm, D601-1000mm Available 400 to 600mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W601-1000mm, D75-399mm Available 601 to 1000mm by 1mm intervals Available 75 to 399mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W601-1000mm, D400-600mm Available 601 to 1000mm by 1mm intervals Available 400 to 600mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-75 ・ W601-1000mm, D601-1000mm Available 601 to 1000mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 75mm PDF DXF DWG
FCS□-□-100 ・ W75-399mm, D75-399mm Available 75 to 399mm by 1mm intervals Available 75 to 399mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W75-399mm, D400-600mm Available 75 to 399mm by 1mm intervals Available 400 to 600mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W75-399mm, D601-1000mm Available 75 to 399mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W400-600mm, D75-399mm Available 400 to 600mm by 1mm intervals Available 75 to 399mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W400-600mm, D400-600mm Available 400 to 600mm by 1mm intervals Available 400 to 600mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W400-600mm, D601-1000mm Available 400 to 600mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W601-1000mm, D75-399mm Available 601 to 1000mm by 1mm intervals Available 75 to 399mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W601-1000mm, D400-600mm Available 601 to 1000mm by 1mm intervals Available 400 to 600mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-100 ・ W601-1000mm, D601-1000mm Available 601 to 1000mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 100mm PDF DXF DWG
FCS□-□-125 ・ W75-399mm, D75-399mm Available 75 to 399mm by 1mm intervals Available 75 to 399mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W75-399mm, D400-600mm Available 75 to 399mm by 1mm intervals Available 400 to 600mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W75-399mm, D601-1000mm Available 75 to 399mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W400-600mm, D75-399mm Available 400 to 600mm by 1mm intervals Available 75 to 399mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W400-600mm, D400-600mm Available 400 to 600mm by 1mm intervals Available 400 to 600mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W400-600mm, D601-1000mm Available 400 to 600mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W601-1000mm, D75-399mm Available 601 to 1000mm by 1mm intervals Available 75 to 399mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W601-1000mm, D400-600mm Available 601 to 1000mm by 1mm intervals Available 400 to 600mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-125 ・ W601-1000mm, D601-1000mm Available 601 to 1000mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 125mm PDF DXF DWG
FCS□-□-150 ・ W75-399mm, D75-399mm Available 75 to 399mm by 1mm intervals Available 75 to 399mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W75-399mm, D400-600mm Available 75 to 399mm by 1mm intervals Available 400 to 600mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W75-399mm, D601-1000mm Available 75 to 399mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W400-600mm, D75-399mm Available 400 to 600mm by 1mm intervals Available 75 to 399mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W400-600mm, D400-600mm Available 400 to 600mm by 1mm intervals Available 400 to 600mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W400-600mm, D601-1000mm Available 400 to 600mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W601-1000mm, D75-399mm Available 601 to 1000mm by 1mm intervals Available 75 to 399mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W601-1000mm, D400-600mm Available 601 to 1000mm by 1mm intervals Available 400 to 600mm by 1mm intervals 150mm PDF DXF DWG
FCS□-□-150 ・ W601-1000mm, D601-1000mm Available 601 to 1000mm by 1mm intervals Available 601 to 1000mm by 1mm intervals 150mm PDF DXF DWG

OPTIONAL PARTS

１

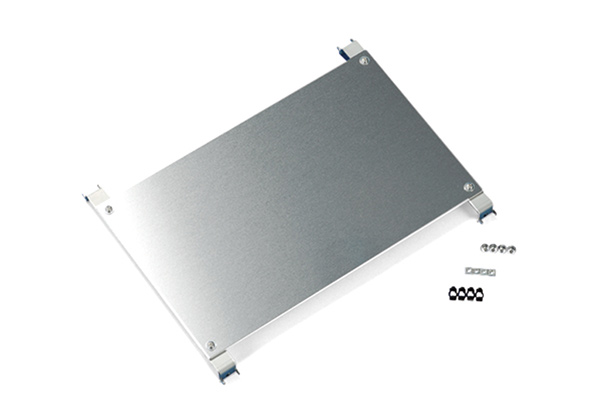

ALUMINIUM MOUNTING PLATE for FCS・FCWS - FCSC series
