CATEGORY：IP65 cable gland, PG thread cable gland, Polyamide cable gland, Cable clamp, Sealing connector, Box connector

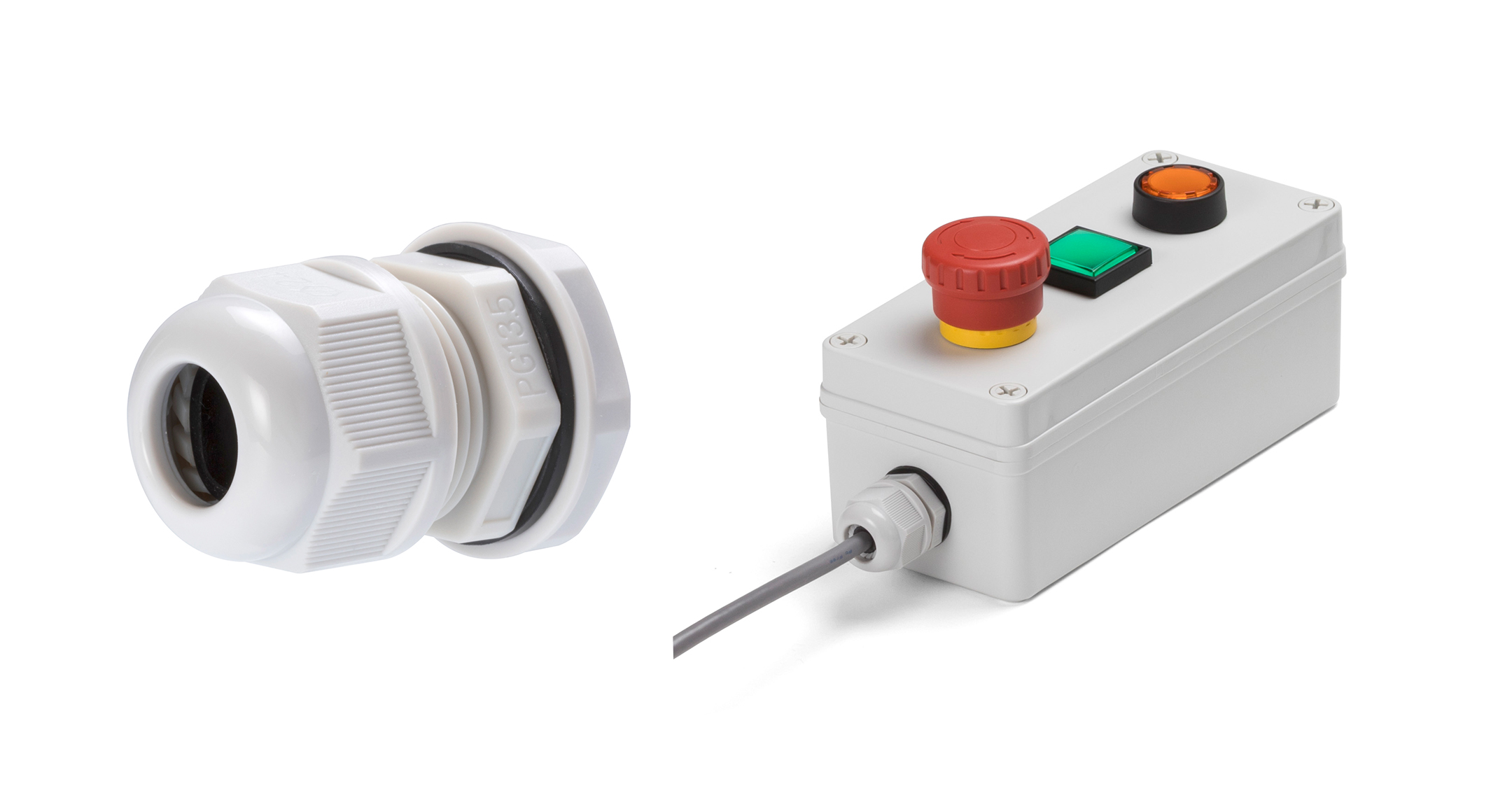

Exclusive cable gland for Φ22 knock-outs on BCSB series switch box.
The PG13.5 thread (Φ20.5) is a little smaller than Φ22 hole but is compatible for the Φ22 knock-out hole.
Install B131210G into the very center of the Φ22 knock-out hole.
Cable range：φ7mm～φ11mm
Suitable box：BCSB series
Protection class : IP65
Operating temperature : -20°C ~ +75°C
Color : Light gray (Similar to Munsell 5GY8.5/0.5)
Cap and connector are made from PA66 material, light gray color type.
Sealing insert and O-ring are made from NBR material, black color type.
The PG13.5 thread (Φ20.5) is a little smaller than Φ22 hole but is compatible for the Φ22 knock-out hole.
Install B131210G into the very center of the Φ22 knock-out hole.
Cable range：φ7mm～φ11mm
Suitable box：BCSB series
Protection class : IP65
Operating temperature : -20°C ~ +75°C
Color : Light gray (Similar to Munsell 5GY8.5/0.5)
Cap and connector are made from PA66 material, light gray color type.
Sealing insert and O-ring are made from NBR material, black color type.
PRODUCT NO. / DIMENSIONS
