WEATHERPROOF CABLE GLAND - RMW series


RMW Series -PDF

CATEGORY：Weatherproof cable gland, Waterproof cable grand, Polyamide cable gland, M thread cable gland, IP67 cable gland

WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series
WEATHERPROOF CABLE GLAND - RMW series1
WEATHERPROOF CABLE GLAND - RMW series2
WEATHERPROOF CABLE GLAND - RMW series3
WEATHERPROOF CABLE GLAND - RMW series4
WEATHERPROOF CABLE GLAND - RMW series5
WEATHERPROOF CABLE GLAND - RMW series6
WEATHERPROOF CABLE GLAND - RMW series7
WEATHERPROOF CABLE GLAND - RMW series8
WEATHERPROOF CABLE GLAND - RMW series9

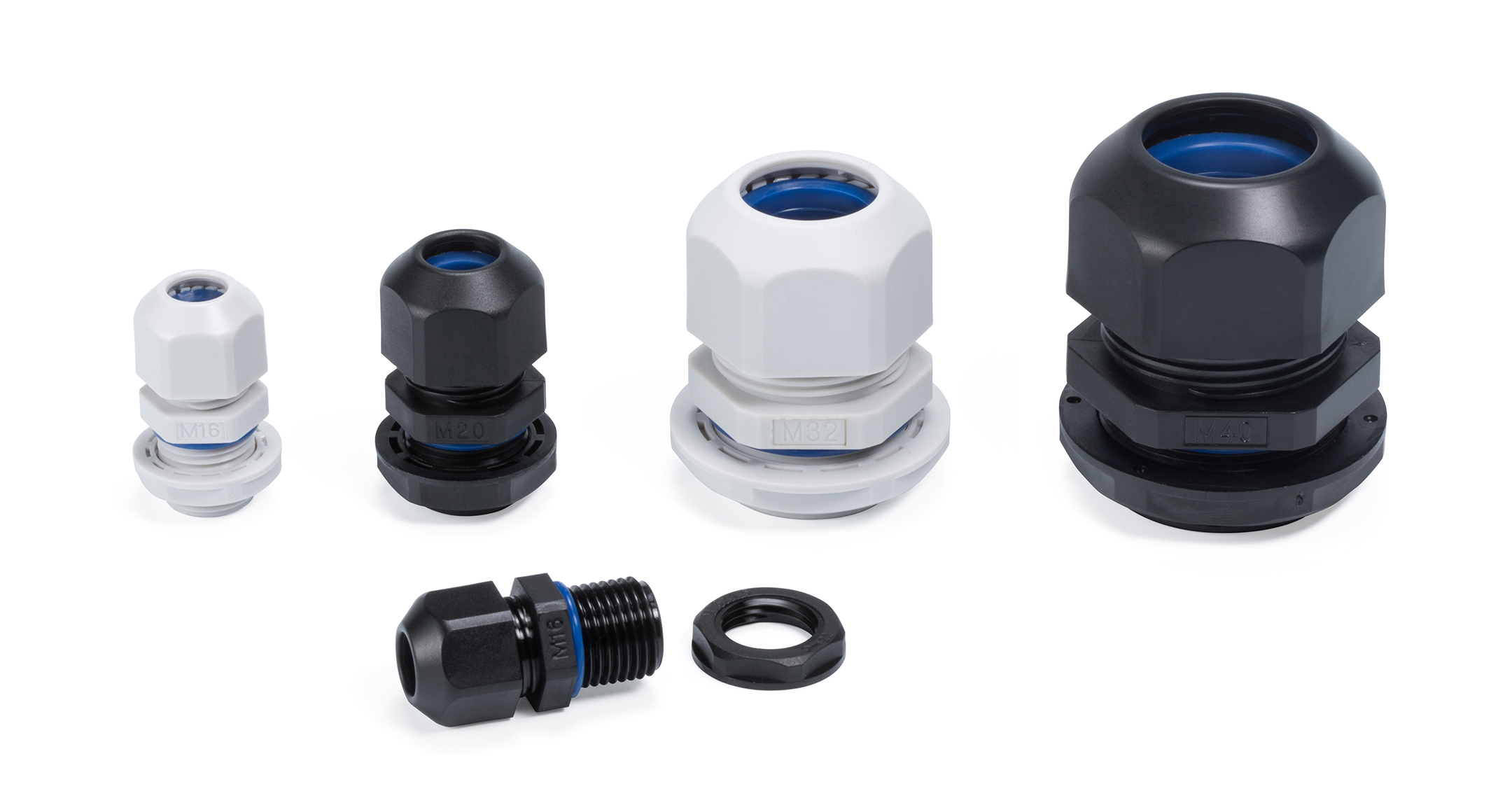

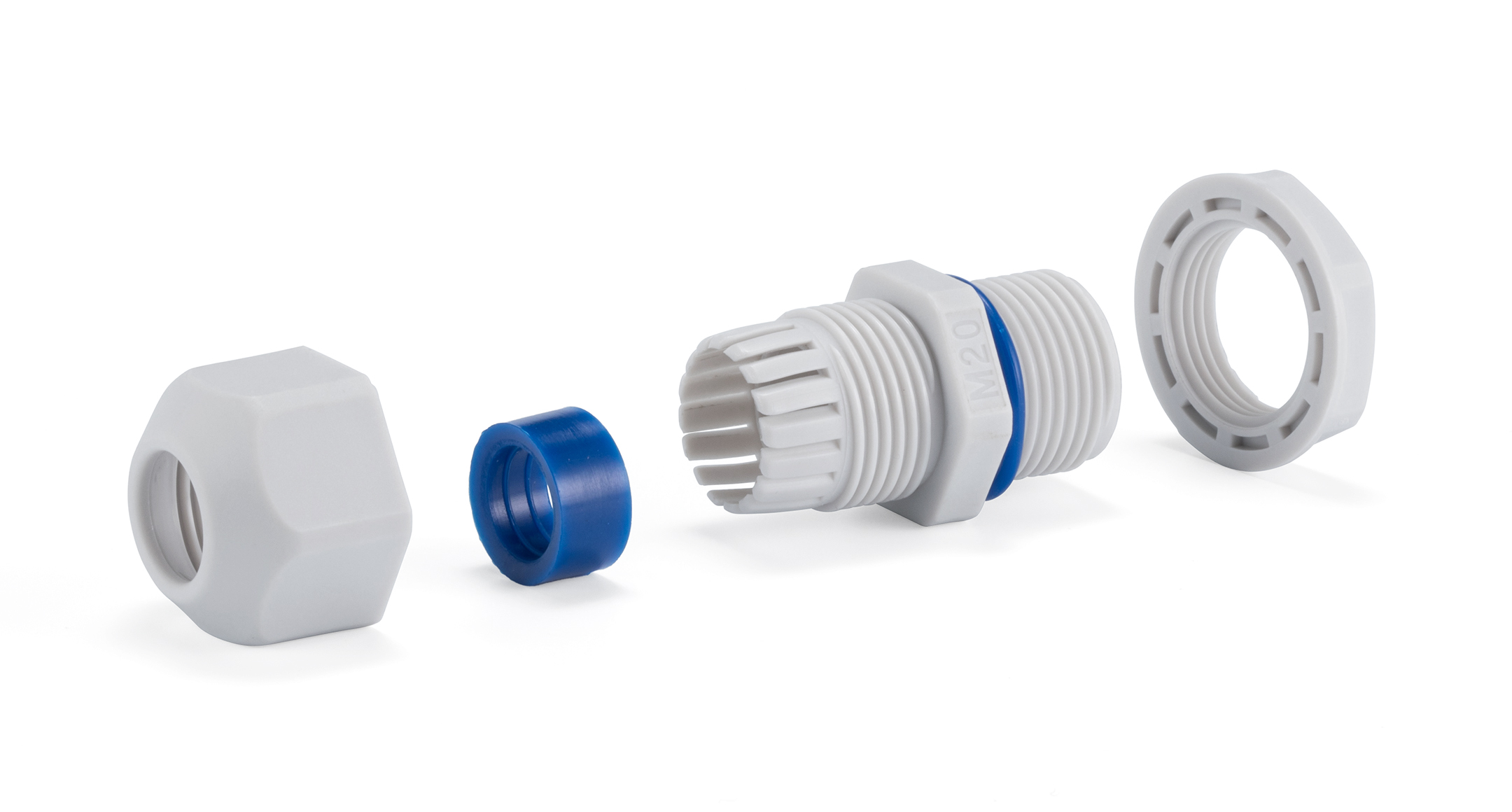

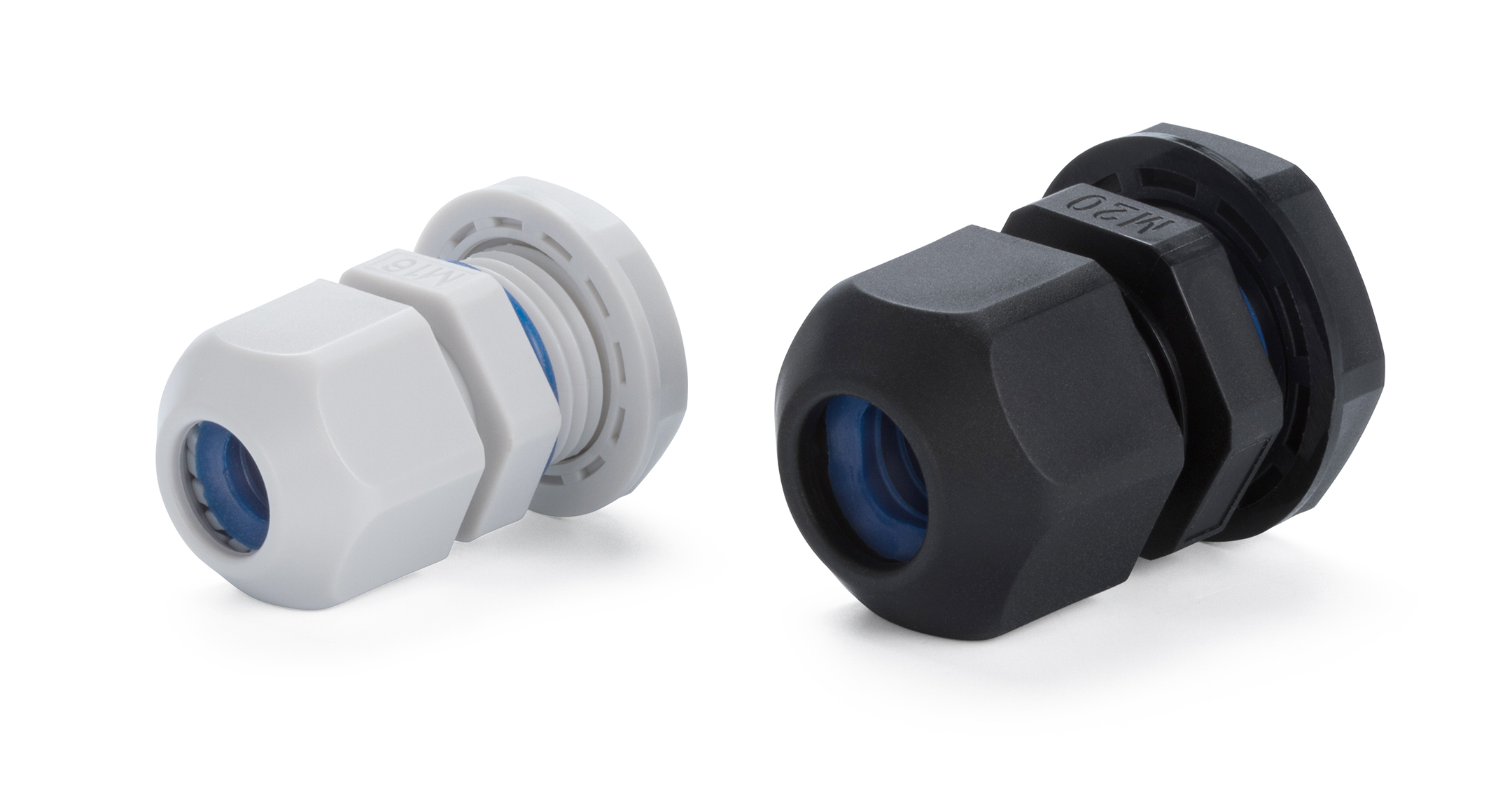

Weatherproof cable gland equipped with high ultraviolet and degradation resistant silicone sealing insert and O-ring.

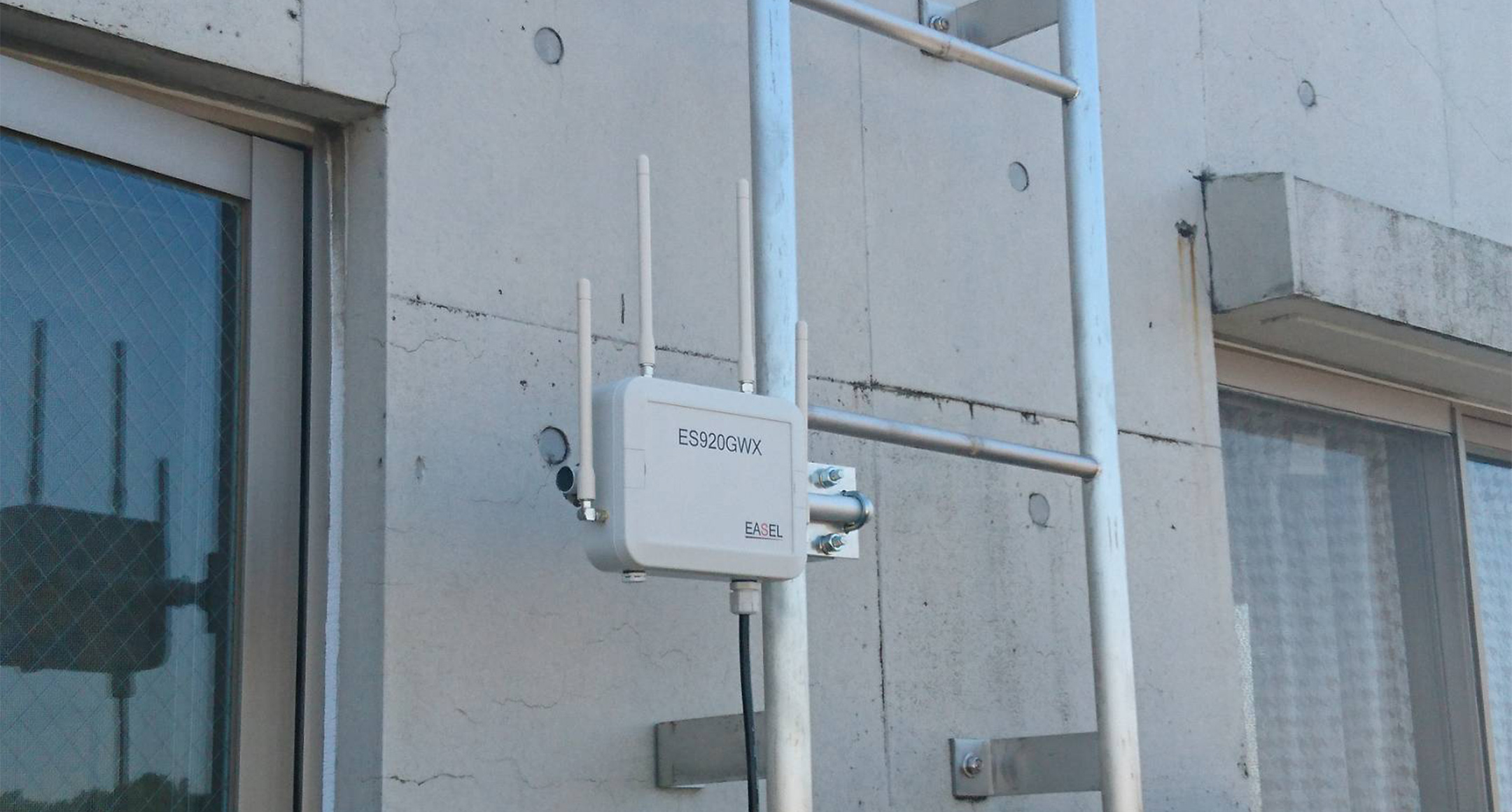

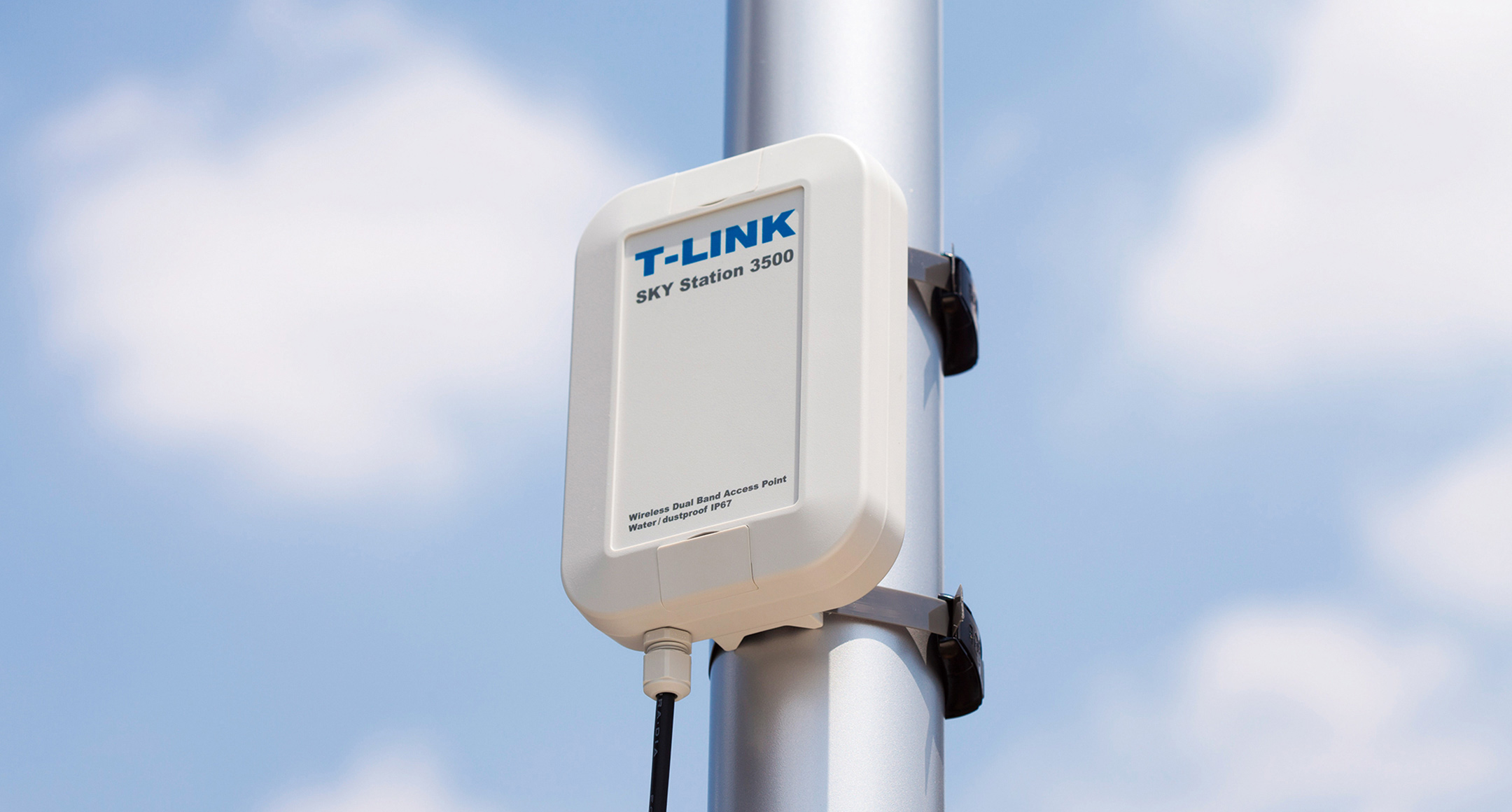

Recommended for long-term outdoor use.
Wide selection, for M8 ~ M50, suitable for Φ1mm ~ Φ38 mm cable.
IP67 protection class.

Protection class : IP67
Operating temperature : -20℃ ~ +80℃

100 pcs value pack is also available.
Recommended Torque REFERENCE TABLE 

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Color / Similar matching Weight (g) Pack of Sales status PDF DXF DWG
RMW8L-2.5B M8×1.25 φ8.2 φ1 - 2.5 mm Black / RAL9005 2.5 1 pcs PDF DXF DWG
RMW8L-2.5S M8×1.25 φ8.2 φ1 - 2.5 mm Light gray / RAL7035 2.5 1 pcs PDF DXF DWG
RMW8L-4B M8×1.25 φ8.2 φ2.5 - 4 mm Black / RAL9005 2.5 1 pcs PDF DXF DWG
RMW8L-4S M8×1.25 φ8.2 φ2.5 - 4 mm Light gray / RAL7035 2.5 1 pcs PDF DXF DWG
RMW10L-6B M10×1.5 φ10.2 φ3 - 6 mm Black / RAL9005 3.2 1 pcs PDF DXF DWG
RMW10L-6S M10×1.5 φ10.2 φ3 - 6 mm Light gray / RAL7035 3.2 1 pcs PDF DXF DWG
RMW10S-6B M10×1.5 - φ3 - 6 mm Black / RAL9005 2.2 1 pcs PDF DXF DWG
RMW10S-6S M10×1.5 - φ3 - 6 mm Light gray / RAL7035 2.2 1 pcs PDF DXF DWG
RMW12L-7B M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 4.4 1 pcs PDF DXF DWG
RMW12L-7S M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 4.4 1 pcs PDF DXF DWG
RMW12S-7B M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 4.2 1 pcs PDF DXF DWG
RMW12S-7S M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 4.2 1 pcs PDF DXF DWG
RMW16L-8B M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 6.9 1 pcs PDF DXF DWG
RMW16L-8S M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 6.9 1 pcs PDF DXF DWG
RMW16S-8B M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 6.4 1 pcs PDF DXF DWG
RMW16S-8S M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 6.4 1 pcs PDF DXF DWG
RMW20L-12B M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 12.2 1 pcs PDF DXF DWG
RMW20L-12S M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 12.2 1 pcs PDF DXF DWG
RMW20S-12B M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 11.7 1 pcs PDF DXF DWG
RMW20S-12S M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 11.7 1 pcs PDF DXF DWG
RMW25L-17B M25×1.5 φ25.2 φ11 - 17 mm Black / RAL9005 26.2 1 pcs PDF DXF DWG
RMW25L-17S M25×1.5 φ25.2 φ11 - 17 mm Light gray / RAL7035 26.2 1 pcs PDF DXF DWG
RMW32L-21B M32×1.5 φ32.3 φ13 - 21 mm Black / RAL9005 31.9 1 pcs PDF DXF DWG
RMW32L-21S M32×1.5 φ32.3 φ13 - 21 mm Light gray / RAL7035 31.9 1 pcs PDF DXF DWG
RMW40L-27B M40×1.5 φ40.3 φ18 - 27 mm Black / RAL9005 55.6 1 pcs PDF DXF DWG
RMW40L-27S M40×1.5 φ40.3 φ18 - 27 mm Light gray / RAL7035 55.6 1 pcs PDF DXF DWG
RMW50L-38B M50×1.5 φ50.4 φ27 - 38 mm Black / RAL9005 150.9 1 pcs PDF DXF DWG
RMW50L-38S M50×1.5 φ50.4 φ27 - 38 mm Light gray / RAL7035 150.9 1 pcs PDF DXF DWG
RMW8L-2.5B-P M8×1.25 φ8.2 φ1 - 2.5 mm Black / RAL9005 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RMW8L-2.5S-P M8×1.25 φ8.2 φ1 - 2.5 mm Light gray / RAL7035 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RMW8L-4B-P M8×1.25 φ8.2 φ2.5 - 4 mm Black / RAL9005 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RMW8L-4S-P M8×1.25 φ8.2 φ2.5 - 4 mm Light gray / RAL7035 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RMW10L-6B-P M10×1.5 φ10.2 φ3 - 6 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW10L-6S-P M10×1.5 φ10.2 φ3 - 6 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW12L-7B-P M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW12L-7S-P M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW12S-7B-P M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW12S-7S-P M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW16L-8B-P M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW16L-8S-P M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW16S-8B-P M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW16S-8S-P M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW20L-12B-P M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW20L-12S-P M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW20S-12B-P M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RMW20S-12S-P M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RMW25L-17B-P M25×1.5 φ25.2 φ11 - 17 mm Black / RAL9005 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RMW25L-17S-P M25×1.5 φ25.2 φ11 - 17 mm Light gray / RAL7035 - 100 pcs Discontinued - Sold out. PDF DXF DWG
