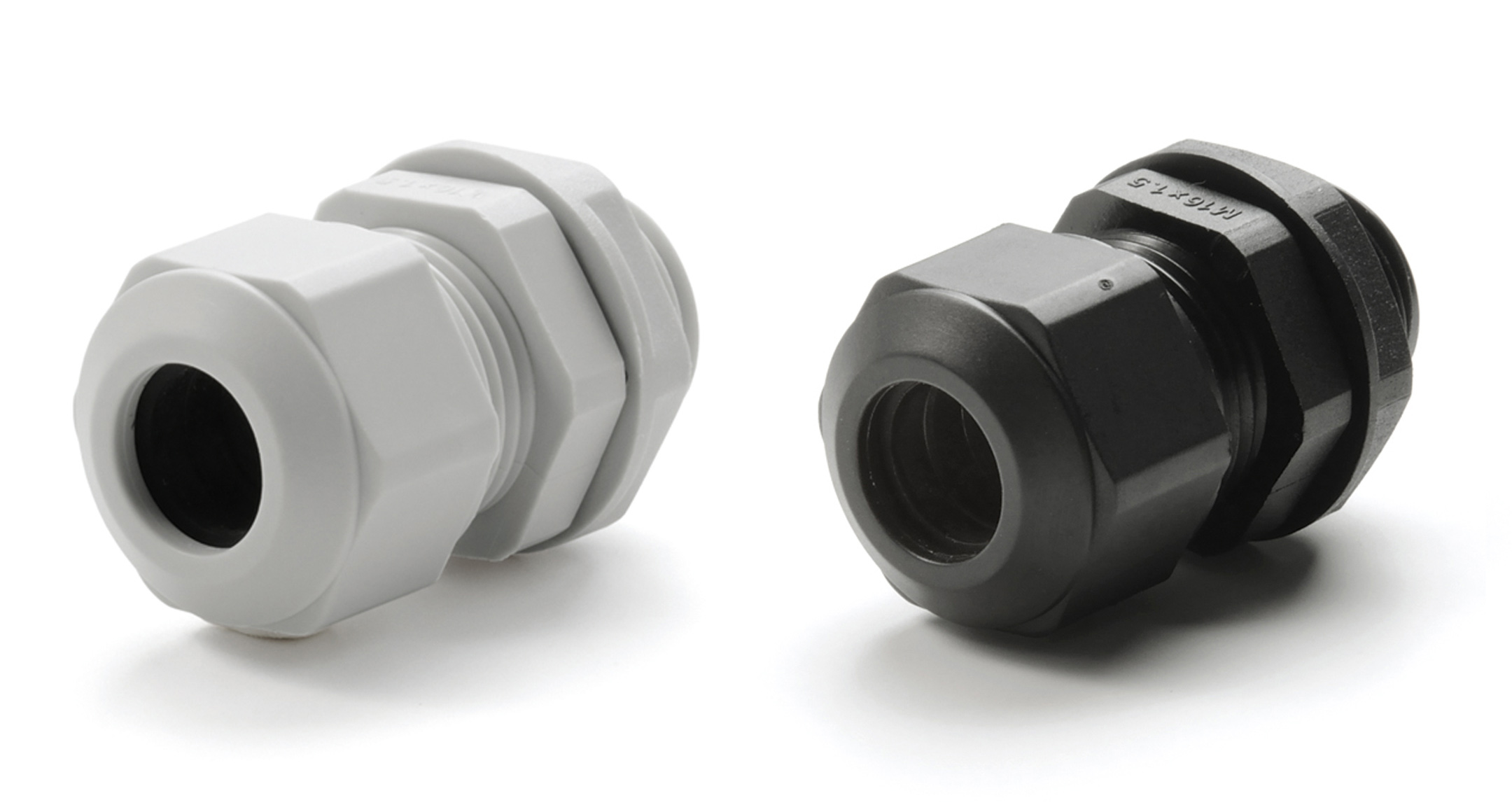

IP68 WATER PROTECTION CABLE GLAND - AG series


AG Series -PDF

CATEGORY：IP68 Cable gland, Waterproof cable gland, Nylon cable gland, Metric thread cable gland

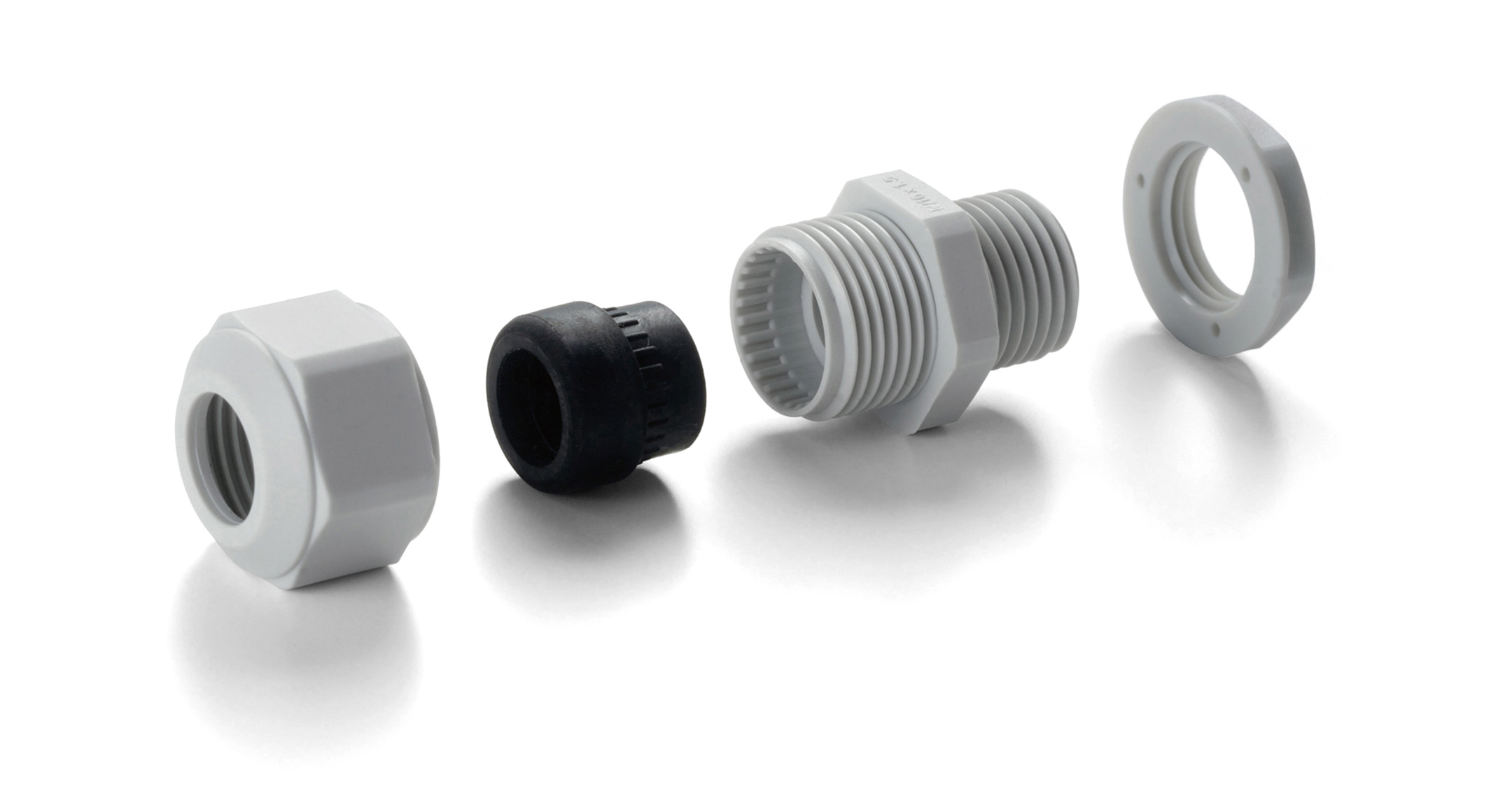

IP68 WATER PROTECTION CABLE GLAND - AG series
IP68 WATER PROTECTION CABLE GLAND - AG series
IP68 WATER PROTECTION CABLE GLAND - AG series
IP68 WATER PROTECTION CABLE GLAND - AG series
IP68 WATER PROTECTION CABLE GLAND - AG series
IP68 WATER PROTECTION CABLE GLAND - AG series1
IP68 WATER PROTECTION CABLE GLAND - AG series2
IP68 WATER PROTECTION CABLE GLAND - AG series3
IP68 WATER PROTECTION CABLE GLAND - AG series4
IP68 WATER PROTECTION CABLE GLAND - AG series5

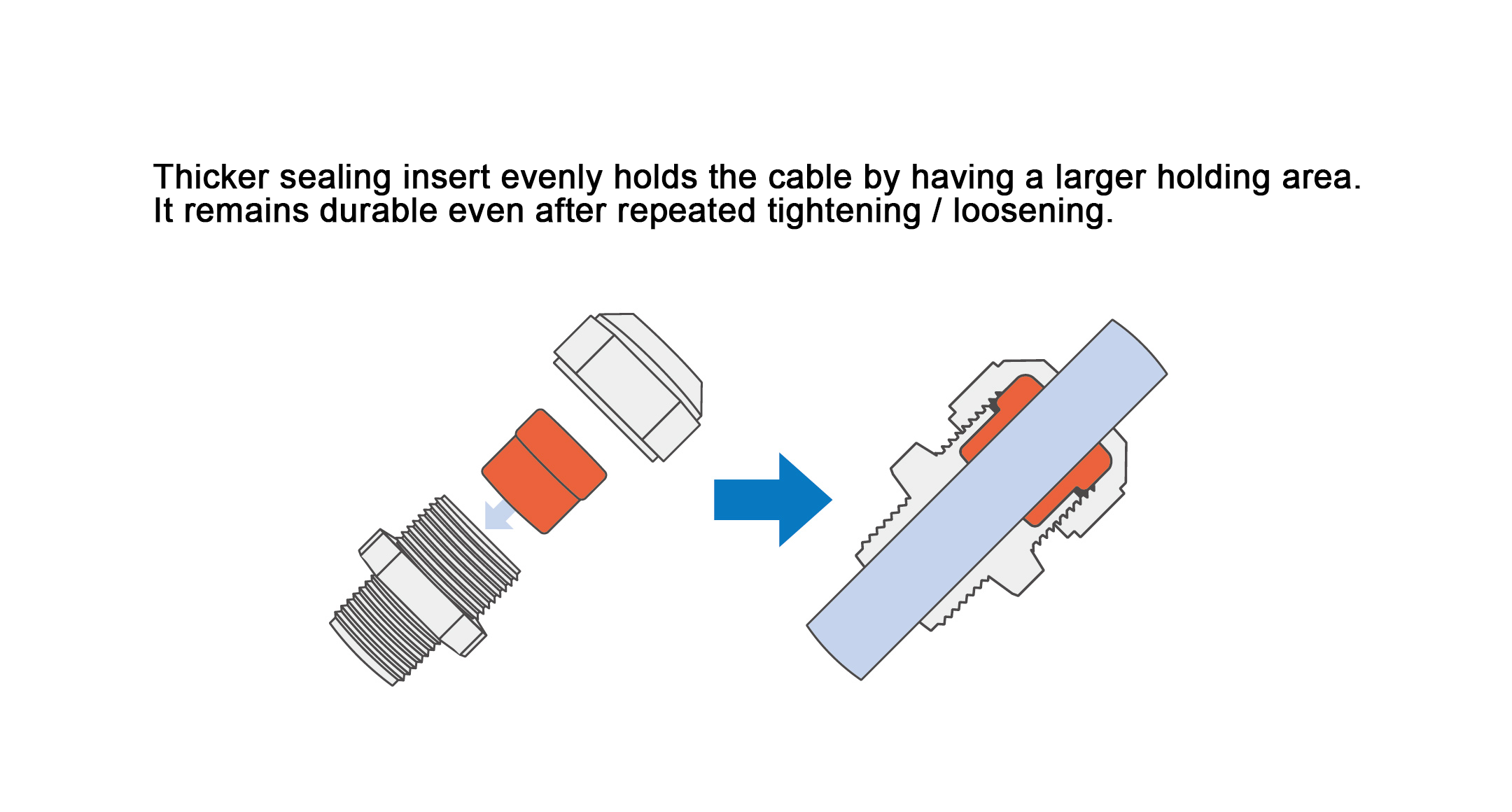

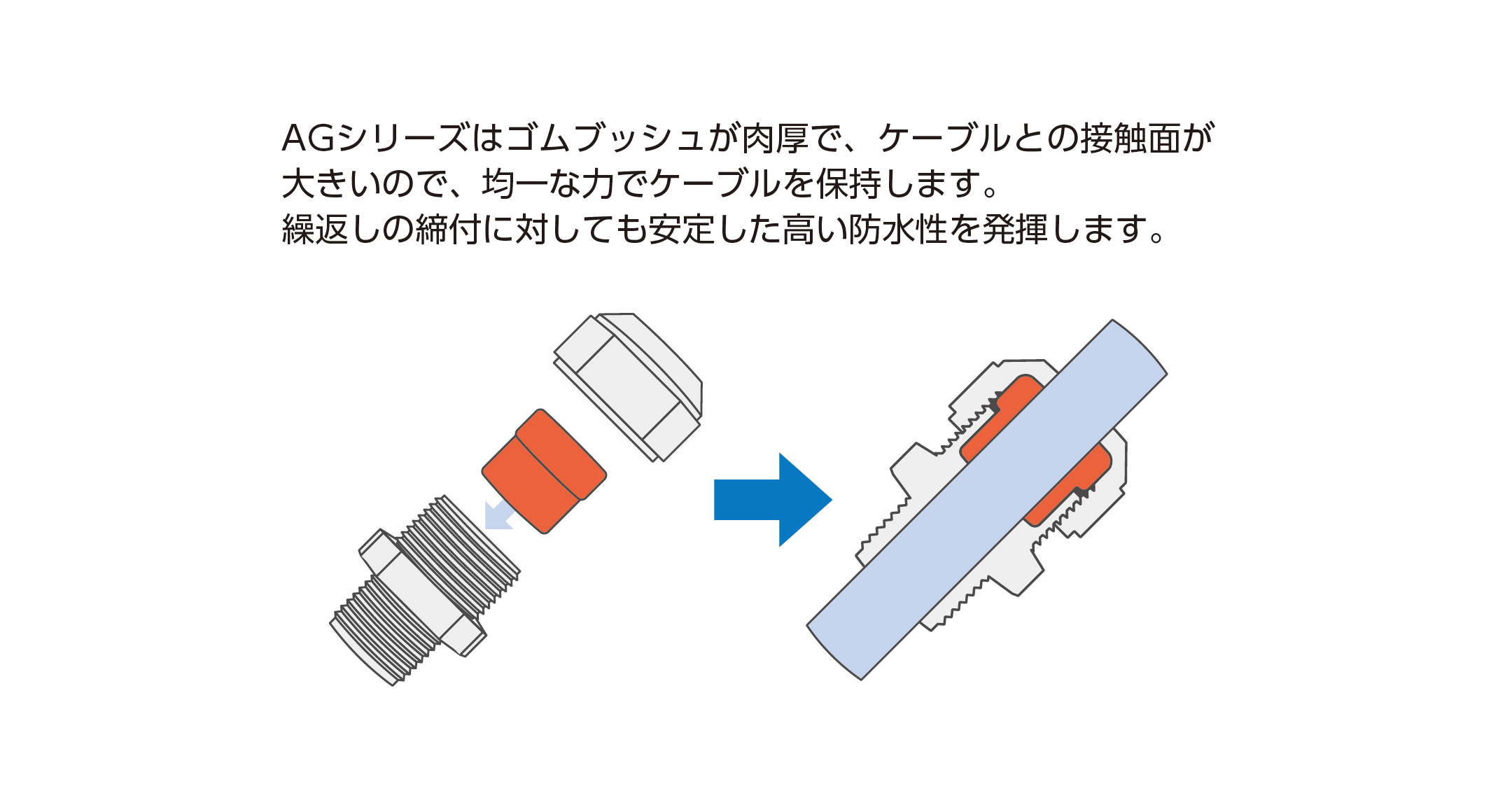

High water protection IP68 (1bar / 30min) polyamide cable gland.
Wide selection, for M8 - M50, suitable for Φ2.5mm - Φ42 mm cable.
Super tough and superior heat resistant PA6FG (glass fiber filled PA6) material on cap and connector.
Safer halogen free, eco-friendly product.

Protection class: IP68 1bar / 30min
Operating temperature: -20℃ ～ +100℃
Compliant with EN50262 Ver. A

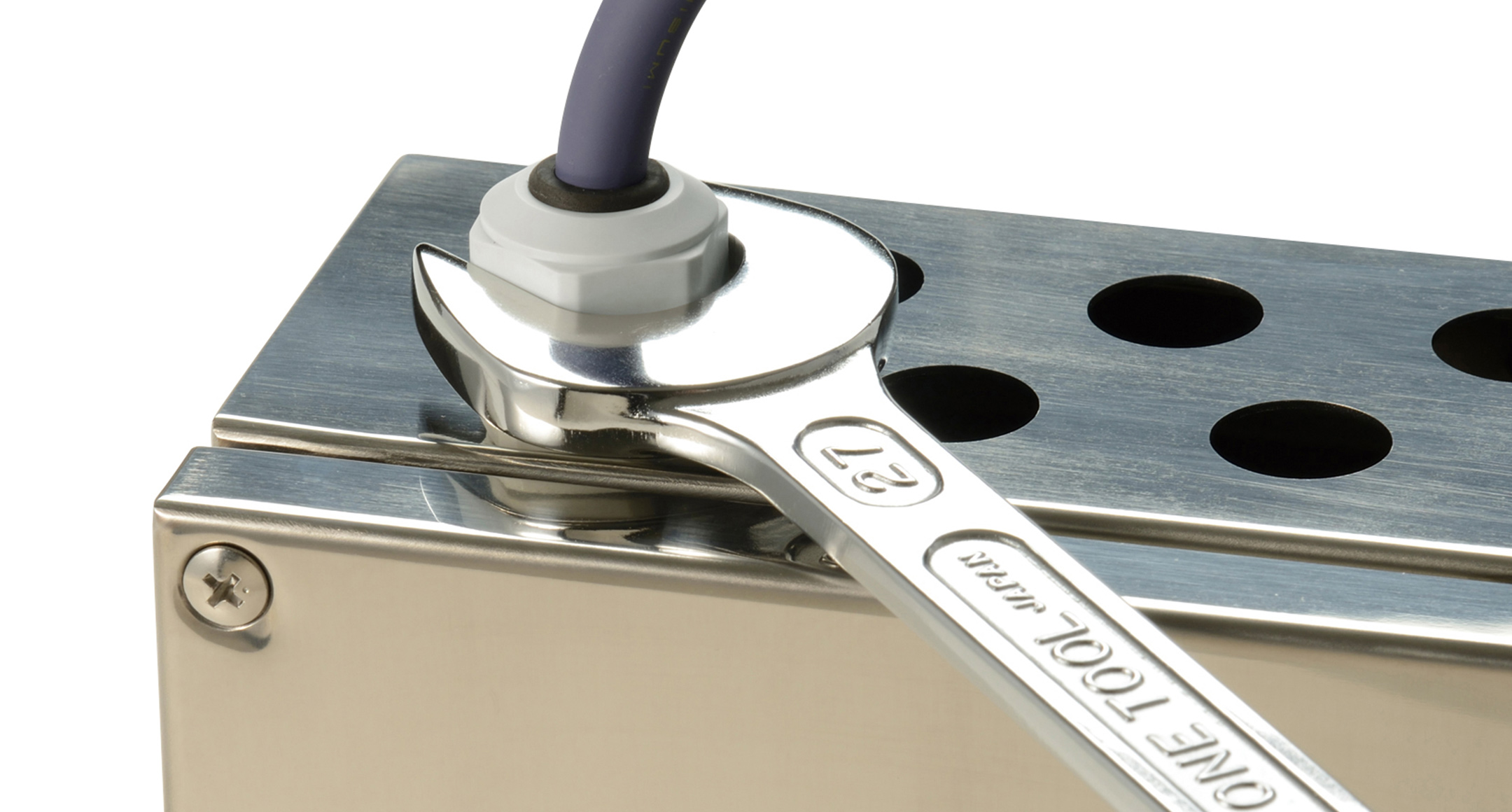

Recommended Torque REFERENCE TABLE 

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Color / Similar matching Weight (g) Pack of PDF DXF DWG
AG8-3.5B M8×1.0 M8 thread φ2.5 - 3.5 mm Black / RAL9005 2.2 1 pcs PDF DXF DWG
AG8-3.5S M8×1.0 M8 thread φ2.5 - 3.5 mm Light gray / RAL7035 2.2 1 pcs PDF DXF DWG
AG8-5B M8×1.0 M8 thread φ3.5 - 4.7 mm Black / RAL9005 2.1 1 pcs PDF DXF DWG
AG8-5S M8×1.0 M8 thread φ3.5 - 4.7 mm Light gray / RAL7035 2.1 1 pcs PDF DXF DWG
AG10-6B M10×1.0 M10 thread φ4 - 6 mm Black / RAL9005 3.7 1 pcs PDF DXF DWG
AG10-6S M10×1.0 M10 thread φ4 - 6 mm Light gray / RAL7035 3.7 1 pcs PDF DXF DWG
AG12-5B M12×1.5 φ12.2 φ3.5 - 4.7 mm Black / RAL9005 6.7 1 pcs PDF DXF DWG
AG12-5S M12×1.5 φ12.2 φ3.5 - 4.7 mm Light gray / RAL7035 6.7 1 pcs PDF DXF DWG
AG12-6.5B M12×1.5 φ12.2 φ5 - 6.5 mm Black / RAL9005 6.3 1 pcs PDF DXF DWG
AG12-6.5S M12×1.5 φ12.2 φ5 - 6.5 mm Light gray / RAL7035 6.3 1 pcs PDF DXF DWG
AG12-8B M12×1.5 φ12.2 φ6.5 - 7.8 mm Black / RAL9005 6 1 pcs PDF DXF DWG
AG12-8S M12×1.5 φ12.2 φ6.5 - 7.8 mm Light gray / RAL7035 6 1 pcs PDF DXF DWG
AG16-10B M16×1.5 φ16.2 φ8 - 10 mm Black / RAL9005 10 1 pcs PDF DXF DWG
AG16-10S M16×1.5 φ16.2 φ8 - 10 mm Light gray / RAL7035 10 1 pcs PDF DXF DWG
AG20-15B M20×1.5 φ20.2 φ11 - 15 mm Black / RAL9005 16 1 pcs PDF DXF DWG
AG20-15S M20×1.5 φ20.2 φ11 - 15 mm Light gray / RAL7035 16 1 pcs PDF DXF DWG
AG25-16B M25×1.5 φ25.2 φ12.5 - 16 mm Black / RAL9005 30.7 1 pcs PDF DXF DWG
AG25-16S M25×1.5 φ25.2 φ12.5 - 16 mm Light gray / RAL7035 30.7 1 pcs PDF DXF DWG
AG25-20B M25×1.5 φ25.2 φ16 - 20 mm Black / RAL9005 27.9 1 pcs PDF DXF DWG
AG25-20S M25×1.5 φ25.2 φ16 - 20 mm Light gray / RAL7035 27.9 1 pcs PDF DXF DWG
AG32-25.5B M32×1.5 φ32.3 φ21 - 25.5 mm Black / RAL9005 42.7 1 pcs PDF DXF DWG
AG32-25.5S M32×1.5 φ32.3 φ21 - 25.5 mm Light gray / RAL7035 42.7 1 pcs PDF DXF DWG
AG40-28.5B M40×1.5 φ40.3 φ24 - 28.5 mm Black / RAL9005 71.8 1 pcs PDF DXF DWG
AG40-28.5S M40×1.5 φ40.3 φ24 - 28.5 mm Light gray / RAL7035 71.8 1 pcs PDF DXF DWG
AG40-33B M40×1.5 φ40.3 φ28.5 - 33 mm Black / RAL9005 66.8 1 pcs PDF DXF DWG
AG40-33S M40×1.5 φ40.3 φ28.5 - 33 mm Light gray / RAL7035 66.8 1 pcs PDF DXF DWG
AG50-37B M50×1.5 φ50.4 φ33 - 37 mm Black / RAL9005 103.6 1 pcs PDF DXF DWG
AG50-37S M50×1.5 φ50.4 φ33 - 37 mm Light gray / RAL7035 103.6 1 pcs PDF DXF DWG
AG50-42B M50×1.5 φ50.4 φ37 - 42 mm Black / RAL9005 94.9 1 pcs PDF DXF DWG
AG50-42S M50×1.5 φ50.4 φ37 - 42 mm Light gray / RAL7035 94.9 1 pcs PDF DXF DWG
