POLYAMIDE CABLE GLAND - RM series


RM Series -PDF

CATEGORY：Waterproof cable gland, Nylon cable grand, Polyamide cable gland, M thread cable gland, IP67 cable gland, Conduit connector

POLYAMIDE CABLE GLAND - RM series
POLYAMIDE CABLE GLAND - RM series
POLYAMIDE CABLE GLAND - RM series

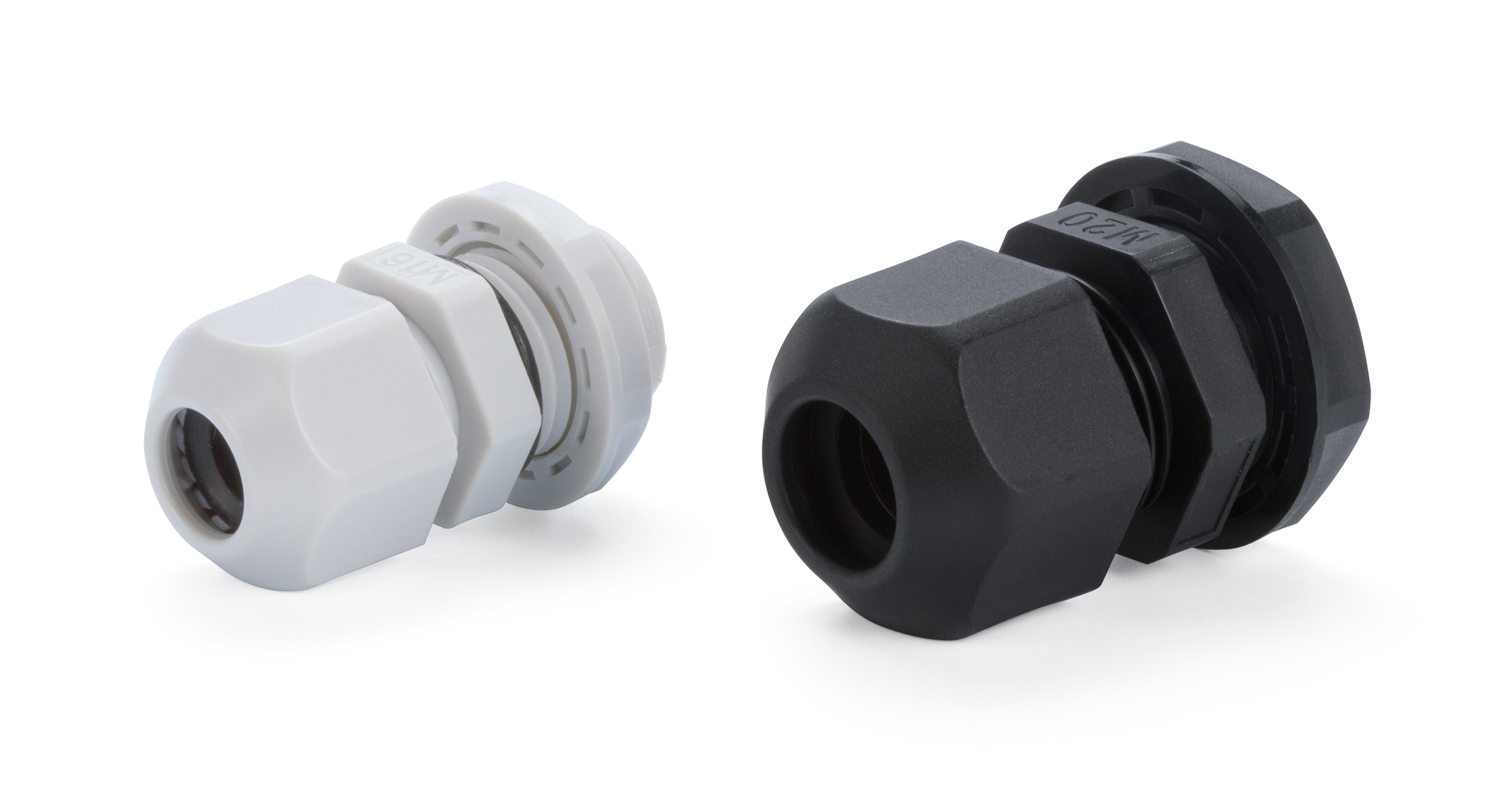

POLYAMIDE CABLE GLAND - RM series1

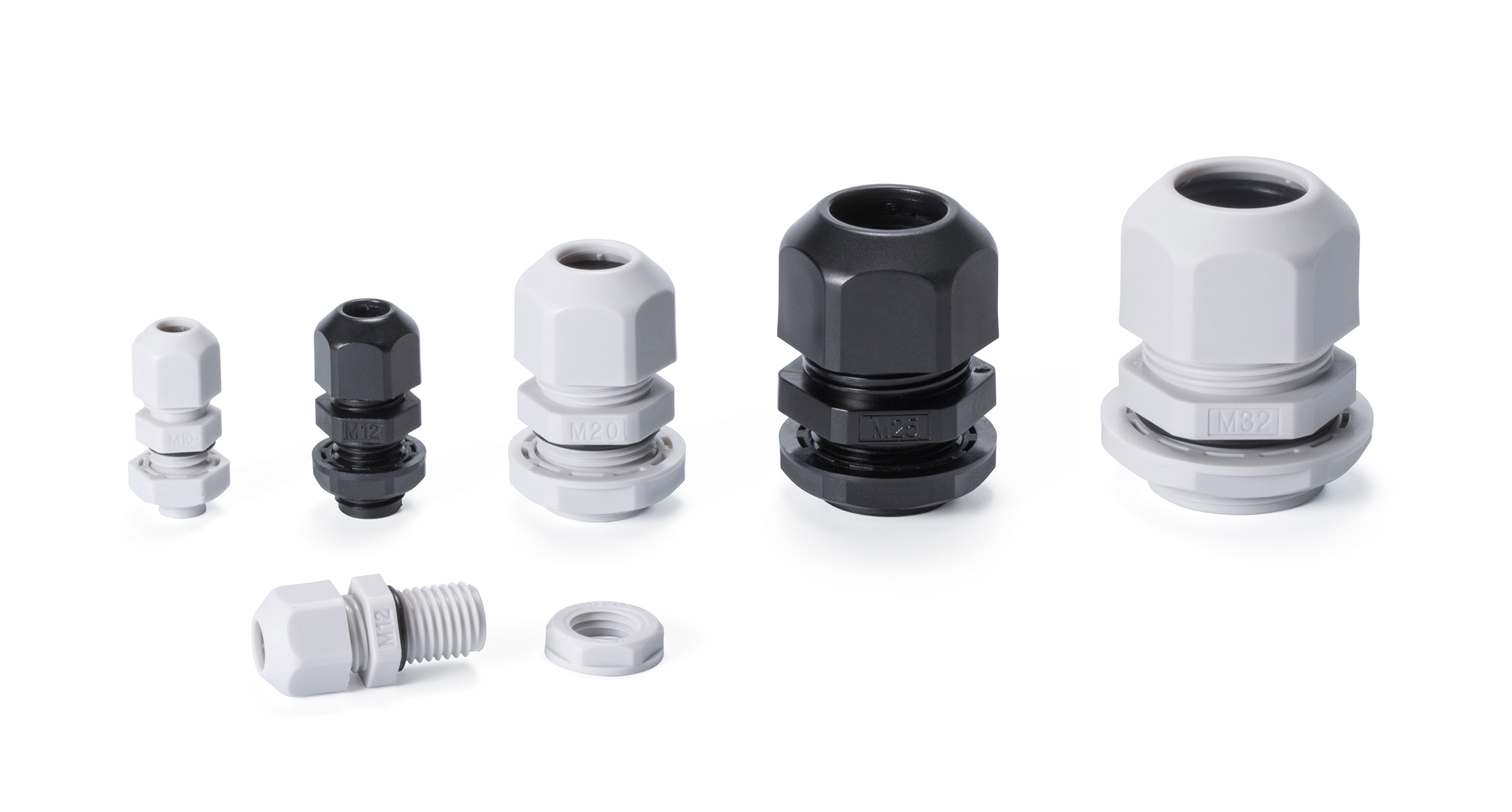

POLYAMIDE CABLE GLAND - RM series2

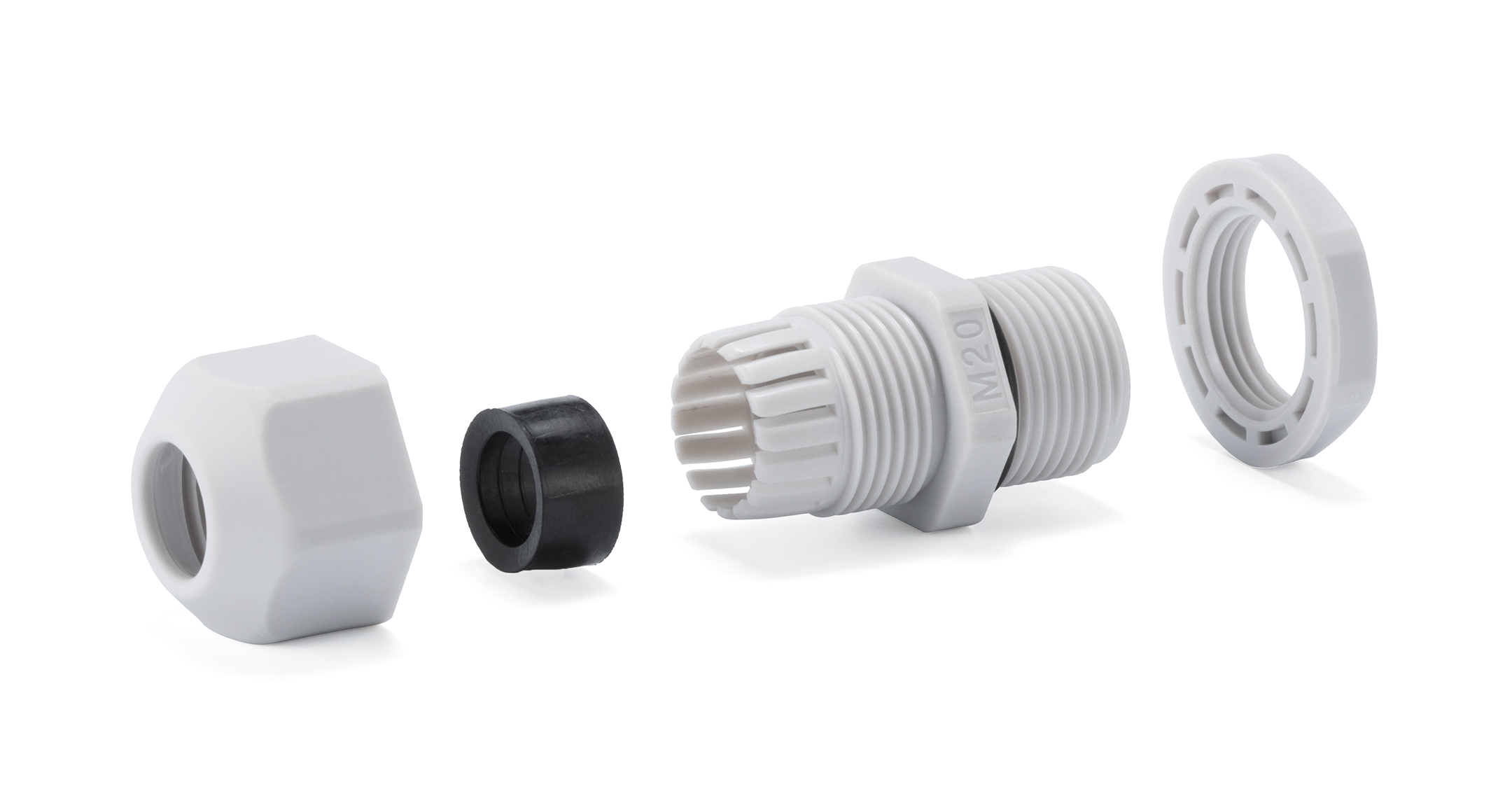

POLYAMIDE CABLE GLAND - RM series3
Low cost cable glands made from polyamide material.
Wide selection, for M8 ~ M63, suitable for Φ1mm ~ Φ44 mm cable.
High oil resistant NBR rubber sealing and O-ring.

Protection class : IP67
Operating temperature : -20℃ ~ +80℃

100 pcs value pack is also available.
Recommended Torque REFERENCE TABLE 

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Color / Similar matching Weight (g) Pack of Inventory status PDF DXF DWG
RM8L-2.5B M8×1.25 φ8.2 φ1 - 2.5 mm Black / RAL9005 2.7 1 pcs PDF DXF DWG
RM8L-2.5S M8×1.25 φ8.2 φ1 - 2.5 mm Light gray / RAL7035 2.7 1 pcs PDF DXF DWG
RM8S-2.5B M8×1.25 - φ1 - 2.5 mm Black / RAL9005 2 1 pcs PDF DXF DWG
RM8S-2.5S M8×1.25 - φ1 - 2.5 mm Light gray / RAL7035 2 1 pcs PDF DXF DWG
RM8L-4B M8×1.25 φ8.2 φ2.5 - 4 mm Black / RAL9005 2.5 1 pcs PDF DXF DWG
RM8L-4S M8×1.25 φ8.2 φ2.5 - 4 mm Light gray / RAL7035 2.5 1 pcs PDF DXF DWG
RM8S-4B M8×1.25 - φ2.5 - 4 mm Black / RAL9005 2.1 1 pcs PDF DXF DWG
RM8S-4S M8×1.25 - φ2.5 - 4 mm Light gray / RAL7035 2.1 1 pcs PDF DXF DWG
RM10L-6B M10×1.5 φ10.2 φ3 - 6 mm Black / RAL9005 3 1 pcs PDF DXF DWG
RM10L-6S M10×1.5 φ10.2 φ3 - 6 mm Light gray / RAL7035 3 1 pcs PDF DXF DWG
RM10S-6B M10×1.5 - φ3 - 6 mm Black / RAL9005 2.4 1 pcs PDF DXF DWG
RM10S-6S M10×1.5 - φ3 - 6 mm Light gray / RAL7035 2.4 1 pcs PDF DXF DWG
RM12L-7B M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 4.5 1 pcs PDF DXF DWG
RM12L-7S M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 4.5 1 pcs PDF DXF DWG
RM12S-7B M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 4.2 1 pcs PDF DXF DWG
RM12S-7S M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 4.2 1 pcs PDF DXF DWG
RM16L-8B M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 7 1 pcs PDF DXF DWG
RM16L-8S M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 7 1 pcs PDF DXF DWG
RM16S-8B M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 6.7 1 pcs PDF DXF DWG
RM16S-8S M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 6.7 1 pcs PDF DXF DWG
RM20L-12B M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 11.9 1 pcs PDF DXF DWG
RM20L-12S M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 11.9 1 pcs PDF DXF DWG
RM20S-12B M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 11.5 1 pcs PDF DXF DWG
RM20S-12S M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 11.5 1 pcs PDF DXF DWG
RM25L-17B M25×1.5 φ25.2 φ11 - 17 mm Black / RAL9005 25.5 1 pcs PDF DXF DWG
RM25L-17S M25×1.5 φ25.2 φ11 - 17 mm Light gray / RAL7035 25.5 1 pcs PDF DXF DWG
RM32L-21B M32×1.5 φ32.3 φ13 - 21 mm Black / RAL9005 31.6 1 pcs PDF DXF DWG
RM32L-21S M32×1.5 φ32.3 φ13 - 21 mm Light gray / RAL7035 31.6 1 pcs PDF DXF DWG
RM40L-27B M40×1.5 φ40.3 φ18 - 27 mm Black / RAL9005 56.2 1 pcs PDF DXF DWG
RM40L-27S M40×1.5 φ40.3 φ18 - 27 mm Light gray / RAL7035 56.2 1 pcs PDF DXF DWG
RM50L-38B M50×1.5 φ50.4 φ27 - 38 mm Black / RAL9005 107.7 1 pcs PDF DXF DWG
RM50L-38S M50×1.5 φ50.4 φ27 - 38 mm Light gray / RAL7035 107.7 1 pcs PDF DXF DWG
RM63L-44B M63×1.5 φ63.4 φ37 - 44 mm Black / RAL9005 136.2 1 pcs PDF DXF DWG
RM63L-44S M63×1.5 φ63.4 φ37 - 44 mm Light gray / RAL7035 136.2 1 pcs PDF DXF DWG
RM8L-2.5B-P M8×1.25 φ8.2 φ1 - 2.5 mm Black / RAL9005 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RM8L-2.5S-P M8×1.25 φ8.2 φ1 - 2.5 mm Light gray / RAL7035 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RM8L-4B-P M8×1.25 φ8.2 φ2.5 - 4 mm Black / RAL9005 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RM8L-4S-P M8×1.25 φ8.2 φ2.5 - 4 mm Light gray / RAL7035 - 100 pcs Discontinued - Sold out. PDF DXF DWG
RM10L-6B-P M10×1.5 φ10.2 φ3 - 6 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM10L-6S-P M10×1.5 φ10.2 φ3 - 6 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM12L-7B-P M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM12L-7S-P M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM12S-7B-P M12×1.5 φ12.2 φ3.5 - 7 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM12S-7S-P M12×1.5 φ12.2 φ3.5 - 7 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM16L-8B-P M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM16L-8S-P M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM16S-8B-P M16×1.5 φ16.2 φ4 - 8 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM16S-8S-P M16×1.5 φ16.2 φ4 - 8 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM20L-12B-P M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM20L-12S-P M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM20S-12B-P M20×1.5 φ20.2 φ6 - 12 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM20S-12S-P M20×1.5 φ20.2 φ6 - 12 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
RM25L-17B-P M25×1.5 φ25.2 φ11 - 17 mm Black / RAL9005 - 100 pcs PDF DXF DWG
RM25L-17S-P M25×1.5 φ25.2 φ11 - 17 mm Light gray / RAL7035 - 100 pcs PDF DXF DWG
