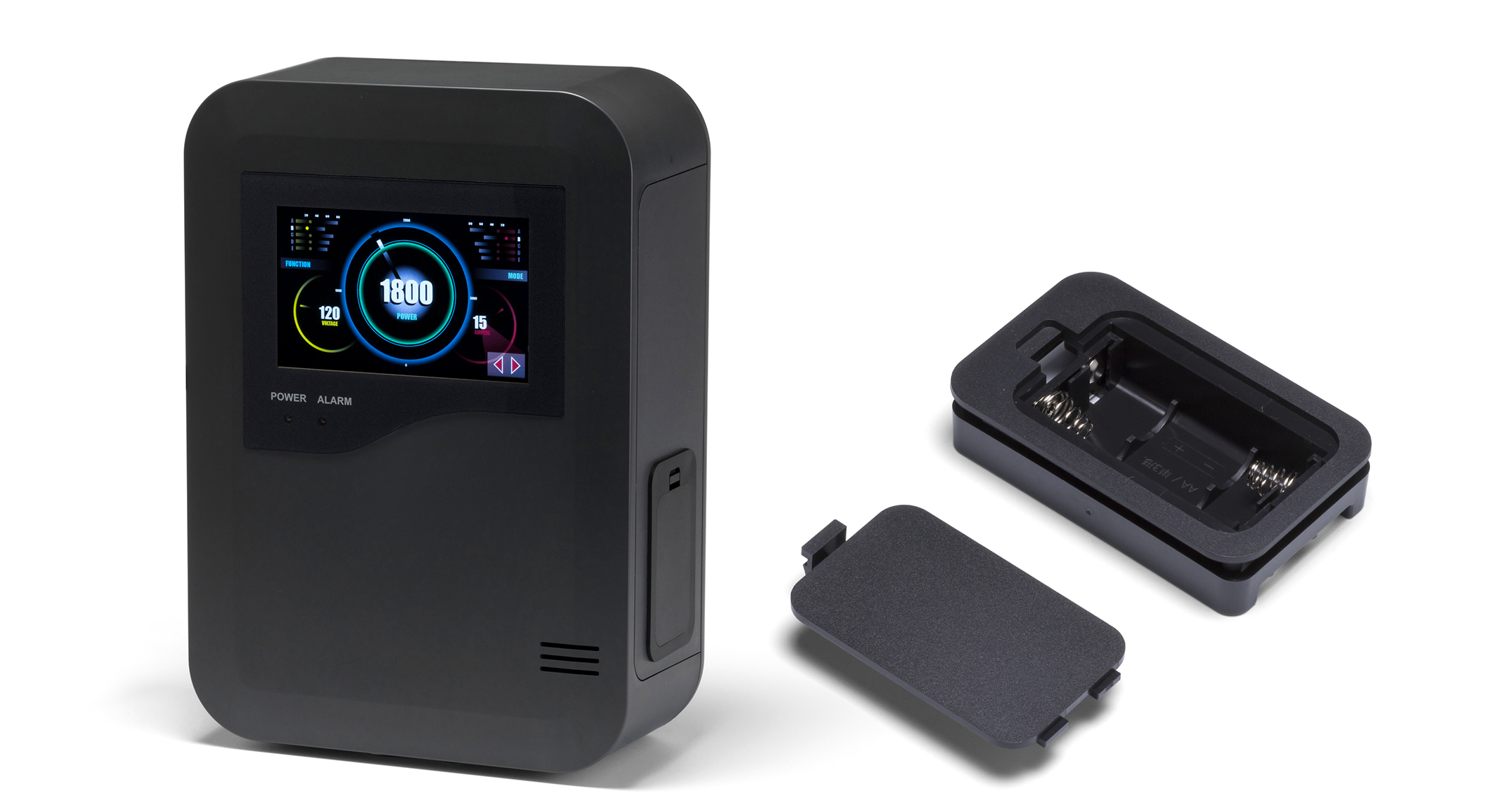

CATEGORY：Embedded battery box, Panel mount battery holder, Panel mount battery box, AA battery box, AAA battery box
Suitable to be installed into enclosures with material thickness of 1.0mm to 3.5mm.
Cover can be opened/closed without any tool for easy battery replacement.
[LINE-UP]
5 different battery layouts : AA x 2, AA x 3, AA x 4, AAA x 2 and AAA x4.
2 colors available : Black and Off-white.
Each layout comes in 2 models: with lead-wire, and without lead-wire.
"+" and "-" markings prevents incorrect placement of battery.
*The dimensions of alkaline or manganese batteries may vary depending on country and brand. Use optional battery cushion sponge to prevent rattling.
【Available as per below schedule】
Late June, 2022 (Respectively)
Cover can be opened/closed without any tool for easy battery replacement.
[LINE-UP]
5 different battery layouts : AA x 2, AA x 3, AA x 4, AAA x 2 and AAA x4.
2 colors available : Black and Off-white.
Each layout comes in 2 models: with lead-wire, and without lead-wire.
"+" and "-" markings prevents incorrect placement of battery.
*The dimensions of alkaline or manganese batteries may vary depending on country and brand. Use optional battery cushion sponge to prevent rattling.
【Available as per below schedule】
Late June, 2022 (Respectively)
PRODUCT NO. / DIMENSIONS
| Product No. | Suitable battery | Color / Similar matching | Weight (g) | DXF | DWG | STP | |
|---|---|---|---|---|---|---|---|
| BC4-2-B | AAA×2 | Black / Munsell N1 | 24.5 | DXF | DWG | ||
| BC4-2-W | AAA×2 | Off-white / Munsell N8.75 | 24.5 | DXF | DWG | ||
| BC4-2L-B | AAA×2 | Black / Munsell N1 | 25.5 | DXF | DWG | ||
| BC4-2L-W | AAA×2 | Off-white / Munsell N8.75 | 25.5 | DXF | DWG | ||
| BC4-4-B | AAA×4 | Black / Munsell N1 | 34.5 | DXF | DWG | ||
| BC4-4-W | AAA×4 | Off-white / Munsell N8.75 | 34.5 | DXF | DWG | ||
| BC4-4L-B | AAA×4 | Black / Munsell N1 | 35.5 | DXF | DWG | ||
| BC4-4L-W | AAA×4 | Off-white / Munsell N8.75 | 35.5 | DXF | DWG | ||
| BC3-2-B | AA×2 | Black / Munsell N1 | 31.5 | DXF | DWG | ||
| BC3-2-W | AA×2 | Off-white / Munsell N8.75 | 31.5 | DXF | DWG | ||
| BC3-2L-B | AA×2 | Black / Munsell N1 | 32.5 | DXF | DWG | ||
| BC3-2L-W | AA×2 | Off-white / Munsell N8.75 | 32.5 | DXF | DWG | ||
| BC3-3-B | AA×3 | Black / Munsell N1 | 39 | DXF | DWG | ||
| BC3-3-W | AA×3 | Off-white / Munsell N8.75 | 39 | DXF | DWG | ||
| BC3-3L-B | AA×3 | Black / Munsell N1 | 40 | DXF | DWG | ||
| BC3-3L-W | AA×3 | Off-white / Munsell N8.75 | 40 | DXF | DWG | ||
| BC3-4-B | AA×4 | Black / Munsell N1 | 46 | DXF | DWG | ||
| BC3-4-W | AA×4 | Off-white / Munsell N8.75 | 46 | DXF | DWG | ||
| BC3-4L-B | AA×4 | Black / Munsell N1 | 47 | DXF | DWG | ||
| BC3-4L-W | AA×4 | Off-white / Munsell N8.75 | 47 | DXF | DWG |
