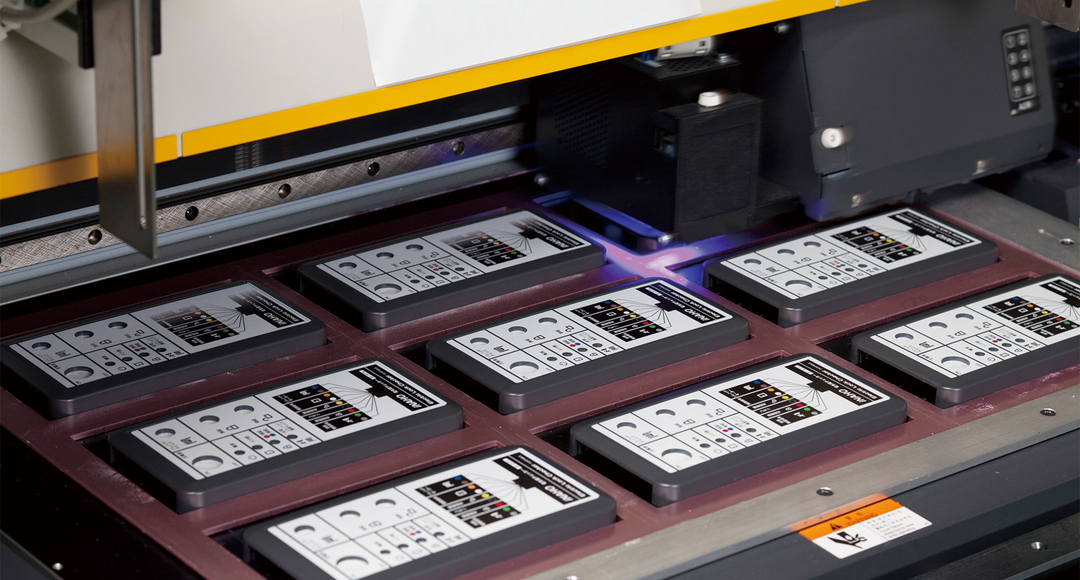

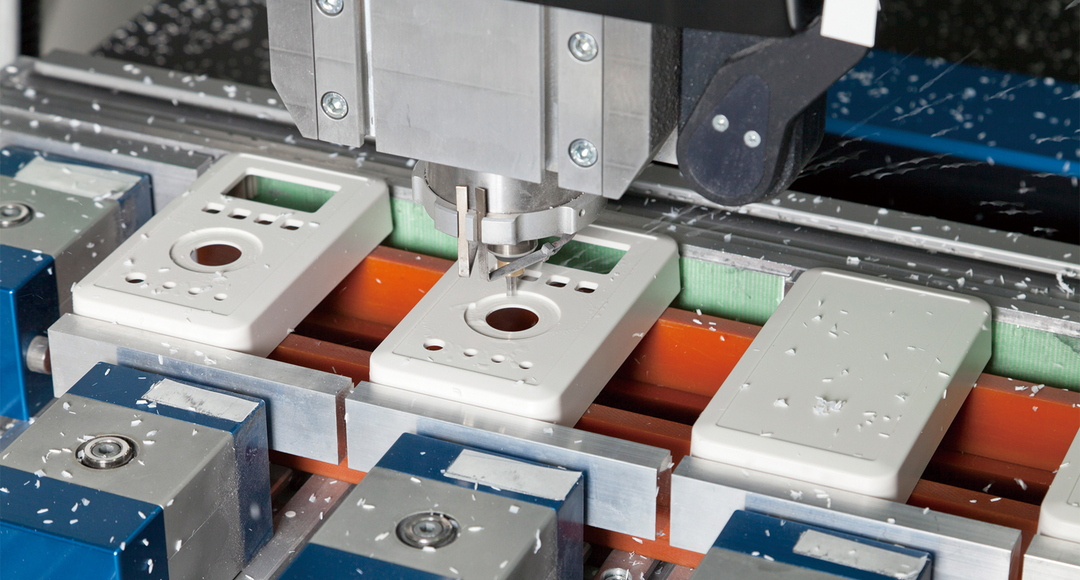

The most popular handheld plastic enclosure in Japan.
Designed with beveled edges and rounded corners.

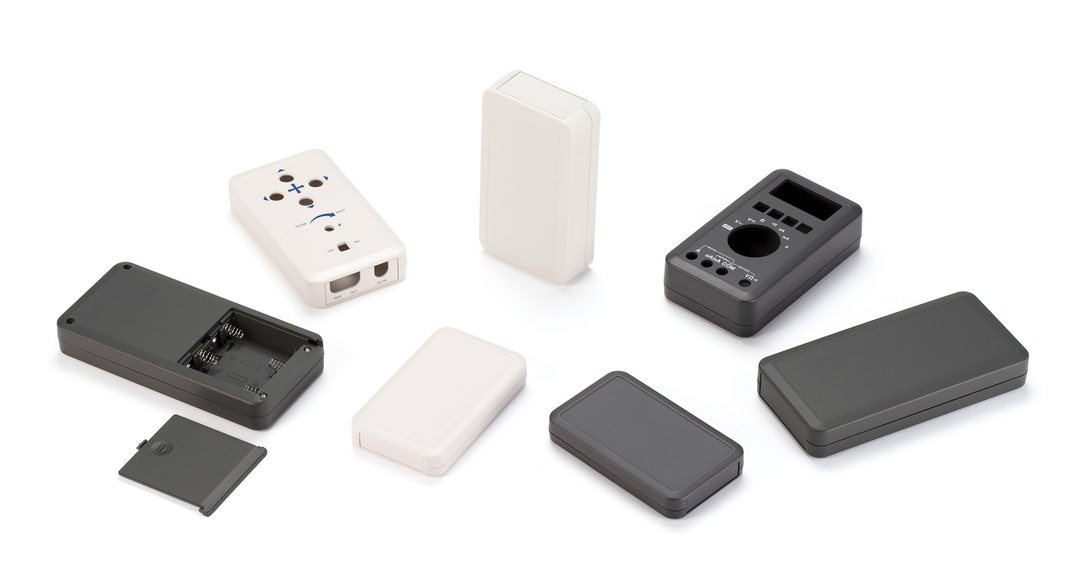

Available in 9 different compartment types: AAx2, AAx3, AAx4, AAAx2, AAAx3, AAAx4, AAAx6, 9Vx1, and no battery compartment type.
Positive (+) / negative (-) pole mark are incused within each battery compartment.

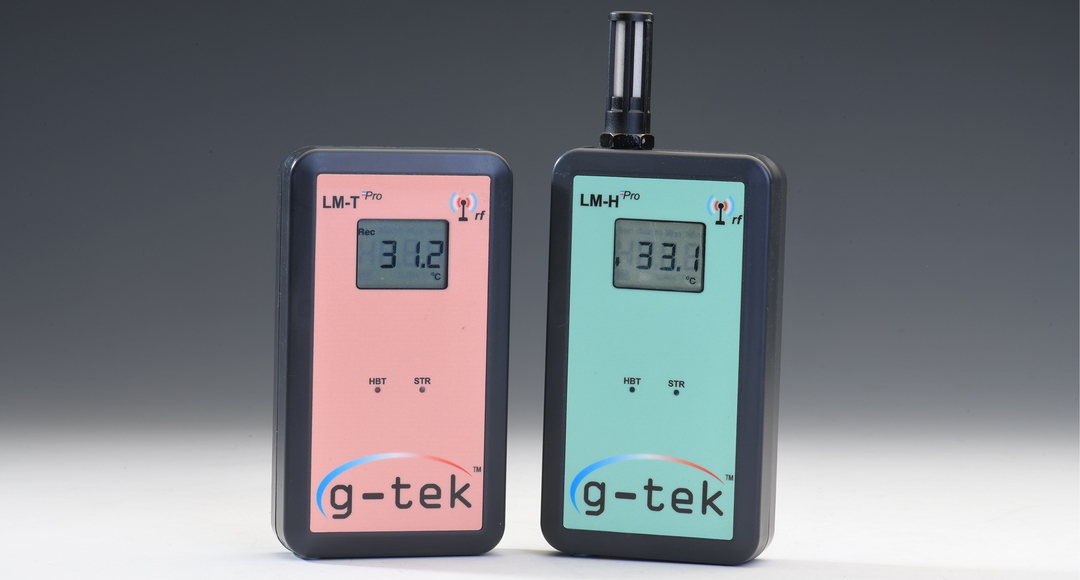

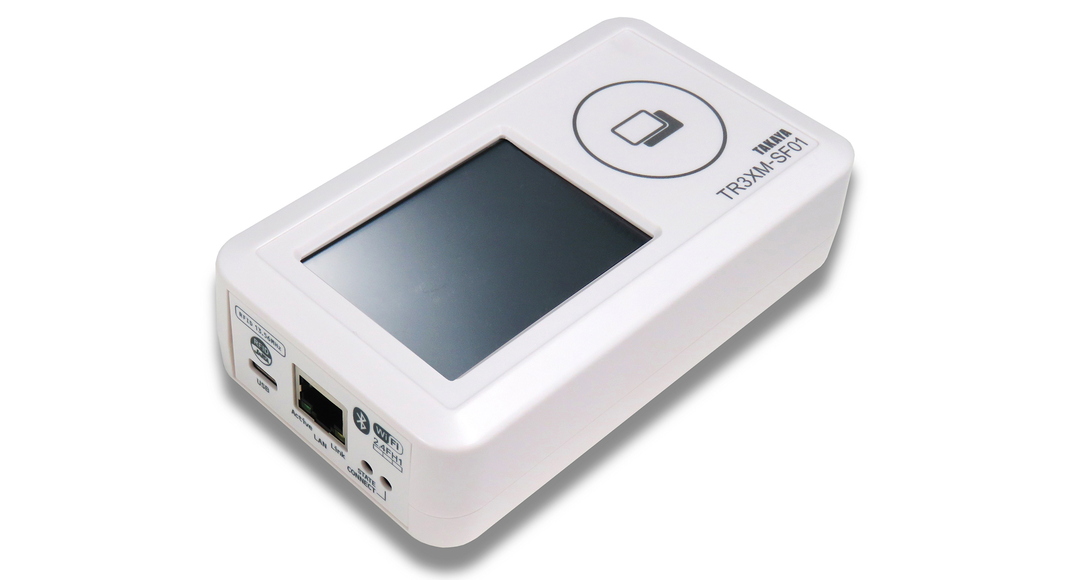

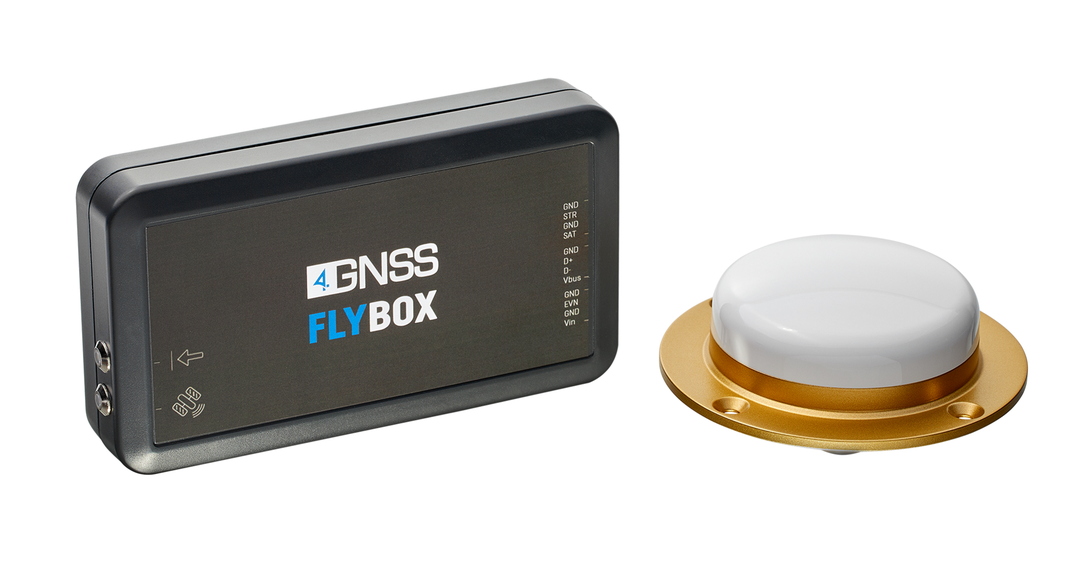

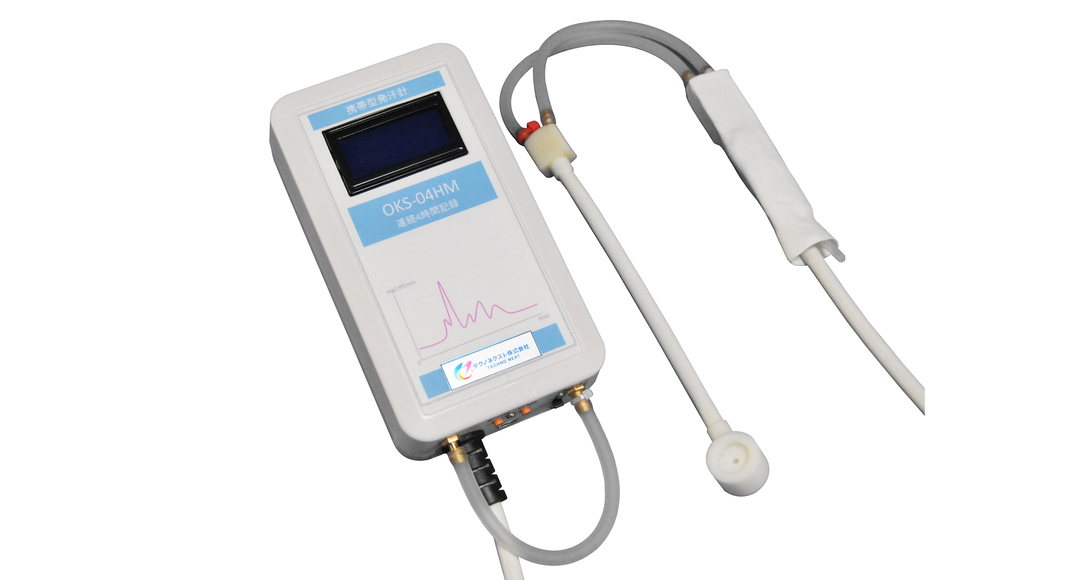

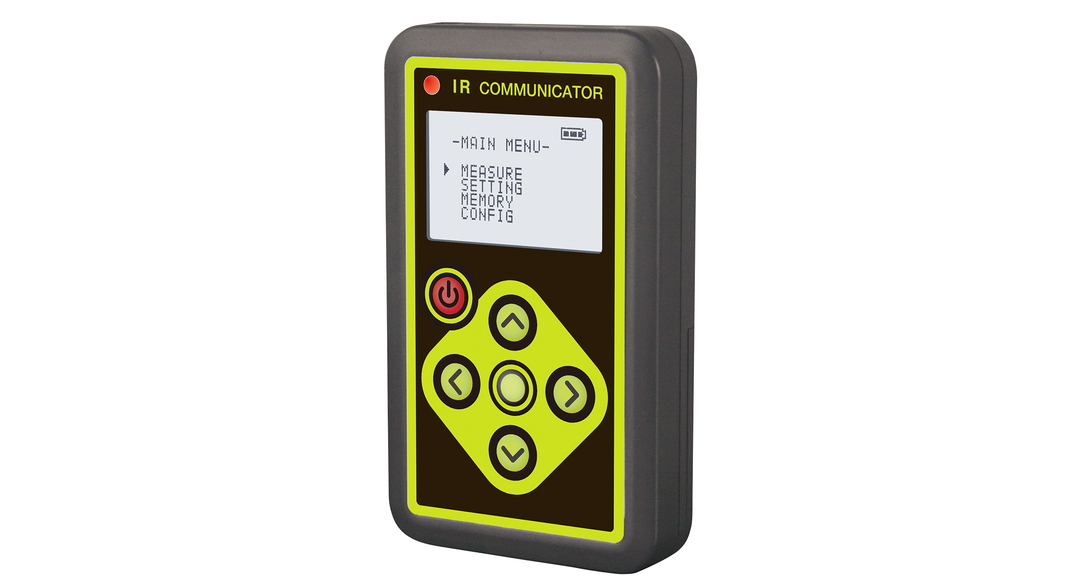

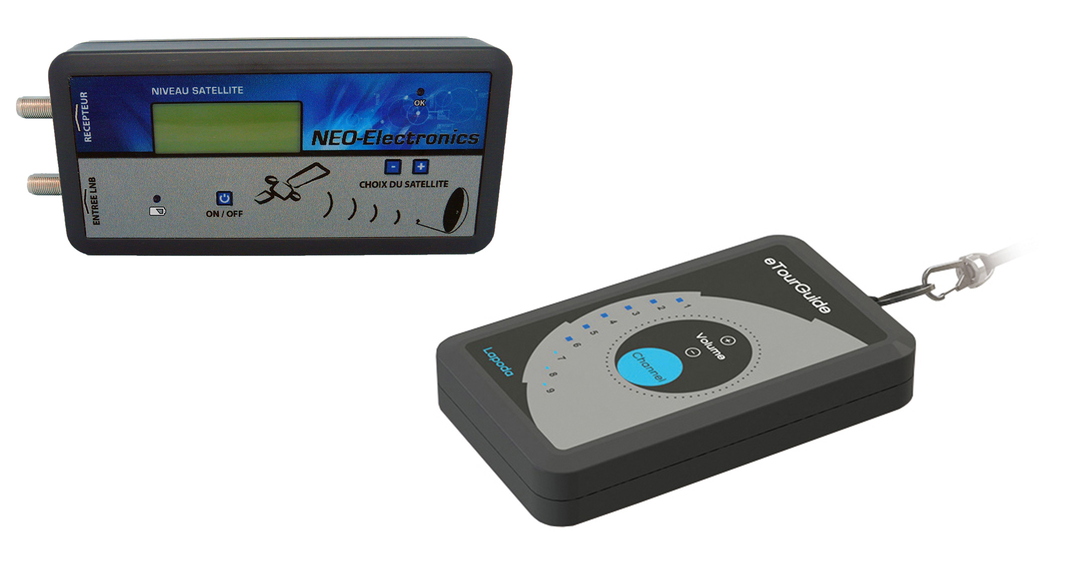

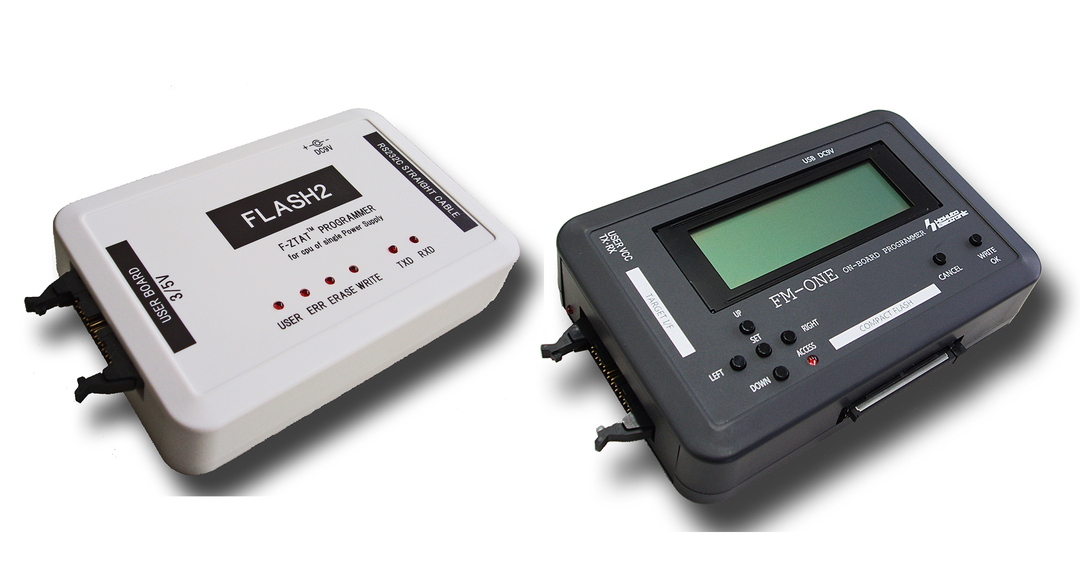

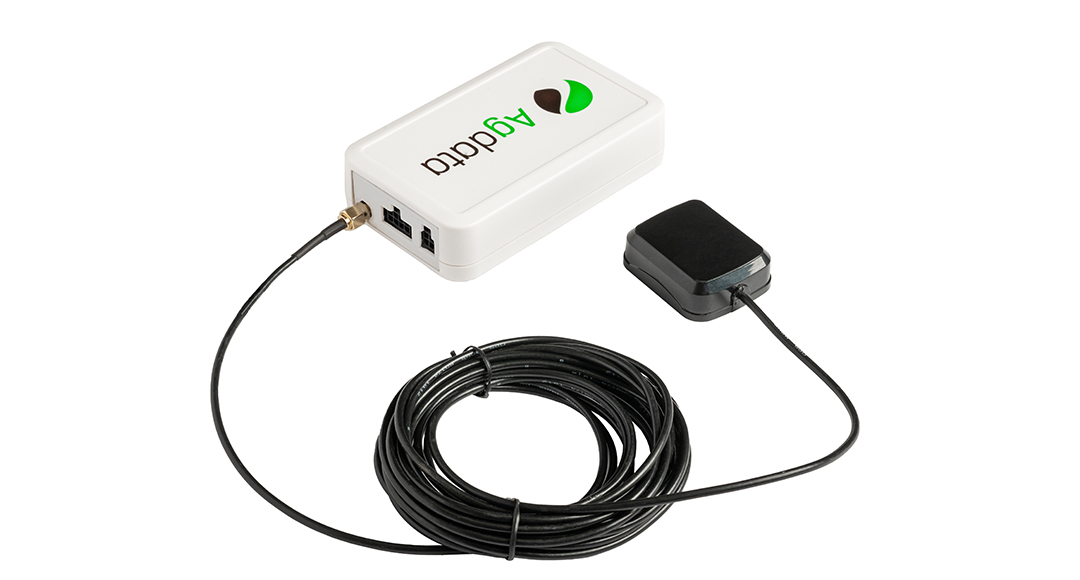

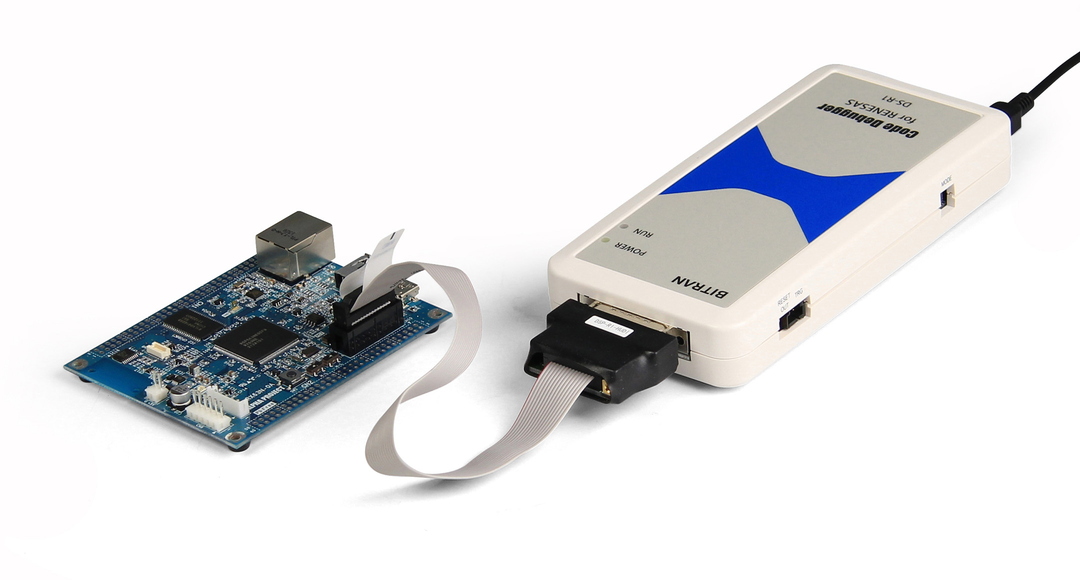

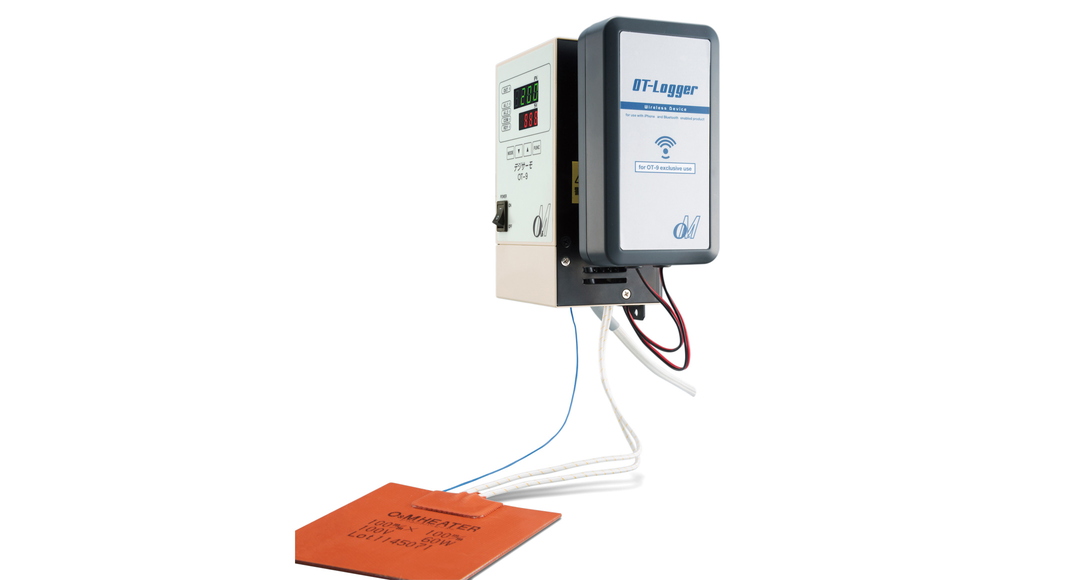

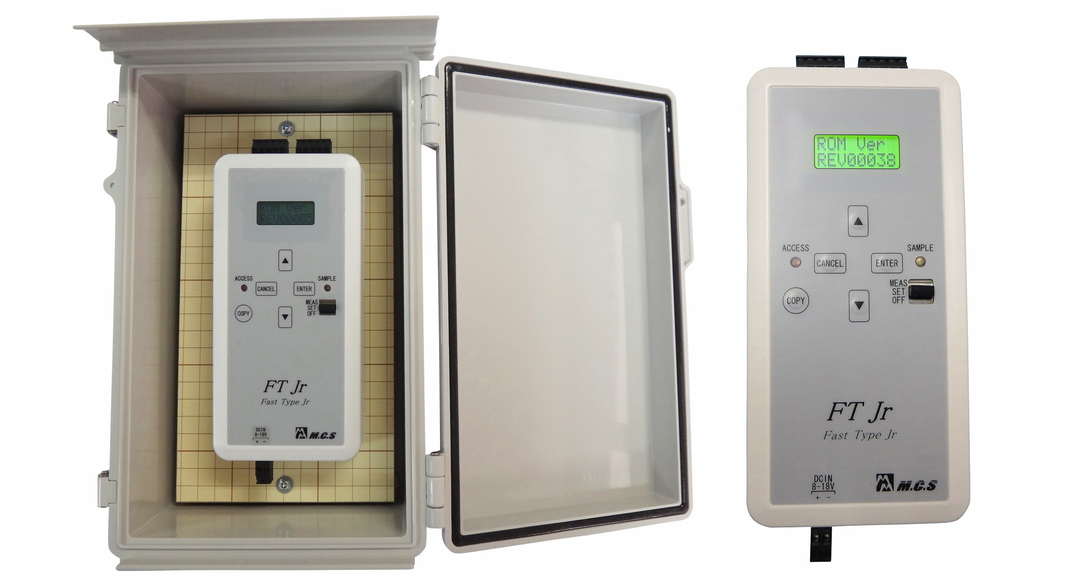

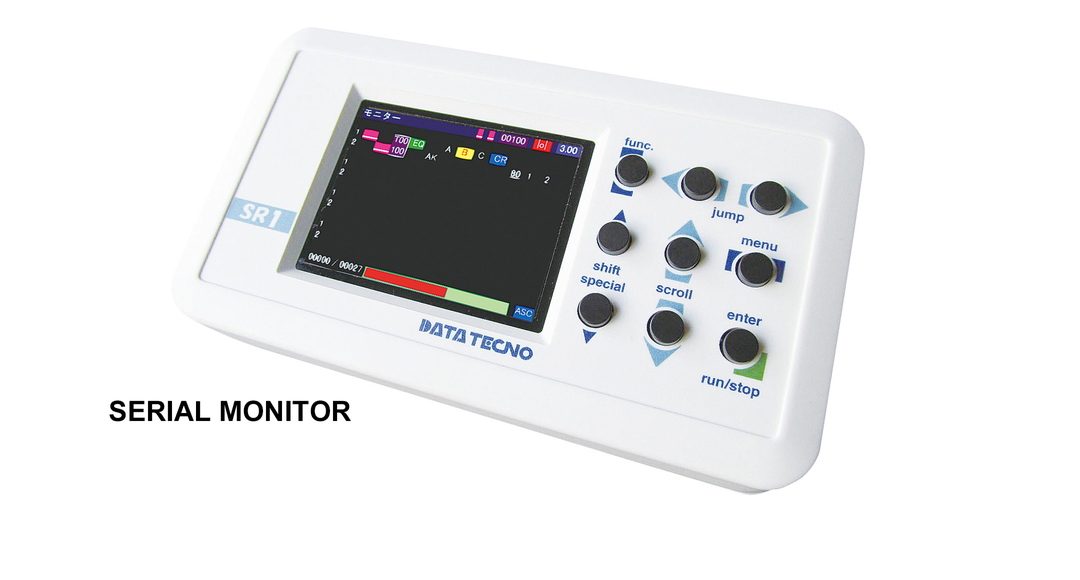

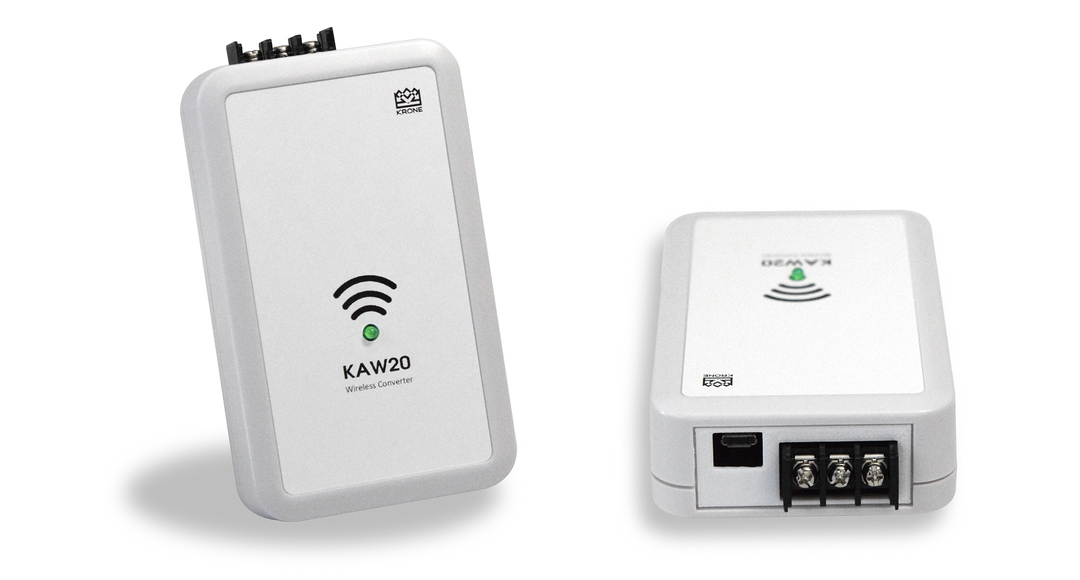

Recommended to be used as measurement instruments, testing devices, wireless communication gadgets, medical equipment, and so on.

Protection class: IP40
Operating temperature: -10℃ ~ +60℃

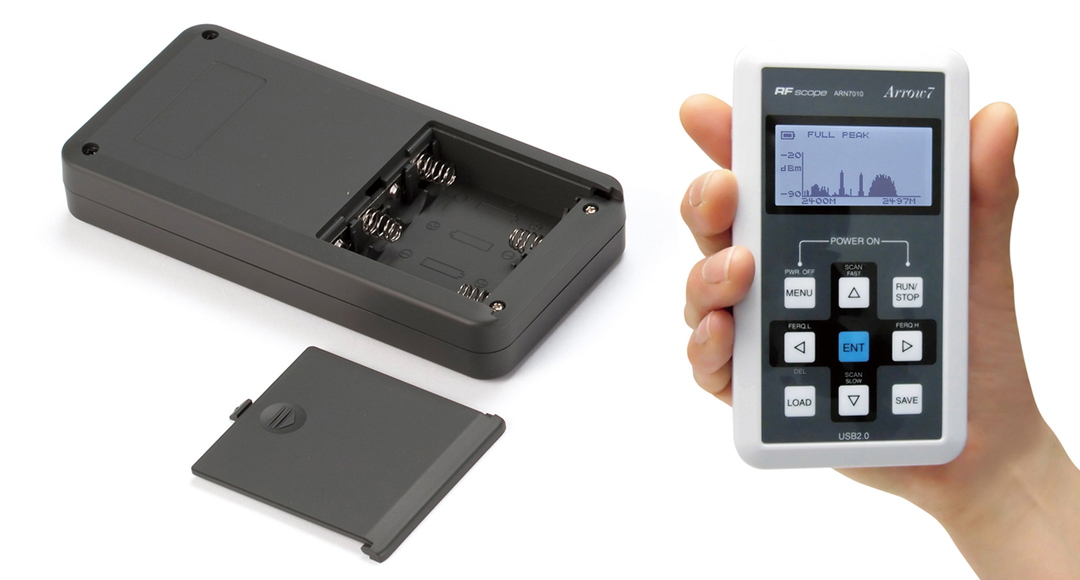

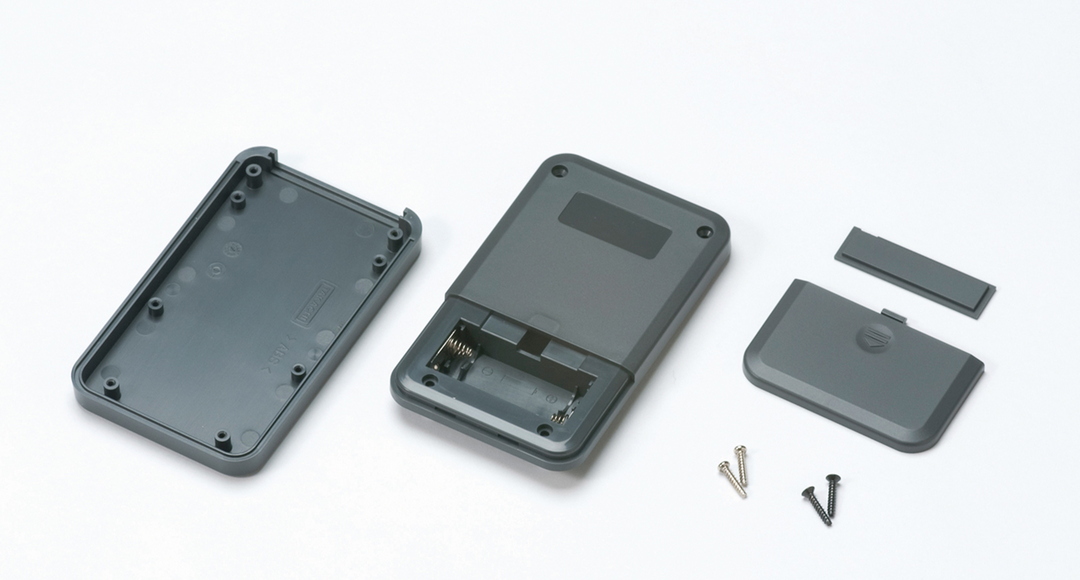

3D View - No battery type  3D View - AAA battery type  3D View - AA battery type  Exploded view 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Battery compartment Weight (g) Color / Similar matching PDF DXF DWG STP
W H D w h d
LC115-N-D 69 19.5 115 61.5 9.5 86.5 None 70 Dark gray / Munsell N3 PDF DXF DWG STP
LC115-N-W 69 19.5 115 61.5 9.5 86.5 None 70 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115-F2-D 69 19.5 115 61.5 9.5 63 AAA×2 74.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC115-F2-W 69 19.5 115 61.5 9.5 63 AAA×2 74.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115-F3-D 69 19.5 115 61.5 9.5 52 AAA×3 76.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC115-F3-W 69 19.5 115 61.5 9.5 52 AAA×3 76.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115H-N-D 69 28 115 60.9 18 86.5 None 80 Dark gray / Munsell N3 PDF DXF DWG STP
LC115H-N-W 69 28 115 60.9 18 86.5 None 80 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115H-F2-D 69 28 115 60.9 18 63 AAA×2 84.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC115H-F2-W 69 28 115 60.9 18 63 AAA×2 84.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115H-F3-D 69 28 115 60.9 18 52 AAA×3 86 Dark gray / Munsell N3 PDF DXF DWG STP
LC115H-F3-W 69 28 115 60.9 18 52 AAA×3 86 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115H-M2-D 69 28 115 60.9 18 54.8 AA×2 88.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC115H-M2-W 69 28 115 60.9 18 54.8 AA×2 88.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC115H-9V-D 69 28 115 60.9 18 55.7 9V×1 88 Dark gray / Munsell N3 PDF DXF DWG STP
LC115H-9V-W 69 28 115 60.9 18 55.7 9V×1 88 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135-N-D 76 27 135 68.2 16 107 None 95 Dark gray / Munsell N3 PDF DXF DWG STP
LC135-N-W 76 27 135 68.2 16 107 None 95 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135-F4-D 76 27 135 68.2 16 59.2 AAA×4 110 Dark gray / Munsell N3 PDF DXF DWG STP
LC135-F4-W 76 27 135 68.2 16 59.2 AAA×4 110 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135-M2-D 76 27 135 68.2 16 74.3 AA×2 108 Dark gray / Munsell N3 PDF DXF DWG STP
LC135-M2-W 76 27 135 68.2 16 74.3 AA×2 108 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135-M3-D 76 27 135 68.2 16 59.2 AA×3 113.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC135-M3-W 76 27 135 68.2 16 59.2 AA×3 113.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135-9V-D 76 27 135 68.2 16 74.3 9V×1 111.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC135-9V-W 76 27 135 68.2 16 74.3 9V×1 111.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135H-N-D 76 35 135 67.7 24 107 None 107.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC135H-N-W 76 35 135 67.7 24 107 None 107.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135H-F4-D 76 35 135 67.7 24 59.2 AAA×4 122 Dark gray / Munsell N3 PDF DXF DWG STP
LC135H-F4-W 76 35 135 67.7 24 59.2 AAA×4 122 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135H-M2-D 76 35 135 67.7 24 74.3 AA×2 121 Dark gray / Munsell N3 PDF DXF DWG STP
LC135H-M2-W 76 35 135 67.7 24 74.3 AA×2 121 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135H-M3-D 76 35 135 67.7 24 59.2 AA×3 126 Dark gray / Munsell N3 PDF DXF DWG STP
LC135H-M3-W 76 35 135 67.7 24 59.2 AA×3 126 Off-white / Munsell N8.75 PDF DXF DWG STP
LC135H-9V-D 76 35 135 67.7 24 74.3 9V×1 123.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC135H-9V-W 76 35 135 67.7 24 74.3 9V×1 123.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145S-N-D 96 20 145 87.9 9.5 112.9 None 110 Dark gray / Munsell N3 PDF DXF DWG STP
LC145S-N-W 96 20 145 87.9 9.5 112.9 None 110 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145S-F6-D 96 20 145 88.1 9.2 67.8 AAA×6 130 Dark gray / Munsell N3 PDF DXF DWG STP
LC145S-F6-W 96 20 145 88.1 9.2 67.8 AAA×6 130 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145-N-D 96 27 145 87.8 16.5 112.9 None 121 Dark gray / Munsell N3 PDF DXF DWG STP
LC145-N-W 96 27 145 87.8 16.5 112.9 None 121 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145-F6-D 96 27 145 87.8 16.5 67.8 AAA×6 141 Dark gray / Munsell N3 PDF DXF DWG STP
LC145-F6-W 96 27 145 87.8 16.5 67.8 AAA×6 141 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145-M2-D 96 27 145 87.8 16.5 86.8 AA×2 135 Dark gray / Munsell N3 PDF DXF DWG STP
LC145-M2-W 96 27 145 87.8 16.5 86.8 AA×2 135 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145-M4-D 96 27 145 87.8 16.5 63.4 AA×4 142 Dark gray / Munsell N3 PDF DXF DWG STP
LC145-M4-W 96 27 145 87.8 16.5 63.4 AA×4 142 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145H-N-D 96 35 145 87.2 24.5 112.9 None 135 Dark gray / Munsell N3 PDF DXF DWG STP
LC145H-N-W 96 35 145 87.2 24.5 112.9 None 135 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145H-F6-D 96 35 145 87.2 24.5 67.8 AAA×6 155.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC145H-F6-W 96 35 145 87.2 24.5 67.8 AAA×6 155.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145H-M2-D 96 35 145 87.2 24.5 86.8 AA×2 149 Dark gray / Munsell N3 PDF DXF DWG STP
LC145H-M2-W 96 35 145 87.2 24.5 86.8 AA×2 149 Off-white / Munsell N8.75 PDF DXF DWG STP
LC145H-M4-D 96 35 145 87.2 24.5 63.4 AA×4 156 Dark gray / Munsell N3 PDF DXF DWG STP
LC145H-M4-W 96 35 145 87.2 24.5 63.4 AA×4 156 Off-white / Munsell N8.75 PDF DXF DWG STP
LC165-N-D 80 27 165 72.2 16 137 None 120.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC165-N-W 80 27 165 72.2 16 137 None 120.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC165-M4-D 80 27 165 72.2 16 79 AA×4 140 Dark gray / Munsell N3 PDF DXF DWG STP
LC165-M4-W 80 27 165 72.2 16 79 AA×4 140 Off-white / Munsell N8.75 PDF DXF DWG STP
LC165H-N-D 80 35 165 71.7 24 137 None 134.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC165H-N-W 80 35 165 71.7 24 137 None 134.5 Off-white / Munsell N8.75 PDF DXF DWG STP
LC165H-M4-D 80 35 165 71.7 24 79 AA×4 153.5 Dark gray / Munsell N3 PDF DXF DWG STP
LC165H-M4-W 80 35 165 71.7 24 79 AA×4 153.5 Off-white / Munsell N8.75 PDF DXF DWG STP
