BATTERY BOX - MD series


MD Series -PDF

CATEGORY：Battery box, Safety battery holder, AA battery box, 9V battery box, Battery case

BATTERY BOX - MD series
BATTERY BOX - MD series

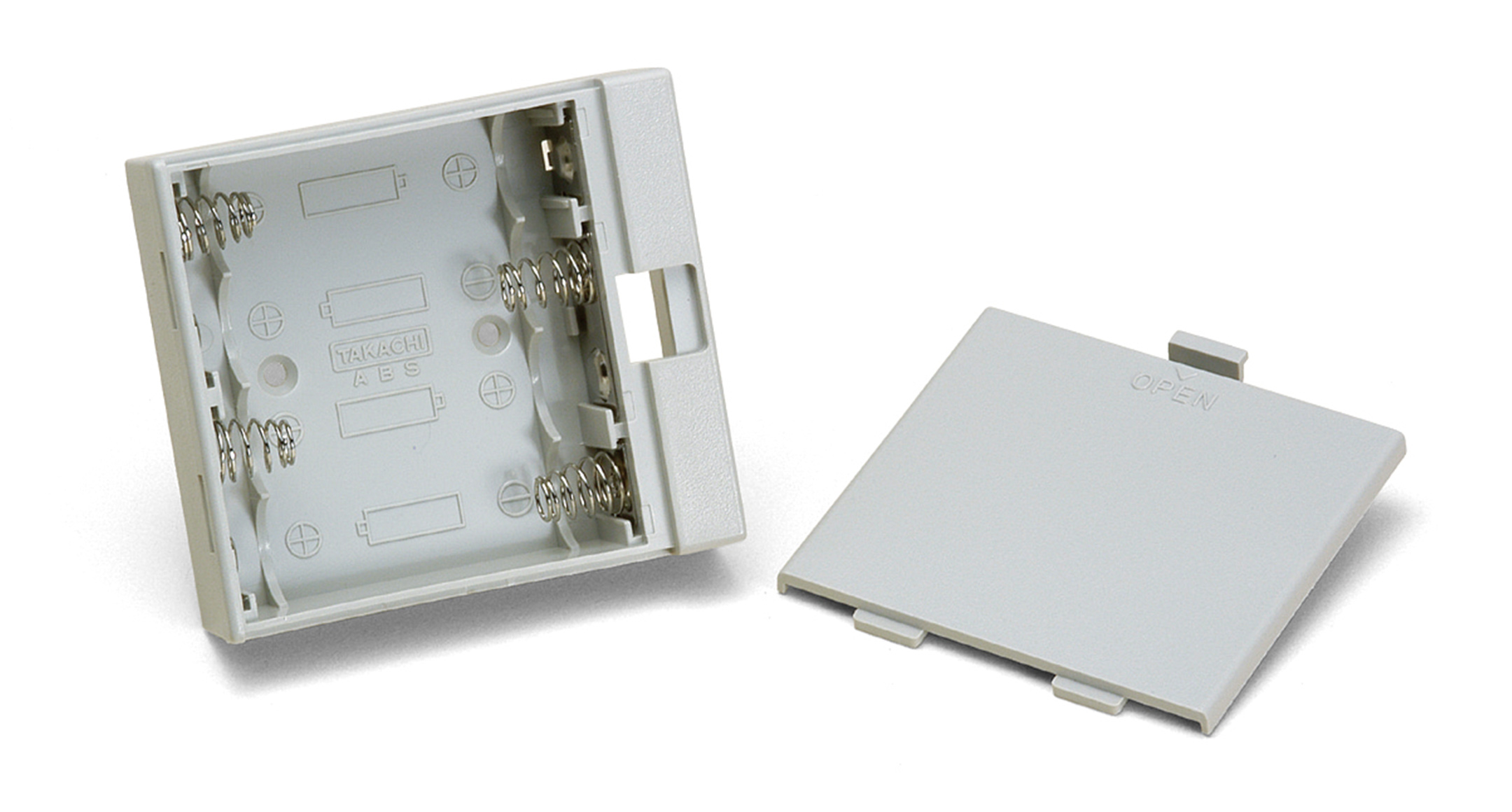

BATTERY BOX - MD series1

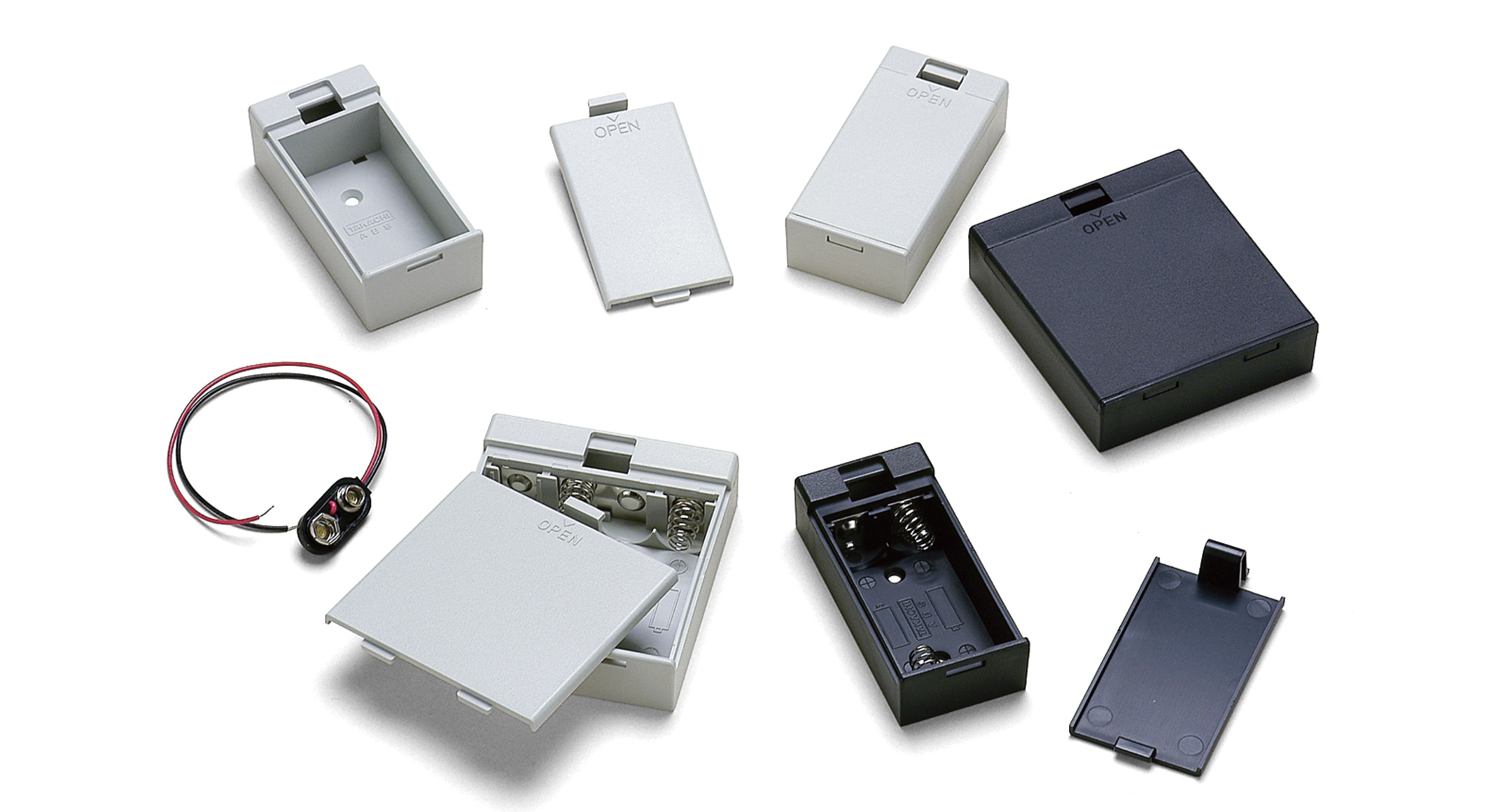

BATTERY BOX - MD series2
Safety battery holder with cover.
Simple construction for easy opening and closing.
+/- markings are available to avoid incorrect placement of the battery.
Available for AA x 2, AA x 4, and 9V (006P) batteries in black and light gray colors.

Operating temperature: -10℃ ~ +60℃
Material : ABS UL94V-0

Battery dimensions may vary depending on country and brand.
Use optional SCM battery cushion sponge to preventing rattling.

PRODUCT NO. / DIMENSIONS

Product No. Suitable battery Color / Similar matching Weight (g) PDF DXF DWG
MD-006PB 9V x 1 Black / Munsell N1 24 PDF DXF DWG
MD-006PG 9V x 1 Light gray/ Munsell 5Y8/0.5 24 PDF DXF DWG
MD-2B AA x 2 Black / Munsell N1 22 PDF DXF DWG
MD-2G AA x 2 Light gray/ Munsell 5Y8/0.5 22 PDF DXF DWG
MD-4B AA x 4 Black / Munsell N1 38 PDF DXF DWG
MD-4G AA x 4 Light gray/ Munsell 5Y8/0.5 38 PDF DXF DWG
