ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series


MOY Series -PDF

CATEGORY：Desktop enclosure with carrying handle, Instrument enclosure, Portable enclosure, Aluminum carrying case

ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series1
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series2
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series3
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series4
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series5

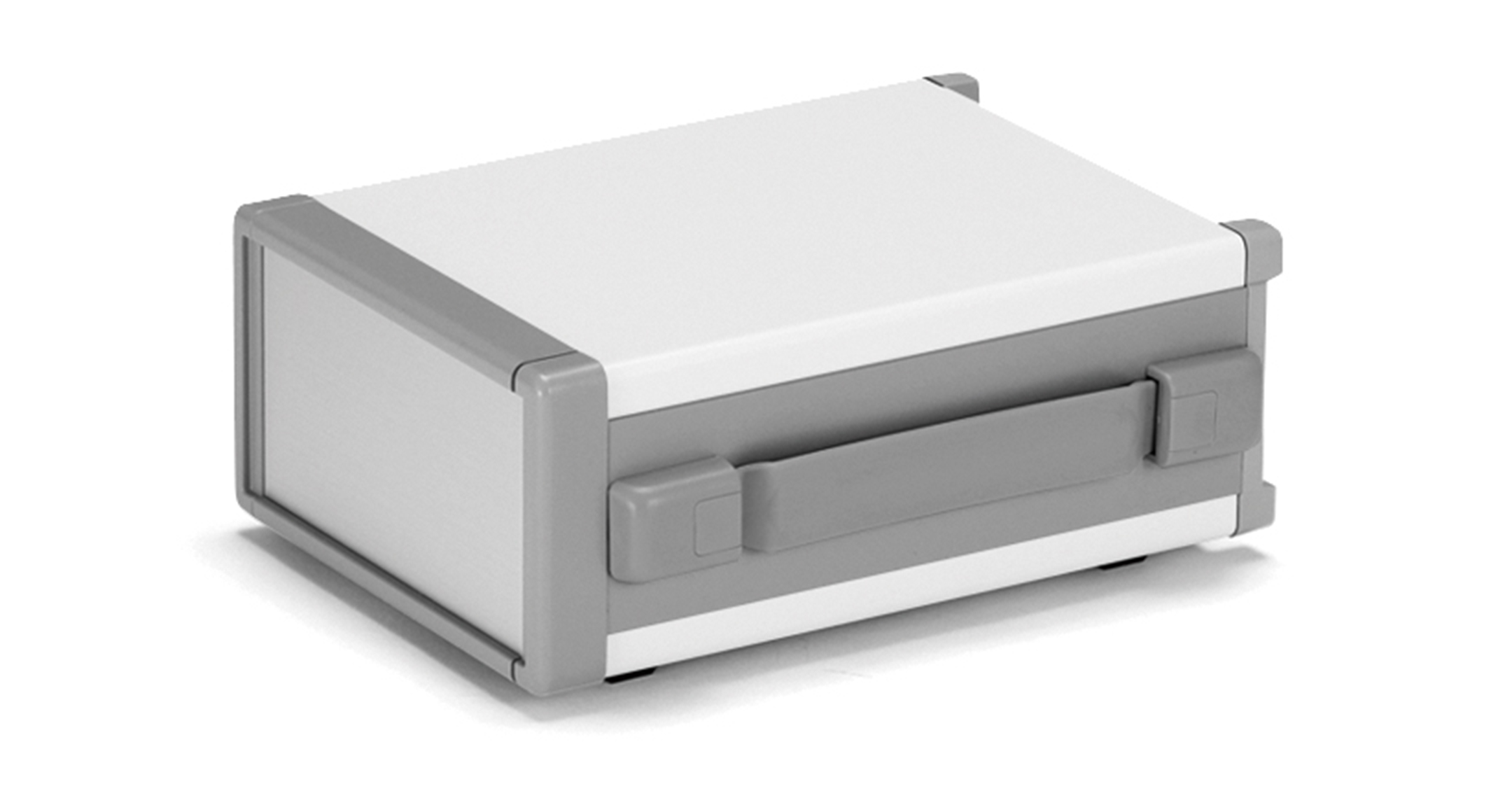

All aluminum instrument case with carrying handle.
Relatively light-weight thanks to the aluminium material.
Suitable for use as measuring instruments, controllers, portable power supply, etc.
Maximum load support of 20kg.

Available in 3 different colors and 160 different sizes.
3D View - Gray/Silver  3D View - Back/Silver  Exploded View  Color Change Notice  Color code 

COLOR TYPE

GSGray/Silver

ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series:Gray/Silver

BSBlack/Silver

ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series:Black/Silver

BBlack/Black

ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series:Black/Black
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series:Gray/Silver
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series:Black/Silver
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
MOY66-16-23□ 160 66 230 130 49.5 205 1000 PDF DXF DWG
MOY66-16-28□ 160 66 280 130 49.5 255 1100 PDF DXF DWG
MOY66-21-23□ 210 66 230 180 49.5 205 1200 PDF DXF DWG
MOY66-21-28□ 210 66 280 180 49.5 255 1300 PDF DXF DWG
MOY66-21-35□ 210 66 350 180 49.5 325 1600 PDF DXF DWG
MOY66-26-23□ 260 66 230 230 49.5 205 1300 PDF DXF DWG
MOY66-26-28□ 260 66 280 230 49.5 255 1500 PDF DXF DWG
MOY66-26-35□ 260 66 350 230 49.5 325 1800 PDF DXF DWG
MOY66-32-23□ 320 66 230 290 49.5 205 1500 PDF DXF DWG
MOY66-32-28□ 320 66 280 290 49.5 255 1700 PDF DXF DWG
MOY66-32-35□ 320 66 350 290 49.5 325 2000 PDF DXF DWG
MOY66-32-45□ 320 66 450 290 49.5 425 2400 PDF DXF DWG
MOY66-37-23□ 370 66 230 340 49.5 205 1700 PDF DXF DWG
MOY66-37-28□ 370 66 280 340 49.5 255 1900 PDF DXF DWG
MOY66-37-35□ 370 66 350 340 49.5 325 2200 PDF DXF DWG
MOY66-37-45□ 370 66 450 340 49.5 425 2600 PDF DXF DWG
MOY66-43-23□ 430 66 230 400 49.5 205 1900 PDF DXF DWG
MOY66-43-28□ 430 66 280 400 49.5 255 2100 PDF DXF DWG
MOY66-43-35□ 430 66 350 400 49.5 325 2500 PDF DXF DWG
MOY66-43-45□ 430 66 450 400 49.5 425 3000 PDF DXF DWG
MOY88-16-23□ 160 88 230 130 71.5 205 1100 PDF DXF DWG
MOY88-16-28□ 160 88 280 130 71.5 255 1300 PDF DXF DWG
MOY88-21-23□ 210 88 230 180 71.5 205 1300 PDF DXF DWG
MOY88-21-28□ 210 88 280 180 71.5 255 1500 PDF DXF DWG
MOY88-21-35□ 210 88 350 180 71.5 325 1800 PDF DXF DWG
MOY88-26-23□ 260 88 230 230 71.5 205 1500 PDF DXF DWG
MOY88-26-28□ 260 88 280 230 71.5 255 1700 PDF DXF DWG
MOY88-26-35□ 260 88 350 230 71.5 325 2000 PDF DXF DWG
MOY88-32-23□ 320 88 230 290 71.5 205 1700 PDF DXF DWG
MOY88-32-28□ 320 88 280 290 71.5 255 1900 PDF DXF DWG
MOY88-32-35□ 320 88 350 290 71.5 325 2300 PDF DXF DWG
MOY88-32-45□ 320 88 450 290 71.5 425 2700 PDF DXF DWG
MOY88-37-23□ 370 88 230 340 71.5 205 1900 PDF DXF DWG
MOY88-37-28□ 370 88 280 340 71.5 255 2100 PDF DXF DWG
MOY88-37-35□ 370 88 350 340 71.5 325 2500 PDF DXF DWG
MOY88-37-45□ 370 88 450 340 71.5 425 2900 PDF DXF DWG
MOY88-43-23□ 430 88 230 400 71.5 205 2100 PDF DXF DWG
MOY88-43-28□ 430 88 280 400 71.5 255 2300 PDF DXF DWG
MOY88-43-35□ 430 88 350 400 71.5 325 2700 PDF DXF DWG
MOY88-43-45□ 430 88 450 400 71.5 425 3300 PDF DXF DWG
MOY99-16-23□ 160 99 230 130 82.5 205 1200 PDF DXF DWG
MOY99-16-28□ 160 99 280 130 82.5 255 1400 PDF DXF DWG
MOY99-21-23□ 210 99 230 180 82.5 205 1400 PDF DXF DWG
MOY99-21-28□ 210 99 280 180 82.5 255 1600 PDF DXF DWG
MOY99-21-35□ 210 99 350 180 82.5 325 1800 PDF DXF DWG
MOY99-26-23□ 260 99 230 230 82.5 205 1600 PDF DXF DWG
MOY99-26-28□ 260 99 280 230 82.5 255 1800 PDF DXF DWG
MOY99-26-35□ 260 99 350 230 82.5 325 2100 PDF DXF DWG
MOY99-32-23□ 320 99 230 290 82.5 205 1800 PDF DXF DWG
MOY99-32-28□ 320 99 280 290 82.5 255 2000 PDF DXF DWG
MOY99-32-35□ 320 99 350 290 82.5 325 2400 PDF DXF DWG
MOY99-32-45□ 320 99 450 290 82.5 425 2800 PDF DXF DWG
MOY99-37-23□ 370 99 230 340 82.5 205 2000 PDF DXF DWG
MOY99-37-28□ 370 99 280 340 82.5 255 2200 PDF DXF DWG
MOY99-37-35□ 370 99 350 340 82.5 325 2600 PDF DXF DWG
MOY99-37-45□ 370 99 450 340 82.5 425 3000 PDF DXF DWG
MOY99-43-23□ 430 99 230 400 82.5 205 2200 PDF DXF DWG
MOY99-43-28□ 430 99 280 400 82.5 255 2400 PDF DXF DWG
MOY99-43-35□ 430 99 350 400 82.5 325 2800 PDF DXF DWG
MOY99-43-45□ 430 99 450 400 82.5 425 3400 PDF DXF DWG
MOY133-16-23□ 160 132.5 230 130 116 205 1400 PDF DXF DWG
MOY133-16-28□ 160 132.5 280 130 116 255 1600 PDF DXF DWG
MOY133-21-23□ 210 132.5 230 180 116 205 1600 PDF DXF DWG
MOY133-21-28□ 210 132.5 280 180 116 255 1800 PDF DXF DWG
MOY133-21-35□ 210 132.5 350 180 116 325 2100 PDF DXF DWG
MOY133-26-23□ 260 132.5 230 230 116 205 1800 PDF DXF DWG
MOY133-26-28□ 260 132.5 280 230 116 255 2100 PDF DXF DWG
MOY133-26-35□ 260 132.5 350 230 116 325 2400 PDF DXF DWG
MOY133-32-23□ 320 132.5 230 290 116 205 2000 PDF DXF DWG
MOY133-32-28□ 320 132.5 280 290 116 255 2300 PDF DXF DWG
MOY133-32-35□ 320 132.5 350 290 116 325 2700 PDF DXF DWG
MOY133-32-45□ 320 132.5 450 290 116 425 3200 PDF DXF DWG
MOY133-37-23□ 370 132.5 230 340 116 205 2200 PDF DXF DWG
MOY133-37-28□ 370 132.5 280 340 116 255 2500 PDF DXF DWG
MOY133-37-35□ 370 132.5 350 340 116 325 2900 PDF DXF DWG
MOY133-37-45□ 370 132.5 450 340 116 425 3400 PDF DXF DWG
MOY133-43-23□ 430 132.5 230 400 116 205 2500 PDF DXF DWG
MOY133-43-28□ 430 132.5 280 400 116 255 2800 PDF DXF DWG
MOY133-43-35□ 430 132.5 350 400 116 325 3200 PDF DXF DWG
MOY133-43-45□ 430 132.5 450 400 116 425 3800 PDF DXF DWG
MOY149-16-23□ 160 149 230 130 132.5 205 1500 PDF DXF DWG
MOY149-16-28□ 160 149 280 130 132.5 255 1700 PDF DXF DWG
MOY149-21-23□ 210 149 230 180 132.5 205 1700 PDF DXF DWG
MOY149-21-28□ 210 149 280 180 132.5 255 2000 PDF DXF DWG
MOY149-21-35□ 210 149 350 180 132.5 325 2300 PDF DXF DWG
MOY149-26-23□ 260 149 230 230 132.5 205 2000 PDF DXF DWG
MOY149-26-28□ 260 149 280 230 132.5 255 2200 PDF DXF DWG
MOY149-26-35□ 260 149 350 230 132.5 325 2500 PDF DXF DWG
MOY149-32-23□ 320 149 230 290 132.5 205 2200 PDF DXF DWG
MOY149-32-28□ 320 149 280 290 132.5 255 2400 PDF DXF DWG
MOY149-32-35□ 320 149 350 290 132.5 325 2800 PDF DXF DWG
MOY149-32-45□ 320 149 450 290 132.5 425 3400 PDF DXF DWG
MOY149-37-23□ 370 149 230 340 132.5 205 2400 PDF DXF DWG
MOY149-37-28□ 370 149 280 340 132.5 255 2700 PDF DXF DWG
MOY149-37-35□ 370 149 350 340 132.5 325 3100 PDF DXF DWG
MOY149-37-45□ 370 149 450 340 132.5 425 3600 PDF DXF DWG
MOY149-43-23□ 430 149 230 400 132.5 205 2600 PDF DXF DWG
MOY149-43-28□ 430 149 280 400 132.5 255 3000 PDF DXF DWG
MOY149-43-35□ 430 149 350 400 132.5 325 3400 PDF DXF DWG
MOY149-43-45□ 430 149 450 400 132.5 425 4100 PDF DXF DWG
MOY177-16-23□ 160 177 230 130 160.5 205 1900 PDF DXF DWG
MOY177-16-28□ 160 177 280 130 160.5 255 2200 PDF DXF DWG
MOY177-21-23□ 210 177 230 180 160.5 205 2100 PDF DXF DWG
MOY177-21-28□ 210 177 280 180 160.5 255 2400 PDF DXF DWG
MOY177-21-35□ 210 177 350 180 160.5 325 2800 PDF DXF DWG
MOY177-26-23□ 260 177 230 230 160.5 205 2400 PDF DXF DWG
MOY177-26-28□ 260 177 280 230 160.5 255 2700 PDF DXF DWG
MOY177-26-35□ 260 177 350 230 160.5 325 3100 PDF DXF DWG
MOY177-32-23□ 320 177 230 290 160.5 205 2600 PDF DXF DWG
MOY177-32-28□ 320 177 280 290 160.5 255 2900 PDF DXF DWG
MOY177-32-35□ 320 177 350 290 160.5 325 3400 PDF DXF DWG
MOY177-32-45□ 320 177 450 290 160.5 425 4100 PDF DXF DWG
MOY177-37-23□ 370 177 230 340 160.5 205 2800 PDF DXF DWG
MOY177-37-28□ 370 177 280 340 160.5 255 3200 PDF DXF DWG
MOY177-37-35□ 370 177 350 340 160.5 325 3700 PDF DXF DWG
MOY177-37-45□ 370 177 450 340 160.5 425 4300 PDF DXF DWG
MOY177-43-23□ 430 177 230 400 160.5 205 3100 PDF DXF DWG
MOY177-43-28□ 430 177 280 400 160.5 255 3500 PDF DXF DWG
MOY177-43-35□ 430 177 350 400 160.5 325 4000 PDF DXF DWG
MOY177-43-45□ 430 177 450 400 160.5 425 4800 PDF DXF DWG
MOY199-16-23□ 160 199 230 130 182.5 205 2000 PDF DXF DWG
MOY199-16-28□ 160 199 280 130 182.5 255 2300 PDF DXF DWG
MOY199-21-23□ 210 199 230 180 182.5 205 2200 PDF DXF DWG
MOY199-21-28□ 210 199 280 180 182.5 255 2500 PDF DXF DWG
MOY199-21-35□ 210 199 350 180 182.5 325 2900 PDF DXF DWG
MOY199-26-23□ 260 199 230 230 182.5 205 2500 PDF DXF DWG
MOY199-26-28□ 260 199 280 230 182.5 255 2800 PDF DXF DWG
MOY199-26-35□ 260 199 350 230 182.5 325 3200 PDF DXF DWG
MOY199-32-23□ 320 199 230 290 182.5 205 2700 PDF DXF DWG
MOY199-32-28□ 320 199 280 290 182.5 255 3100 PDF DXF DWG
MOY199-32-35□ 320 199 350 290 182.5 325 3600 PDF DXF DWG
MOY199-32-45□ 320 199 450 290 182.5 425 4200 PDF DXF DWG
MOY199-37-23□ 370 199 230 340 182.5 205 3000 PDF DXF DWG
MOY199-37-28□ 370 199 280 340 182.5 255 3300 PDF DXF DWG
MOY199-37-35□ 370 199 350 340 182.5 325 3800 PDF DXF DWG
MOY199-37-45□ 370 199 450 340 182.5 425 4500 PDF DXF DWG
MOY199-43-23□ 430 199 230 400 182.5 205 3600 PDF DXF DWG
MOY199-43-28□ 430 199 280 400 182.5 255 3900 PDF DXF DWG
MOY199-43-35□ 430 199 350 400 182.5 325 4500 PDF DXF DWG
MOY199-43-45□ 430 199 450 400 182.5 425 5200 PDF DXF DWG
MOY222-16-23□ 160 221.5 230 130 205 205 2200 PDF DXF DWG
MOY222-16-28□ 160 221.5 280 130 205 255 2400 PDF DXF DWG
MOY222-21-23□ 210 221.5 230 180 205 205 2400 PDF DXF DWG
MOY222-21-28□ 210 221.5 280 180 205 255 2700 PDF DXF DWG
MOY222-21-35□ 210 221.5 350 180 205 325 3100 PDF DXF DWG
MOY222-26-23□ 260 221.5 230 230 205 205 2700 PDF DXF DWG
MOY222-26-28□ 260 221.5 280 230 205 255 2900 PDF DXF DWG
MOY222-26-35□ 260 221.5 350 230 205 325 3400 PDF DXF DWG
MOY222-32-23□ 320 221.5 230 290 205 205 2900 PDF DXF DWG
MOY222-32-28□ 320 221.5 280 290 205 255 3300 PDF DXF DWG
MOY222-32-35□ 320 221.5 350 290 205 325 3800 PDF DXF DWG
MOY222-32-45□ 320 221.5 450 290 205 425 4600 PDF DXF DWG
MOY222-37-23□ 370 221.5 230 340 205 205 3200 PDF DXF DWG
MOY222-37-28□ 370 221.5 280 340 205 255 3500 PDF DXF DWG
MOY222-37-35□ 370 221.5 350 340 205 325 4100 PDF DXF DWG
MOY222-37-45□ 370 221.5 450 340 205 425 4800 PDF DXF DWG
MOY222-43-23□ 430 221.5 230 400 205 205 3500 PDF DXF DWG
MOY222-43-28□ 430 221.5 280 400 205 255 3800 PDF DXF DWG
MOY222-43-35□ 430 221.5 350 400 205 325 4400 PDF DXF DWG
MOY222-43-45□ 430 221.5 450 400 205 425 5300 PDF DXF DWG

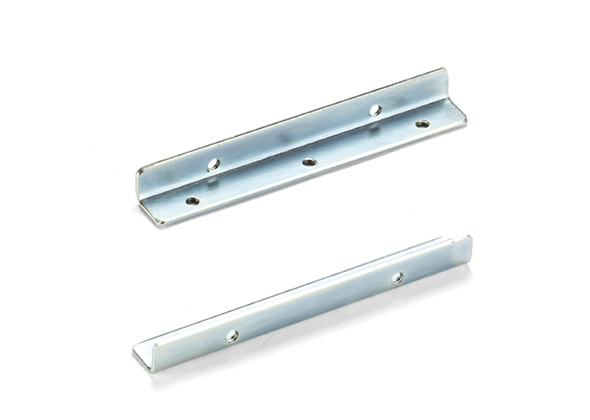

Mounting plate (Option) PDF DXF DWG STP
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for MS・MO - MSC series
DETAILS
１
MOUNTING ANGLE BRACKET for MS・MO - MSCL series
DETAILS
１
TILT LEG - TL-45
DETAILS
１
CABLE HOOK - CBF-1G
DETAILS

SIMILAR PRODUCT

１
INSTRUMENT ENCLOSURE with CARRYING HANDLE - MSY series
DETAILS
１
METAL CASE with CORNER GUARD - MCG series
DETAILS
１
CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

CNC engraving

DETAILS

Graphic overlay making

DETAILS
