Custom sized aluminum case equipped with shockproof and anti-slip elastomer corner guards.
Suitable to be used as a fanless PC, power supply, power storage device etc.

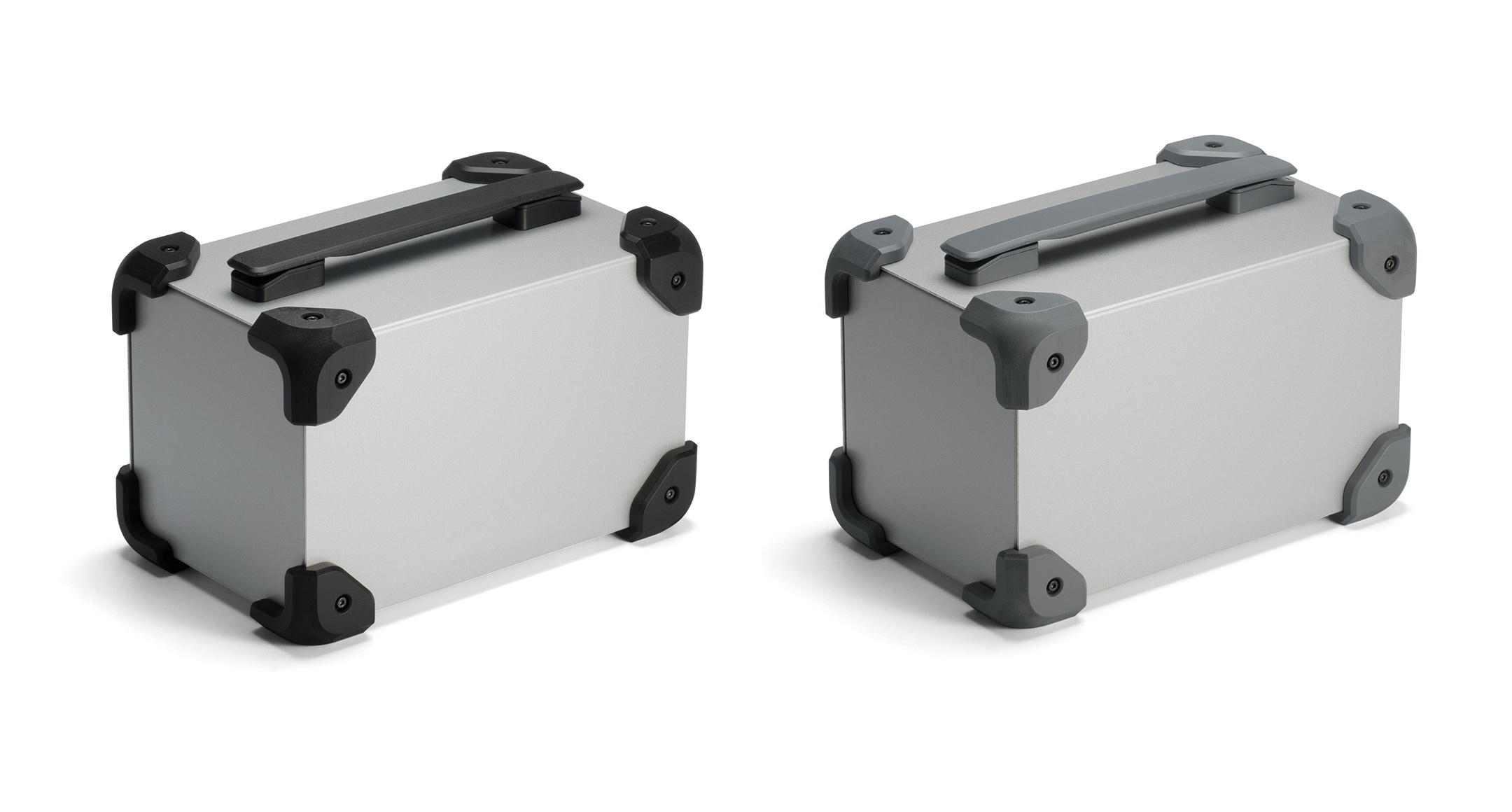

Carrying handle can withstand a maximum load up to 30.0 kg.

All W, H, and D dimensions can be specified as 50～500mm for W dimension, 50～400mm for D dimension, and 20～250mm for H dimension in 1mm intervals.

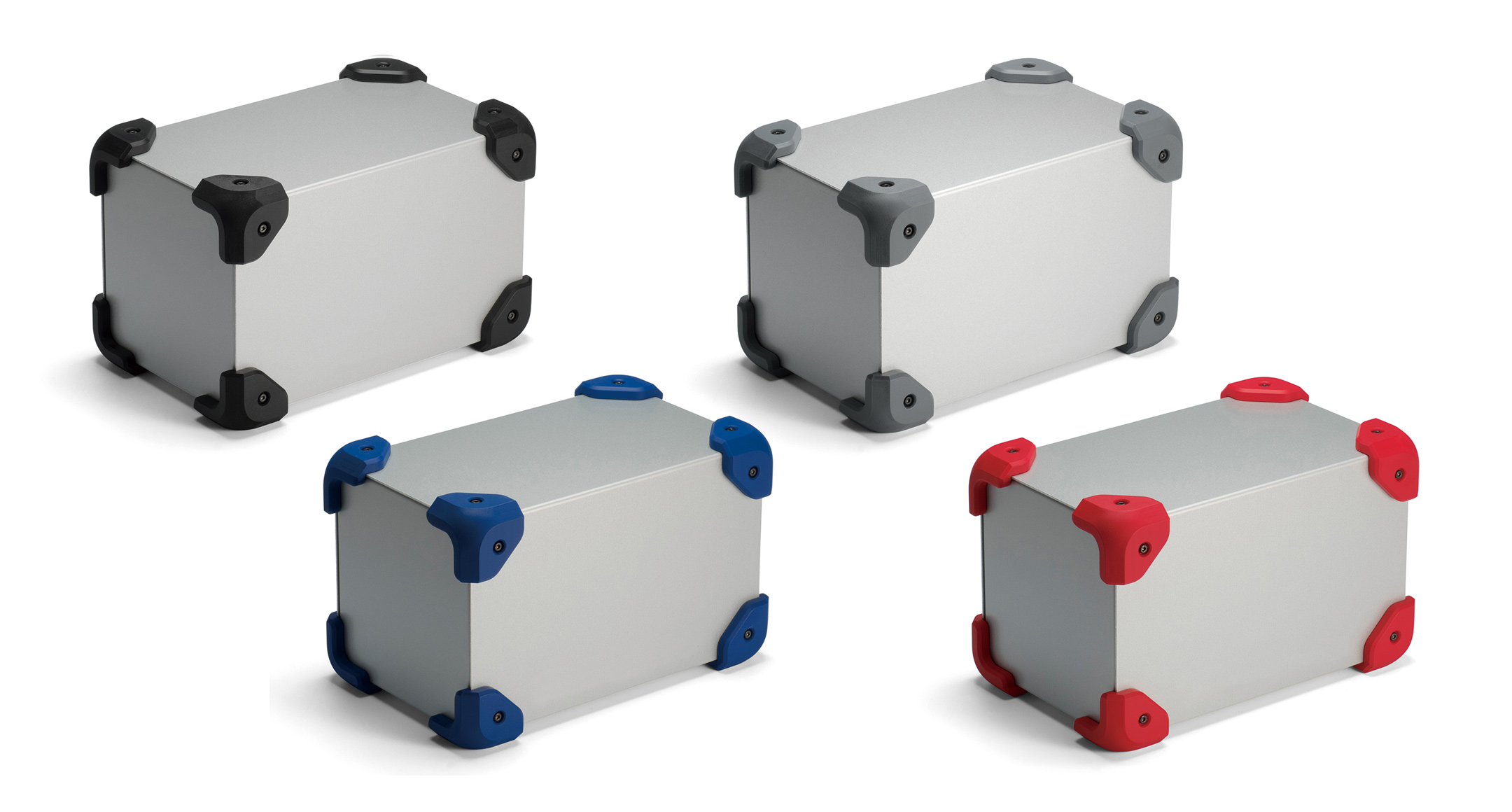

Corner guards are available in 4 different color variations.

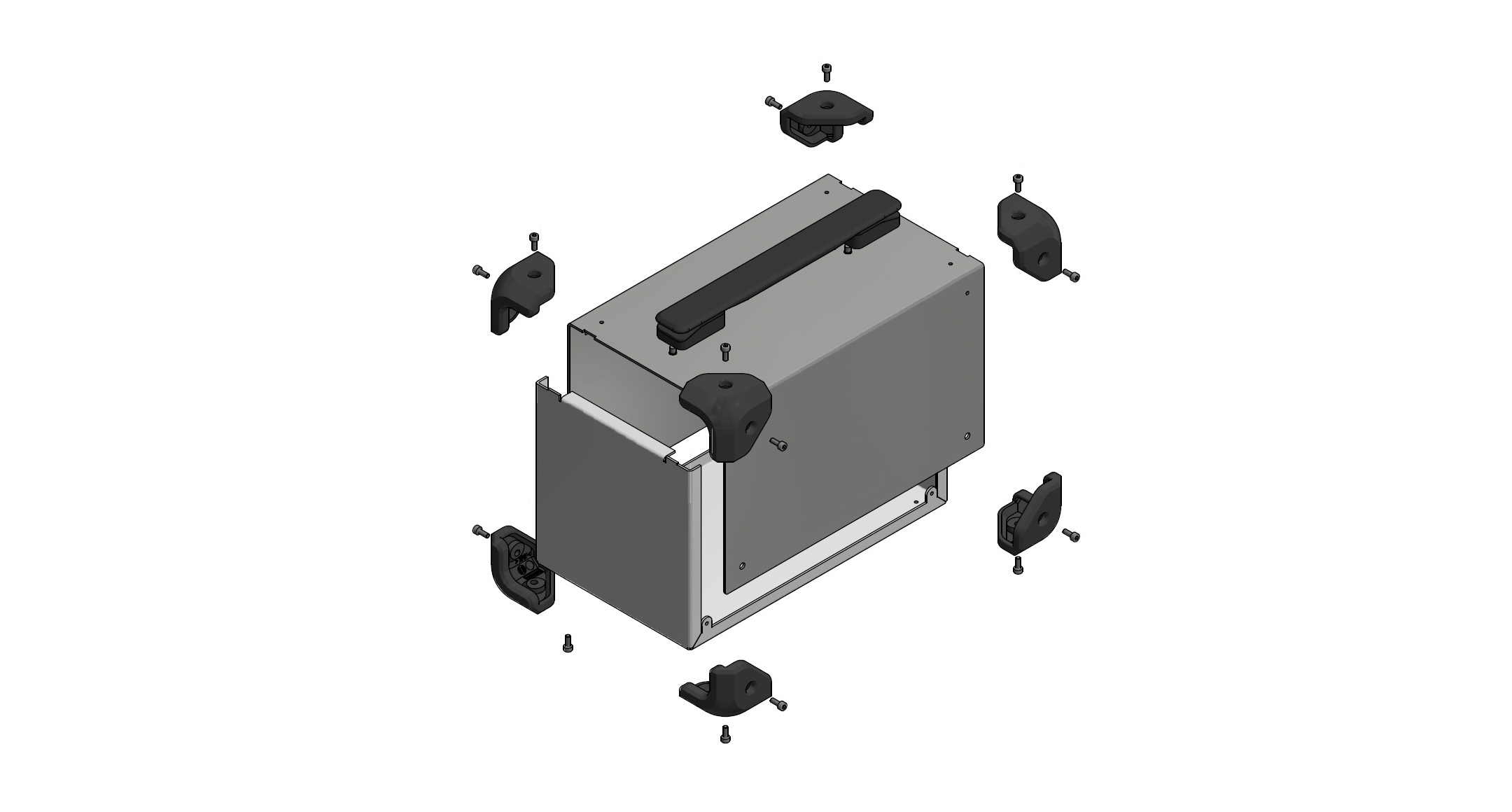

3D View  3D View (4 Colors)  Exploded View  Color code 

COLOR TYPE

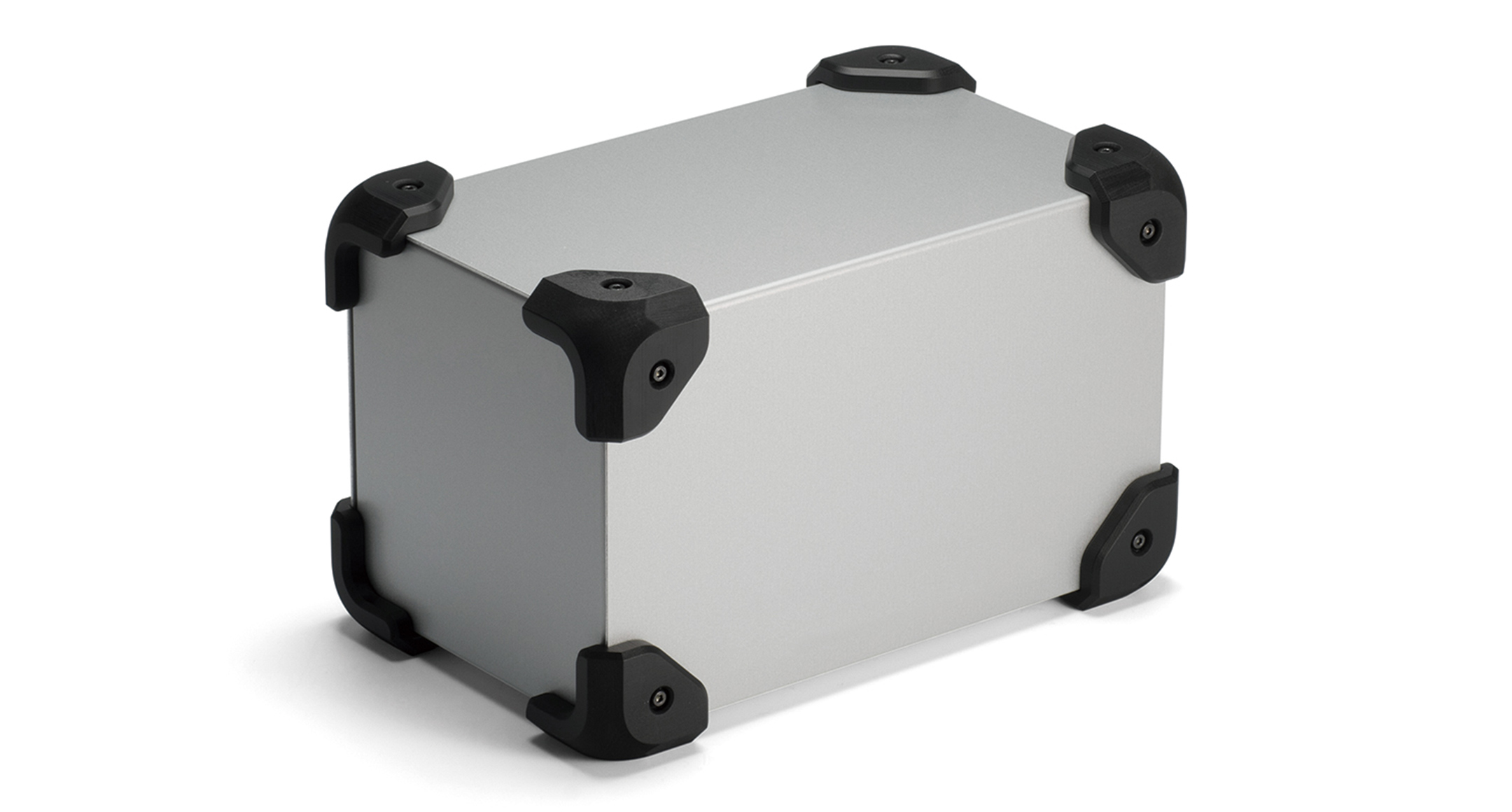

SBSilver/Black

CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Black

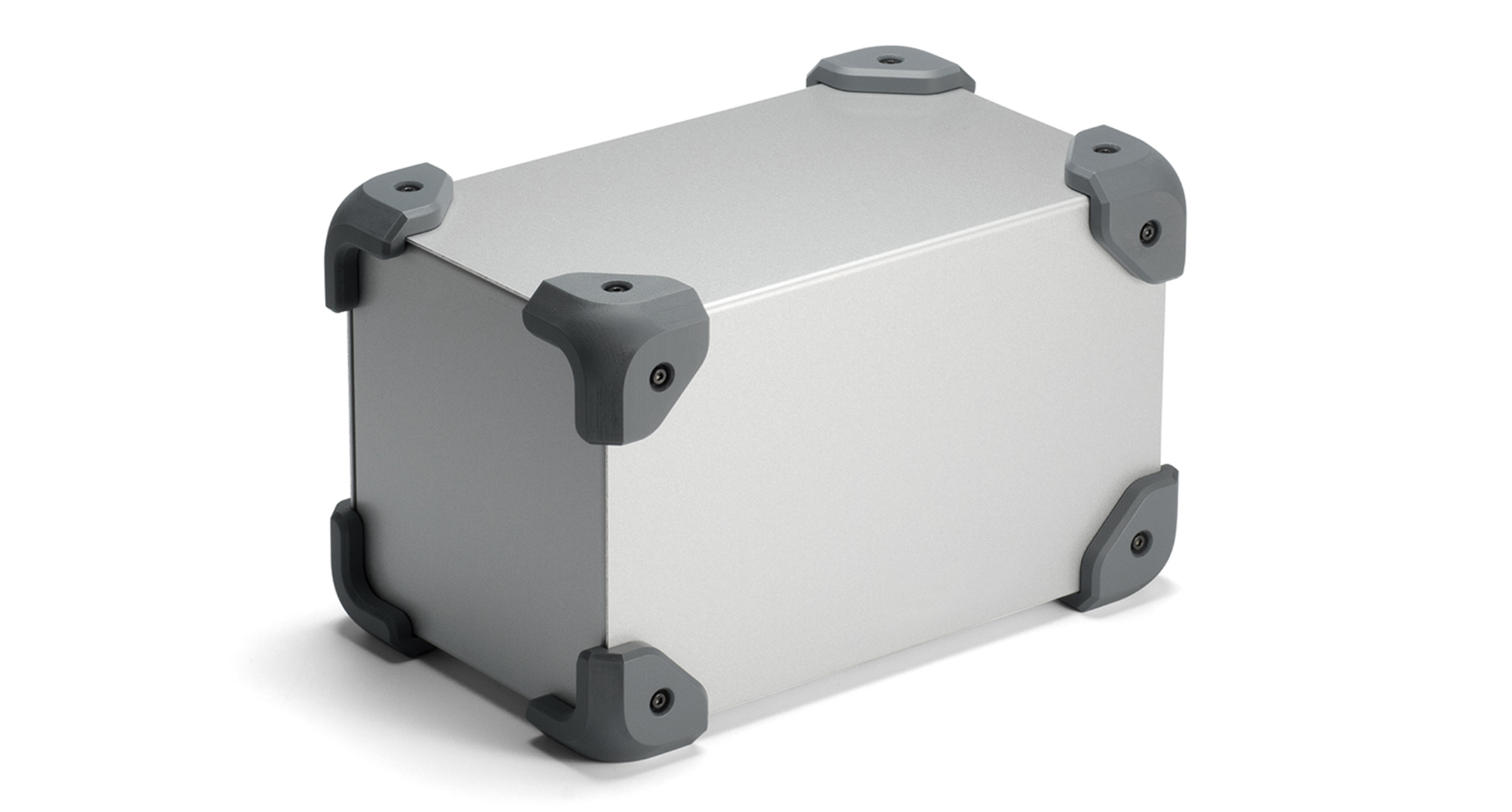

SGSilver/Gray

CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Gray

SNSilver/Navy

CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Navy

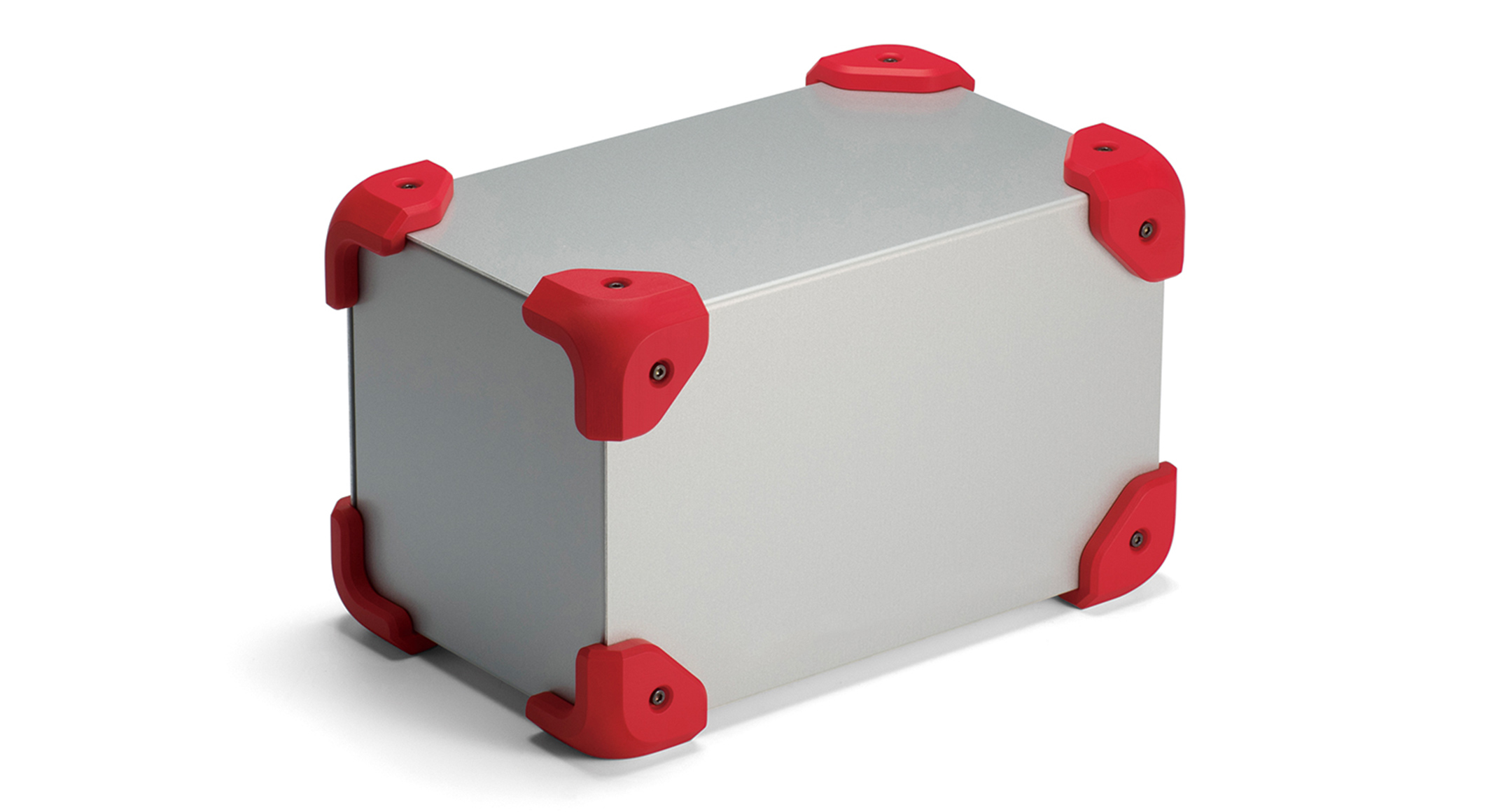

SRSilver/Red

CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Red
CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Black
CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Gray
CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Navy
CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series:Silver/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions PDF DXF DWG
W H D
MCGF□-□-□ ・ Width shorter than 199mm, Depth shorter than 299mm Available 150 to 199mm Available 80 to 124mm Available 150 to 299mm PDF DXF DWG
MCGF□-□-□ ・ Width shorter than 199mm, Depth longer than 300mm Available 150 to 199mm Available 80 to 124mm Available 300 to 400mm PDF DXF DWG
MCGF□-□-□ ・ Width longer than 200mm, Depth shorter than 299mm Available 200 to 500mm Available 80 to 250mm Available 150 to 299mm PDF DXF DWG
MCGF□-□-□ ・ Width longer than 200mm, Depth longer than 300mm Available 200 to 500mm Available 80 to 250mm Available 300 to 400mm PDF DXF DWG
