RIGHT ANGLED CABLE GLAND - REL series


REL Series -PDF

CATEGORY:Right angled cable gland, L-shape cable gland, Angled cable gland, Nylon cable gland, Polyamide cable gland

RIGHT ANGLED CABLE GLAND -  REL series
RIGHT ANGLED CABLE GLAND -  REL series
RIGHT ANGLED CABLE GLAND -  REL series
RIGHT ANGLED CABLE GLAND -  REL series1
RIGHT ANGLED CABLE GLAND -  REL series2
RIGHT ANGLED CABLE GLAND -  REL series3

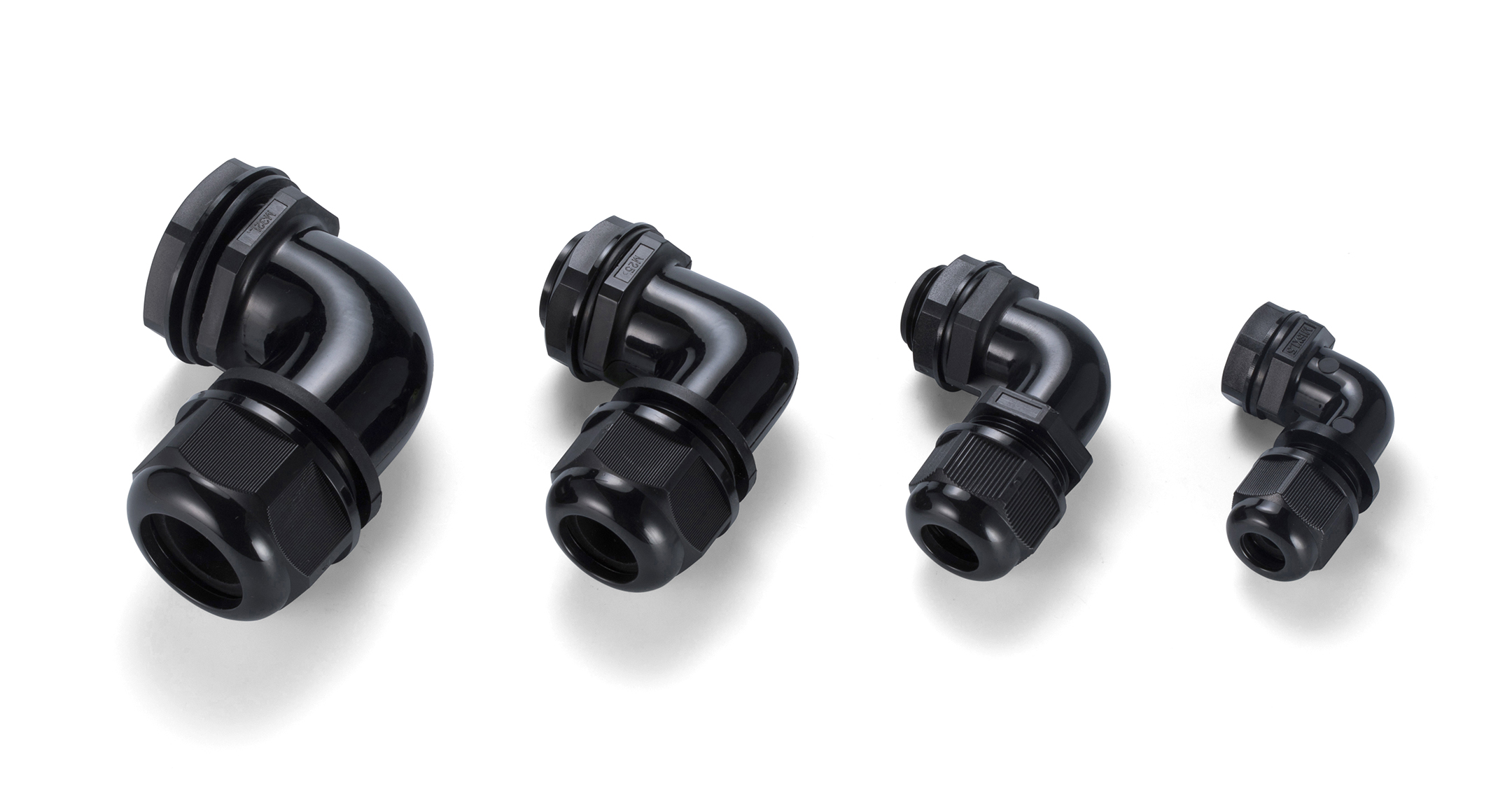

L-shape cable gland with M type threads.

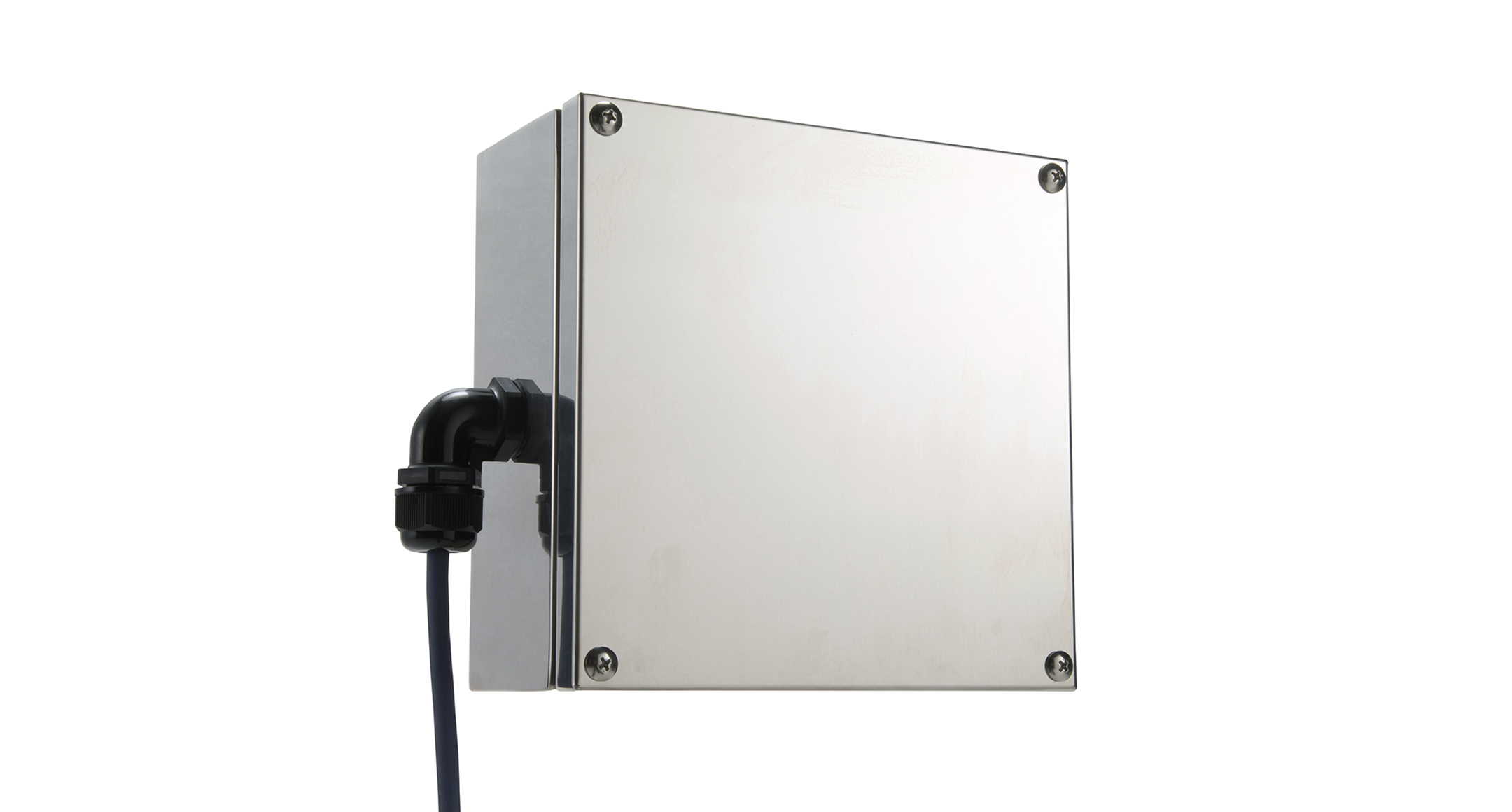

Allow wires to be routed vertically.
4 thread sizes for M16・M20・M25・M32 in light gray and black are available.
Cable range : φ3.5mm~φ16mm

Protecting class : IP67
Color: Black / similar to RAL9005

Estimated Available Date - REL32-22B:TBD

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range (mm) Weight (g) Pack of Available from PDF DXF DWG
REL16-7B M16×1.5 φ16.1 5~7 16 1 pcs now on sale PDF DXF DWG
REL16-10B M16×1.5 φ16.1 8~10 15 1 pcs now on sale PDF DXF DWG
REL20-11B M20×1.5 φ20.1 7~11 26.5 1 pcs now on sale PDF DXF DWG
REL20-14B M20×1.5 φ20.1 11~14 26 1 pcs now on sale PDF DXF DWG
REL25-16B M25×1.5 φ25.1 12~16 39.5 1 pcs now on sale PDF DXF DWG
REL25-18B M25×1.5 φ25.1 15~18 38.5 1 pcs now on sale PDF DXF DWG
REL32-22B M32×1.5 φ32.1 16~22 59.5 1 pcs TBD
