IP68 SEAMLESS CABLE GLAND - THA45 series


THA45 Series -PDF

CATEGORY：Waterproof cable gland, IP68 cable gland, Seamless cable gland, Nylon cable grand, Polyamide cable gland, M thread cable gland, Conduit connector

IP68 SEAMLESS CABLE GLAND - THA45 series
IP68 SEAMLESS CABLE GLAND - THA45 series
IP68 SEAMLESS CABLE GLAND - THA45 series
IP68 SEAMLESS CABLE GLAND - THA45 series1
IP68 SEAMLESS CABLE GLAND - THA45 series2
IP68 SEAMLESS CABLE GLAND - THA45 series3

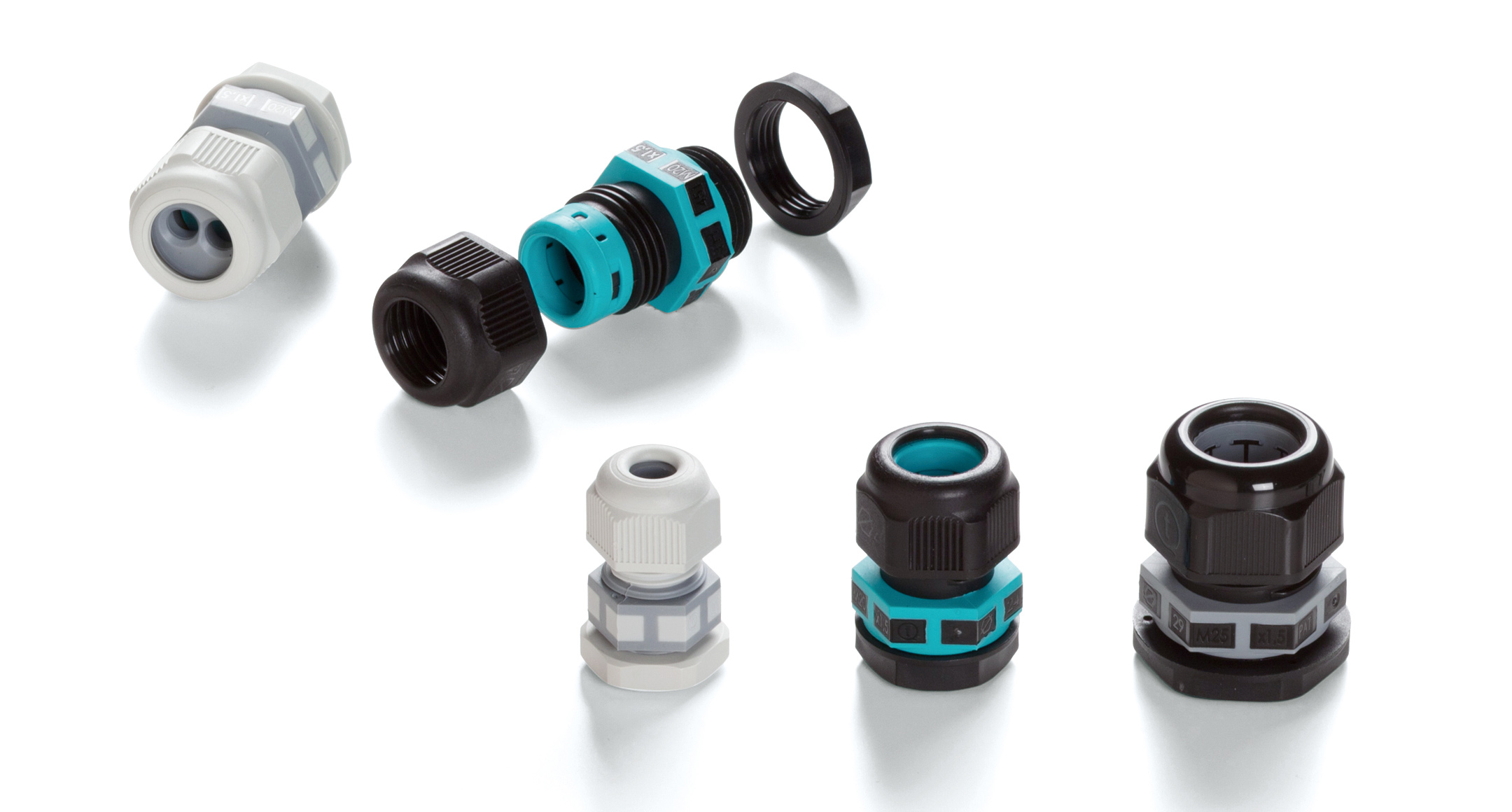

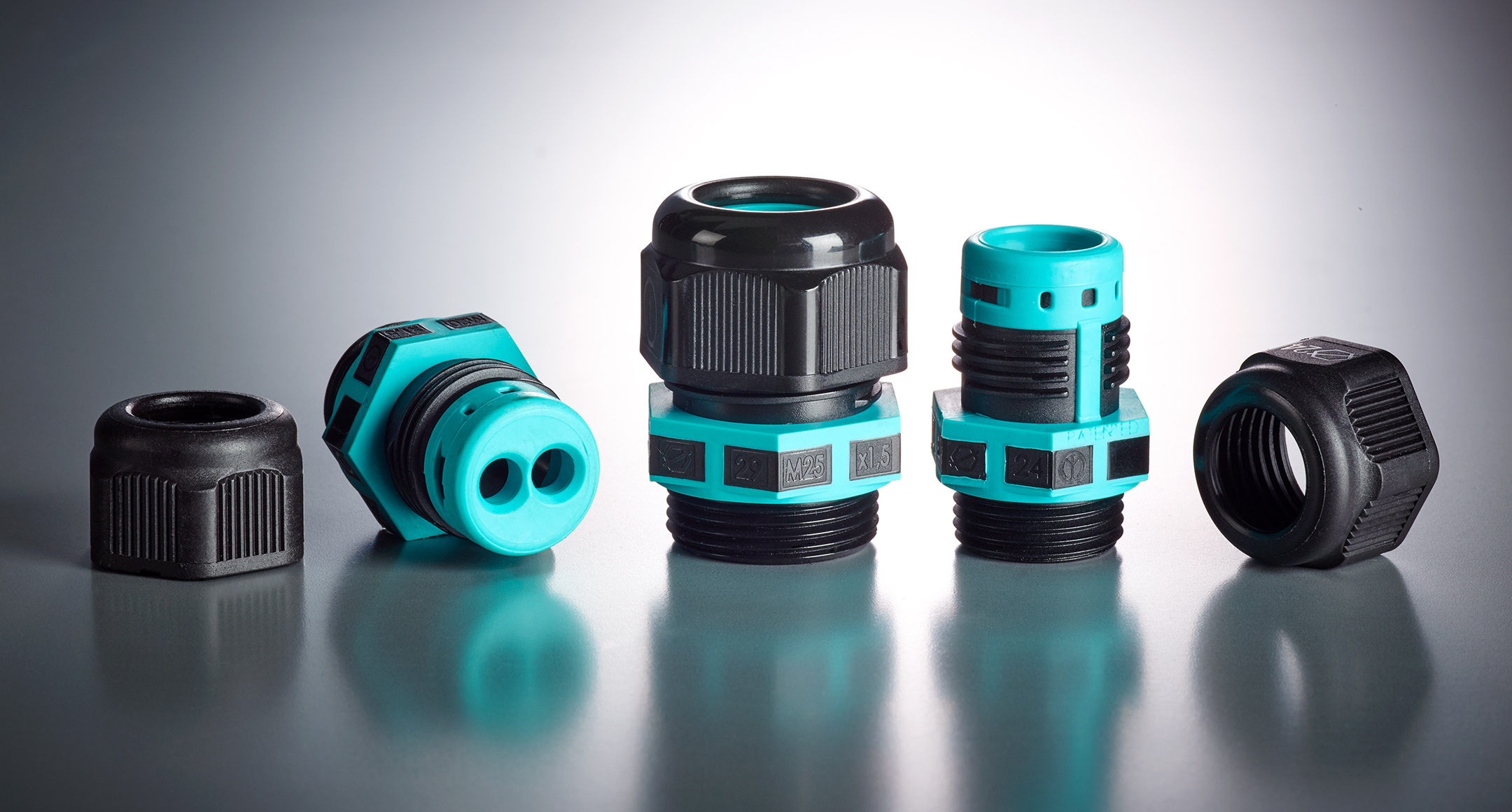

Seamless construction of connector and sealing insert for superb waterproof performance.

Protection class : IP68 5bar/1h (1 hour / 50m depth)
Operating temperature : -40°C ~ +125°C
EN50262 Var.A compliant

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Color Weight (g) Pack of PDF DXF DWG
THA450-16SB M16×1.5 φ15.7 5～7.5 Black / Gray 8.1 1 pcs PDF DXF DWG
THA450-16SG M16×1.5 φ15.7 5～7.5 Black / Green 8.1 1 pcs PDF DXF DWG
THA450-16SL M16×1.5 φ15.7 5～7.5 Light gray / Gray 8.1 1 pcs PDF DXF DWG
THA450-16LB M16×1.5 φ15.7 7.5～9.5 Black / Gray 8 1 pcs PDF DXF DWG
THA450-16LG M16×1.5 φ15.7 7.5～9.5 Black / Green 8 1 pcs PDF DXF DWG
THA450-16LL M16×1.5 φ15.7 7.5～9.5 Light gray / Gray 8 1 pcs PDF DXF DWG
THA451-20B M20×1.5 φ20.2 10.5～14 Black / Gray 11.4 1 pcs PDF DXF DWG
THA451-20G M20×1.5 φ20.2 10.5～14 Black / Green 11.4 1 pcs PDF DXF DWG
THA451-20L M20×1.5 φ20.2 10.5～14 Light gray / Gray 11.4 1 pcs PDF DXF DWG
THA451-20-2B M20×1.5 φ20.2 φ6×2 Black / Gray 11.9 1 pcs PDF DXF DWG
THA451-20-2G M20×1.5 φ20.2 φ6×2 Black / Green 11.9 1 pcs PDF DXF DWG
THA451-20-2L M20×1.5 φ20.2 φ6×2 Light gray / Gray 11.9 1 pcs PDF DXF DWG
THA452-25B M25×1.5 φ25.2 14～17 Black / Gray 19.4 1 pcs PDF DXF DWG
THA452-25G M25×1.5 φ25.2 14～17 Black / Green 19.4 1 pcs PDF DXF DWG
THA452-25L M25×1.5 φ25.2 14～17 Light gray / Gray 19.4 1 pcs PDF DXF DWG
