TERMINAL BLOCK JUNCTION BOX - TMB series


TMB Series -PDF

CATEGORY:IP65 junction box, Terminal block box, Terminal enclosure, Electrical box, Wiring box

TERMINAL BLOCK JUNCTION BOX - TMB series
TERMINAL BLOCK JUNCTION BOX - TMB series
TERMINAL BLOCK JUNCTION BOX - TMB series
TERMINAL BLOCK JUNCTION BOX - TMB series1
TERMINAL BLOCK JUNCTION BOX - TMB series2
TERMINAL BLOCK JUNCTION BOX - TMB series3

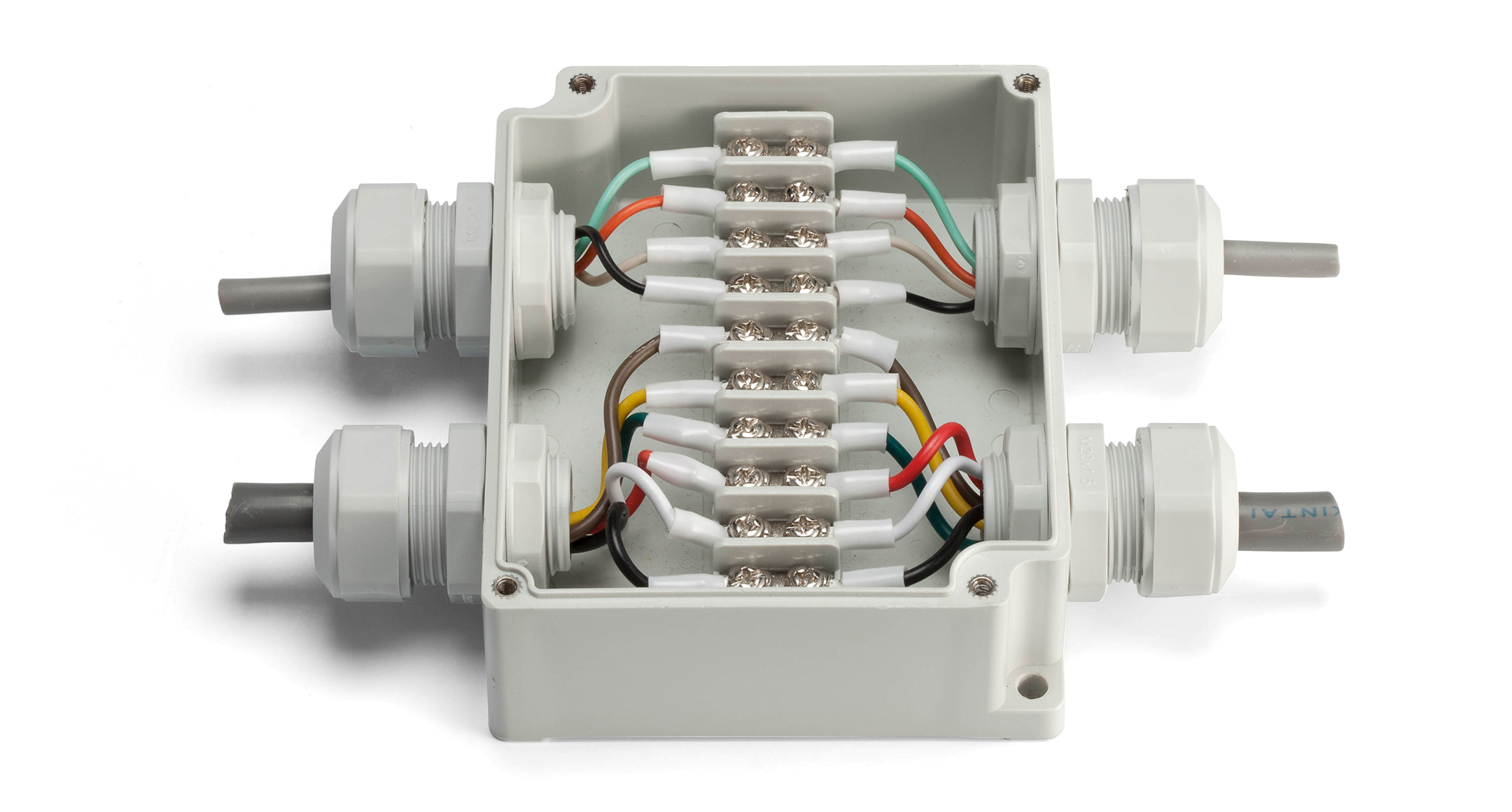

Junction box with built-in terminal block.
IP65 waterproof protection class.

Made of flame-resistant ABS plastic (UL94V-0) for TMB-4P/6P/10P/15PS models (TMB-15PS model will be discontinued with present inventory.)
and Polycarbonate (UL94V-0) for TMB-15PCS/20PC/20PCL models.

TMB-4P・6P・10P is molded with Φ21.0mm metric knock-outs for M20 cable glands.

Protection class: IP65
Operating temperature: -10℃ ~ +60℃
Recommended torque: TMB-4P・6P・10P : 0.6N・m / TMB-15PS・15PCS・20PC・20PCL : 1N・m

Terminal block spec
Rated voltage : 400V
Rated current : 17.5A
Applicable wire : 1.5m㎡
Standard tightening torque : 0.8N・m

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Number of poles Rated voltage/current Applicable wire Color / Similar matching Weight (g) Inventory status PDF DXF DWG
W H D
TMB-4P 55 43 91 4P AC400V 17.5A 1.5m㎡ White gray / Munsell 5R8/0.5 102 PDF DXF DWG
TMB-6P 75 43 91 6P AC400V 17.5A 1.5m㎡ White gray / Munsell 5R8/0.5 134 PDF DXF DWG
TMB-10P 110 43 91 10P AC400V 17.5A 1.5m㎡ White gray / Munsell 5R8/0.5 190 PDF DXF DWG
TMB-15PS 100 70 185 15P AC400V 17.5A 1.5m㎡ White gray / Munsell 5R8/0.5 412 Discontinued - Sold out. PDF DXF DWG
TMB-15PCS 100 70 185 15P AC400V 17.5A 1.5m㎡ Light gray / Munsell 5Y8/0.5 412 PDF DXF DWG
TMB-20PC 160 70 160 10P×2 AC400V 17.5A 1.5m㎡ Light gray / Munsell 5Y8/0.5 560 PDF DXF DWG
TMB-20PCL 100 70 230 20P AC400V 17.5A 1.5m㎡ Light gray / Munsell 5Y8/0.5 484 PDF DXF DWG
