UL2238 / C22.2 No. 182.3 certified products.

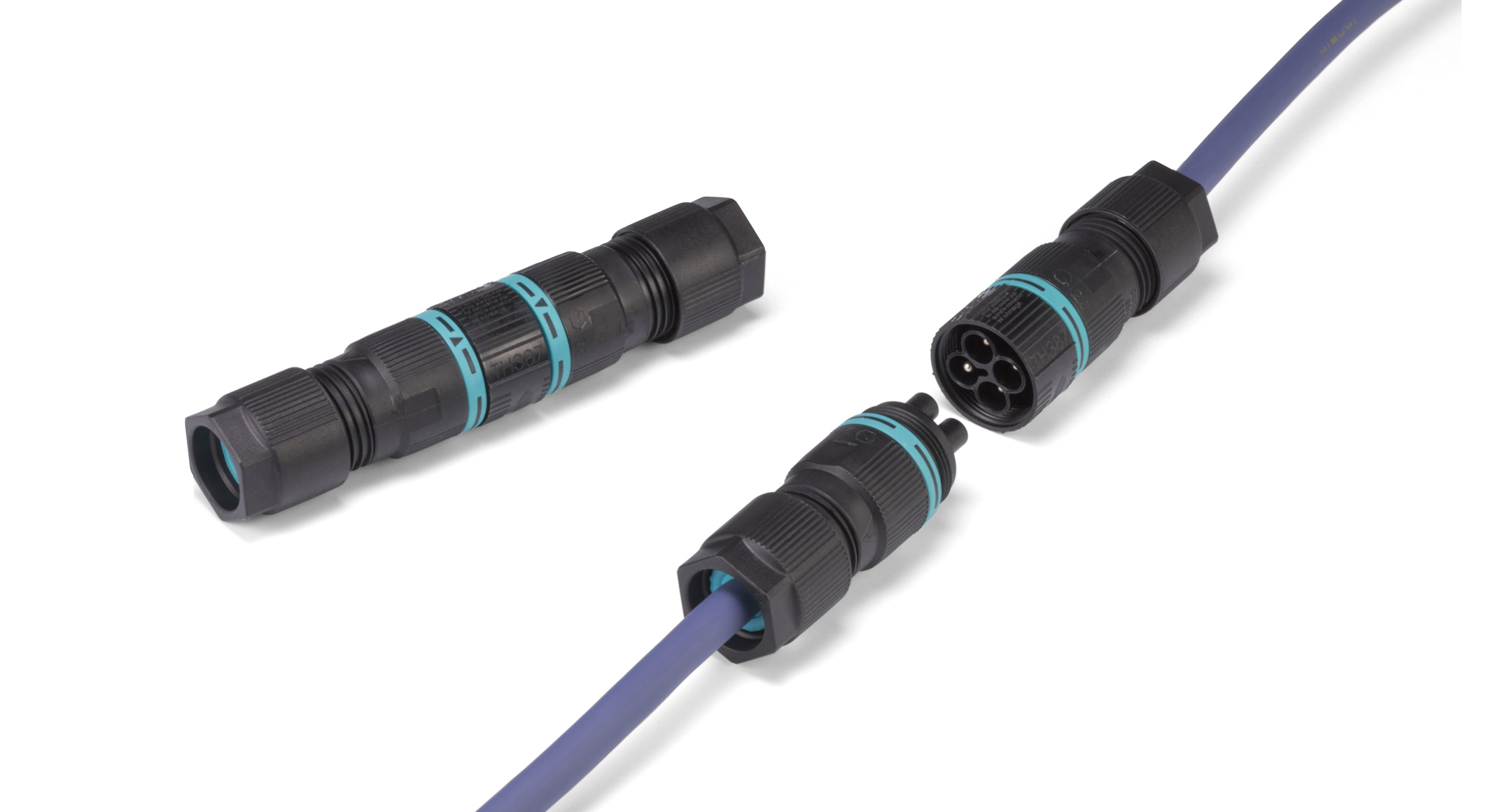

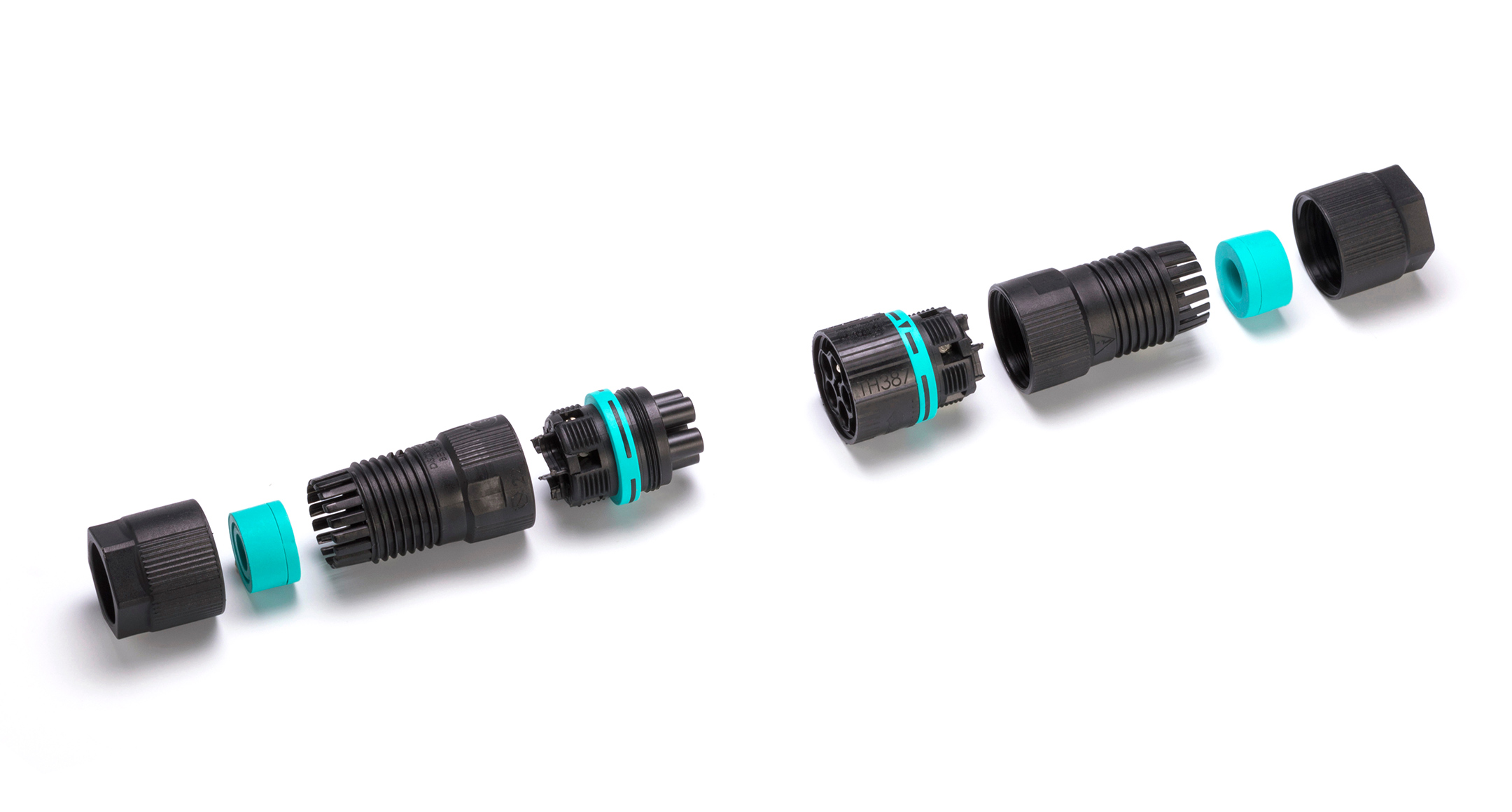

Plug-socket connector type consisting of the plug side (male) and socket side (female).

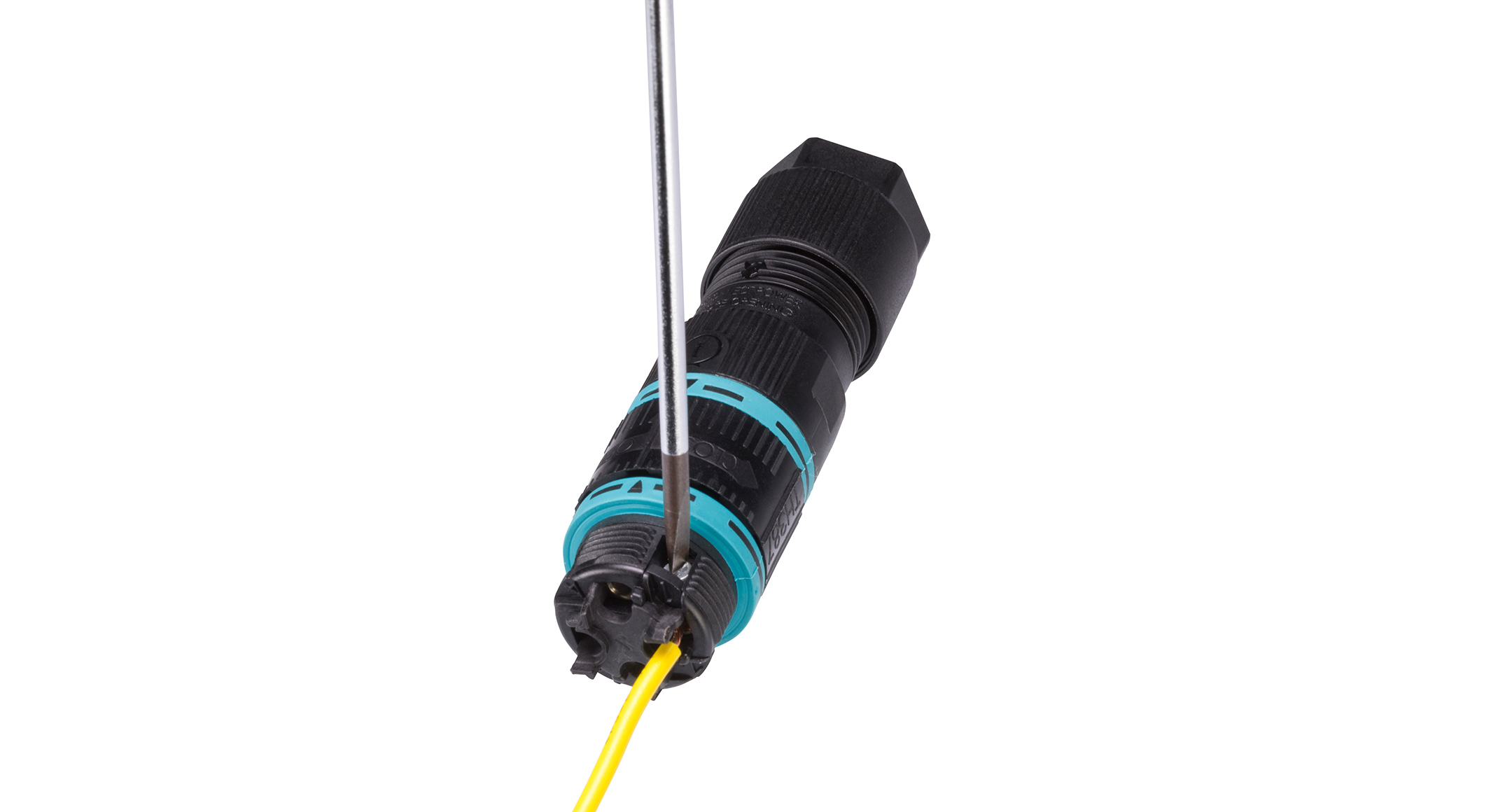

A screw type wiring connection is adopted, allowing for easy installation and removal.
4P and 5P pole models are available.
Plug / Socket can be sold separately.

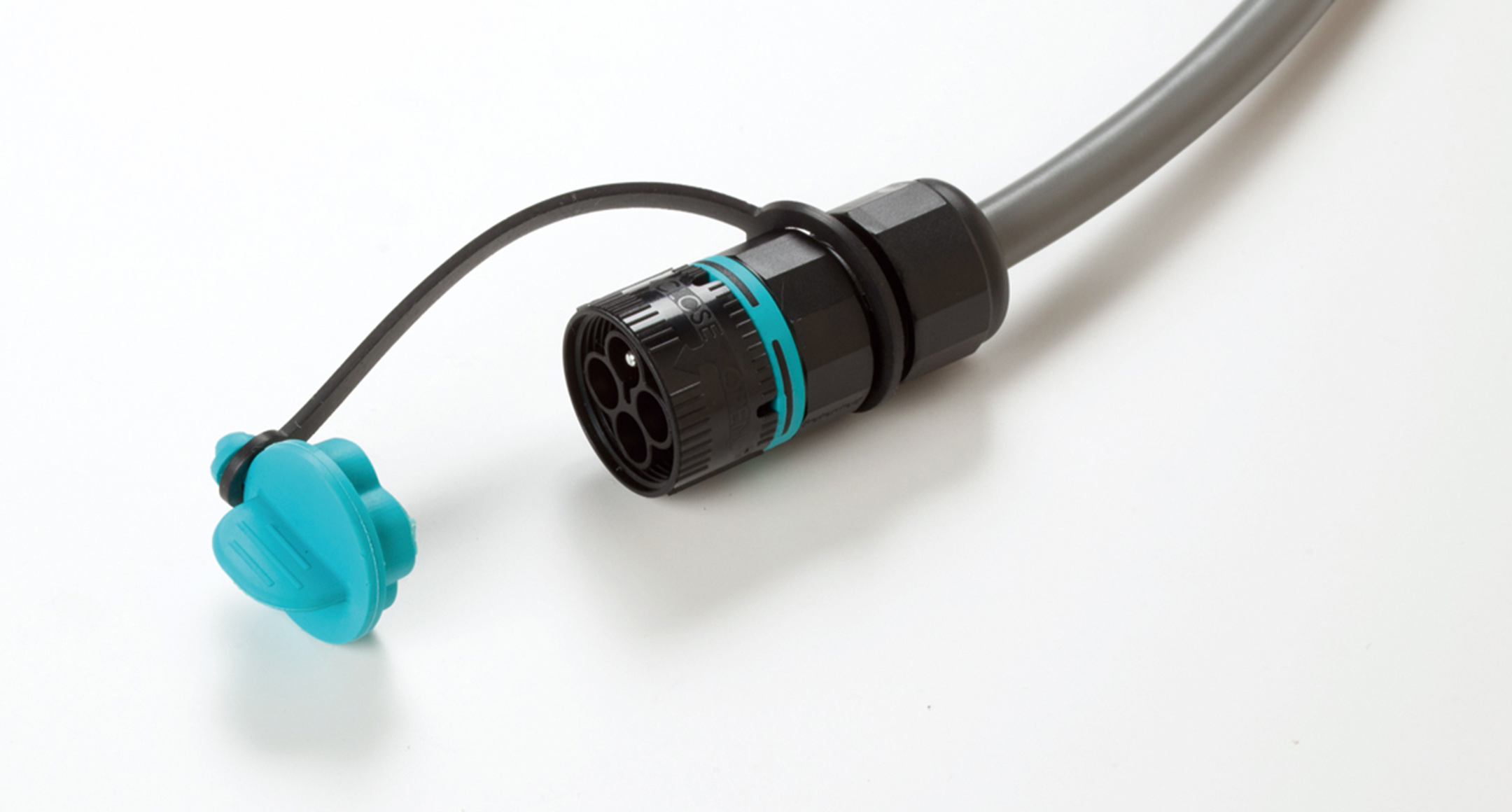

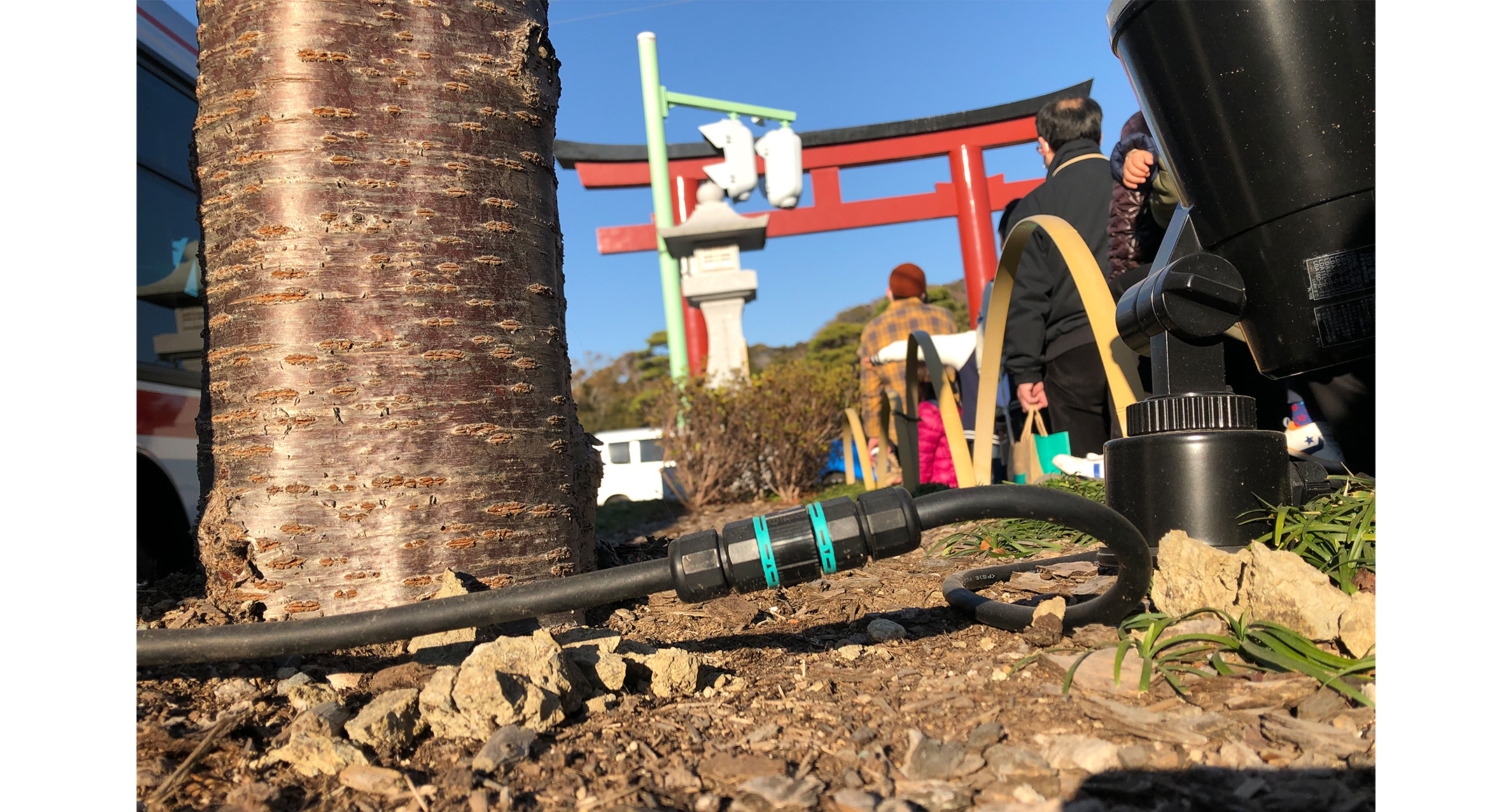

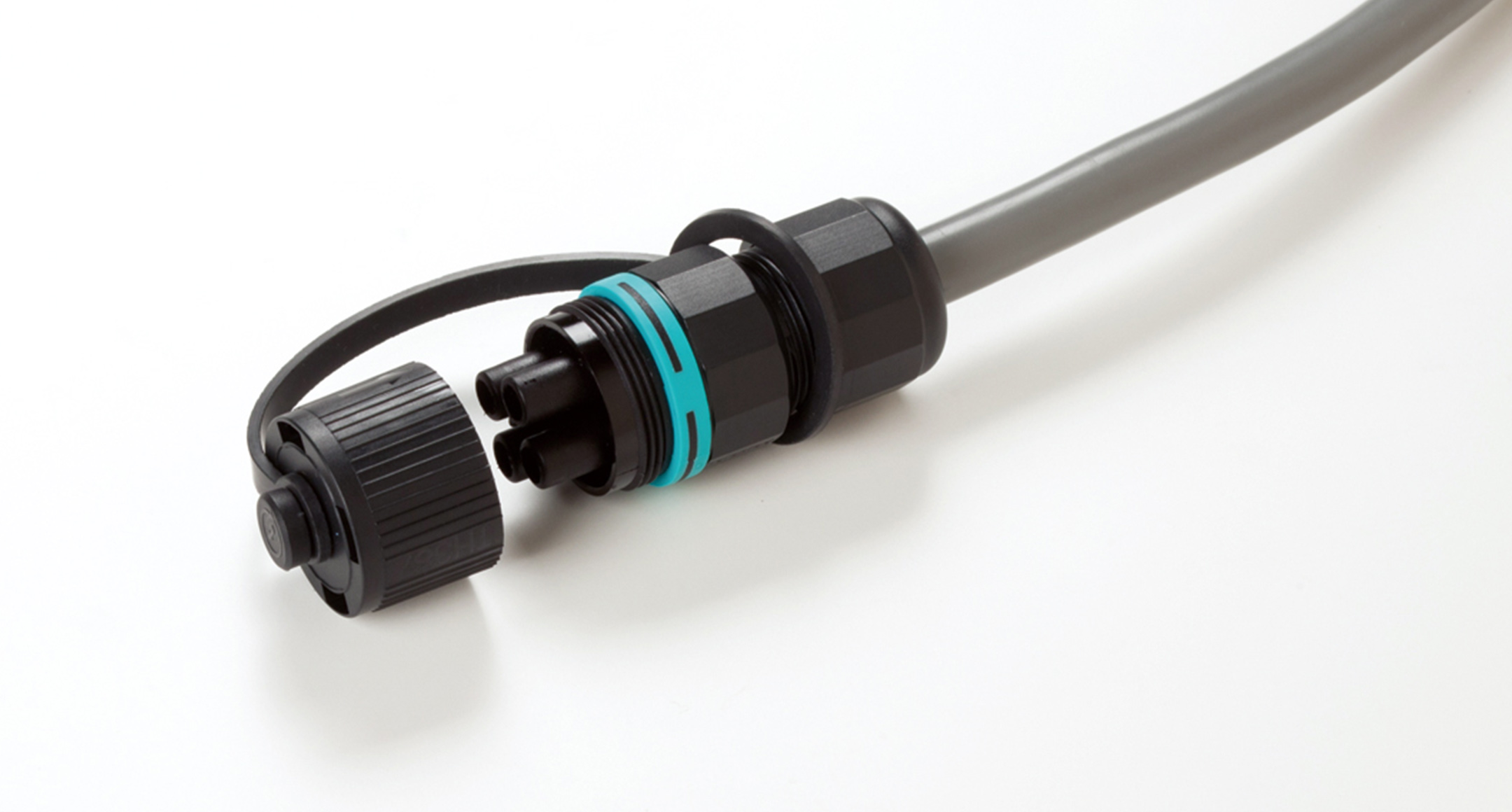

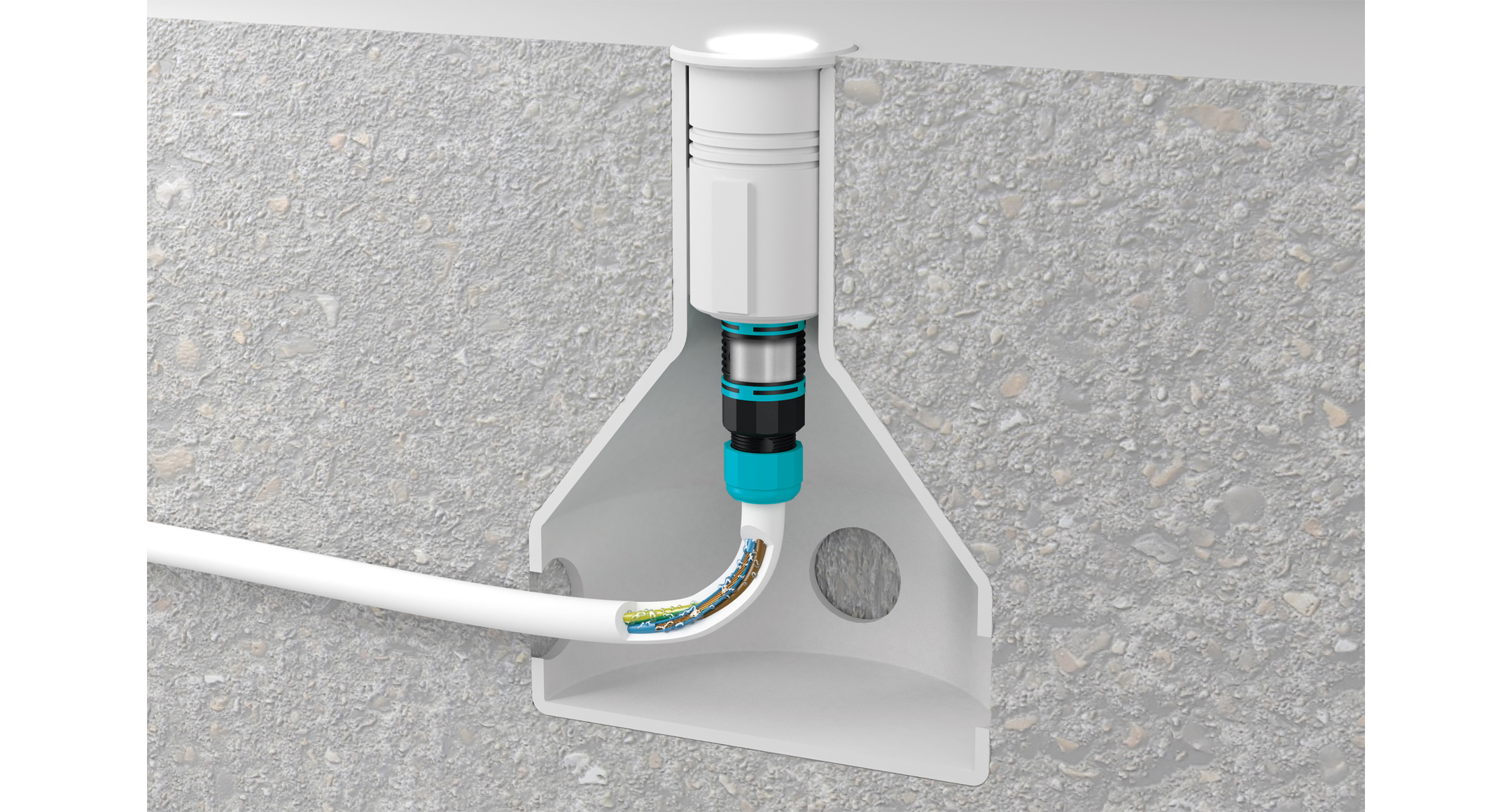

Suitable for use as ower or sensor signal relay of industrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.
Technical Data
Protection class : IP68 3bar/3h (3 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN61984 compliant.
Specifications
Rated voltage : Max AC500V
Rated current : 4P model : Max 17.5A (EN61984) / Max 15A (UL2238/C22.2 No. 182.3)
5P model : Max 17.5A (EN61984) / Max 10A (UL2238/C22.2 No. 182.3)
Applicable wire : 4P model = 0.5m㎡～4.0m㎡ (stranded)・ 5P model = 0.25m㎡～1.5m㎡ (stranded)
Impulse withstand voltage : 4kV
Number of insertion/extraction : 1,000 times
Plug-socket connector type consisting of the plug side (male) and socket side (female).
A screw type wiring connection is adopted, allowing for easy installation and removal.
4P and 5P pole models are available.
Plug / Socket can be sold separately.
Suitable for use as ower or sensor signal relay of industrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.
Technical Data
Protection class : IP68 3bar/3h (3 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN61984 compliant.
Specifications
Rated voltage : Max AC500V
Rated current : 4P model : Max 17.5A (EN61984) / Max 15A (UL2238/C22.2 No. 182.3)
5P model : Max 17.5A (EN61984) / Max 10A (UL2238/C22.2 No. 182.3)
Applicable wire : 4P model = 0.5m㎡～4.0m㎡ (stranded)・ 5P model = 0.25m㎡～1.5m㎡ (stranded)
Impulse withstand voltage : 4kV
Number of insertion/extraction : 1,000 times
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|
| THB387L-4P | φ23×118mm | φ7～13.5 | 4P | Max AC500V | Max 17.5A | 0.5～4.0m㎡ (Stranded) | 46 | DXF | DWG | |
| THB387L-5P | φ23×118mm | φ7～13.5 | 5P | Max AC500V | Max 17.5A | 0.25～1.5m㎡ (Stranded) | 43.5 | DXF | DWG |
