CATEGORY：19-inch rack enclosure, EIA rack enclosure, Rack-mount enclosure, Rack-mount chassis

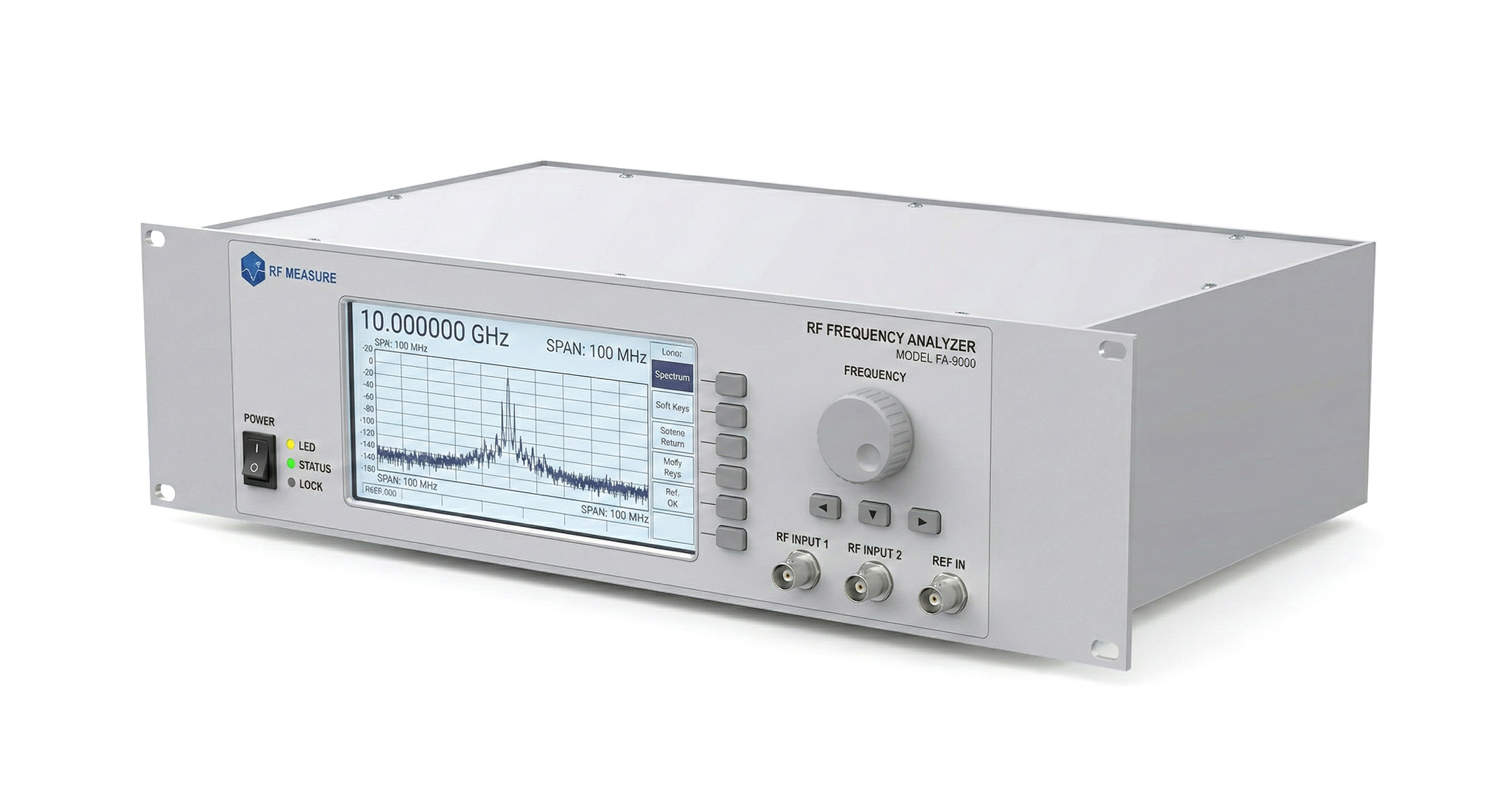

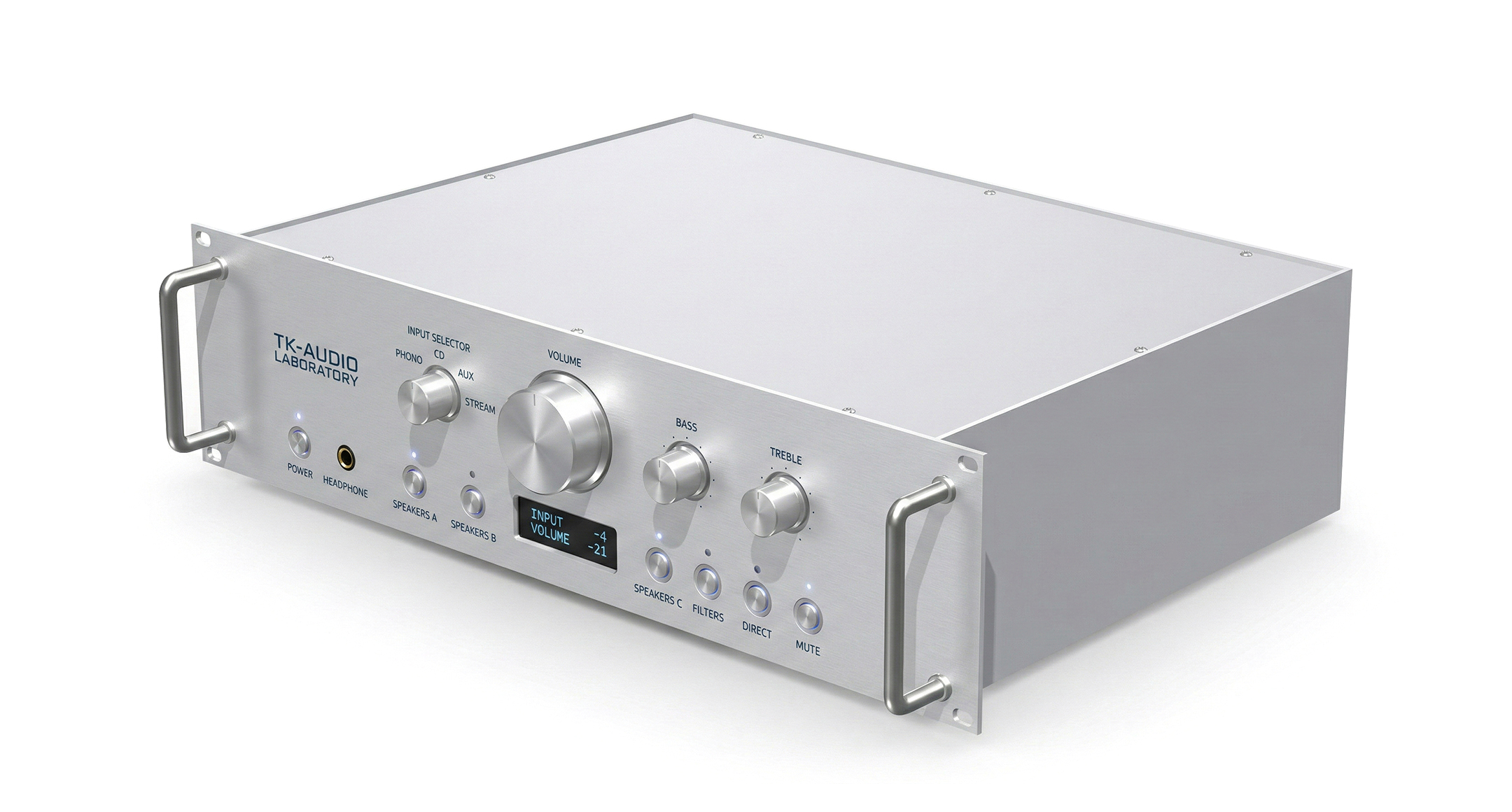

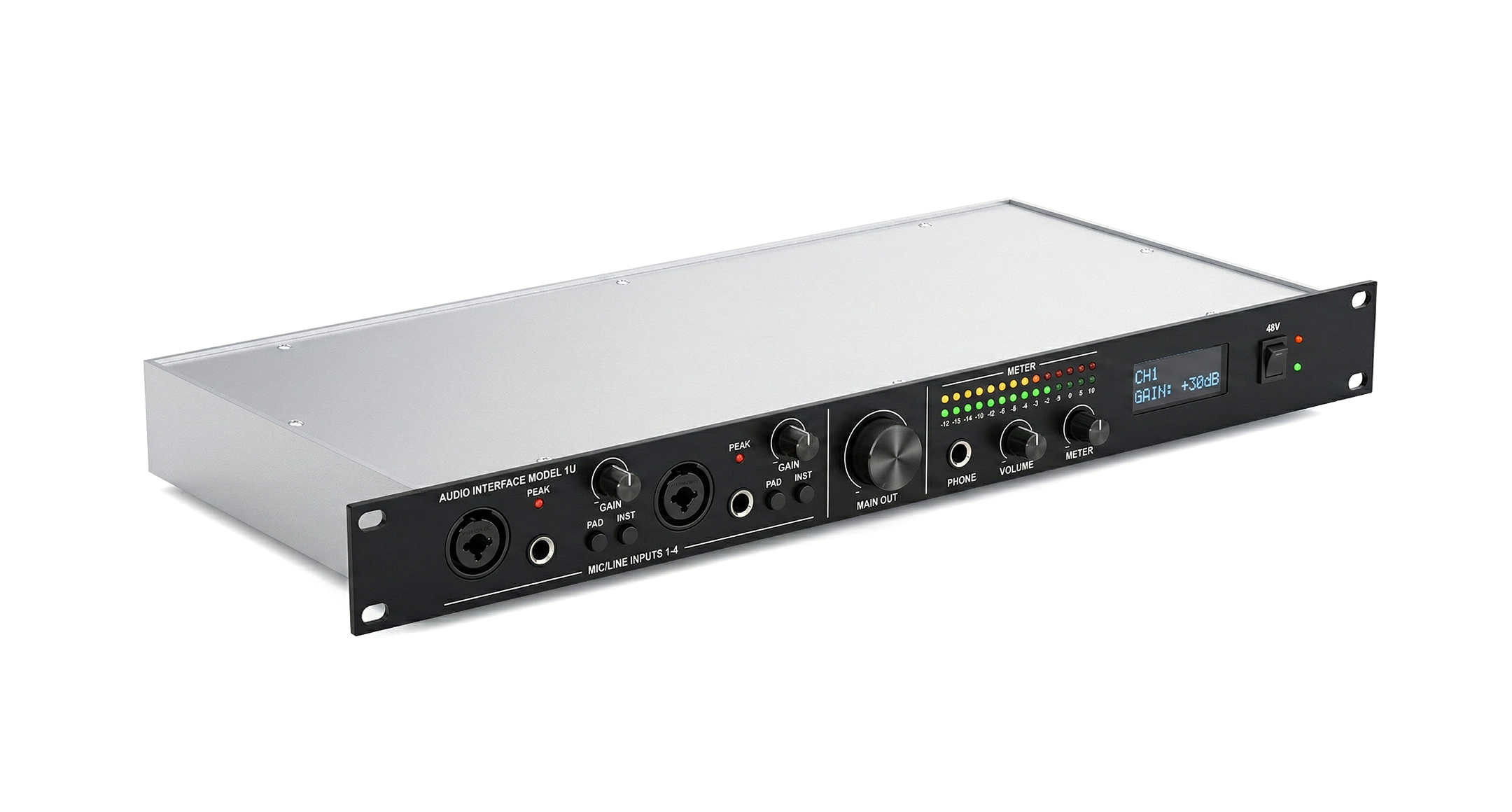

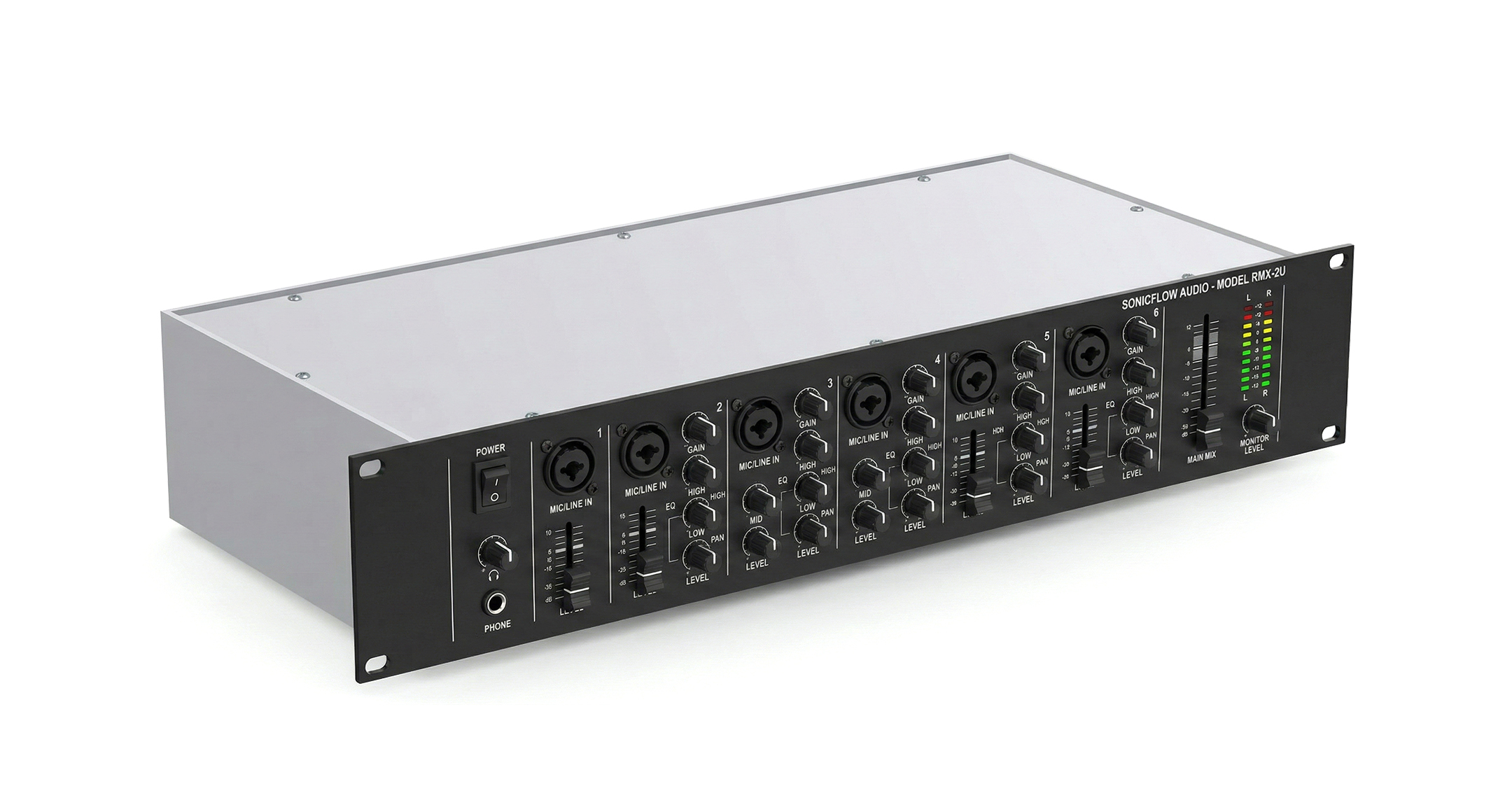

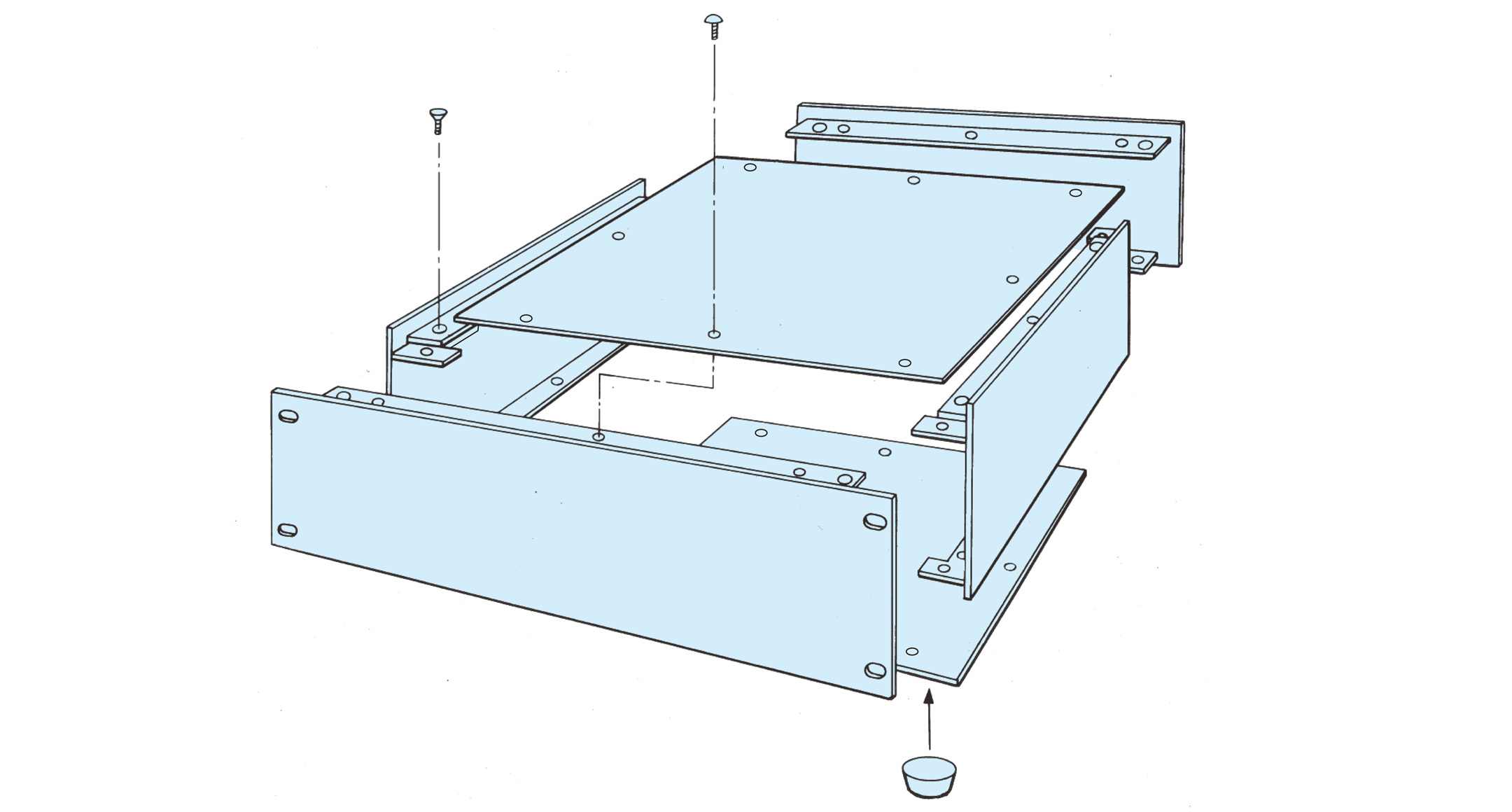

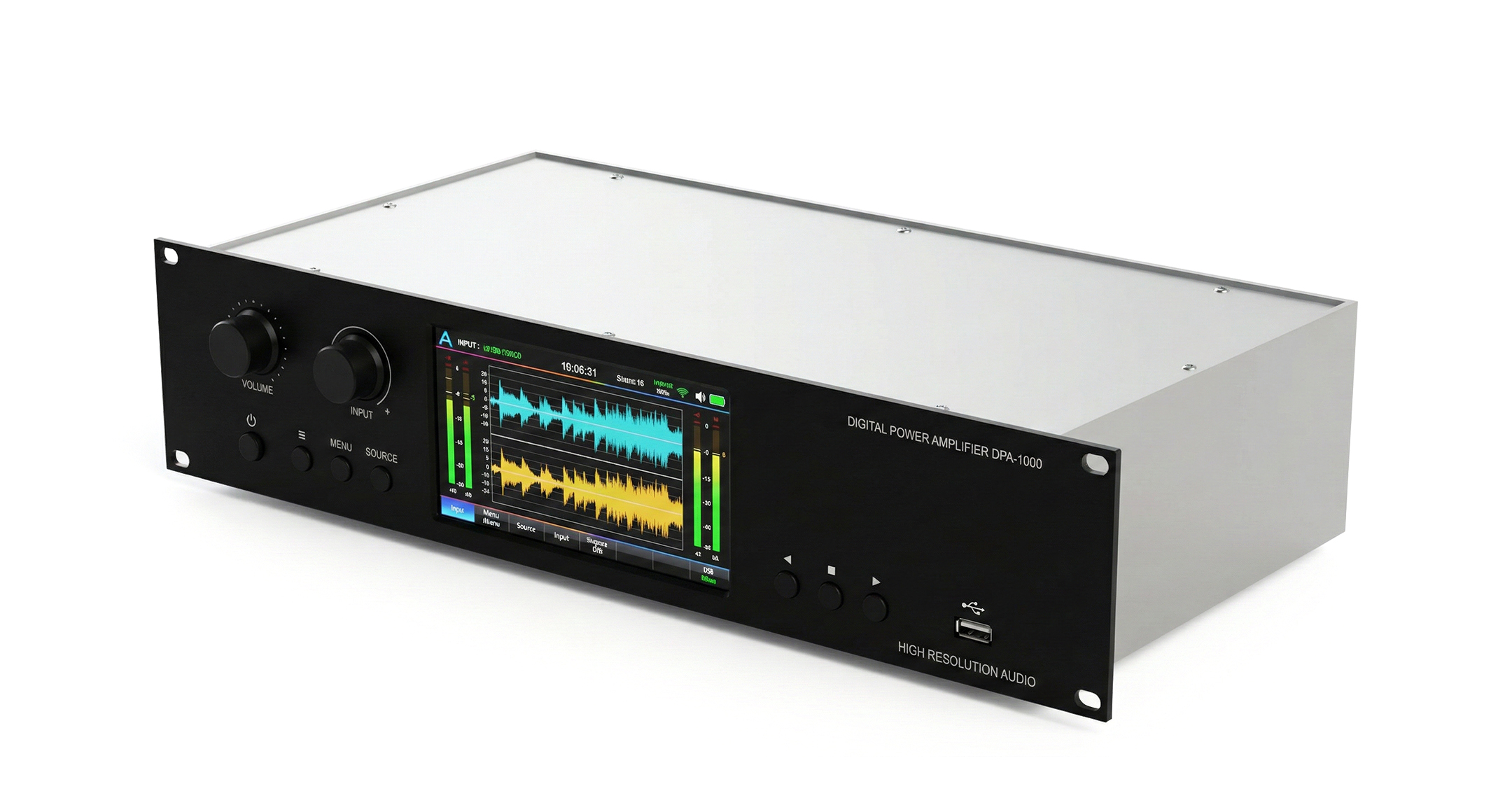

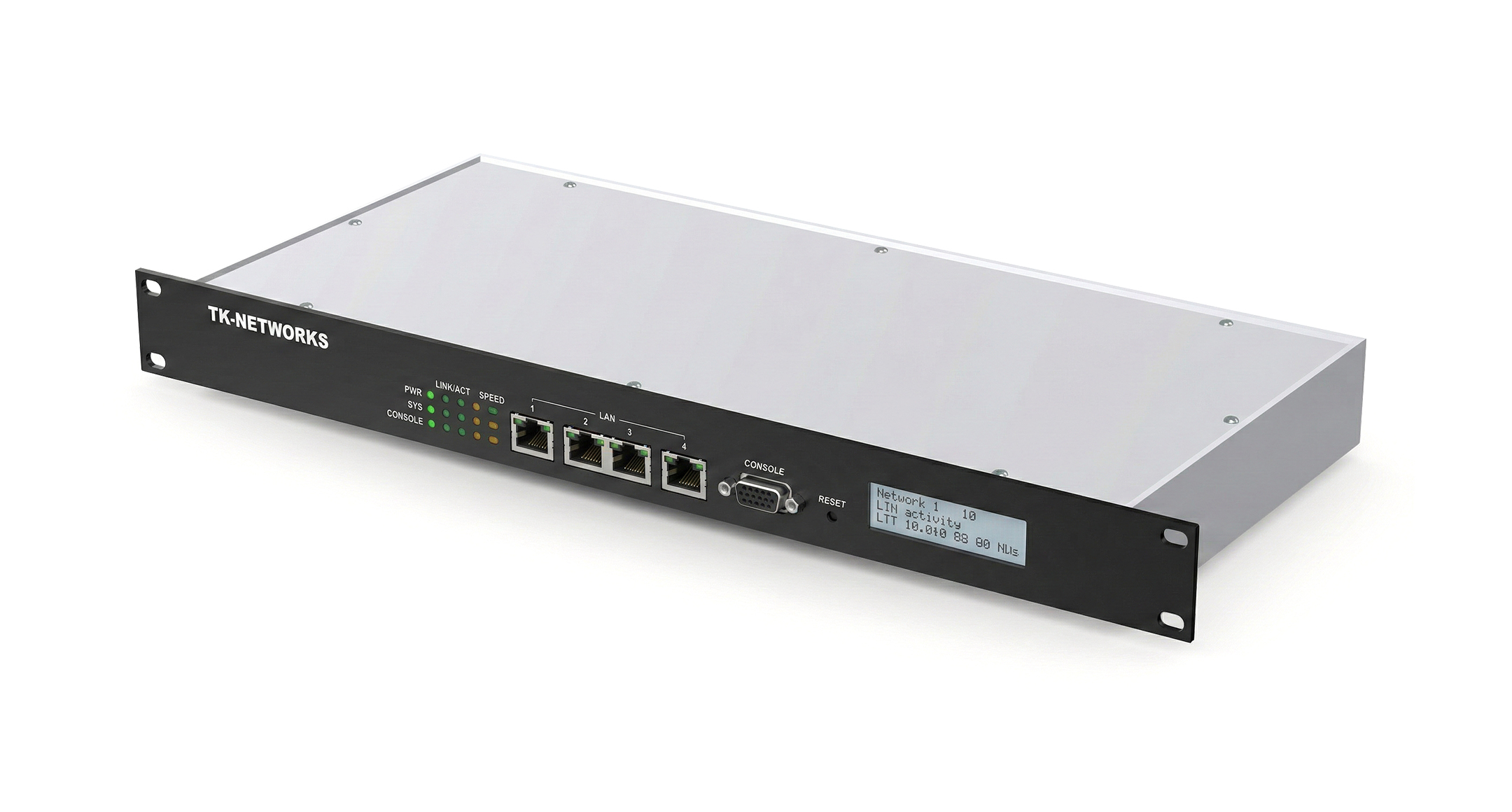

19" rack enclosure made of extruded aluminium material on 4 sides, with 424mm effective width; providing a large internal effective area.
New 430mm depth (D dimension) size has been added to extend the lineup to total 9 sizes.

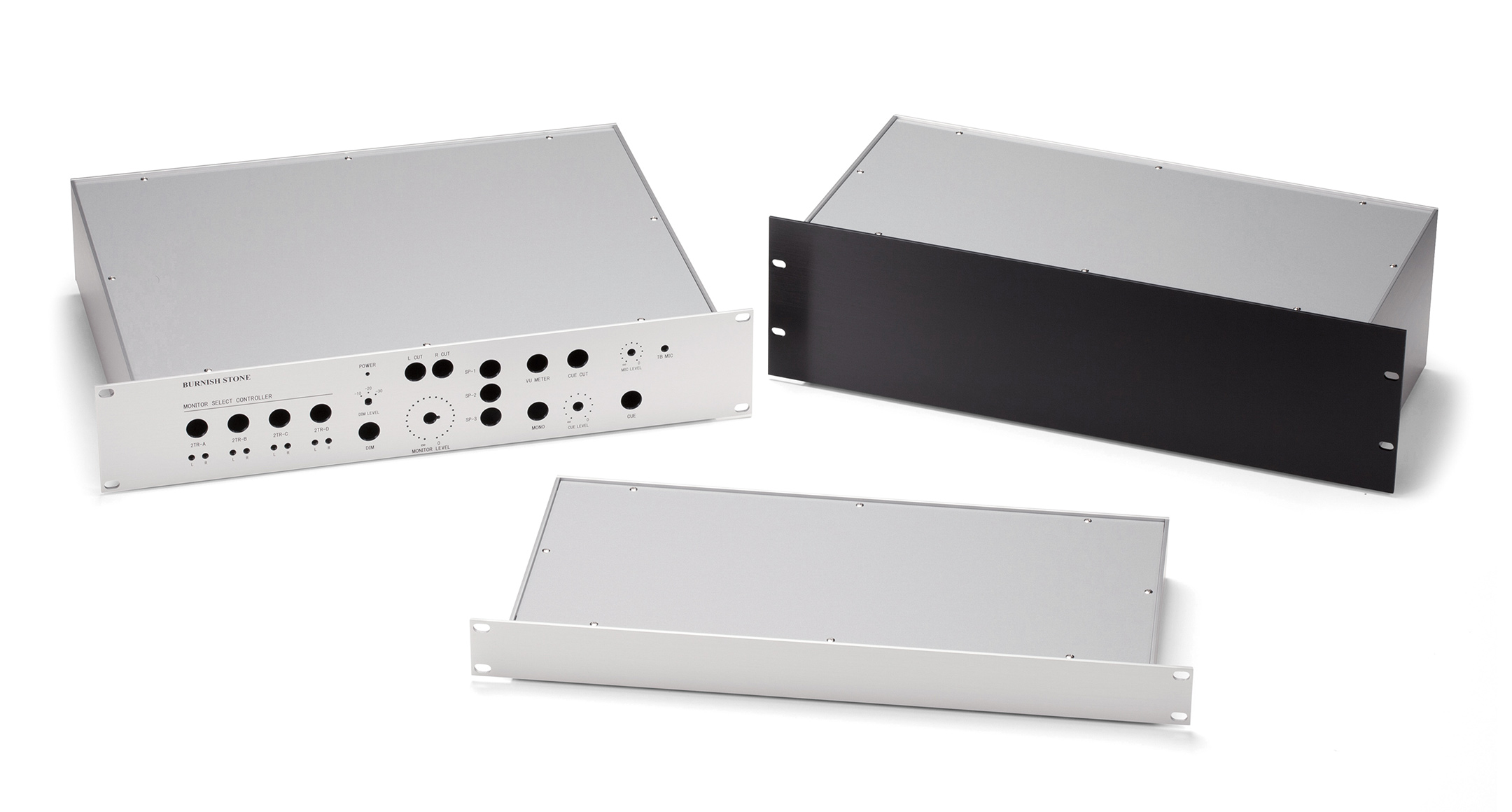

2 colors, silver and black, are available for the panel.
Flat panels allow a wide range of customization to be performed easily, such as milling, inkjet printing, painting, and more.
Use of support angle brackets are recommended when mounting on a rack.
【Launch Date】 *New size
Depth D=430 is scheduled for launch in January 2026.
New 430mm depth (D dimension) size has been added to extend the lineup to total 9 sizes.
2 colors, silver and black, are available for the panel.
Flat panels allow a wide range of customization to be performed easily, such as milling, inkjet printing, painting, and more.
Use of support angle brackets are recommended when mounting on a rack.
【Launch Date】 *New size
Depth D=430 is scheduled for launch in January 2026.
PRODUCT NO. / DIMENSIONS ▶︎HOW TO DRAW TECHNICAL DRAWINGS
| Product No. | External dimensions | Internal dimensions | Front panel surface finish | Weight (g) | Scheduled launch | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||||
| YER44-20B | 482.6 | 44 | 200 | 424 | 36 | 194 | Black anodized | 1380 | DXF | DWG | |||
| YER44-20S | 482.6 | 44 | 200 | 424 | 36 | 194 | Silver anodized | 1380 | DXF | DWG | |||
| YER44-32B | 482.6 | 44 | 320 | 424 | 36 | 314 | Black anodized | 1940 | DXF | DWG | |||
| YER44-32S | 482.6 | 44 | 320 | 424 | 36 | 314 | Silver anodized | 1940 | DXF | DWG | |||
| YER44-43B | 482.6 | 44 | 430 | 424 | 36 | 424 | Black anodized | 2380 | Mid January 2026 | ||||
| YER44-43S | 482.6 | 44 | 430 | 424 | 36 | 424 | Silver anodized | 2380 | Mid January 2026 | ||||
| YER88-20B | 482.6 | 88 | 200 | 424 | 80 | 194 | Black anodized | 1850 | DXF | DWG | |||
| YER88-20S | 482.6 | 88 | 200 | 424 | 80 | 194 | Silver anodized | 1850 | DXF | DWG | |||
| YER88-32B | 482.6 | 88 | 320 | 424 | 80 | 314 | Black anodized | 2490 | DXF | DWG | |||
| YER88-32S | 482.6 | 88 | 320 | 424 | 80 | 314 | Silver anodized | 2490 | DXF | DWG | |||
| YER88-43B | 482.6 | 88 | 430 | 424 | 80 | 424 | Black anodized | 2980 | Mid January 2026 | ||||
| YER88-43S | 482.6 | 88 | 430 | 424 | 80 | 424 | Silver anodized | 2980 | Mid January 2026 | ||||
| YER133-20B | 482.6 | 132.5 | 200 | 424 | 124.5 | 194 | Black anodized | 2230 | DXF | DWG | |||
| YER133-20S | 482.6 | 132.5 | 200 | 424 | 124.5 | 194 | Silver anodized | 2230 | DXF | DWG | |||
| YER133-32B | 482.6 | 132.5 | 320 | 424 | 124.5 | 314 | Black anodized | 2930 | DXF | DWG | |||
| YER133-32S | 482.6 | 132.5 | 320 | 424 | 124.5 | 314 | Silver anodized | 2930 | DXF | DWG | |||
| YER133-43B | 482.6 | 132.5 | 430 | 424 | 124.5 | 424 | Black anodized | 3600 | Mid January 2026 | ||||
| YER133-43S | 482.6 | 132.5 | 430 | 424 | 124.5 | 424 | Silver anodized | 3600 | Mid January 2026 | ||||
