HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series

HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series

HYRH Series -PDF

CATEGORY：19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis, Heatsink enclosure

HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series

HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series1

HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series2

HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series3

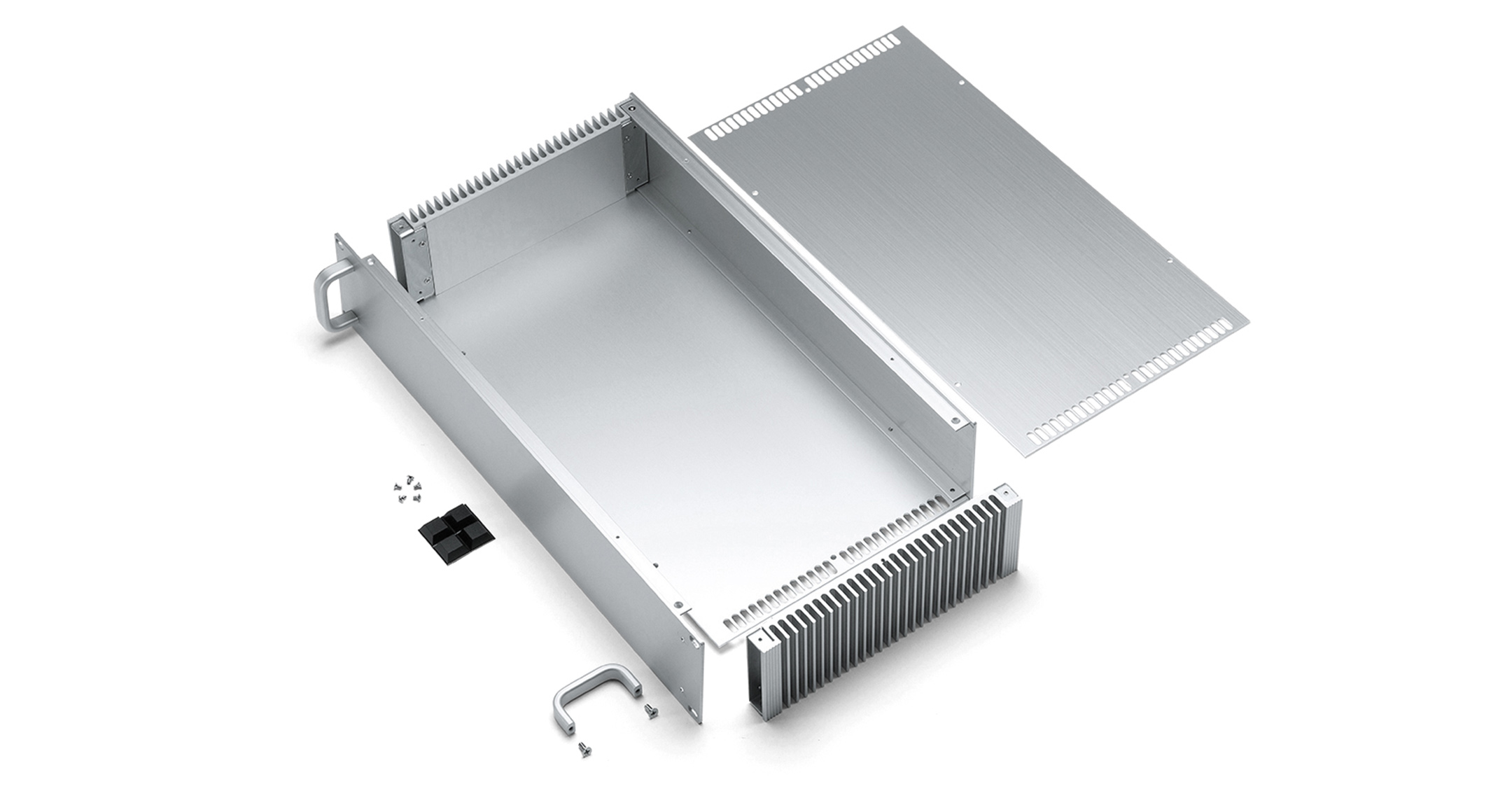

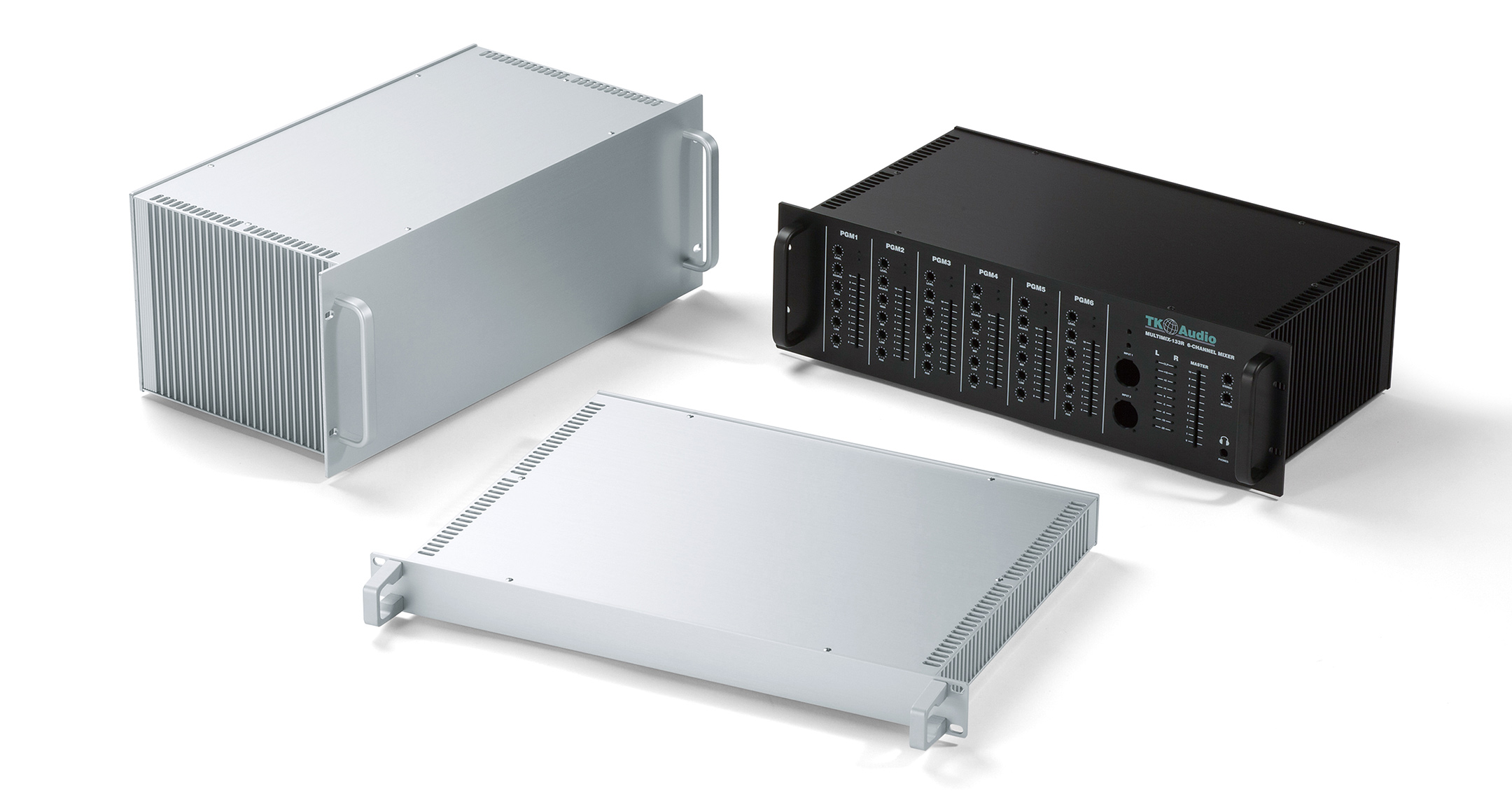

Equipped with handy rack mount / pull out handles.
Excellent cooling performance with the heat-sink side plates.
Tough and robust enclosure from using aluminum extrusion parts.
Simple and easy to assemble construction.

8 different sizes in silver and black are available.

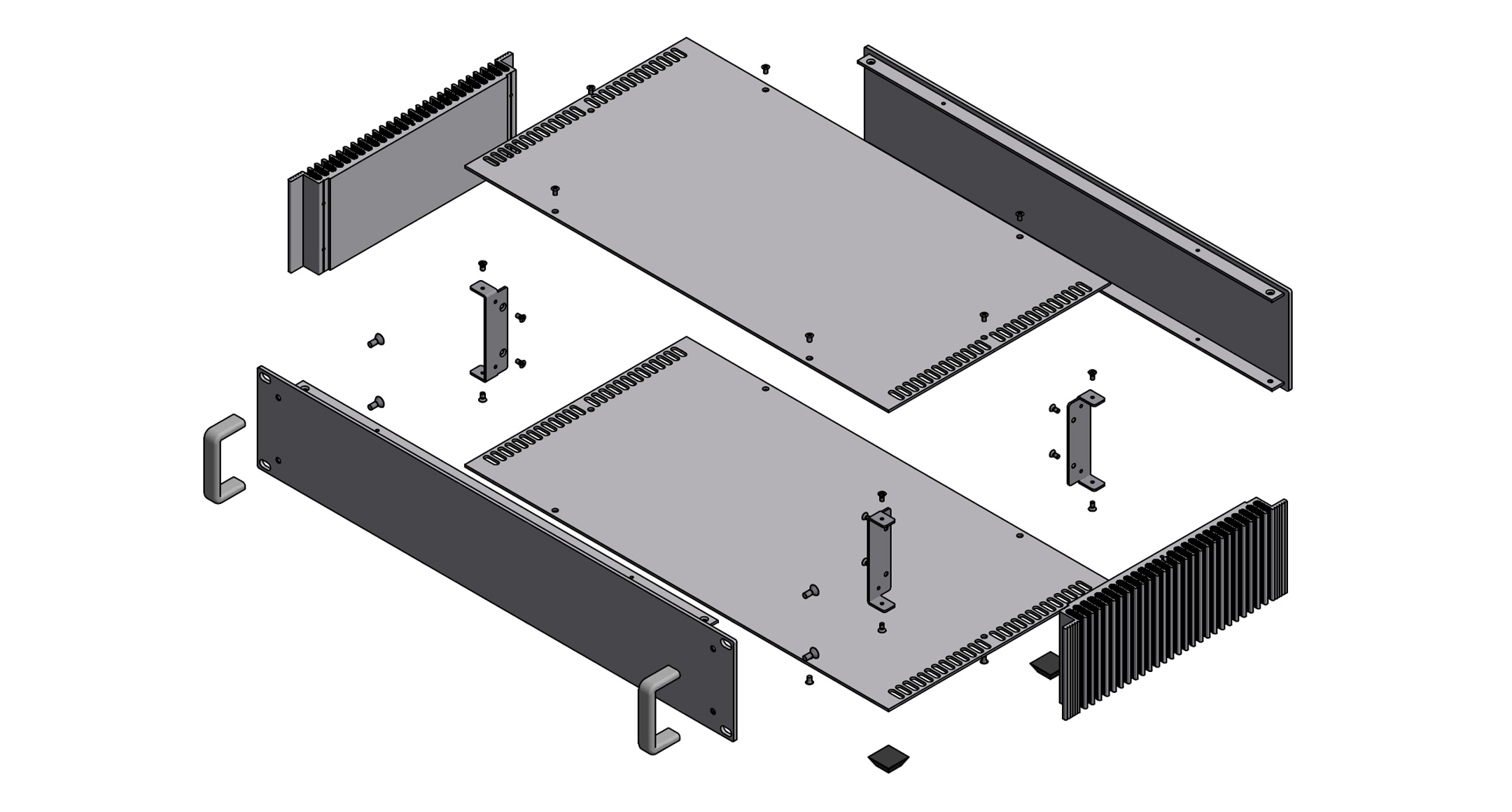

3D View - 1U Silver 3D View - 2U Black 3D View - 2U Silver Exploded View

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Color	Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Color	Weight (g)	PDF	DXF	DWG	STP
HYRH44-43-23SS	482.6	44	231	386	32	225	Silver	2000	PDF	DXF	DWG
HYRH44-43-23BB	482.6	44	231	386	32	225	Black	2000	PDF	DXF	DWG
HYRH44-43-33SS	482.6	44	330	386	32	324	Silver	2600	PDF	DXF	DWG
HYRH44-43-33BB	482.6	44	330	386	32	324	Black	2600	PDF	DXF	DWG
HYRH88-43-23SS	482.6	88	231	386	76	225	Silver	2800	PDF	DXF	DWG
HYRH88-43-23BB	482.6	88	231	386	76	225	Black	2800	PDF	DXF	DWG
HYRH88-43-33SS	482.6	88	330	386	76	324	Silver	3700	PDF	DXF	DWG
HYRH88-43-33BB	482.6	88	330	386	76	324	Black	3700	PDF	DXF	DWG
HYRH133-43-23SS	482.6	132.5	231	386	120.5	225	Silver	3600	PDF	DXF	DWG
HYRH133-43-23BB	482.6	132.5	231	386	120.5	225	Black	3600	PDF	DXF	DWG
HYRH133-43-33SS	482.6	132.5	330	386	120.5	324	Silver	4800	PDF	DXF	DWG
HYRH133-43-33BB	482.6	132.5	330	386	120.5	324	Black	4800	PDF	DXF	DWG
HYRH177-43-23SS	482.6	177	231	386	165	225	Silver	4600	PDF	DXF	DWG
HYRH177-43-23BB	482.6	177	231	386	165	225	Black	4600	PDF	DXF	DWG
HYRH177-43-33SS	482.6	177	330	386	165	324	Silver	5900	PDF	DXF	DWG
HYRH177-43-33BB	482.6	177	330	386	165	324	Black	5900	PDF	DXF	DWG

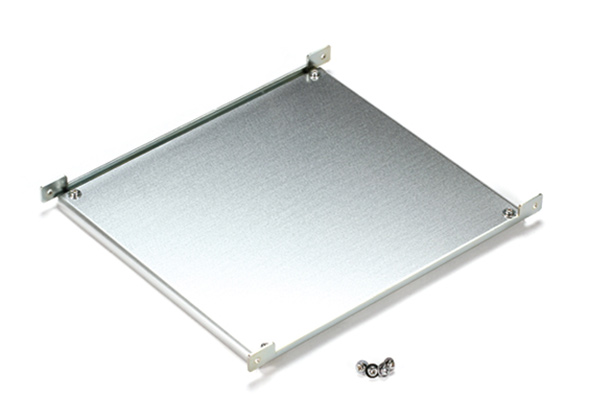

Mounting plate (Option)	PDF	DXF	DWG	STP
