HEATSINK RACK MOUNTING ENCLOSURE - HYR series


HYR Series -PDF

CATEGORY：19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis, Heatsink enclosure

HEATSINK RACK MOUNTING ENCLOSURE - HYR series
HEATSINK RACK MOUNTING ENCLOSURE - HYR series
HEATSINK RACK MOUNTING ENCLOSURE - HYR series
HEATSINK RACK MOUNTING ENCLOSURE - HYR series1
HEATSINK RACK MOUNTING ENCLOSURE - HYR series2
HEATSINK RACK MOUNTING ENCLOSURE - HYR series3
Excellent cooling performance enclosure with the heatsink side plates.
Tough and robust enclosure from using aluminium extrusion parts.
stylish and elegantly designed with a hairline finish.
Simple and easy to assemble construction.

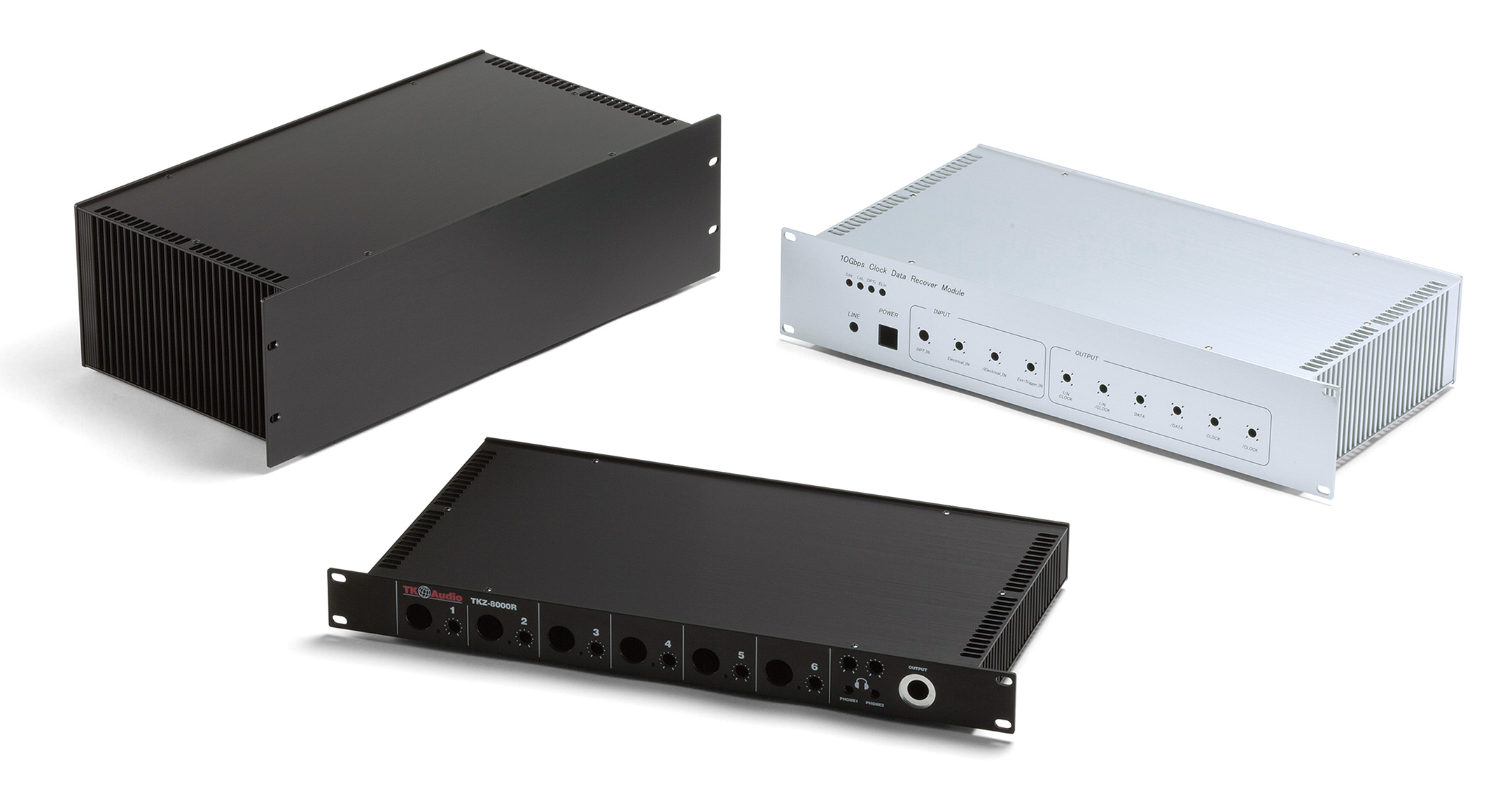

8 different sizes in silver and black are available.

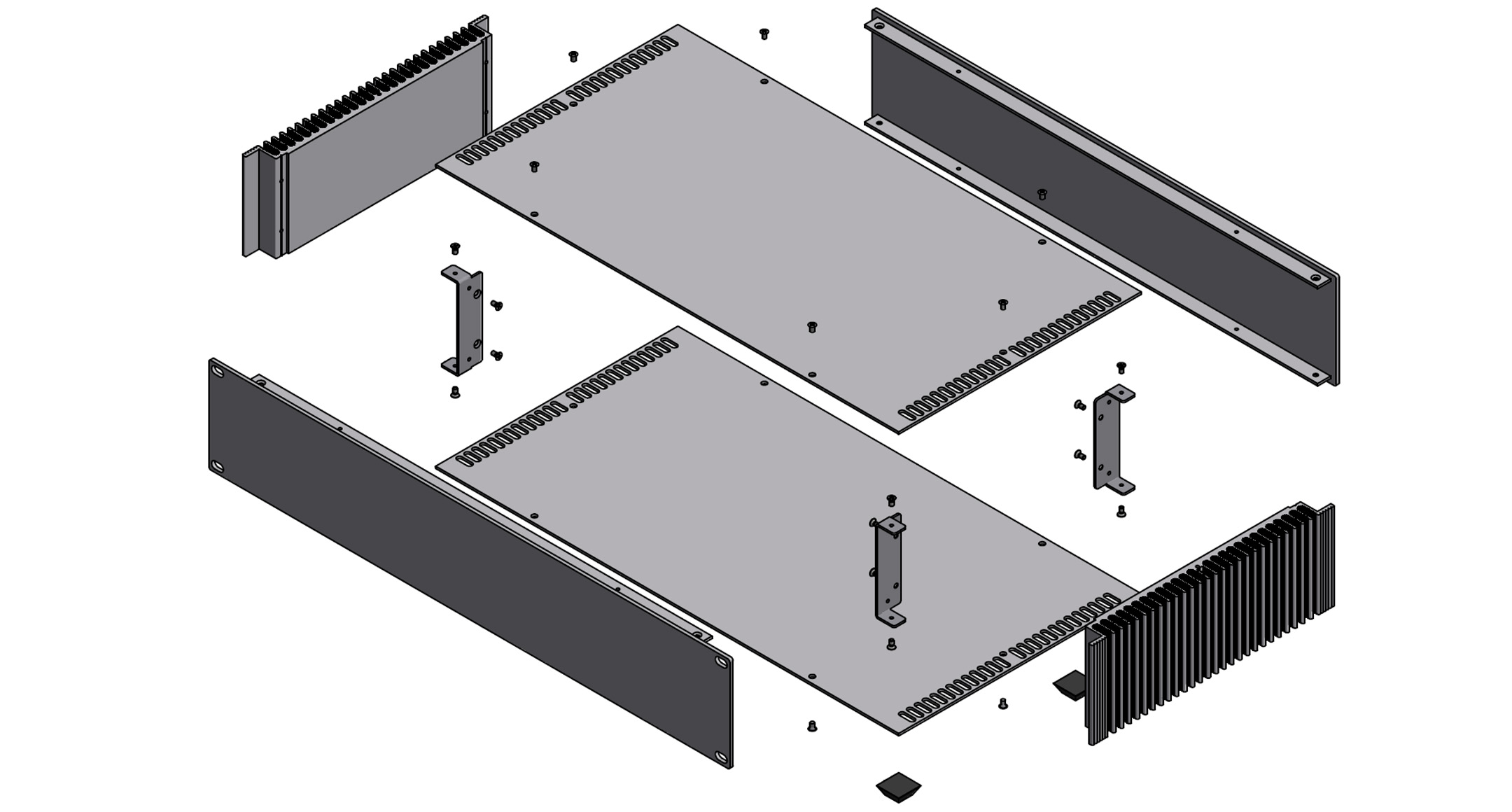

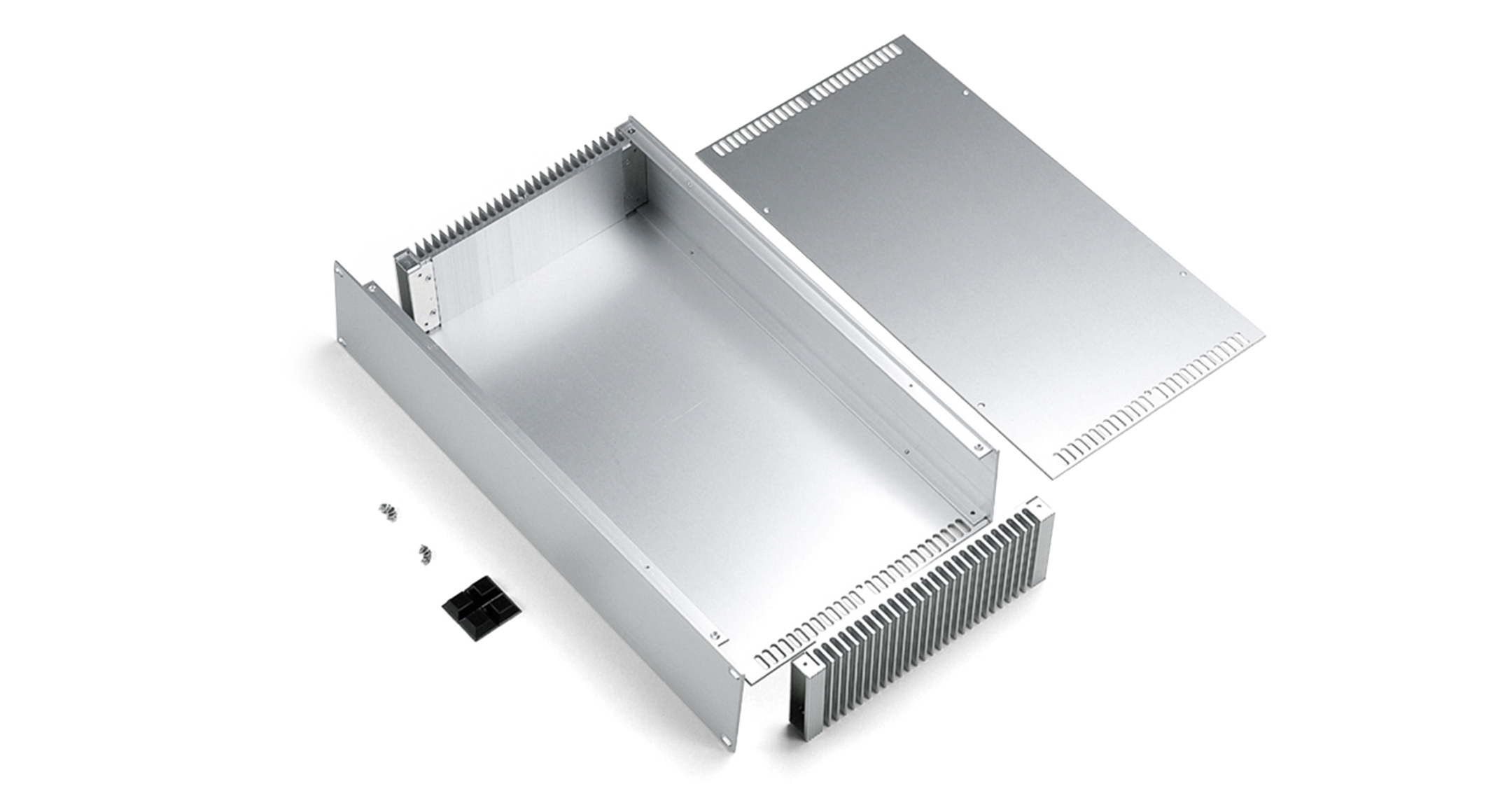

3D View - 1U Black  3D View - 2U Silver  Exploded View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Color Weight (g) PDF DXF DWG STP
W H D w h d
HYR44-43-23BB 482.6 44 231 386 32 225 Black 1900 PDF DXF DWG
HYR44-43-23SS 482.6 44 231 386 32 225 Silver 1900 PDF DXF DWG
HYR44-43-33BB 482.6 44 330 386 32 324 Black 2600 PDF DXF DWG
HYR44-43-33SS 482.6 44 330 386 32 324 Silver 2600 PDF DXF DWG
HYR88-43-23BB 482.6 88 231 386 76 225 Black 2800 PDF DXF DWG
HYR88-43-23SS 482.6 88 231 386 76 225 Silver 2800 PDF DXF DWG
HYR88-43-33BB 482.6 88 330 386 76 324 Black 3700 PDF DXF DWG
HYR88-43-33SS 482.6 88 330 386 76 324 Silver 3700 PDF DXF DWG
HYR133-43-23BB 482.6 132.5 231 386 120.5 225 Black 3600 PDF DXF DWG
HYR133-43-23SS 482.6 132.5 231 386 120.5 225 Silver 3600 PDF DXF DWG
HYR133-43-33BB 482.6 132.5 330 386 120.5 324 Black 4700 PDF DXF DWG
HYR133-43-33SS 482.6 132.5 330 386 120.5 324 Silver 4700 PDF DXF DWG
HYR177-43-23BB 482.6 177 231 386 165 225 Black 4500 PDF DXF DWG
HYR177-43-23SS 482.6 177 231 386 165 225 Silver 4500 PDF DXF DWG
HYR177-43-33BB 482.6 177 330 386 165 324 Black 5900 PDF DXF DWG
HYR177-43-33SS 482.6 177 330 386 165 324 Silver 5900 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG STP
HYC23-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC23-43 PDF DXF DWG
HYC33-43 PDF DXF DWG
HYC33-43 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for HY・HYR・HYRH - HYC series
DETAILS
１
MOUNTING ANGLE BRACKET for HY・HYR・HYRH - HYCL series
DETAILS

SIMILAR PRODUCT

１
HEATSINK RACK MOUNT ENCLOSURE with HANDLE - HYRH series
DETAILS
１
HEATSINK ALUMINUM ENCLOSURE - HY series
DETAILS
１
EIA RACK MOUNT ENCLOSURE - ER series
DETAILS
