CATEGORY:Ventilation plug, Pressure balance element, Breather plug,

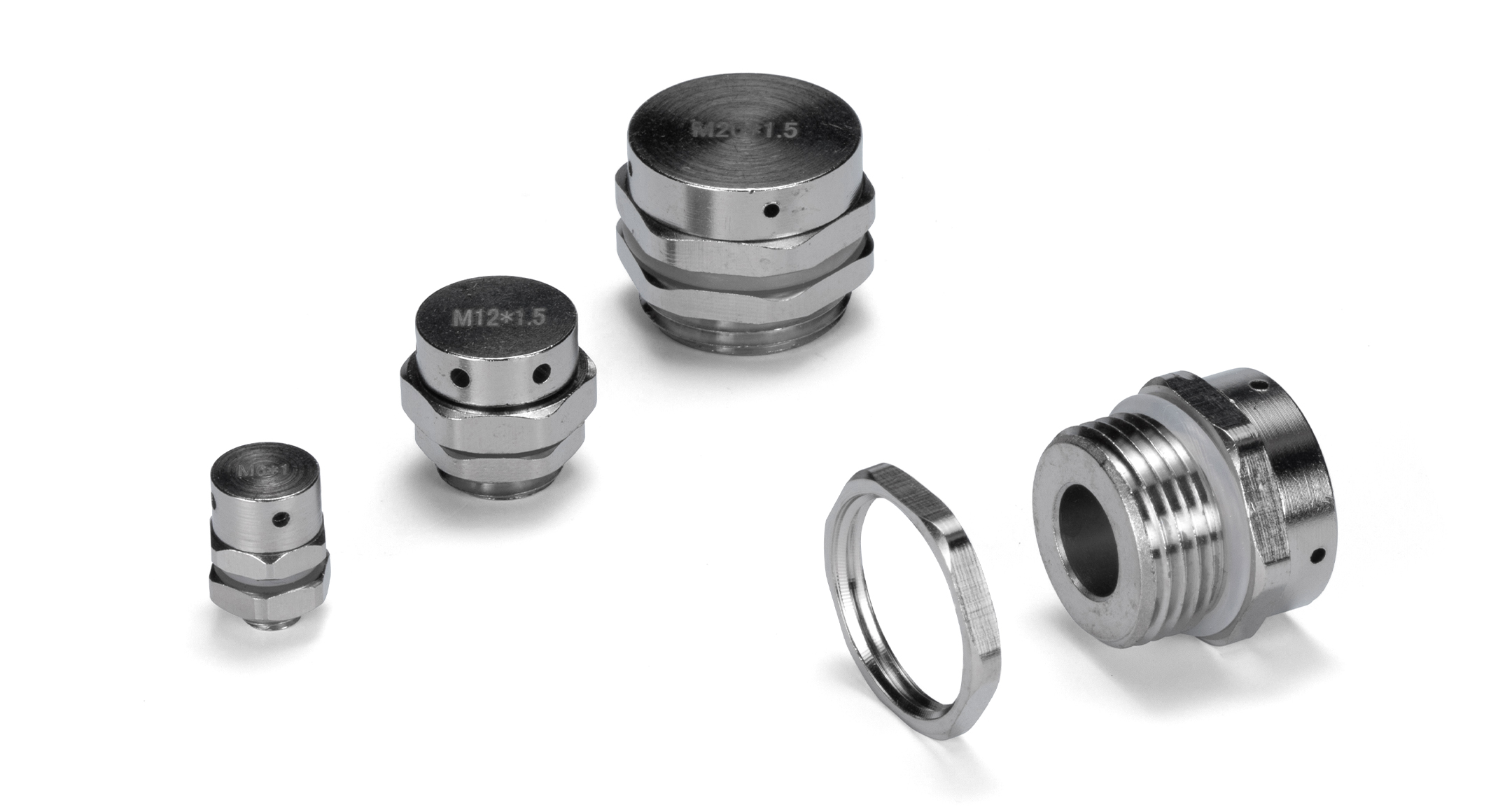

High durability yet highly affordable economical metal ventilation plug.
IP68 protection class rated (water depth 2 meters / 60 mins)
Ventilation plug protects the enclosure from deformation by equalizing internal and
external pressure differences, as well as venting the gas generated within the enclosure.

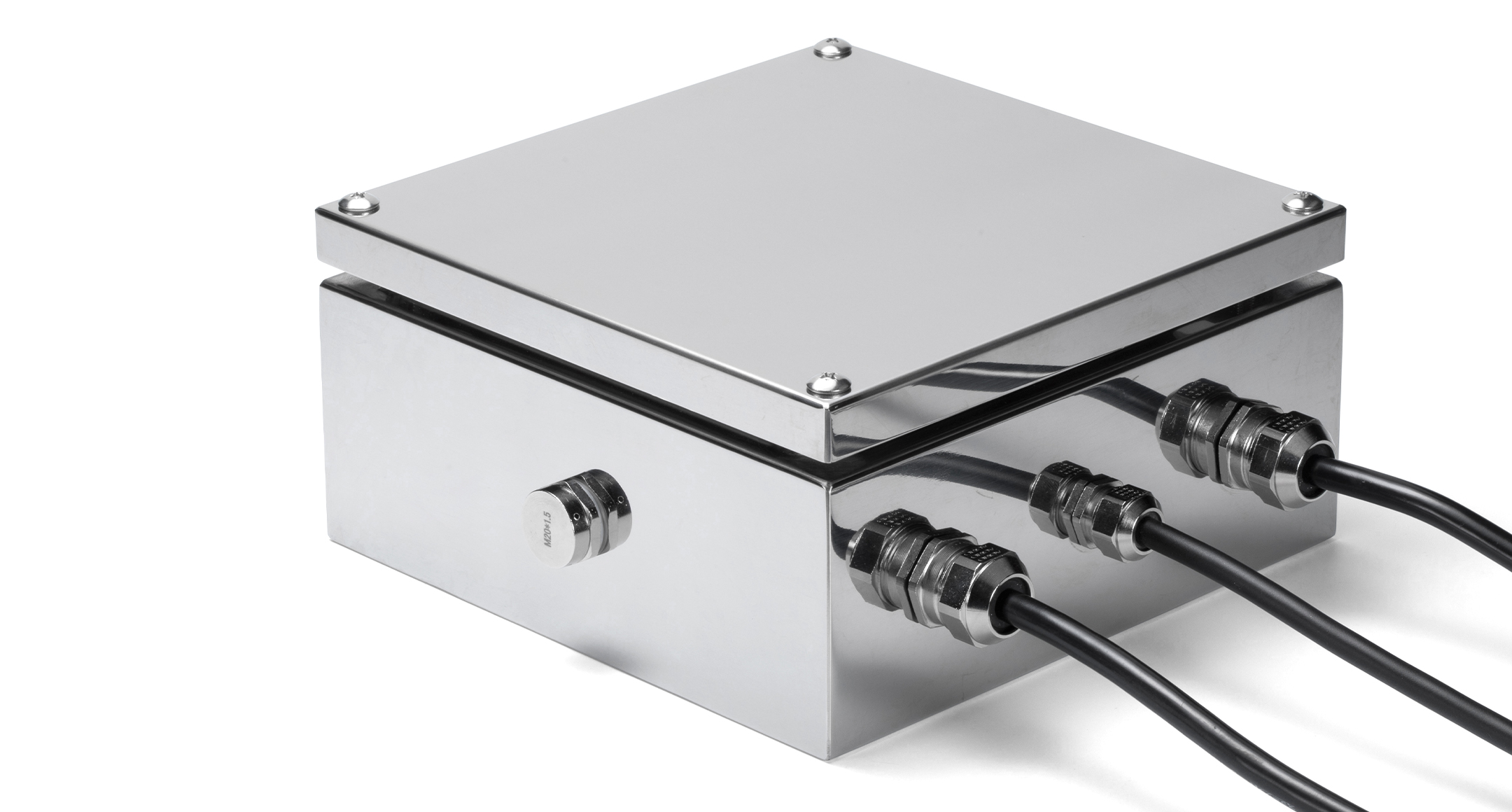

Recommended to be installed at the sides of the enclosure.
Available in M6, M12 and M20 sizes.
PRODUCT NO. / DIMENSIONS
Product No. |
G |
SW |
H |
L |
Weight (g) |
PDF |
DXF |
DWG |
Thread size |
Mount hole |
CVP-6M |
M6×P1 |
Φ6.2 |
10 |
15 |
7 |
6.2 |
PDF |
DXF |
DWG |
CVP-12M |
M12×P1.5 |
Φ12.2 |
16 |
16 |
7 |
14 |
PDF |
DXF |
DWG |
CVP-20M |
M20×P1.5 |
Φ20.2 |
21.8 |
18.9 |
10 |
40.2 |
PDF |
DXF |
DWG |
