DIECAST ALUMINUM BOX - TD series


TD Series -PDF

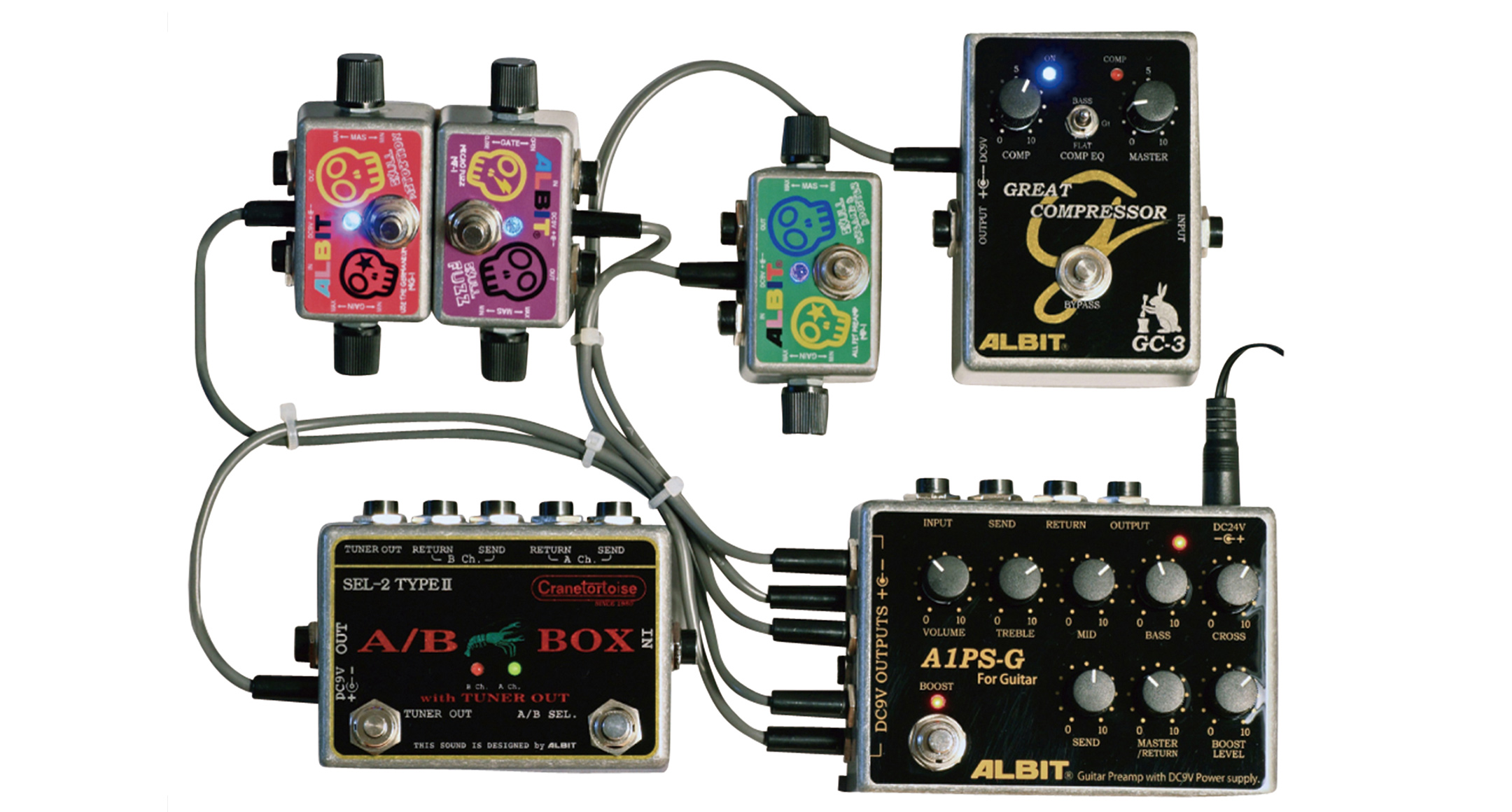

CATEGORY:Diecast aluminum enclosure, Aluminum stomp box, Aluminum enclosure for guitar effects pedal, Aluminum project box, Aluminum alloy enclosure

DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series
DIECAST ALUMINUM BOX - TD series1
DIECAST ALUMINUM BOX - TD series2
DIECAST ALUMINUM BOX - TD series3
DIECAST ALUMINUM BOX - TD series4
DIECAST ALUMINUM BOX - TD series5
DIECAST ALUMINUM BOX - TD series6
DIECAST ALUMINUM BOX - TD series7
DIECAST ALUMINUM BOX - TD series8
DIECAST ALUMINUM BOX - TD series9
DIECAST ALUMINUM BOX - TD series10
DIECAST ALUMINUM BOX - TD series11

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Surface finish Weight (g) PDF DXF DWG
W H D w h d
TD4-6-3B 40 27 60 29.3 23 35.3 Black painted 56 PDF DXF DWG
TD4-6-3N 40 27 60 29.3 23 35.3 Unfinished 56 PDF DXF DWG
TD4-9-3B 40.5 32 94.5 30.4 27.5 71.9 Black painted 97 PDF DXF DWG
TD4-9-3N 40.5 32 94.5 30.4 27.5 71.9 Unfinished 97 PDF DXF DWG
TD5-8-3B 55 30 80 44.3 26 55.3 Black painted 95 PDF DXF DWG
TD5-8-3N 55 30 80 44.3 26 55.3 Unfinished 95 PDF DXF DWG
TD6-6-4B 60 35 60 50.6 31 35.3 Black painted 90 PDF DXF DWG
TD6-6-4N 60 35 60 50.6 31 35.3 Unfinished 90 PDF DXF DWG
TD6-11-3B 64.5 31.8 115.5 54.5 27.3 92 Black painted 164.5 PDF DXF DWG
TD6-11-3N 64.5 31.8 115.5 54.5 27.3 92 Unfinished 164.5 PDF DXF DWG
TD7-10-3B 70 32.5 100 60.2 28 76.2 Black painted 135 PDF DXF DWG
TD7-10-3N 70 32 100 60.2 28 76.2 Unfinished 135 PDF DXF DWG
TD8-8-4B 80 40 80 70.2 36 56.2 Black painted 145 PDF DXF DWG
TD8-8-4N 80 40 80 70.2 36 56.2 Unfinished 145 PDF DXF DWG
TD8-11-5B 86 47.5 113.5 75.7 43 87.7 Black painted 226 PDF DXF DWG
TD8-11-5N 86 47.5 113.5 75.7 43 87.7 Unfinished 226 PDF DXF DWG
TD9-12-4B 85 35 120 75.2 31 96.2 Black painted 185 PDF DXF DWG
TD9-12-4N 85 35 120 75.2 31 96.2 Unfinished 185 PDF DXF DWG
TD10-13-4B 95.5 37.8 130.5 85.5 33.3 105.4 Black painted 263 PDF DXF DWG
TD10-13-4N 95.5 37.8 130.5 85.5 33.3 105.4 Unfinished 263 PDF DXF DWG
TD10-15-4B 100 40 150 88.3 35 125.3 Black painted 320 PDF DXF DWG
TD10-15-4N 100 40 150 88.3 35 125.3 Unfinished 320 PDF DXF DWG
TD11-11-5B 110 45 110 98.3 40 85.3 Black painted 280 PDF DXF DWG
TD11-11-5N 110 45 110 98.3 40 85.3 Unfinished 280 PDF DXF DWG
TD12-18-5B 120 50 180 108.3 45 155.3 Black painted 455 PDF DXF DWG
TD12-18-5N 120 50 180 108.3 45 155.3 Unfinished 455 PDF DXF DWG
