CATEGORY：Heatsink enclosure, Heat dissipation aluminium enclosure, IP68 waterproof aluminium enclosure, Watertight diecast aluminium box, EMC shielded enclosure

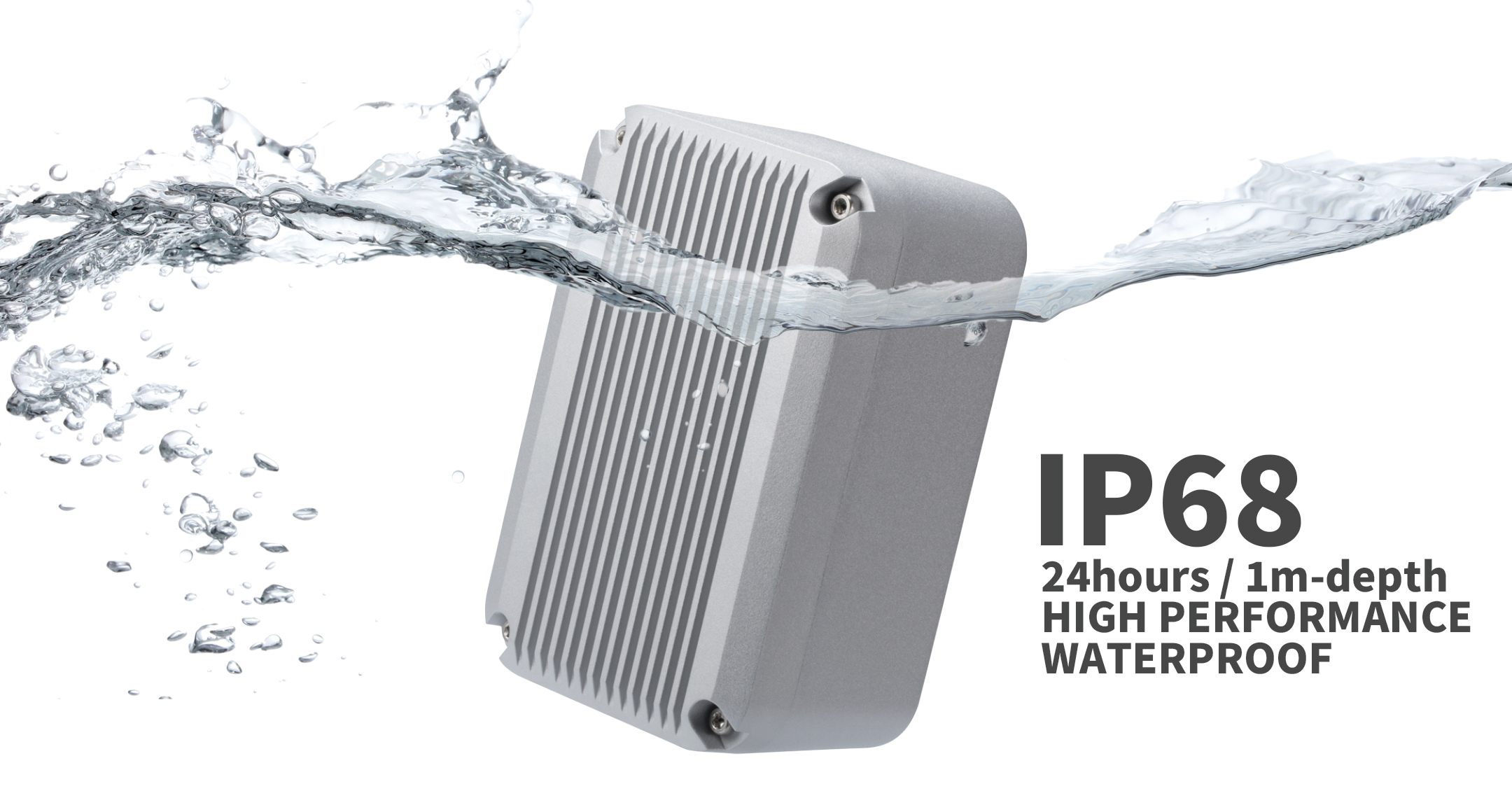

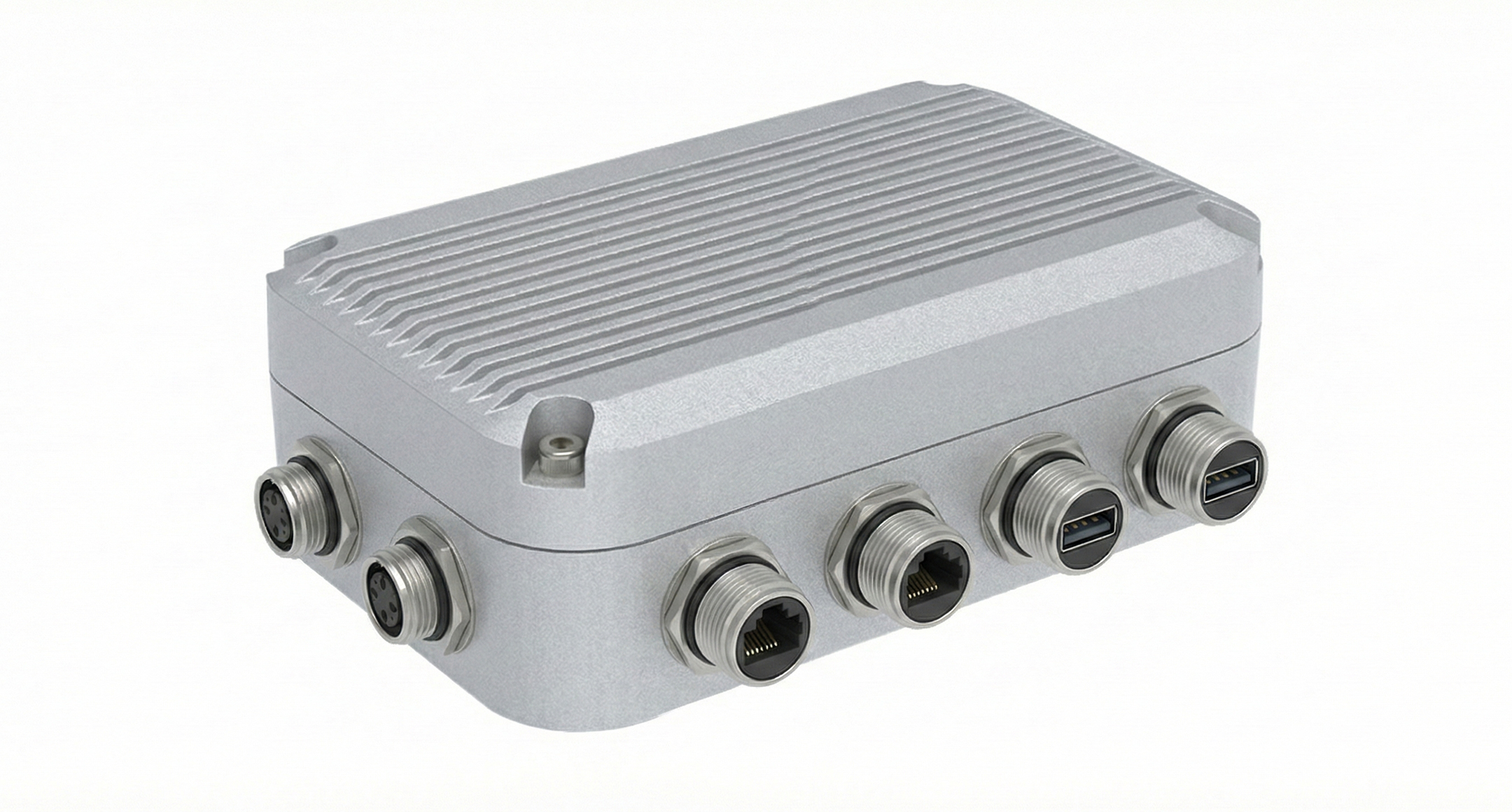

IP68 high performance diecast aluminium box protected from immersion as long as 24 hours at 1m depth.

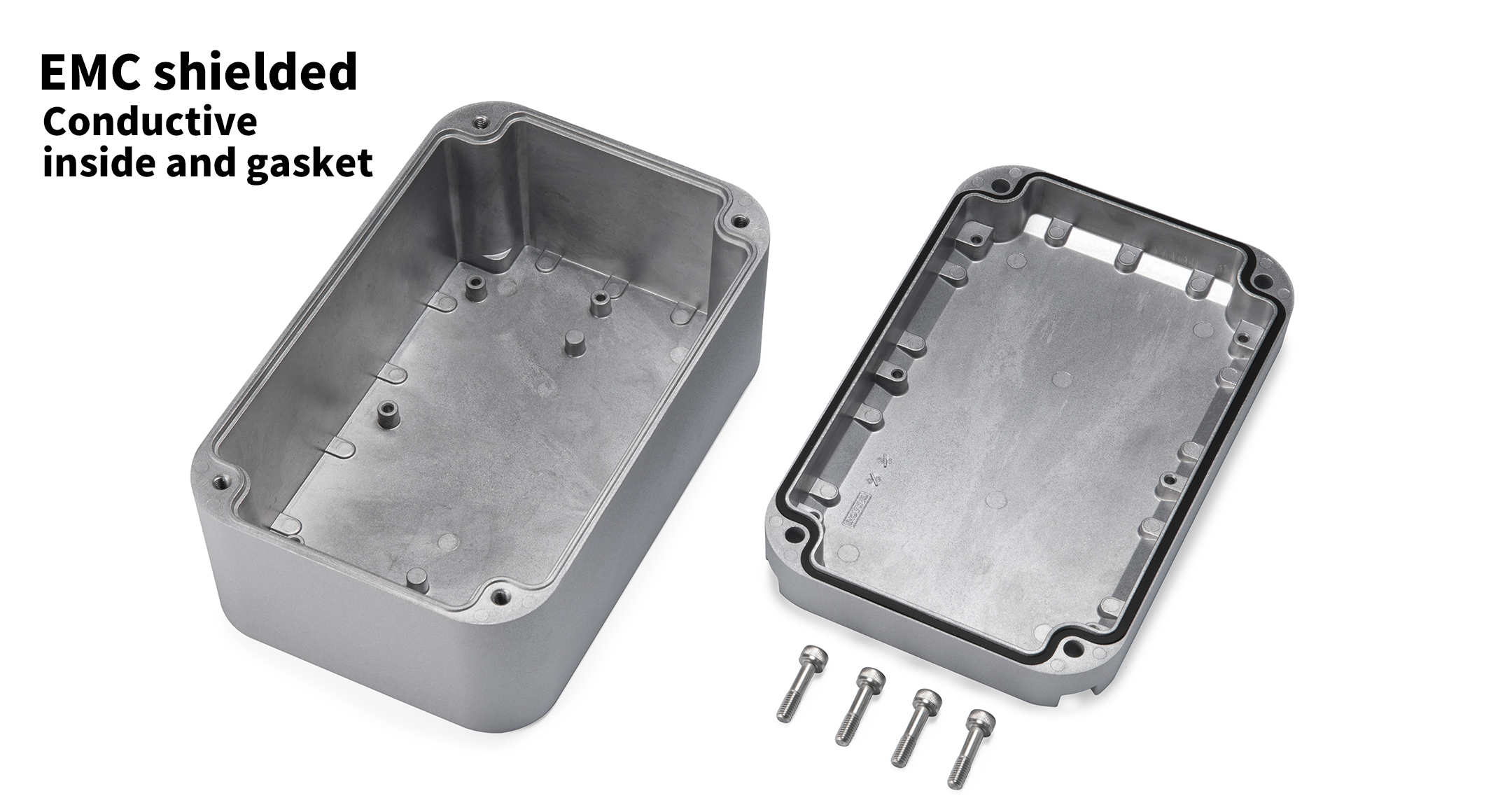

EMC shielding is achieved by having the unfinished inner sides of the Top cover and Base, as well as the conductive silicone gasket.

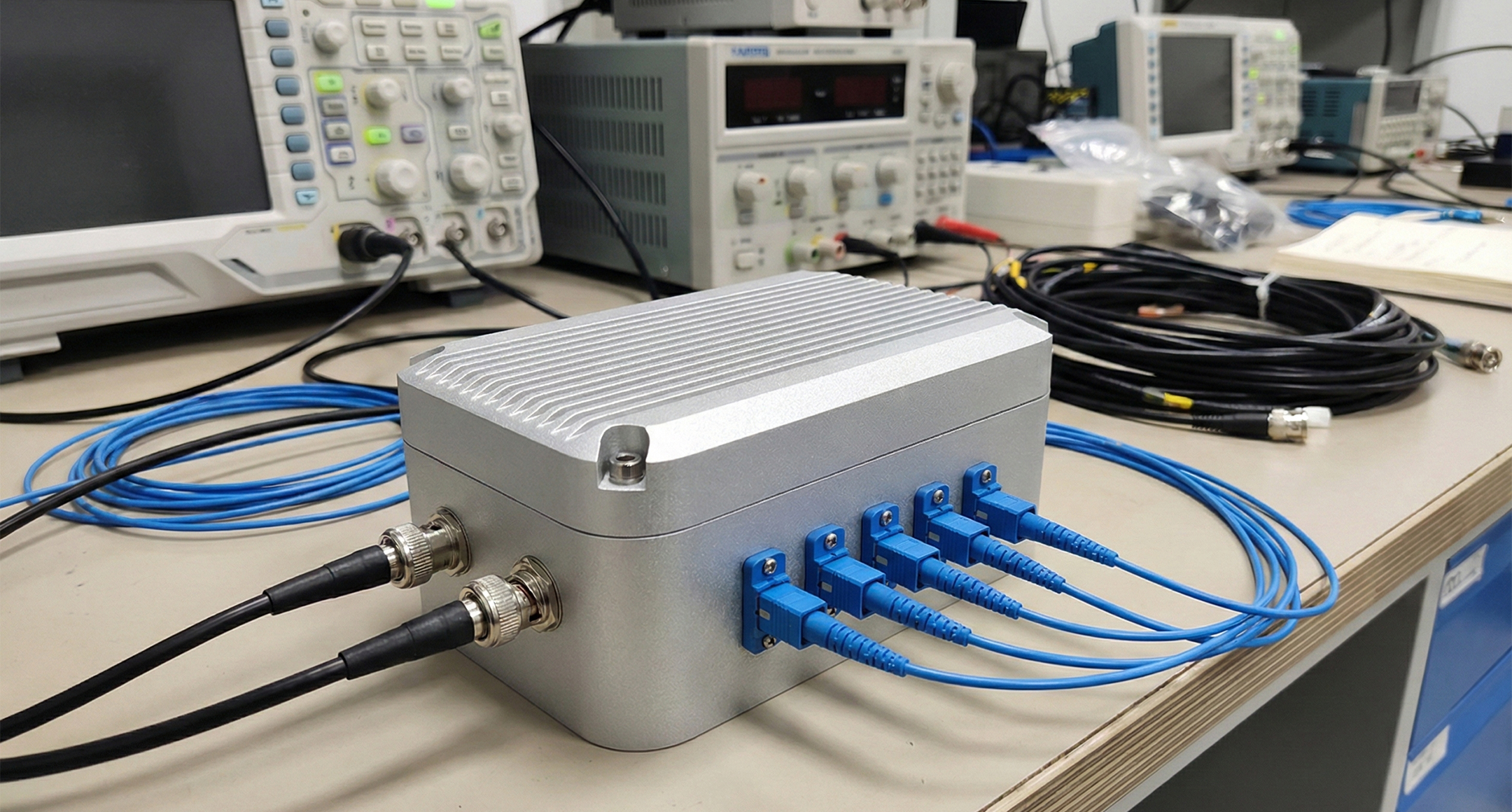

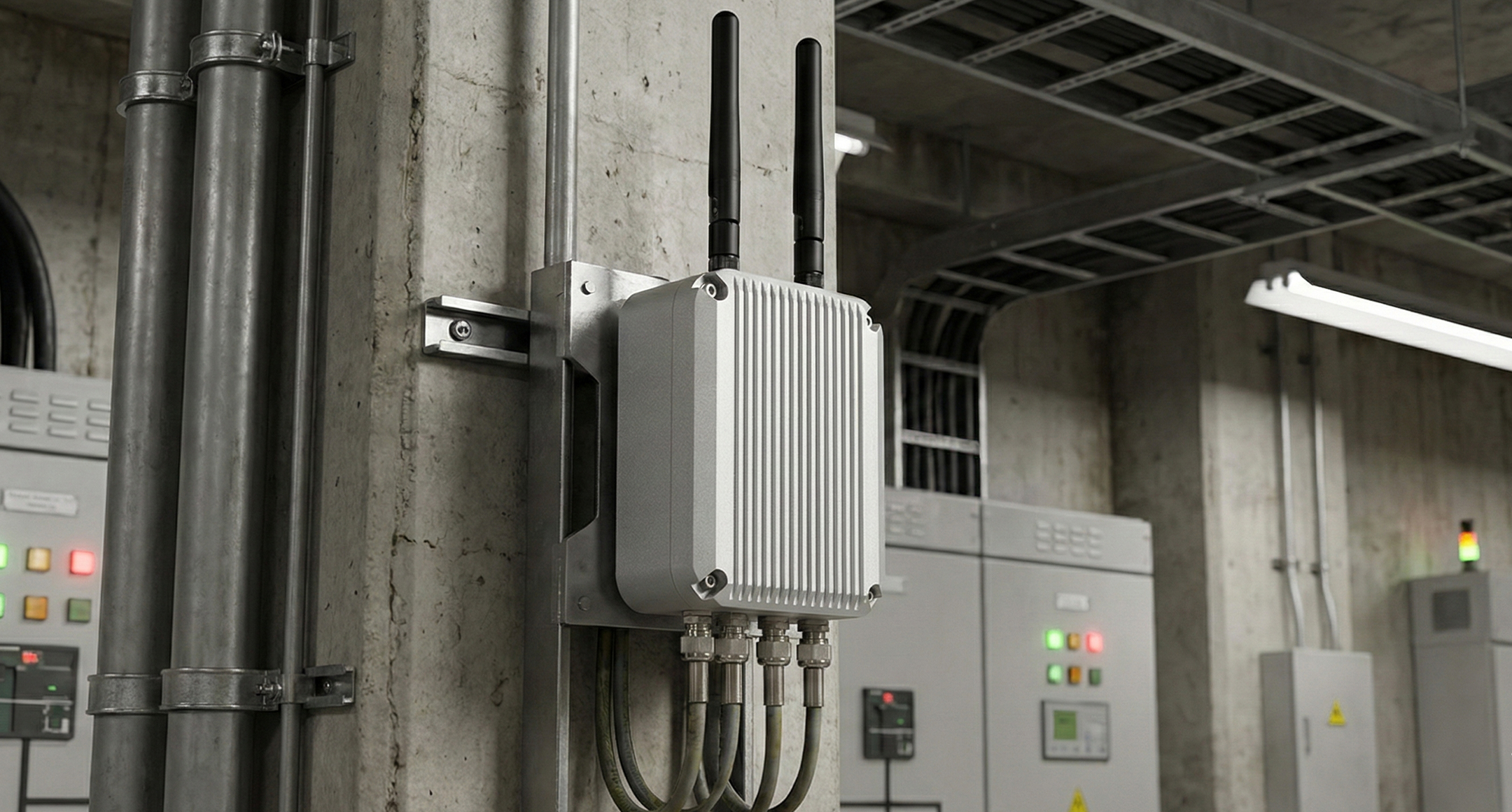

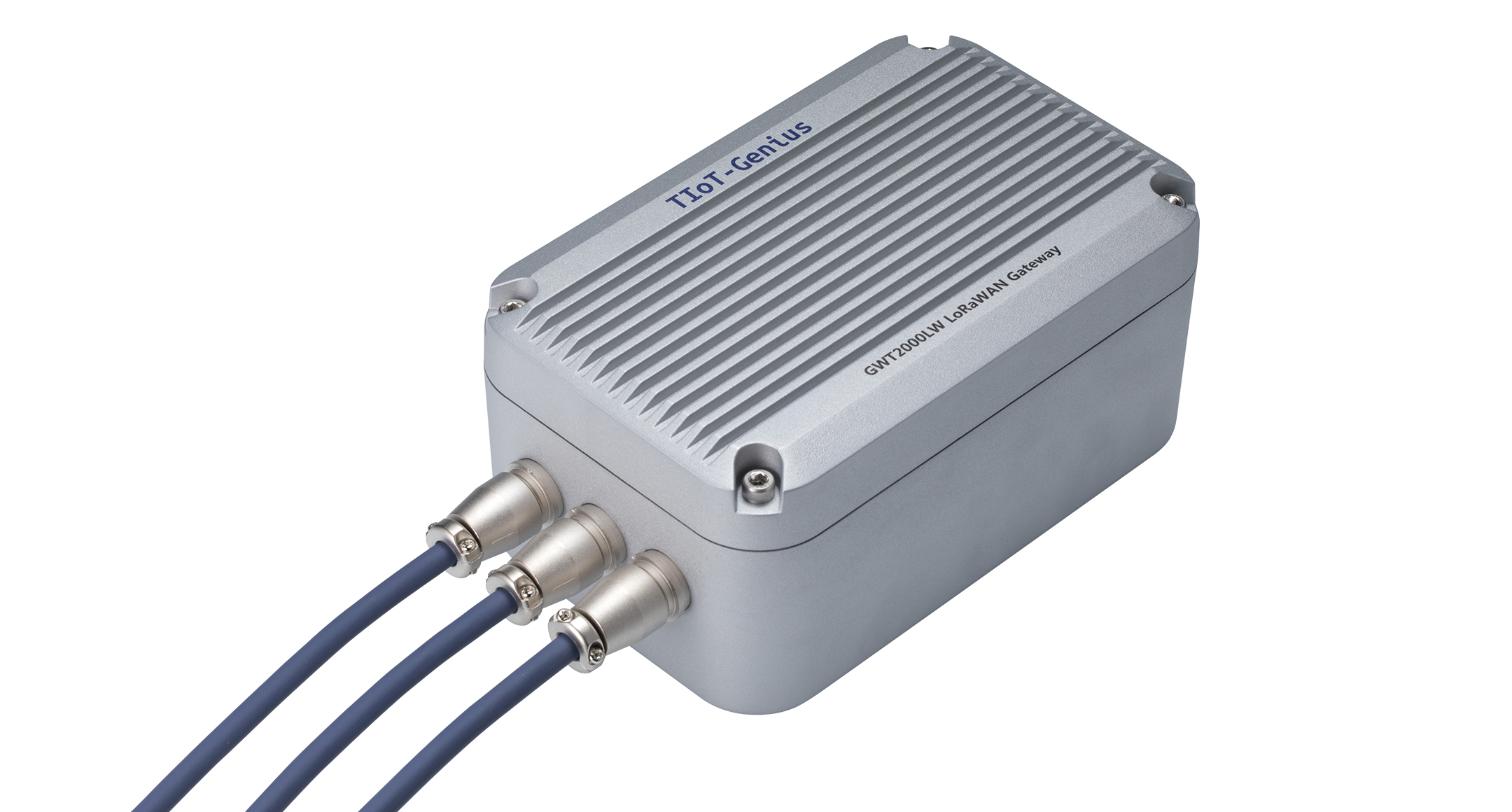

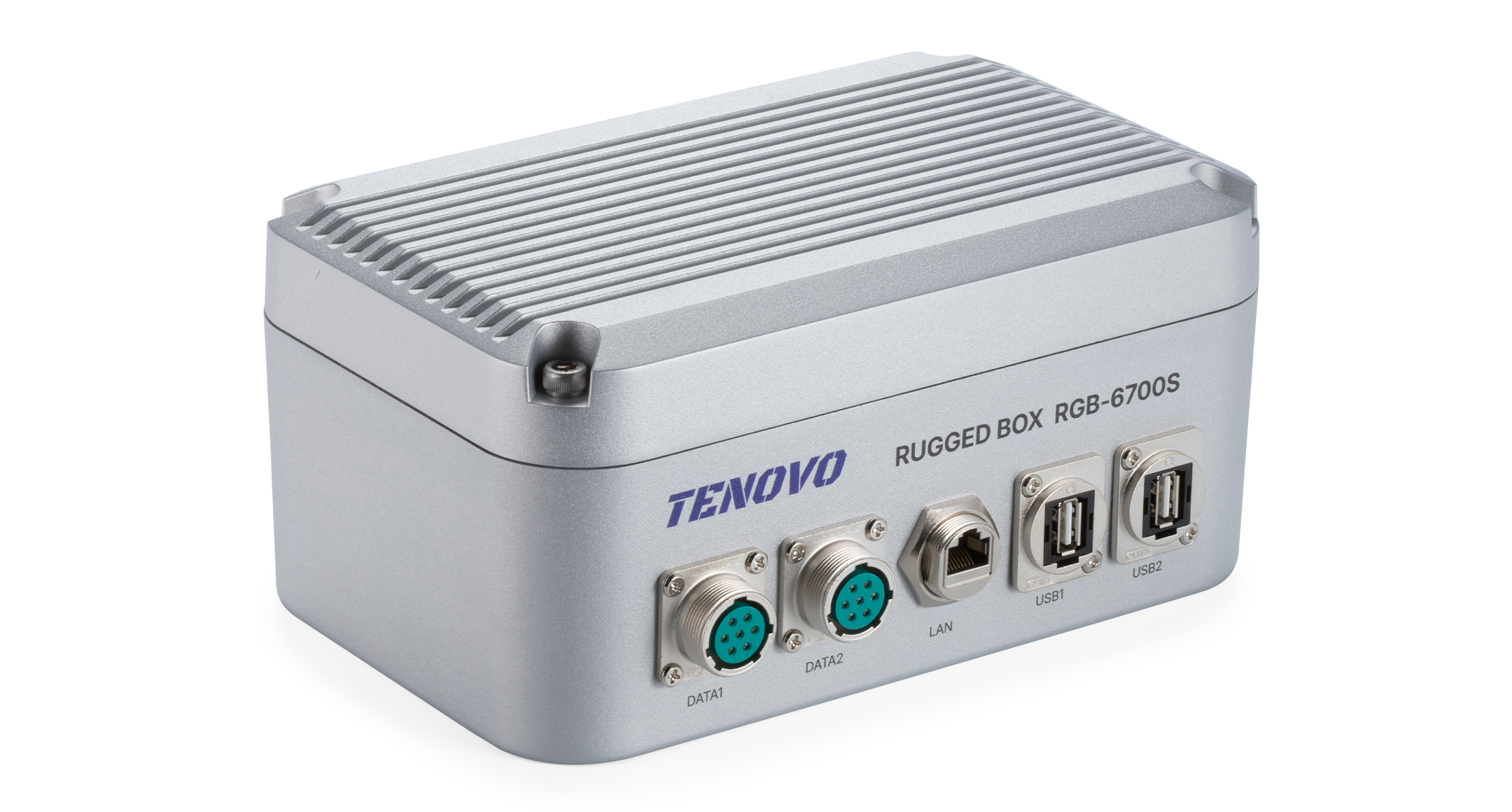

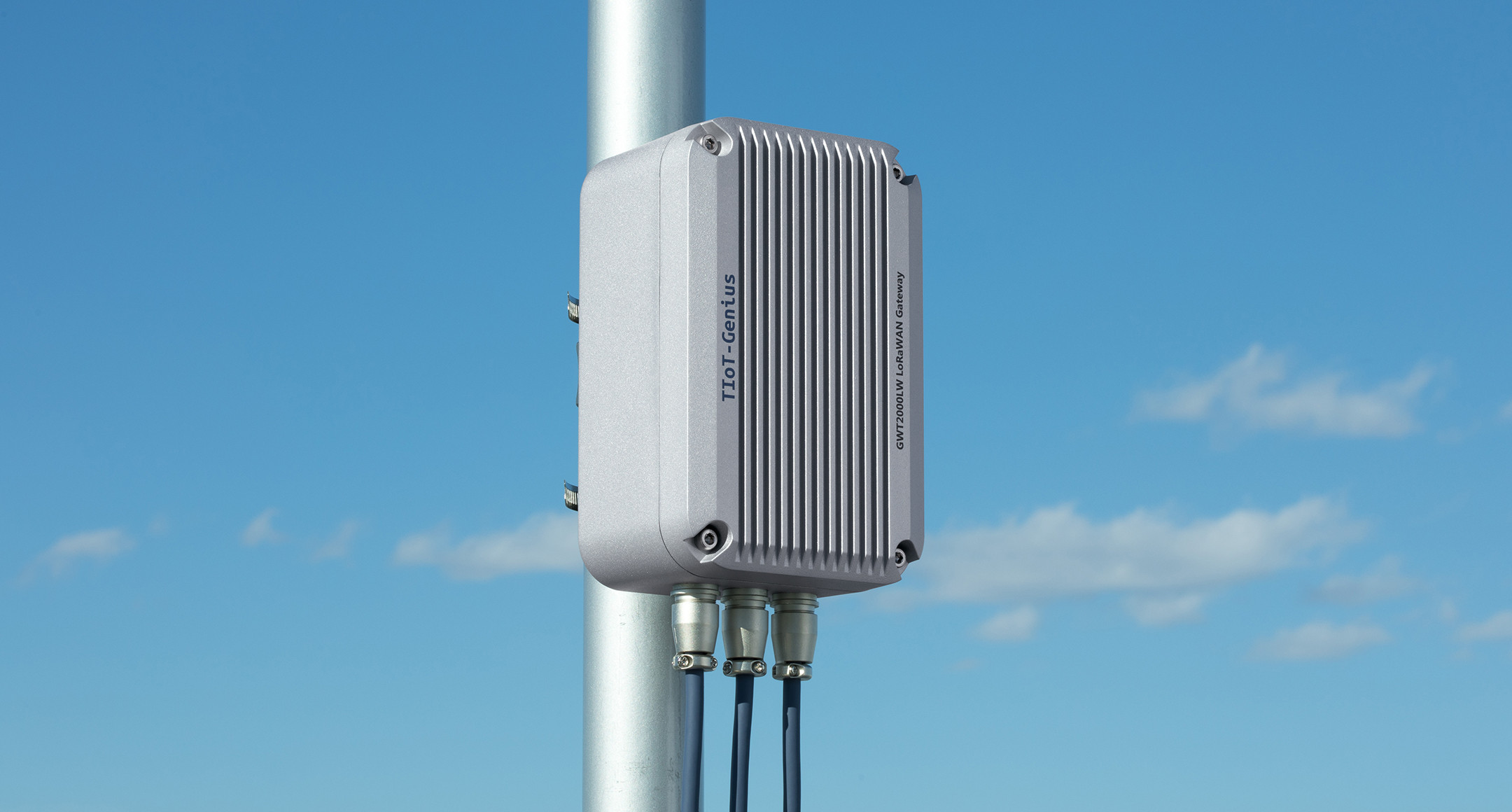

Suitable for Access Points, Optical Transmission Equipment, Shockproof Industrial PCs and others.

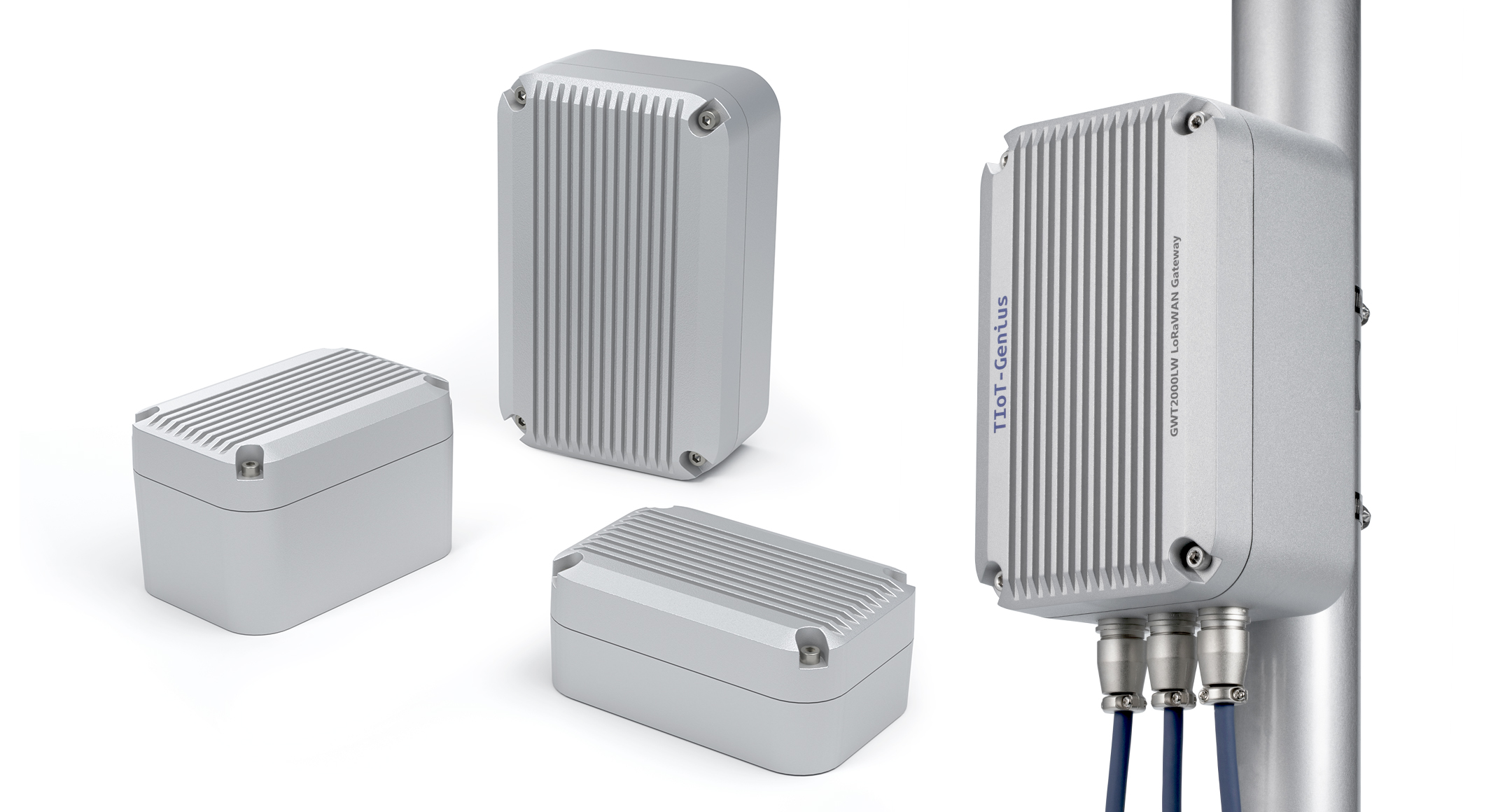

4 sizes available in metallic silver.
Protection class : IP68 (24-hours/1m-depth)
Operating temperature : -40°C ~ +105°C
*New product scheduled for launch
Late December 2025
DWH10-15-9S, DWH14-22-7S, DWH14-22-10S
February 2026
DWH10-15-6S
EMC shielding is achieved by having the unfinished inner sides of the Top cover and Base, as well as the conductive silicone gasket.
Suitable for Access Points, Optical Transmission Equipment, Shockproof Industrial PCs and others.
4 sizes available in metallic silver.
Protection class : IP68 (24-hours/1m-depth)
Operating temperature : -40°C ~ +105°C
*New product scheduled for launch
Late December 2025
DWH10-15-9S, DWH14-22-7S, DWH14-22-10S
February 2026
DWH10-15-6S
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Launch date | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| DWH10-15-6S | 100 | 63.5 | 150 | 86 | 46 | 136 | 875 | February 2026 | DXF | DWG | ||
| DWH10-15-9S | 100 | 93.5 | 150 | 81 | 76 | 131 | 1115 | Late December 2025 | DXF | DWG | ||
| DWH14-22-7S | 140 | 74 | 220 | 125 | 56 | 205 | 1470 | Late December 2025 | DXF | DWG | ||
| DWH14-22-10S | 140 | 104 | 220 | 123 | 86 | 203 | 1865 | Late December 2025 | DXF | DWG | ||

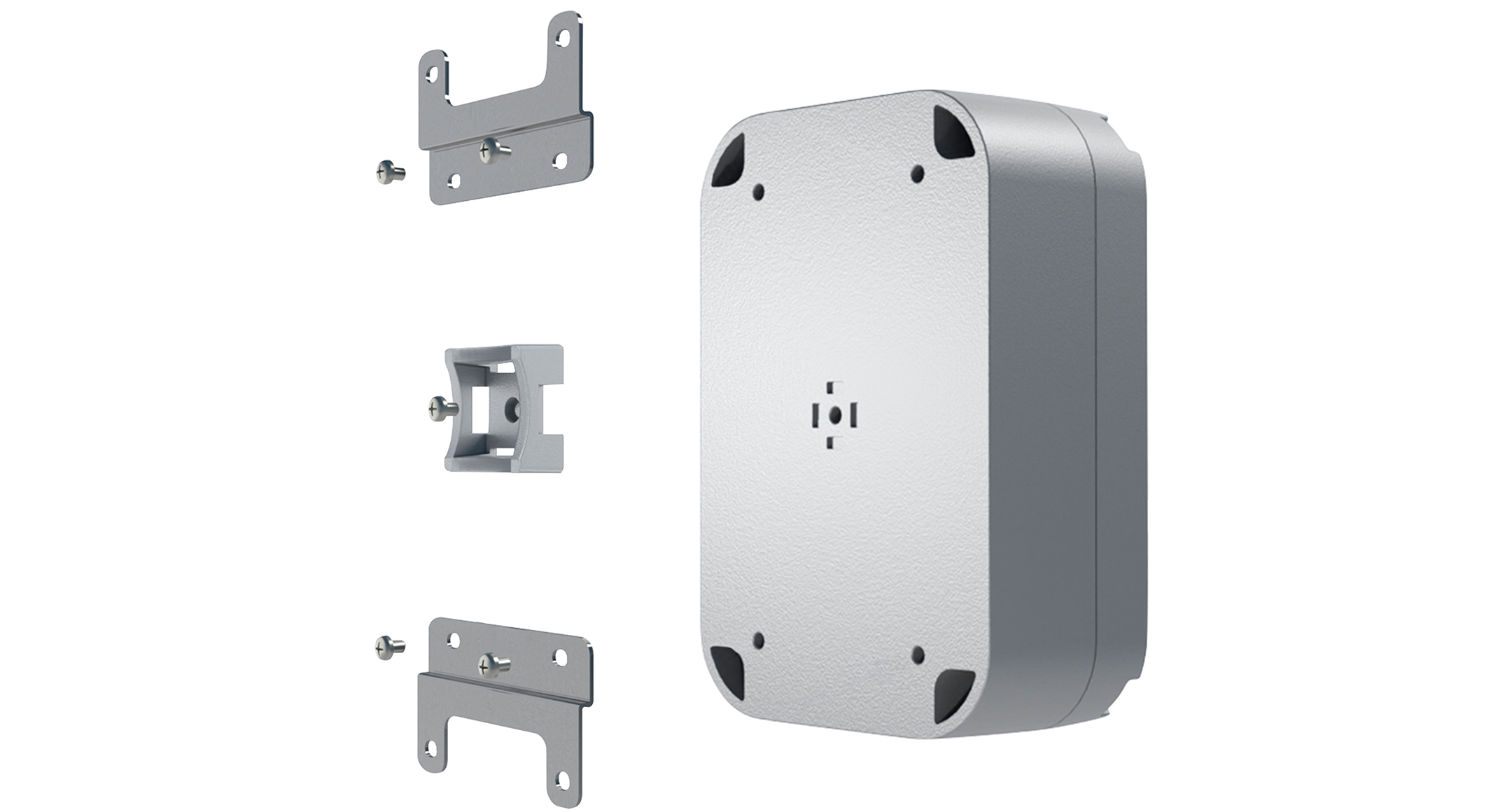

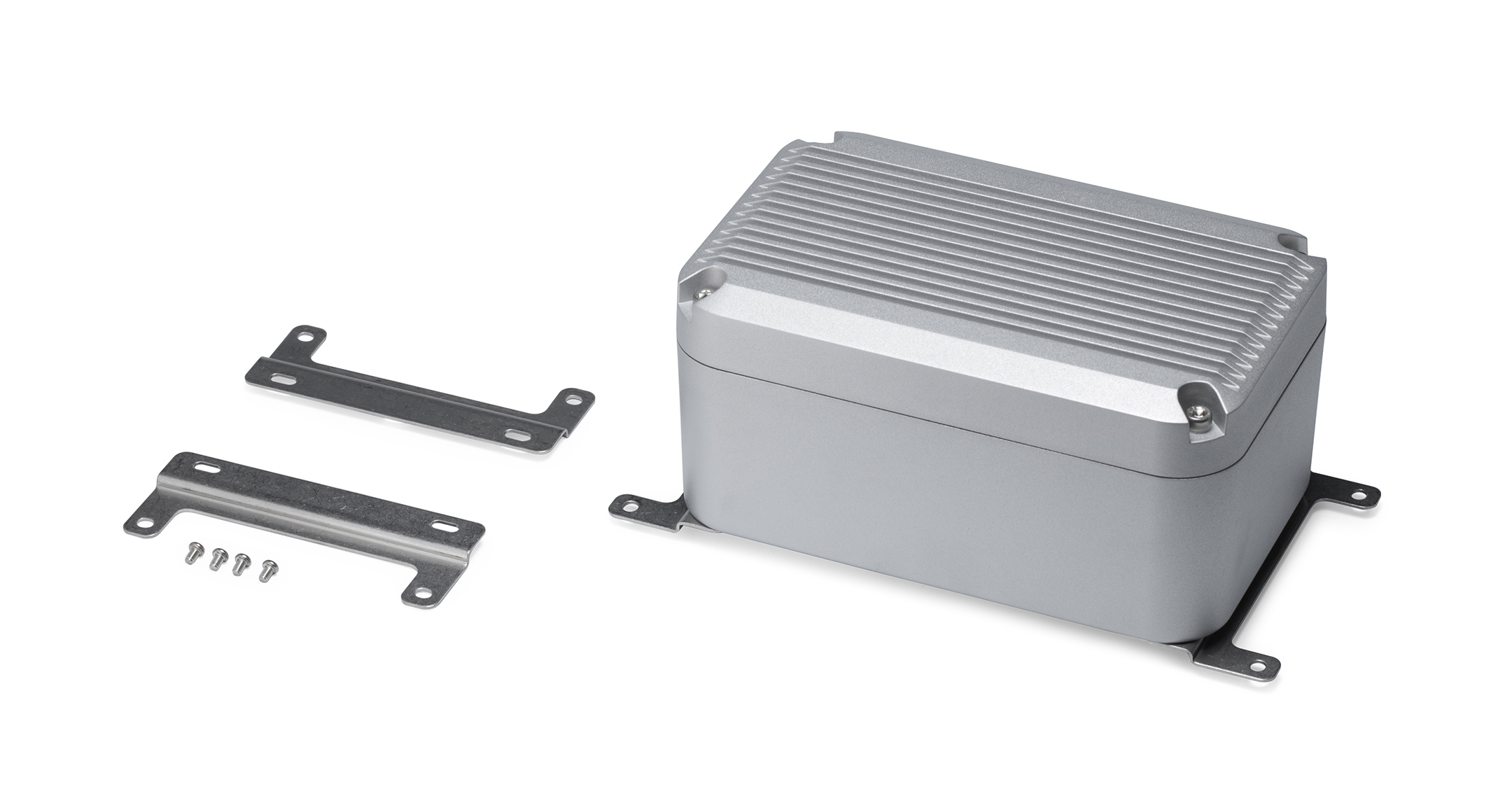

OPTIONAL PARTS
