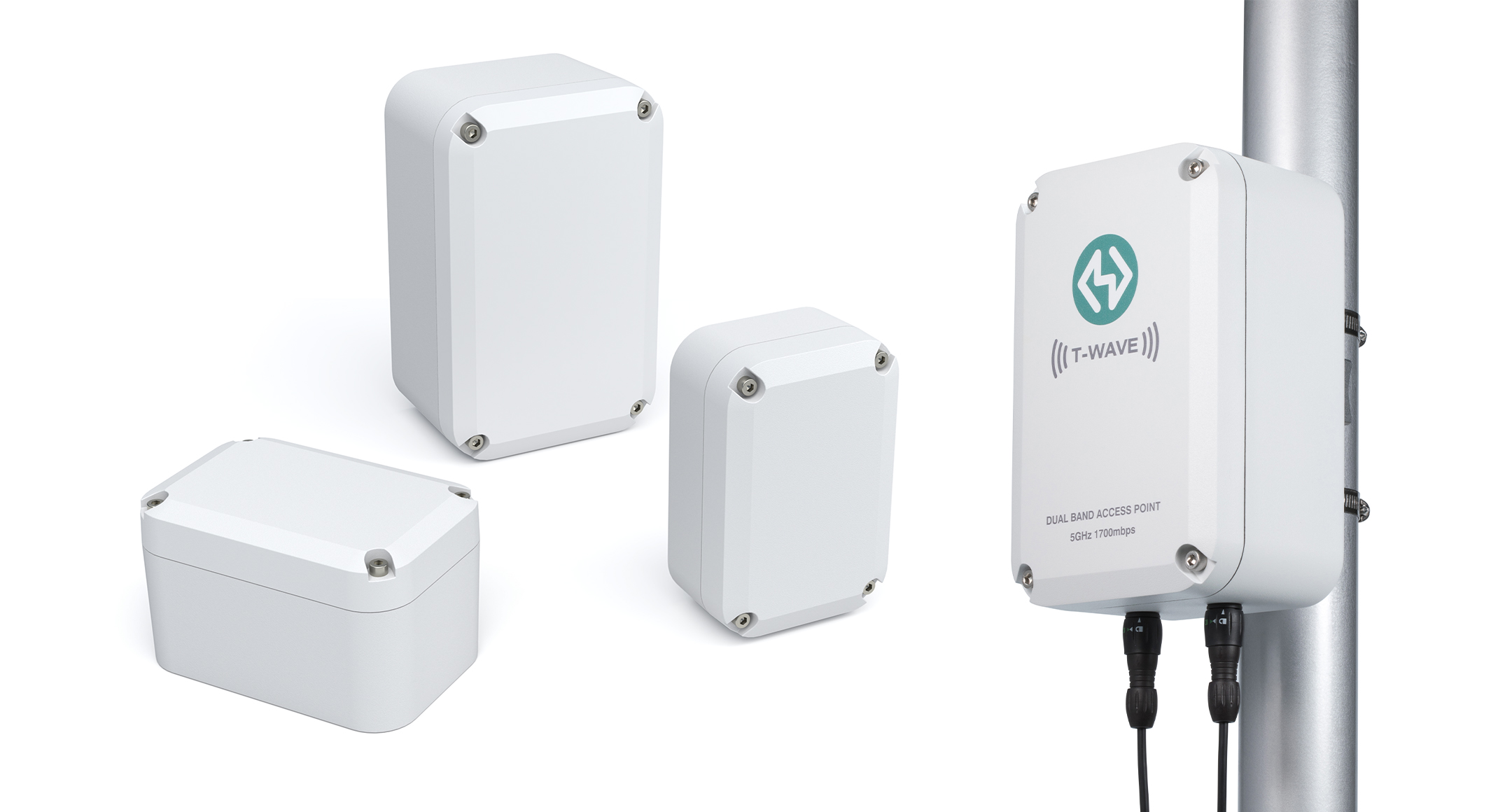

CATEGORY：IP68 waterproof aluminium enclosure, Watertight diecast aluminium box, EMC shielded enclosure

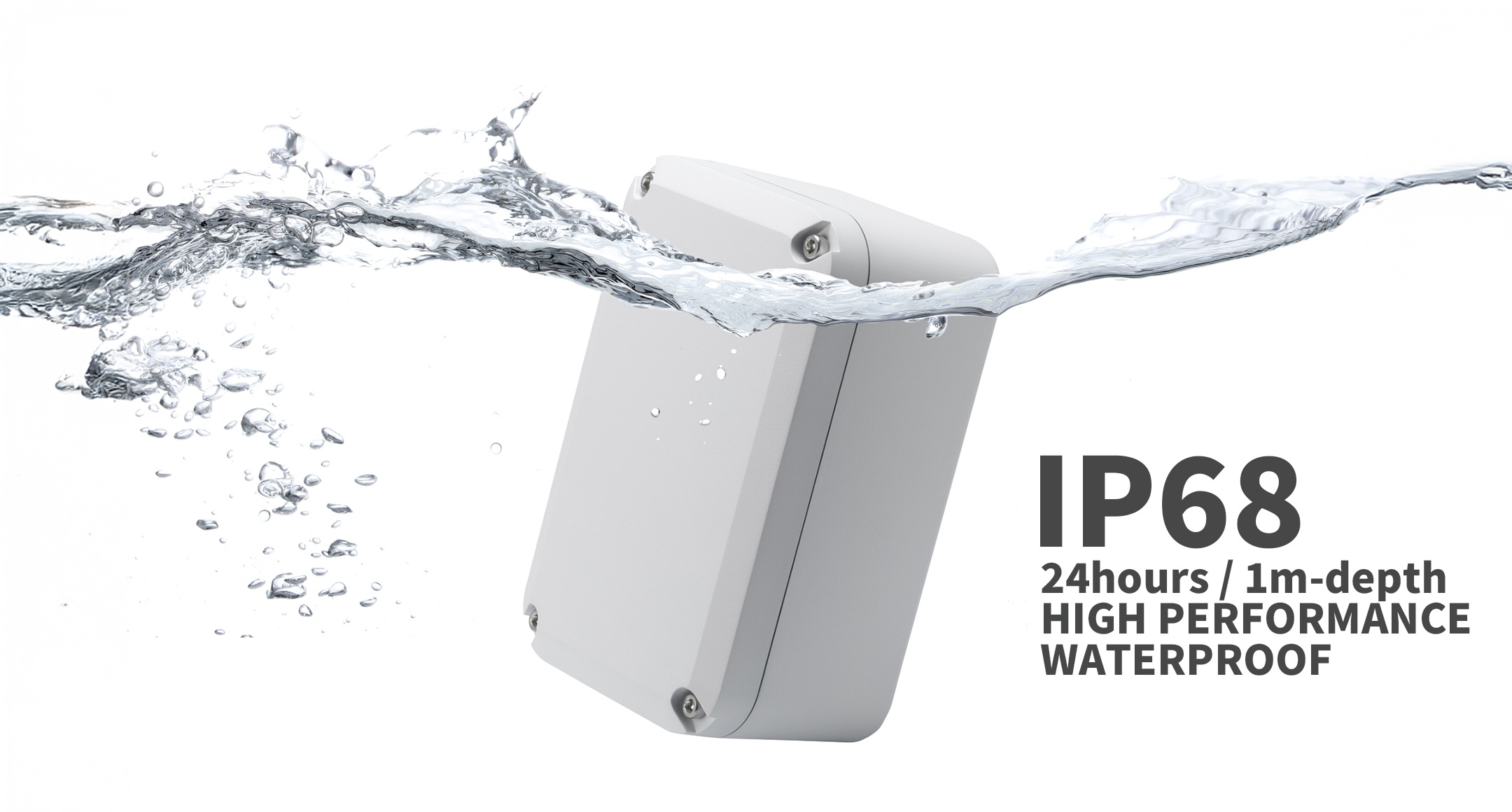

IP68 high performance diecast aluminium box protected from immersion as long as 24 hours at 1m depth.

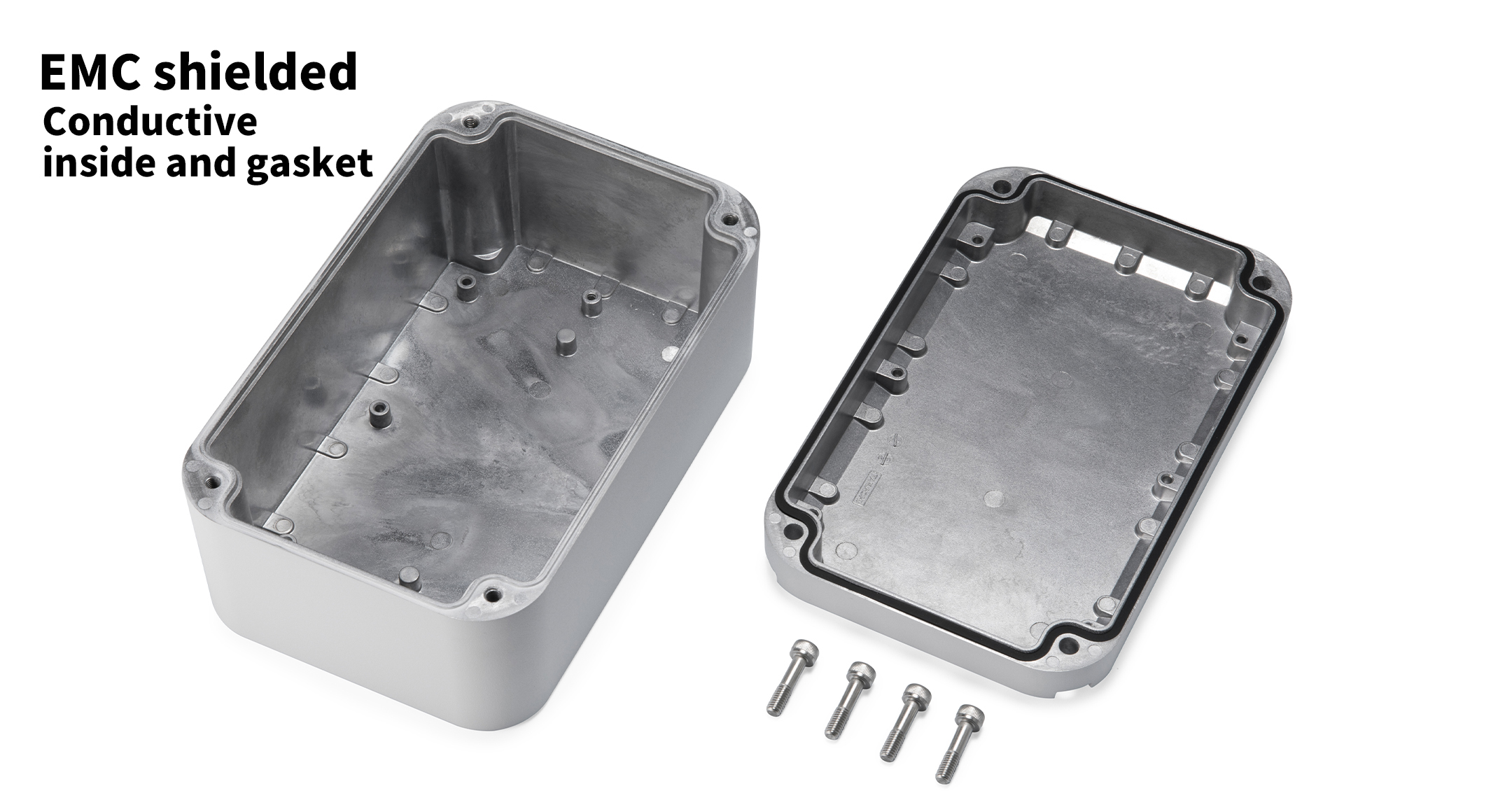

EMC shielding is achieved by having the unfinished inner sides of the Top cover and Base, as well as the conductive silicone gasket.

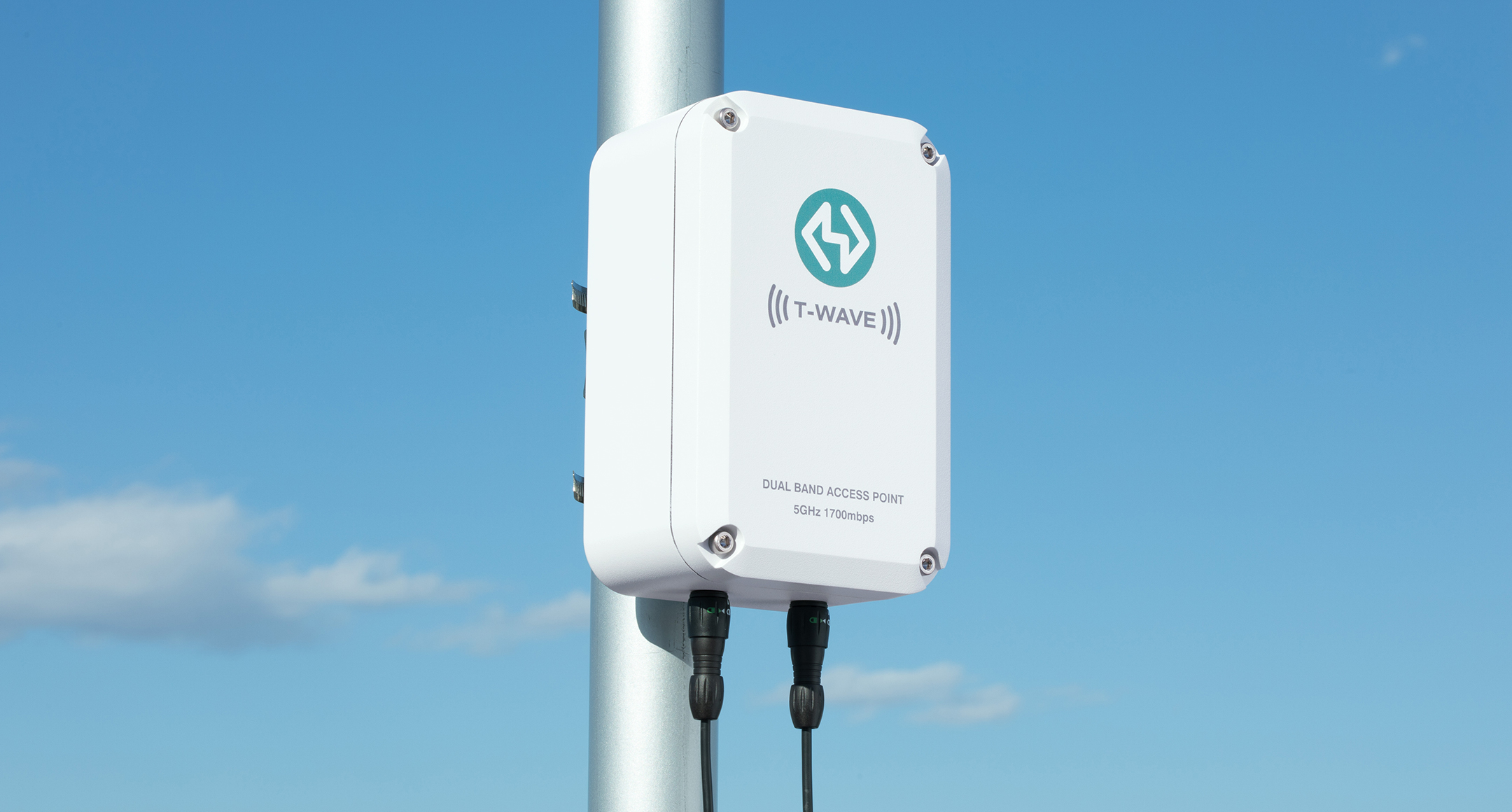

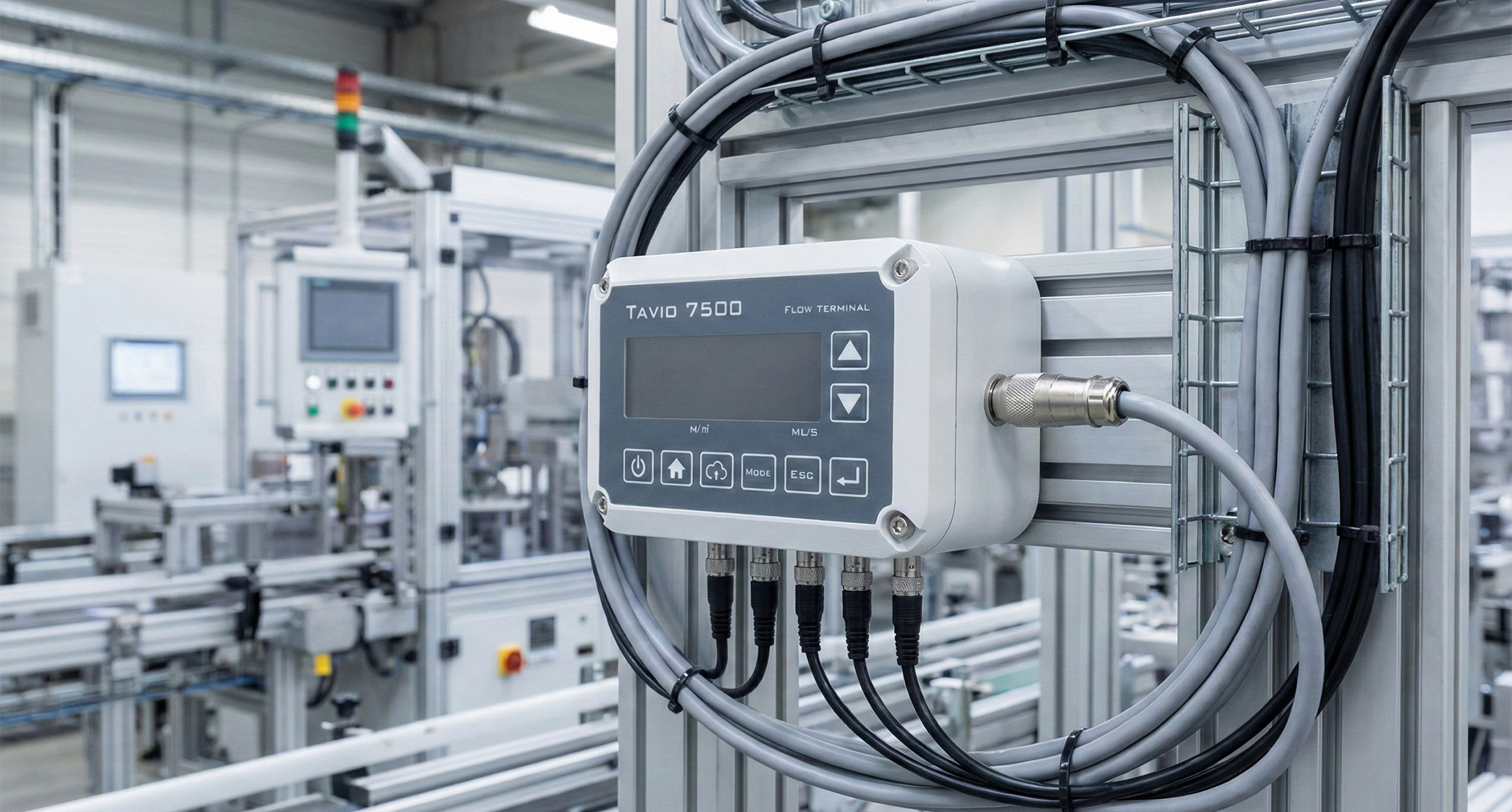

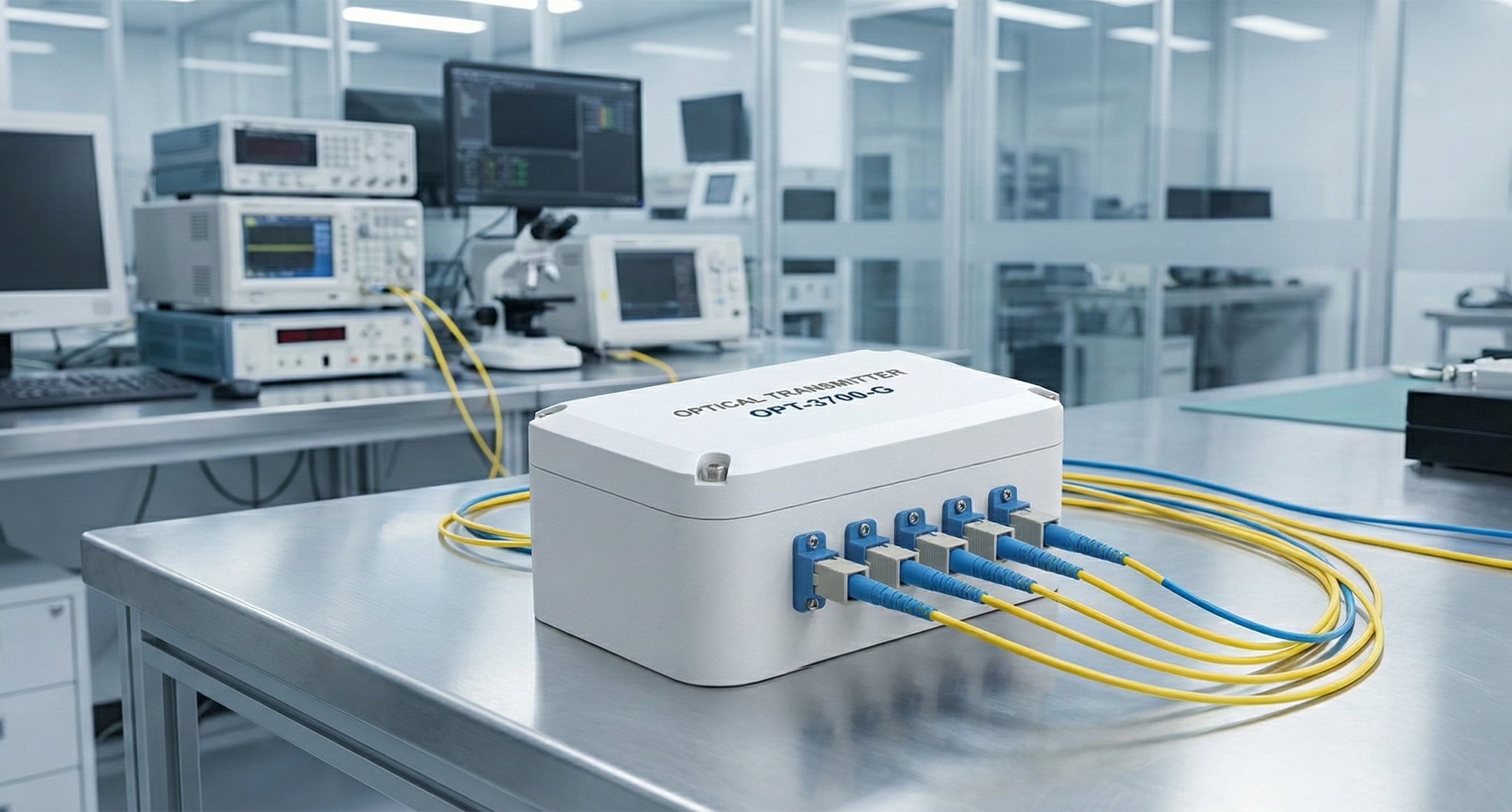

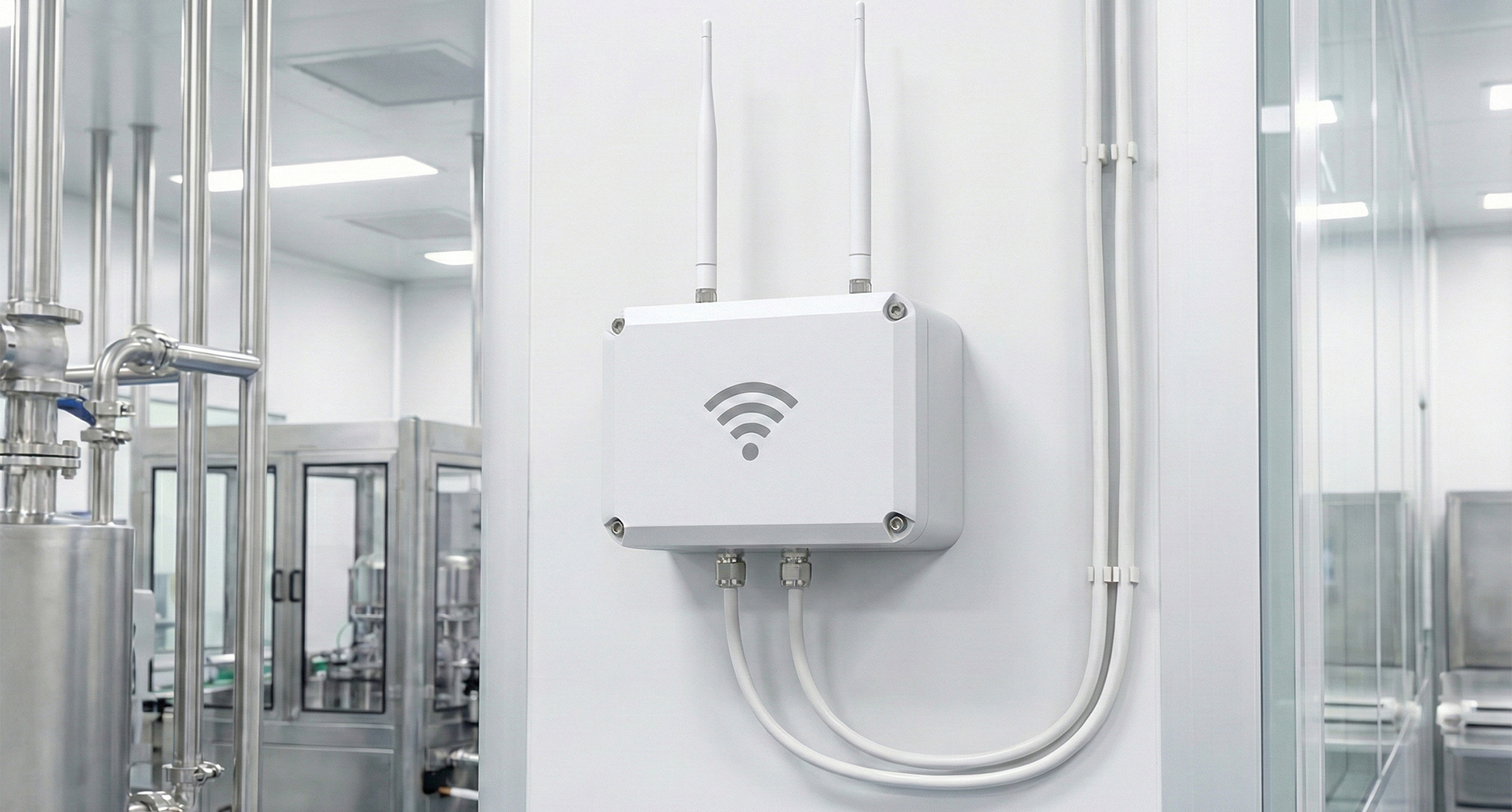

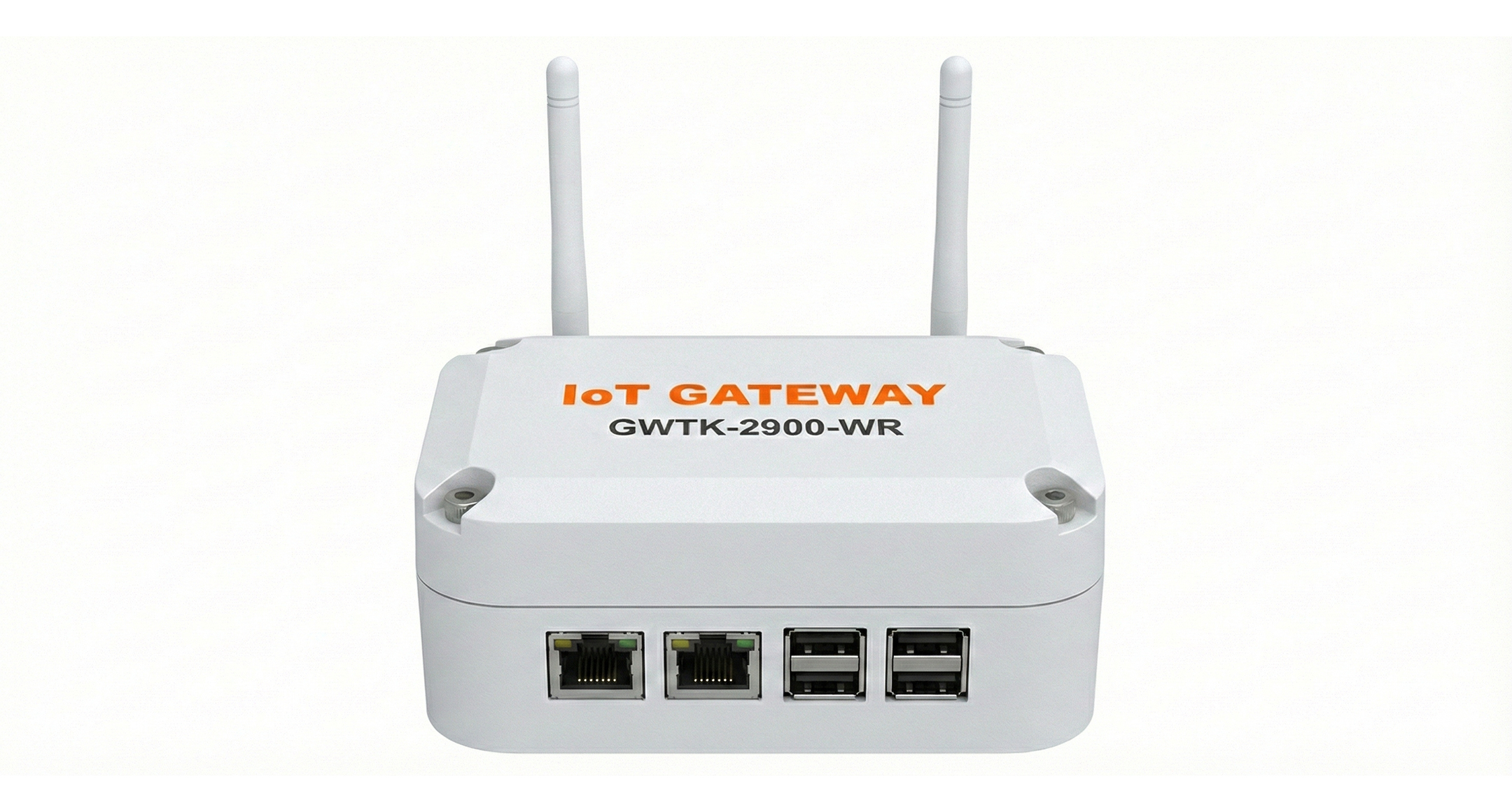

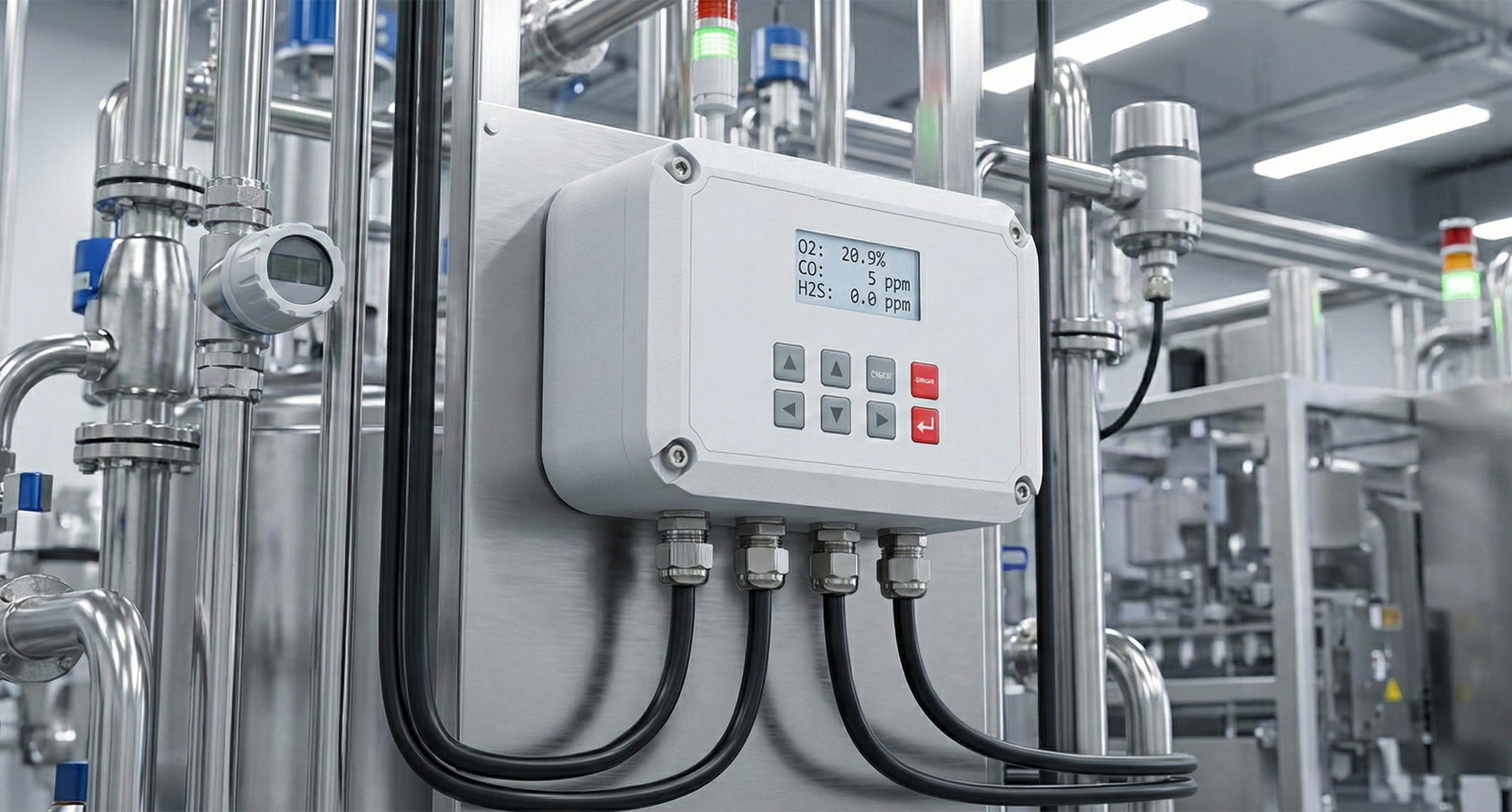

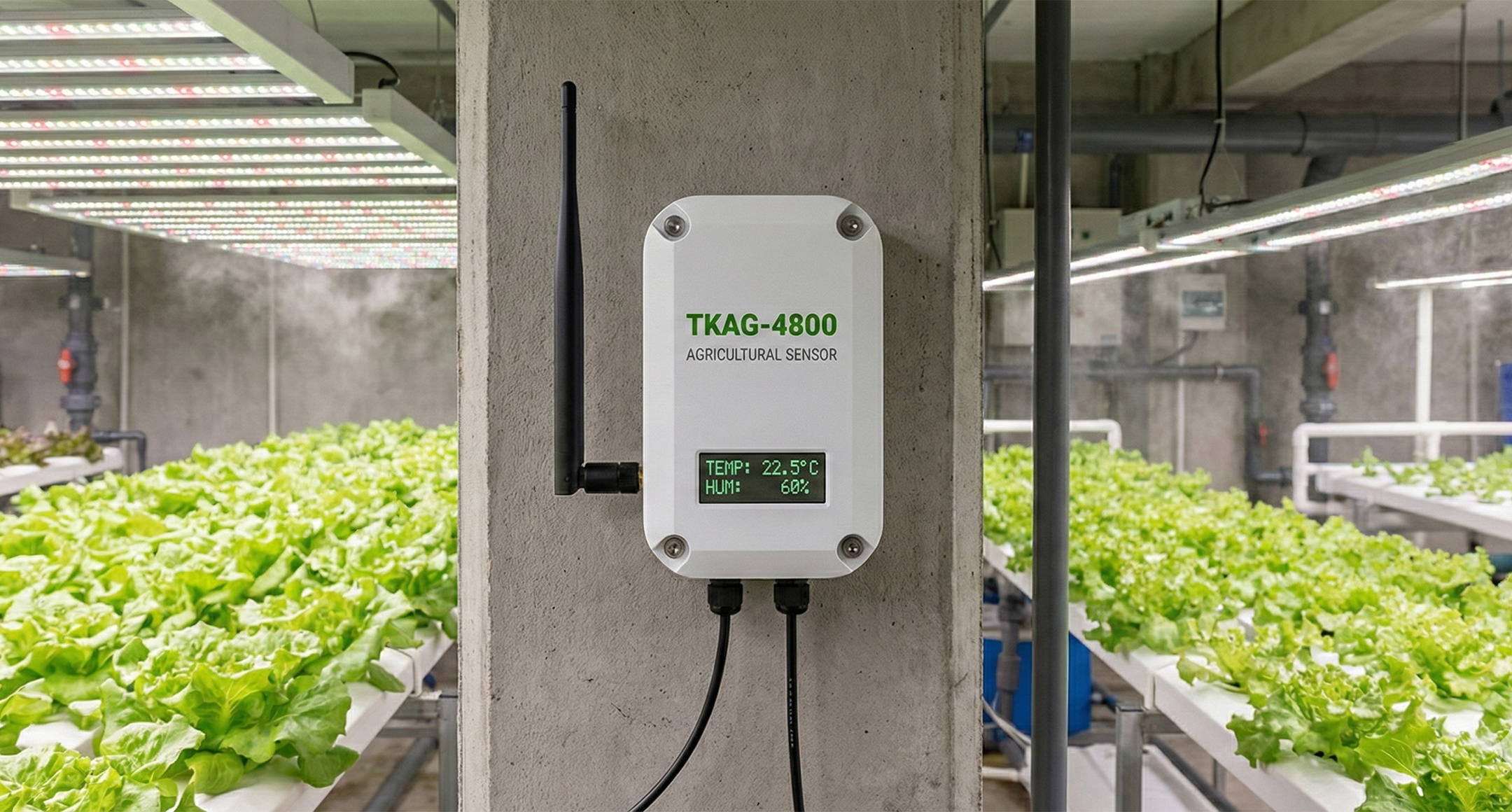

Suitable for use in a severe environment such as outdoor network device, plant control equipment, meteorological instruments and more.
4 sizes available in white.
Protection class : IP68 (24-hours/1m-depth)
Operating temperature : -40°C ~ +105°C
*New product scheduled for launch
Late December 2025
DW10-15-9W, DW14-22-7W, DW14-22-10W
February 2026
DW10-15-6W
EMC shielding is achieved by having the unfinished inner sides of the Top cover and Base, as well as the conductive silicone gasket.
Suitable for use in a severe environment such as outdoor network device, plant control equipment, meteorological instruments and more.
4 sizes available in white.
Protection class : IP68 (24-hours/1m-depth)
Operating temperature : -40°C ~ +105°C
*New product scheduled for launch
Late December 2025
DW10-15-9W, DW14-22-7W, DW14-22-10W
February 2026
DW10-15-6W
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Launch date | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| DW10-15-6W | 100 | 60 | 150 | 86 | 46 | 136 | 670 | February 2026 | DXF | DWG | ||
| DW10-15-9W | 100 | 90 | 150 | 81 | 76 | 131 | 910 | Late December 2025 | DXF | DWG | ||
| DW14-22-7W | 140 | 70 | 220 | 125 | 56 | 205 | 1245 | Late December 2025 | DXF | DWG | ||
| DW14-22-10W | 140 | 100 | 220 | 123 | 86 | 203 | 1640 | Late December 2025 | DXF | DWG | ||

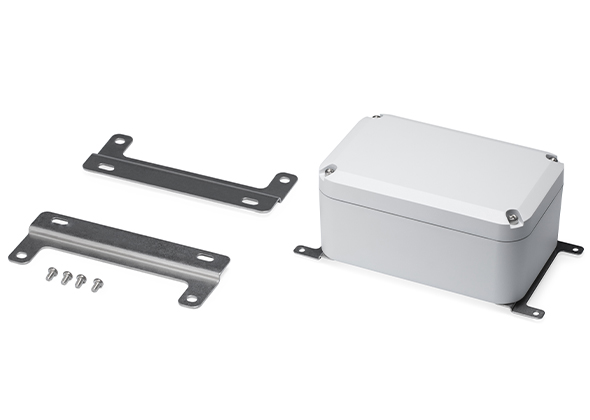

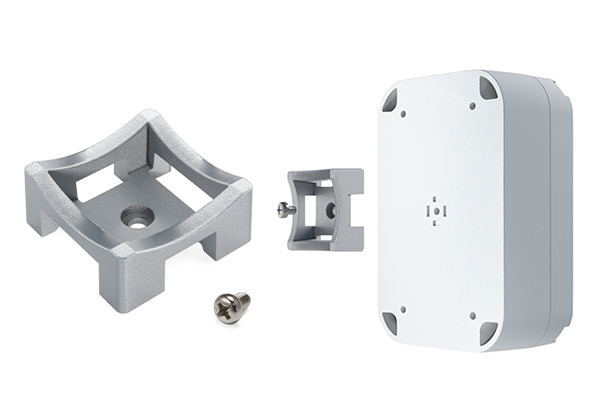

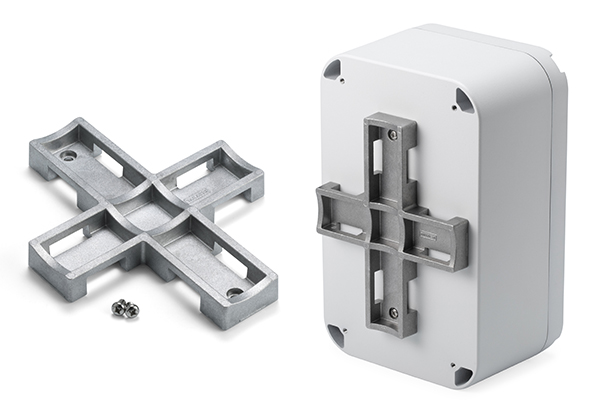

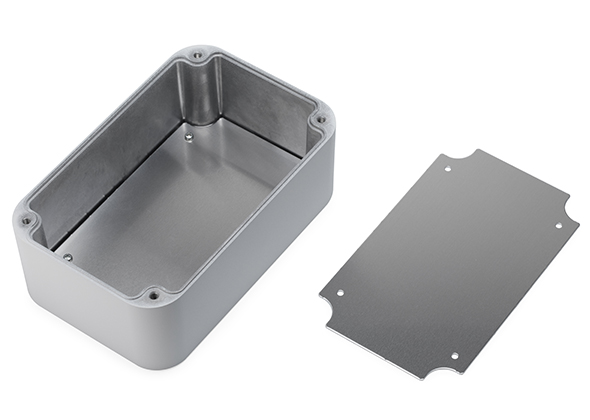

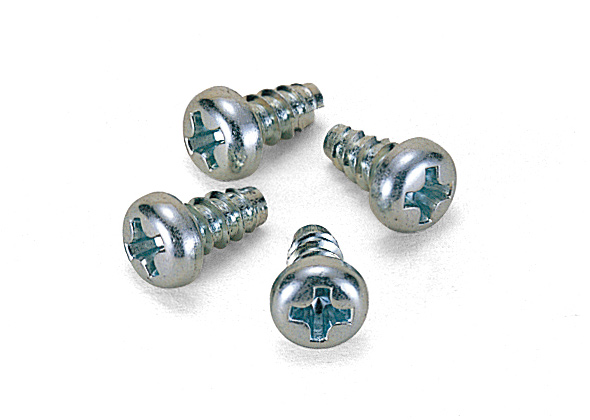

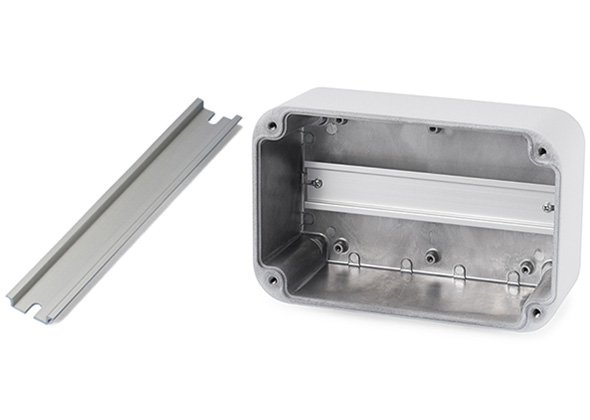

OPTIONAL PARTS
SIMILAR PRODUCT
