CATEGORY：IP65 Diecast aluminum enclosure, Waterproof die casting aluminum enclosure, Aluminum enclosure
***Available as BTO*** (built-to-order)

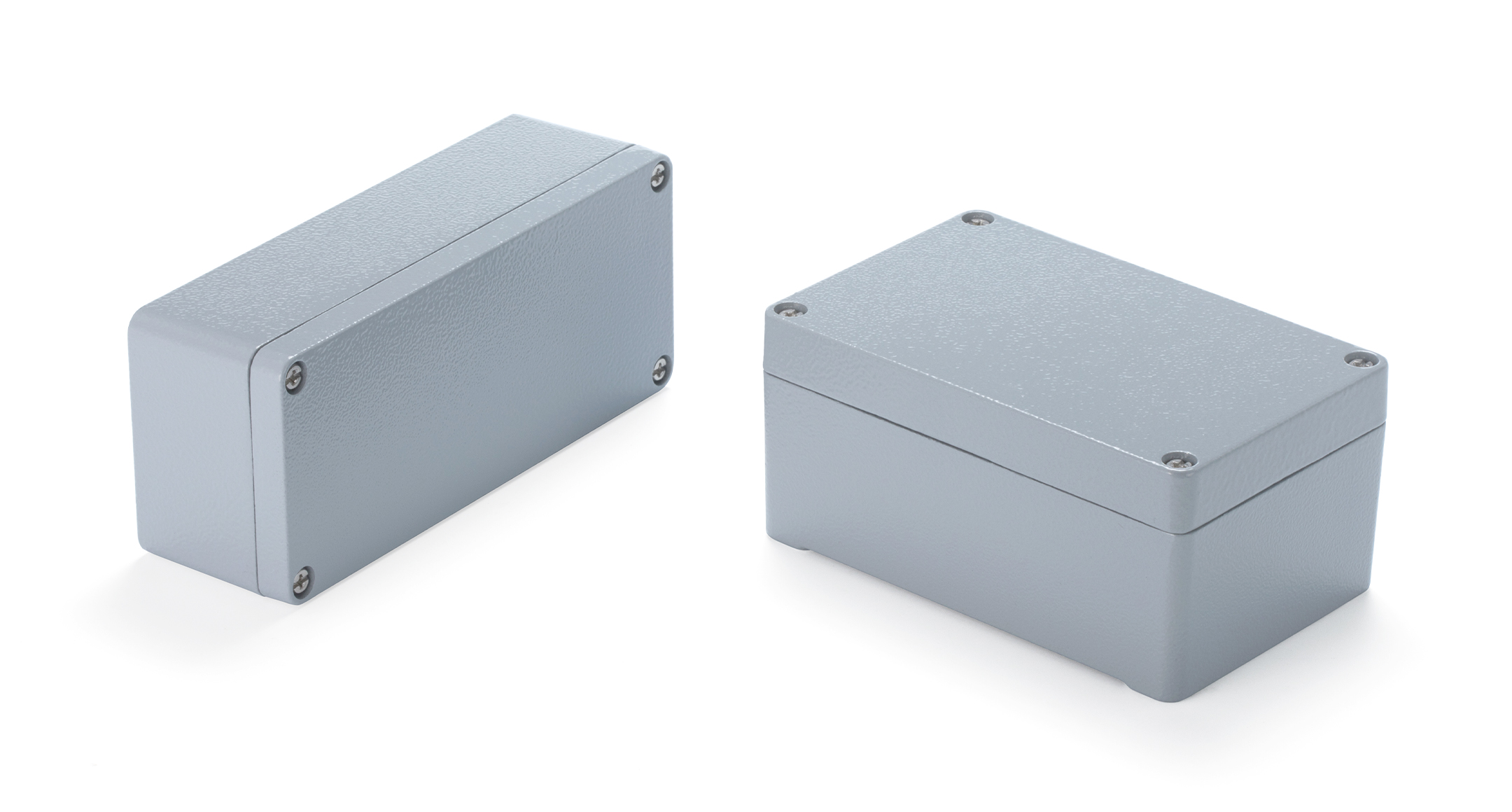

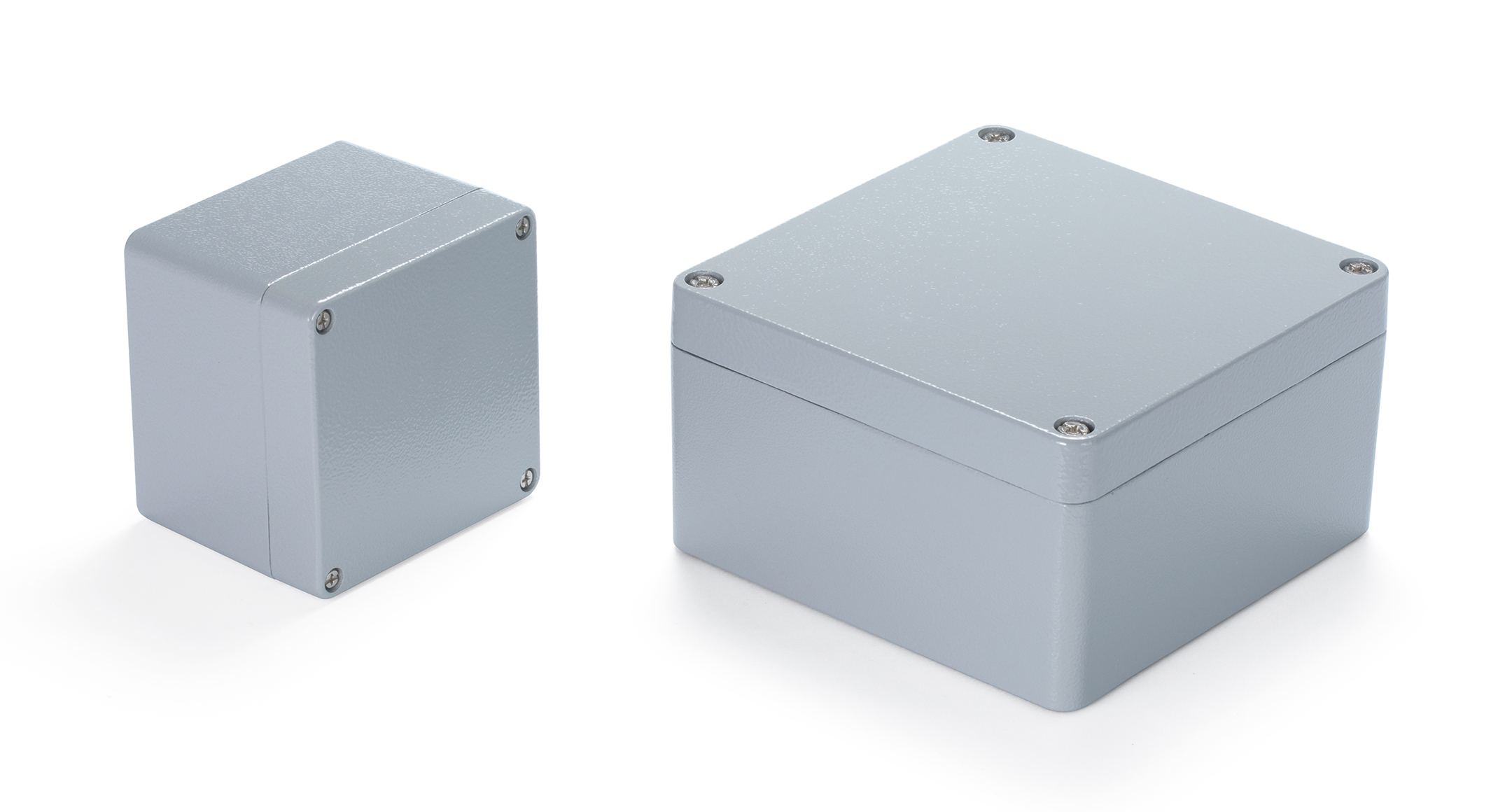

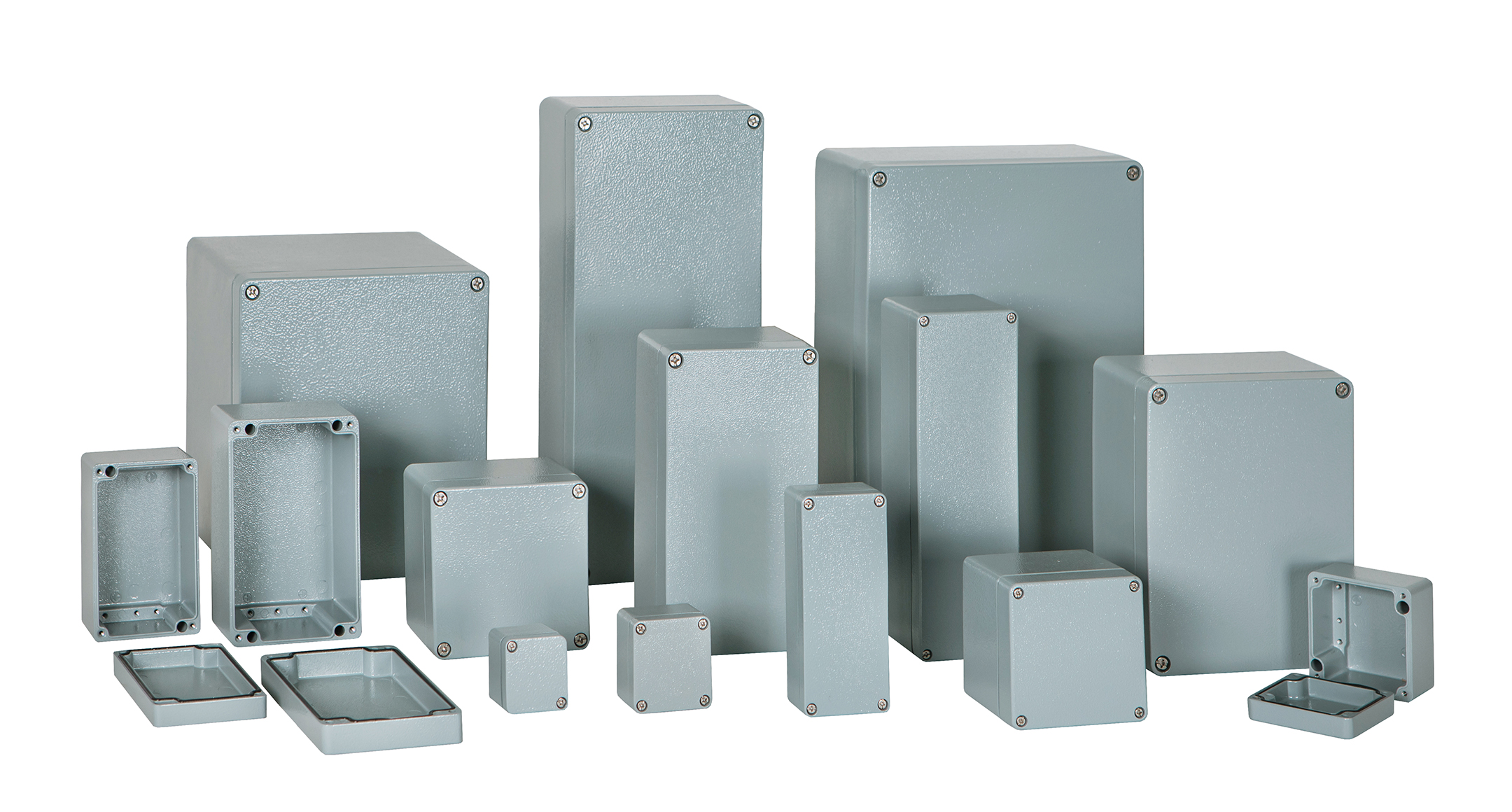

IP65 protection class and impact resistant diecast aluminium box. A large selection of 35 different sizes
to choose from.
Diecast aluminium box has superior heat dissipation, heat resistance, and oil resistance compared to
plastic box.
This series is built to order. Able to order from just 1 piece. The delivery time is listed on the chart below.

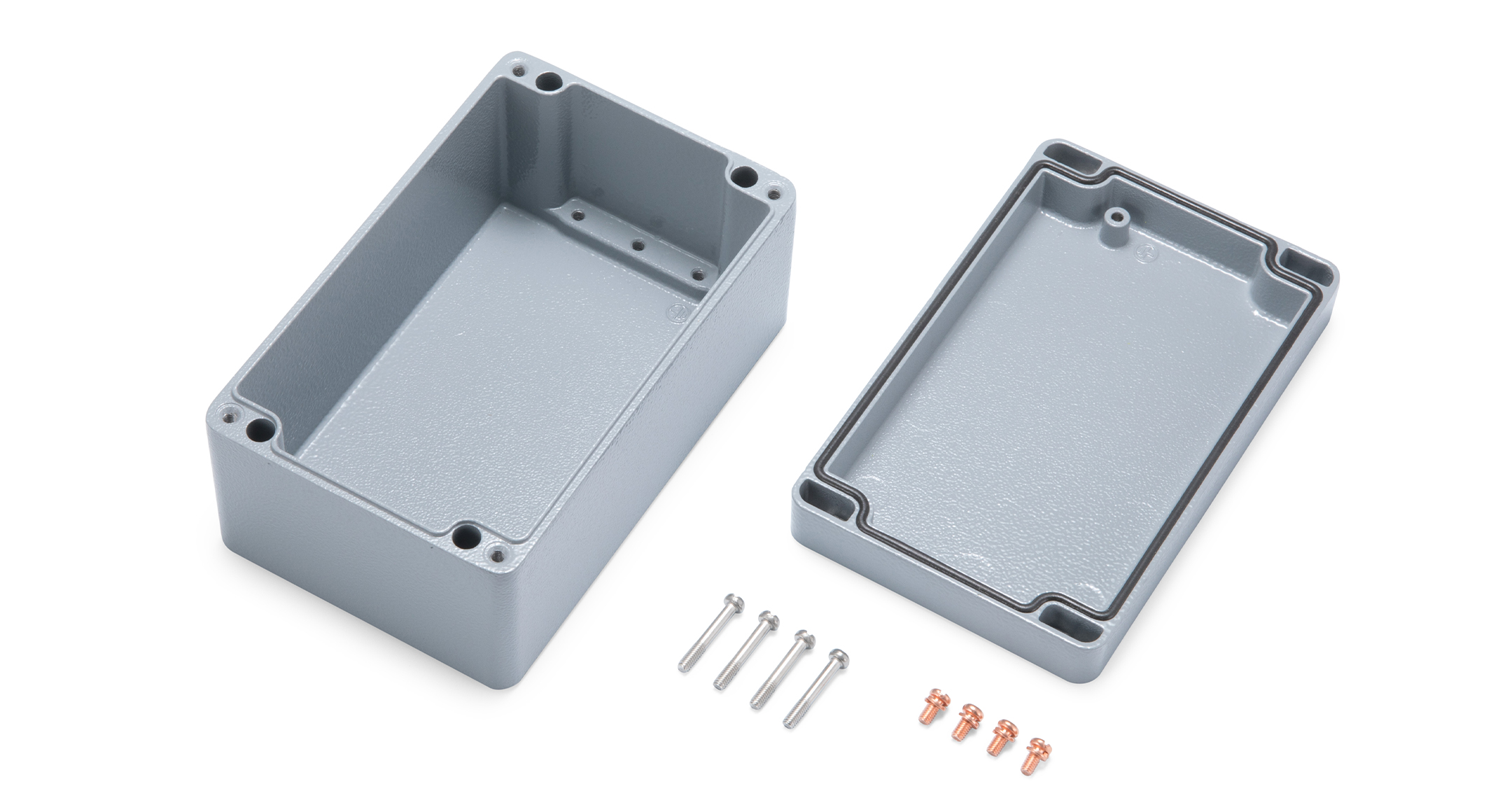

Self-tapping captive cover screws which are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover.
Protection class：IP65
Recommended torque : -40℃～＋80℃
Color：Gray / similar to RAL7001
IP65 protection class and impact resistant diecast aluminium box. A large selection of 35 different sizes
to choose from.
Diecast aluminium box has superior heat dissipation, heat resistance, and oil resistance compared to
plastic box.
This series is built to order. Able to order from just 1 piece. The delivery time is listed on the chart below.
Self-tapping captive cover screws which are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover.
Protection class：IP65
Recommended torque : -40℃～＋80℃
Color：Gray / similar to RAL7001
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Recommended torque (N ・ m) | Delivery time | Weight (g) | DXF | DWG | |||
|---|---|---|---|---|---|---|---|---|---|
| W | H | D | |||||||
| AL050503 | 46 | 31.5 | 51 | 0.8 ～ 1 | 2 months | 82 | DXF | DWG | |
| AL060603 | 64 | 34 | 58 | 0.8 ～ 1 | 2 months | 140 | DXF | DWG | |
| AL060605 | 64 | 46 | 58 | 0.8 ～ 1 | 2 months | 162 | DXF | DWG | |
| AL061003 | 64 | 34 | 98 | 0.8 ～ 1 | 2 months | 204 | DXF | DWG | |
| AL061005 | 64 | 46 | 98 | 0.8 ～ 1 | 2 months | 239 | DXF | DWG | |
| AL061503 | 64 | 34 | 150 | 0.8 ～ 1 | 2 months | 267 | DXF | DWG | |
| AL061505 | 64 | 46 | 150 | 0.8 ～ 1 | 2 months | 314 | DXF | DWG | |
| AL080806 | 80 | 57.5 | 75 | 0.8 ～ 1 | 2 months | 304 | DXF | DWG | |
| AL080807 | 80 | 70 | 75 | 0.8 ～ 1 | 2 months | 347 | DXF | DWG | |
| AL081306 | 80 | 58 | 125 | 0.8 ～ 1 | 2 months | 431 | DXF | DWG | |
| AL081307 | 80 | 71 | 125 | 0.8 ～ 1 | 2 months | 488 | DXF | DWG | |
| AL081806 | 80 | 57 | 175 | 0.8 ～ 1 | 2 months | 522 | DXF | DWG | |
| AL081807 | 80 | 70 | 175 | 0.8 ～ 1 | 2 months | 612 | DXF | DWG | |
| AL082506 | 80 | 57 | 250 | 0.8 ～ 1 | 2 months | 814 | DXF | DWG | |
| AL082507 | 80 | 70 | 250 | 0.8 ～ 1 | 2 months | 854 | DXF | DWG | |
| AL101008 | 100 | 80 | 100 | 0.8 ～ 1 | 2 months | 561 | DXF | DWG | |
| AL101608 | 100 | 80 | 160 | 0.8 ～ 1 | 2 months | 767 | DXF | DWG | |
| AL121208 | 120 | 80 | 122 | 1. 0 | 2 months | 910 | DXF | DWG | |
| AL122208 | 120 | 80 | 220 | 1. 0 | 2 months | 1280 | DXF | DWG | |
| AL122209 | 120 | 90 | 220 | 1. 0 | 2 months | 1400 | DXF | DWG | |
| AL123608 | 120 | 80 | 360 | 1. 0 | 2 months | 2000 | DXF | DWG | |
| AL142208 | 140 | 80 | 220 | 1. 0 | 2 months | 1260 | DXF | DWG | |
| AL151309 | 150 | 90 | 132 | 1. 0 | 2 months | 1130 | DXF | DWG | |
| AL161609 | 160 | 90 | 160 | 1. 0 | 2 months | 1480 | DXF | DWG | |
| AL162110 | 160 | 100 | 210 | 1. 0 | 2 months | 1880 | DXF | DWG | |
| AL162609 | 160 | 91 | 260 | 2.5 ～2.7 | 2 months | 1920 | DXF | DWG | |
| AL163609 | 160 | 91 | 360 | 2.5 ～2.7 | 2 months | 2630 | DXF | DWG | |
| AL181810 | 180 | 100 | 180 | 2.5 ～2.7 | 2 months | 1800 | DXF | DWG | |
| AL232011 | 232 | 110 | 202 | 2.5 ～2.7 | 2 months | 2420 | DXF | DWG | |
| AL232018 | 232 | 180 | 202 | 2.5 ～2.7 | 2 months | 3590 | DXF | DWG | |
| AL232811 | 230 | 110 | 280 | 2.5 ～2.7 | 2 months | 3130 | DXF | DWG | |
| AL233311 | 230 | 110 | 330 | 2.5 ～2.7 | 2 months | 3700 | DXF | DWG | |
| AL234011 | 230 | 110 | 400 | 2.5 ～2.7 | 2 months | 4010 | DXF | DWG | |
| AL314011 | 313 | 110 | 403 | 2.5 ～2.7 | 2 months | 5800 | DXF | DWG | |
| AL314018 | 313 | 180 | 403 | 2.5 ～2.7 | 2 months | 8030 | DXF | DWG | |
