IP67 waterproof diecast aluminum enclosure.
Tough and robust for heavy-duty use.
O-ring gasket is good for maintaining both waterproof and dustproof functionality.
Shock resistant diecast aluminum enclosure.
Conductivity can be achieved by utilization of the contact between the unfinished inner surfaces (only applicable to "N" type).
8 different sizes available for both light gray powder coated and unfinished models.
Protection class: IP67 (equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃
Recommended torque: 1.0N・m (10kgf・cm)
Tough and robust for heavy-duty use.
O-ring gasket is good for maintaining both waterproof and dustproof functionality.
Shock resistant diecast aluminum enclosure.
Conductivity can be achieved by utilization of the contact between the unfinished inner surfaces (only applicable to "N" type).
8 different sizes available for both light gray powder coated and unfinished models.
Protection class: IP67 (equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃
Recommended torque: 1.0N・m (10kgf・cm)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Color / Similar matching | DXF | DWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| BDN6-8-5G | 60 | 50 | 80 | 29.7 | 44 | 67.7 | 240 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN6-8-5N | 60 | 50 | 80 | 29.7 | 44 | 67.7 | 240 | Natual Unfinished | DXF | DWG | |
| BDN7-10-4G | 70 | 40 | 100 | 58.3 | 34 | 70.3 | 250 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN7-10-4N | 70 | 40 | 100 | 58.3 | 34 | 70.3 | 250 | Natual Unfinished | DXF | DWG | |
| BDN9-9-6G | 90 | 60 | 90 | 78.4 | 54 | 59.4 | 395 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN9-9-6N | 90 | 60 | 90 | 78.4 | 54 | 59.4 | 395 | Natual Unfinished | DXF | DWG | |
| BDN9-13-5G | 90 | 50 | 130 | 78.8 | 44 | 100.8 | 420 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN9-13-5N | 90 | 50 | 130 | 78.8 | 44 | 100.8 | 420 | Natual Unfinished | DXF | DWG | |
| BDN10-14-7G | 100 | 70 | 140 | 88.4 | 64 | 110.4 | 635 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN10-14-7N | 100 | 70 | 140 | 88.4 | 64 | 110.4 | 635 | Natual Unfinished | DXF | DWG | |
| BDN11-16-6G | 110 | 60 | 160 | 98.6 | 54 | 130.6 | 640 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN11-16-6N | 110 | 60 | 160 | 98.6 | 54 | 130.6 | 640 | Natual Unfinished | DXF | DWG | |
| BDN12-22-8G | 120 | 80 | 220 | 106.1 | 74 | 183.1 | 1155 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN12-22-8N | 120 | 80 | 220 | 106.1 | 74 | 183.1 | 1155 | Natual Unfinished | DXF | DWG | |
| BDN16-26-9G | 160 | 90 | 260 | 143.2 | 82 | 213.2 | 2142 | Light gray (Munsell N8) powder coated | DXF | DWG | |
| BDN16-26-9N | 160 | 90 | 260 | 143.2 | 82 | 213.2 | 2145 | Natual Unfinished | DXF | DWG | |

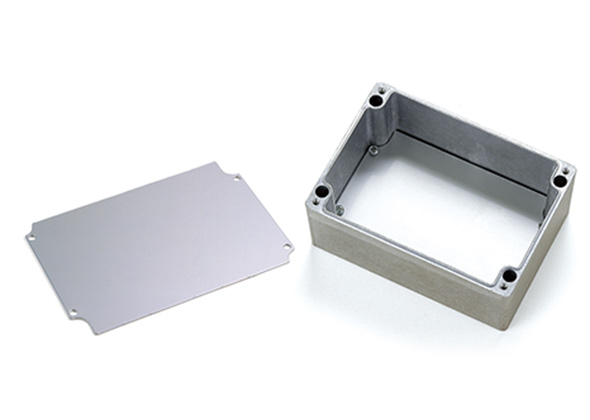

| Mounting plate (Option) | DXF | DWG | |
|---|---|---|---|
| FTB5-7 | DXF | DWG | |
| FTB5-7 | DXF | DWG | |
| FTB6-9 | DXF | DWG | |
| FTB6-9 | DXF | DWG | |
| FTB8-8 | DXF | DWG | |
| FTB8-8 | DXF | DWG | |
| FTB8-12 | DXF | DWG | |
| FTB8-12 | DXF | DWG | |
| FTB9-13 | DXF | DWG | |
| FTB9-13 | DXF | DWG | |
| FTB10-15 | DXF | DWG | |
| FTB10-15 | DXF | DWG | |
| FTB10-20 | DXF | DWG | |
| FTB10-20 | DXF | DWG | |
| FTB14-24 | DXF | DWG | |
| FTB14-24 | DXF | DWG |

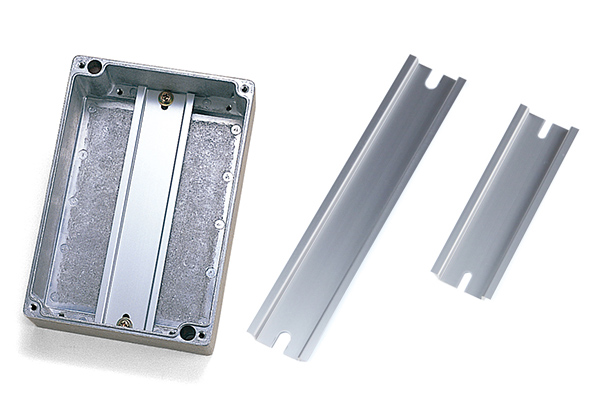

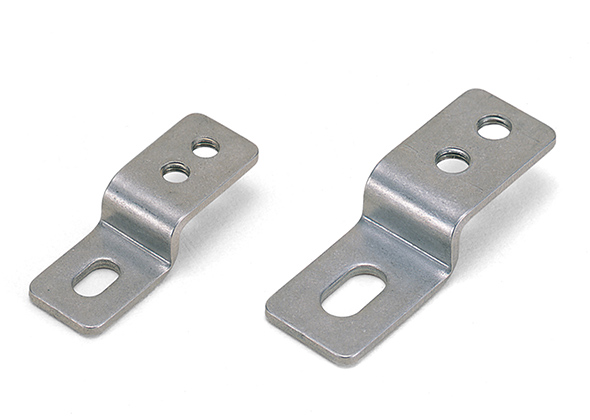

OPTIONAL PARTS
