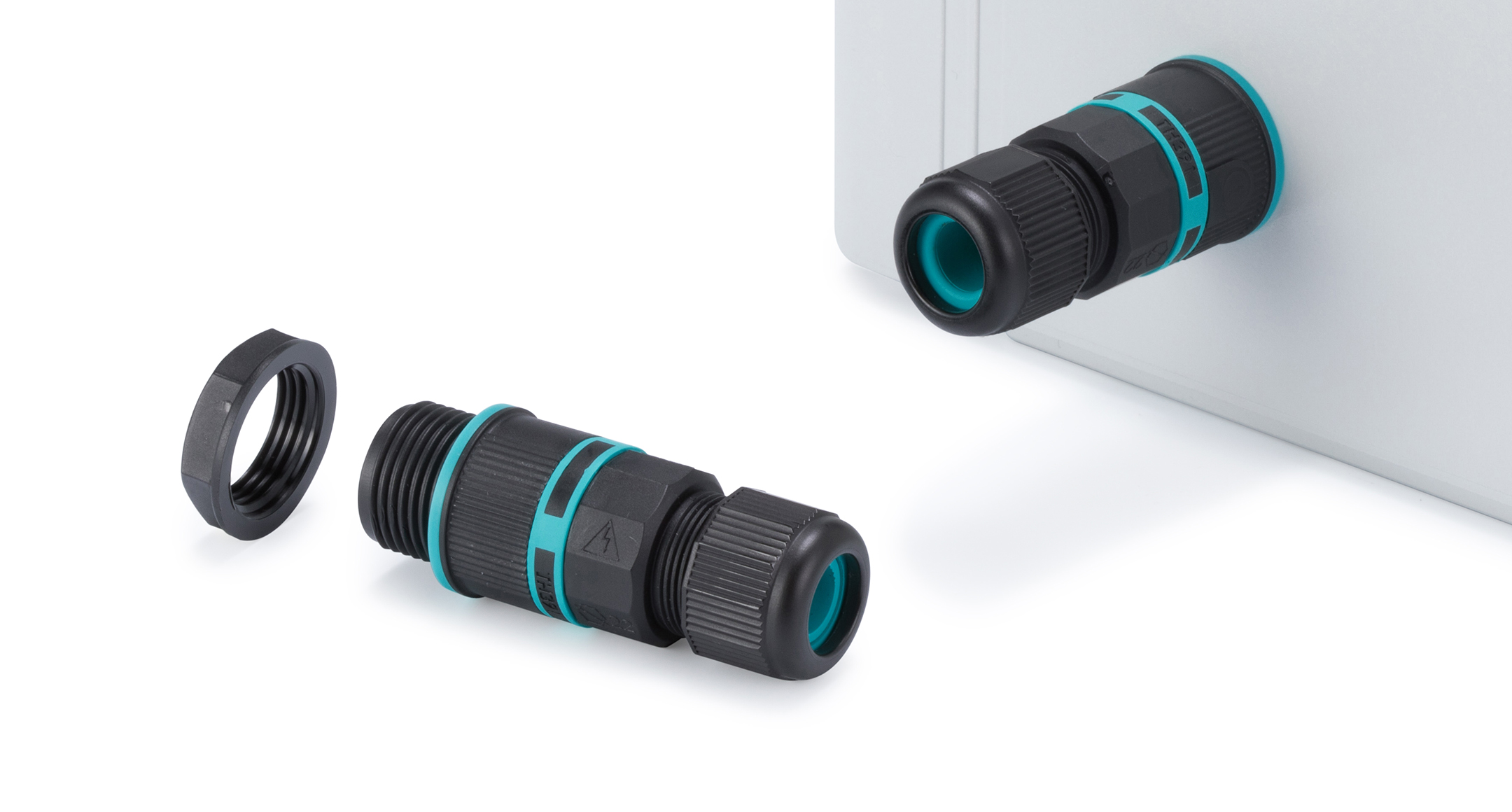

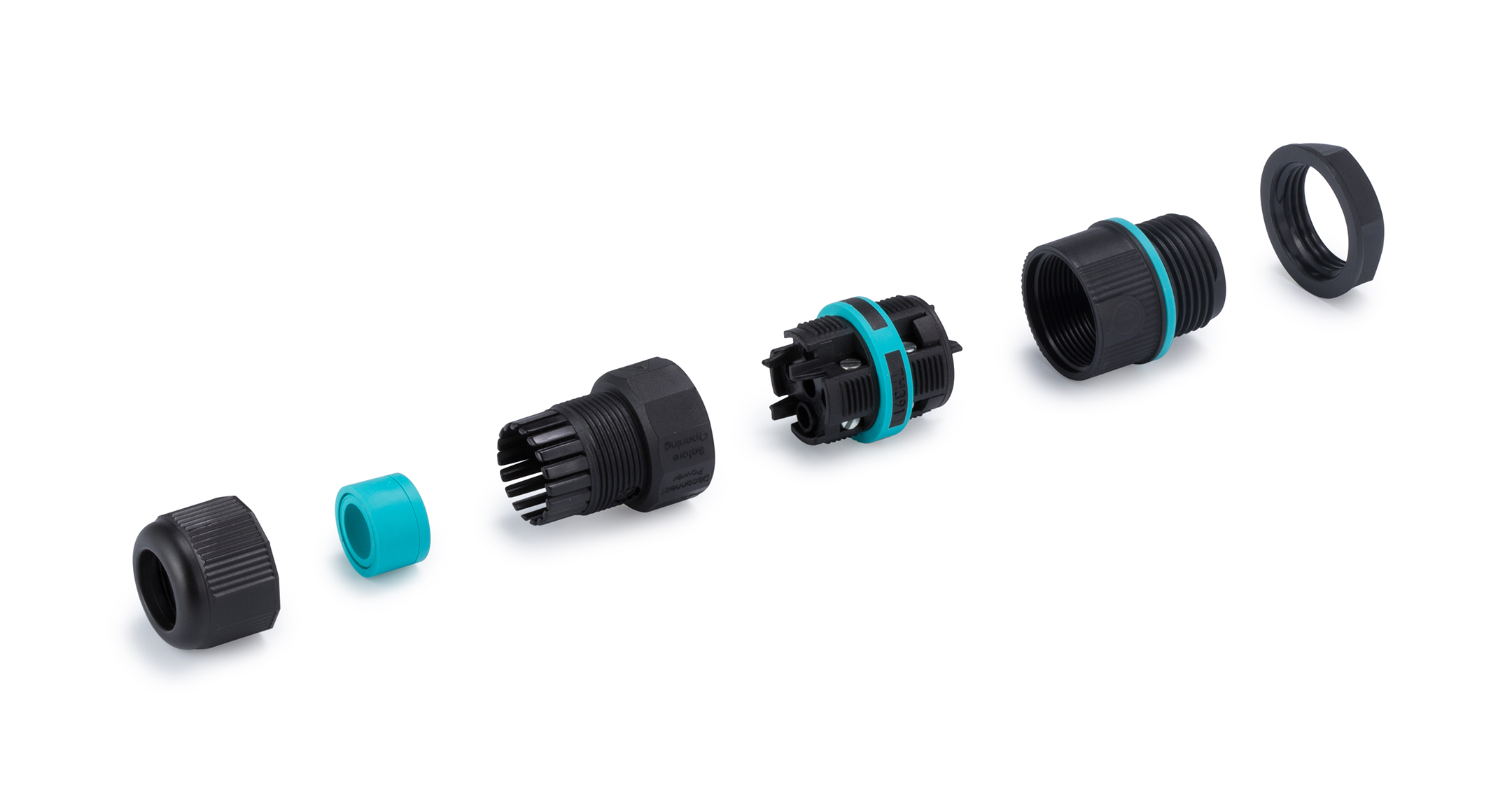

Plug-socket panel-mount type consisting of the plug side (male) and socket side (female).
A screw type wiring connection is adopted, allowing for easy installation and removal.
2P, 3P and 4P pole models are available.
Technical Data
Protection class : IP68 2bar/3h (3 hours / 20m depth)
Operating temperature : -40°C ~ +125°C
EN60529, EN60998 compliant.
Specifications
Rated voltage AC450V
Rated current 17.5A
Applicable wire Stranded wire 0.25m㎡ ~ 1.5m㎡
A screw type wiring connection is adopted, allowing for easy installation and removal.
2P, 3P and 4P pole models are available.
Technical Data
Protection class : IP68 2bar/3h (3 hours / 20m depth)
Operating temperature : -40°C ~ +125°C
EN60529, EN60998 compliant.
Specifications
Rated voltage AC450V
Rated current 17.5A
Applicable wire Stranded wire 0.25m㎡ ~ 1.5m㎡
PRODUCT NO. / DIMENSIONS
| Product No. | dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Mounting thickness | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| THB391E-2P | φ26.5×49.5mm | φ7～12 | 2P | 450V AC | 17.5A | 0.25～1.5m㎡(Stranded) | 6.5mm | 19.5 | DXF | DWG | |
| THB391E-3P | φ26.5×49.5mm | φ7～12 | 3P | 450V AC | 17.5A | 0.25～1.5m㎡(Stranded) | 6.5mm | 21 | DXF | DWG | |
| THB391E-4P | φ26.5×49.5mm | φ7～12 | 4P | 450V AC | 17.5A | 0.25～1.5m㎡(Stranded) | 6.5mm | 23 | DXF | DWG |
