IP67 JUNCTION BOX with KNOCKOUTS - SPCM series


SPCM Series -PDF

CATEGORY：Plastic enclosure with knockouts, IP67 waterproof polycarbonate enclosure, NEMA 6P polycarbonate enclosure, Junction box, Electrical plastic enclosure

IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series1
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series2
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series3
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series4
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series5
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series6
IP67 JUNCTION BOX with KNOCKOUTS - SPCM series7
IP67 waterproof polycarbonate enclosure with knockouts.
Molded with metric knock-outs for easy removal for cable entry.
Tough polycarbonate material for superior impact resistance.
Suitable to be used as terminal junction box, control box, wireless network devices and so on.
Mountable on walls by using the cover holes for fastening.

7 new sizes added in 2022.　Available in 28 different sizes, with 2 different cover types (white gray and transparent).

Protection class : IP67 (equivalent to NEMA6 rating)
Operating temperature : -20℃ ~ +75℃
Recommended torque : 1N・m ~ 1.5N・m

*Optional terminal block STB series can be easily attached to SPCM series.
3D View - White gray cover  3D View - Transparent cover 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Cover color(Similar matching) Weight (g) PDF DXF DWG
W H D w h d
SPCM081306G 75 60 125 65.5 45.5 91 White gray / RAL7035 159 PDF DXF DWG
SPCM081306T 75 60 125 65.5 45.5 91 Transparent 159 PDF DXF DWG
SPCM081308G 75 75 125 65.5 60.5 91 White gray / RAL7035 208 PDF DXF DWG
SPCM081308T 75 75 125 65.5 60.5 91 Transparent 208 PDF DXF DWG
SPCM081310G 75 100 125 65 85.5 90.5 White gray / RAL7035 275 PDF DXF DWG
SPCM081310T 75 100 125 65 85.5 90.5 Transparent 275 PDF DXF DWG
SPCM081313G 75 125 125 64.5 110.5 90 White gray / RAL7035 299 PDF DXF DWG
SPCM081313T 75 125 125 64.5 110.5 90 Transparent 299 PDF DXF DWG
SPCM101006G 100 60 100 90.5 45.5 66 White gray / RAL7035 164 PDF DXF DWG
SPCM101006T 100 60 100 90.5 45.5 66 Transparent 164 PDF DXF DWG
SPCM131306G 125 60 125 115.5 45.5 91 White gray / RAL7035 243 PDF DXF DWG
SPCM131306T 125 60 125 115.5 45.5 91 Transparent 243 PDF DXF DWG
SPCM131308G 125 75 125 115.5 60.5 91 White gray / RAL7035 292 PDF DXF DWG
SPCM131308T 125 75 125 115.5 60.5 91 Transparent 292 PDF DXF DWG
SPCM131310G 125 100 125 115 85.5 90.5 White gray / RAL7035 366 PDF DXF DWG
SPCM131310T 125 100 125 115 85.5 90.5 Transparent 366 PDF DXF DWG
SPCM131313G 125 125 125 114.5 110.5 90 White gray / RAL7035 401 PDF DXF DWG
SPCM131313T 125 125 125 114.5 110.5 90 Transparent 401 PDF DXF DWG
SPCM131806G 125 60 175 115.5 45.5 141 White gray / RAL7035 294 PDF DXF DWG
SPCM131806T 125 60 175 115.5 45.5 141 Transparent 294 PDF DXF DWG
SPCM131808G 125 75 175 115.5 60.5 141 White gray / RAL7035 373 PDF DXF DWG
SPCM131808T 125 75 175 115.5 60.5 141 Transparent 373 PDF DXF DWG
SPCM131810G 125 100 175 115 85.5 140.5 White gray / RAL7035 450 PDF DXF DWG
SPCM131810T 125 100 175 115 85.5 140.5 Transparent 450 PDF DXF DWG
SPCM131813G 125 125 175 115 110.5 140.5 White gray / RAL7035 519 PDF DXF DWG
SPCM131813T 125 125 175 115 110.5 140.5 Transparent 519 PDF DXF DWG
SPCM131815G 125 150 175 114 135.5 139.5 White gray / RAL7035 588 PDF DXF DWG
SPCM131815T 125 150 175 114 135.5 139.5 Transparent 588 PDF DXF DWG
SPCM181808G 175 75 175 165.5 60.5 141 White gray / RAL7035 468 PDF DXF DWG
SPCM181808T 175 75 175 165.5 60.5 141 Transparent 468 PDF DXF DWG
SPCM181810G 175 100 175 165 85.5 140.5 White gray / RAL7035 569 PDF DXF DWG
SPCM181810T 175 100 175 165 85.5 140.5 Transparent 569 PDF DXF DWG
SPCM181810HG 175 100 175 164.8 85.5 140.4 White gray / RAL7035 538 PDF DXF DWG
SPCM181810HT 175 100 175 164.8 85.5 140.4 Transparent 538 PDF DXF DWG
SPCM181813G 175 125 175 164.5 110.5 140 White gray / RAL7035 639 PDF DXF DWG
SPCM181813T 175 125 175 164.5 110.5 140 Transparent 639 PDF DXF DWG
SPCM181813HG 175 125 175 164.3 110.5 139.9 White gray / RAL7035 652 PDF DXF DWG
SPCM181813HT 175 125 175 164.3 110.5 139.9 Transparent 652 PDF DXF DWG
SPCM181815G 175 150 175 164 135.5 139.5 White gray / RAL7035 723 PDF DXF DWG
SPCM181815T 175 150 175 164 135.5 139.5 Transparent 723 PDF DXF DWG
SPCM181815HG 175 150 175 163.9 135.5 139.5 White gray / RAL7035 716 PDF DXF DWG
SPCM181815HT 175 150 175 163.9 135.5 139.5 Transparent 716 PDF DXF DWG
SPCM181818HG 175 175 175 163.5 160.5 139.1 White gray / RAL7035 794 PDF DXF DWG
SPCM181818HT 175 175 175 163.5 160.5 139.1 Transparent 794 PDF DXF DWG
SPCM182508G 175 75 250 165.5 60.5 216 White gray / RAL7035 633 PDF DXF DWG
SPCM182508T 175 75 250 165.5 60.5 216 Transparent 633 PDF DXF DWG
SPCM182510G 175 100 250 165 85.5 215.5 White gray / RAL7035 745 PDF DXF DWG
SPCM182510T 175 100 250 165 85.5 215.5 Transparent 745 PDF DXF DWG
SPCM182510HG 175 100 250 164.8 85.5 215.4 White gray / RAL7035 718 PDF DXF DWG
SPCM182510HT 175 100 250 164.8 85.5 215.4 Transparent 718 PDF DXF DWG
SPCM182513HG 175 125 250 164.3 110.5 214.9 White gray / RAL7035 855 PDF DXF DWG
SPCM182513HT 175 125 250 164.3 110.5 214.9 Transparent 855 PDF DXF DWG
SPCM182515G 175 150 250 164 135.5 214.5 White gray / RAL7035 946 PDF DXF DWG
SPCM182515T 175 150 250 164 135.5 214.5 Transparent 946 PDF DXF DWG
SPCM182518HG 175 175 250 163.5 160.5 214.1 White gray / RAL7035 983 PDF DXF DWG
SPCM182518HT 175 175 250 163.5 160.5 214.1 Transparent 983 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP1010 PDF DXF DWG
SMP1010 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG

OPTIONAL PARTS

１
TERMINAL BLOCK - STB series
DETAILS
１
WALL MOUNTING BRACKET for SPCP・SPCM series
DETAILS
１
MOUNTNG PLATE for SPCP・SPCM series
DETAILS
１

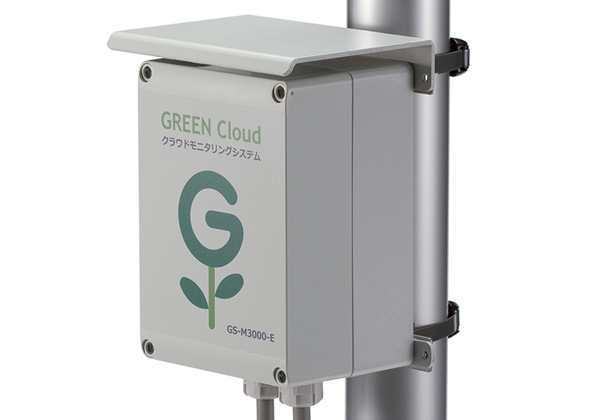

OUTDOOR ROOF for SPCP・SPCM series
DETAILS
１
POLE MOUNTING BRACKET - WPMB-M4-3
DETAILS
１
POLE MOUNTING BRACKET - WGMB-2SW
DETAILS
１

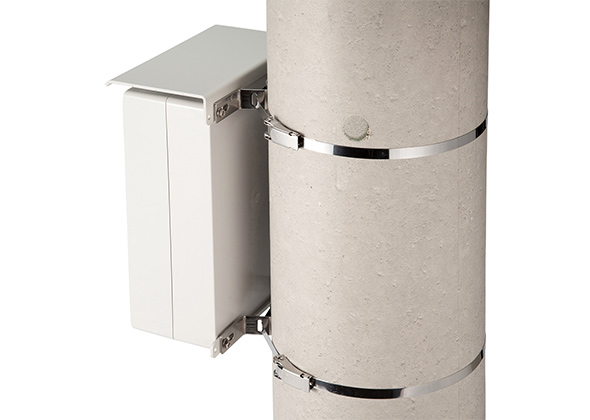

POLE MOUNTING BRACKET for SPCP・SPCM series
