STRAIN RELIEF CABLE GLAND - AGSP series


AGSP Series -PDF

CATEGORY：Strain relief cable gland, Spiral cable gland, Flexible cable gland, Nylon cable gland, Polyamide cable gland

STRAIN RELIEF CABLE GLAND - AGSP series
STRAIN RELIEF CABLE GLAND - AGSP series
STRAIN RELIEF CABLE GLAND - AGSP series1
STRAIN RELIEF CABLE GLAND - AGSP series2

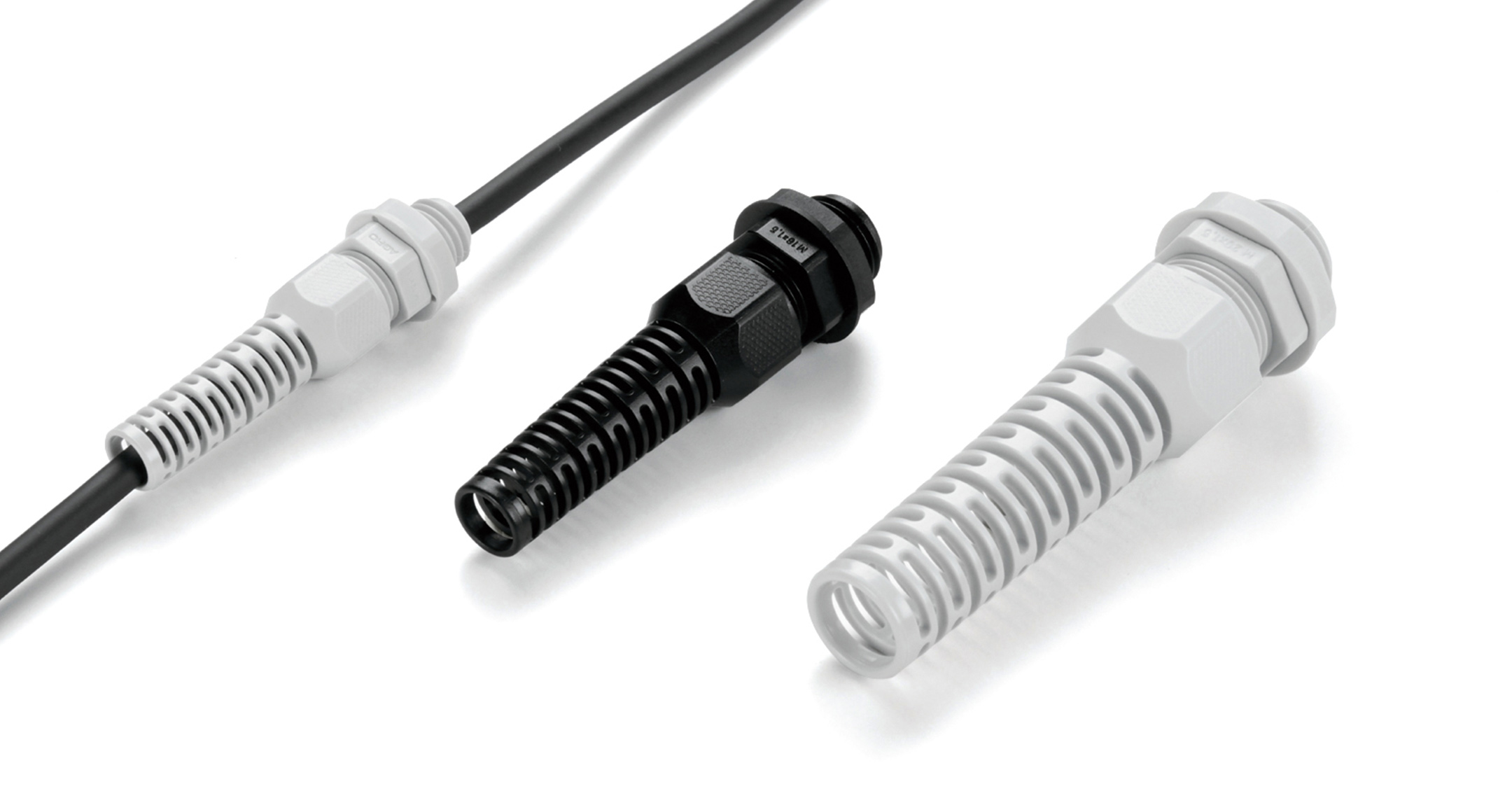

Stain relief cable gland.
M12, M16 and M20 models are available in Light Gray and Black colors.

Cable range : φ3.5mm～φ12mm
Protection class:IP67
Temperature range -30℃ ~ +100℃
Compliant with EN50262 Ver.A3
Color : Black / Light gray

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Color / Similar matching Weight (g) Pack of Inventory status PDF DXF DWG
AGSP16-8S M16×1.5 φ16.2 φ5.0 - 8.0 mm Light gray / Similar to RAL7035 10.9 1 pcs Limited inventory. PDF DXF DWG
AGSP20-12S M20×1.5 φ20.2 φ7.0 - 12.0 mm Light gray / Similar to RAL7035 19.8 1 pcs Limited inventory. PDF DXF DWG
