CATEGORY:METAL CASE, SHEET METAL CASE, UNIVERSAL CASE, ALUMINUM PROJECT BOX

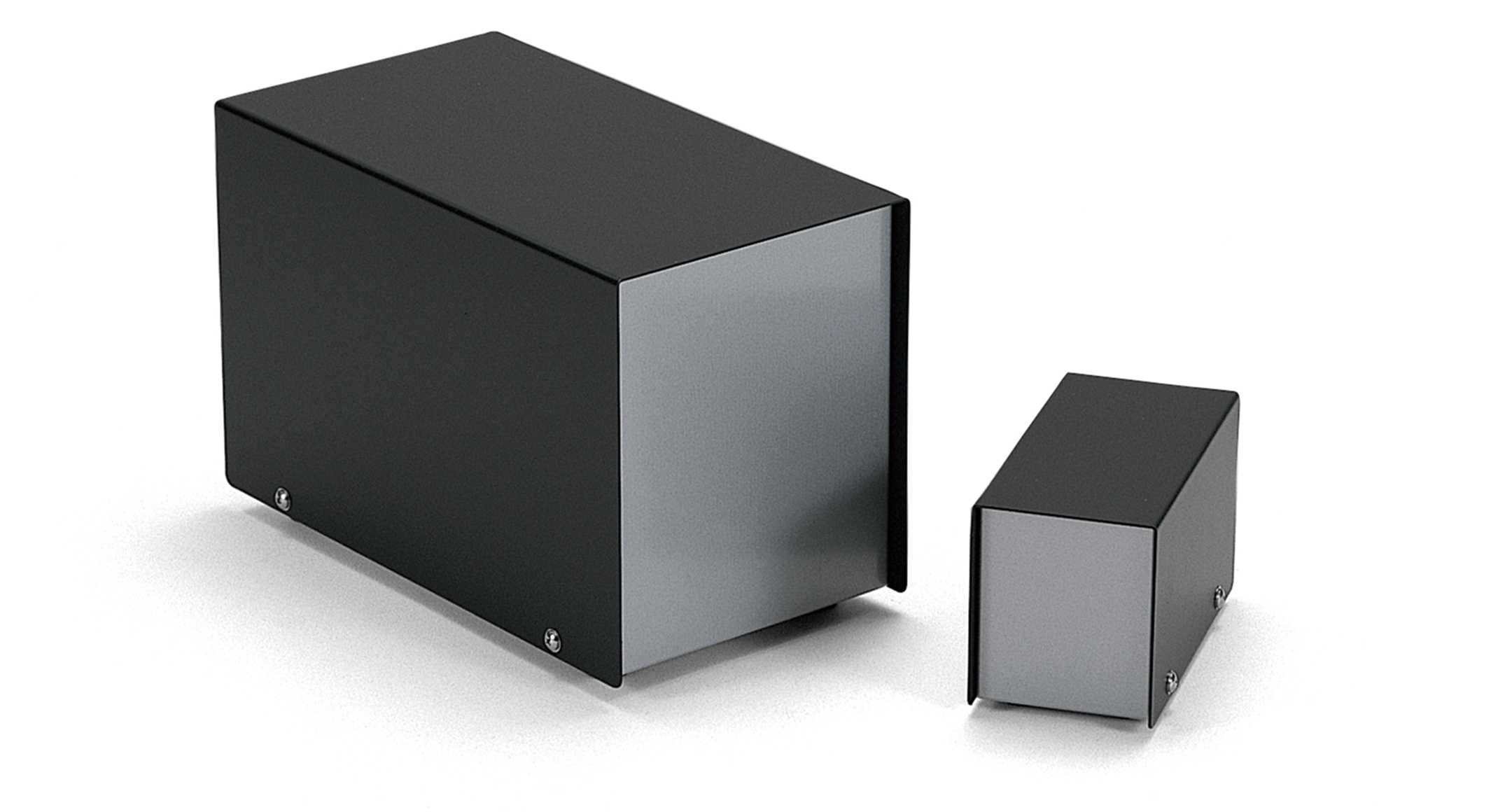

Universal project box with steel top cover and aluminum base.
The internal surface is unfinished, making conductive and grounding possible.
Suitable for measuring equipment, power supply, controller and so on.
3 different sizes are available.
PRODUCT NO. / DIMENSIONS
Product No. |
External dimensions |
Internal dimensions |
Weight (g) |
PDF |
DXF |
DWG |
STP |
W |
H |
D |
w |
h |
d |
HU-1N |
60 |
70 |
120 |
55.4 |
67 |
107.4 |
240 |
PDF |
DXF |
DWG |
|
HU-2N |
85 |
105 |
170 |
80.4 |
102 |
157.4 |
505 |
PDF |
DXF |
DWG |
|
HU-3N |
120 |
140 |
220 |
115.4 |
136 |
200.8 |
905 |
PDF |
DXF |
DWG |
|
OPTIONAL PARTS
CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO
Clinching standoff pressing
DETAILS
Digital inkjet printing
DETAILS
