VENTILATED ALUMINIUM ENCLOSURE - MBH series
VENTILATED ALUMINIUM ENCLOSURE - MBH series
VENTILATED ALUMINIUM ENCLOSURE - MBH series1
VENTILATED ALUMINIUM ENCLOSURE - MBH series2

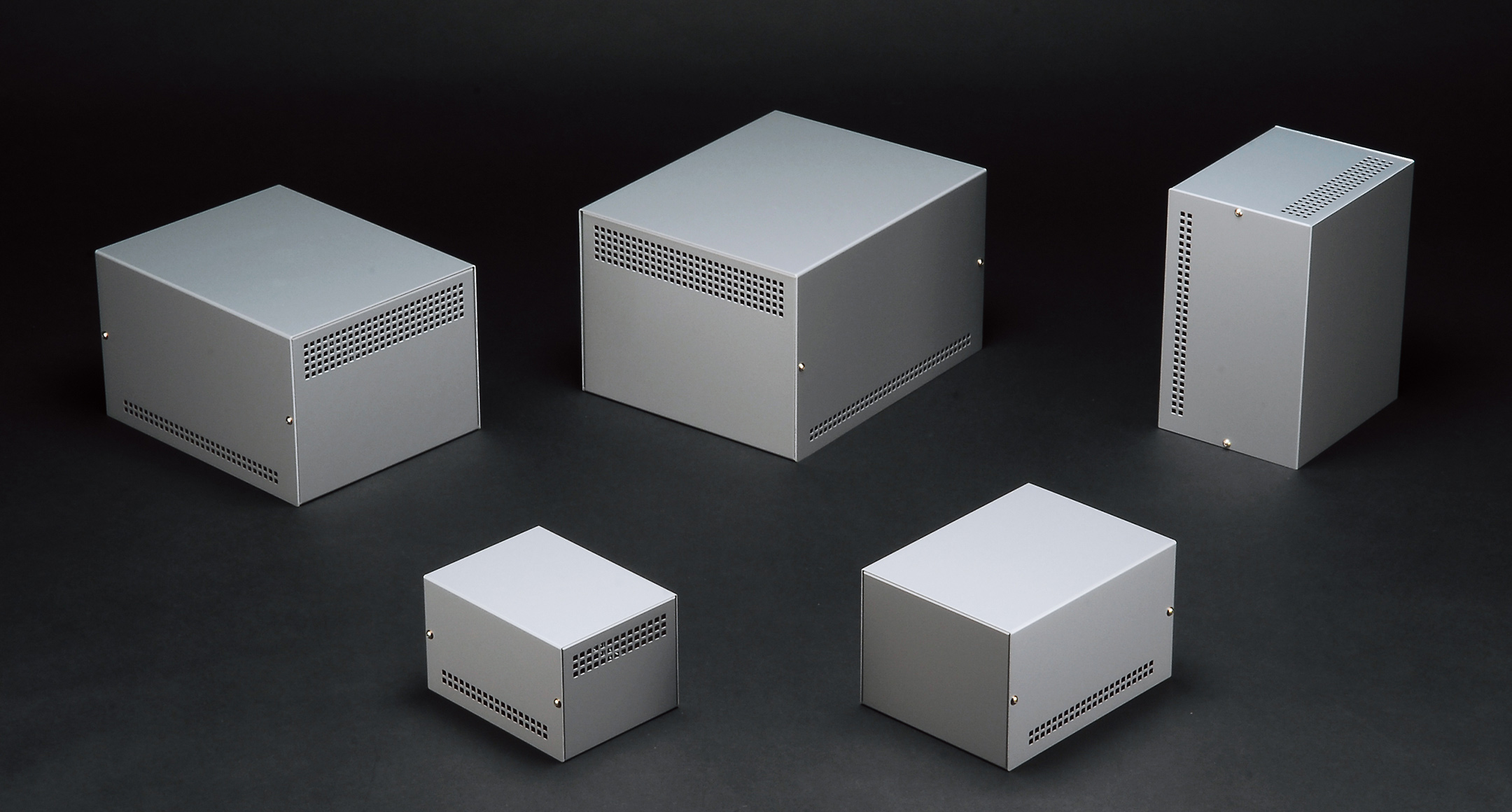

Universal aluminium enclosure with ventilation holes for heat dissipation.

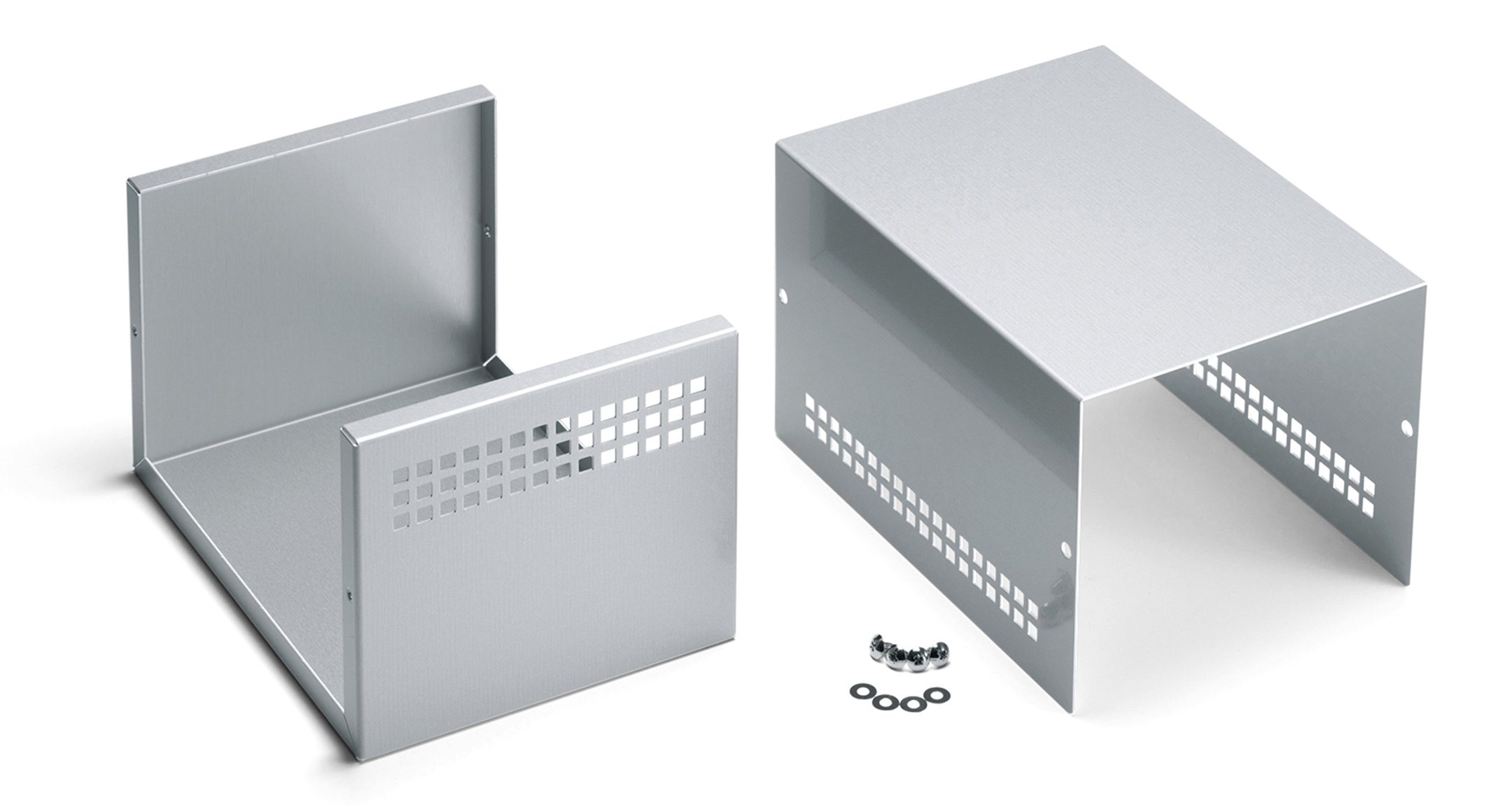

Ventilation holes are punched on the lower side of the cover (both sides) and
the upper side of the base (one side) for enhancing airflow.

The internal surface is unfinished, making conductive and grounding possible.

Suitable for measuring equipment, power supply, inverter, converter or for the devices which heat dissipation is required.

6 different sizes available..

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Old product no. PDF DXF DWG STP
W H D w h d
MBH10-9-12 100 90 120 95.2 87 117.4 190 MBH100912 PDF DXF DWG
MBH12-10-16 120 100 160 115.2 97 157.4 265 MBH121016 PDF DXF DWG
MBH15-12-20 150 120 200 144.4 116.4 197 476 MBH151220 PDF DXF DWG
MBH18-14-23 180 140 230 174.4 136.4 227 655 MBH181423 PDF DXF DWG
MBH21-16-26 210 160 260 203.2 155.5 256.4 1068 MBH211626 PDF DXF DWG
MBH24-18-29 240 180 290 233.2 175.5 286.4 1354 MBH241829 PDF DXF DWG
