UNIVERSAL ALUMINUM ENCLOSURE - UC series

UNIVERSAL ALUMINUM ENCLOSURE - UC series

CATEGORY：Aluminum enclosure, Metal enclosure, Universal enclosure, Multi purpose enclosure, Extruded aluminum enclosure, Instrument enclosure

UNIVERSAL ALUMINUM ENCLOSURE - UC series1

UNIVERSAL ALUMINUM ENCLOSURE - UC series2

UNIVERSAL ALUMINUM ENCLOSURE - UC series3

UNIVERSAL ALUMINUM ENCLOSURE - UC series4

UNIVERSAL ALUMINUM ENCLOSURE - UC series5

UNIVERSAL ALUMINUM ENCLOSURE - UC series6

UNIVERSAL ALUMINUM ENCLOSURE - UC series7

UNIVERSAL ALUMINUM ENCLOSURE - UC series8

UNIVERSAL ALUMINUM ENCLOSURE - UC series9

UNIVERSAL ALUMINUM ENCLOSURE - UC series10

UNIVERSAL ALUMINUM ENCLOSURE - UC series11

UNIVERSAL ALUMINUM ENCLOSURE - UC series12

UNIVERSAL ALUMINUM ENCLOSURE - UC series13

UNIVERSAL ALUMINUM ENCLOSURE - UC series14

Simple structure and tough instrument case.
Top / bottom cover made by bending extruded aluminum.
2 or 3 grooves available on top/bottom covers for adjusting front/rear panel positions or PCB insertion.

Available in 36 sizes and 3 different colors.

Custom length is available.
↓Go UCS series page for the custom 13 selectable different lengths (depths) and specified width from 100 to 450mm and height from 80 to 400mm by 1mm intervals.

CUSTOM LENGTH ENCLOSURE - UCS series 3D View Exploded View

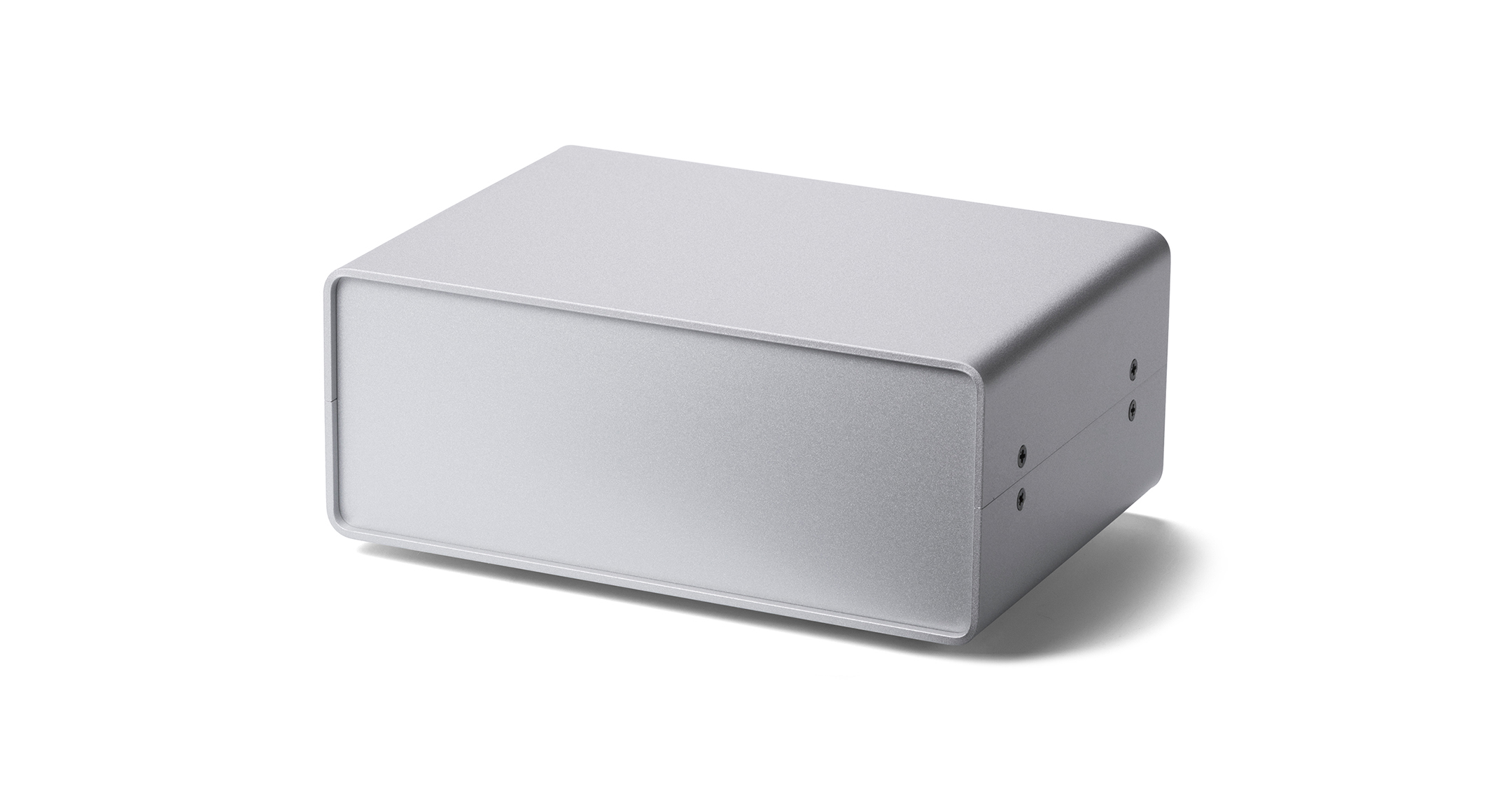

COLOR TYPE

BBBlack painted

UNIVERSAL ALUMINUM ENCLOSURE - UC series:Black painted

GGLight gray painted

UNIVERSAL ALUMINUM ENCLOSURE - UC series:Light gray painted

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Weight (g)	Inventory status	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Weight (g)	Inventory status	PDF	DXF	DWG	STP
UC6-3-8□	60	35	80	50	31	72	120	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC7-3-10□	75	30	100	65	26	92	160	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC7-8-14□	75	85	140	60	80	130	370	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC8-3-6□	80	30	60	70	26	52	100	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC9-5-12□	90	50	120	75	45	112	290	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC10-4-14□	100	40	140	85	35	130	320	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC10-11-18□	100	110	180	78	104	166	720	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC11-3-8□	110	30	80	100	26	72	170	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC11-5-8□	110	50	80	100	46	72	200	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC12-7-16□	120	70	160	98	64	146	560	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC12-14-22□	120	140	220	98	134	206	1080	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC13-4-18□	130	40	180	108	34	166	560	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC14-4-10□	140	40	100	130	36	92	270	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC14-6-10□	140	60	100	130	56	92	310	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC15-8-20□	150	80	200	128	74	186	860	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC15-10-12□	150	100	120	135	95	112	530	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC15-18-28□	150	180	280	128	174	266	1740	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC16-5-22□	165	50	220	143	44	206	840	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC17-5-12□	170	50	120	155	45	112	450	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC17-7-12□	170	70	120	155	65	112	510	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC18-10-24□	180	100	240	158	94	226	1260	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC18-21-34□	180	210	340	157.6	203.6	326	2630	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC20-5-14□	200	50	140	185	45	130	560	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC20-8-14□	200	80	140	185	75	130	670	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC20-12-16□	200	120	160	178	114	146	820	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC22-12-26□	220	120	260	198	114	246	1700	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC24-14-34□	240	140	340	217.6	133.6	326	2540	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC26-5-18□	260	50	180	238	44	166	1020	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC26-7-20□	260	70	200	238	64	186	1230	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC26-10-18□	260	100	180	238	94	166	1260	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC32-5-22□	320	50	220	298	44	206	1450	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC32-8-24□	320	80	240	298	74	226	1760	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC32-12-22□	320	120	220	298	114	206	1880	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC35-13-26□	350	130	260	328	124	246	2450	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC43-5-28□	430	50	280	408	44	266	2370	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP
UC43-14-28□	430	140	280	408	134	266	3050	DD color type : Discontinued - Sold out.	PDF	DXF	DWG	STP

Mounting plate(Option)	PDF	DXF	DWG
