HEATSINK ALUMINUM ENCLOSURE - HY series


HY Series -PDF

CATEGORY：Heatsink enclosure, Heat sink case, Cooling case, Heat dissipating enclosure, Amplifier case, Audio amplifier chassis

HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series
HEATSINK ALUMINUM ENCLOSURE - HY series1
HEATSINK ALUMINUM ENCLOSURE - HY series2
HEATSINK ALUMINUM ENCLOSURE - HY series3
HEATSINK ALUMINUM ENCLOSURE - HY series4
HEATSINK ALUMINUM ENCLOSURE - HY series5
HEATSINK ALUMINUM ENCLOSURE - HY series6
HEATSINK ALUMINUM ENCLOSURE - HY series7
HEATSINK ALUMINUM ENCLOSURE - HY series8
HEATSINK ALUMINUM ENCLOSURE - HY series9
HEATSINK ALUMINUM ENCLOSURE - HY series10
HEATSINK ALUMINUM ENCLOSURE - HY series11
HEATSINK ALUMINUM ENCLOSURE - HY series12
HEATSINK ALUMINUM ENCLOSURE - HY series13
HEATSINK ALUMINUM ENCLOSURE - HY series14
HEATSINK ALUMINUM ENCLOSURE - HY series15
HEATSINK ALUMINUM ENCLOSURE - HY series16

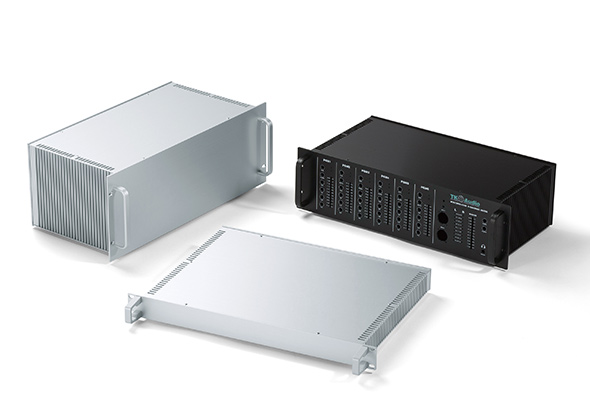

Excellent cooling performance enclosure with the heat-sink side plates.
Tough and robust enclosure from using aluminum extrusion parts.
Stylish and elegantly designed with a hairline finish.
Simple and easy to assemble construction.

56 different sizes in silver and black are available.
3D View（Silver）  3D View（Black）  Exploded View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Color Weight (g) PDF DXF DWG STP
W H D w h d
HY44-23-23SS 230 44 231 186 32 225 Silver 1100 PDF DXF DWG STP
HY44-23-23BB 230 44 231 186 32 225 Black 1100 PDF DXF DWG STP
HY44-23-33SS 230 44 330 186 32 324 Silver 1600 PDF DXF DWG STP
HY44-23-33BB 230 44 330 186 32 324 Black 1600 PDF DXF DWG STP
HY44-28-23SS 280 44 231 236 32 225 Silver 1400 PDF DXF DWG STP
HY44-28-23BB 280 44 231 236 32 225 Black 1400 PDF DXF DWG STP
HY44-28-33SS 280 44 330 236 32 324 Silver 1900 PDF DXF DWG STP
HY44-28-33BB 280 44 330 236 32 324 Black 1900 PDF DXF DWG STP
HY44-33-23SS 330 44 231 286 32 225 Silver 1500 PDF DXF DWG STP
HY44-33-23BB 330 44 231 286 32 225 Black 1500 PDF DXF DWG STP
HY44-33-33SS 330 44 330 286 32 324 Silver 2200 PDF DXF DWG STP
HY44-33-33BB 330 44 330 286 32 324 Black 2200 PDF DXF DWG STP
HY44-43-23SS 430 44 231 386 32 225 Silver 1900 PDF DXF DWG STP
HY44-43-23BB 430 44 231 386 32 225 Black 1900 PDF DXF DWG STP
HY44-43-33SS 430 44 330 386 32 324 Silver 2600 PDF DXF DWG STP
HY44-43-33BB 430 44 330 386 32 324 Black 2600 PDF DXF DWG STP
HY70-23-23SS 230 70 231 186 58 225 Silver 1600 PDF DXF DWG STP
HY70-23-23BB 230 70 231 186 58 225 Black 1600 PDF DXF DWG STP
HY70-23-33SS 230 70 330 186 58 324 Silver 2200 PDF DXF DWG STP
HY70-23-33BB 230 70 330 186 58 324 Black 2200 PDF DXF DWG STP
HY70-28-23SS 280 70 231 236 58 225 Silver 1800 PDF DXF DWG STP
HY70-28-23BB 280 70 231 236 58 225 Black 1800 PDF DXF DWG STP
HY70-28-33SS 280 70 330 236 58 324 Silver 2500 PDF DXF DWG STP
HY70-28-33BB 280 70 330 236 58 324 Black 2500 PDF DXF DWG STP
HY70-33-23SS 330 70 231 286 58 225 Silver 2000 PDF DXF DWG STP
HY70-33-23BB 330 70 231 286 58 225 Black 2000 PDF DXF DWG STP
HY70-33-33SS 330 70 330 286 58 324 Silver 2800 PDF DXF DWG STP
HY70-33-33BB 330 70 330 286 58 324 Black 2800 PDF DXF DWG STP
HY70-43-23SS 430 70 231 386 58 225 Silver 2300 PDF DXF DWG STP
HY70-43-23BB 430 70 231 386 58 225 Black 2300 PDF DXF DWG STP
HY70-43-33SS 430 70 330 386 58 324 Silver 3200 PDF DXF DWG STP
HY70-43-33BB 430 70 330 386 58 324 Black 3200 PDF DXF DWG STP
HY88-23-23SS 230 88 231 186 76 225 Silver 1900 PDF DXF DWG STP
HY88-23-23BB 230 88 231 186 76 225 Black 1900 PDF DXF DWG STP
HY88-23-33SS 230 88 330 186 76 324 Silver 2600 PDF DXF DWG STP
HY88-23-33BB 230 88 330 186 76 324 Black 2600 PDF DXF DWG STP
HY88-28-23SS 280 88 231 236 76 225 Silver 2100 PDF DXF DWG STP
HY88-28-23BB 280 88 231 236 76 225 Black 2100 PDF DXF DWG STP
HY88-28-33SS 280 88 330 236 76 324 Silver 2800 PDF DXF DWG STP
HY88-28-33BB 280 88 330 236 76 324 Black 2800 PDF DXF DWG STP
HY88-33-23SS 330 88 231 286 76 225 Silver 2300 PDF DXF DWG STP
HY88-33-23BB 330 88 231 286 76 225 Black 2300 PDF DXF DWG STP
HY88-33-33SS 330 88 330 286 76 324 Silver 3100 PDF DXF DWG STP
HY88-33-33BB 330 88 330 286 76 324 Black 3100 PDF DXF DWG STP
HY88-43-23SS 430 88 231 386 76 225 Silver 2700 PDF DXF DWG STP
HY88-43-23BB 430 88 231 386 76 225 Black 2700 PDF DXF DWG STP
HY88-43-33SS 430 88 330 386 76 324 Silver 3600 PDF DXF DWG STP
HY88-43-33BB 430 88 330 386 76 324 Black 3600 PDF DXF DWG STP
HY99-23-23SS 230 99 231 186 87 225 Silver 2100 PDF DXF DWG STP
HY99-23-23BB 230 99 231 186 87 225 Black 2100 PDF DXF DWG STP
HY99-23-33SS 230 99 330 186 87 324 Silver 2700 PDF DXF DWG STP
HY99-23-33BB 230 99 330 186 87 324 Black 2700 PDF DXF DWG STP
HY99-28-23SS 280 99 231 236 87 225 Silver 2300 PDF DXF DWG STP
HY99-28-23BB 280 99 231 236 87 225 Black 2300 PDF DXF DWG STP
HY99-28-33SS 280 99 330 236 87 324 Silver 3100 PDF DXF DWG STP
HY99-28-33BB 280 99 330 236 87 324 Black 3100 PDF DXF DWG STP
HY99-33-23SS 330 99 231 286 87 225 Silver 2500 PDF DXF DWG STP
HY99-33-23BB 330 99 231 286 87 225 Black 2500 PDF DXF DWG STP
HY99-33-33SS 330 99 330 286 87 324 Silver 3400 PDF DXF DWG STP
HY99-33-33BB 330 99 330 286 87 324 Black 3400 PDF DXF DWG STP
HY99-43-23SS 430 99 231 386 87 225 Silver 2900 PDF DXF DWG STP
HY99-43-23BB 430 99 231 386 87 225 Black 2900 PDF DXF DWG STP
HY99-43-33SS 430 99 330 386 87 324 Silver 3900 PDF DXF DWG STP
HY99-43-33BB 430 99 330 386 87 324 Black 3900 PDF DXF DWG STP
HY133-23-23SS 230 132.5 231 186 120.5 225 Silver 2600 PDF DXF DWG STP
HY133-23-23BB 230 132.5 231 186 120.5 225 Black 2600 PDF DXF DWG STP
HY133-23-33SS 230 132.5 330 186 120.5 324 Silver 3400 PDF DXF DWG STP
HY133-23-33BB 230 132.5 330 186 120.5 324 Black 3400 PDF DXF DWG STP
HY133-28-23SS 280 132.5 231 236 120.5 225 Silver 2800 PDF DXF DWG STP
HY133-28-23BB 280 132.5 231 236 120.5 225 Black 2800 PDF DXF DWG STP
HY133-28-33SS 280 132.5 330 236 120.5 324 Silver 3800 PDF DXF DWG STP
HY133-28-33BB 280 132.5 330 236 120.5 324 Black 3800 PDF DXF DWG STP
HY133-33-23SS 330 132.5 231 286 120.5 225 Silver 3000 PDF DXF DWG STP
HY133-33-23BB 330 132.5 231 286 120.5 225 Black 3000 PDF DXF DWG STP
HY133-33-33SS 330 132.5 330 286 120.5 324 Silver 4100 PDF DXF DWG STP
HY133-33-33BB 330 132.5 330 286 120.5 324 Black 4100 PDF DXF DWG STP
HY133-43-23SS 430 132.5 231 386 120.5 225 Silver 3500 PDF DXF DWG STP
HY133-43-23BB 430 132.5 231 386 120.5 225 Black 3500 PDF DXF DWG STP
HY133-43-33SS 430 132.5 330 386 120.5 324 Silver 4700 PDF DXF DWG STP
HY133-43-33BB 430 132.5 330 386 120.5 324 Black 4700 PDF DXF DWG STP
HY149-23-23SS 230 149 231 186 137 225 Silver 2800 PDF DXF DWG STP
HY149-23-23BB 230 149 231 186 137 225 Black 2800 PDF DXF DWG STP
HY149-23-33SS 230 149 330 186 137 324 Silver 3800 PDF DXF DWG STP
HY149-23-33BB 230 149 330 186 137 324 Black 3800 PDF DXF DWG STP
HY149-28-23SS 280 149 231 236 137 225 Silver 3100 PDF DXF DWG STP
HY149-28-23BB 280 149 231 236 137 225 Black 3100 PDF DXF DWG STP
HY149-28-33SS 280 149 330 236 137 324 Silver 4200 PDF DXF DWG STP
HY149-28-33BB 280 149 330 236 137 324 Black 4200 PDF DXF DWG STP
HY149-33-23SS 330 149 231 286 137 225 Silver 3300 PDF DXF DWG STP
HY149-33-23BB 330 149 231 286 137 225 Black 3300 PDF DXF DWG STP
HY149-33-33SS 330 149 330 286 137 324 Silver 4500 PDF DXF DWG STP
HY149-33-33BB 330 149 330 286 137 324 Black 4500 PDF DXF DWG STP
HY149-43-23SS 430 149 231 386 137 225 Silver 3800 PDF DXF DWG STP
HY149-43-23BB 430 149 231 386 137 225 Black 3800 PDF DXF DWG STP
HY149-43-33SS 430 149 330 386 137 324 Silver 5100 PDF DXF DWG STP
HY149-43-33BB 430 149 330 386 137 324 Black 5100 PDF DXF DWG STP
HY177-23-23SS 230 177 231 186 165 225 Silver 3400 PDF DXF DWG STP
HY177-23-23BB 230 177 231 186 165 225 Black 3400 PDF DXF DWG STP
HY177-23-33SS 230 177 330 186 165 324 Silver 4500 PDF DXF DWG STP
HY177-23-33BB 230 177 330 186 165 324 Black 4500 PDF DXF DWG STP
HY177-28-23SS 280 177 231 236 165 225 Silver 3600 PDF DXF DWG STP
HY177-28-23BB 280 177 231 236 165 225 Black 3600 PDF DXF DWG STP
HY177-28-33SS 280 177 330 236 165 324 Silver 4800 PDF DXF DWG STP
HY177-28-33BB 280 177 330 236 165 324 Black 4800 PDF DXF DWG STP
HY177-33-23SS 330 177 231 286 165 225 Silver 3900 PDF DXF DWG STP
HY177-33-23BB 330 177 231 286 165 225 Black 3900 PDF DXF DWG STP
HY177-33-33SS 330 177 330 286 165 324 Silver 5200 PDF DXF DWG STP
HY177-33-33BB 330 177 330 286 165 324 Black 5200 PDF DXF DWG STP
HY177-43-23SS 430 177 231 386 165 225 Silver 4500 PDF DXF DWG STP
HY177-43-23BB 430 177 231 386 165 225 Black 4500 PDF DXF DWG STP
HY177-43-33SS 430 177 330 386 165 324 Silver 5800 PDF DXF DWG STP
HY177-43-33BB 430 177 330 386 165 324 Black 5800 PDF DXF DWG STP
Mounting plate (Option) PDF DXF DWG STP
