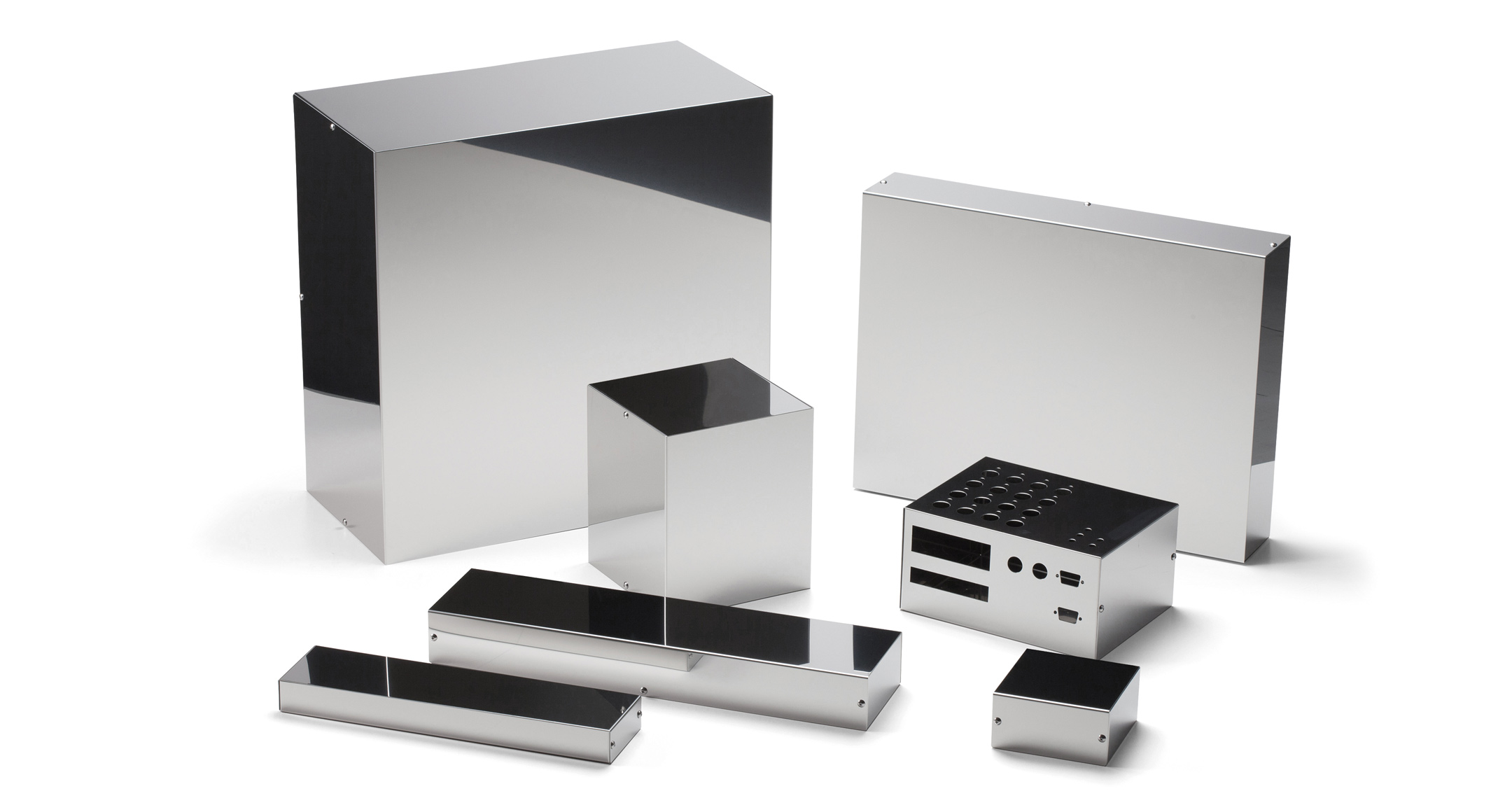

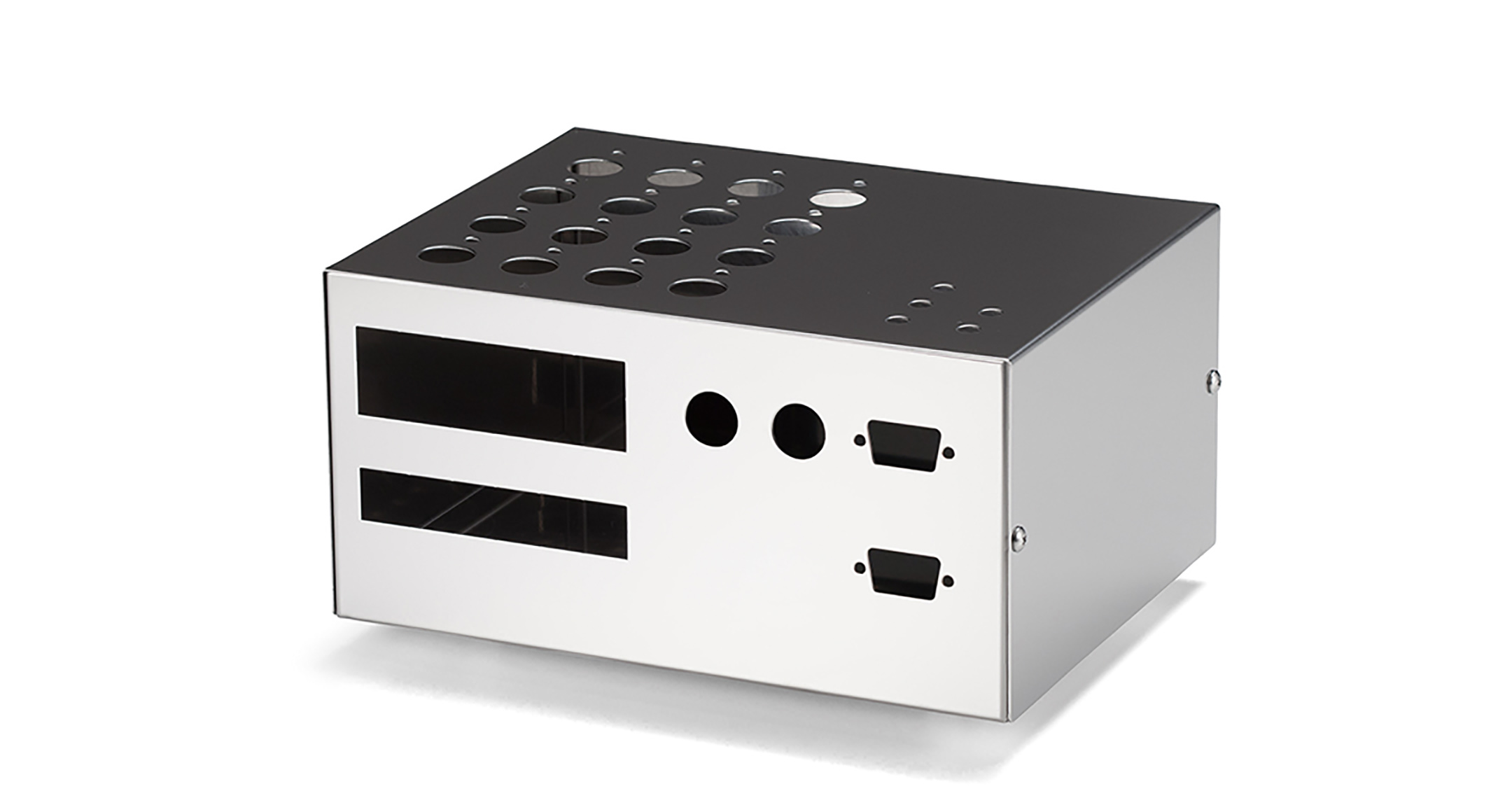

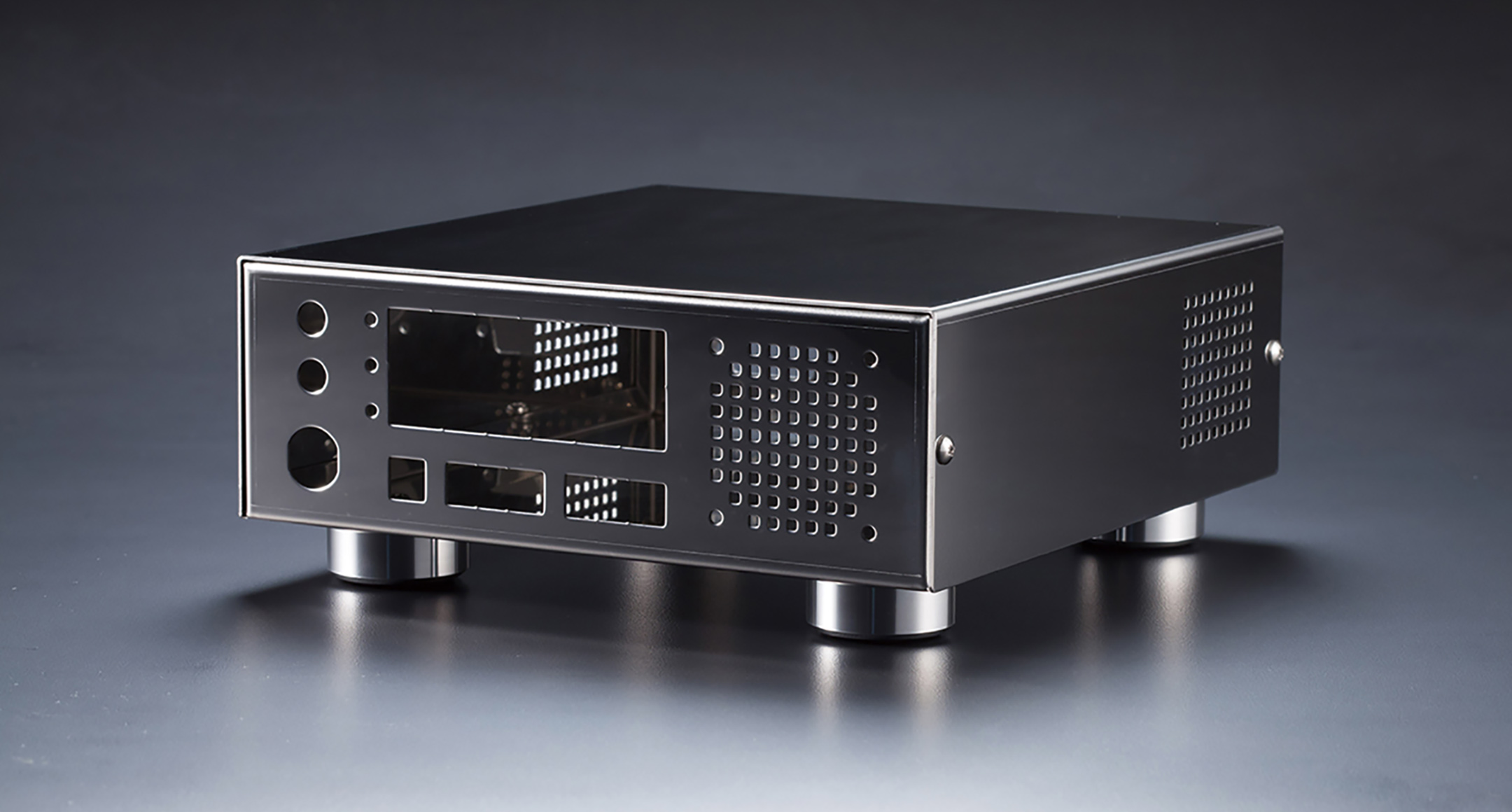

Custom sized, simple, stainless steel enclosure.
SUS304 stainless steel allowing the enclosure to be conductive.

All W, H, and D dimensions can be specified as 50～500mm for W dimension, 50～400mm for D dimension, and 20～250mm for H dimension in 1mm intervals.

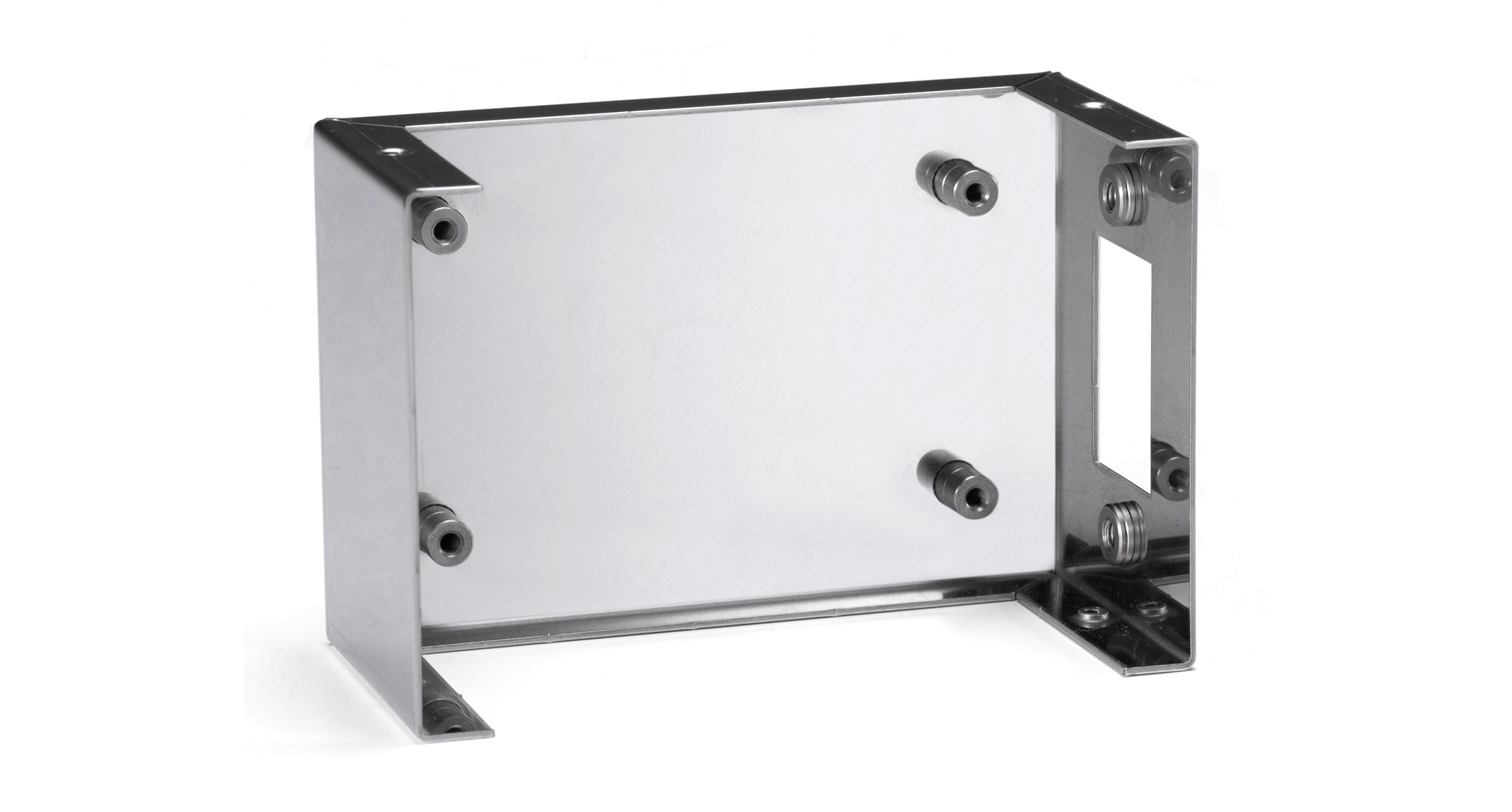

Exploded view - Standard  Exploded view - Reinforced 

PRODUCT NO. / DIMENSIONS

Product No. Steel thickness Base type Fixing screws PDF DXF DWG
MBS□-□-□A08 ・ Depth shorter than 300mm 0.8mm Normal 4 pcs PDF DXF DWG
MBS□-□-□A08 ・ Depth longer than 301mm 0.8mm Normal 6 pcs PDF DXF DWG
MBS□-□-□B10 ・ Depth shorter than 300mm 1.0mm Reinforced 4 pcs PDF DXF DWG
MBS□-□-□B10 ・ Depth longer than 301mm 1.0mm Reinforced 6 pcs PDF DXF DWG
MBS□-□-□B12 ・ Depth shorter than 300mm 1.2mm Reinforced 4 pcs PDF DXF DWG
MBS□-□-□B12 ・ Depth longer than 301mm 1.2mm Reinforced 6 pcs PDF DXF DWG
