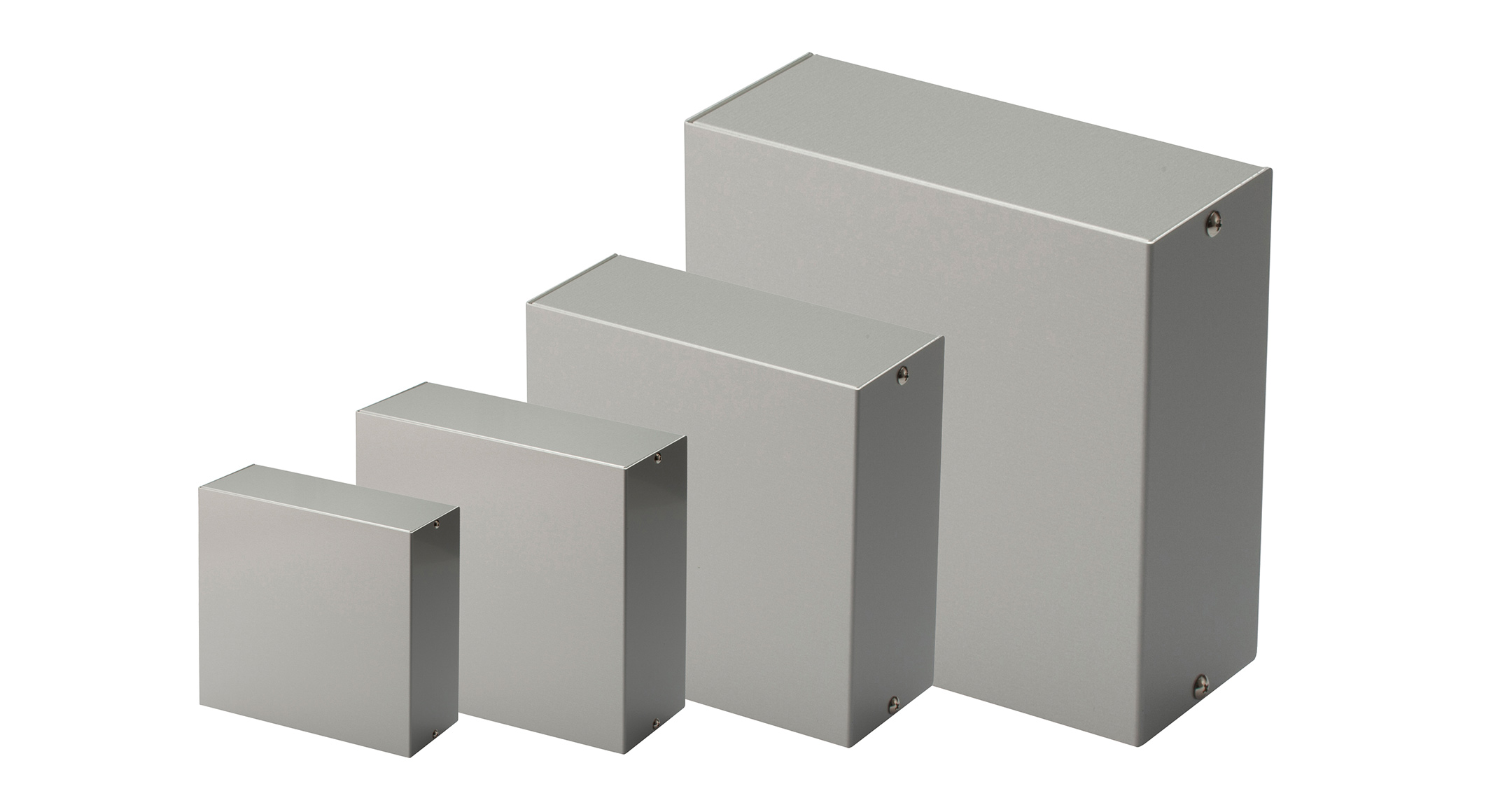

Custom sized, simple aluminum sheet metal case.
The inner surface is unfinished, allowing the enclosure to be conductive.

All W, H, and D dimensions can be specified as 50～500mm for W and D dimensions and 20～250mm for H dimension in 1mm intervals.
CUSTOM SIZE - WEB QUOTATION  3D View - Small size  3D View - Large size  Exploded view - without reinforcement  Exploded view - with reinforcement 

PRODUCT NO. / DIMENSIONS

Product No. Aluminum thickness Base type Fixing screws PDF DXF DWG
MBF□-□-□A10 ・ Depth shorter than 300mm 1.0mm Normal 4 pcs PDF DXF DWG
MBF□-□-□A10 ・ Depth longer than 301mm 1.0mm Normal 6 pcs PDF DXF DWG
MBF□-□-□B12 ・ Depth shorter than 300mm 1.2mm Reinforced 4 pcs PDF DXF DWG
MBF□-□-□B12 ・ Depth longer than 301mm 1.2mm Reinforced 6 pcs PDF DXF DWG
MBF□-□-□B15 ・ Depth shorter than 300mm 1.5mm Reinforced 4 pcs PDF DXF DWG
MBF□-□-□B15 ・ Depth longer than 301mm 1.5mm Reinforced 6 pcs PDF DXF DWG
