CUSTOM SIZED STAINLESS STEEL BOX - TCS series


TCS Series -PDF

CATEGORY：Custom sized enclosure, Stainless steel enclosure, Sheet metal enclosure, Order made enclosure, Project box, Stainless steel chassis, Control box, Switch box

CUSTOM SIZED STAINLESS STEEL BOX - TCS series
CUSTOM SIZED STAINLESS STEEL BOX - TCS series
CUSTOM SIZED STAINLESS STEEL BOX - TCS series
CUSTOM SIZED STAINLESS STEEL BOX - TCS series
CUSTOM SIZED STAINLESS STEEL BOX - TCS series1
CUSTOM SIZED STAINLESS STEEL BOX - TCS series2
CUSTOM SIZED STAINLESS STEEL BOX - TCS series3
CUSTOM SIZED STAINLESS STEEL BOX - TCS series4

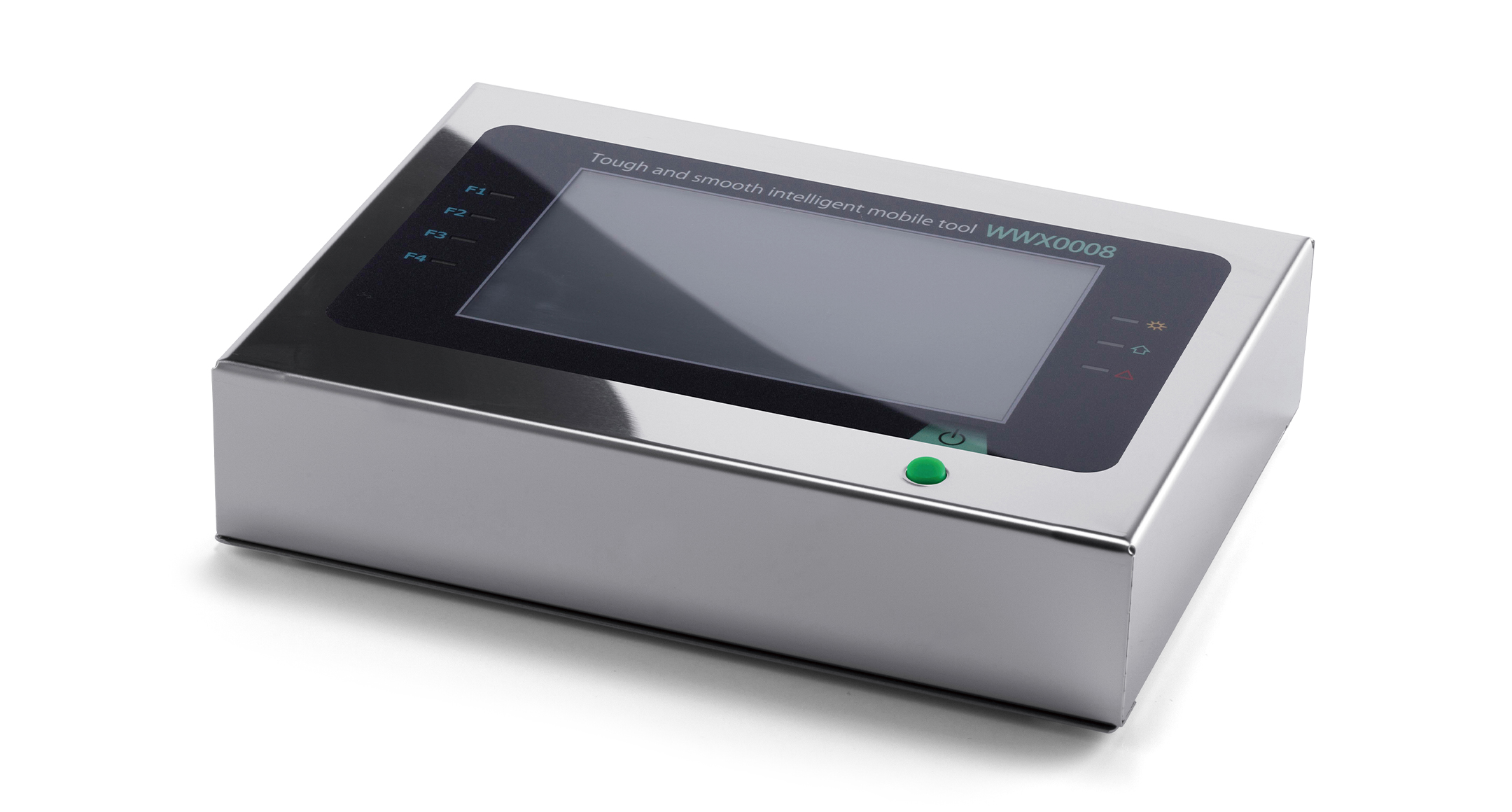

Custom sized stainless steel sheet metal box with a stainless steel sheet cover.
Detachable top cover allows easy assembly and maintenance access.
Unfinished SUS304 stainless steel make enclosure conductive for grounding and electrical shielding.

Suitable to be used for various electronics use, such as controllers, switch boxes, power supplies, touch panel devices, medical equipment, junction boxes or tube amplifiers.

All W, H, and D dimensions can be specified as 60～400mm for W and D dimensions and 40～120mm for H dimension in 1mm intervals.
3D View - Small size  3D View - Large size  Exploded View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Fixing screws PDF DXF DWG
W H D
TCS□-□-□ Width shorter than 300mm, Depth shorter than 300mm Available 60 to 300mm Available 40 to 120mm Available 60 to 300mm 4 pcs PDF DXF DWG
TCS□-□-□Width shorter than 300mm, Depth longer than 301mm Available 60 to 300mm Available 40 to 120mm Available 301 to 400mm 6 pcs PDF DXF DWG
TCS□-□-□ Width longer than 301mm, Depth shorter than 300mm Available 301 to 400mm Available 40 to 120mm Available 60 to 300mm 6 pcs PDF DXF DWG
TCS□-□-□Width longer than 301mm, Depth longer than 301mm Available 301 to 400mm Available 40 to 120mm Available 301 to 400mm 8 pcs PDF DXF DWG
