CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series

CATEGORY：Stainless steel enclosure with corner guard, Enclosure with corner bumper, Protective case, Rugged enclosure, Portable power supply case

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series1

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series2

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series3

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series4

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series5

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series6

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series7

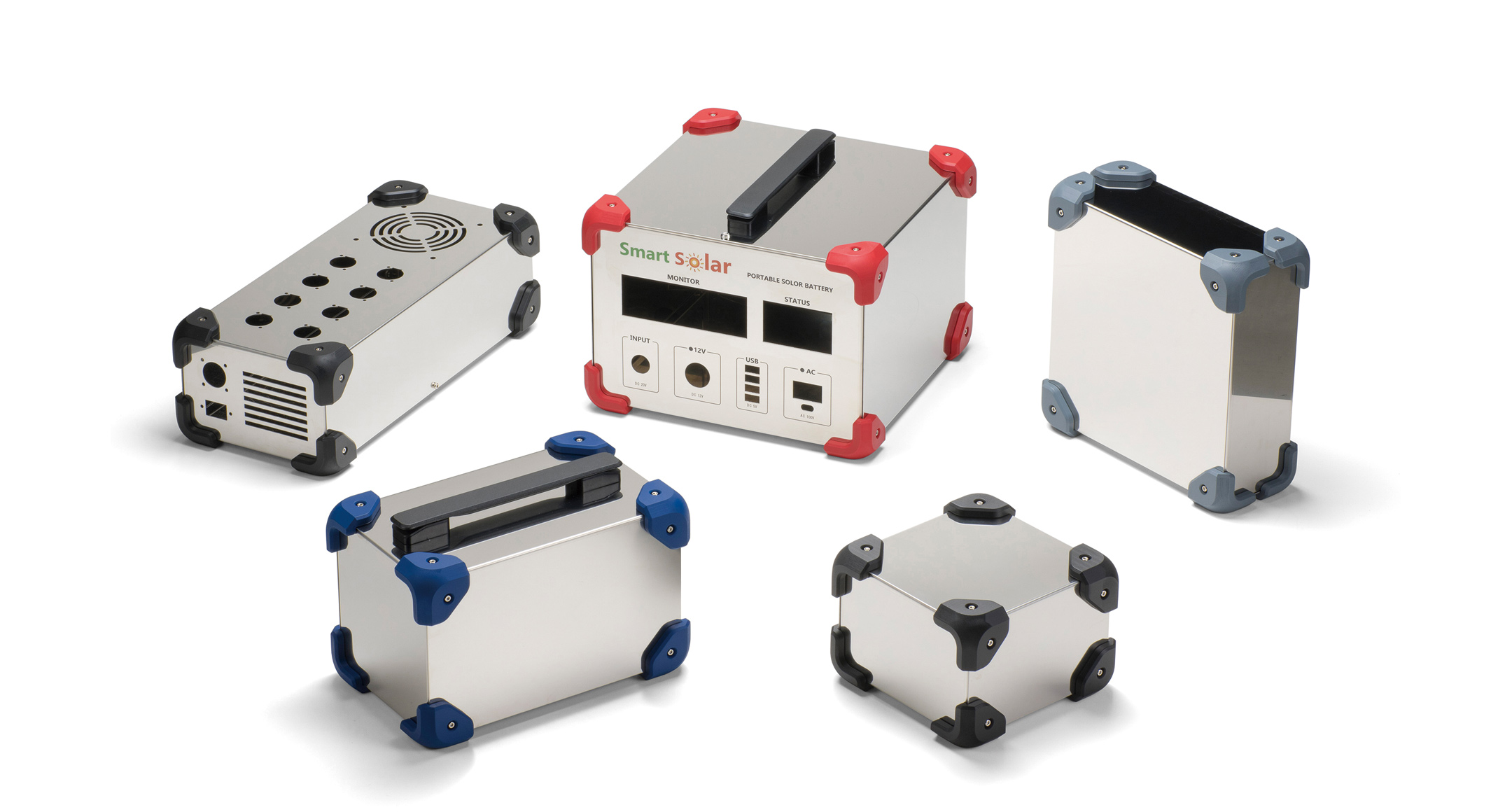

Custom sized stainless steel enclosure equipped with shockproof and anti-slip elastomer corner guards.

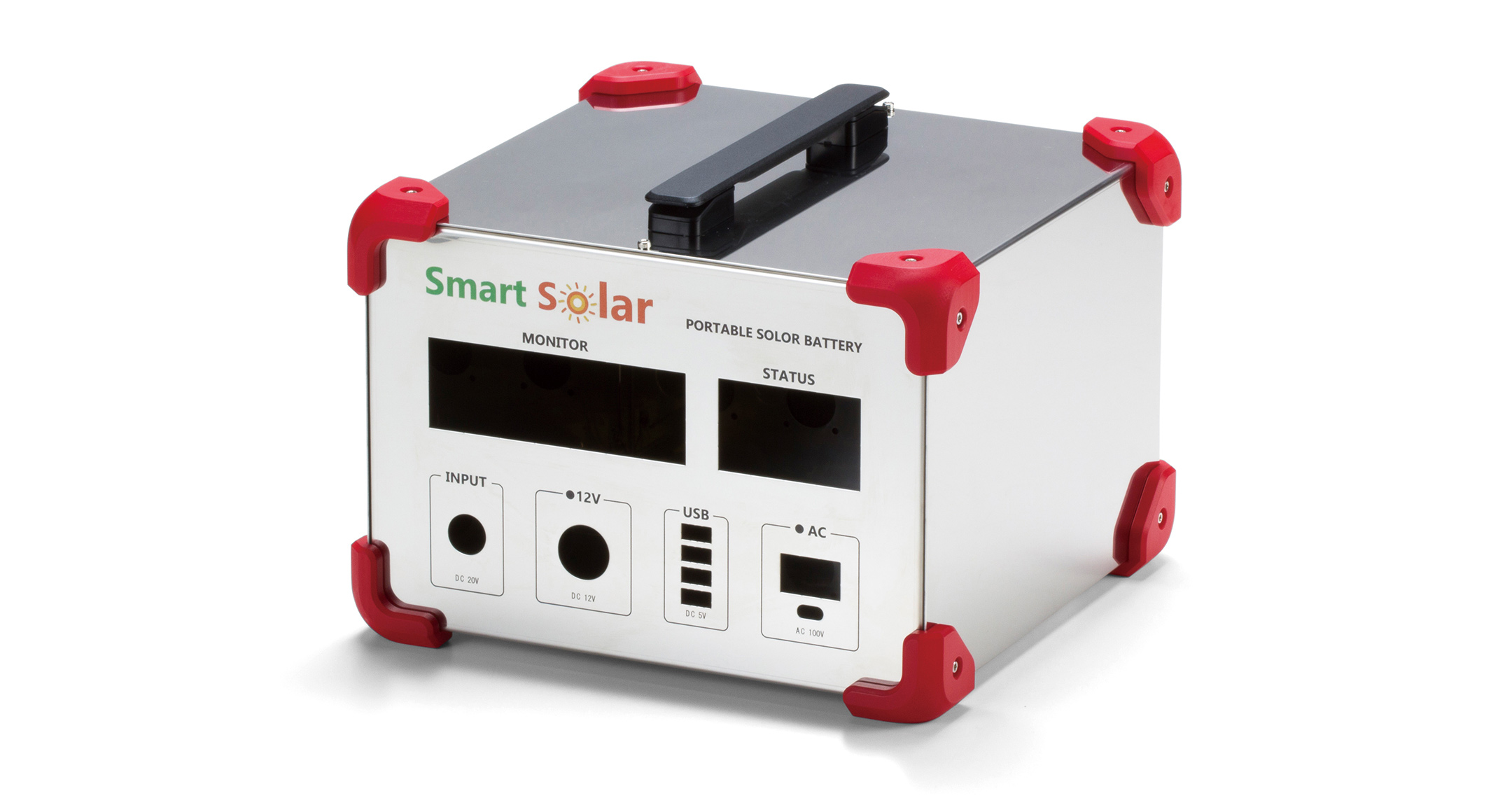

Suitable to be used as a fanless PC, power supply, power storage device etc.
Carrying handle can withstand a maximum load up to 30.0 kg.
SUS304 stainless steel allowing the enclosure to be conductive.

All W, H, and D dimensions can be specified as 50～500mm for W dimension, 50～400mm for D dimension,
and 20～250mm H dimension in 1mm intervals.

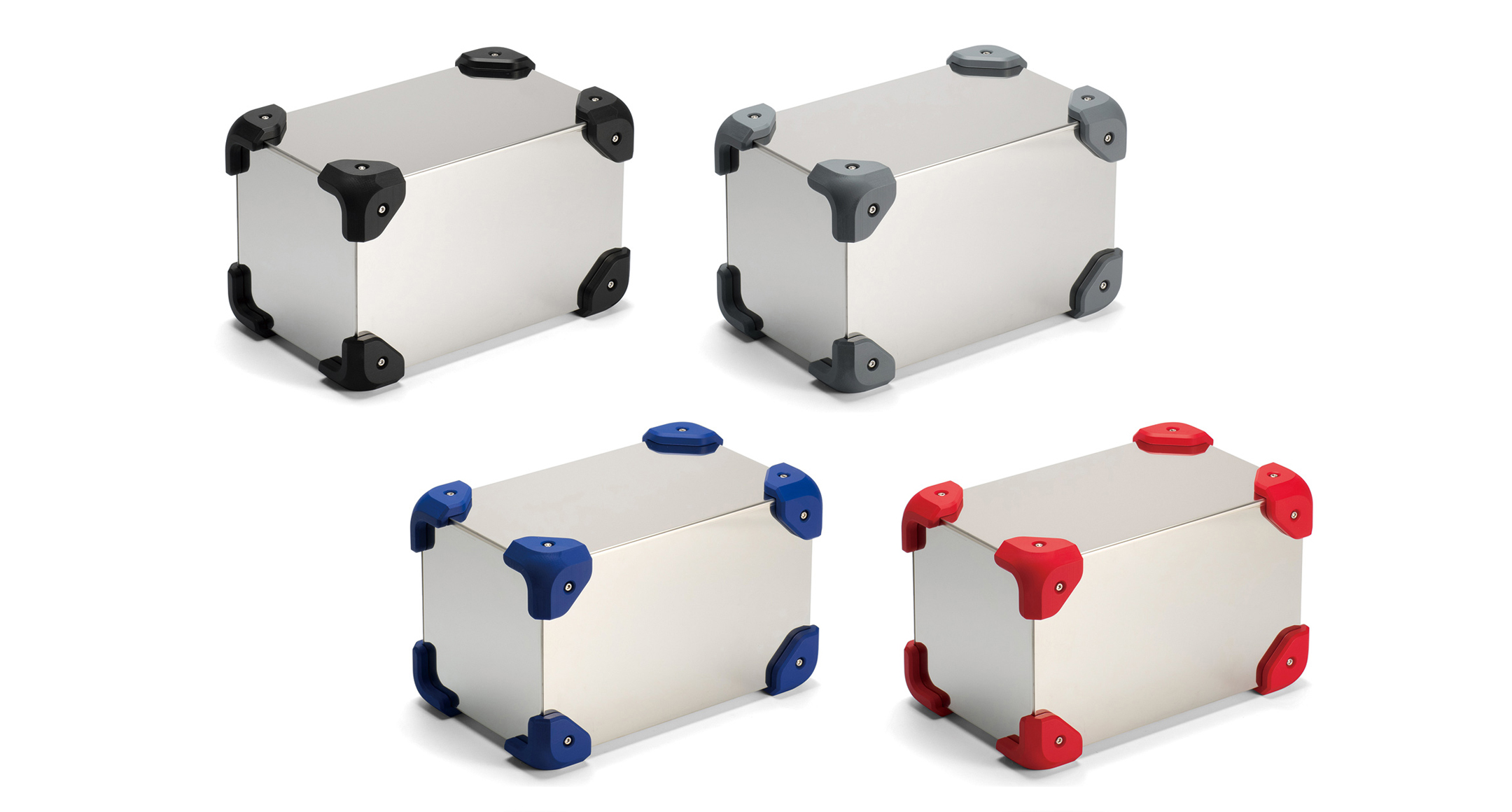

Corner guards are available in 4 different color variations.

3D View Exploded View Color code

COLOR TYPE

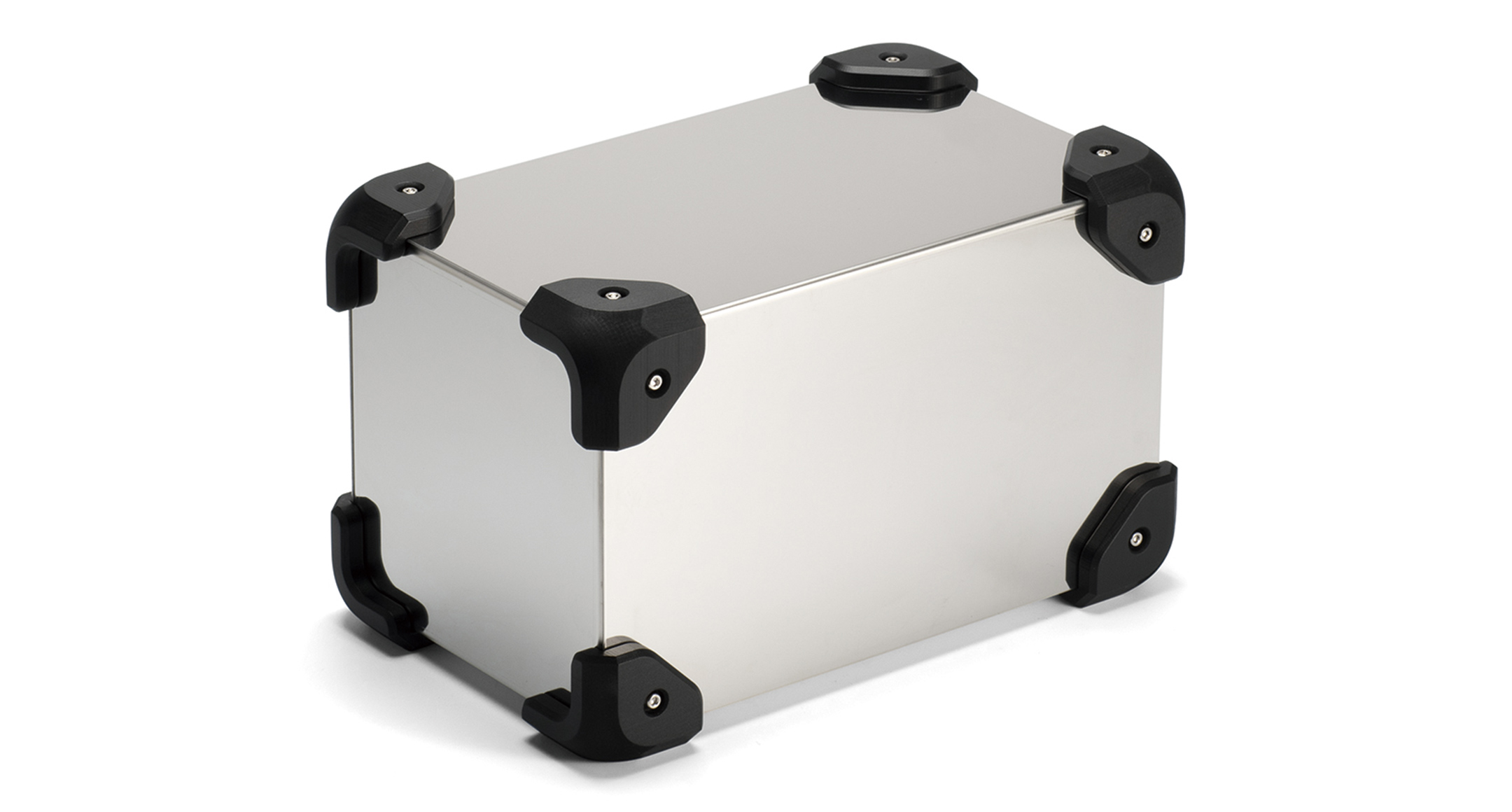

BBlack Corners

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series:Black Corners

GGray Corners

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series:Gray Corners

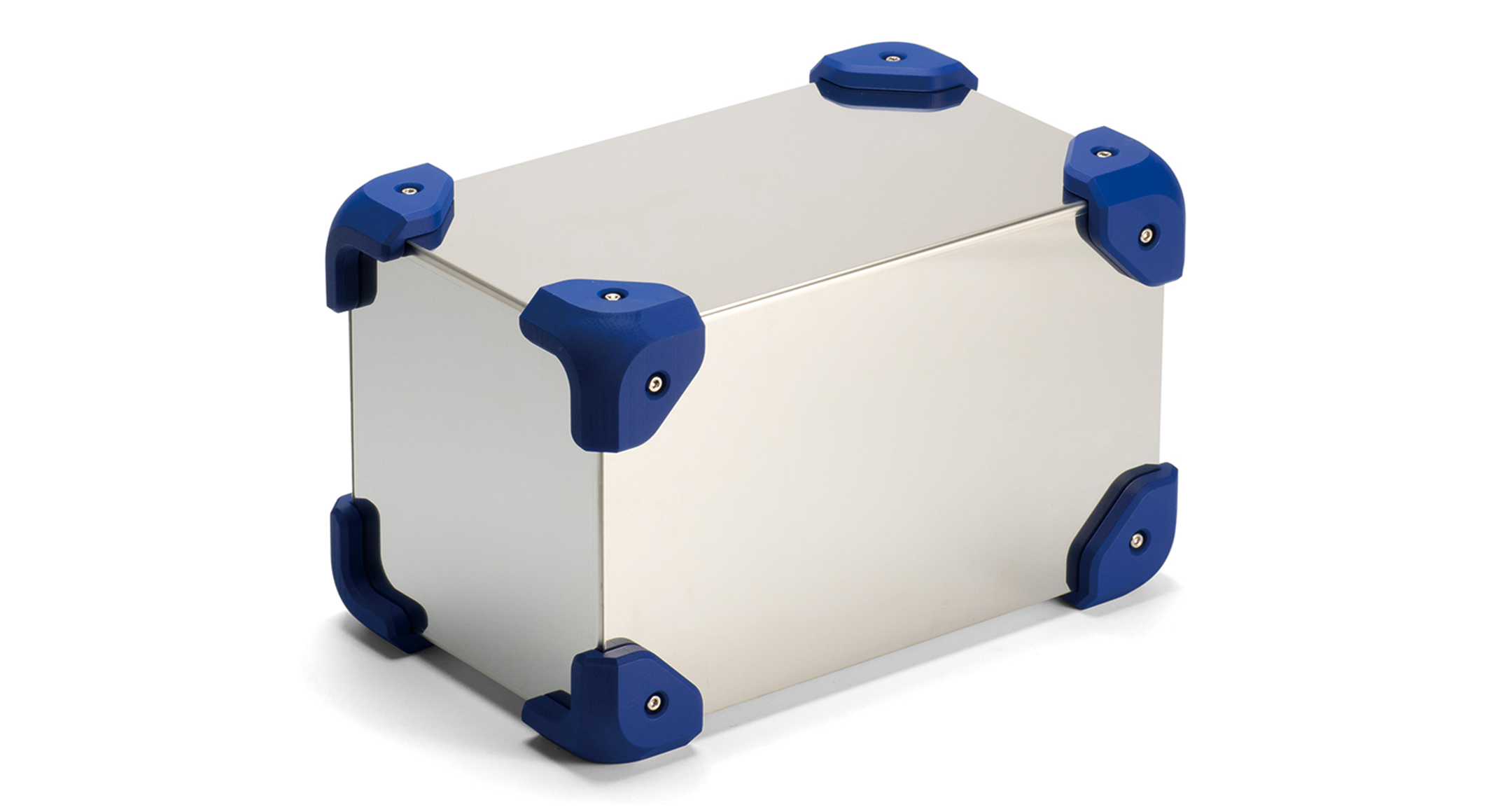

NNavy Corners

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series:Navy Corners

RRed Corners

CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series:Red Corners

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			PDF	DXF	DWG
Product No.	W	H	D	PDF	DXF	DWG
MCGS□-□-□○○ ・ Width shorter than 199mm, Depth shorter than 299mm	Available 150 to 199mm	Available 80 to 124mm	Available 150 to 299mm	PDF	DXF	DWG
MCGS□-□-□○○ ・ Width shorter than 199mm, Depth longer than 300mm	Available 150 to 199mm	Available 80 to 124mm	Available 300 to 400mm	PDF	DXF	DWG
MCGS□-□-□○○ ・ Width longer than 200mm, Depth shorter than 299mm	Available 200 to 500mm	Available 80 to 250mm	Available 150 to 299mm	PDF	DXF	DWG
MCGS□-□-□○○ ・ Width longer than 200mm, Depth longer than 300mm	Available 200 to 500mm	Available 80 to 250mm	Available 300 to 400mm	PDF	DXF	DWG

OPTIONAL PARTS

SIMILAR PRODUCT

CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series

METAL CASE with CORNER GUARD - MCG series

CUSTOM SIZED STAINLESS STEEL ENCLOSURE - MBS series

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series

INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series

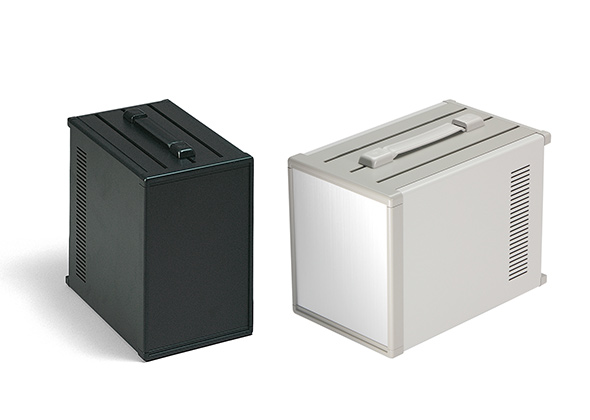

INSTRUMENT ENCLOSURE with CARRYING HANDLE - MSY series

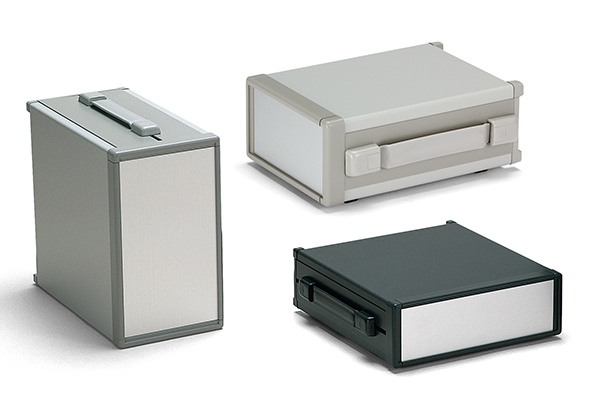

ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

punch_press

laser_cutting

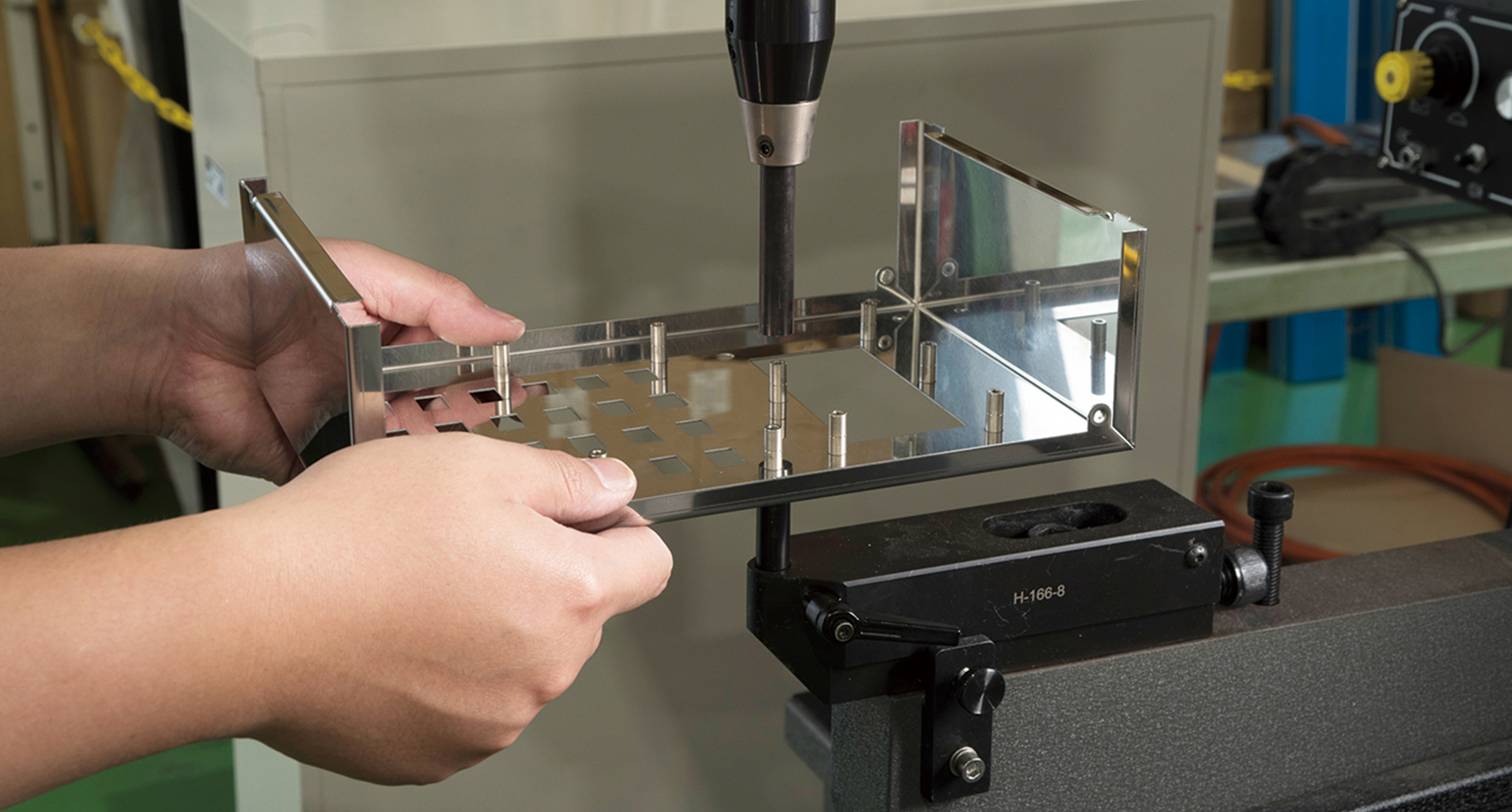

clinching_fastener

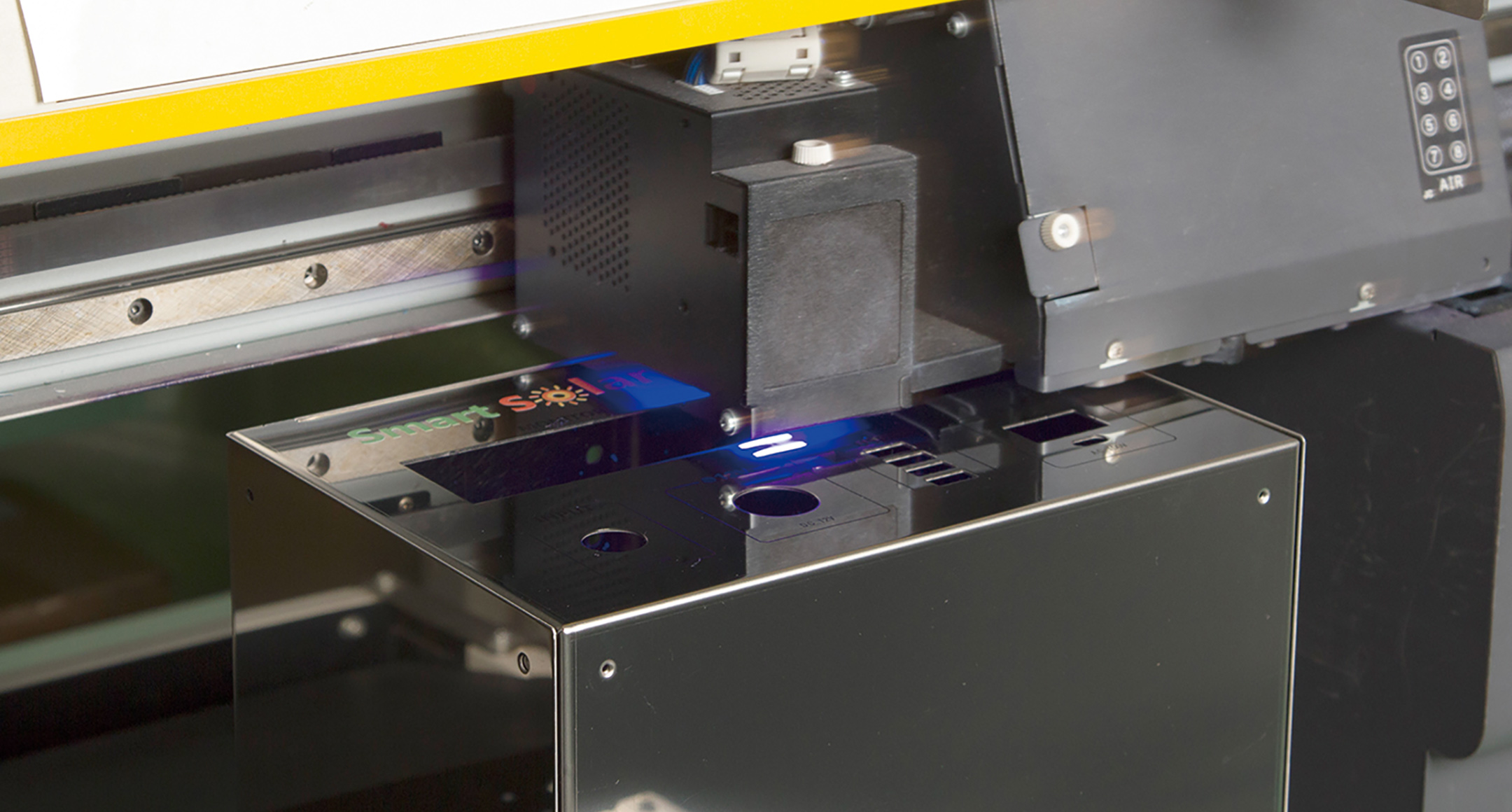

inkjet_printing
