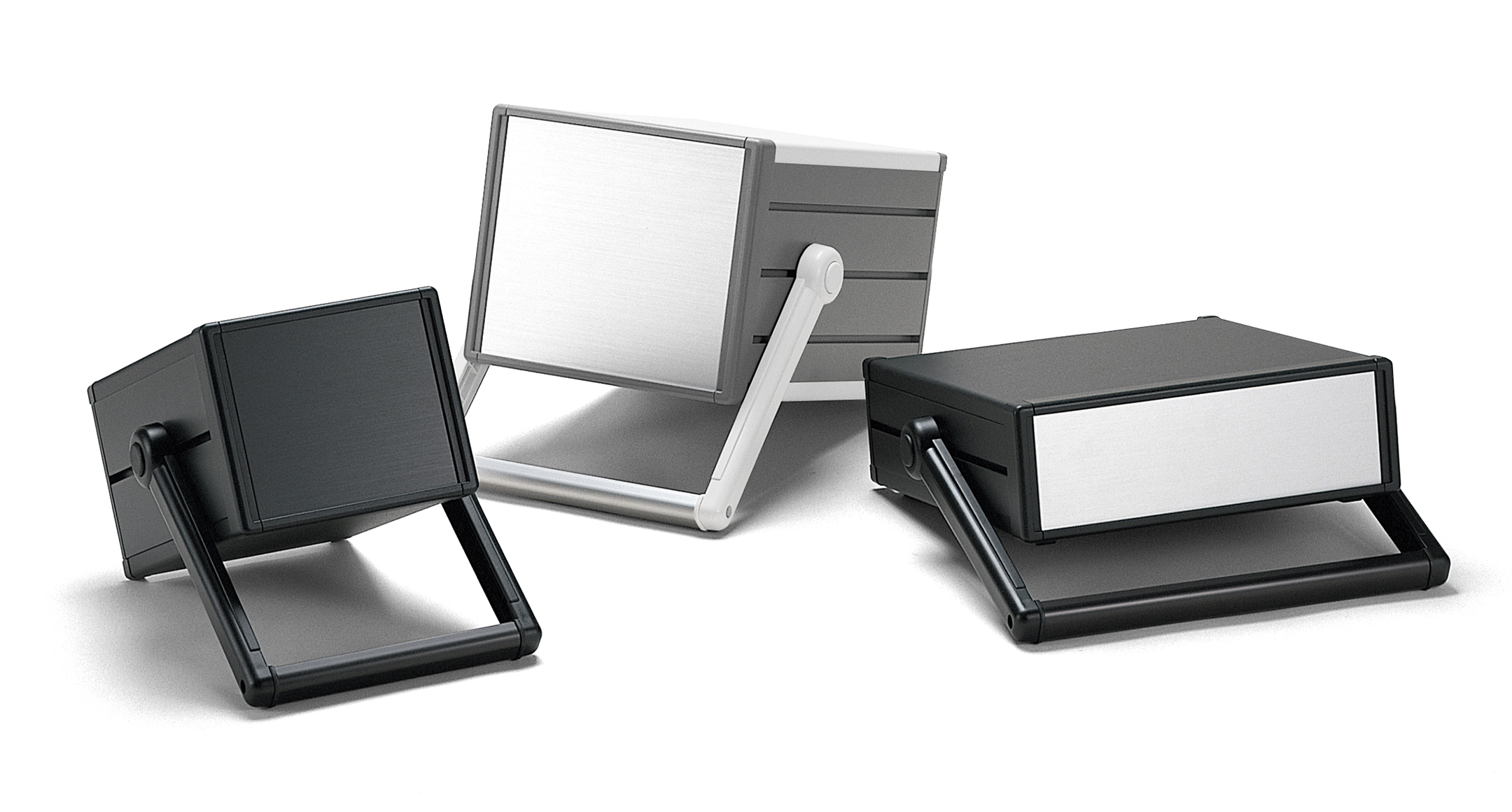

Aluminium desktop enclosure with tip-up handle.
Stand handle can be shifted and locked at 30° intervals.
Maximum load support of 25kg.

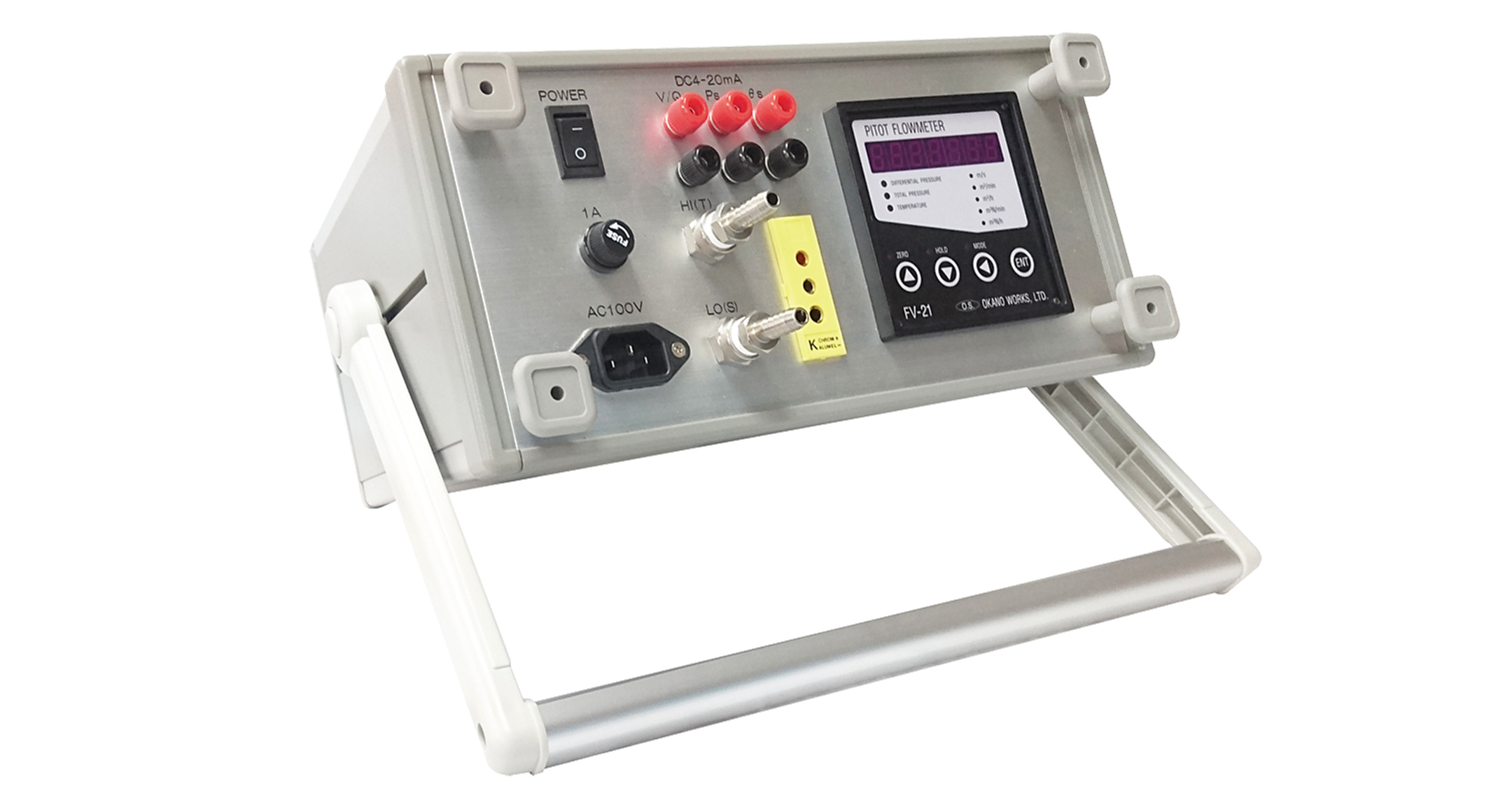

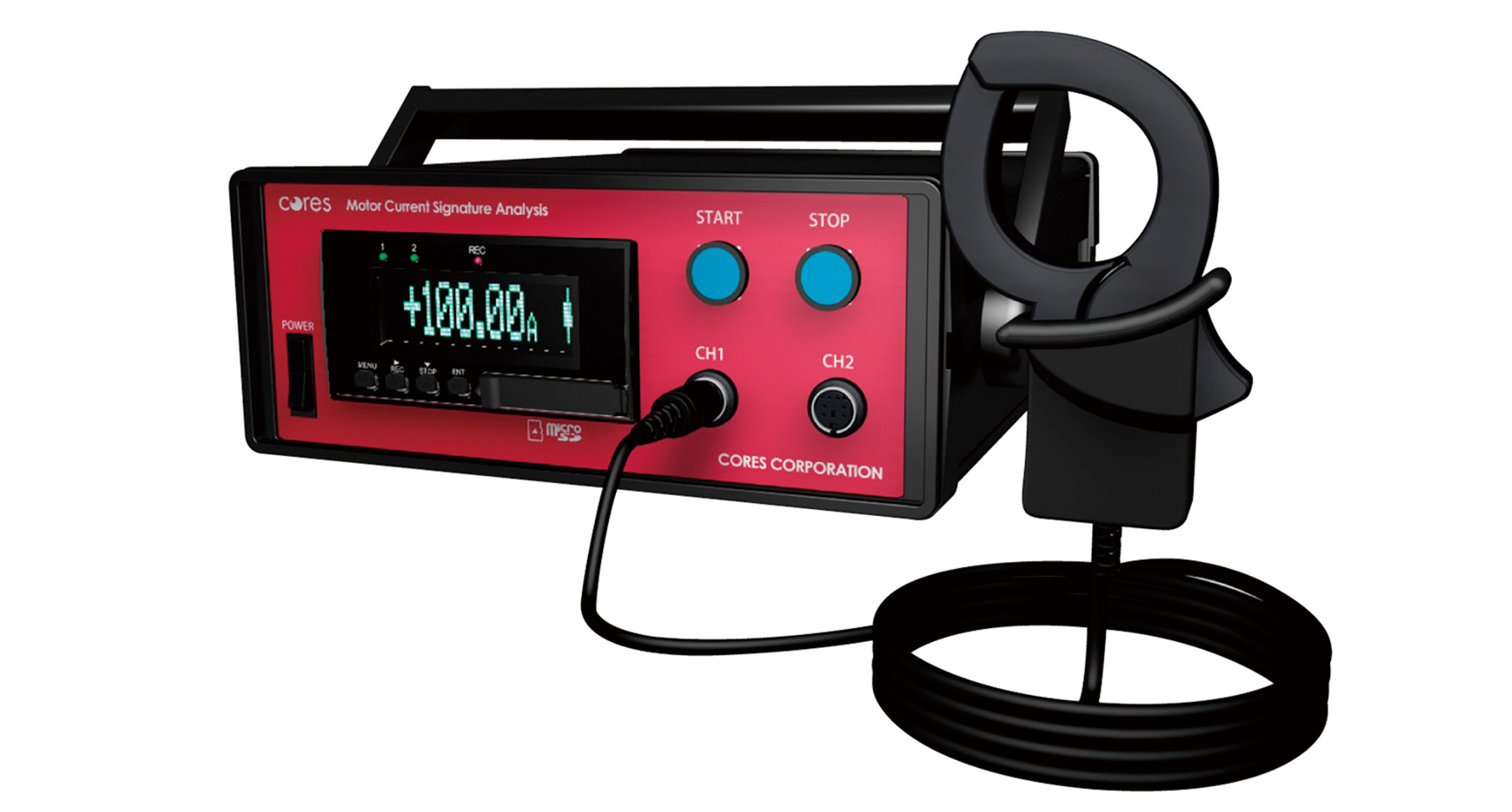

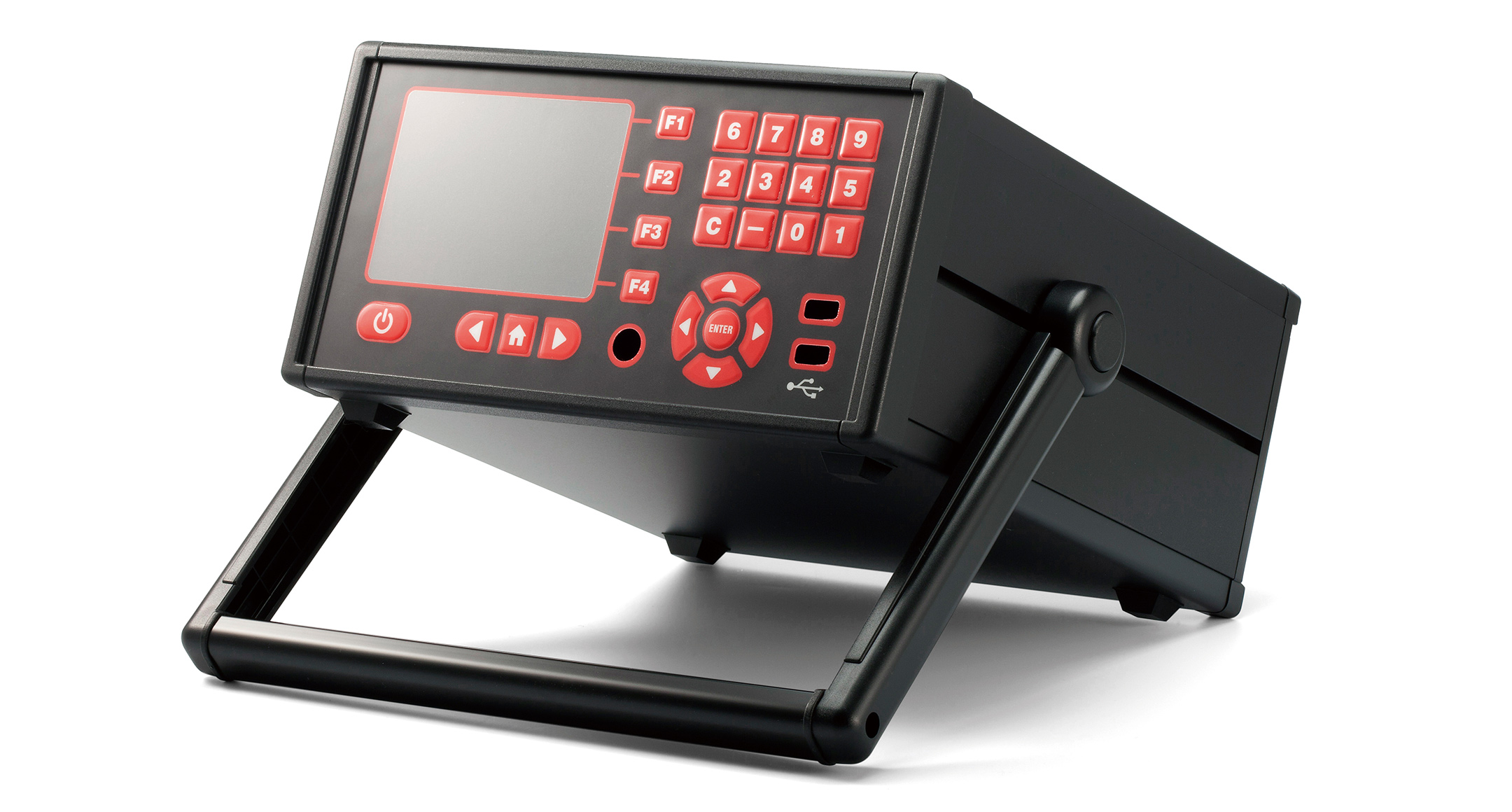

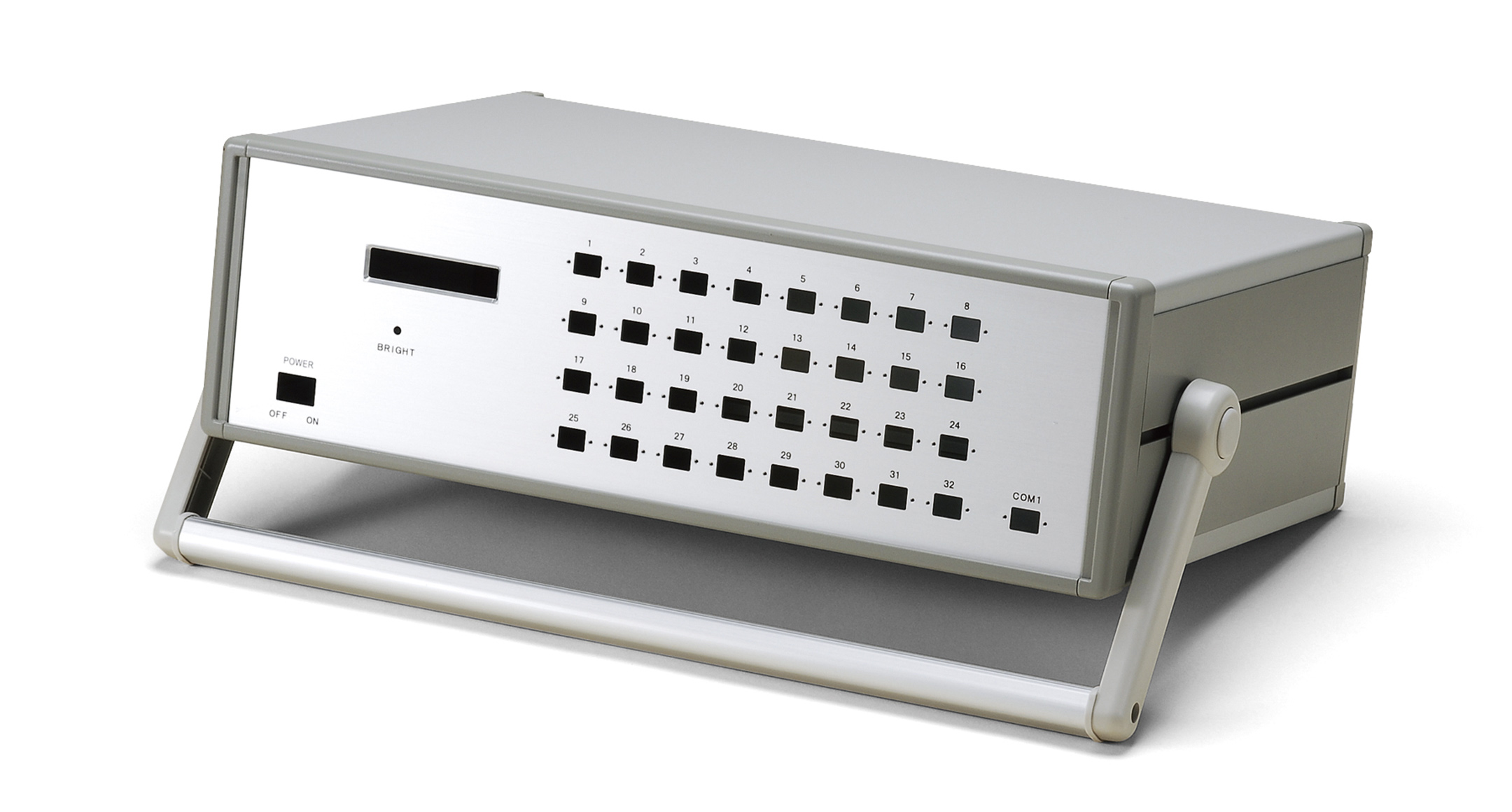

Suitable for use as measuring instruments, analyzer, and testing equipment, etc.

Available in 176 different sizes and 3 colors.

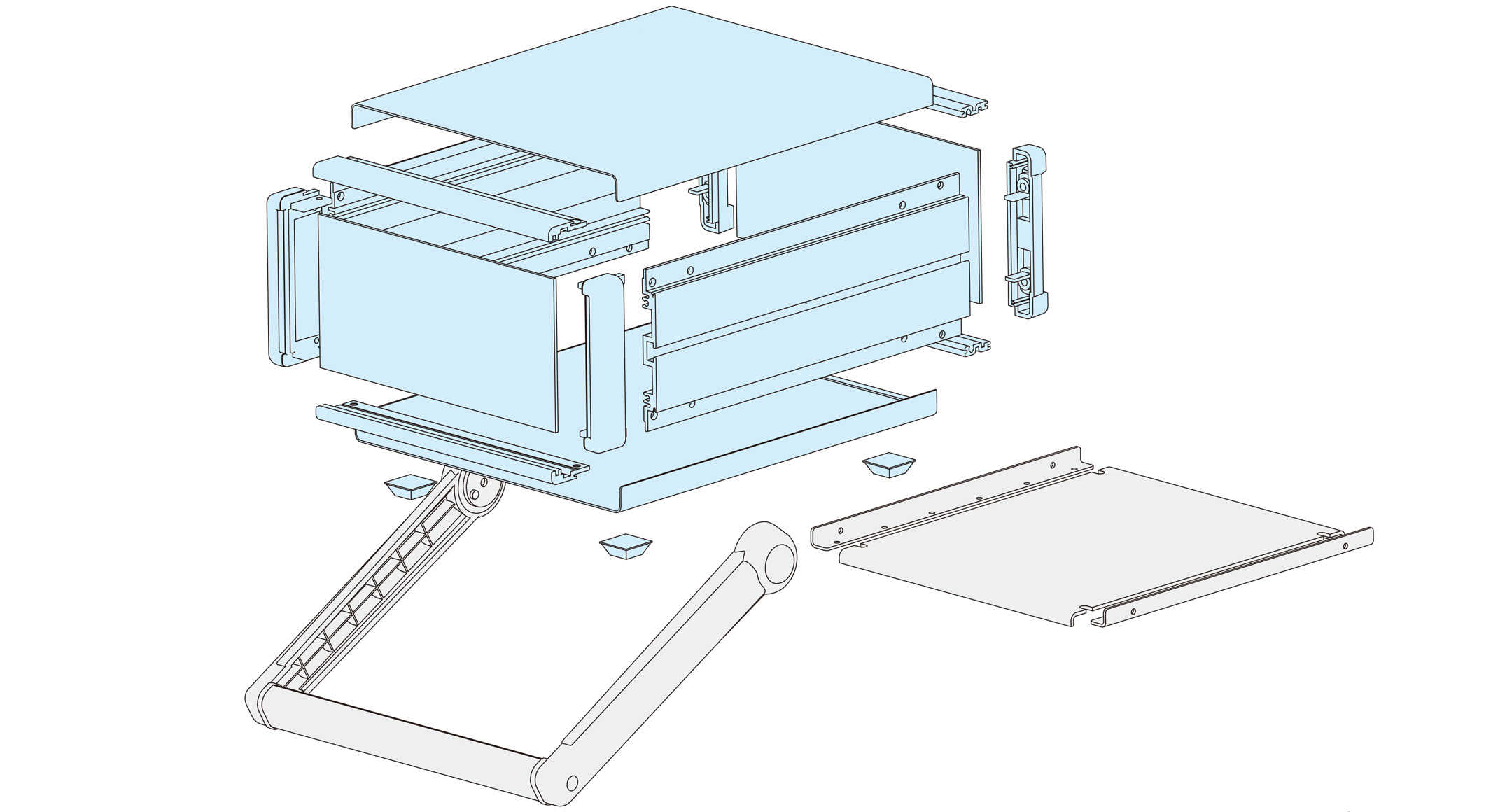

3D View - Gray/Silver  3D View - Back/Silver  Exploded View  Color Change Notice  Color code 

COLOR TYPE

GSGray/Silver

ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series:Gray/Silver

BSBlack/Silver

ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series:Black/Silver

BBlack/Black

ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series:Black/Black
ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series:Gray/Silver
ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series:Black/Silver
ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
MON66-16-16□ 160 66 160 130 49.5 135 900 PDF DXF DWG
MON66-16-23□ 160 66 230 130 49.5 205 1100 PDF DXF DWG
MON66-16-28□ 160 66 280 130 49.5 255 1300 PDF DXF DWG
MON66-21-16□ 210 66 160 180 49.5 135 1100 PDF DXF DWG
MON66-21-23□ 210 66 230 180 49.5 205 1300 PDF DXF DWG
MON66-21-28□ 210 66 280 180 49.5 255 1500 PDF DXF DWG
MON66-21-35□ 210 66 350 180 49.5 325 1700 PDF DXF DWG
MON66-26-23□ 260 66 230 230 49.5 205 1500 PDF DXF DWG
MON66-26-28□ 260 66 280 230 49.5 255 1700 PDF DXF DWG
MON66-26-35□ 260 66 350 230 49.5 325 2000 PDF DXF DWG
MON66-32-23□ 320 66 230 290 49.5 205 1700 PDF DXF DWG
MON66-32-28□ 320 66 280 290 49.5 255 1900 PDF DXF DWG
MON66-32-35□ 320 66 350 290 49.5 325 2200 PDF DXF DWG
MON66-32-45□ 320 66 450 290 49.5 425 2600 PDF DXF DWG
MON66-37-23□ 370 66 230 340 49.5 205 1900 PDF DXF DWG
MON66-37-28□ 370 66 280 340 49.5 255 2100 PDF DXF DWG
MON66-37-35□ 370 66 350 340 49.5 325 2400 PDF DXF DWG
MON66-37-45□ 370 66 450 340 49.5 425 2800 PDF DXF DWG
MON66-43-23□ 430 66 230 400 49.5 205 2100 PDF DXF DWG
MON66-43-28□ 430 66 280 400 49.5 255 2400 PDF DXF DWG
MON66-43-35□ 430 66 350 400 49.5 325 2700 PDF DXF DWG
MON66-43-45□ 430 66 450 400 49.5 425 3200 PDF DXF DWG
MON88-16-16□ 160 88 160 130 71.5 135 1000 PDF DXF DWG
MON88-16-23□ 160 88 230 130 71.5 205 1300 PDF DXF DWG
MON88-16-28□ 160 88 280 130 71.5 255 1500 PDF DXF DWG
MON88-21-16□ 210 88 160 180 71.5 135 1200 PDF DXF DWG
MON88-21-23□ 210 88 230 180 71.5 205 1500 PDF DXF DWG
MON88-21-28□ 210 88 280 180 71.5 255 1700 PDF DXF DWG
MON88-21-35□ 210 88 350 180 71.5 325 1900 PDF DXF DWG
MON88-26-23□ 260 88 230 230 71.5 205 1700 PDF DXF DWG
MON88-26-28□ 260 88 280 230 71.5 255 1900 PDF DXF DWG
MON88-26-35□ 260 88 350 230 71.5 325 2200 PDF DXF DWG
MON88-32-23□ 320 88 230 290 71.5 205 1900 PDF DXF DWG
MON88-32-28□ 320 88 280 290 71.5 255 2100 PDF DXF DWG
MON88-32-35□ 320 88 350 290 71.5 325 2500 PDF DXF DWG
MON88-32-45□ 320 88 450 290 71.5 425 2900 PDF DXF DWG
MON88-37-23□ 370 88 230 340 71.5 205 2100 PDF DXF DWG
MON88-37-28□ 370 88 280 340 71.5 255 2300 PDF DXF DWG
MON88-37-35□ 370 88 350 340 71.5 325 2700 PDF DXF DWG
MON88-37-45□ 370 88 450 340 71.5 425 3100 PDF DXF DWG
MON88-43-23□ 430 88 230 400 71.5 205 2300 PDF DXF DWG
MON88-43-28□ 430 88 280 400 71.5 255 2600 PDF DXF DWG
MON88-43-35□ 430 88 350 400 71.5 325 3000 PDF DXF DWG
MON88-43-45□ 430 88 450 400 71.5 425 3500 PDF DXF DWG
MON99-16-16□ 160 99 160 130 82.5 135 1100 PDF DXF DWG
MON99-16-23□ 160 99 230 130 82.5 205 1300 PDF DXF DWG
MON99-16-28□ 160 99 280 130 82.5 255 1500 PDF DXF DWG
MON99-21-16□ 210 99 160 180 82.5 135 1300 PDF DXF DWG
MON99-21-23□ 210 99 230 180 82.5 205 1500 PDF DXF DWG
MON99-21-28□ 210 99 280 180 82.5 255 1700 PDF DXF DWG
MON99-21-35□ 210 99 350 180 82.5 325 2000 PDF DXF DWG
MON99-26-23□ 260 99 230 230 82.5 205 1700 PDF DXF DWG
MON99-26-28□ 260 99 280 230 82.5 255 2000 PDF DXF DWG
MON99-26-35□ 260 99 350 230 82.5 325 2300 PDF DXF DWG
MON99-32-23□ 320 99 230 290 82.5 205 2000 PDF DXF DWG
MON99-32-28□ 320 99 280 290 82.5 255 2200 PDF DXF DWG
MON99-32-35□ 320 99 350 290 82.5 325 2600 PDF DXF DWG
MON99-32-45□ 320 99 450 290 82.5 425 3000 PDF DXF DWG
MON99-37-23□ 370 99 230 340 82.5 205 2100 PDF DXF DWG
MON99-37-28□ 370 99 280 340 82.5 255 2400 PDF DXF DWG
MON99-37-35□ 370 99 350 340 82.5 325 2800 PDF DXF DWG
MON99-37-45□ 370 99 450 340 82.5 425 3200 PDF DXF DWG
MON99-43-23□ 430 99 230 400 82.5 205 2400 PDF DXF DWG
MON99-43-28□ 430 99 280 400 82.5 255 2700 PDF DXF DWG
MON99-43-35□ 430 99 350 400 82.5 325 3100 PDF DXF DWG
MON99-43-45□ 430 99 450 400 82.5 425 3700 PDF DXF DWG
MON133-16-16□ 160 132.5 160 130 116 135 1300 PDF DXF DWG
MON133-16-23□ 160 132.5 230 130 116 205 1600 PDF DXF DWG
MON133-16-28□ 160 132.5 280 130 116 255 1800 PDF DXF DWG
MON133-21-16□ 210 132.5 160 180 116 135 1500 PDF DXF DWG
MON133-21-23□ 210 132.5 230 180 116 205 1800 PDF DXF DWG
MON133-21-28□ 210 132.5 280 180 116 255 2000 PDF DXF DWG
MON133-21-35□ 210 132.5 350 180 116 325 2300 PDF DXF DWG
MON133-26-23□ 260 132.5 230 230 116 205 2000 PDF DXF DWG
MON133-26-28□ 260 132.5 280 230 116 255 2300 PDF DXF DWG
MON133-26-35□ 260 132.5 350 230 116 325 2600 PDF DXF DWG
MON133-32-23□ 320 132.5 230 290 116 205 2300 PDF DXF DWG
MON133-32-28□ 320 132.5 280 290 116 255 2500 PDF DXF DWG
MON133-32-35□ 320 132.5 350 290 116 325 2900 PDF DXF DWG
MON133-32-45□ 320 132.5 450 290 116 425 3400 PDF DXF DWG
MON133-37-23□ 370 132.5 230 340 116 205 2500 PDF DXF DWG
MON133-37-28□ 370 132.5 280 340 116 255 2800 PDF DXF DWG
MON133-37-35□ 370 132.5 350 340 116 325 3200 PDF DXF DWG
MON133-37-45□ 370 132.5 450 340 116 425 3600 PDF DXF DWG
MON133-43-23□ 430 132.5 230 400 116 205 2700 PDF DXF DWG
MON133-43-28□ 430 132.5 280 400 116 255 3000 PDF DXF DWG
MON133-43-35□ 430 132.5 350 400 116 325 3500 PDF DXF DWG
MON133-43-45□ 430 132.5 450 400 116 425 4100 PDF DXF DWG
MON149-16-16□ 160 149 160 130 132.5 135 1300 PDF DXF DWG
MON149-16-23□ 160 149 230 130 132.5 205 1700 PDF DXF DWG
MON149-16-28□ 160 149 280 130 132.5 255 1900 PDF DXF DWG
MON149-21-16□ 210 149 160 180 132.5 135 1500 PDF DXF DWG
MON149-21-23□ 210 149 230 180 132.5 205 1900 PDF DXF DWG
MON149-21-28□ 210 149 280 180 132.5 255 2100 PDF DXF DWG
MON149-21-35□ 210 149 350 180 132.5 325 2400 PDF DXF DWG
MON149-26-23□ 260 149 230 230 132.5 205 2100 PDF DXF DWG
MON149-26-28□ 260 149 280 230 132.5 255 2400 PDF DXF DWG
MON149-26-35□ 260 149 350 230 132.5 325 2700 PDF DXF DWG
MON149-32-23□ 320 149 230 290 132.5 205 2400 PDF DXF DWG
MON149-32-28□ 320 149 280 290 132.5 255 2700 PDF DXF DWG
MON149-32-35□ 320 149 350 290 132.5 325 3100 PDF DXF DWG
MON149-32-45□ 320 149 450 290 132.5 425 3600 PDF DXF DWG
MON149-37-23□ 370 149 230 340 132.5 205 2600 PDF DXF DWG
MON149-37-28□ 370 149 280 340 132.5 255 2900 PDF DXF DWG
MON149-37-35□ 370 149 350 340 132.5 325 3300 PDF DXF DWG
MON149-37-45□ 370 149 450 340 132.5 425 3900 PDF DXF DWG
MON149-43-23□ 430 149 230 400 132.5 205 2900 PDF DXF DWG
MON149-43-28□ 430 149 280 400 132.5 255 3200 PDF DXF DWG
MON149-43-35□ 430 149 350 400 132.5 325 3600 PDF DXF DWG
MON149-43-45□ 430 149 450 400 132.5 425 4300 PDF DXF DWG
MON177-16-16□ 160 177 160 130 160.5 135 1600 PDF DXF DWG
MON177-16-23□ 160 177 230 130 160.5 205 2100 PDF DXF DWG
MON177-16-28□ 160 177 280 130 160.5 255 2300 PDF DXF DWG
MON177-21-16□ 210 177 160 180 160.5 135 1800 PDF DXF DWG
MON177-21-23□ 210 177 230 180 160.5 205 2300 PDF DXF DWG
MON177-21-28□ 210 177 280 180 160.5 255 2600 PDF DXF DWG
MON177-21-35□ 210 177 350 180 160.5 325 3000 PDF DXF DWG
MON177-26-23□ 260 177 230 230 160.5 205 2600 PDF DXF DWG
MON177-26-28□ 260 177 280 230 160.5 255 2900 PDF DXF DWG
MON177-26-35□ 260 177 350 230 160.5 325 3300 PDF DXF DWG
MON177-32-23□ 320 177 230 290 160.5 205 2800 PDF DXF DWG
MON177-32-28□ 320 177 280 290 160.5 255 3200 PDF DXF DWG
MON177-32-35□ 320 177 350 290 160.5 325 3700 PDF DXF DWG
MON177-32-45□ 320 177 450 290 160.5 425 4300 PDF DXF DWG
MON177-37-23□ 370 177 230 340 160.5 205 3100 PDF DXF DWG
MON177-37-28□ 370 177 280 340 160.5 255 3400 PDF DXF DWG
MON177-37-35□ 370 177 350 340 160.5 325 3900 PDF DXF DWG
MON177-37-45□ 370 177 450 340 160.5 425 4600 PDF DXF DWG
MON177-43-23□ 430 177 230 400 160.5 205 3400 PDF DXF DWG
MON177-43-28□ 430 177 280 400 160.5 255 3700 PDF DXF DWG
MON177-43-35□ 430 177 350 400 160.5 325 4300 PDF DXF DWG
MON177-43-45□ 430 177 450 400 160.5 425 5000 PDF DXF DWG
MON199-16-16□ 160 199 160 130 182.5 135 1800 PDF DXF DWG
MON199-16-23□ 160 199 230 130 182.5 205 2200 PDF DXF DWG
MON199-16-28□ 160 199 280 130 182.5 255 2500 PDF DXF DWG
MON199-21-16□ 210 199 160 180 182.5 135 2000 PDF DXF DWG
MON199-21-23□ 210 199 230 180 182.5 205 2400 PDF DXF DWG
MON199-21-28□ 210 199 280 180 182.5 255 2700 PDF DXF DWG
MON199-21-35□ 210 199 350 180 182.5 325 3100 PDF DXF DWG
MON199-26-23□ 260 199 230 230 182.5 205 2700 PDF DXF DWG
MON199-26-28□ 260 199 280 230 182.5 255 3000 PDF DXF DWG
MON199-26-35□ 260 199 350 230 182.5 325 3400 PDF DXF DWG
MON199-32-23□ 320 199 230 290 182.5 205 3000 PDF DXF DWG
MON199-32-28□ 320 199 280 290 182.5 255 3300 PDF DXF DWG
MON199-32-35□ 320 199 350 290 182.5 325 3800 PDF DXF DWG
MON199-32-45□ 320 199 450 290 182.5 425 4500 PDF DXF DWG
MON199-37-23□ 370 199 230 340 182.5 205 3200 PDF DXF DWG
MON199-37-28□ 370 199 280 340 182.5 255 3600 PDF DXF DWG
MON199-37-35□ 370 199 350 340 182.5 325 4100 PDF DXF DWG
MON199-37-45□ 370 199 450 340 182.5 425 4700 PDF DXF DWG
MON199-43-23□ 430 199 230 400 182.5 205 3500 PDF DXF DWG
MON199-43-28□ 430 199 280 400 182.5 255 3900 PDF DXF DWG
MON199-43-35□ 430 199 350 400 182.5 325 4400 PDF DXF DWG
MON199-43-45□ 430 199 450 400 182.5 425 5200 PDF DXF DWG
MON222-16-16□ 160 221.5 160 130 205 135 1900 PDF DXF DWG
MON222-16-23□ 160 221.5 230 130 205 205 2300 PDF DXF DWG
MON222-16-28□ 160 221.5 280 130 205 255 2600 PDF DXF DWG
MON222-21-16□ 210 221.5 160 180 205 135 2100 PDF DXF DWG
MON222-21-23□ 210 221.5 230 180 205 205 2600 PDF DXF DWG
MON222-21-28□ 210 221.5 280 180 205 255 2900 PDF DXF DWG
MON222-21-35□ 210 221.5 350 180 205 325 3300 PDF DXF DWG
MON222-26-23□ 260 221.5 230 230 205 205 2900 PDF DXF DWG
MON222-26-28□ 260 221.5 280 230 205 255 3100 PDF DXF DWG
MON222-26-35□ 260 221.5 350 230 205 325 3600 PDF DXF DWG
MON222-32-23□ 320 221.5 230 290 205 205 3100 PDF DXF DWG
MON222-32-28□ 320 221.5 280 290 205 255 3500 PDF DXF DWG
MON222-32-35□ 320 221.5 350 290 205 325 4000 PDF DXF DWG
MON222-32-45□ 320 221.5 450 290 205 425 4800 PDF DXF DWG
MON222-37-23□ 370 221.5 230 340 205 205 3400 PDF DXF DWG
MON222-37-28□ 370 221.5 280 340 205 255 3800 PDF DXF DWG
MON222-37-35□ 370 221.5 350 340 205 325 4300 PDF DXF DWG
MON222-37-45□ 370 221.5 450 340 205 425 5000 PDF DXF DWG
MON222-43-23□ 430 221.5 230 400 205 205 3700 PDF DXF DWG
MON222-43-28□ 430 221.5 280 400 205 255 4100 PDF DXF DWG
MON222-43-35□ 430 221.5 350 400 205 325 4700 PDF DXF DWG
MON222-43-45□ 430 221.5 450 400 205 425 5500 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG STP
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG
MSC16-16 PDF DXF DWG
MSC16-23 PDF DXF DWG
MSC16-28 PDF DXF DWG
MSC21-16 PDF DXF DWG
MSC21-23 PDF DXF DWG
MSC21-28 PDF DXF DWG
MSC21-35 PDF DXF DWG
MSC26-23 PDF DXF DWG
MSC26-28 PDF DXF DWG
MSC26-35 PDF DXF DWG
MSC32-23 PDF DXF DWG
MSC32-28 PDF DXF DWG
MSC32-35 PDF DXF DWG
MSC32-45 PDF DXF DWG
MSC37-23 PDF DXF DWG
MSC37-28 PDF DXF DWG
MSC37-35 PDF DXF DWG
MSC37-45 PDF DXF DWG
MSC43-23 PDF DXF DWG
MSC43-28 PDF DXF DWG
MSC43-35 PDF DXF DWG
MSC43-45 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for MS・MO - MSC series
DETAILS
１
MOUNTING ANGLE BRACKET for MS_・MO - MSCL series
DETAILS
１
CABLE HOOK - CBF-1
DETAILS

SIMILAR PRODUCT

１
INSTRUMENT ENCLOSURE with TIP-UP HANDLE - MSN series
DETAILS
１
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
DETAILS
１
ALUMINUM DESKTOP ENCLOSURE - MO series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

Graphic overlay making

DETAILS
