CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series

CATEGORY：Network device enclosure, Wall mount enclosure, Extruded aluminum enclosure, IOT enclosure, Sensor enclosure, Router enclosure

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series1

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series2

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series3

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series4

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series5

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series6

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series7

Custom sized network enclosure with wall mounting flanged end panels.

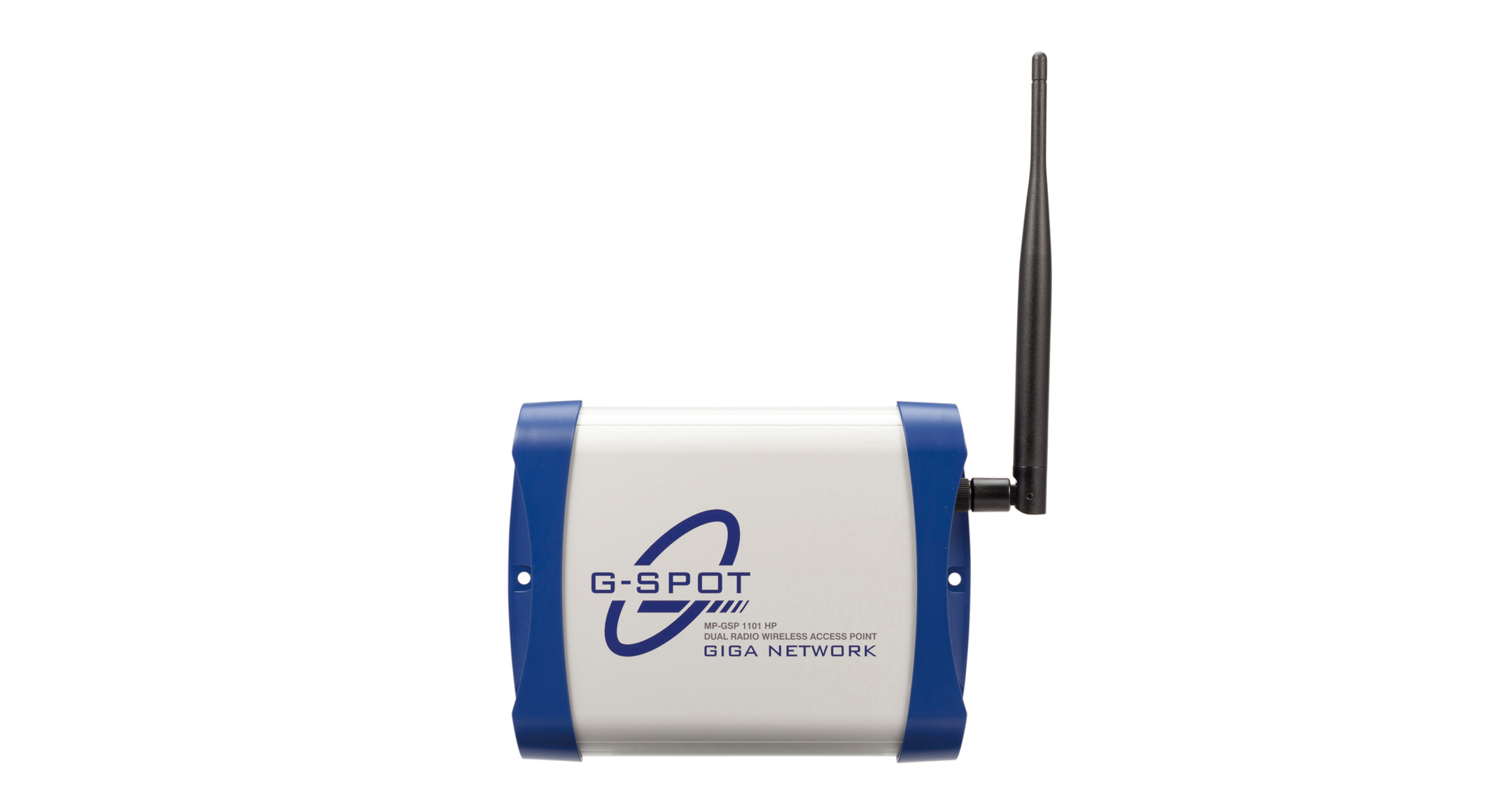

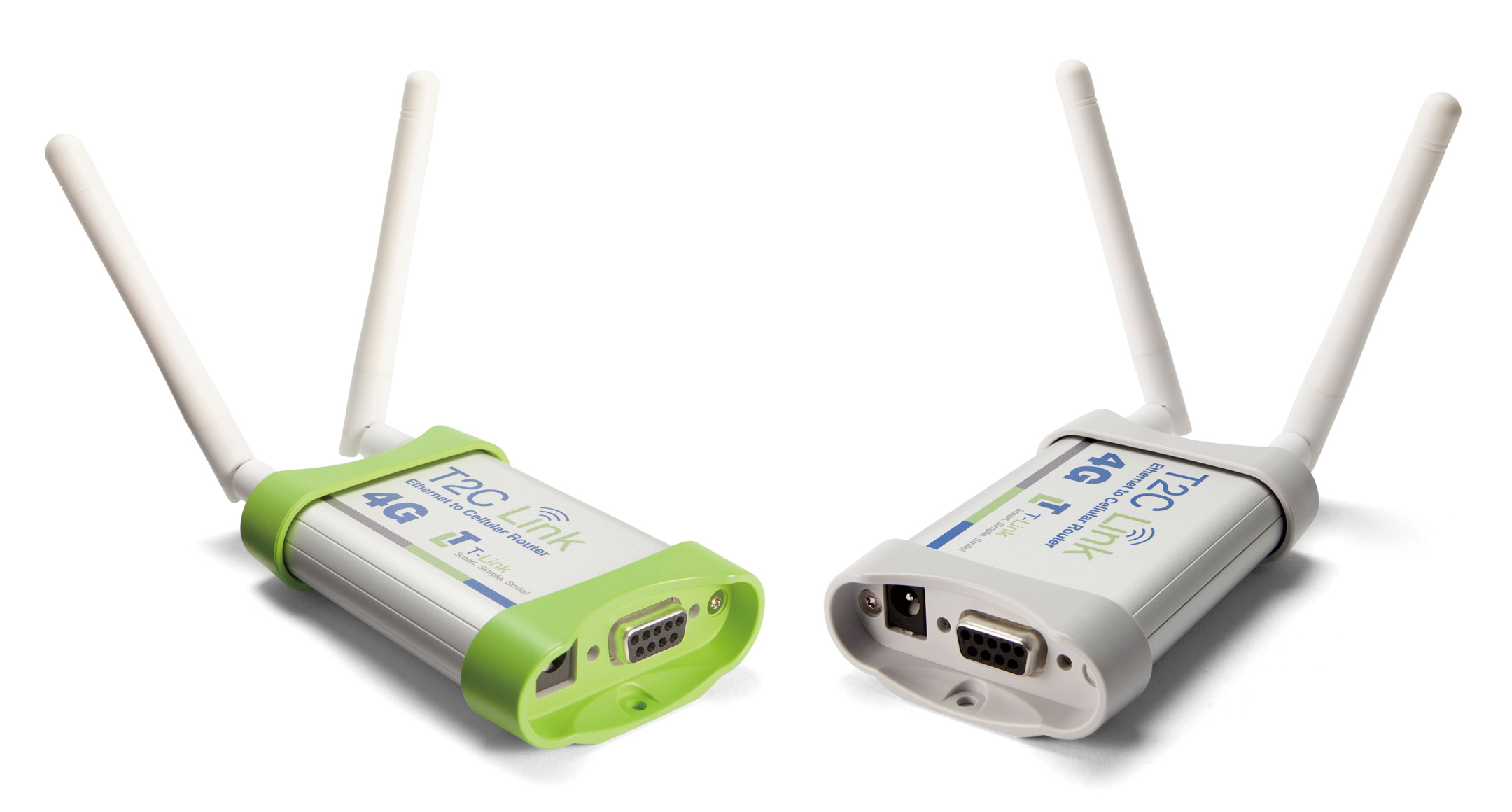

Suitable to be used as IOT sensors, wireless communication devices, access points, controllers, etc.
Grooves are built into the internal enclosure, allowing for easy sliding/insertion of pcb boards.

Selectable 4 different Width/Height profiles and specified length from 70 to 500mm by 1mm intervals.
Color can be specified from 8 different color combinations.

Select screw type (Plus or Hex) when ordering.

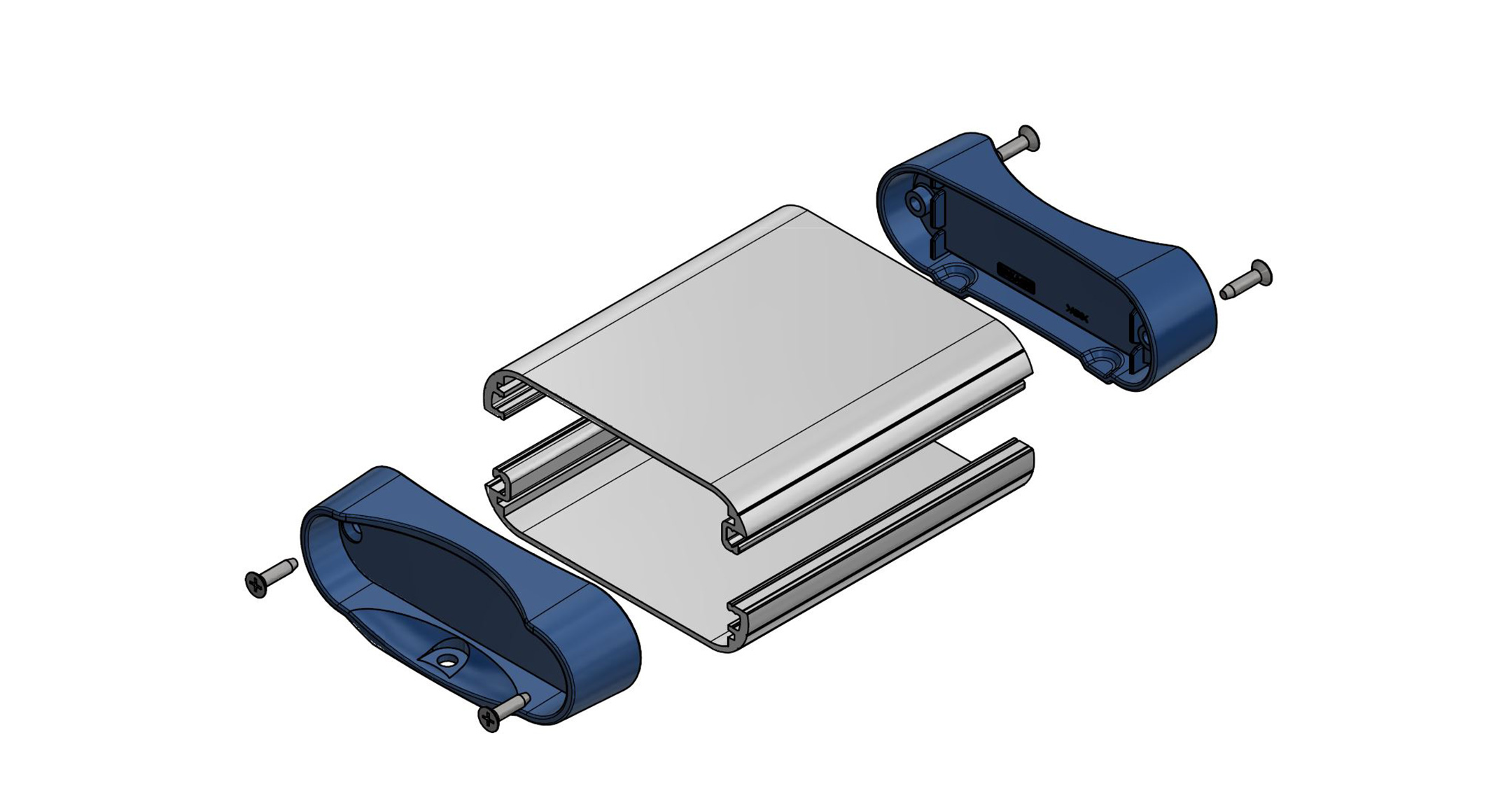

3D View - Sliver/Green 3D View - Sliver/Gray 3D View - 8 color types Exploded View Color code

COLOR TYPE

SBSilver/Black

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Silver/Black

SGSilver/Gray

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Silver/Gray

SNSilver/Navy

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Silver/Navy

SLSilver/Lime

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Silver/Lime

BBBlack/Black

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Black/Black

BGBlack/Gray

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Black/Gray

BNBlack/Navy

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Black/Navy

BLBlack/Lime

CUSTOM SIZED FLANGED NETWORK ENCLOSURE - MXFC series:Black/Lime

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Screw type	PDF	DXF	DWG
Product No.	W	H	D	w	h	d	Screw type	PDF	DXF	DWG
MXFC61-23-〇 □P	60.9	23.4	Available 70 to 500mm by 1mm intervals	41.1	15.1	D dimension - 20mm	Plus	PDF	DXF	DWG
MXFC61-23-〇 □H	60.9	23.4	Available 70 to 500mm by 1mm intervals	41.1	15.1	D dimension - 20mm	Hex	PDF	DXF	DWG
MXFC86-30-〇 □P	86.1	29.6	Available 70 to 500mm by 1mm intervals	60.1	20.5	D dimension - 29.4mm	Plus	PDF	DXF	DWG
MXFC86-30-〇 □H	86.1	29.6	Available 70 to 500mm by 1mm intervals	60.1	20.5	D dimension - 29.4mm	Hex	PDF	DXF	DWG
MXFC114-36-〇 □P	114.2	35.6	Available 70 to 500mm by 1mm intervals	87.3	26.5	D dimension - 29.4mm	Plus	PDF	DXF	DWG
MXFC114-36-〇 □H	114.2	35.6	Available 70 to 500mm by 1mm intervals	87.3	26.5	D dimension - 29.4mm	Hex	PDF	DXF	DWG
MXFC134-41-〇 □P	134.2	40.6	Available 70 to 500mm by 1mm intervals	104.1	31	D dimension - 29.4mm	Plus	PDF	DXF	DWG
MXFC134-41-〇 □H	134.2	40.6	Available 70 to 500mm by 1mm intervals	104.1	31	D dimension - 29.4mm	Hex	PDF	DXF	DWG

OPTIONAL PARTS

RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
