IP68 / IP67 NETWORK PLASTIC BOX - WP series

CATEGORY：IP68 / IP67 waterproof plastic enclosure, NEMA 6P enclosure, Weatherproof enclosure, UV-protect enclosure, Pole mount enclosure, Access point enclosure, IoT gateway enclosure, LoRaWAN enclosure

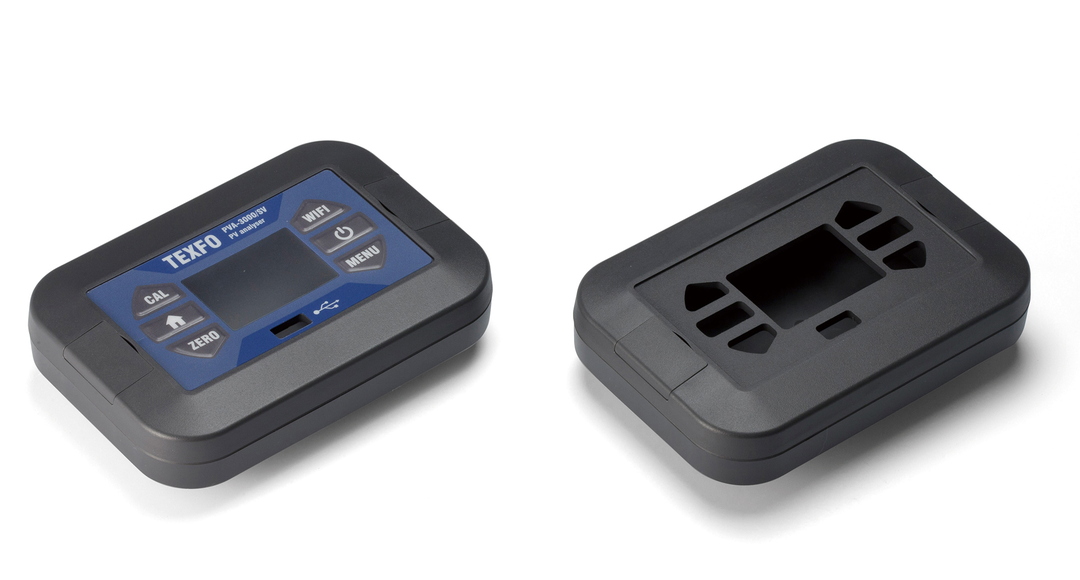

IP68 / IP67 NETWORK PLASTIC BOX - WP series1

IP68 / IP67 NETWORK PLASTIC BOX - WP series2

IP68 / IP67 NETWORK PLASTIC BOX - WP series3

IP68 / IP67 NETWORK PLASTIC BOX - WP series4

IP68 / IP67 NETWORK PLASTIC BOX - WP series5

IP68 / IP67 NETWORK PLASTIC BOX - WP series6

IP68 / IP67 NETWORK PLASTIC BOX - WP series7

IP68 / IP67 NETWORK PLASTIC BOX - WP series8

IP68 / IP67 NETWORK PLASTIC BOX - WP series9

IP68 / IP67 NETWORK PLASTIC BOX - WP series10

IP68 / IP67 NETWORK PLASTIC BOX - WP series11

IP68 / IP67 NETWORK PLASTIC BOX - WP series12

IP68 / IP67 NETWORK PLASTIC BOX - WP series13

IP68 / IP67 NETWORK PLASTIC BOX - WP series14

IP68 / IP67 NETWORK PLASTIC BOX - WP series15

IP68 / IP67 NETWORK PLASTIC BOX - WP series16

IP68 / IP67 NETWORK PLASTIC BOX - WP series17

IP68 / IP67 NETWORK PLASTIC BOX - WP series18

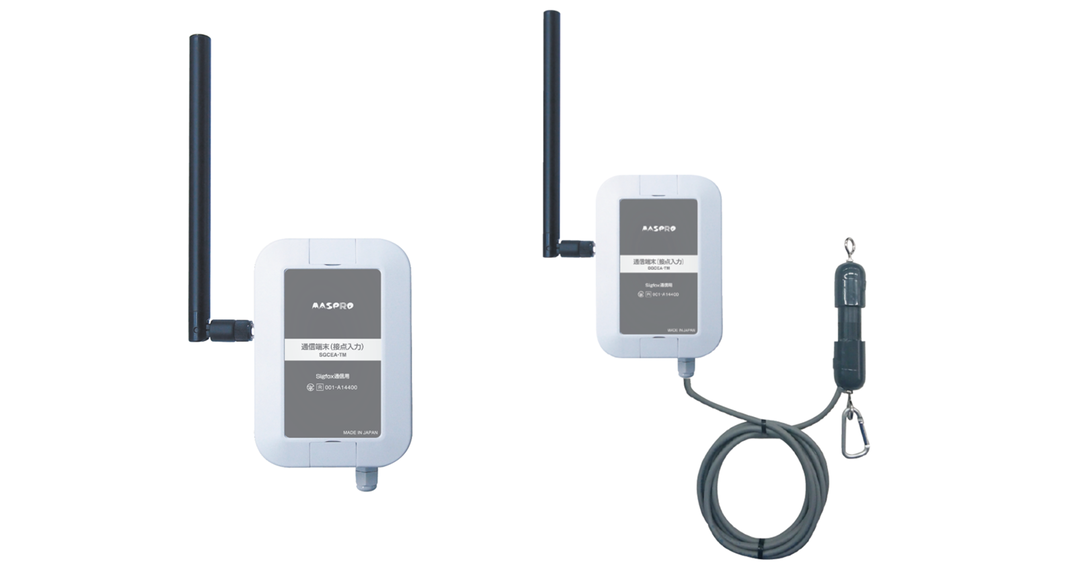

IP68 / IP67 NETWORK PLASTIC BOX - WP series19

IP68 / IP67 NETWORK PLASTIC BOX - WP series20

IP68 / IP67 NETWORK PLASTIC BOX - WP series21

IP68 / IP67 NETWORK PLASTIC BOX - WP series22

IP68 / IP67 NETWORK PLASTIC BOX - WP series23

IP68 / IP67 NETWORK PLASTIC BOX - WP series24

IP68 / IP67 NETWORK PLASTIC BOX - WP series25

IP68 / IP67 NETWORK PLASTIC BOX - WP series26

IP68 / IP67 NETWORK PLASTIC BOX - WP series27

IP68 / IP67 NETWORK PLASTIC BOX - WP series28

IP68 / IP67 NETWORK PLASTIC BOX - WP series29

IP68 / IP67 NETWORK PLASTIC BOX - WP series30

IP68 / IP67 NETWORK PLASTIC BOX - WP series31

IP68 / IP67 NETWORK PLASTIC BOX - WP series32

IP68 / IP67 NETWORK PLASTIC BOX - WP series33

IP68 / IP67 NETWORK PLASTIC BOX - WP series34

IP68 / IP67 NETWORK PLASTIC BOX - WP series35

IP68 / IP67 NETWORK PLASTIC BOX - WP series36

IP68 / IP67 NETWORK PLASTIC BOX - WP series37

IP68 / IP67 NETWORK PLASTIC BOX - WP series38

IP68 / IP67 NETWORK PLASTIC BOX - WP series39

IP68 / IP67 NETWORK PLASTIC BOX - WP series40

IP68 / IP67 NETWORK PLASTIC BOX - WP series41

IP68 / IP67 NETWORK PLASTIC BOX - WP series42

IP68 / IP67 NETWORK PLASTIC BOX - WP series43

IP68 / IP67 NETWORK PLASTIC BOX - WP series44

IP68 / IP67 NETWORK PLASTIC BOX - WP series45

IP68 / IP67 NETWORK PLASTIC BOX - WP series46

IP68 / IP67 waterproof & weatherproof plastic enclosure.
IP68 / IP67 protection class allows the unit to be used outdoors while protecting the internal components from dust and water.
Pole mounting is possible via an optional pole mounting bracket accessory.

【Available in 2 types】
White gray color : UV-resistant ASA plastic
Charcoal gray color : Flame-resistant ABS plastic (UL94V-0)

24 different selectable sizes are available. Mount on walls or brackets by simply opening the blind lids.

Protection class : IP68 - 22 sizes / IP67 - 2 sizes
Operating temperature :
Models = 5-7-□ ～ 20-20-□
ASA -20℃ ~ +60℃ ・ Flame-resistant ABS -10℃ ~ +50℃
Models = 20-28-□
ASA -20℃ ~ +55℃ ・ Flame-resistant ABS -10℃ ~ +45℃

3D View - Small size (White) 3D View - (Dark Gray) 3D View - Square size (White) 3D View - Large size (White) Exploded view (Small size) Exploded view (Large size) IP68 Test Certificate IP67 Test Certificate

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			material	Color / Similar matching	Weight (g)	IP code	PDF	3D PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	material	Color / Similar matching	Weight (g)	IP code	PDF	3D PDF	DXF	DWG	STP
WP5-7-2C	52	18	65	46	13	37	ABS（UL94V-0）	Charcoal gray / Munsell N3	31.5	IP68	PDF	3D PDF	DXF	DWG
WP5-7-2G	52	18	65	46	13	37	ASA（UL94HB）	White gray / Munsell N8.75	31.5	IP68	PDF	3D PDF	DXF	DWG
WP5-7-3C	52	27	65	45	22	36.5	ABS（UL94V-0）	Charcoal gray / Munsell N3	39.5	IP68	PDF	3D PDF	DXF	DWG
WP5-7-3G	52	27	65	45	22	36.5	ASA（UL94HB）	White gray / Munsell N8.75	39.5	IP68	PDF	3D PDF	DXF	DWG
WP6-8-2C	60	20	80	53.5	14.7	52	ABS（UL94V-0）	Charcoal gray / Munsell N3	41.5	IP68	PDF	3D PDF	DXF	DWG
WP6-8-2G	60	20	80	53.5	14.7	52	ASA（UL94HB）	White gray / Munsell N8.75	41.5	IP68	PDF	3D PDF	DXF	DWG
WP6-8-3C	60	30	80	53	24.7	51	ABS（UL94V-0）	Charcoal gray / Munsell N3	49	IP68	PDF	3D PDF	DXF	DWG
WP6-8-3G	60	30	80	53	24.7	51	ASA（UL94HB）	White gray / Munsell N8.75	49	IP68	PDF	3D PDF	DXF	DWG
WP8-8-2C	75	22	75	67	16.4	42	ABS（UL94V-0）	Charcoal gray / Munsell N3	57.5	IP68	PDF	3D PDF	DXF	DWG
WP8-8-2G	75	22	75	67	16.4	42	ASA（UL94HB）	White gray / Munsell N8.75	57.5	IP68	PDF	3D PDF	DXF	DWG
WP8-8-4C	75	35	75	66	29.4	42	ABS（UL94V-0）	Charcoal gray / Munsell N3	88.5	IP68	PDF	3D PDF	DXF	DWG
WP8-8-4G	75	35	75	66	29.4	42	ASA（UL94HB）	White gray / Munsell N8.75	88.5	IP68	PDF	3D PDF	DXF	DWG
WP8-10-2C	75	22	100	67	16	67	ABS（UL94V-0）	Charcoal gray / Munsell N3	74	IP68	PDF	3D PDF	DXF	DWG
WP8-10-2G	75	22	100	67	16	67	ASA（UL94HB）	White gray / Munsell N8.75	74	IP68	PDF	3D PDF	DXF	DWG
WP8-10-4C	75	35	100	66	29	67	ABS（UL94V-0）	Charcoal gray / Munsell N3	95	IP68	PDF	3D PDF	DXF	DWG
WP8-10-4G	75	35	100	66	29	67	ASA（UL94HB）	White gray / Munsell N8.75	95	IP68	PDF	3D PDF	DXF	DWG
WP9-13-3C	90	25	130	81	18	91	ABS（UL94V-0）	Charcoal gray / Munsell N3	113	IP68	PDF	3D PDF	DXF	DWG
WP9-13-3G	90	25	130	81	18	91	ASA（UL94HB）	White gray / Munsell N8.75	113	IP68	PDF	3D PDF	DXF	DWG
WP9-13-4C	90	40	130	81	33	91	ABS（UL94V-0）	Charcoal gray / Munsell N3	141	IP68	PDF	3D PDF	DXF	DWG
WP9-13-4G	90	40	130	81	33	91	ASA（UL94HB）	White gray / Munsell N8.75	141	IP68	PDF	3D PDF	DXF	DWG
WP10-10-3C	100	25	100	90	18	61	ABS（UL94V-0）	Charcoal gray / Munsell N3	96	IP68	PDF	3D PDF	DXF	DWG
WP10-10-3G	100	25	100	90	18	61	ASA（UL94HB）	White gray / Munsell N8.75	96	IP68	PDF	3D PDF	DXF	DWG
WP10-10-4C	100	40	100	90	33	61	ABS（UL94V-0）	Charcoal gray / Munsell N3	121	IP68	PDF	3D PDF	DXF	DWG
WP10-10-4G	100	40	100	90	33	61	ASA（UL94HB）	White gray / Munsell N8.75	121	IP68	PDF	3D PDF	DXF	DWG
WP11-15-3C	110	27	150	100	20	110	ABS（UL94V-0）	Charcoal gray / Munsell N3	153	IP68	PDF	3D PDF	DXF	DWG
WP11-15-3G	110	27	150	100	20	110	ASA（UL94HB）	White gray / Munsell N8.75	153	IP68	PDF	3D PDF	DXF	DWG
WP11-15-4C	110	40	150	100	33	110	ABS（UL94V-0）	Charcoal gray / Munsell N3	181	IP68	PDF	3D PDF	DXF	DWG
WP11-15-4G	110	40	150	100	33	110	ASA（UL94HB）	White gray / Munsell N8.75	181	IP68	PDF	3D PDF	DXF	DWG
WP13-18-3C	130	30	175	120	23	135	ABS（UL94V-0）	Charcoal gray / Munsell N3	225	IP68	PDF	3D PDF	DXF	DWG
WP13-18-3G	130	30	175	120	23	135	ASA（UL94HB）	White gray / Munsell N8.75	225	IP68	PDF	3D PDF	DXF	DWG
WP13-18-5C	130	45	175	120	38	135	ABS（UL94V-0）	Charcoal gray / Munsell N3	266	IP68	PDF	3D PDF	DXF	DWG
WP13-18-5G	130	45	175	120	38	135	ASA（UL94HB）	White gray / Munsell N8.75	266	IP68	PDF	3D PDF	DXF	DWG
WP15-15-4C	150	40	150	141	33.5	100	ABS（UL94V-0）	Charcoal gray / Munsell N3	239	IP68	PDF	3D PDF	DXF	DWG
WP15-15-4G	150	40	150	141	33.5	100	ASA（UL94HB）	White gray / Munsell N8.75	239	IP68	PDF	3D PDF	DXF	DWG
WP15-15-6C	150	55	150	140	48.5	100	ABS（UL94V-0）	Charcoal gray / Munsell N3	282.5	IP68	PDF	3D PDF	DXF	DWG
WP15-15-6G	150	55	150	140	48.5	100	ASA（UL94HB）	White gray / Munsell N8.75	282.5	IP68	PDF	3D PDF	DXF	DWG
WP15-21-4C	150	40	210	141	33.5	160	ABS（UL94V-0）	Charcoal gray / Munsell N3	323	IP68	PDF	3D PDF	DXF	DWG
WP15-21-4G	150	40	210	141	33.5	160	ASA（UL94HB）	White gray / Munsell N8.75	323	IP68	PDF	3D PDF	DXF	DWG
WP15-21-6C	150	55	210	140	48.5	160	ABS（UL94V-0）	Charcoal gray / Munsell N3	367.5	IP68	PDF	3D PDF	DXF	DWG
WP15-21-6G	150	55	210	140	48.5	160	ASA（UL94HB）	White gray / Munsell N8.75	367.5	IP68	PDF	3D PDF	DXF	DWG
WP20-20-5C	200	45	200	190	38.5	150	ABS（UL94V-0）	Charcoal gray / Munsell N3	434	IP68	PDF	3D PDF	DXF	DWG
WP20-20-5G	200	45	200	190	38.5	150	ASA（UL94HB）	White gray / Munsell N8.75	434	IP68	PDF	3D PDF	DXF	DWG
WP20-20-7C	200	65	200	189	58.5	149	ABS（UL94V-0）	Charcoal gray / Munsell N3	505	IP68	PDF	3D PDF	DXF	DWG
WP20-20-7G	200	65	200	189	58.5	149	ASA（UL94HB）	White gray / Munsell N8.75	505	IP68	PDF	3D PDF	DXF	DWG
WP20-28-5C	200	45	280	190	38.5	230	ABS（UL94V-0）	Charcoal gray / Munsell N3	557.5	IP67	PDF	3D PDF	DXF	DWG
WP20-28-5G	200	45	280	190	38.5	230	ASA（UL94HB）	White gray / Munsell N8.75	557.5	IP67	PDF	3D PDF	DXF	DWG
WP20-28-7C	200	65	280	189	58.5	229	ABS（UL94V-0）	Charcoal gray / Munsell N3	646	IP67	PDF	3D PDF	DXF	DWG
WP20-28-7G	200	65	280	189	58.5	229	ASA（UL94HB）	White gray / Munsell N8.75	646	IP67	PDF	3D PDF	DXF	DWG
