FLANGED NETWORK PLASTIC BOX - PFF series

FLANGED NETWORK PLASTIC BOX - PFF series

CATEGORY：Wall mount plastic enclosure, Flanged enclosure, Network enclosure, IOT enclosure, Wireless router enclosure, Access point box

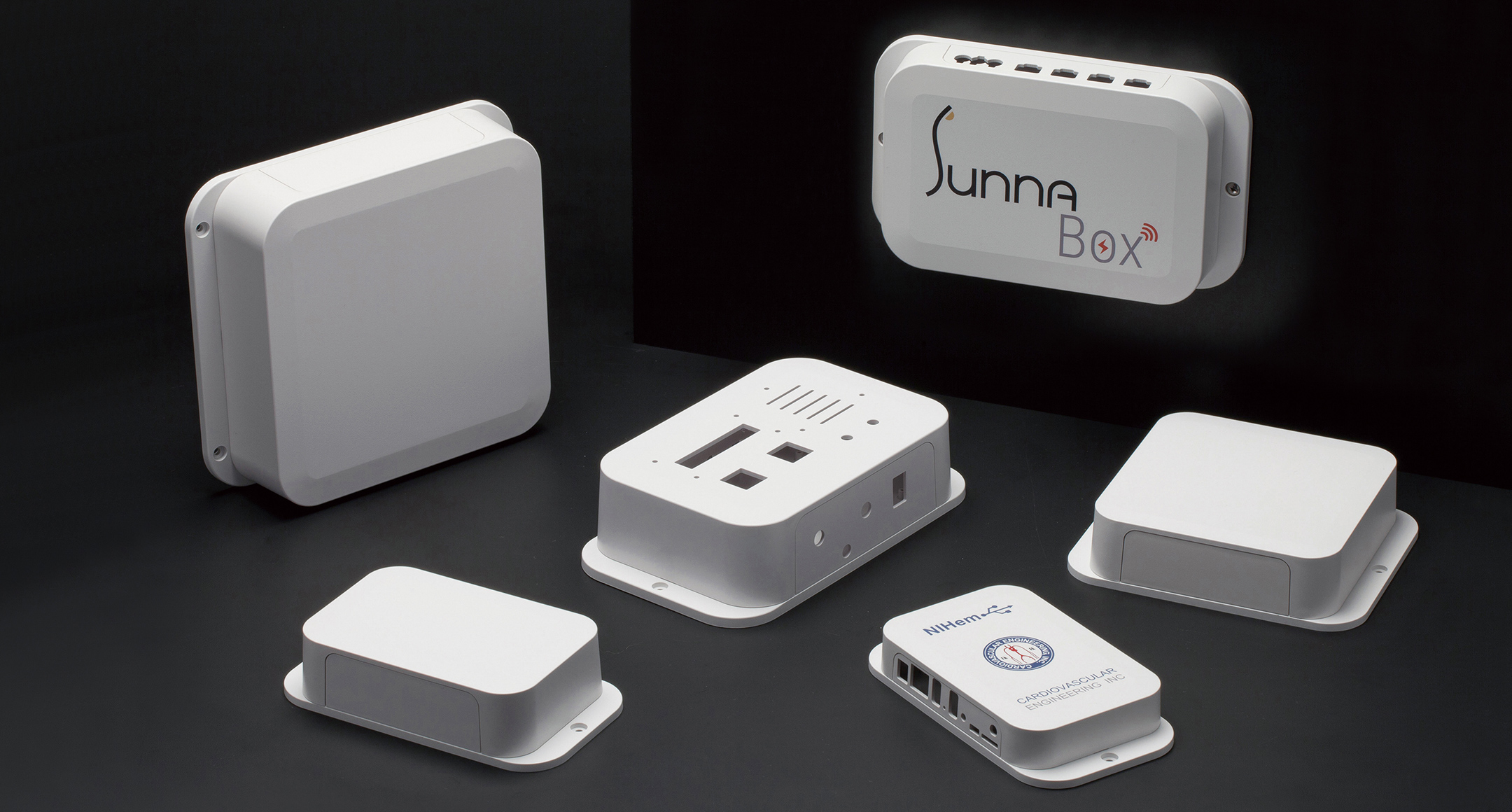

FLANGED NETWORK PLASTIC BOX - PFF series1

FLANGED NETWORK PLASTIC BOX - PFF series2

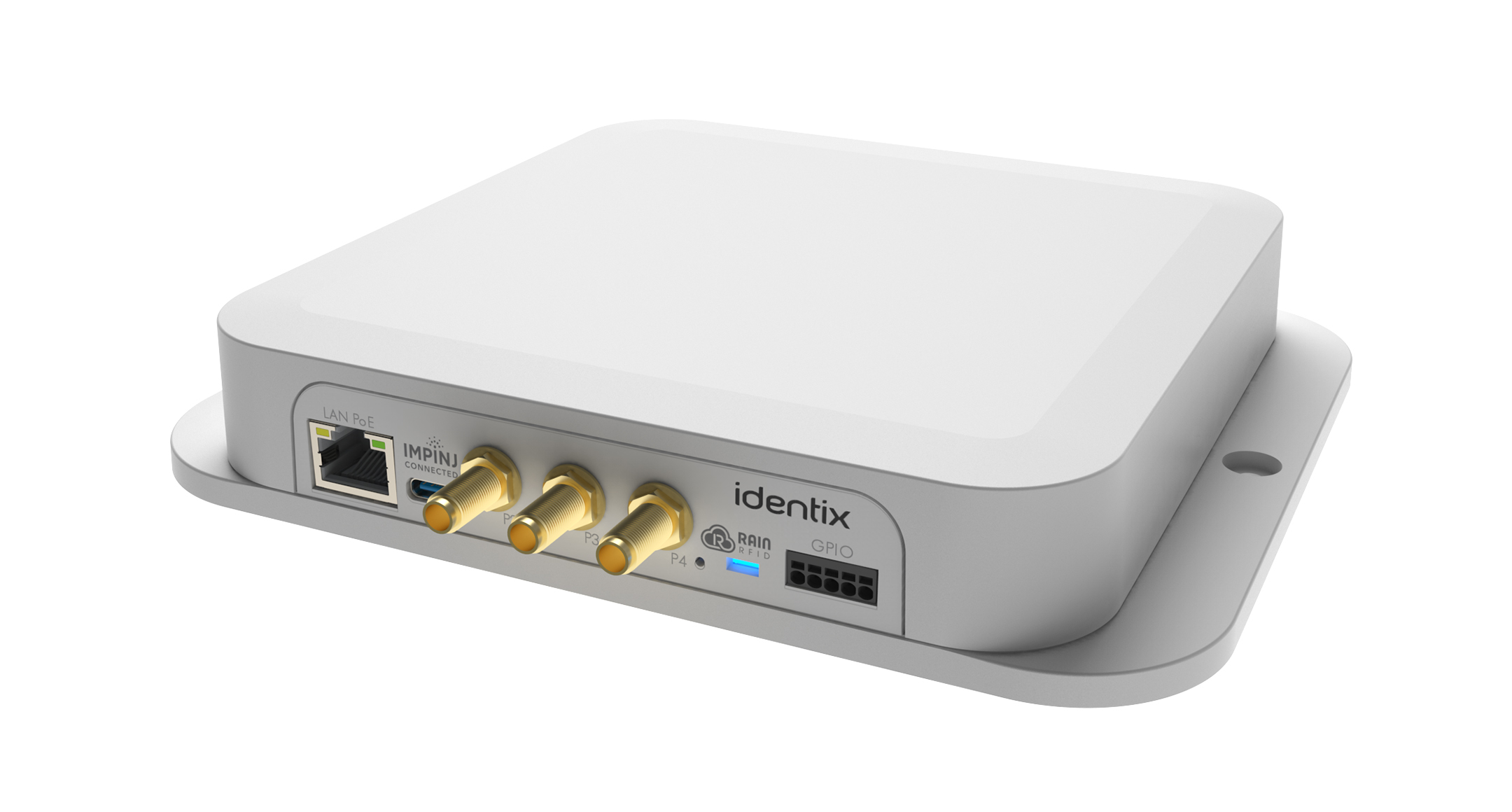

FLANGED NETWORK PLASTIC BOX - PFF series3

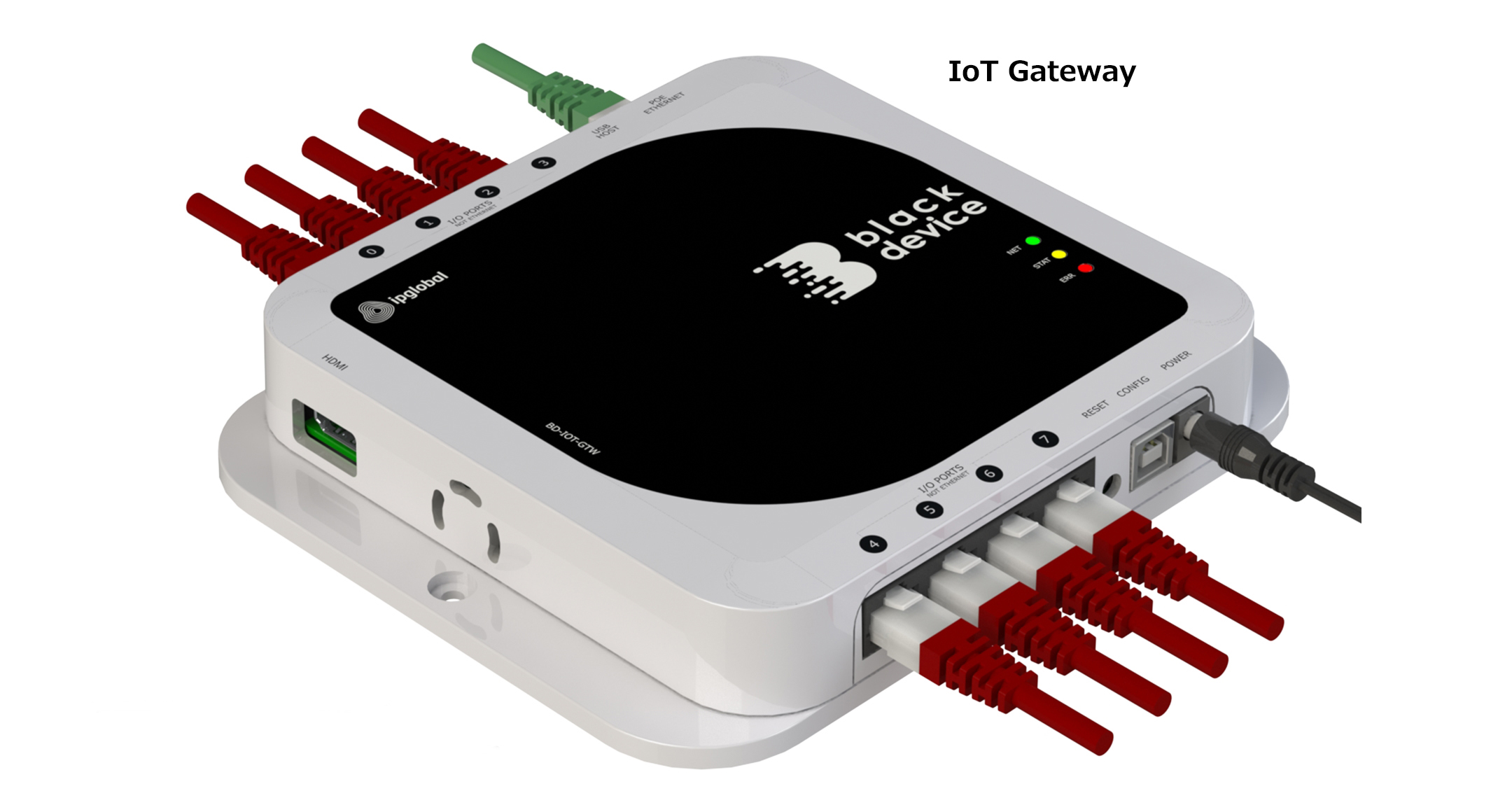

FLANGED NETWORK PLASTIC BOX - PFF series4

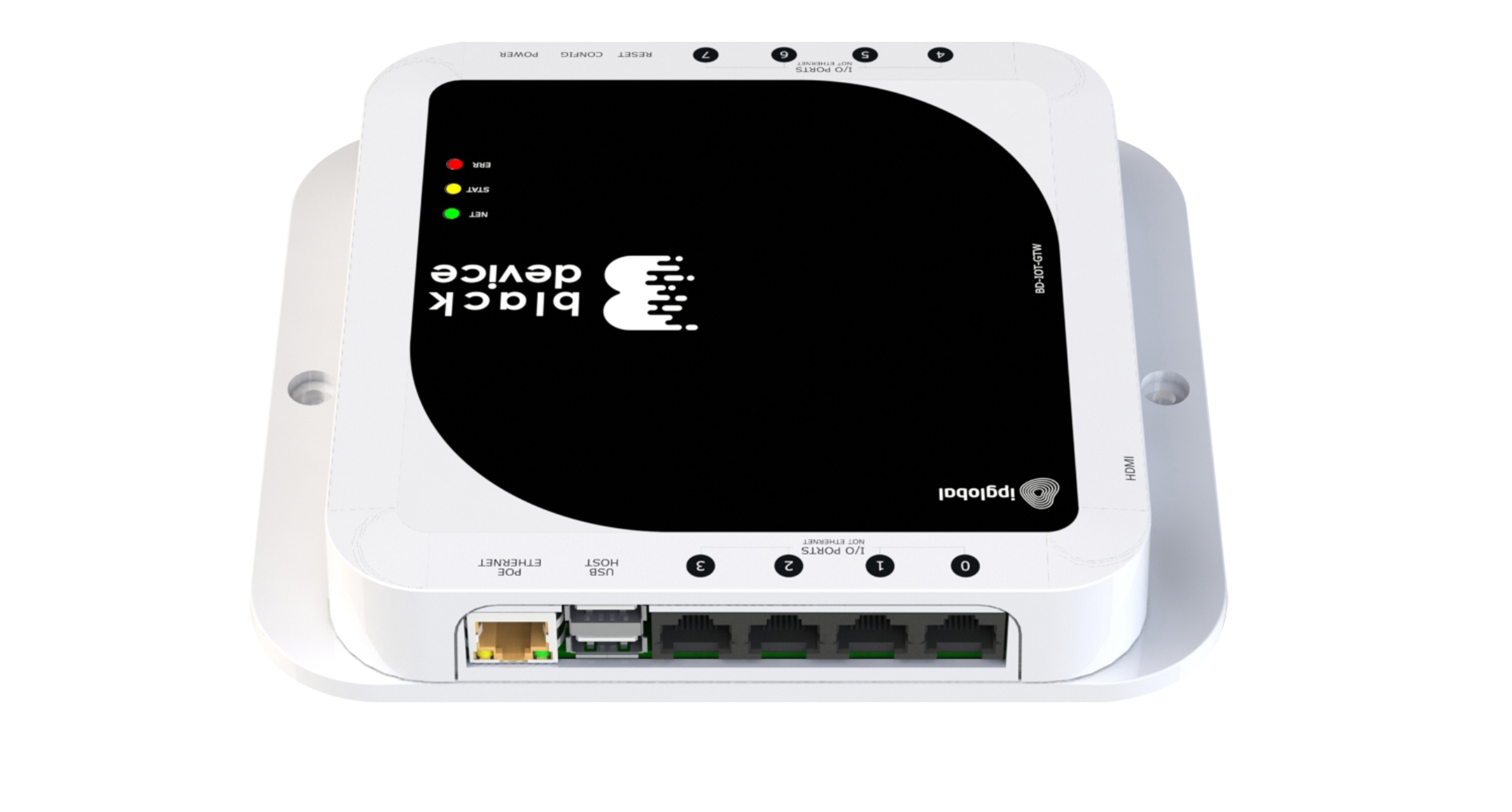

FLANGED NETWORK PLASTIC BOX - PFF series5

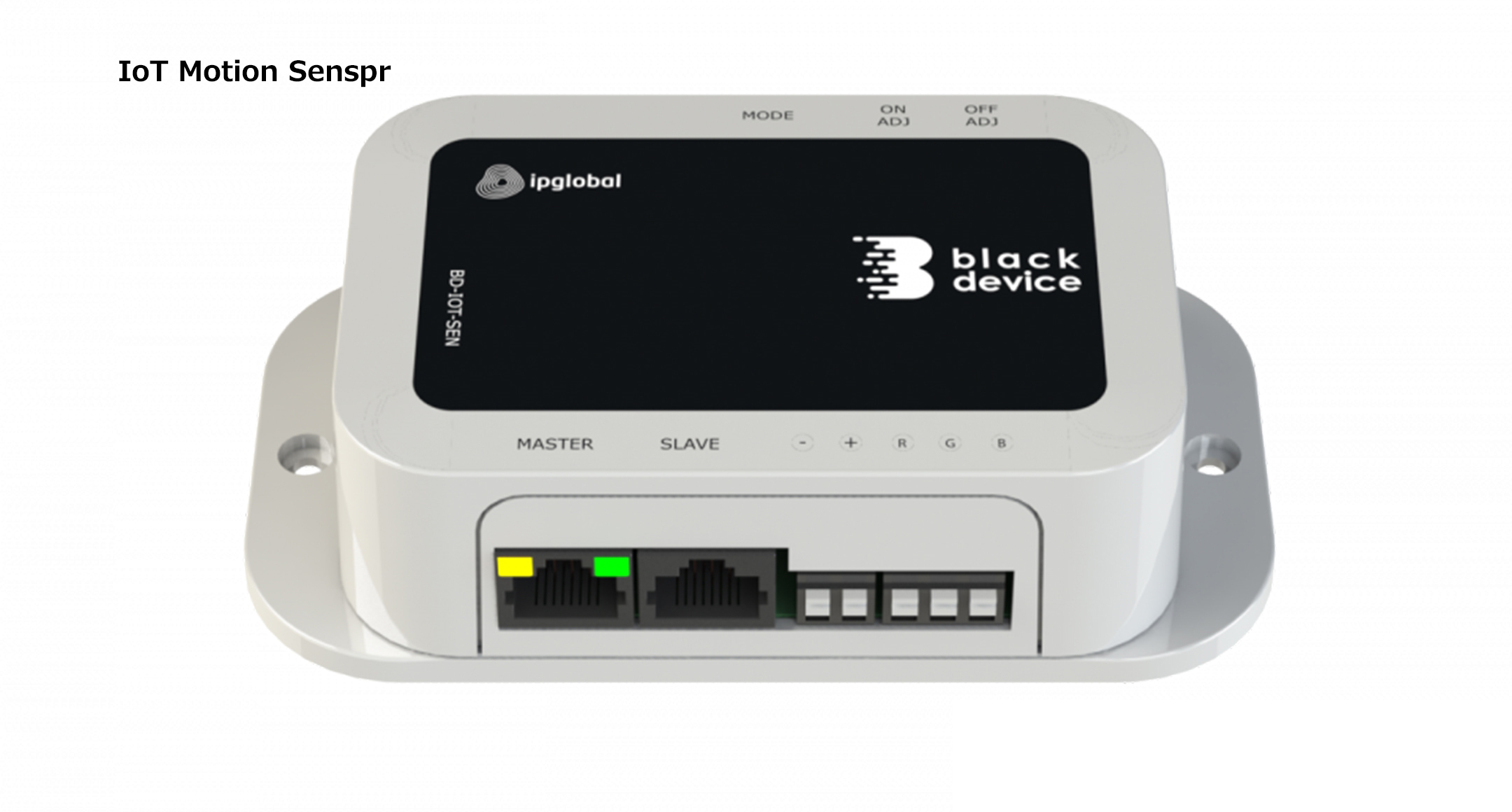

FLANGED NETWORK PLASTIC BOX - PFF series6

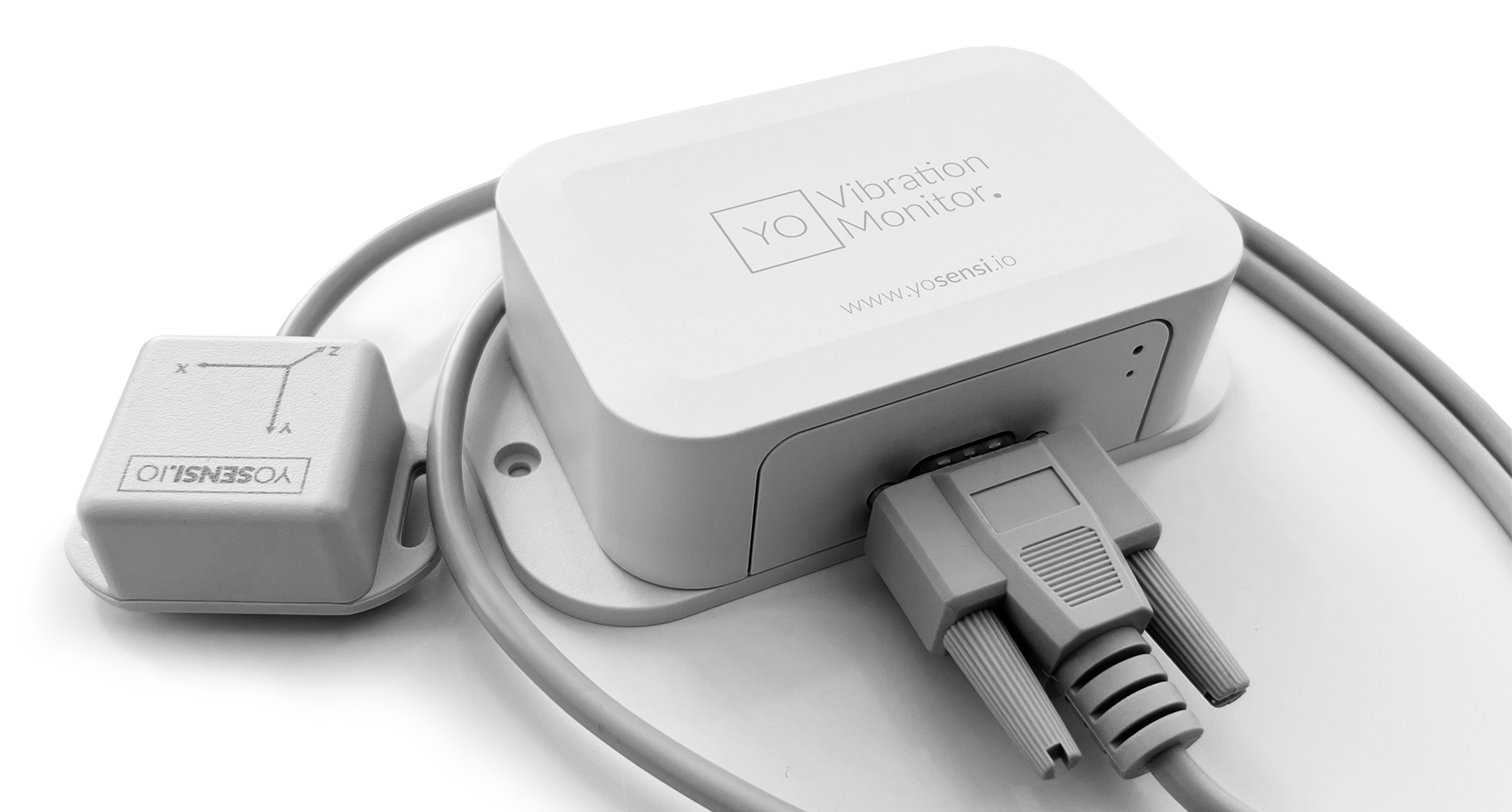

FLANGED NETWORK PLASTIC BOX - PFF series7

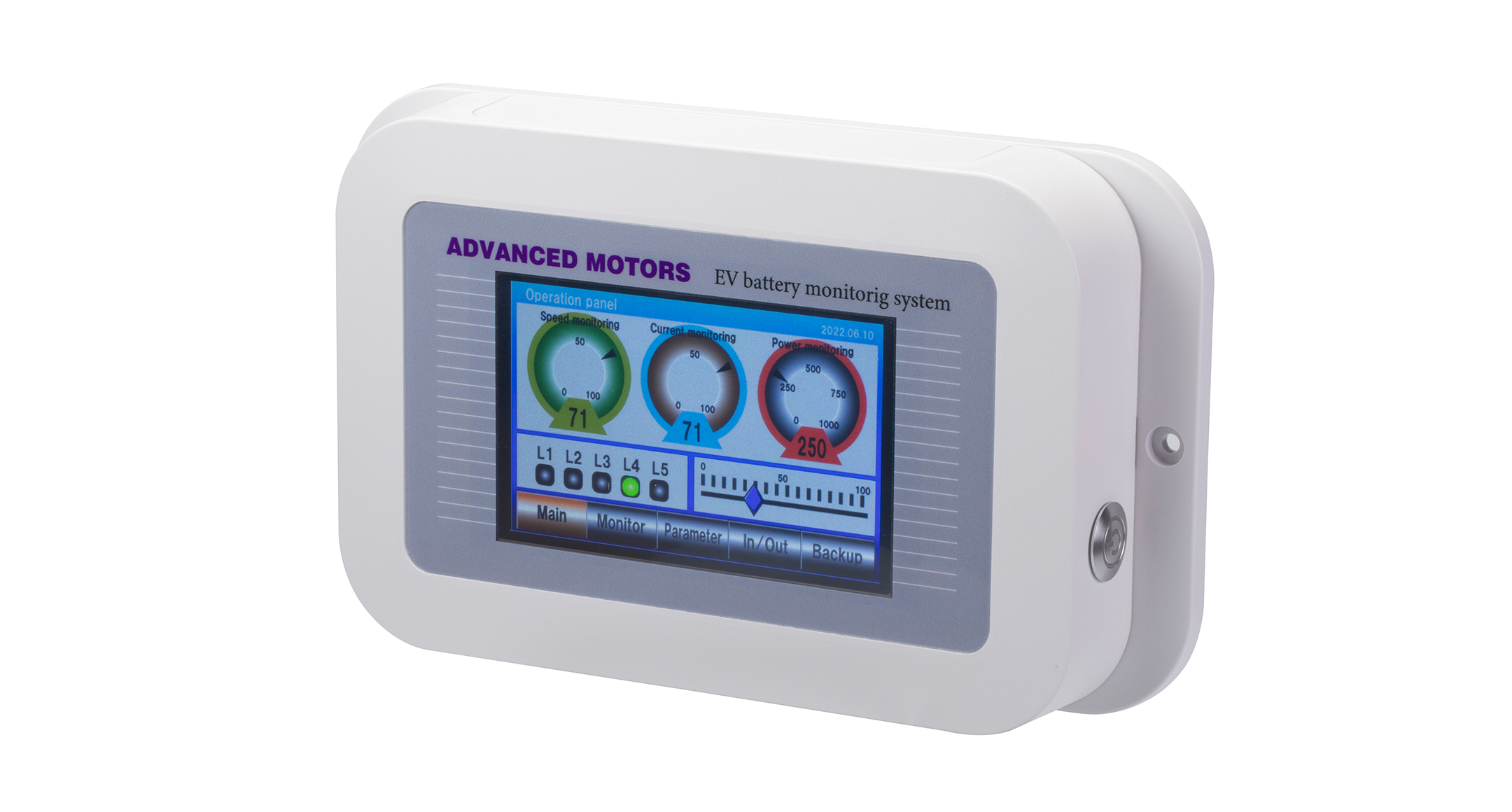

FLANGED NETWORK PLASTIC BOX - PFF series8

FLANGED NETWORK PLASTIC BOX - PFF series9

FLANGED NETWORK PLASTIC BOX - PFF series10

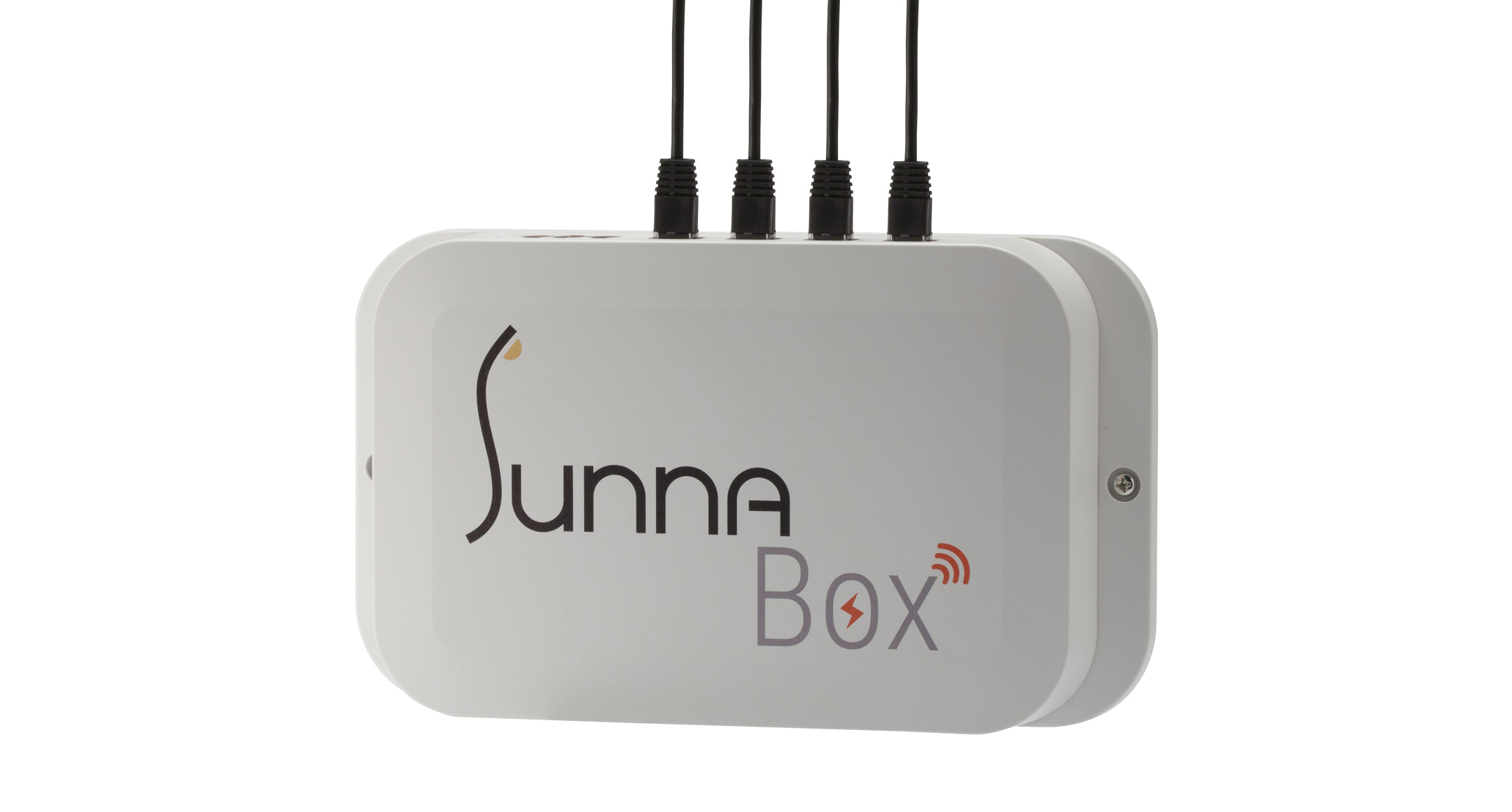

FLANGED NETWORK PLASTIC BOX - PFF series11

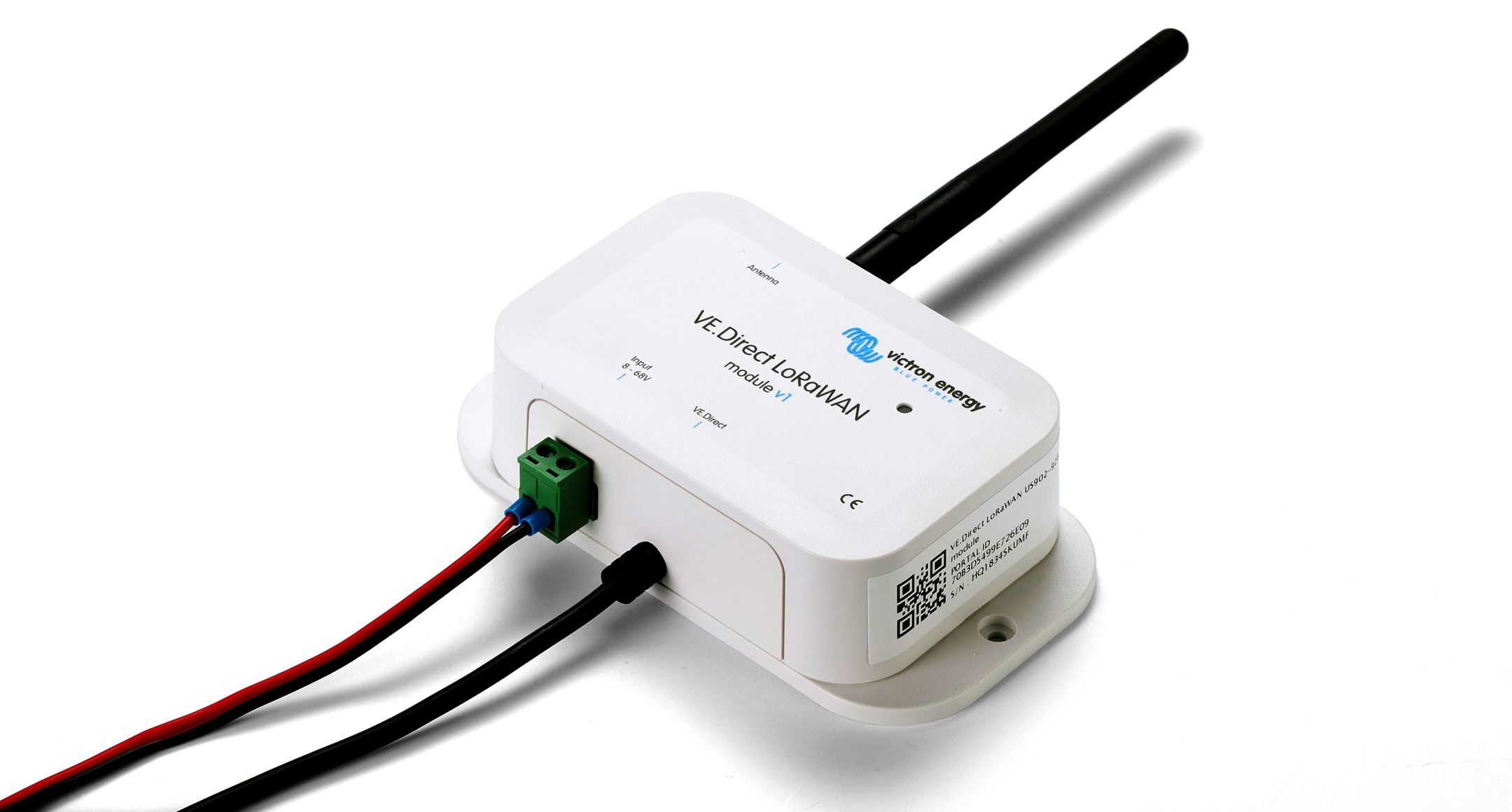

FLANGED NETWORK PLASTIC BOX - PFF series12

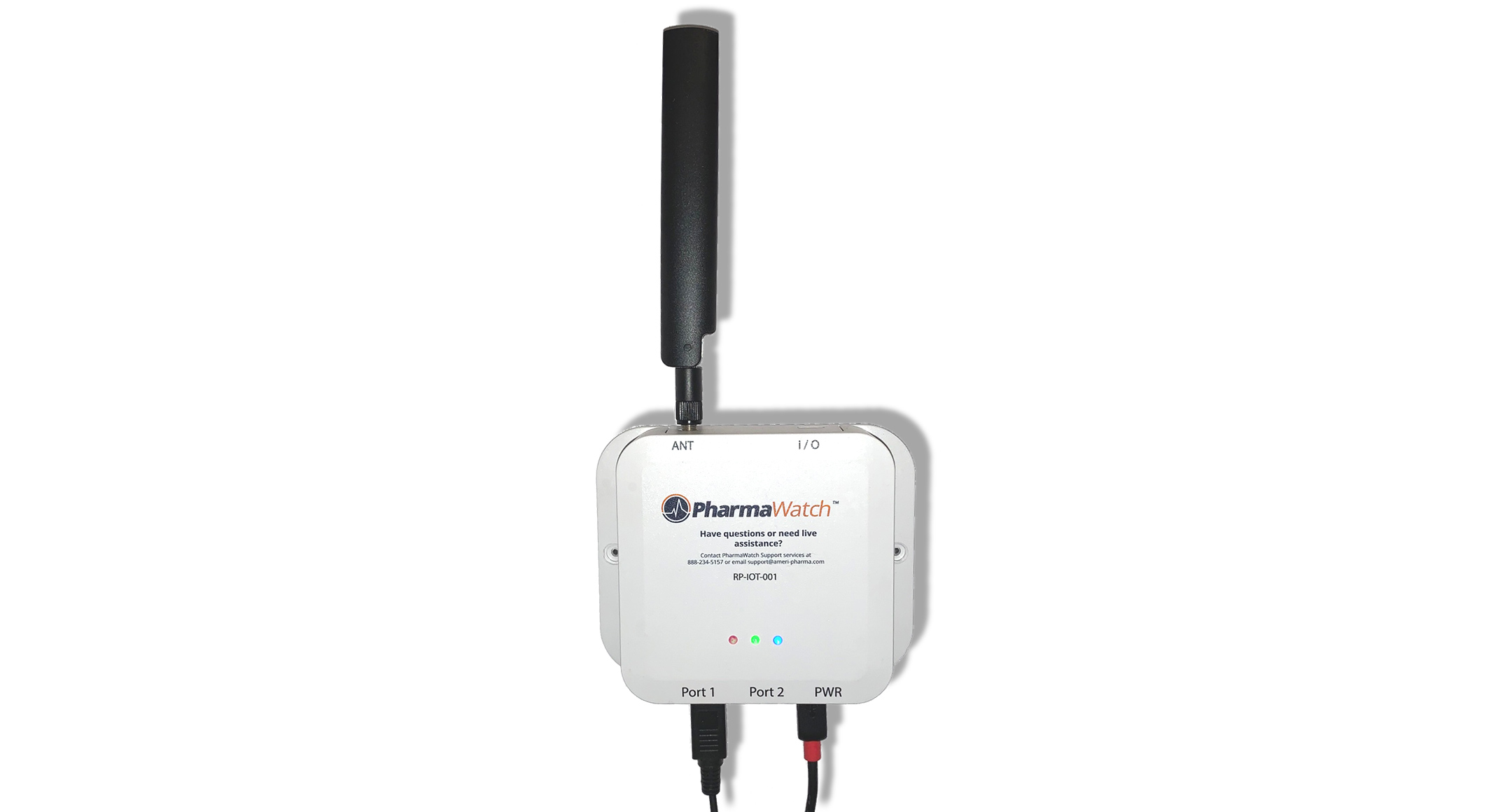

FLANGED NETWORK PLASTIC BOX - PFF series13

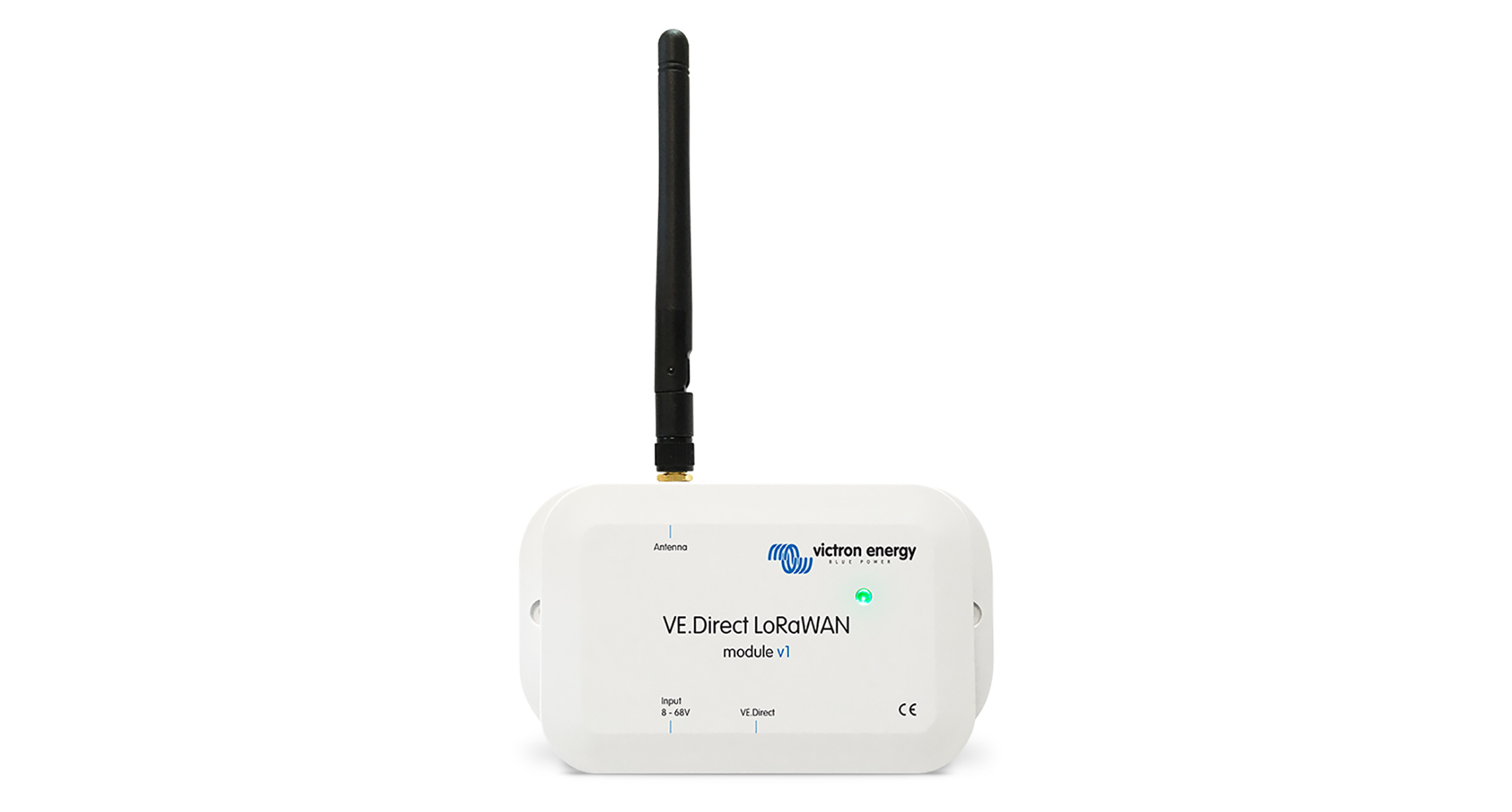

FLANGED NETWORK PLASTIC BOX - PFF series14

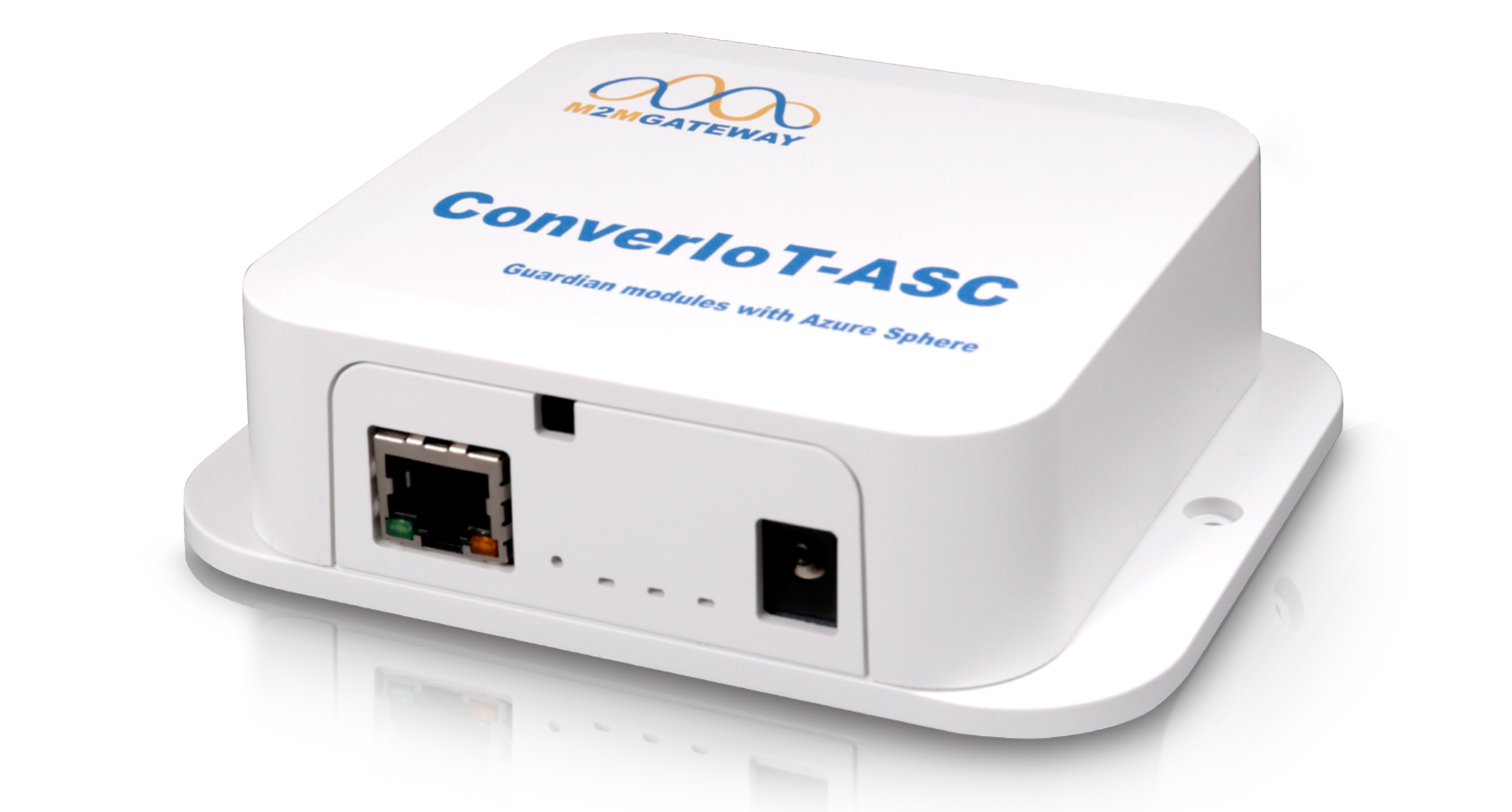

FLANGED NETWORK PLASTIC BOX - PFF series15

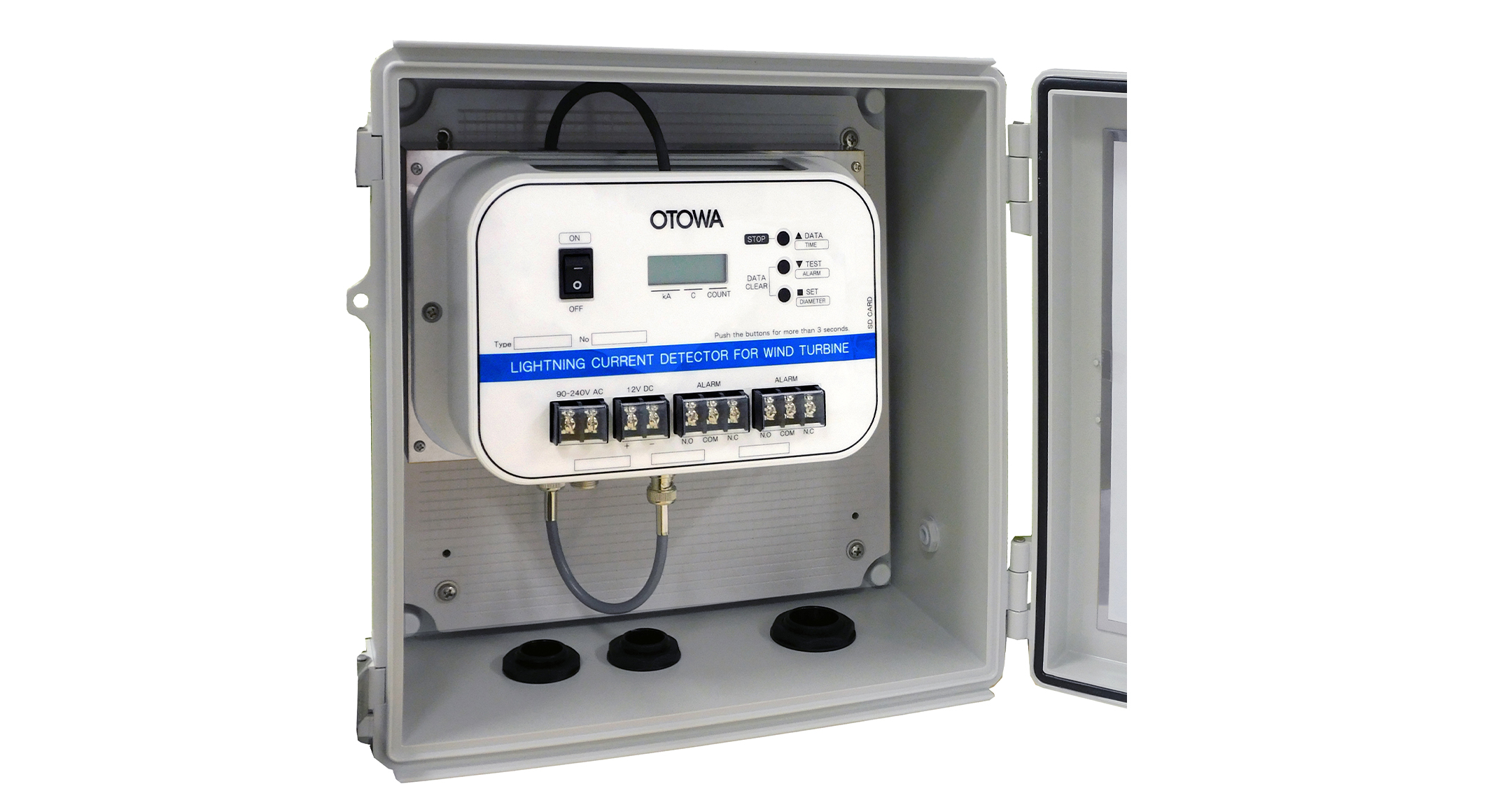

FLANGED NETWORK PLASTIC BOX - PFF series16

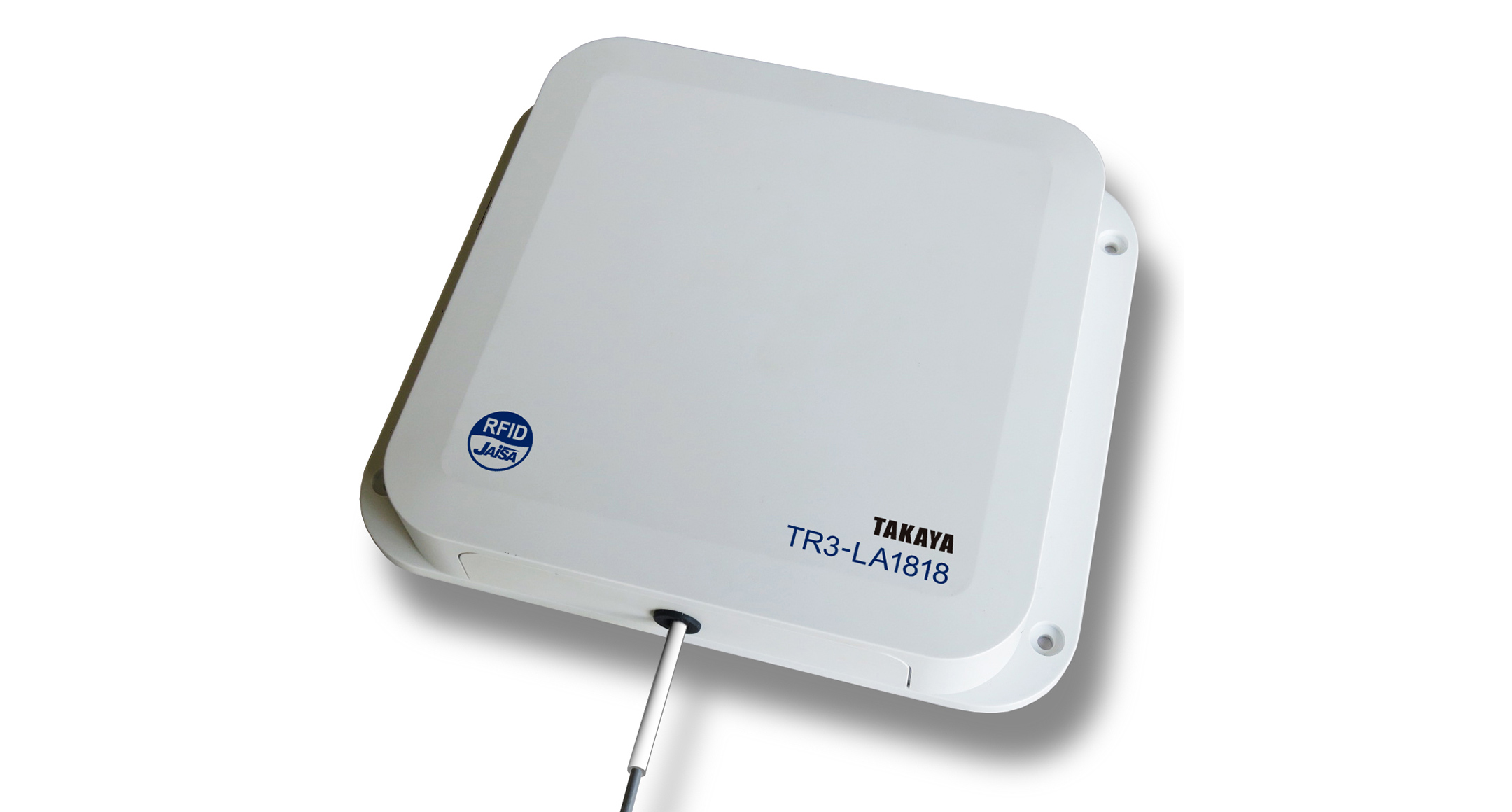

FLANGED NETWORK PLASTIC BOX - PFF series17

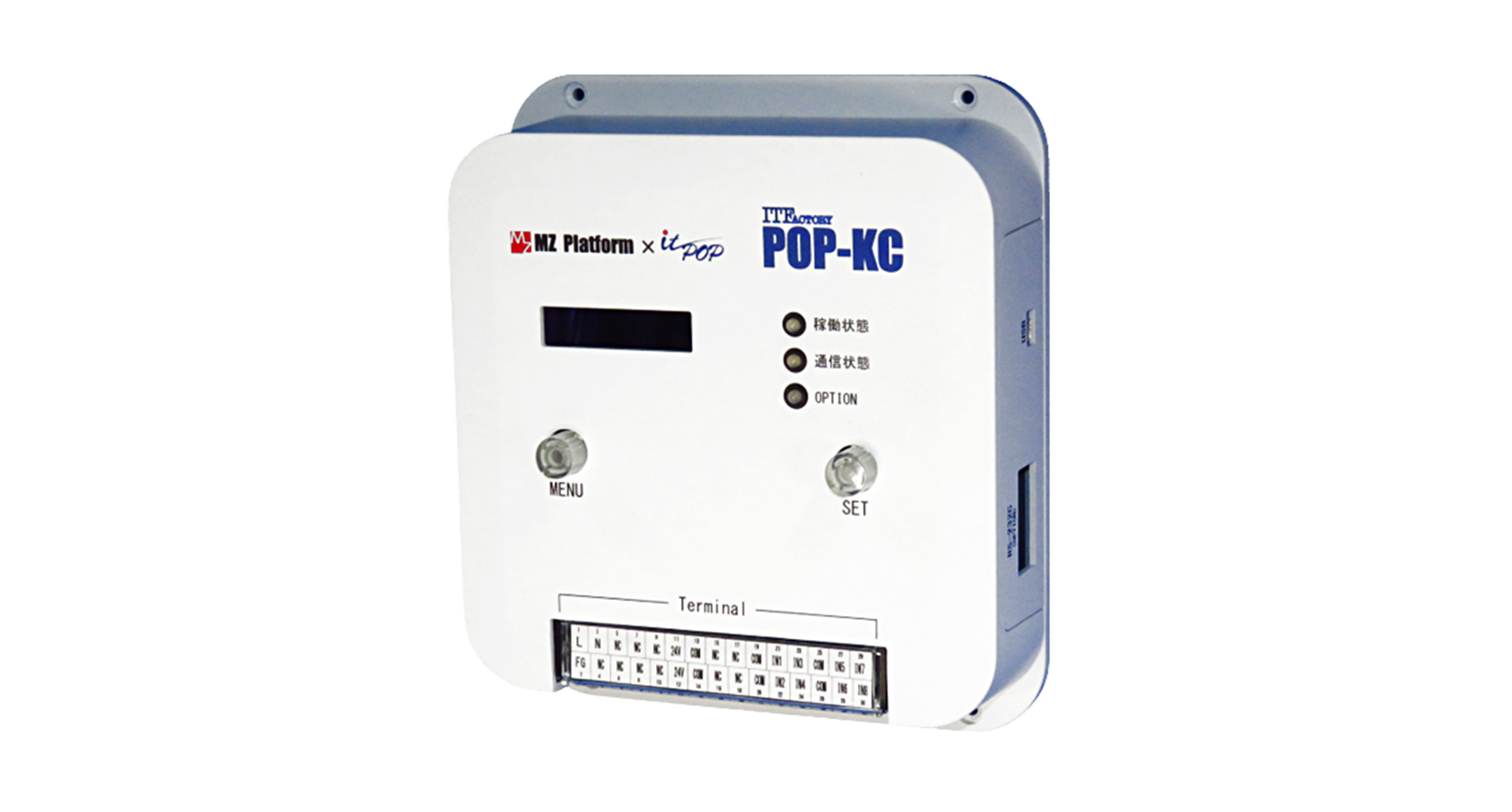

FLANGED NETWORK PLASTIC BOX - PFF series18

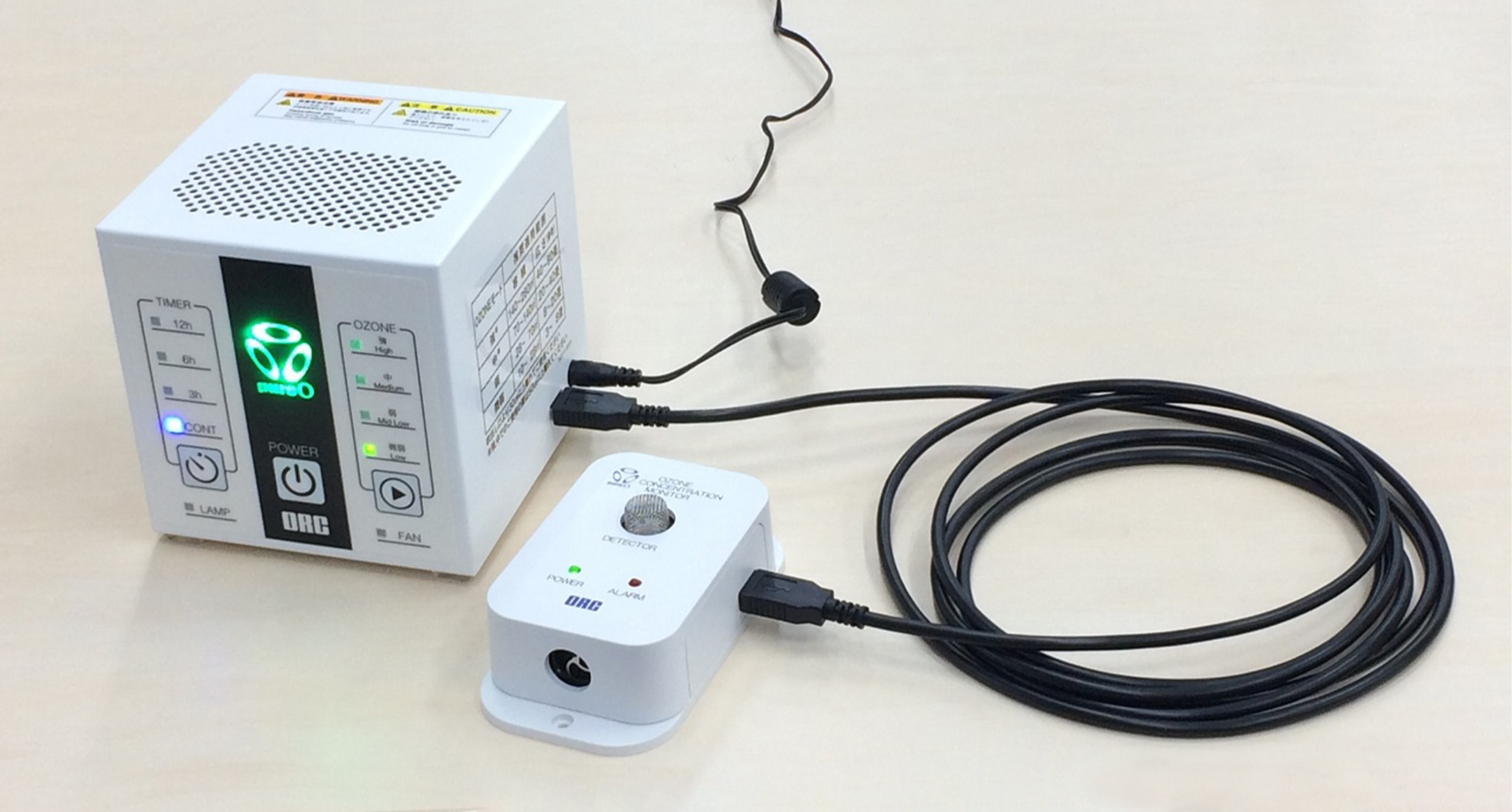

FLANGED NETWORK PLASTIC BOX - PFF series19

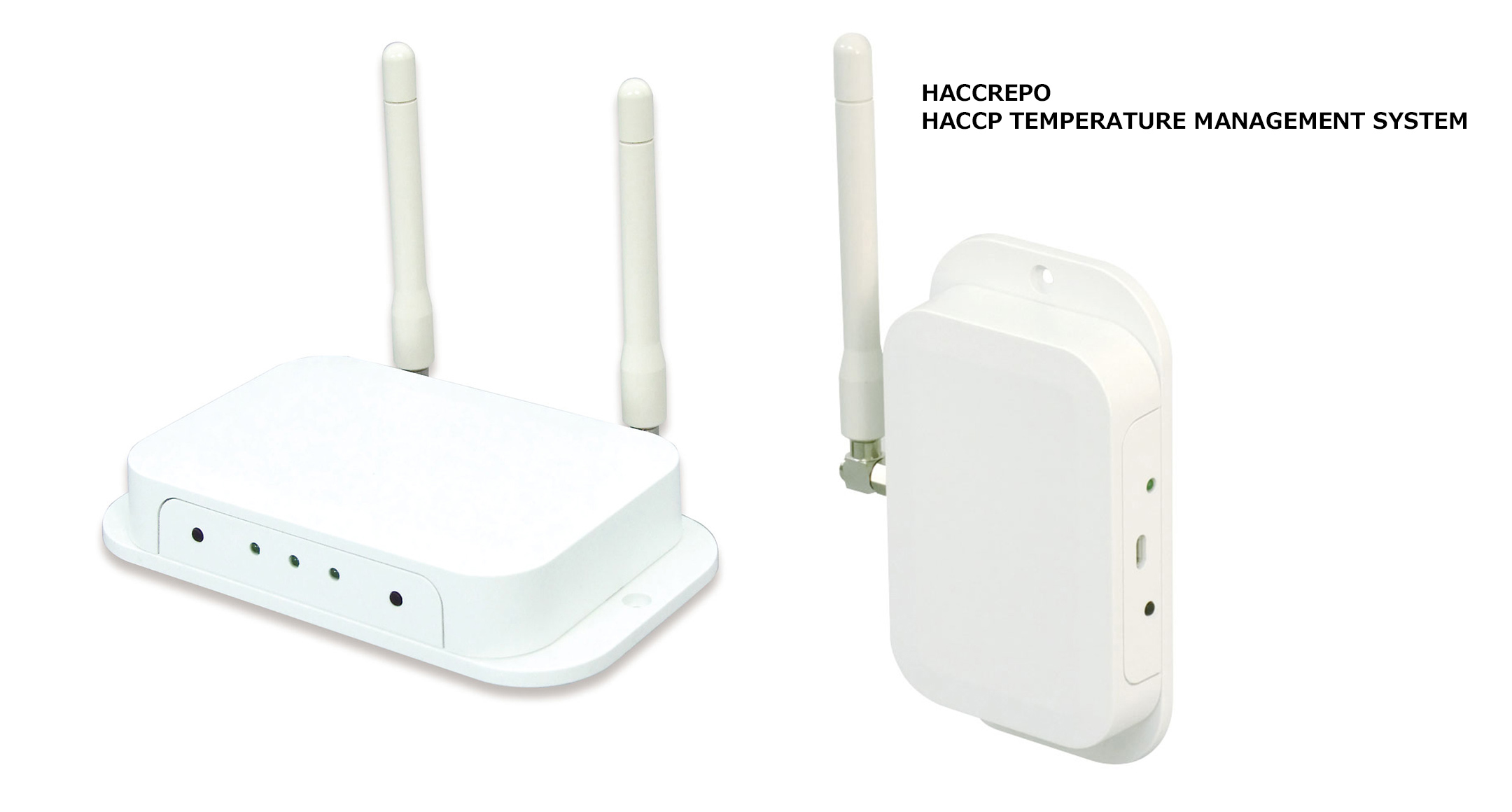

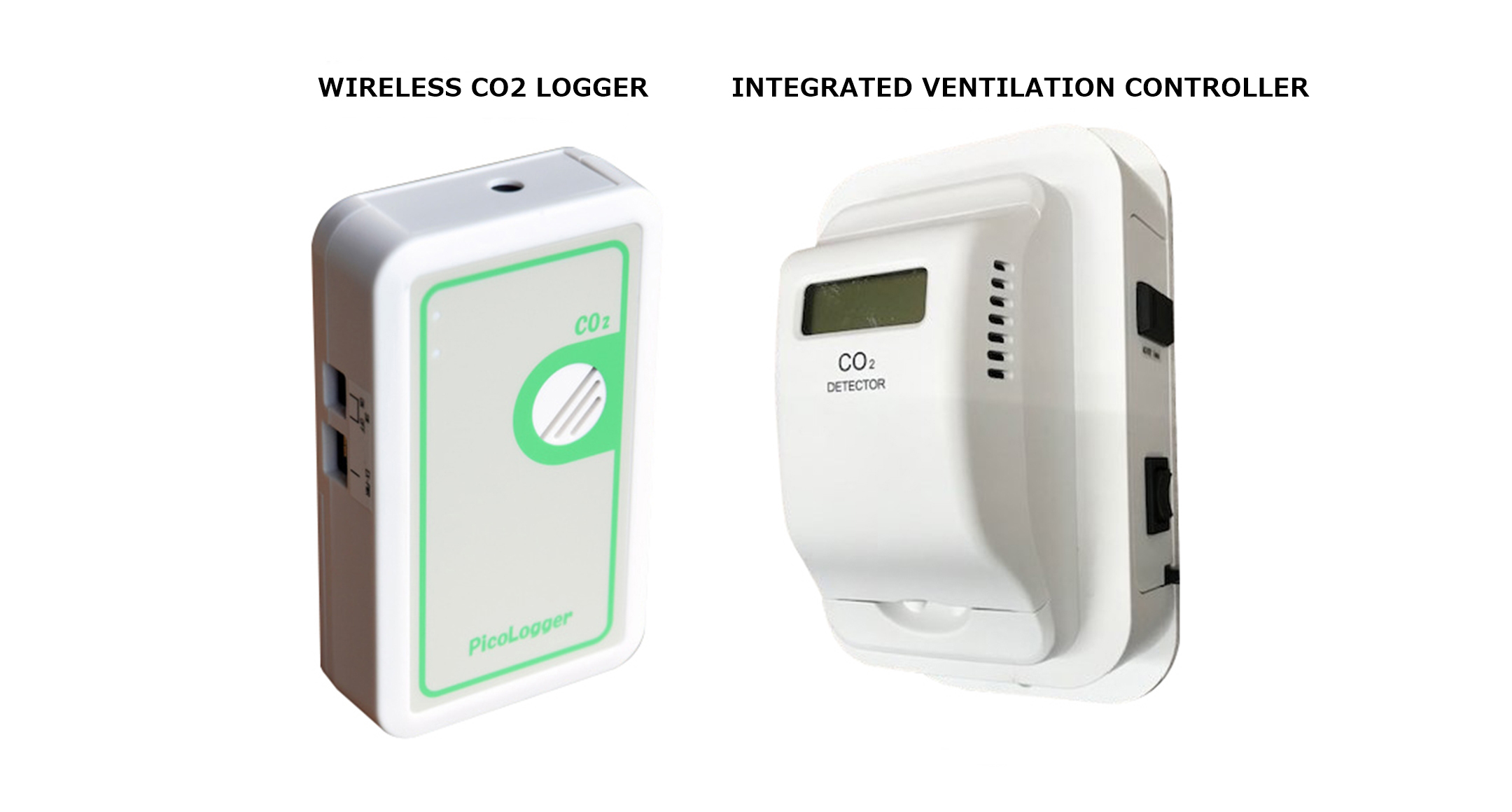

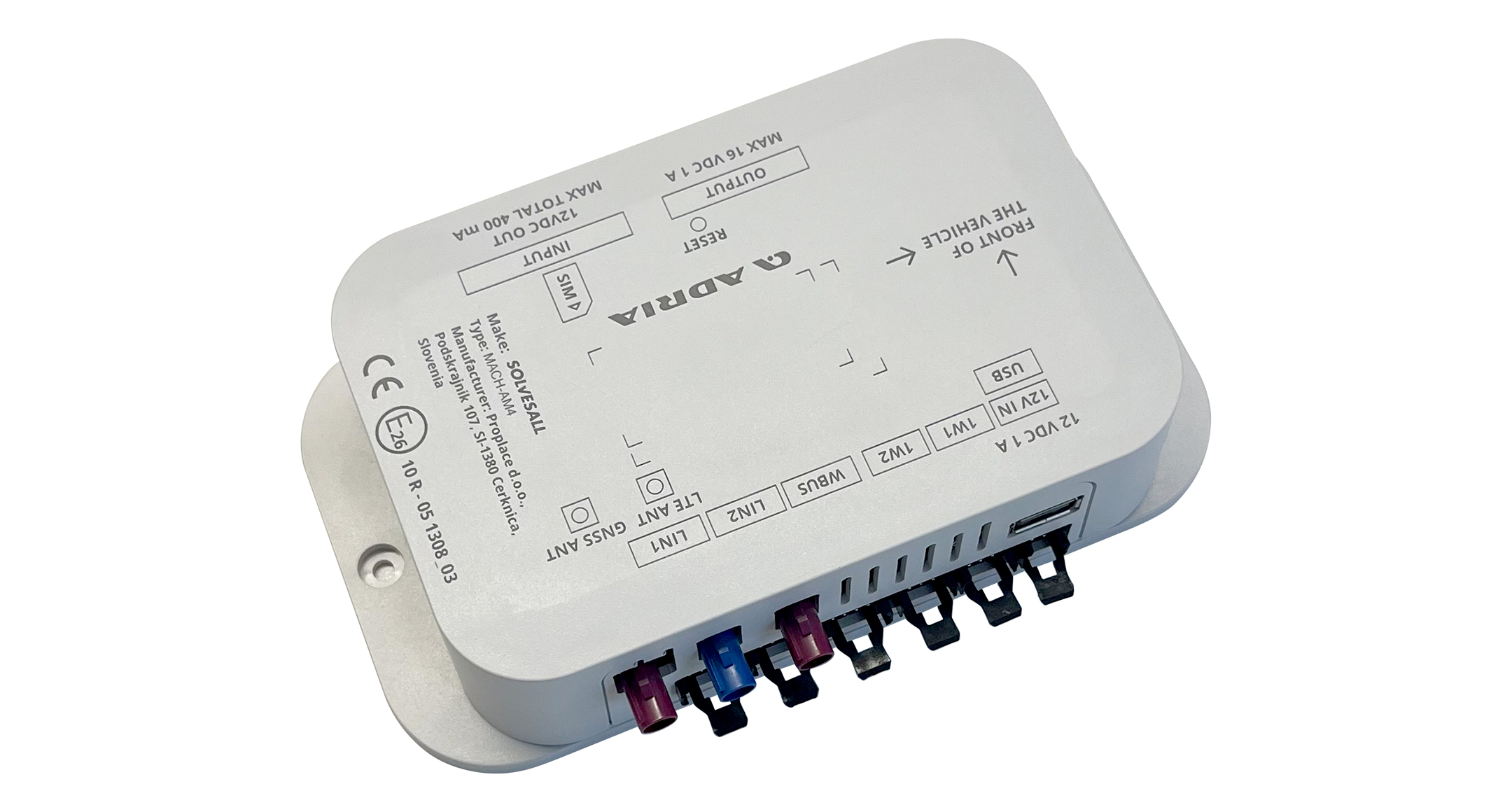

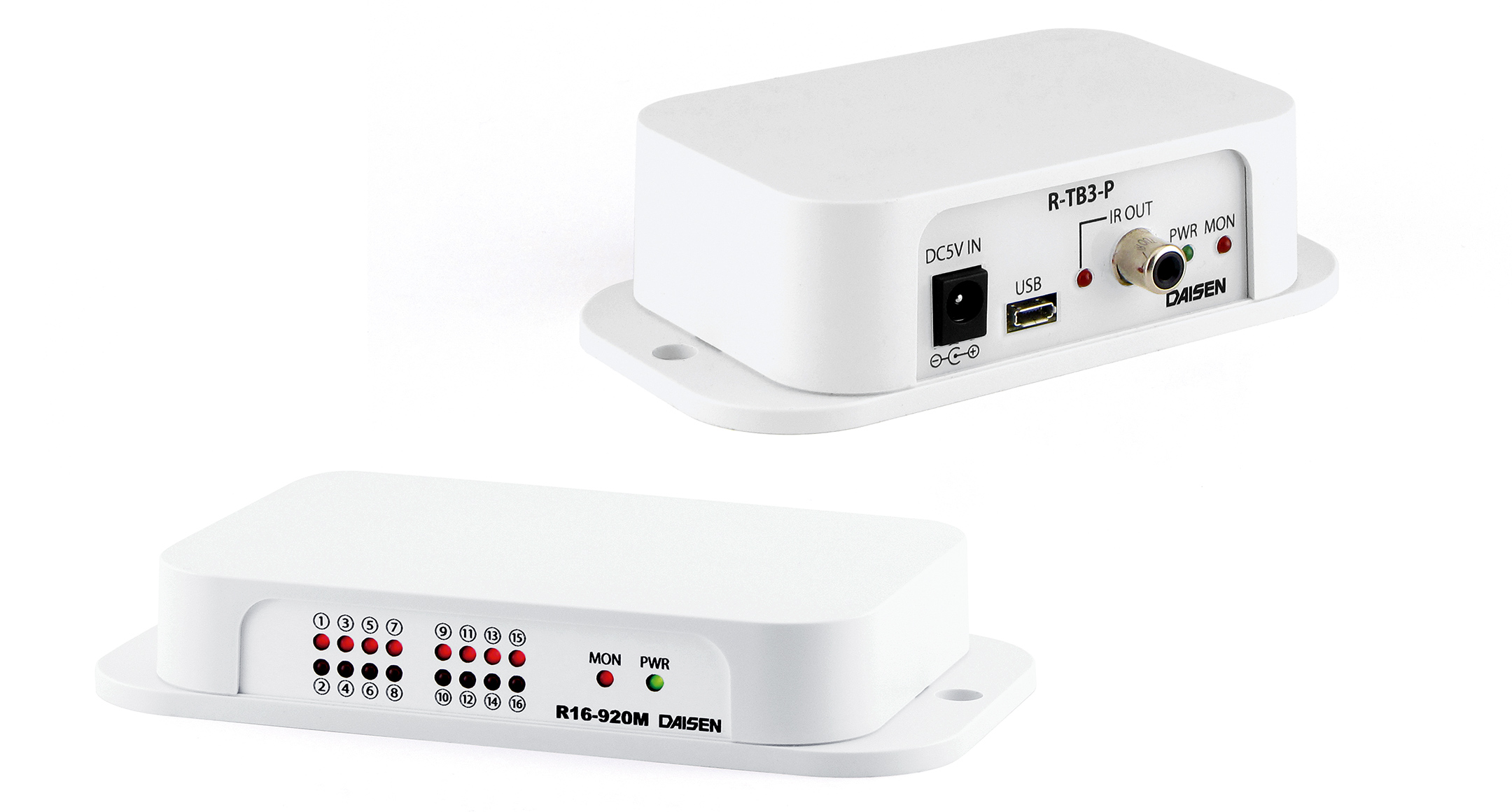

FLANGED NETWORK PLASTIC BOX - PFF series20

Flat designed plastic enclosure with wall mounting flange.
Suitable for Wi-Fi access point, IOT gateway, HUB, data logger or other applications.

30 different sizes available for selection.

Plastic material : Flame-resistant ABS UL94V-0
Protection class: IP40
Operating temperature: -10℃ ~ +60℃

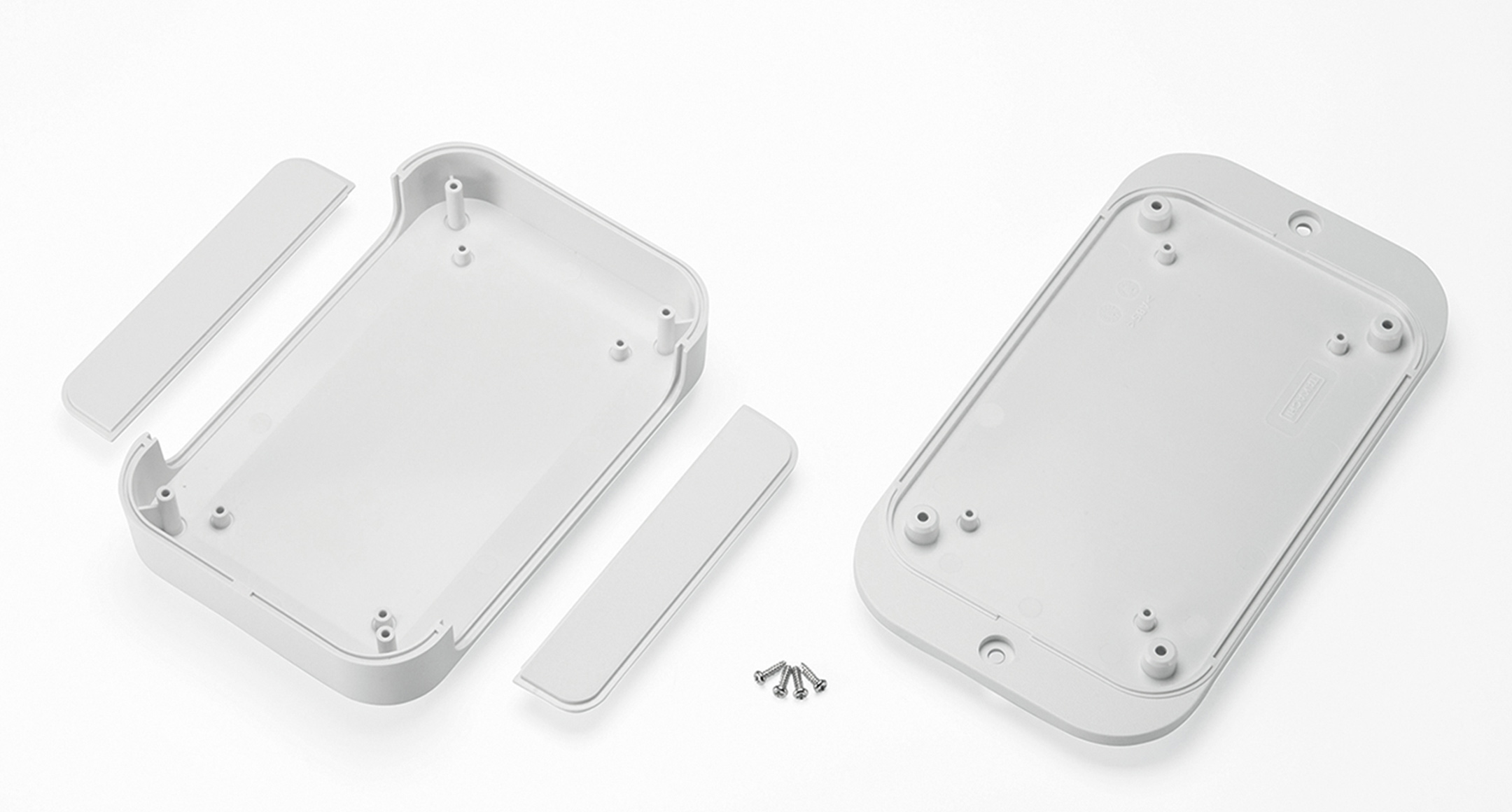

3D View 3D View - Square size 3D View - Large size Exploded view

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Color / Similar matching	Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Color / Similar matching	Weight (g)	PDF	DXF	DWG	STP
PFF10-2-7W	124.3	22.5	67.3	67.4	11.1	58.4	Off-white / Munsell N8.75	60.8	PDF	DXF	DWG
PFF10-2-10W	124.3	22.5	100.3	67.4	11.1	91.4	Off-white / Munsell N8.75	84.6	PDF	DXF	DWG
PFF10-4-7W	124.3	35	67.3	67.4	23.6	57.5	Off-white / Munsell N8.75	72	PDF	DXF	DWG
PFF10-4-10W	124.3	35	100.3	67.4	23.6	90.5	Off-white / Munsell N8.75	99.1	PDF	DXF	DWG
PFF13-3-9W	149.3	25	85.3	92.4	13.5	76.2	Off-white / Munsell N8.75	90.8	PDF	DXF	DWG
PFF13-3-13W	155.3	25	125.3	92.4	13.5	116.2	Off-white / Munsell N8.75	128.6	PDF	DXF	DWG
PFF13-4-9W	149.3	40	85.3	92.4	28.5	75.2	Off-white / Munsell N8.75	108.4	PDF	DXF	DWG
PFF13-4-13W	155.3	40	125.3	92.4	28.5	115.2	Off-white / Munsell N8.75	152.3	PDF	DXF	DWG
PFF15-3-10W	180.4	30	100.4	112.4	17.8	90	Off-white / Munsell N8.75	145.2	PDF	DXF	DWG
PFF15-3-15W	180.4	30	150.4	112.4	17.8	140	Off-white / Munsell N8.75	211.3	PDF	DXF	DWG
PFF15-5-10W	180.4	45	100.4	112.4	32.8	88.9	Off-white / Munsell N8.75	168.6	PDF	DXF	DWG
PFF15-5-15W	180.4	45	150.4	112.4	32.8	138.9	Off-white / Munsell N8.75	235	PDF	DXF	DWG
PFF18-4-12W	205.4	35	120.4	132.4	22.4	110.3	Off-white / Munsell N8.75	192.1	PDF	DXF	DWG
PFF18-4-18W	205.4	35	175.4	132.4	22.4	165.3	Off-white / Munsell N8.75	209.8	PDF	DXF	DWG
PFF18-5-12W	205.4	50	120.4	132.4	37.4	109.3	Off-white / Munsell N8.75	215.8	PDF	DXF	DWG
PFF18-5-18W	205.4	50	175.4	132.4	37.4	164.3	Off-white / Munsell N8.75	299.7	PDF	DXF	DWG
PFF20-4-13W	230.5	40	135.5	151.6	27.3	124.4	Off-white / Munsell N8.75	267.7	PDF	DXF	DWG
PFF20-4-20W	230.5	40	200.5	151.6	27.3	189.4	Off-white / Munsell N8.75	376	PDF	DXF	DWG
PFF20-6-13W	230.5	60	135.5	151.6	47.3	123	Off-white / Munsell N8.75	309.7	PDF	DXF	DWG
PFF20-6-20W	230.5	60	200.5	151.6	47.3	188	Off-white / Munsell N8.75	422.9	PDF	DXF	DWG
PFF24-4-17W	270.5	42.5	165.5	187.6	29.5	154.5	Off-white / Munsell N8.75	366.9	PDF	DXF	DWG
PFF24-4-24W	270.5	42.5	240.5	187.6	29.5	229.5	Off-white / Munsell N8.75	513.5	PDF	DXF	DWG
PFF24-6-17W	270.5	60	165.5	187.6	47	153.2	Off-white / Munsell N8.75	403.8	PDF	DXF	DWG
PFF24-6-24W	270.5	60	240.5	187.6	47	228.2	Off-white / Munsell N8.75	560.8	PDF	DXF	DWG
PFF28-5-20W	310.5	45	200.5	223.2	31.4	189.3	Off-white / Munsell N8.75	547.5	PDF	DXF	DWG
PFF28-7-20W	310.5	65	200.5	223.2	51.4	187.9	Off-white / Munsell N8.75	606.6	PDF	DXF	DWG
PFF28-9-20W	310.5	90	200.5	223.2	76.4	186.2	Off-white / Munsell N8.75	694.1	PDF	DXF	DWG
PFF32-5-23W	350.5	45	225.5	259.2	31.3	214.3	Off-white / Munsell N8.75	679.9	PDF	DXF	DWG
PFF32-7-23W	350.5	70	225.5	259.2	56.3	212.6	Off-white / Munsell N8.75	767.4	PDF	DXF	DWG
PFF32-10-23W	350.5	100	225.5	259.2	86.3	210.5	Off-white / Munsell N8.75	887.4	PDF	DXF	DWG
