CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series

TOP
>
PRODUCTS
>
CUSTOM SIZED ENCLOSURES・CUSTOM MADE EXTRUDED ALUMINIUM ENCLOSURES
>
CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series

CATEGORY：IP65 Enclosure, Water proof aluminium enclosure, Extruded aluminium enclosure, Wall mount enclosure, Aluminum enclosure with flanged lid

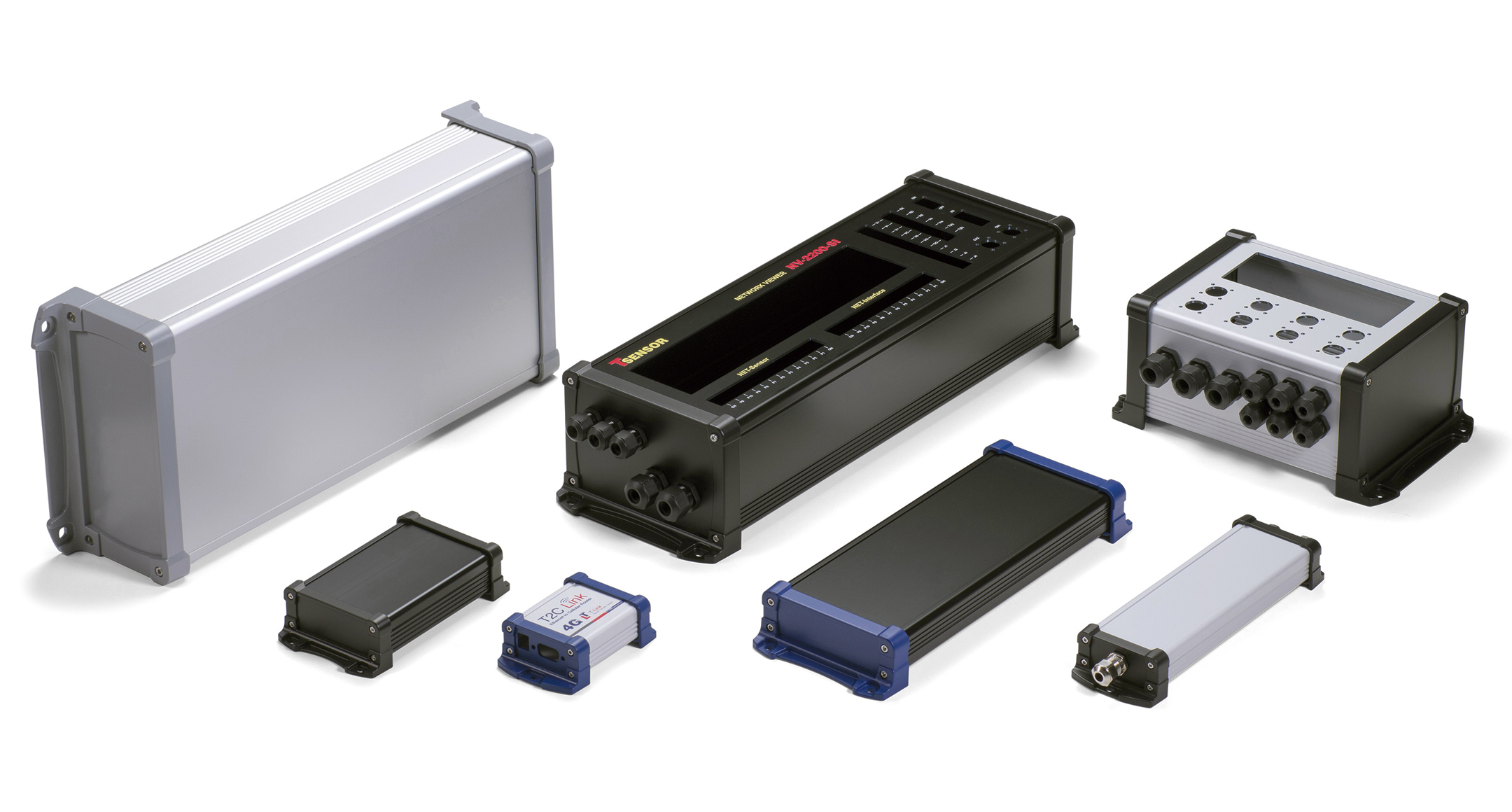

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series1

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series2

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series3

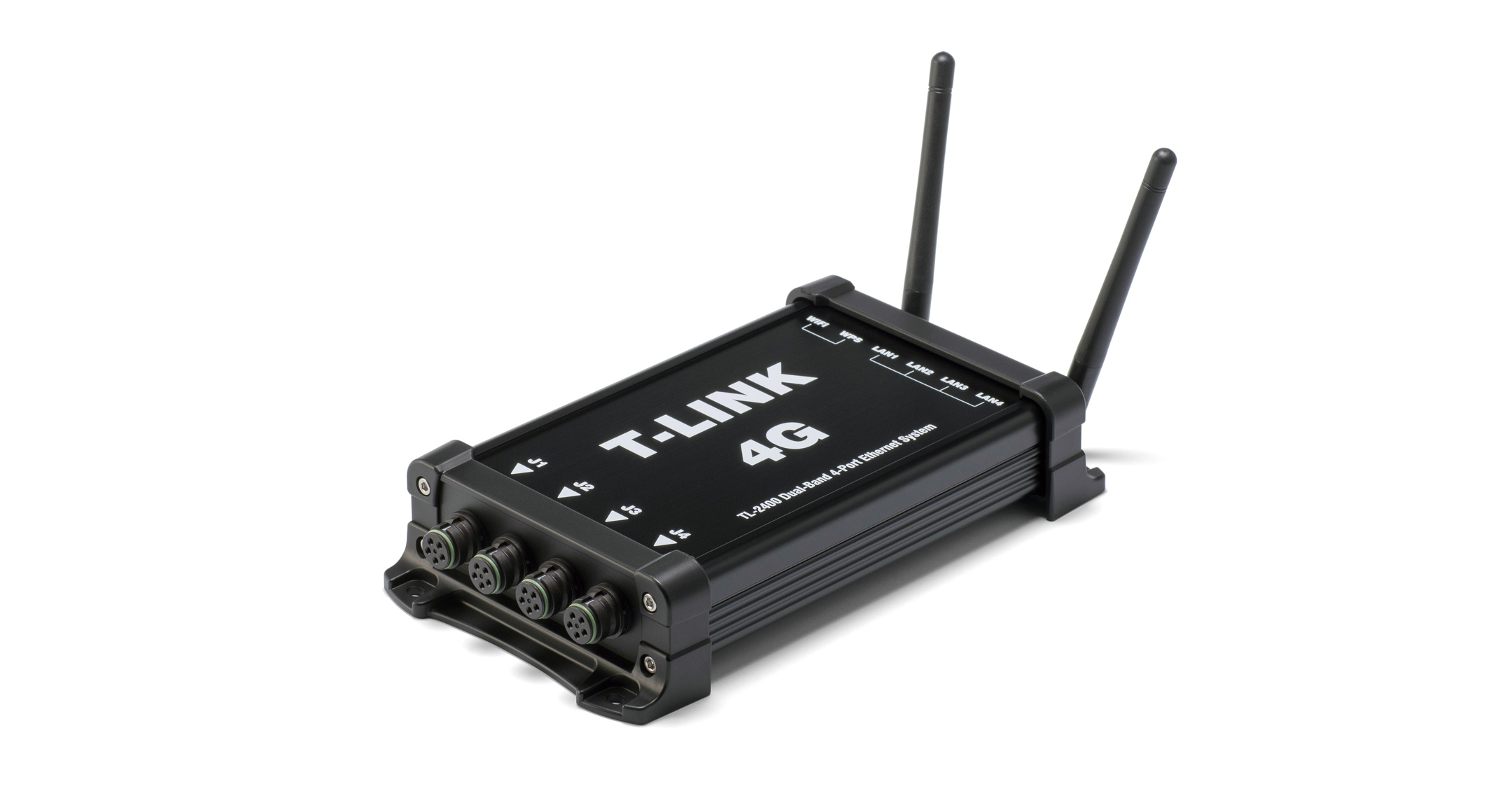

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series4

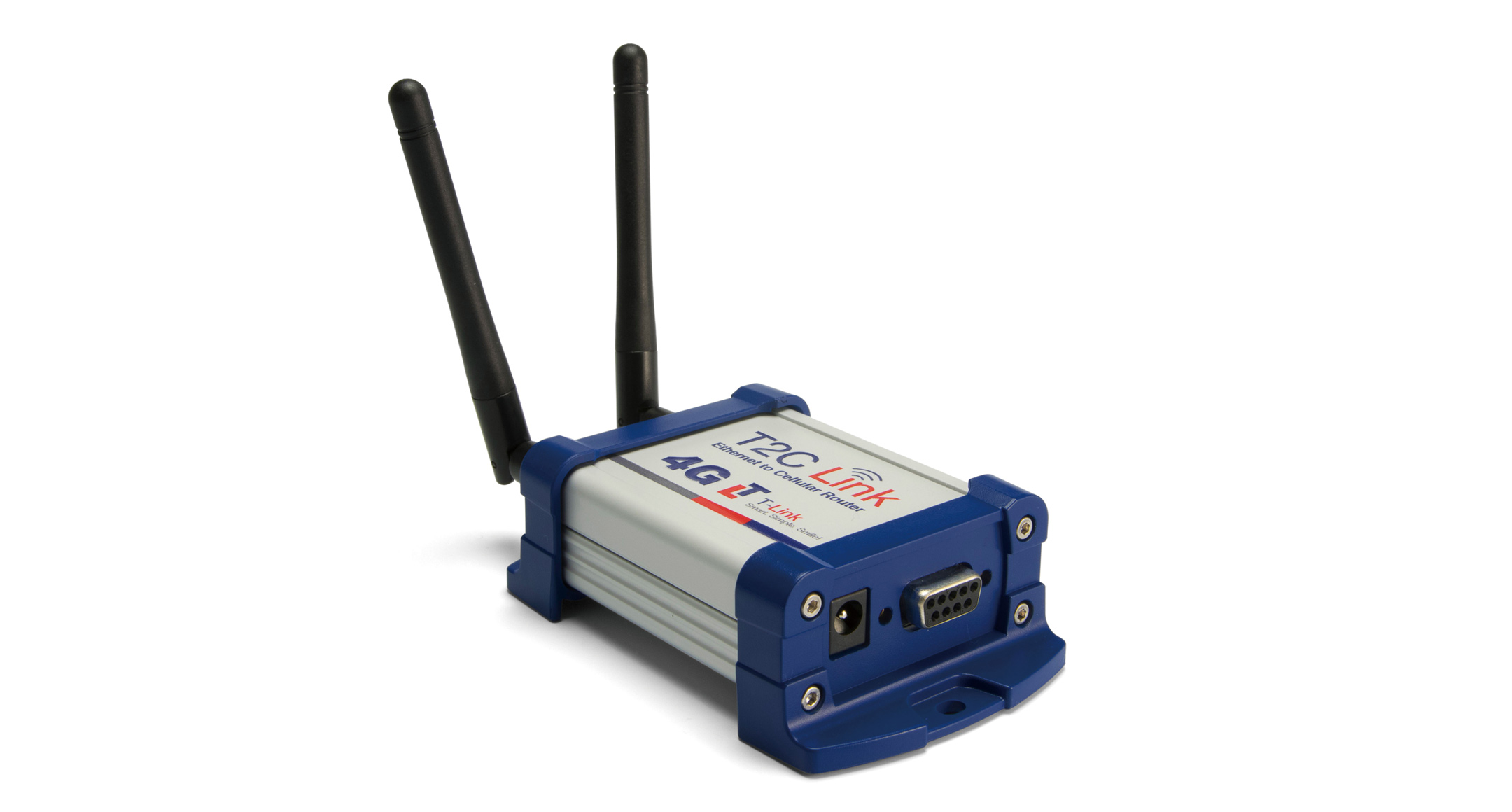

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series5

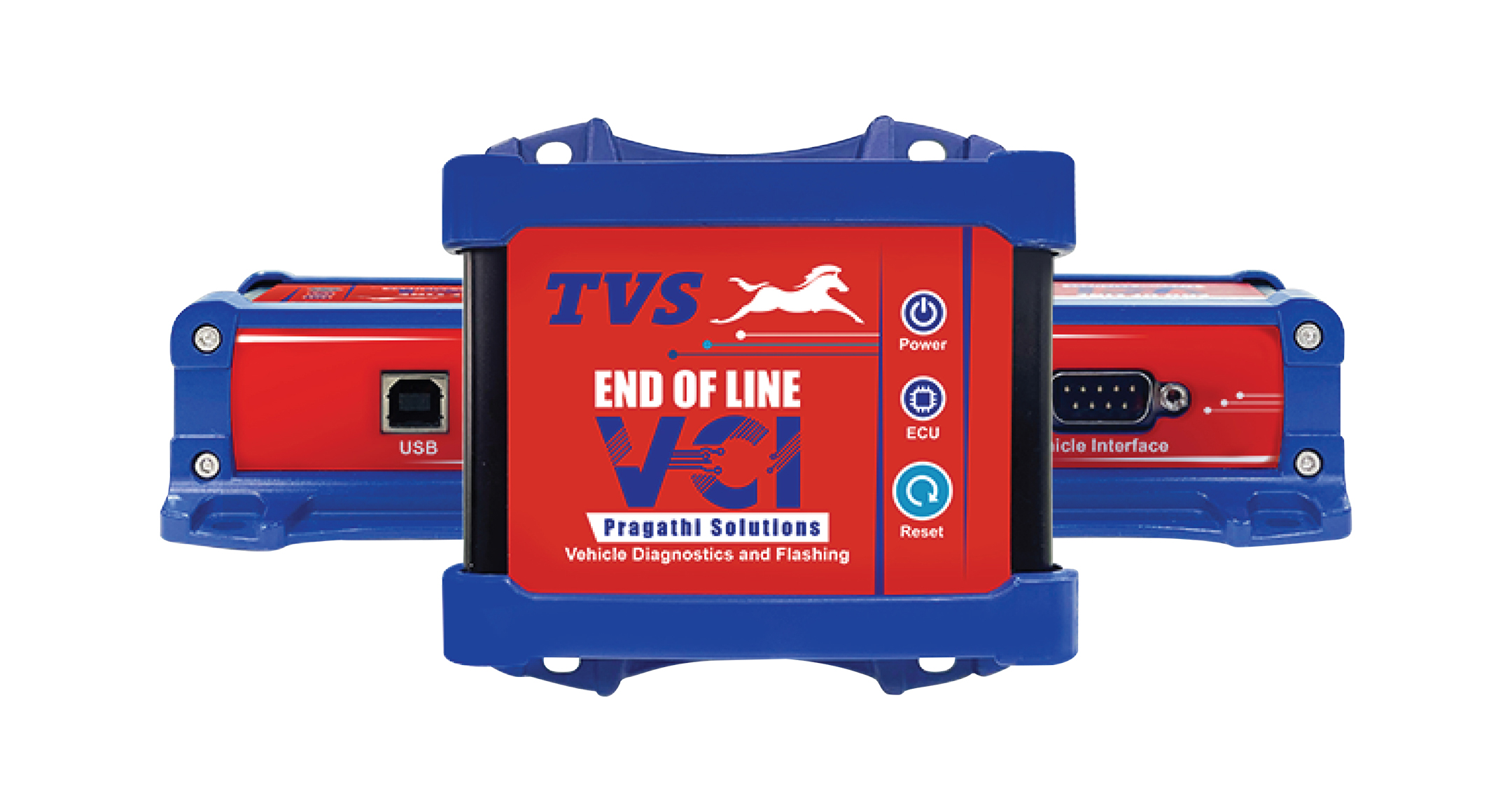

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series6

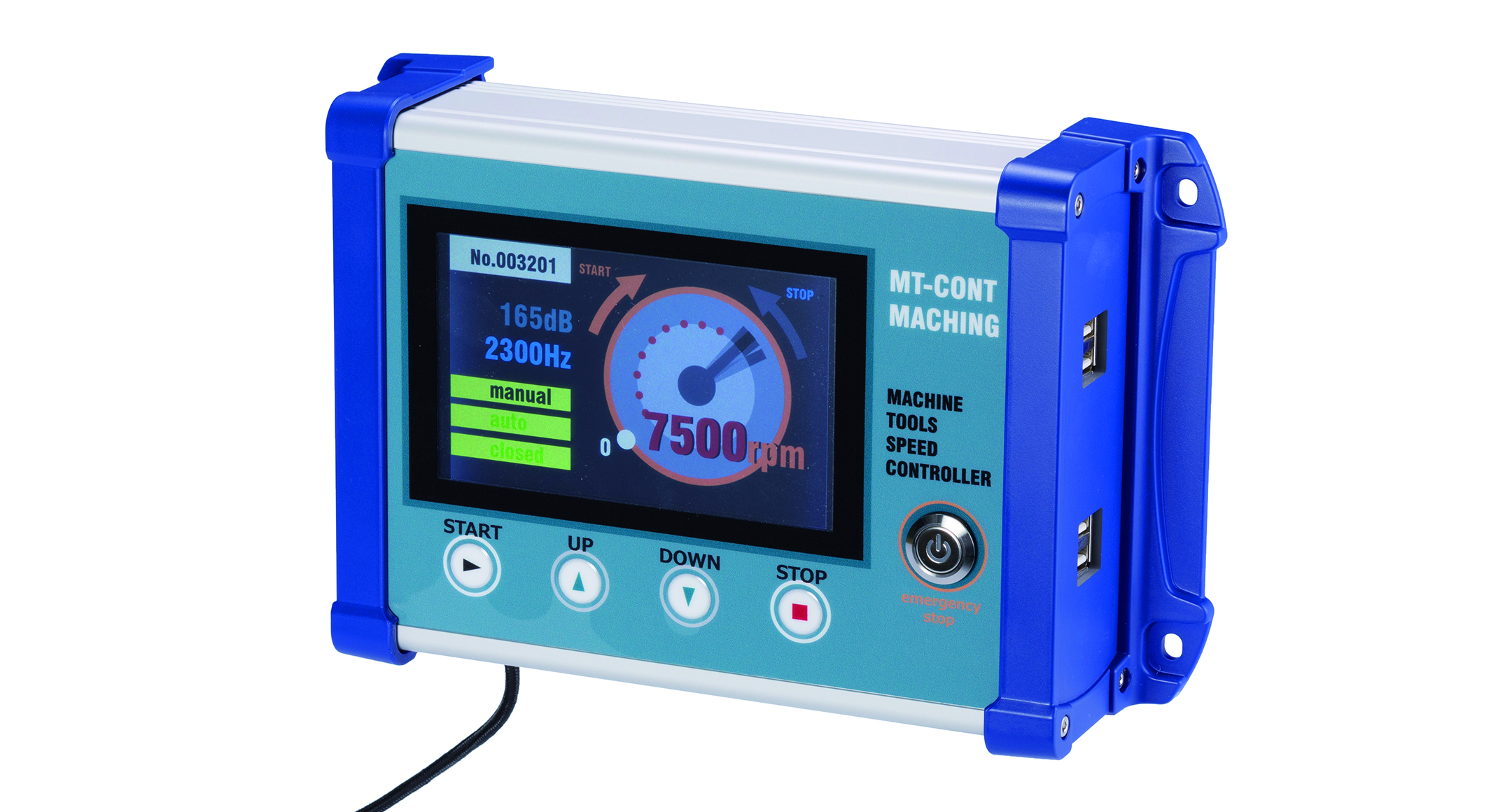

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series7

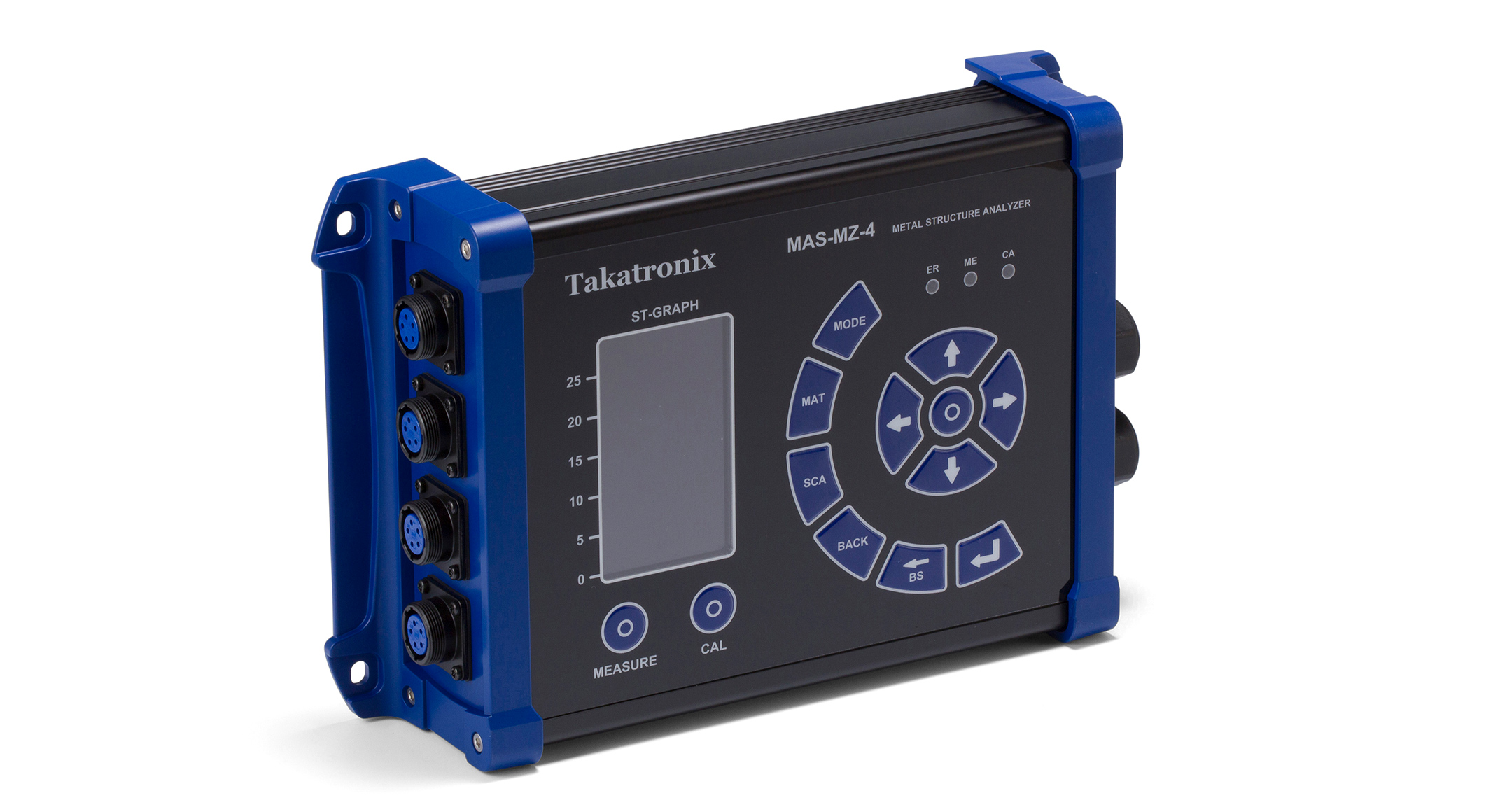

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series8

Custom sized waterproof aluminium enclosure with flanged end panels make it easy for wall mounting.
Suitable to be used as wall mounted controller and transmitter.

Selectable 22 different Width/Height profiles and specified length (depth) from 40 to 500mm in 1mm intervals.
6 different color combinations can be specified.

【Protection class varies by size】
EXWFS66-□・86-□・113-□・ 148-□：IP65
EXWFS195-□・240-□：IP54

【Material】
Top & bottom cover : Extruded aluminium
Flanged end panel : PC+ABS (UL94V-0)
Sealing gasket : Silicone

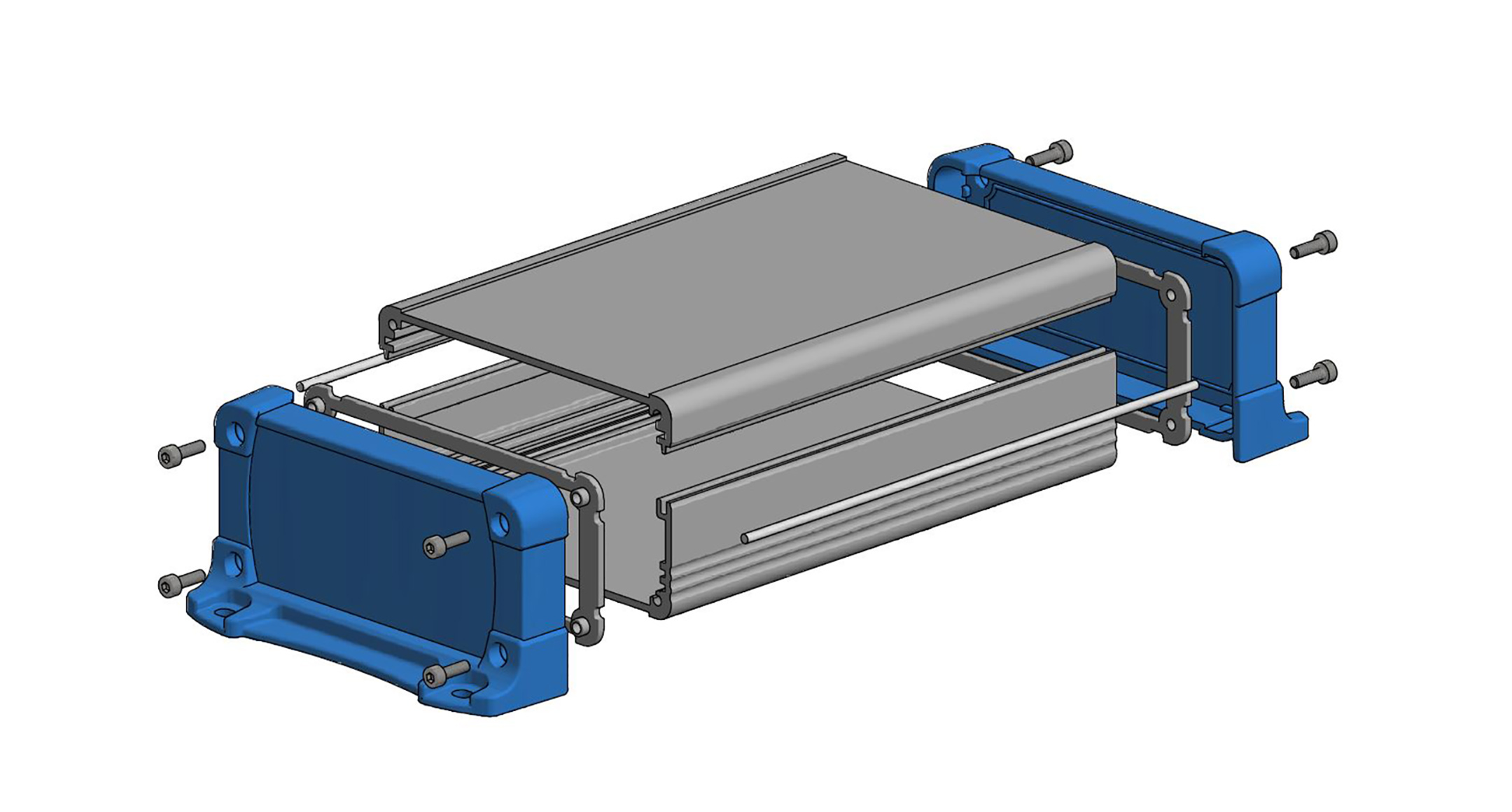

CUSTOM SIZE WEB QUOTATION 3D View - Silver/Navy 3D View - Silver/Black 3D View - Silver/Gray 3D View - Black color 3D View - 6 color types Exploded view Color code

COLOR TYPE

SBSilver/Black

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series:Silver/Black

SGSilver/Gray

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series:Silver/Gray

SNSilver/Navy

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series:Silver/Navy

BBBlack/Black

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series:Black/Black

BGBlack/Gray

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series:Black/Gray

BNBlack/Navy

CUSTOM SIZED WATERPROOF FLANGED ENCLOSURE - EXWFS series:Black/Navy

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			IP Rating	PDF	DXF	DWG
Product No.	W	H	D	w	h	d	IP Rating	PDF	DXF	DWG
EXWFS66-34-〇 □	66	34	Can be specified from 40 to 500mm by 1mm intervals	47	20	D dimension－11mm	IP65	PDF	DXF	DWG
EXWFS66-44-〇 □	66	44	Can be specified from 40 to 500mm by 1mm intervals	47	30	D dimension－11mm	IP65	PDF	DXF	DWG
EXWFS66-59-〇 □	66	59	Can be specified from 40 to 500mm by 1mm intervals	47	45	D dimension－11mm	IP65	PDF	DXF	DWG
EXWFS86-39-〇 □	86	39	Can be specified from 40 to 500mm by 1mm intervals	67	25	D dimension－12mm	IP65	PDF	DXF	DWG
EXWFS86-49-〇 □	86	49	Can be specified from 40 to 500mm by 1mm intervals	67	35	D dimension－12mm	IP65	PDF	DXF	DWG
EXWFS86-64-〇 □	86	64	Can be specified from 40 to 500mm by 1mm intervals	67	50	D dimension－12mm	IP65	PDF	DXF	DWG
EXWFS113-42-〇 □	113	41.5	Can be specified from 40 to 500mm by 1mm intervals	89	24	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS113-57-〇 □	113	56.5	Can be specified from 40 to 500mm by 1mm intervals	89	39	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS113-72-〇 □	113	71.5	Can be specified from 40 to 500mm by 1mm intervals	89	54	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS148-47-〇 □	148	47	Can be specified from 40 to 500mm by 1mm intervals	107	29	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS148-62-〇 □	148	62	Can be specified from 40 to 500mm by 1mm intervals	107	44	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS148-82-〇 □	148	82	Can be specified from 40 to 500mm by 1mm intervals	107	64	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS148-102-〇 □	148	102	Can be specified from 40 to 500mm by 1mm intervals	107	84	D dimension－13mm	IP65	PDF	DXF	DWG
EXWFS195-57-〇 □	195	57	Can be specified from 40 to 500mm by 1mm intervals	132	35	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS195-75-〇 □	195	75	Can be specified from 40 to 500mm by 1mm intervals	132	53	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS195-95-〇 □	195	95	Can be specified from 40 to 500mm by 1mm intervals	132	73	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS195-120-〇 □	195	120	Can be specified from 40 to 500mm by 1mm intervals	132	98	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS240-65-〇 □	240	65	Can be specified from 40 to 500mm by 1mm intervals	177	43	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS240-90-〇 □	240	90	Can be specified from 40 to 500mm by 1mm intervals	177	68	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS240-115-〇 □	240	115	Can be specified from 40 to 500mm by 1mm intervals	177	93	D dimension－18mm	IP54	PDF	DXF	DWG
EXWFS298-93-〇 □	298	93	Can be specified from 40 to 500mm by 1mm intervals	231	68	D dimension－19mm	IP54	PDF	DXF	DWG
EXWFS298-143-〇 □	298	143	Can be specified from 40 to 500mm by 1mm intervals	231	118	D dimension－19mm	IP54	PDF	DXF	DWG
