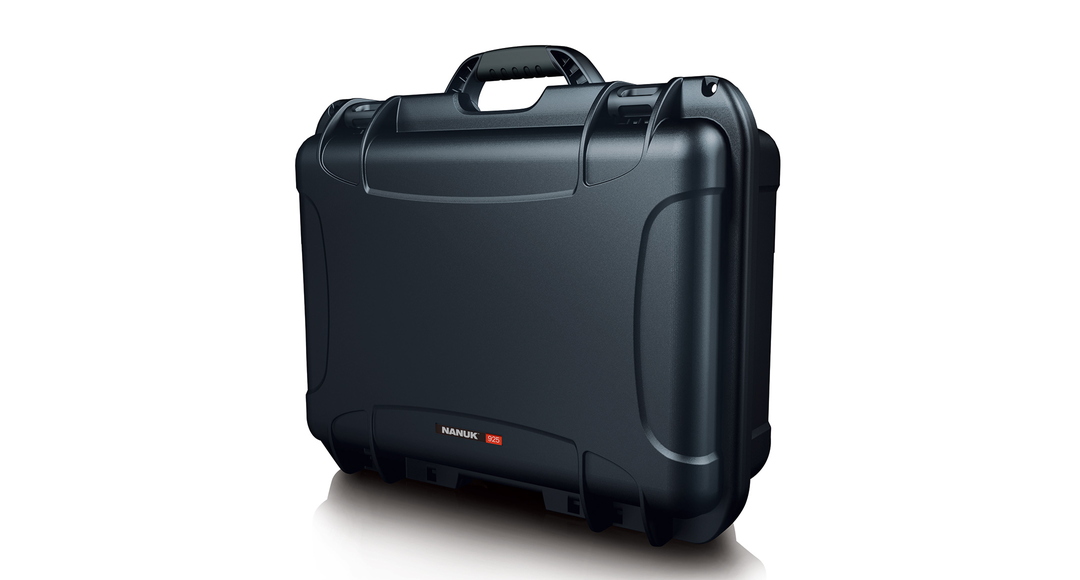

Durable and stylishly designed waterproof protector case.

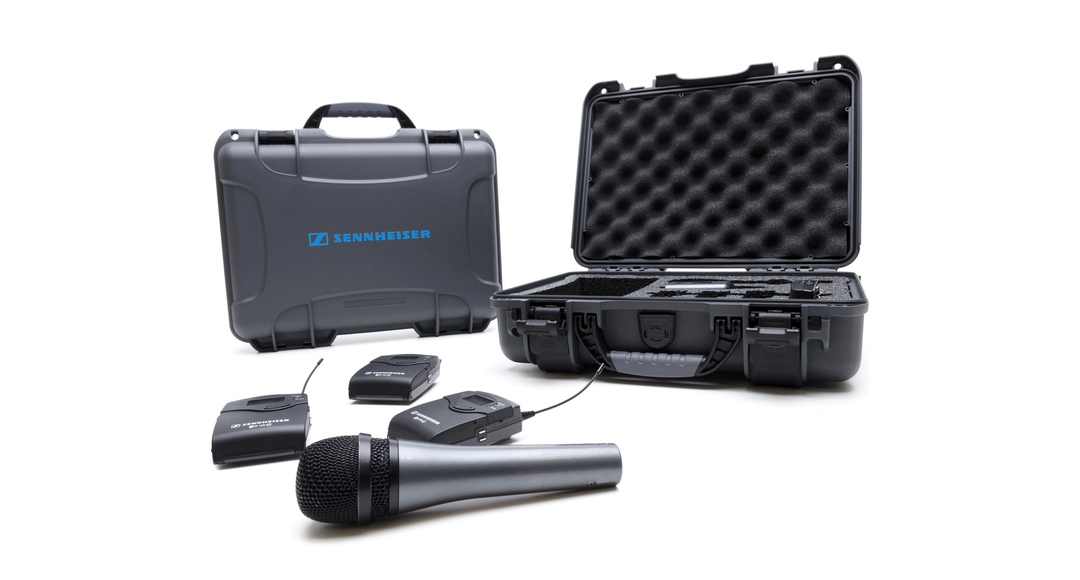

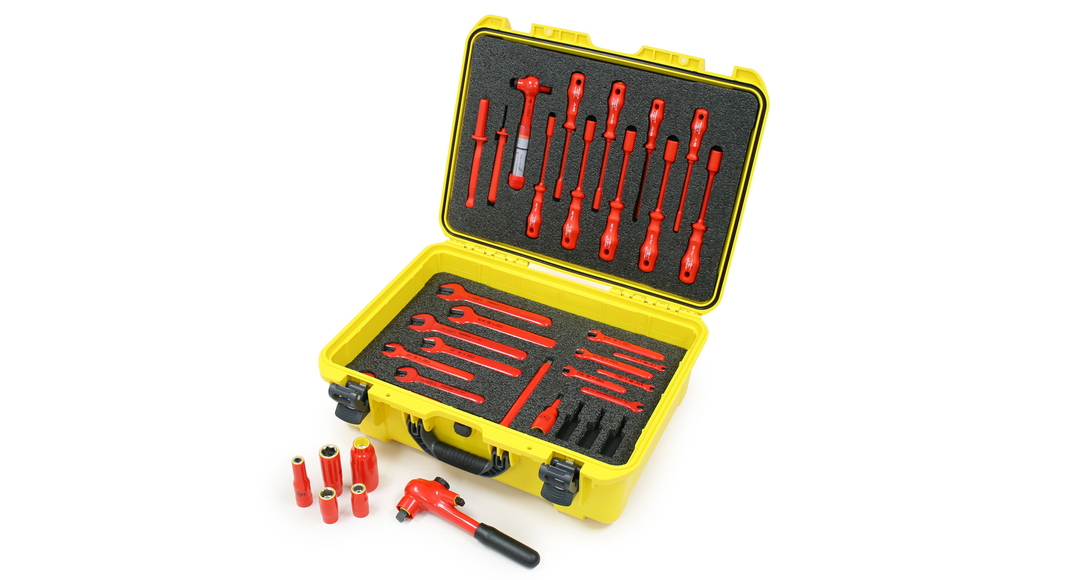

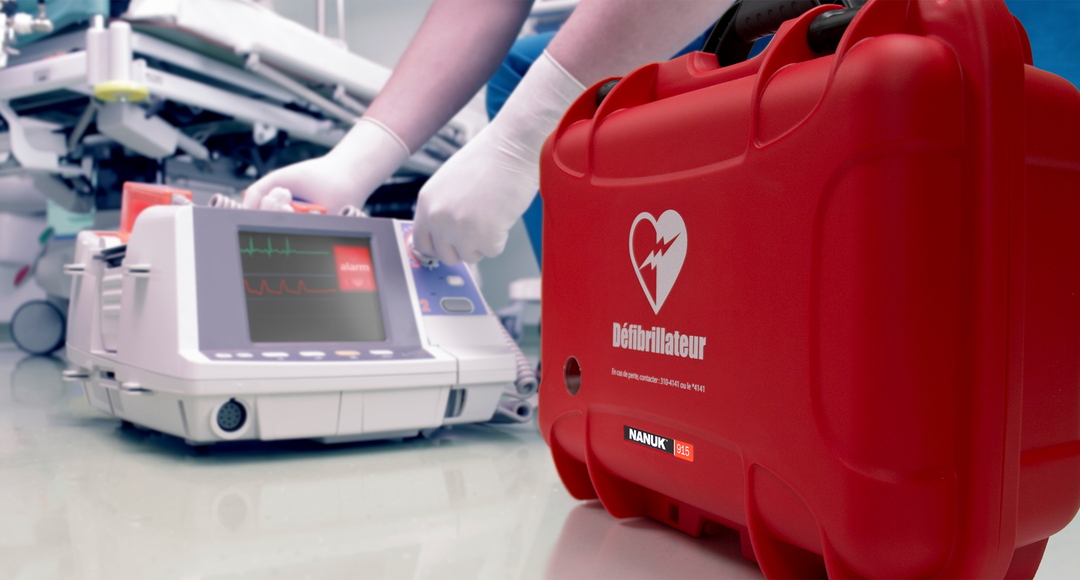

Suitable for storing electronics and delicate devices such as measuring device, camera, broadcasting device, electric tool, medical equipment, and so on.

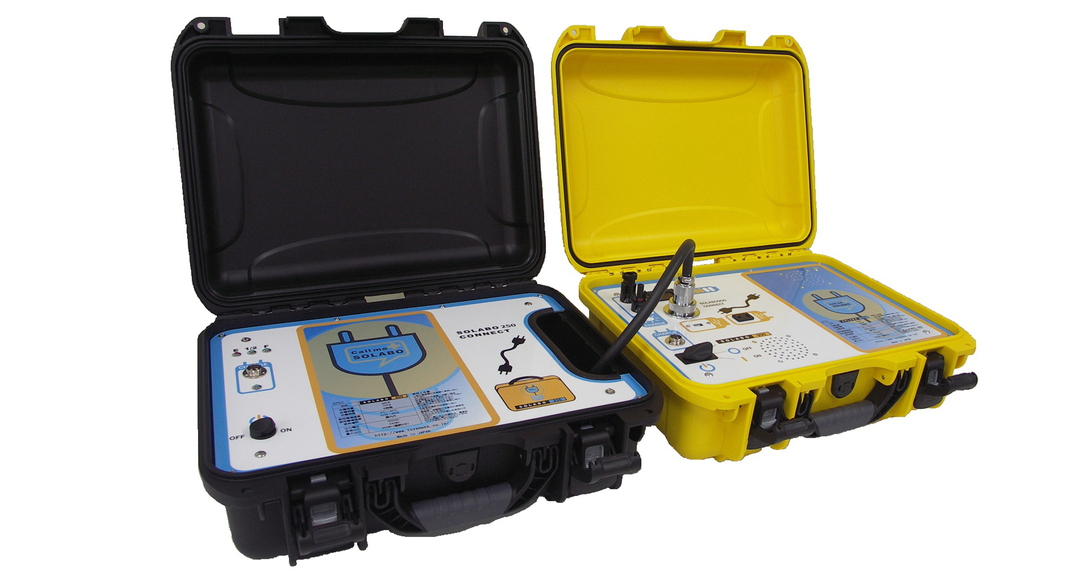

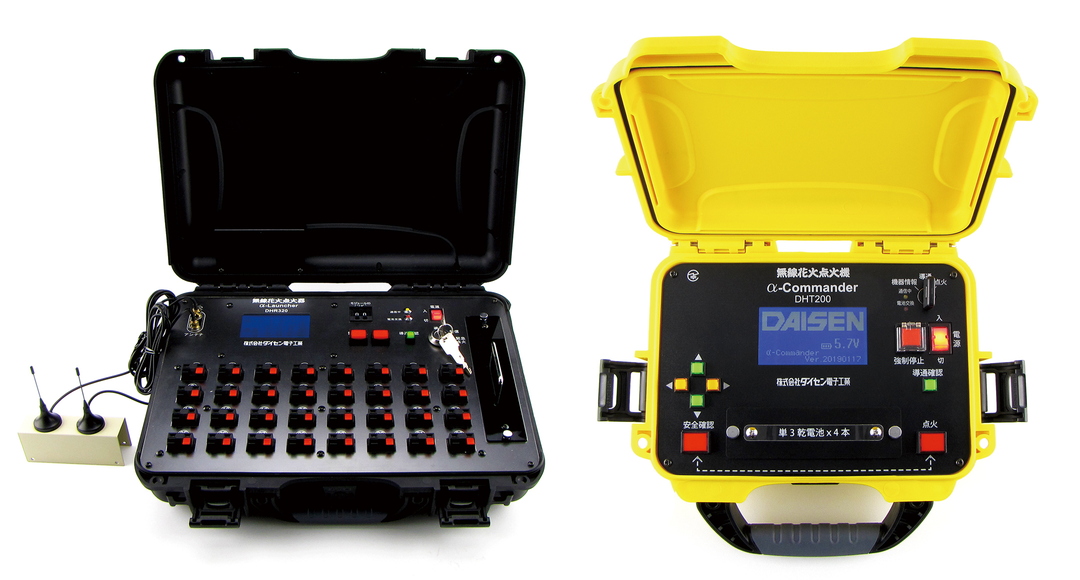

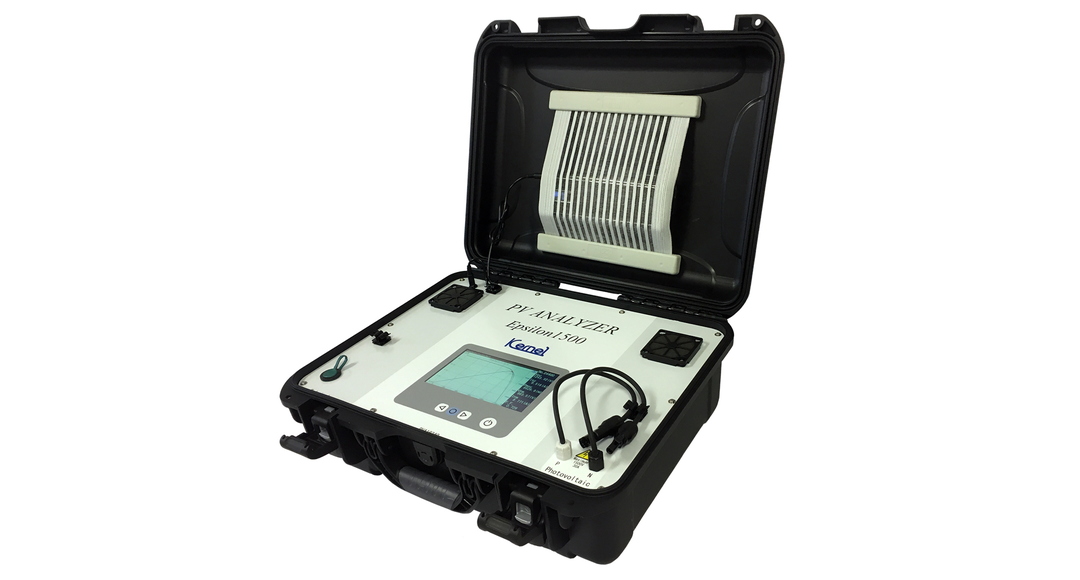

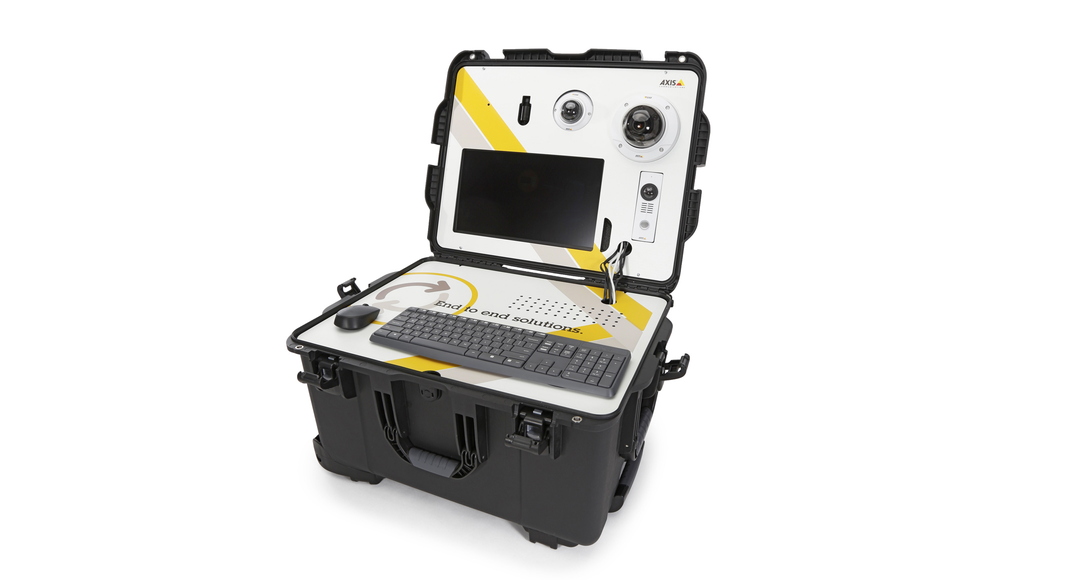

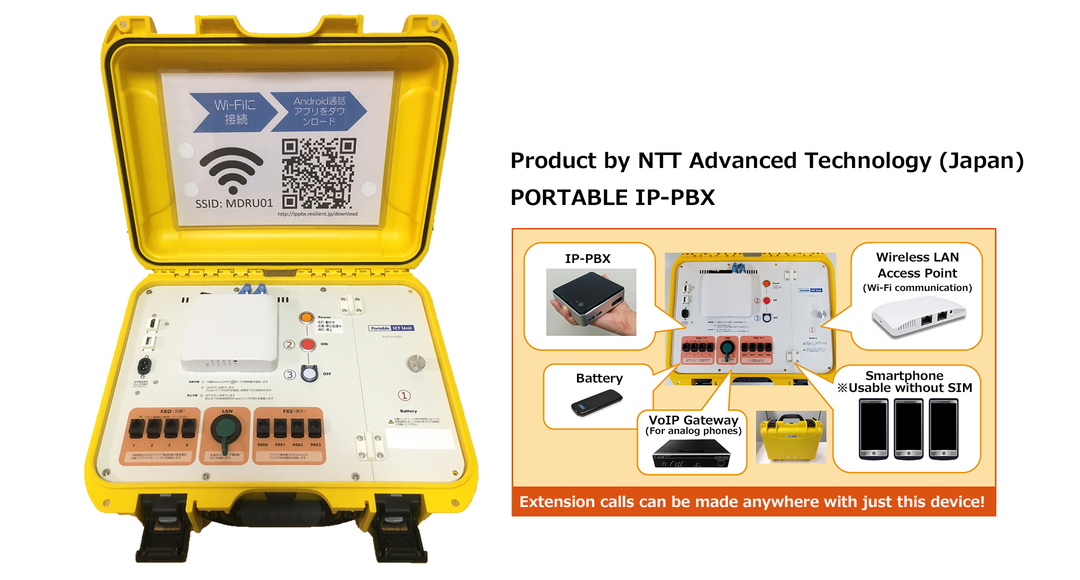

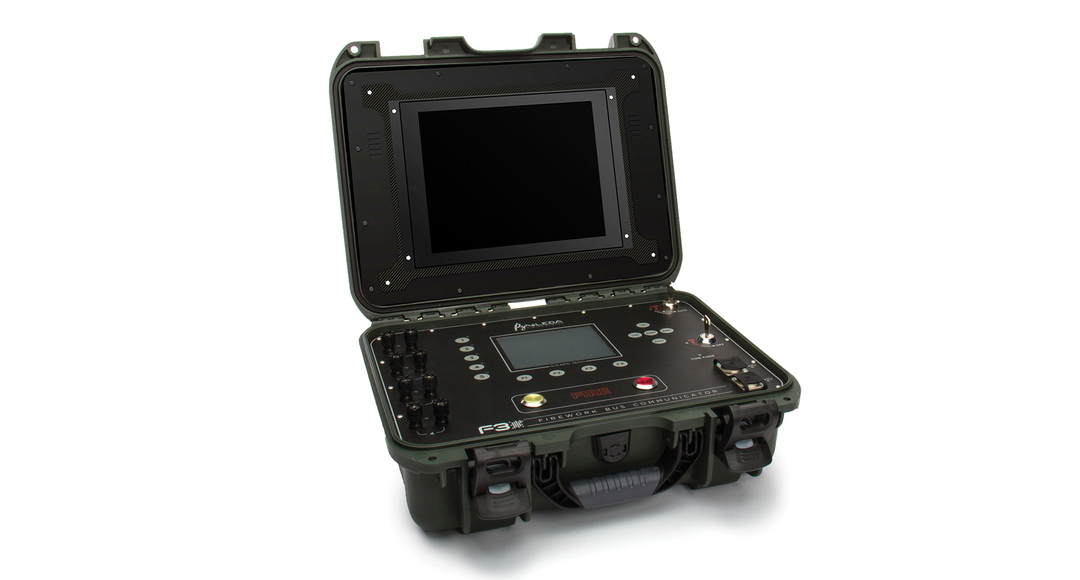

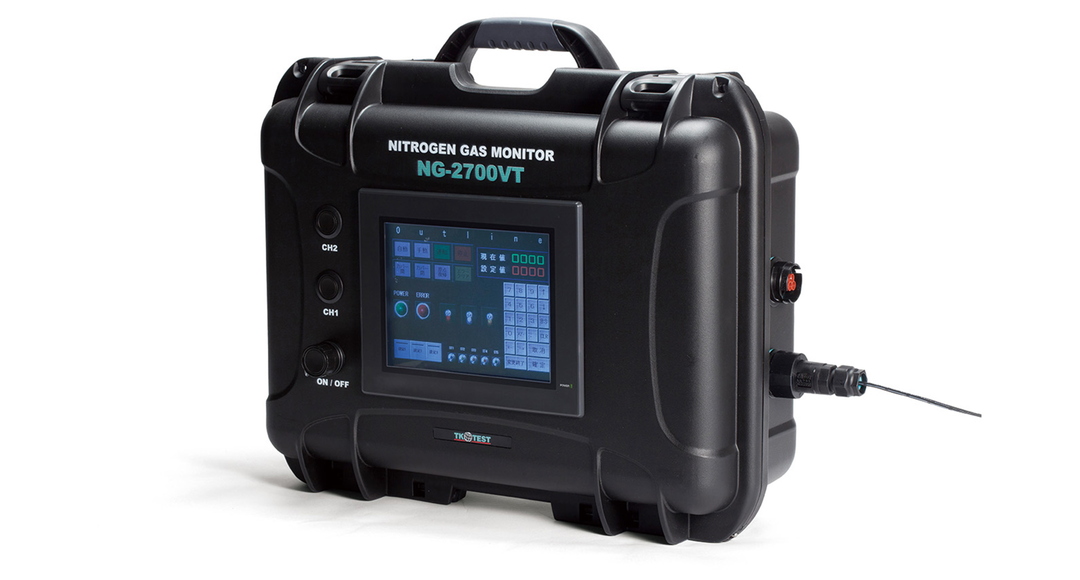

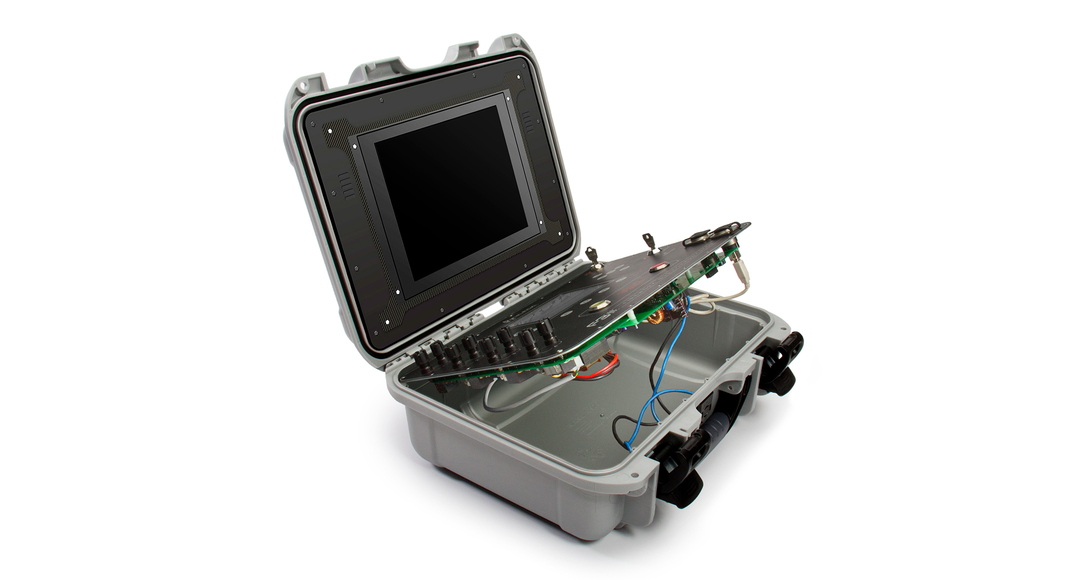

Optional aluminium panel can turn the NK series into your own original controller, measuring device, power supply or transmitter.

Protection class : IP65
Selectable in 22 different sizes.
For smaller 19 sizes, with and without foam types are available.

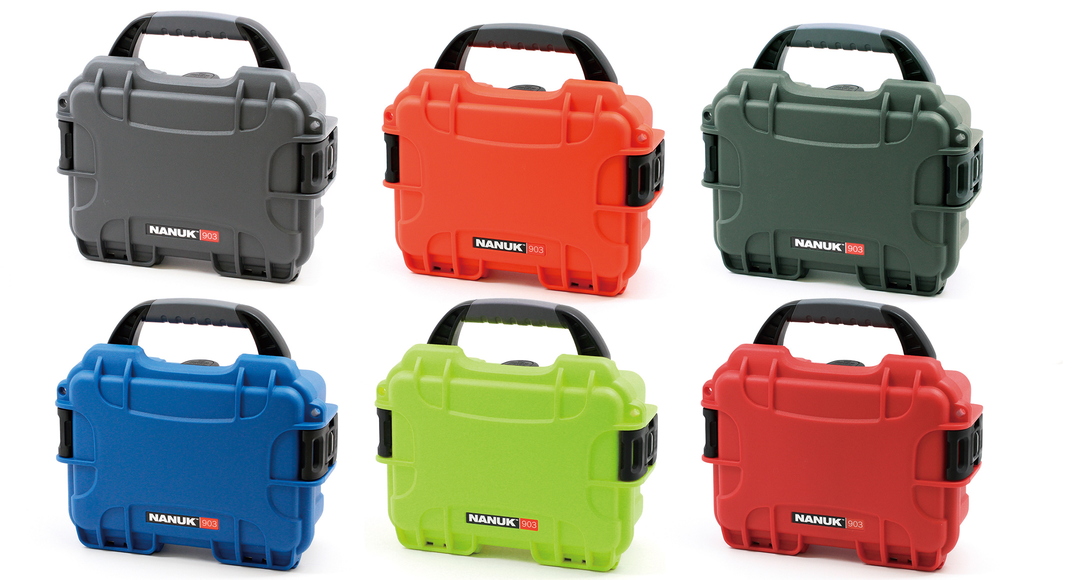

18 sizes are in black and yellow color types available.
NK - DETAILS AND FUNCTIONS  CUSTOMIZATION 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Form insert Equipment Color Weight (Kg) PDF DXF DWG
W H D w h d
NK903B 232 173 97 176 113 79 Without - Black 0.6 PDF DXF DWG
NK903Y 232 173 97 176 113 79 Without - Yellow 0.6 PDF DXF DWG
NK904B 259 200 114 198 134 96 Without - Black 0.7 PDF DXF DWG
NK904Y 259 200 114 198 134 96 Without - Yellow 0.7 PDF DXF DWG
NK905B 316 257 152 209 146 129 Without - Black 1.4 PDF DXF DWG
NK905Y 316 257 152 209 146 129 Without - Yellow 1.4 PDF DXF DWG
NK908B 318 249 203 203 134 180 Without - Black 1.5 PDF DXF DWG
NK908Y 318 249 203 203 134 180 Without - Yellow 1.5 PDF DXF DWG
NK909B 321 230 110 265 138 83 Without - Black 1 PDF DXF DWG
NK909Y 321 230 110 265 138 83 Without - Yellow 1 PDF DXF DWG
NK910B 363 284 121 307 193 98 Without - Black 1.4 PDF DXF DWG
NK910Y 363 284 121 307 193 98 Without - Yellow 1.4 PDF DXF DWG
NK915B 391 309 172 305 179 146 Without - Black 2.1 PDF DXF DWG
NK915Y 391 309 172 305 179 146 Without - Yellow 2.1 PDF DXF DWG
NK918B 425 326 232 332 178 207 Without - Black 2.9 PDF DXF DWG
NK918Y 425 326 232 332 178 207 Without - Yellow 2.9 PDF DXF DWG
NK920B 424 342 172 338 211 146 Without - Black 2.4 PDF DXF DWG
NK920Y 424 342 172 338 211 146 Without - Yellow 2.4 PDF DXF DWG
NK923B 471 364 161 383 222 123 Without - Black 2.7 PDF DXF DWG
NK923Y 471 364 161 383 222 123 Without - Yellow 2.7 PDF DXF DWG
NK925B 474 373 178 387 242 151 Without - Black 2.9 PDF DXF DWG
NK925Y 474 373 178 387 242 151 Without - Yellow 2.9 PDF DXF DWG
NK930B 500 405 191 412 274 164 Without - Black 3.4 PDF DXF DWG
NK930Y 500 405 191 412 274 164 Without - Yellow 3.4 PDF DXF DWG
NK933B 503 408 255 408 258 226 Without - Black 3.9 PDF DXF DWG
NK933Y 503 408 255 408 258 226 Without - Yellow 3.9 PDF DXF DWG
NK935B 560 355 229 416 231 179 Without Retractable handle・Wheels Black 5.3 PDF DXF DWG
NK935Y 560 355 229 416 231 179 Without Retractable handle・Wheels Yellow 5.3 PDF DXF DWG
NK938B 605 395 336 440 239 283 Without Retractable handle・Wheels Black 6.4 PDF DXF DWG
NK938Y 605 395 336 440 239 283 Without Retractable handle・Wheels Yellow 6.4 PDF DXF DWG
NK940B 551 430 216 460 296 189 Without - Black 3.9 PDF DXF DWG
NK940Y 551 430 216 460 296 189 Without - Yellow 3.9 PDF DXF DWG
NK945B 648 508 222 511 359 195 Without - Black 5 PDF DXF DWG
NK945Y 648 508 222 511 359 195 Without - Yellow 5 PDF DXF DWG
NK950B 581 464 298 416 316 247 Without Retractable handle・Wheels Black 7 PDF DXF DWG
NK950Y 581 464 298 416 316 247 Without Retractable handle・Wheels Yellow 7 PDF DXF DWG
NK960B 646 509 368 466 356 316 Without Retractable handle・Wheels Black 9 PDF DXF DWG
NK963B 825 536 317 627 373 257 Without Retractable handle・Wheels Black 10.2 PDF DXF DWG
NK970B 700 697 410 523 493 334 Without Retractable handle・Wheels Black 11.9 PDF DXF DWG
NK975B 844 612 501 685 439 435 Without Retractable handle・Wheels Black 14.6 PDF DXF DWG
NK903BS 232 173 97 176 113 79 With foam - Black 0.63 PDF DXF DWG
NK903YS 232 173 97 176 113 79 With foam - Yellow 0.63 PDF DXF DWG
NK904BS 259 200 114 198 134 96 With foam - Black 0.81 PDF DXF DWG
NK904YS 259 200 114 198 134 96 With foam - Yellow 0.81 PDF DXF DWG
NK905BS 316 257 152 209 146 129 With foam - Black 1.7 PDF DXF DWG
NK905YS 316 257 152 209 146 129 With foam - Yellow 1.7 PDF DXF DWG
NK908BS 318 249 203 203 134 180 With foam - Black 1.7 PDF DXF DWG
NK908YS 318 249 203 203 134 180 With foam - Yellow 1.7 PDF DXF DWG
NK909BS 321 230 110 265 138 83 With foam - Black 1.2 PDF DXF DWG
NK909YS 321 230 110 265 138 83 With foam - Yellow 1.2 PDF DXF DWG
NK910BS 363 284 121 307 193 98 With foam - Black 1.5 PDF DXF DWG
NK910YS 363 284 121 307 193 98 With foam - Yellow 1.5 PDF DXF DWG
NK915BS 391 309 172 305 179 146 With foam - Black 2.4 PDF DXF DWG
NK915YS 391 309 172 305 179 146 With foam - Yellow 2.4 PDF DXF DWG
NK918BS 425 326 232 332 178 207 With foam - Black 2.9 PDF DXF DWG
NK918YS 425 326 232 332 178 207 With foam - Yellow 2.9 PDF DXF DWG
NK920BS 424 342 172 338 211 146 With foam - Black 2.7 PDF DXF DWG
NK920YS 424 342 172 338 211 146 With foam - Yellow 2.7 PDF DXF DWG
NK923BS 471 364 161 383 222 123 With foam - Black 3.1 PDF DXF DWG
NK923YS 471 364 161 383 222 123 With foam - Yellow 3.1 PDF DXF DWG
NK925BS 474 373 178 387 242 151 With foam - Black 3.3 PDF DXF DWG
NK925YS 474 373 178 387 242 151 With foam - Yellow 3.3 PDF DXF DWG
NK930BS 500 405 191 412 274 164 With foam - Black 3.9 PDF DXF DWG
NK930YS 500 405 191 412 274 164 With foam - Yellow 3.9 PDF DXF DWG
NK933BS 503 408 255 408 258 226 With foam - Black 4.6 PDF DXF DWG
NK933YS 503 408 255 408 258 226 With foam - Yellow 4.6 PDF DXF DWG
NK935BS 560 355 229 416 231 179 With foam Retractable handle・Wheels Black 6 PDF DXF DWG
NK935YS 560 355 229 416 231 179 With foam Retractable handle・Wheels Yellow 6 PDF DXF DWG
NK938BS 605 395 336 440 239 283 With foam Retractable handle・Wheels Black 7.1 PDF DXF DWG
NK938YS 605 395 336 440 239 283 With foam Retractable handle・Wheels Yellow 7.1 PDF DXF DWG
NK940BS 551 430 216 460 296 189 With foam - Black 4.6 PDF DXF DWG
NK940YS 551 430 216 460 296 189 With foam - Yellow 4.6 PDF DXF DWG
NK945BS 648 508 222 511 359 195 With foam - Black 6 PDF DXF DWG
NK945YS 648 508 222 511 359 195 With foam - Yellow 6 PDF DXF DWG
NK950BS 581 464 298 416 316 247 With foam Retractable handle・Wheels Black 8 PDF DXF DWG
NK950YS 581 464 298 416 316 247 With foam Retractable handle・Wheels Yellow 8 PDF DXF DWG
NK960BS 646 509 368 466 356 316 With foam Retractable handle・Wheels Black 10.5 PDF DXF DWG
Aluminium panel (Option) PDF DXF DWG
NKAP903 PDF DXF DWG
NKAP903 PDF DXF DWG
NKAP904 PDF DXF DWG
NKAP904 PDF DXF DWG
NKAP905 PDF DXF DWG
NKAP905 PDF DXF DWG
NKAP908 PDF DXF DWG
NKAP908 PDF DXF DWG
NKAP909 PDF DXF DWG
NKAP909 PDF DXF DWG
NKAP910 PDF DXF DWG
NKAP910 PDF DXF DWG
NKAP915 PDF DXF DWG
NKAP915 PDF DXF DWG
NKAP918 PDF DXF DWG
NKAP918 PDF DXF DWG
NKAP920 PDF DXF DWG
NKAP920 PDF DXF DWG
NKAP923 PDF DXF DWG
NKAP923 PDF DXF DWG
NKAP925 PDF DXF DWG
NKAP925 PDF DXF DWG
NKAP930 PDF DXF DWG
NKAP930 PDF DXF DWG
NKAP933 PDF DXF DWG
NKAP933 PDF DXF DWG
NKAP935 PDF DXF DWG
NKAP935 PDF DXF DWG
NKAP938 PDF DXF DWG
NKAP938 PDF DXF DWG
NKAP940 PDF DXF DWG
NKAP940 PDF DXF DWG
NKAP945 PDF DXF DWG
NKAP945 PDF DXF DWG
NKAP950 PDF DXF DWG
NKAP950 PDF DXF DWG
NKAP960 PDF DXF DWG
NKAP963 PDF DXF DWG
NKAP970 PDF DXF DWG
NKAP975 PDF DXF DWG
NKAP903 PDF DXF DWG
NKAP903 PDF DXF DWG
NKAP904 PDF DXF DWG
NKAP904 PDF DXF DWG
NKAP905 PDF DXF DWG
NKAP905 PDF DXF DWG
NKAP908 PDF DXF DWG
NKAP908 PDF DXF DWG
NKAP909 PDF DXF DWG
NKAP909 PDF DXF DWG
NKAP910 PDF DXF DWG
NKAP910 PDF DXF DWG
NKAP915 PDF DXF DWG
NKAP915 PDF DXF DWG
NKAP918 PDF DXF DWG
NKAP918 PDF DXF DWG
NKAP920 PDF DXF DWG
NKAP920 PDF DXF DWG
NKAP923 PDF DXF DWG
NKAP923 PDF DXF DWG
NKAP925 PDF DXF DWG
NKAP925 PDF DXF DWG
NKAP930 PDF DXF DWG
NKAP930 PDF DXF DWG
NKAP933 PDF DXF DWG
NKAP933 PDF DXF DWG
NKAP935 PDF DXF DWG
NKAP935 PDF DXF DWG
NKAP938 PDF DXF DWG
NKAP938 PDF DXF DWG
NKAP940 PDF DXF DWG
NKAP940 PDF DXF DWG
NKAP945 PDF DXF DWG
NKAP945 PDF DXF DWG
NKAP950 PDF DXF DWG
NKAP950 PDF DXF DWG
NKAP960 PDF DXF DWG

OPTIONAL PARTS

１
FOAM INSERT SET for NK・NKK
DETAILS
１
DIVIDER for NK・NKK - DVI series
DETAILS
１
ALUMINUM PANEL for NK・NKK - NKAP series
DETAILS
１
MOUNTING SCREW for NK・NKK
DETAILS
１
PANEL INSTALLATION KIT for NK・NKK
DETAILS
１
SHOULDER STRAP for NK・NKK series
DETAILS
１
DIAL PADLOCK for NK series - AB145S
DETAILS
１
NAMEPLATE STICKER for NK・NKK series
DETAILS

SIMILAR PRODUCT

１
PROTECTOR CASE with KEY LOCK - NKK series
DETAILS
１
PLASTIC CARRYING CASE - MAXI series
DETAILS
１
PLASTIC CARRYING CASE - XTRA series
DETAILS
１
PLASTIC CARRYING CASE - MINI series
DETAILS
１
METAL CASE with CORNER GUARD - MCG series
DETAILS
１
CONTROL BOX with CARRYING HANDLE - FCH series
DETAILS
１
IP65 LATCH-HINGED POLYCARBONATE BOX - BCPC series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

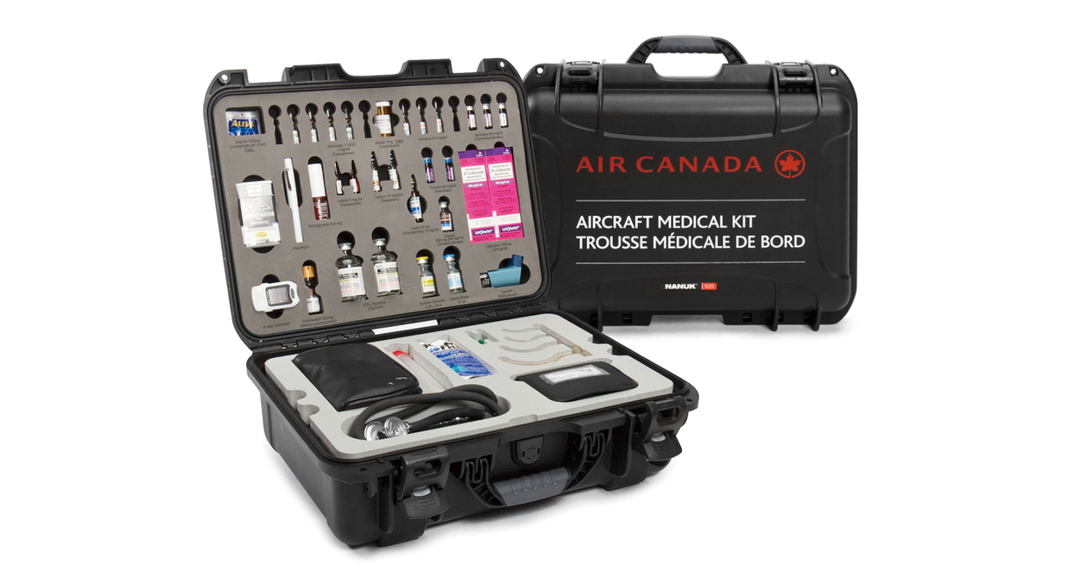

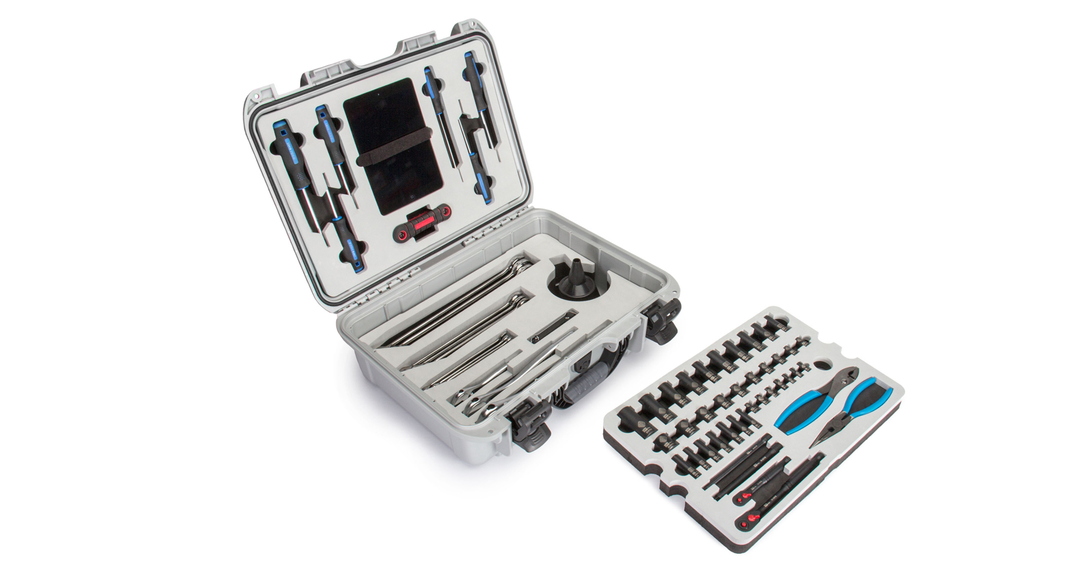

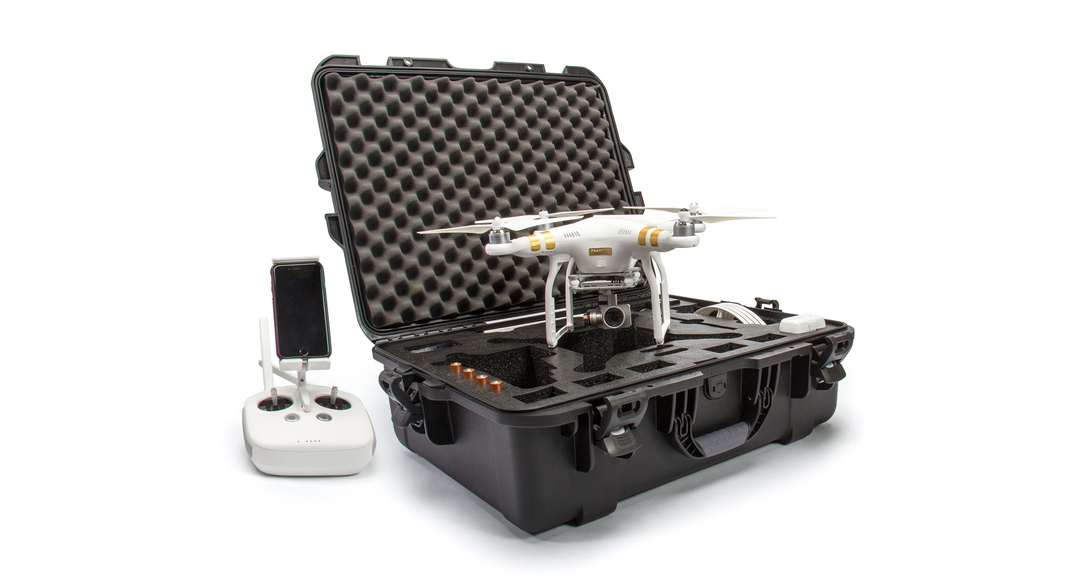

CNC milling - Custom foam inserts

DETAILS

CNC milling - Custom foam inserts

DETAILS

CNC milling - Custom foam inserts

DETAILS

Digital inkjet printing

DETAILS

High speed CNC milling

DETAILS

WATER PROOF

IMPACT RESISTANT

POWER-CLAW LATCH

CUBED FOAM

SHOULDER STRAP

PRESSURE RELEASE VALVE
