MULTI-HOLE CABLE GLAND - RMH series
MULTI-HOLE CABLE GLAND - RMH series
MULTI-HOLE CABLE GLAND - RMH series
MULTI-HOLE CABLE GLAND - RMH series
MULTI-HOLE CABLE GLAND - RMH series1
MULTI-HOLE CABLE GLAND - RMH series2
MULTI-HOLE CABLE GLAND - RMH series3
MULTI-HOLE CABLE GLAND - RMH series4

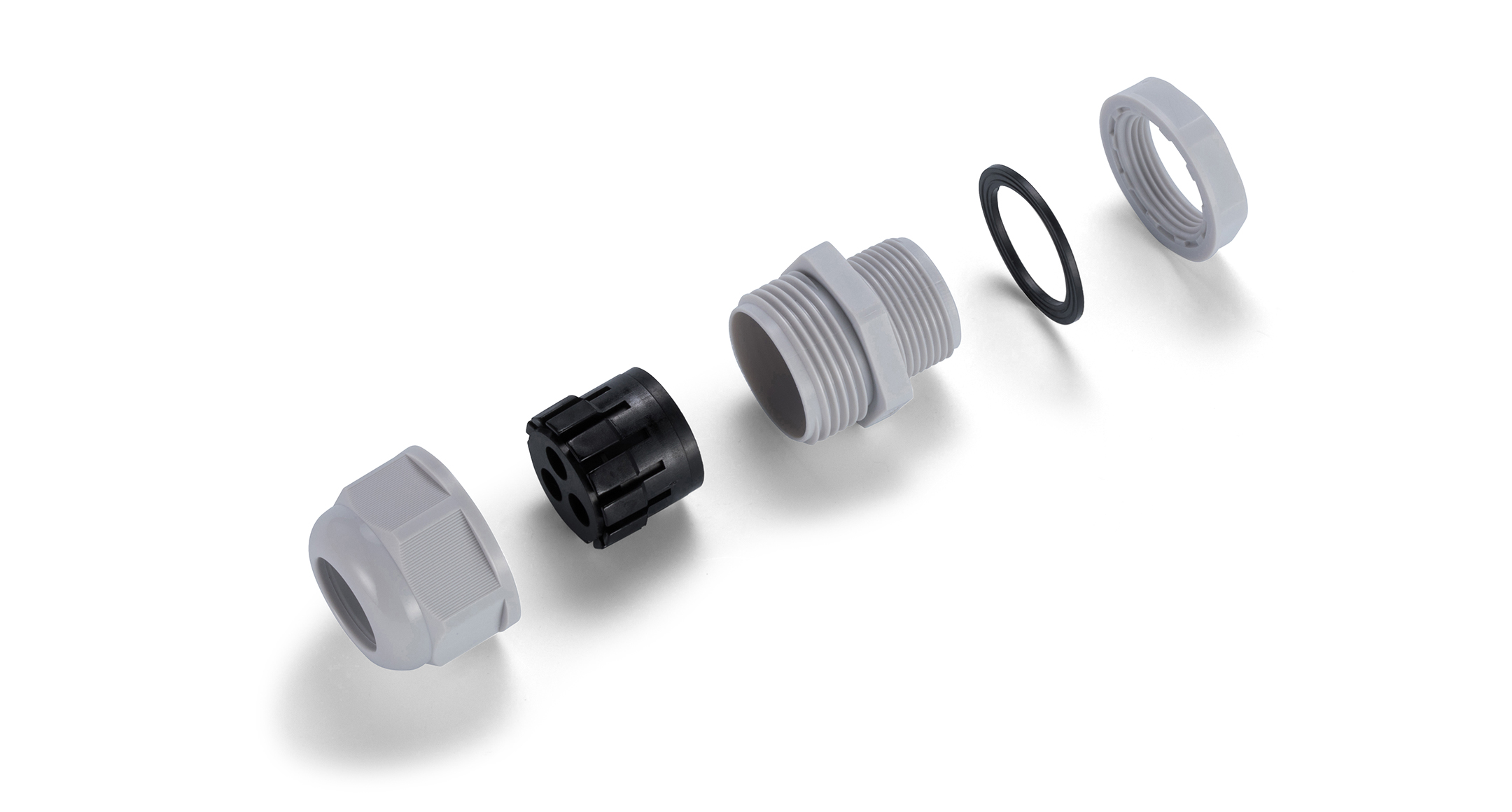

Multi-hole cable gland with M type threads.
Multiple cables can be protected with single cable gland.
Up to a maximum of 6 cables can be used with 1 cable gland.

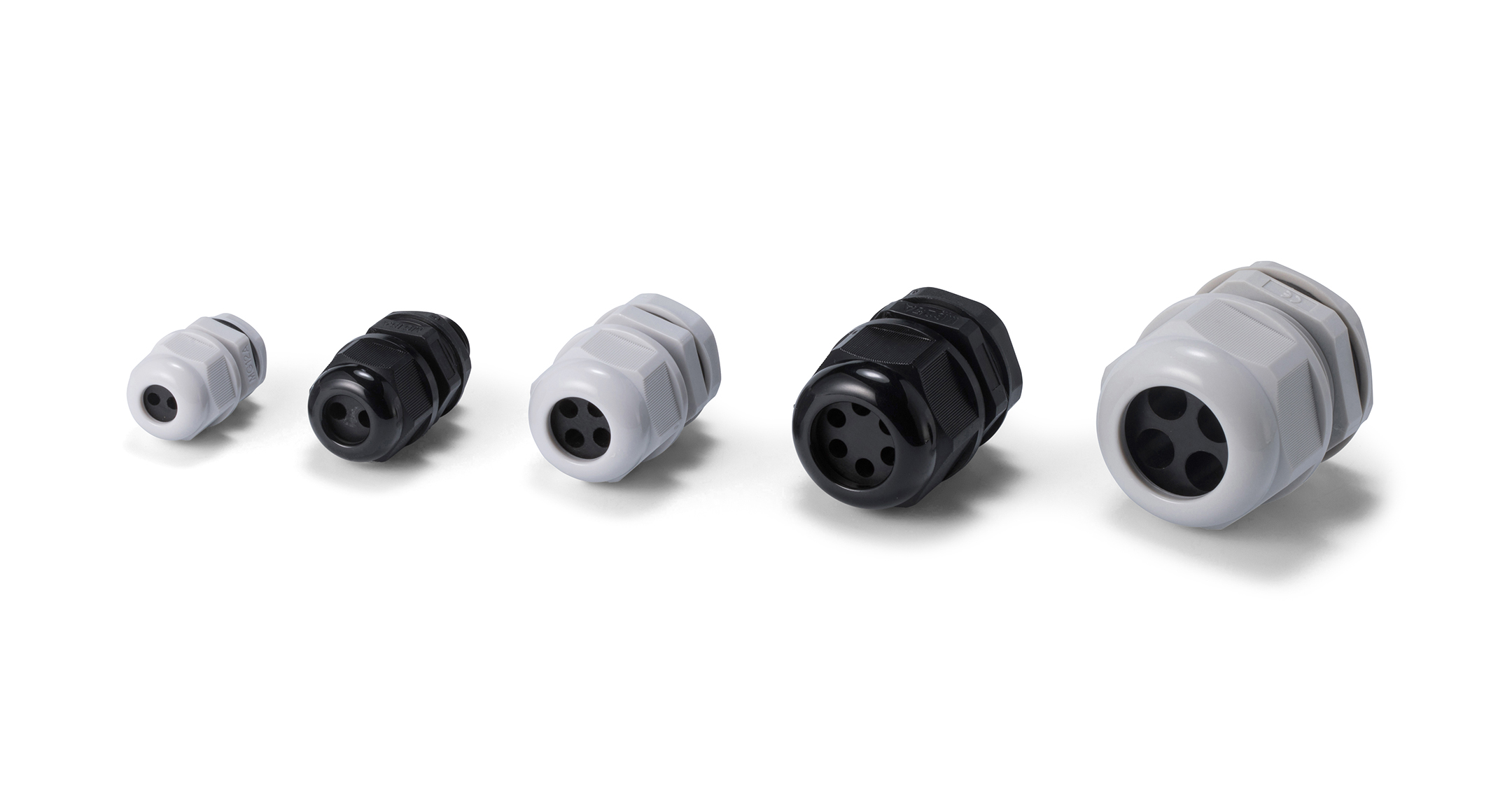

5 thread sizes for M12・M16・M20・M25・M32 in light gray and black are available.

Cable range : φ1.5mm~φ11mm
Protecting class : IP65
*Cables used must be of the exact same diameter.

All models available now.

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Number of holes Color / Similar matching Weight (g) Pack of PDF DXF DWG
RMH12-2B M12×1.5 φ12.2 2.5~3 2 Black / RAL9005 8 1 pcs PDF DXF DWG
RMH12-2S M12×1.5 φ12.2 2.5~3 2 Light gray / RAL7035 8 1 pcs PDF DXF DWG
RMH12-3B M12×1.5 φ12.2 2~2.5 3 Black / RAL9005 8 1 pcs PDF DXF DWG
RMH12-3S M12×1.5 φ12.2 2~2.5 3 Light gray / RAL7035 8 1 pcs PDF DXF DWG
RMH12-4B M12×1.5 φ12.2 2~2.5 4 Black / RAL9005 8 1 pcs PDF DXF DWG
RMH12-4S M12×1.5 φ12.2 2~2.5 4 Light gray / RAL7035 8 1 pcs PDF DXF DWG
RMH16-2B M16×1.5 φ16.2 3~4 2 Black / RAL9005 12.5 1 pcs PDF DXF DWG
RMH16-2S M16×1.5 φ16.2 3~4 2 Light gray / RAL7035 12.5 1 pcs PDF DXF DWG
RMH16-3B M16×1.5 φ16.2 3~4 3 Black / RAL9005 12.5 1 pcs PDF DXF DWG
RMH16-3S M16×1.5 φ16.2 3~4 3 Light gray / RAL7035 12.5 1 pcs PDF DXF DWG
RMH16-4B M16×1.5 φ16.2 2~3 4 Black / RAL9005 12.5 1 pcs PDF DXF DWG
RMH16-4S M16×1.5 φ16.2 2~3 4 Light gray / RAL7035 12.5 1 pcs PDF DXF DWG
RMH16-5B M16×1.5 φ16.2 2~2.5 5 Black / RAL9005 12.5 1 pcs PDF DXF DWG
RMH16-5S M16×1.5 φ16.2 2~2.5 5 Light gray / RAL7035 12.5 1 pcs PDF DXF DWG
RMH16-6B M16×1.5 φ16.2 1.5~2 6 Black / RAL9005 12.5 1 pcs PDF DXF DWG
RMH16-6S M16×1.5 φ16.2 1.5~2 6 Light gray / RAL7035 12.5 1 pcs PDF DXF DWG
RMH20-2B M20×1.5 φ20.2 4.5~6 2 Black / RAL9005 22 1 pcs PDF DXF DWG
RMH20-2S M20×1.5 φ20.2 4.5~6 2 Light gray / RAL7035 22 1 pcs PDF DXF DWG
RMH20-3B M20×1.5 φ20.2 4~5 3 Black / RAL9005 21.5 1 pcs PDF DXF DWG
RMH20-3S M20×1.5 φ20.2 4~5 3 Light gray / RAL7035 21.5 1 pcs PDF DXF DWG
RMH20-4B M20×1.5 φ20.2 4~4.5 4 Black / RAL9005 21.5 1 pcs PDF DXF DWG
RMH20-4S M20×1.5 φ20.2 4~4.5 4 Light gray / RAL7035 21.5 1 pcs PDF DXF DWG
RMH20-5B M20×1.5 φ20.2 3~4 5 Black / RAL9005 21.5 1 pcs PDF DXF DWG
RMH20-5S M20×1.5 φ20.2 3~4 5 Light gray / RAL7035 21.5 1 pcs PDF DXF DWG
RMH20-6B M20×1.5 φ20.2 2~3 6 Black / RAL9005 22 1 pcs PDF DXF DWG
RMH20-6S M20×1.5 φ20.2 2~3 6 Light gray / RAL7035 22 1 pcs PDF DXF DWG
RMH25-2B M25×1.5 φ25.2 6~8 2 Black / RAL9005 32.5 1 pcs PDF DXF DWG
RMH25-2S M25×1.5 φ25.2 6~8 2 Light gray / RAL7035 32.5 1 pcs PDF DXF DWG
RMH25-3B M25×1.5 φ25.2 5~7 3 Black / RAL9005 33 1 pcs PDF DXF DWG
RMH25-3S M25×1.5 φ25.2 5~7 3 Light gray / RAL7035 33 1 pcs PDF DXF DWG
RMH25-4B M25×1.5 φ25.2 4~6 4 Black / RAL9005 33 1 pcs PDF DXF DWG
RMH25-4S M25×1.5 φ25.2 4~6 4 Light gray / RAL7035 33 1 pcs PDF DXF DWG
RMH25-5B M25×1.5 φ25.2 4.5~5.5 5 Black / RAL9005 33 1 pcs PDF DXF DWG
RMH25-5S M25×1.5 φ25.2 4.5~5.5 5 Light gray / RAL7035 33 1 pcs PDF DXF DWG
RMH25-6B M25×1.5 φ25.2 3~4.5 6 Black / RAL9005 33.5 1 pcs PDF DXF DWG
RMH25-6S M25×1.5 φ25.2 3~4.5 6 Light gray / RAL7035 33.5 1 pcs PDF DXF DWG
RMH32-2B M32×1.5 φ32.3 8.5~11 2 Black / RAL9005 57.5 1 pcs PDF DXF DWG
RMH32-2S M32×1.5 φ32.3 8.5~11 2 Light gray / RAL7035 57.5 1 pcs PDF DXF DWG
RMH32-3B M32×1.5 φ32.3 9~11 3 Black / RAL9005 55.5 1 pcs PDF DXF DWG
RMH32-3S M32×1.5 φ32.3 9~11 3 Light gray / RAL7035 55.5 1 pcs PDF DXF DWG
RMH32-4B M32×1.5 φ32.3 8~9 4 Black / RAL9005 55 1 pcs PDF DXF DWG
RMH32-4S M32×1.5 φ32.3 8~9 4 Light gray / RAL7035 55 1 pcs PDF DXF DWG
RMH32-5B M32×1.5 φ32.3 6~8 5 Black / RAL9005 55 1 pcs PDF DXF DWG
RMH32-5S M32×1.5 φ32.3 6~8 5 Light gray / RAL7035 55 1 pcs PDF DXF DWG
RMH32-6B M32×1.5 φ32.3 5.5~7 6 Black / RAL9005 56 1 pcs PDF DXF DWG
RMH32-6S M32×1.5 φ32.3 5.5~7 6 Light gray / RAL7035 56 1 pcs PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.
