CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series1
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series2
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series3
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series4
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series5
CUSTOM SIZED ACLYRIC BOX with CORNER GUARD - SKGF series6

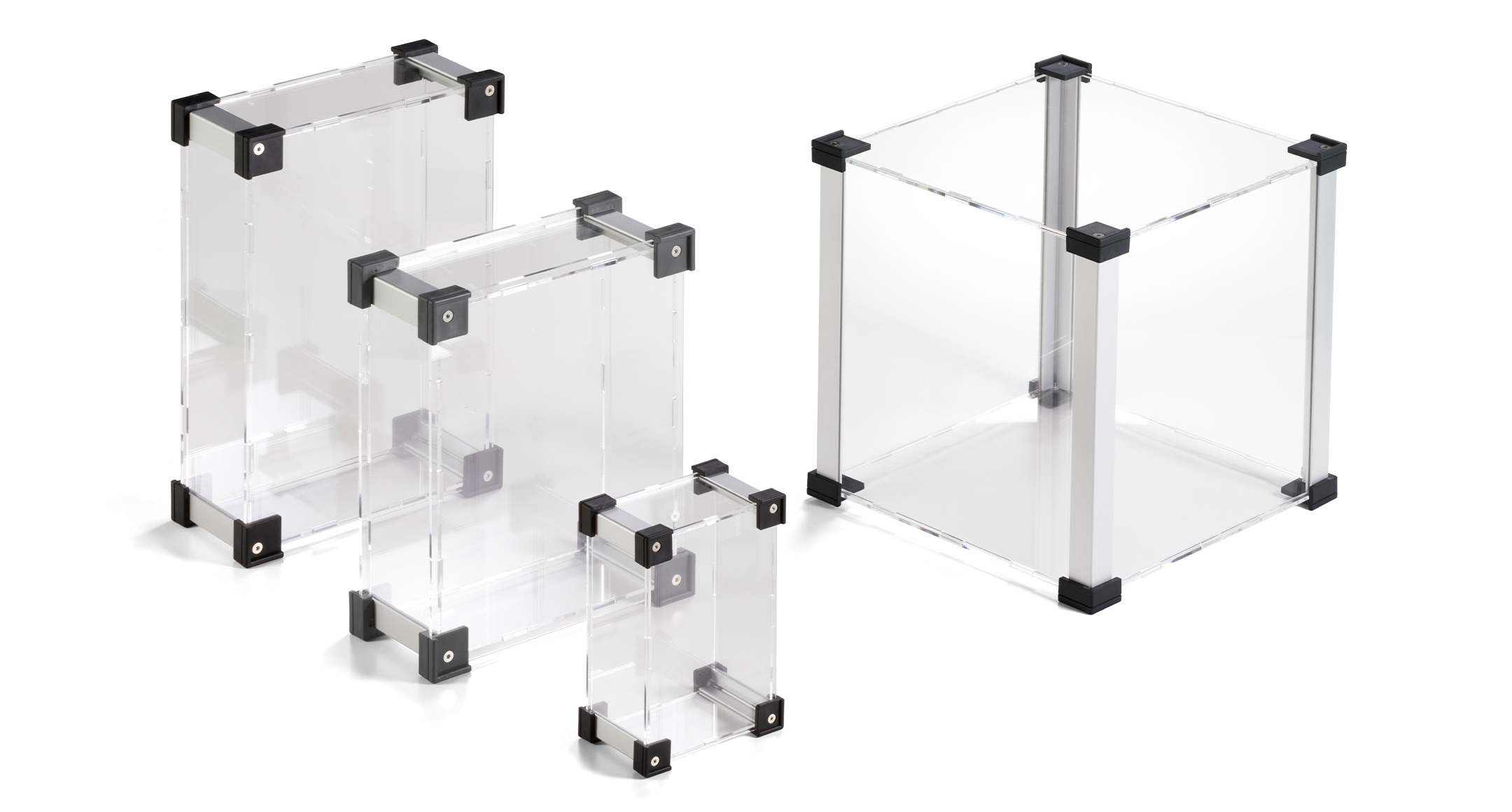

Transparent acrylic box with corner support frames and elastomer corner guards.
Extruded aluminium corner frames enables the structure to be rigid when screwed.

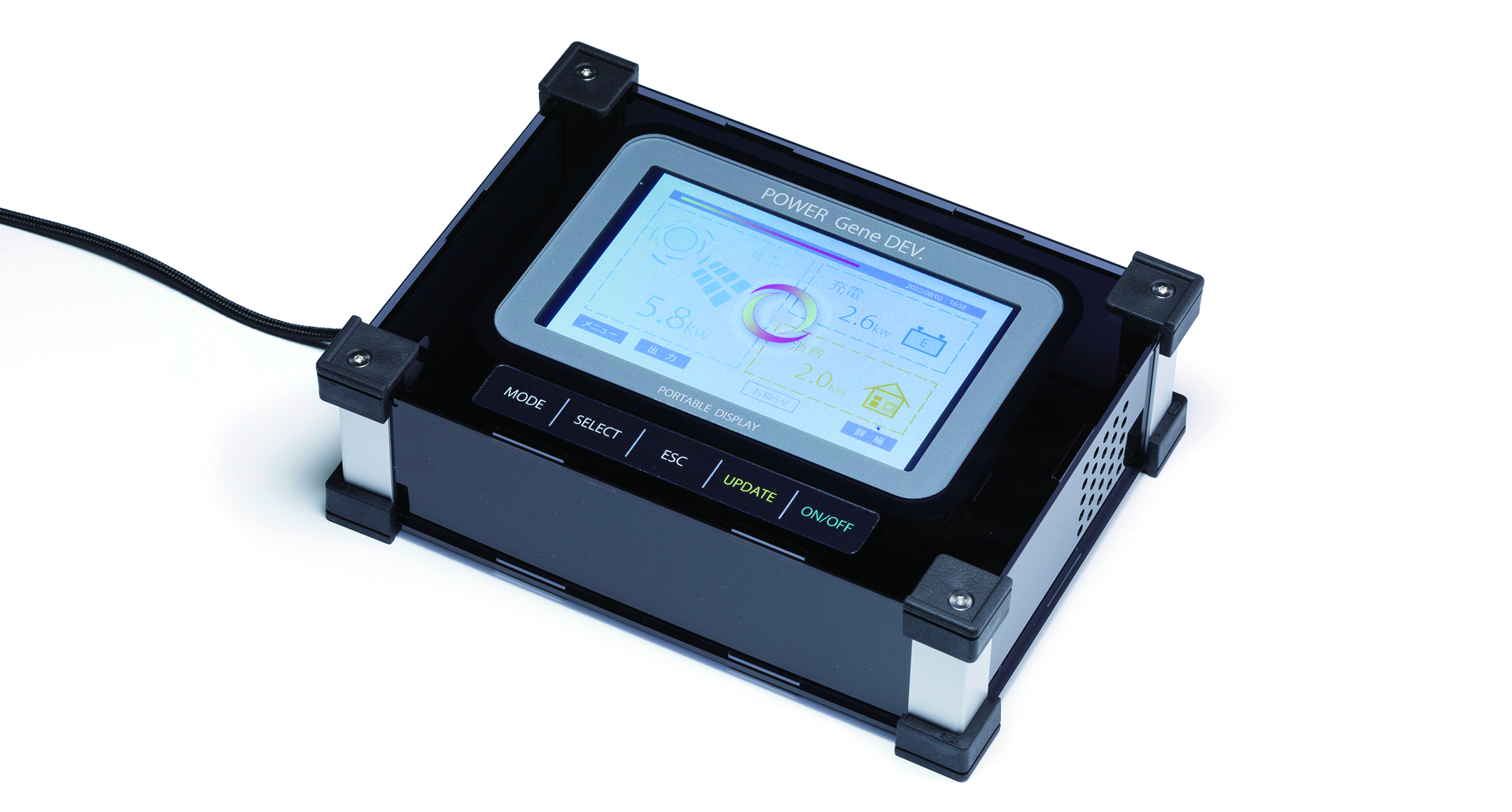

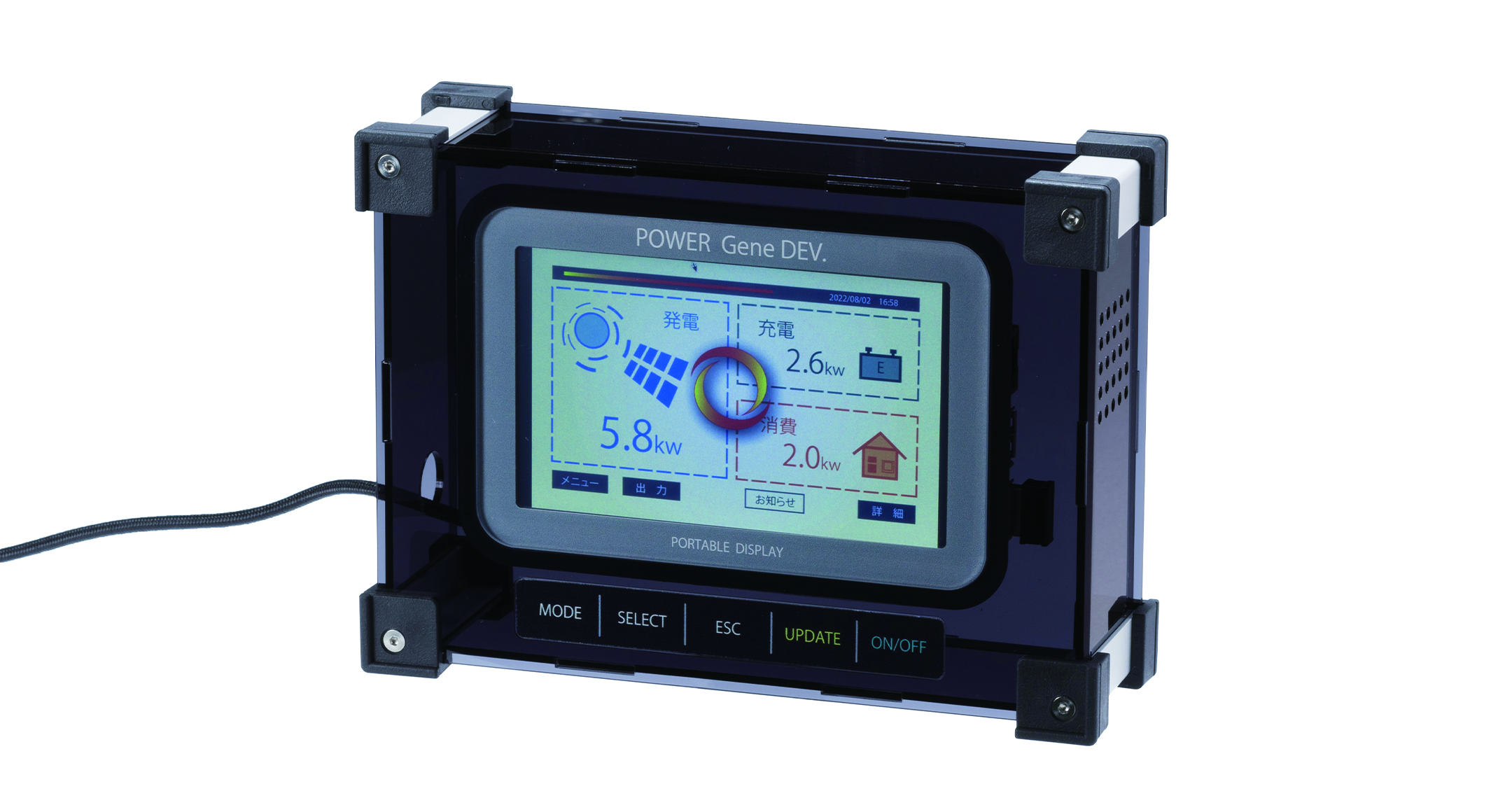

Perfect to be used as a display case to showcase a product’s internal components at trade shows or demonstration events, or as a touch screen monitor box.

Can be manufactured in a wide range of dimensions.
Adjustable sizes available in 1mm intervals, with W and D dimensions from 55 ~ 500mm, and H dimensions from 30 ~ 500mm.

Elastomer corner guards are impact resistant and function as anti-slip rubber feet.
Black(Similar to RAL7021) or Gray(Similar to RAL7043) color can be selected.

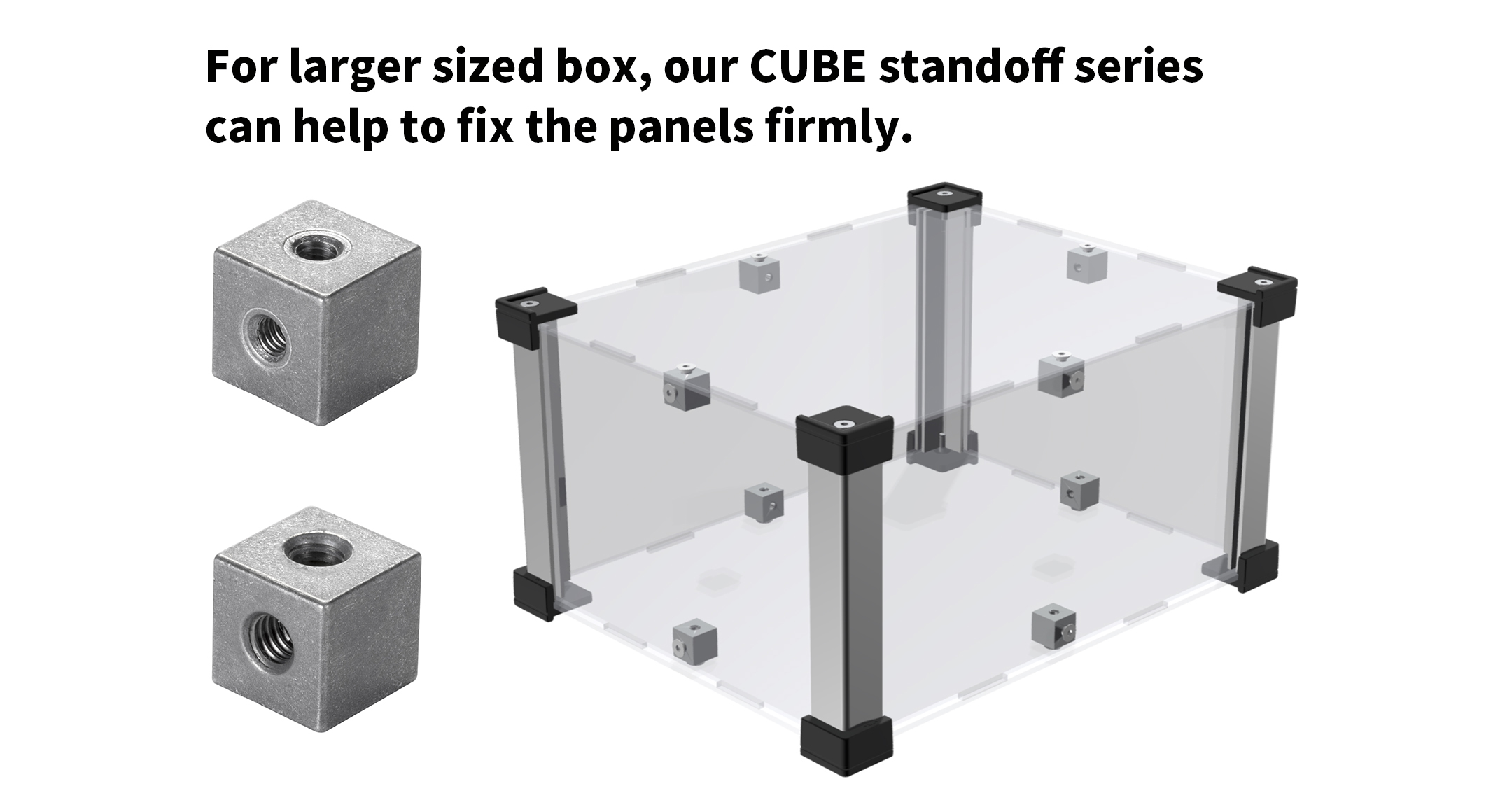

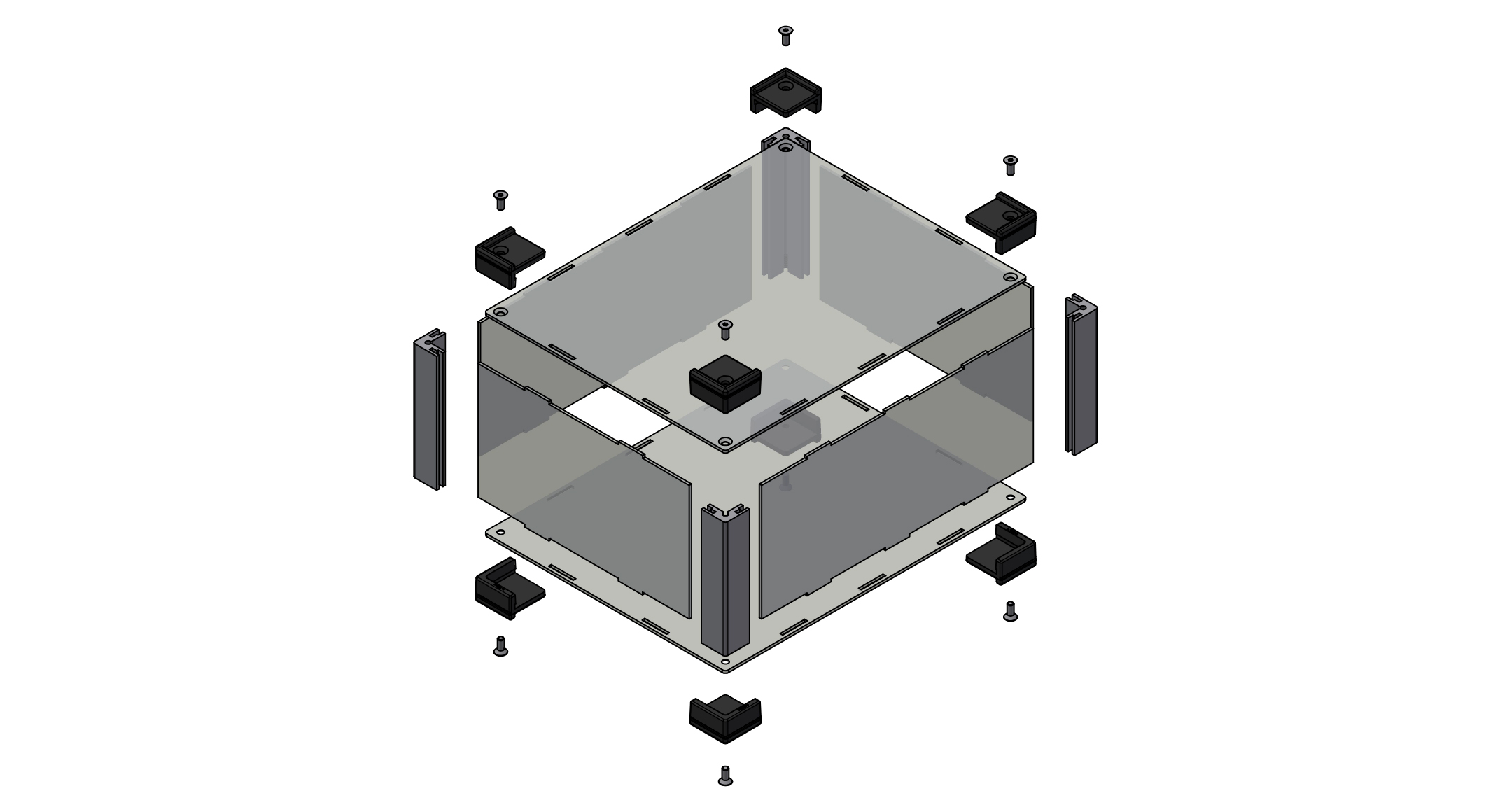

3D View - SKGF150-150-150  3D View - AKGF300-80-200K20-G  3D View - AKGF300-80-200K20-B  Exploded view  Example - reinforcement by CUBE standoff 
