Waterproof polycarbonate enclosure for superior impact resistance.
Available in 28 different sizes, with 2 different cover types (white gray and transparent).

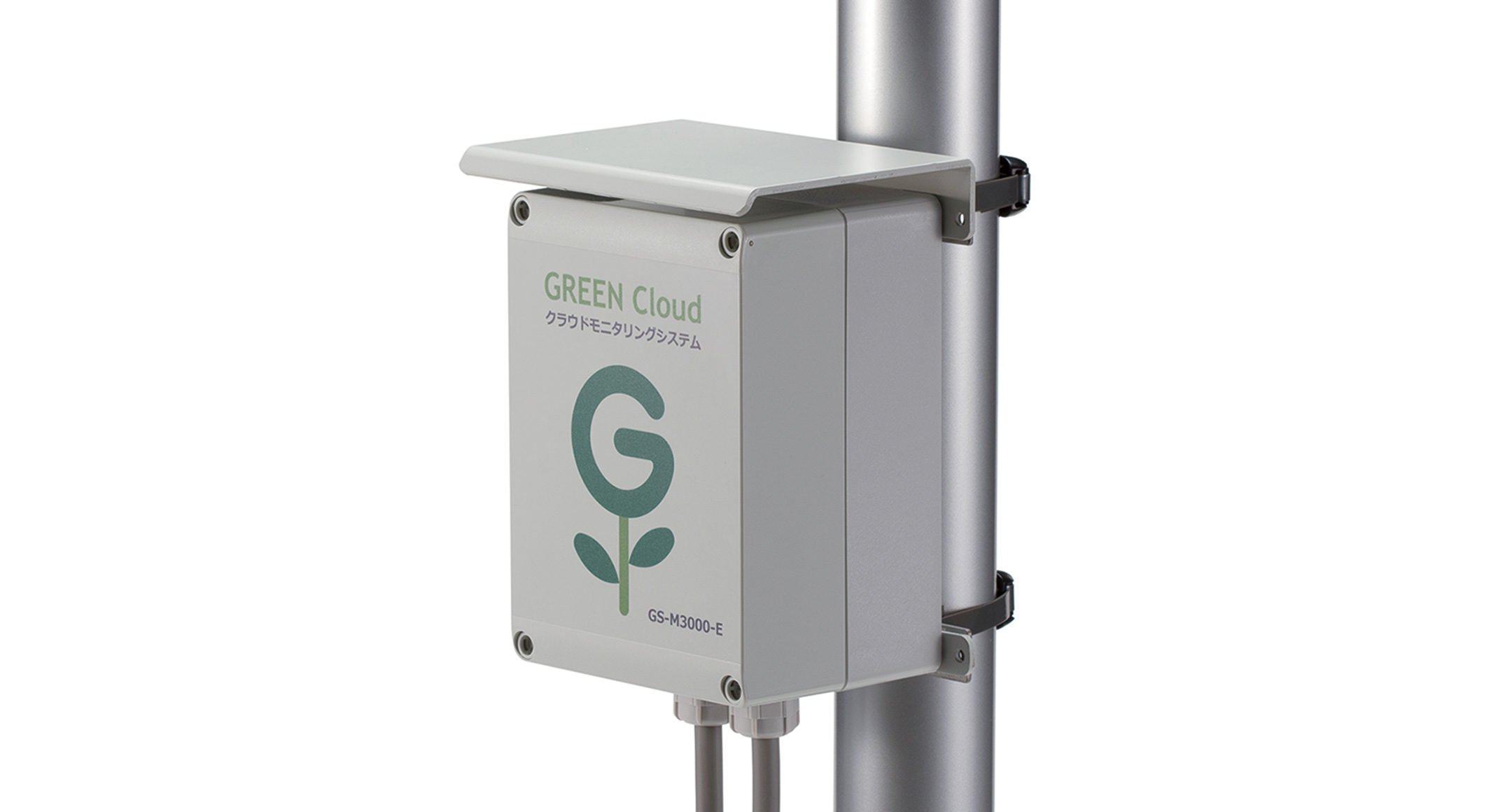

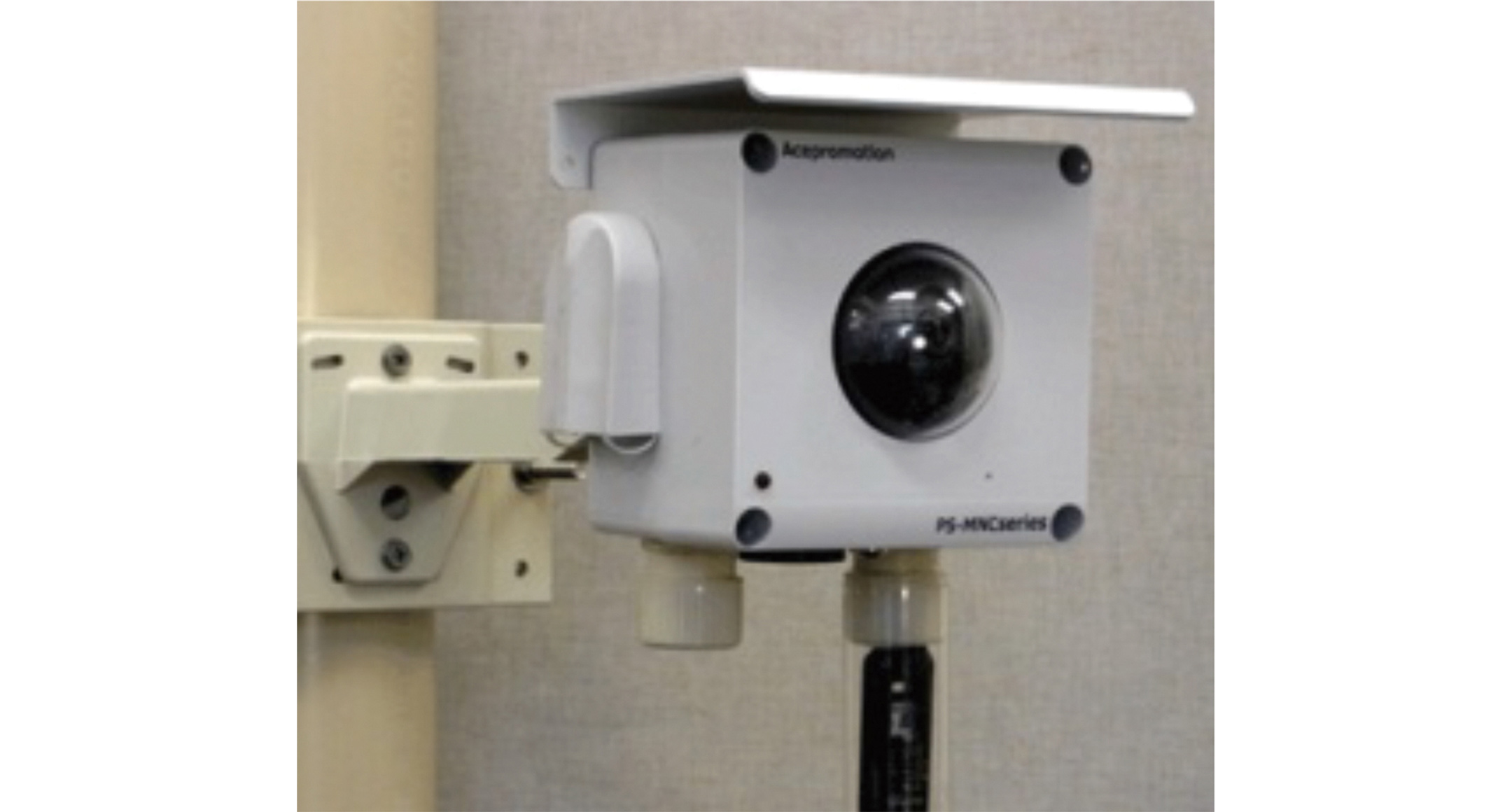

Suitable to be used as controller, junction box, network devices, outdoor measuring instrument and so on.

Protection class: IP67 (equivalent to NEMA6 rating)
Operating temperature: -20℃ ~ +75℃
Recommended torque: 1N・m ~ 1.5N・m
Body color: White gray(similar to RAL7035)

*Optional terminal block STB series can be easily attached to SPCP series.
3D View - White gray cover  3D View - Transparent cover 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Cover color Weight (g) PDF DXF DWG
W H D w h d
SPCP081304G 75 35 125 65.5 20.5 91 White gray 120 PDF DXF DWG
SPCP081304T 75 35 125 65.5 20.5 91 Transparent 120 PDF DXF DWG
SPCP081305G 75 50 125 65.5 35.5 91 White gray 150 PDF DXF DWG
SPCP081305T 75 50 125 65.5 35.5 91 Transparent 150 PDF DXF DWG
SPCP081306G 75 60 125 65.5 45.5 91 White gray 161 PDF DXF DWG
SPCP081306T 75 60 125 65.5 45.5 91 Transparent 161 PDF DXF DWG
SPCP081308G 75 75 125 65.5 60.5 91 White gray 213 PDF DXF DWG
SPCP081308T 75 75 125 65.5 60.5 91 Transparent 213 PDF DXF DWG
SPCP081310G 75 100 125 65 85.5 90.5 White gray 278 PDF DXF DWG
SPCP081310T 75 100 125 65 85.5 90.5 Transparent 278 PDF DXF DWG
SPCP081313G 75 125 125 64.5 110.5 90 White gray 306 PDF DXF DWG
SPCP081313T 75 125 125 64.5 110.5 90 Transparent 306 PDF DXF DWG
SPCP101004G 100 35 100 90.5 20.5 66 White gray 124 PDF DXF DWG
SPCP101004T 100 35 100 90.5 20.5 66 Transparent 124 PDF DXF DWG
SPCP101006G 100 60 100 90.5 45.5 66 White gray 165 PDF DXF DWG
SPCP101006T 100 60 100 90.5 45.5 66 Transparent 165 PDF DXF DWG
SPCP131304G 125 35 125 115.5 20.5 91 White gray 178 PDF DXF DWG
SPCP131304T 125 35 125 115.5 20.5 91 Transparent 178 PDF DXF DWG
SPCP131305G 125 50 125 115.5 35.5 91 White gray 215 PDF DXF DWG
SPCP131305T 125 50 125 115.5 35.5 91 Transparent 215 PDF DXF DWG
SPCP131306G 125 60 125 115.5 45.5 91 White gray 243 PDF DXF DWG
SPCP131306T 125 60 125 115.5 45.5 91 Transparent 243 PDF DXF DWG
SPCP131308G 125 75 125 115.5 60.5 91 White gray 294 PDF DXF DWG
SPCP131308T 125 75 125 115.5 60.5 91 Transparent 294 PDF DXF DWG
SPCP131310G 125 100 125 115 85.5 90.5 White gray 366 PDF DXF DWG
SPCP131310T 125 100 125 115 85.5 90.5 Transparent 366 PDF DXF DWG
SPCP131313G 125 125 125 114.5 110.5 90 White gray 405 PDF DXF DWG
SPCP131313T 125 125 125 114.5 110.5 90 Transparent 405 PDF DXF DWG
SPCP131804G 125 35 175 115.5 20.5 141 White gray 237 PDF DXF DWG
SPCP131804T 125 35 175 115.5 20.5 141 Transparent 237 PDF DXF DWG
SPCP131805G 125 50 175 115.5 35.5 141 White gray 282 PDF DXF DWG
SPCP131805T 125 50 175 115.5 35.5 141 Transparent 282 PDF DXF DWG
SPCP131806G 125 60 175 115.5 45.5 141 White gray 297 PDF DXF DWG
SPCP131806T 125 60 175 115.5 45.5 141 Transparent 297 PDF DXF DWG
SPCP131808G 125 75 175 115.5 60.5 141 White gray 378 PDF DXF DWG
SPCP131808T 125 75 175 115.5 60.5 141 Transparent 378 PDF DXF DWG
SPCP131810G 125 100 175 115 85.5 140.5 White gray 463 PDF DXF DWG
SPCP131810T 125 100 175 115 85.5 140.5 Transparent 463 PDF DXF DWG
SPCP131813G 125 125 175 115 110.5 140.5 White gray 531 PDF DXF DWG
SPCP131813T 125 125 175 115 110.5 140.5 Transparent 531 PDF DXF DWG
SPCP131815G 125 150 175 114 135.5 139.5 White gray 600 PDF DXF DWG
SPCP131815T 125 150 175 114 135.5 139.5 Transparent 600 PDF DXF DWG
SPCP181808G 175 75 175 165.5 60.5 141 White gray 475 PDF DXF DWG
SPCP181808T 175 75 175 165.5 60.5 141 Transparent 475 PDF DXF DWG
SPCP181810G 175 100 175 165 85.5 140.5 White gray 584 PDF DXF DWG
SPCP181810T 175 100 175 165 85.5 140.5 Transparent 584 PDF DXF DWG
SPCP181813G 175 125 175 164.5 110.5 140 White gray 652 PDF DXF DWG
SPCP181813T 175 125 175 164.5 110.5 140 Transparent 652 PDF DXF DWG
SPCP181815G 175 150 175 164 135.5 139.5 White gray 738 PDF DXF DWG
SPCP181815T 175 150 175 164 135.5 139.5 Transparent 738 PDF DXF DWG
SPCP182508G 175 75 250 165.5 60.5 216 White gray 637 PDF DXF DWG
SPCP182508T 175 75 250 165.5 60.5 216 Transparent 637 PDF DXF DWG
SPCP182510G 175 100 250 165 85.5 215.5 White gray 754 PDF DXF DWG
SPCP182510T 175 100 250 165 85.5 215.5 Transparent 754 PDF DXF DWG
SPCP182515G 175 150 250 164 135.5 214.5 White gray 959 PDF DXF DWG
SPCP182515T 175 150 250 164 135.5 214.5 Transparent 959 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP0813 PDF DXF DWG
SMP1010 PDF DXF DWG
SMP1010 PDF DXF DWG
SMP1010 PDF DXF DWG
SMP1010 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1313 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1318 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1818 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
SMP1825 PDF DXF DWG
