STAINLESS STEEL HOSE CLAMP - SNB series


SNB-H Series -PDF

CATEGORY：Hose clamp, Stainless steel hose clamp, Hose band, Hose clip

STAINLESS STEEL HOSE CLAMP - SNB series
STAINLESS STEEL HOSE CLAMP - SNB series
STAINLESS STEEL HOSE CLAMP - SNB series
STAINLESS STEEL HOSE CLAMP - SNB series
STAINLESS STEEL HOSE CLAMP - SNB series1
STAINLESS STEEL HOSE CLAMP - SNB series2
STAINLESS STEEL HOSE CLAMP - SNB series3
STAINLESS STEEL HOSE CLAMP - SNB series4

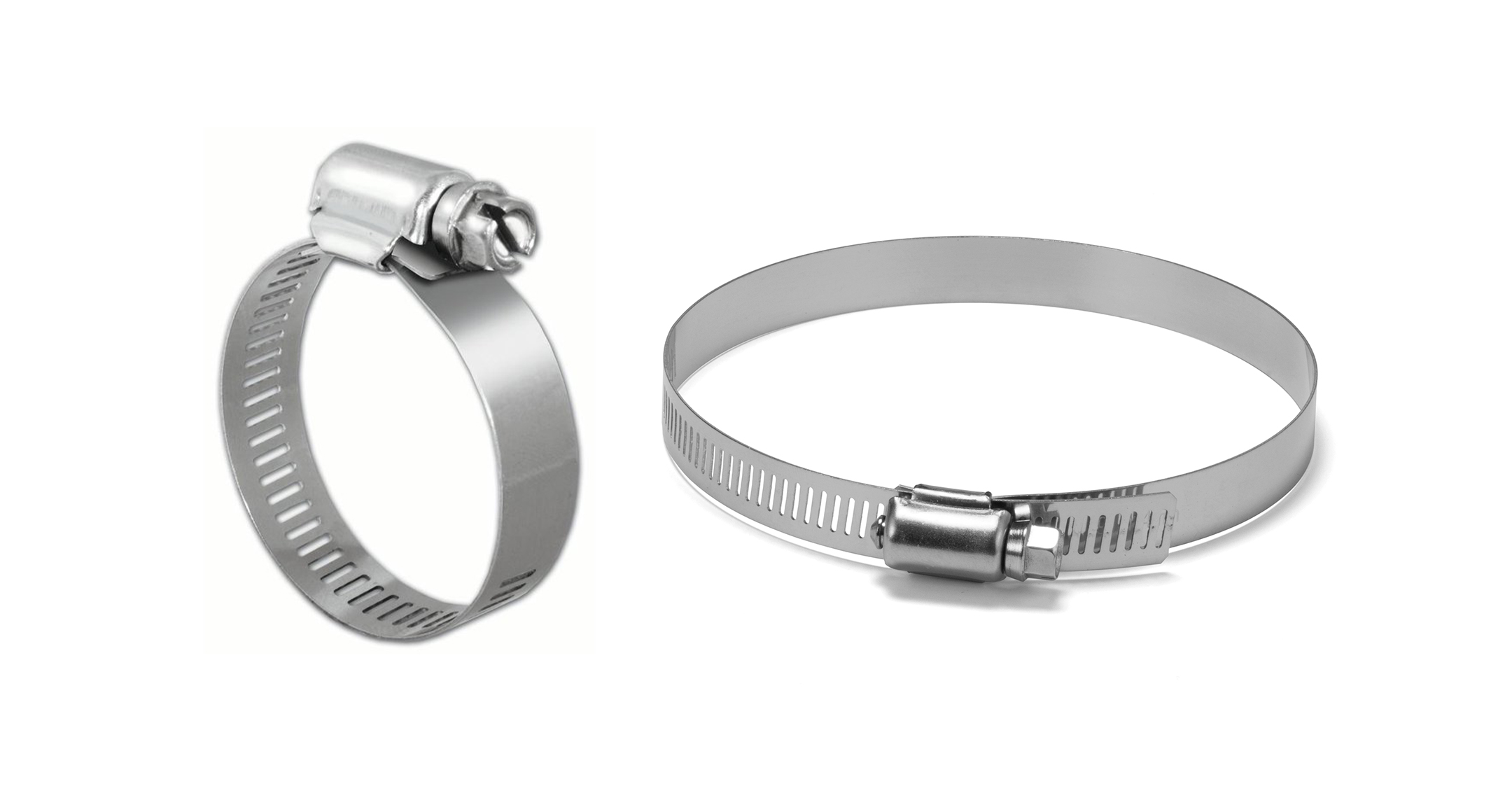

Screw adjustable type stainless steel hose clamp.

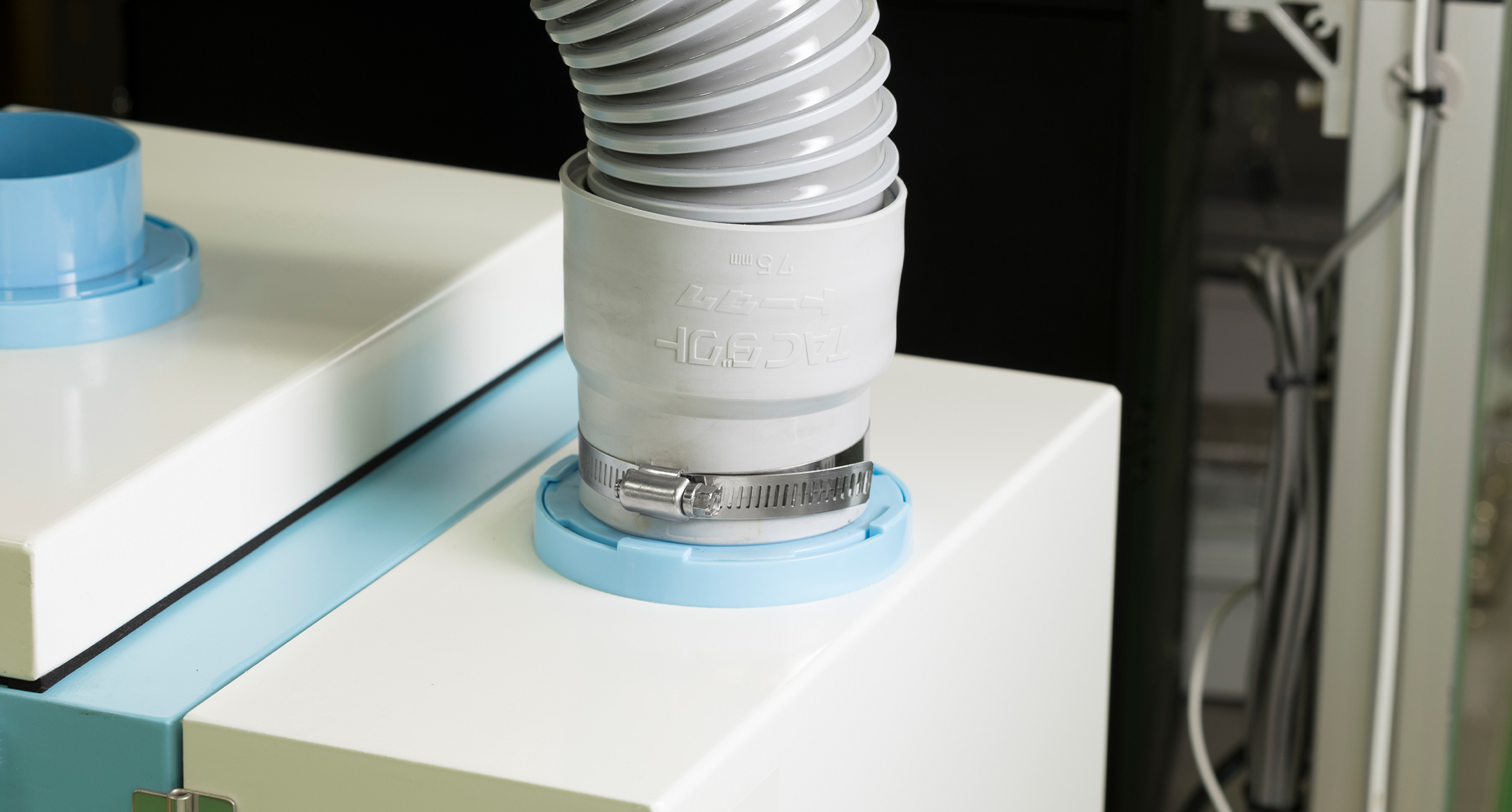

Clamp band for hoses for air, liquid, and oil.

Strap material : SUS304
Wide lineup of 23 sizes from Φ8 mm to Φ308 mm.

PRODUCT NO. / DIMENSIONS

Product No. Hose diameter range (mm) Belt width (mm) Weight (g) / 1 pcs Pack of PDF DXF DWG
SNB 8-12 8～12φ 8 5.5 1pcs
SNB 10-16 10～16φ 8 5.7 1pcs
SNB 13-23 13～23φ 8 6.2 1pcs
SNB 21-38 21～38φ 12.7 20.5 1pcs
SNB 33-57 33～57φ 12.7 24.5 1pcs
SNB 52-76 52～76φ 12.7 27.5 1pcs
SNB 72-95 72～95φ 12.7 30 1pcs
SNB 91-114 91～114φ 12.7 34.5 1pcs
SNB 105-127 105～127φ 12.7 37.5 1pcs
SNB 117-140 117～140φ 12.7 39.5 1pcs
SNB 130-153 130～153φ 12.7 41.5 1pcs
SNB 142-165 142～165φ 12.7 43.5 1pcs
SNB 155-178 155～178φ 12.7 46.5 1pcs
SNB 168-191 168～191φ 12.7 49 1pcs
SNB 181-204 181～204φ 12.7 51 1pcs
SNB 194-217 194～217φ 12.7 52.5 1pcs
SNB 207-230 207～230φ 12.7 27 1pcs
SNB 220-243 220～243φ 12.7 59.5 1pcs
SNB 233-256 233～256φ 12.7 62.5 1pcs
SNB 246-269 246～269φ 12.7 64 1pcs
SNB 259-282 259～282φ 12.7 67.5 1pcs
SNB 272-295 272～295φ 12.7 70 1pcs
SNB 285-308 285～308φ 12.7 71 1pcs
