CATEGORY：Waterproof connector, Snap-lock connector, IP68 connector, Industrial connector, LED connector, Outdoor connector

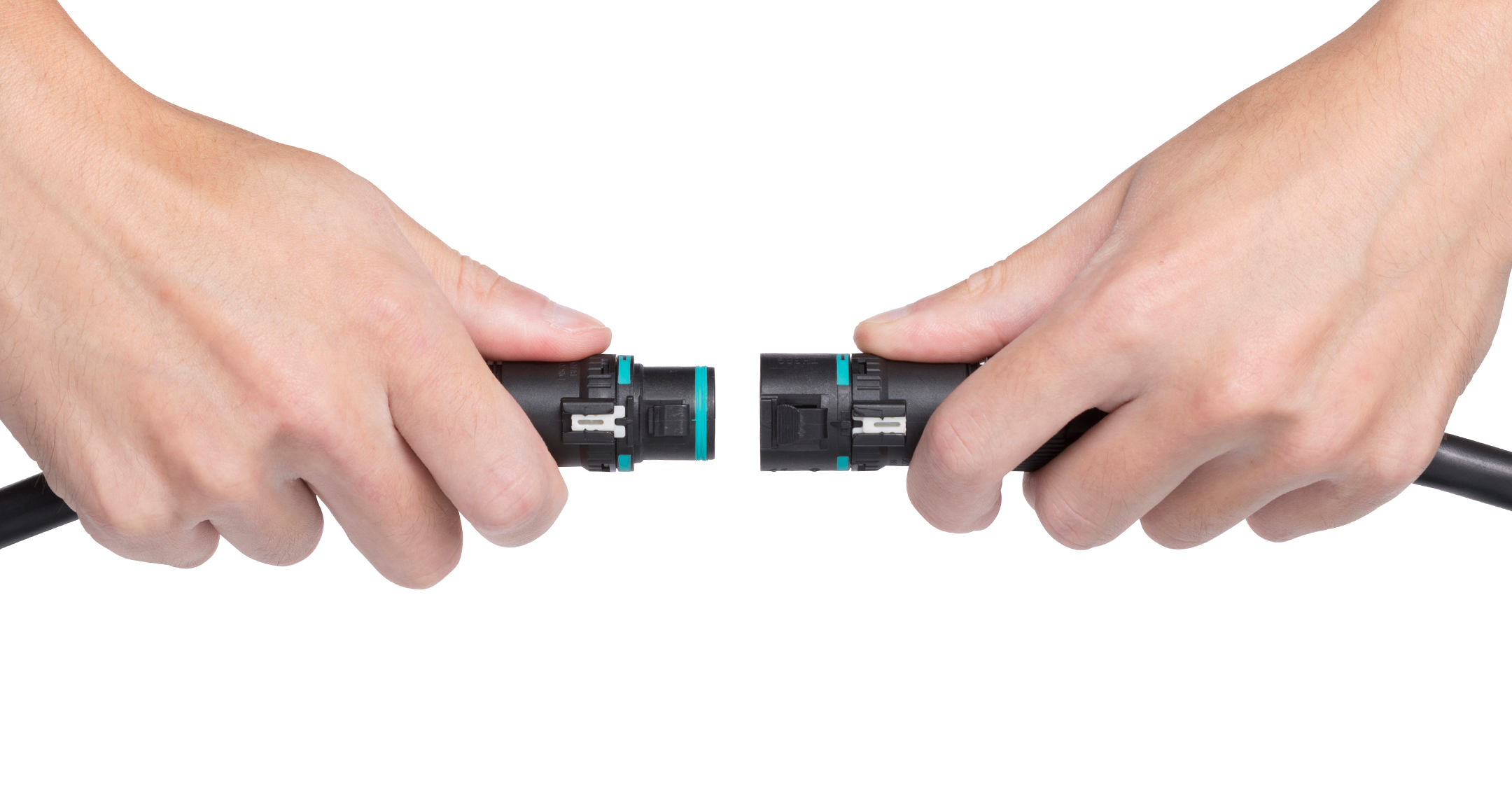

IP68 snap-lock connector for easy and frequent connection / disconnection.
4P and 5P pole models are available.

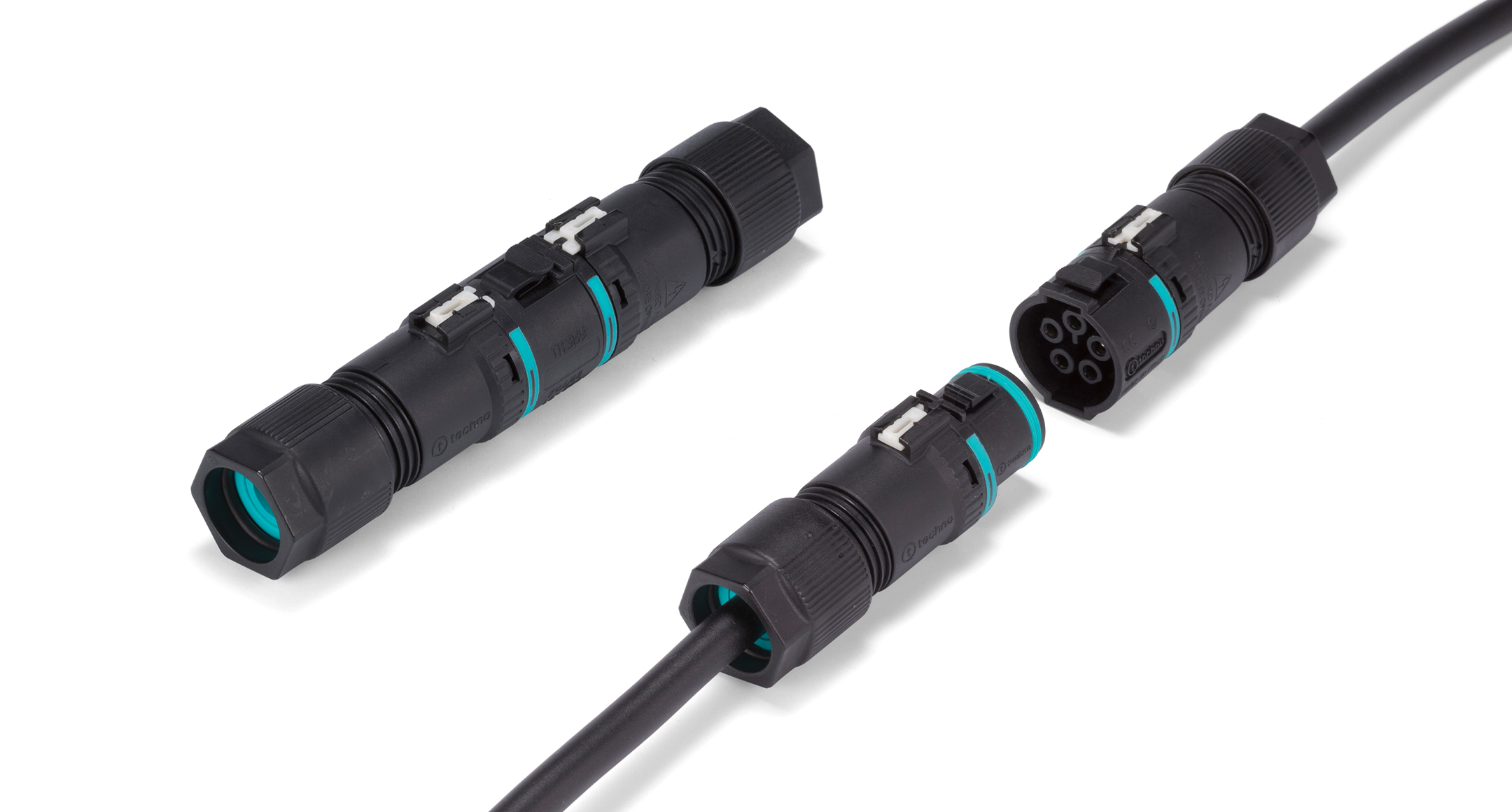

Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
Screwdriver flathead tip width of 3mm is recommended.
Screws may be screwed in firmly. Use a screwdriver with proper grip handles to loosen it.

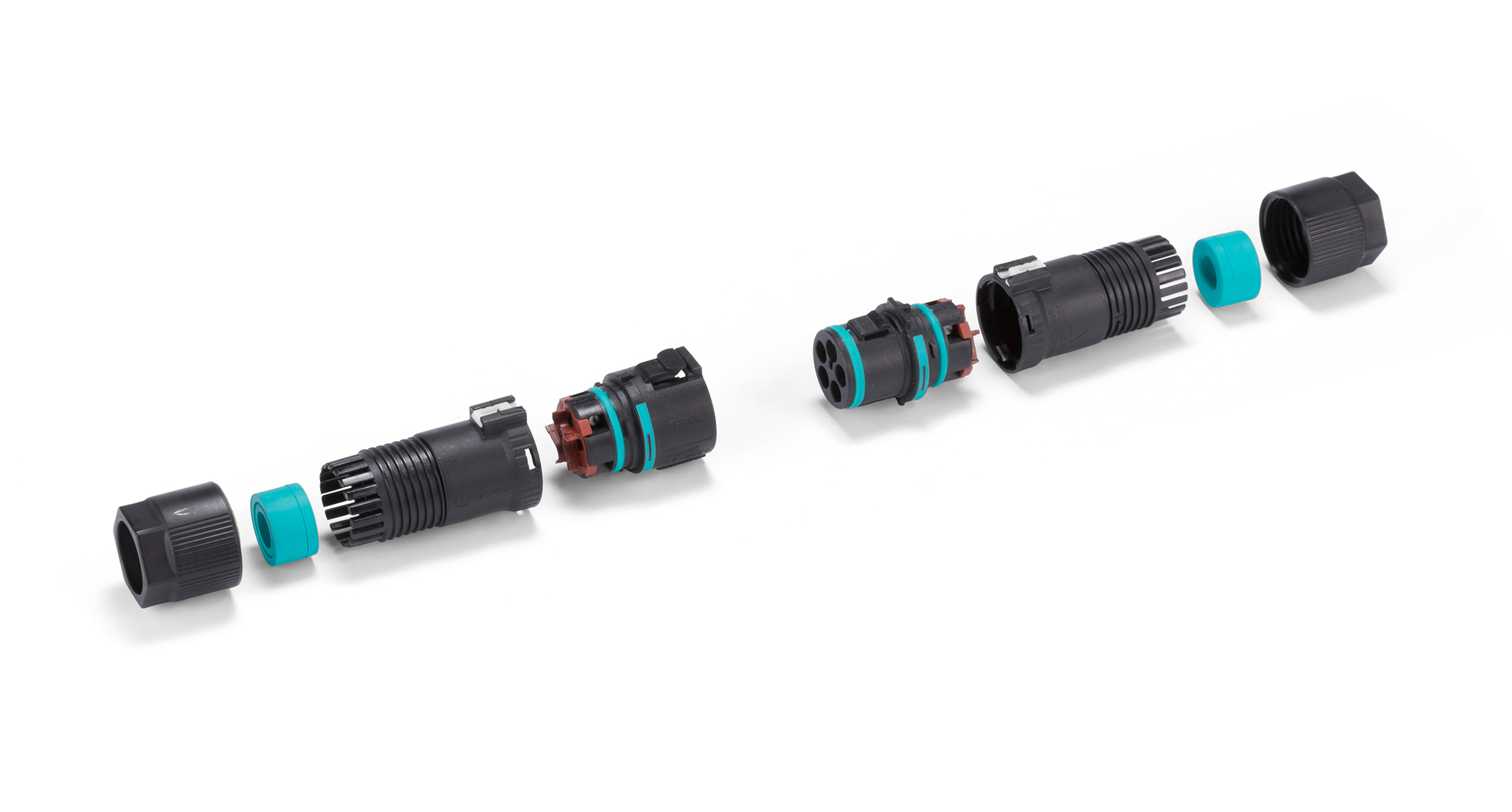

Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.
Specifications
Rated voltage : AC500V
Rated current : 17.5A
Applicable wire : Stranded wire 0.25m㎡～1.5ｍ㎡
Impulse withstand voltage : 2.5kV
4P and 5P pole models are available.
Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
Screwdriver flathead tip width of 3mm is recommended.
Screws may be screwed in firmly. Use a screwdriver with proper grip handles to loosen it.
Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.
Specifications
Rated voltage : AC500V
Rated current : 17.5A
Applicable wire : Stranded wire 0.25m㎡～1.5ｍ㎡
Impulse withstand voltage : 2.5kV
