CATEGORY：Waterproof connector, Snap-lock connector, Panel-mount connector, IP68 connector, Industrial connector, LED connector, Outdoor connector

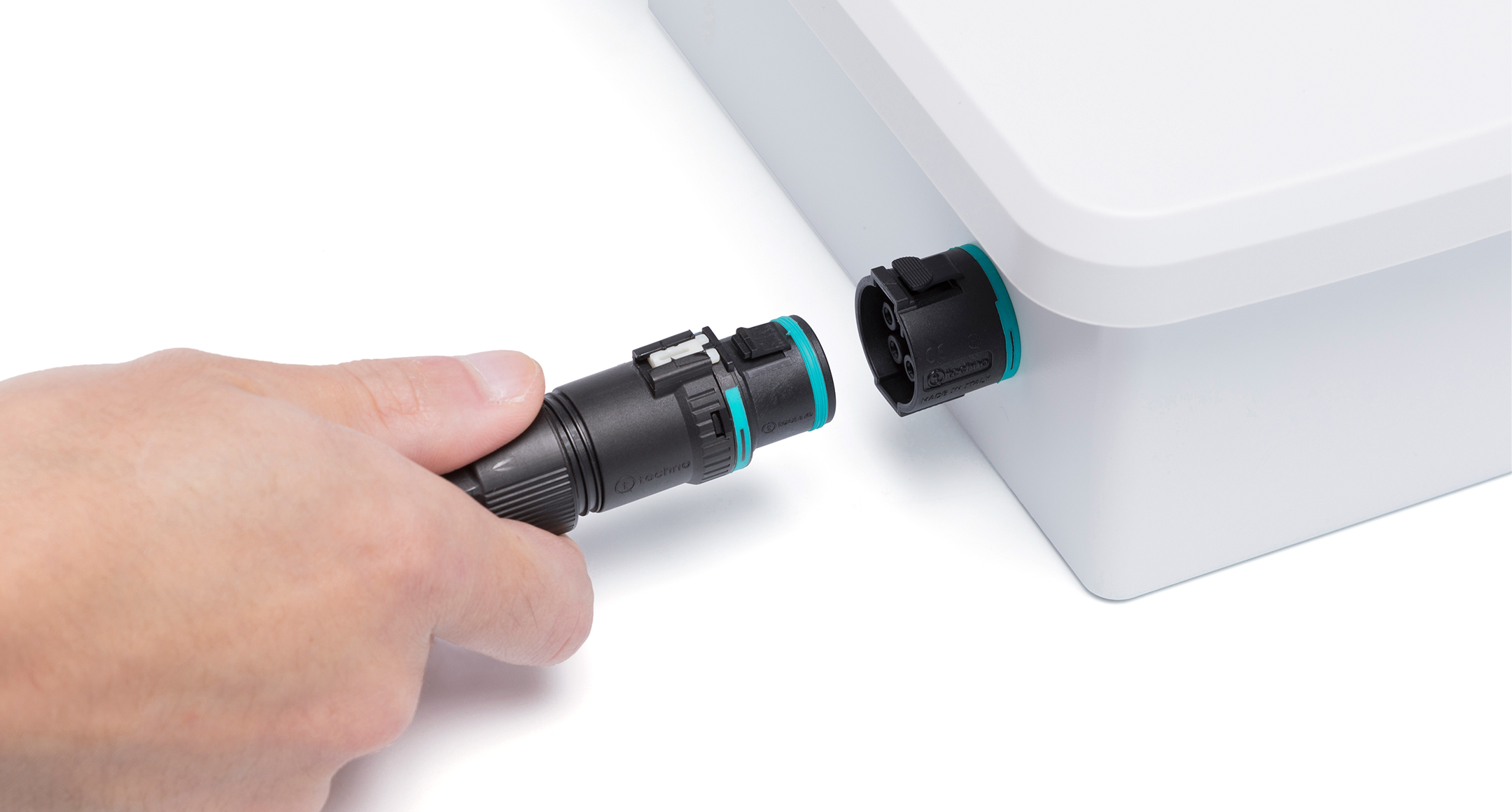

IP68 snap-lock mini panel-mount connector for easy and frequent connection / disconnection.
Can be attached / detached while installed on panels or enclosures.
4P and 5P pole models are available.
Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
Screwdriver flathead tip width of 3mm is recommended.
Screws may be screwed in firmly. Use a screwdriver with proper grip handles to loosen it.
Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.
Specifications
Rated voltage : AC500V
Rated current : 17.5A
Applicable wire : Stranded wire 0.25m㎡～1.5ｍ㎡
Impulse withstand voltage : 2.5kV
Can be attached / detached while installed on panels or enclosures.
4P and 5P pole models are available.
Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
Screwdriver flathead tip width of 3mm is recommended.
Screws may be screwed in firmly. Use a screwdriver with proper grip handles to loosen it.
Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.
Specifications
Rated voltage : AC500V
Rated current : 17.5A
Applicable wire : Stranded wire 0.25m㎡～1.5ｍ㎡
Impulse withstand voltage : 2.5kV
PRODUCT NO. / DIMENSIONS
| Product No. | Cable side / Panel mount side | Cable range | No. of poles | Mounting thickness | Rated voltage | Reted current | Applicable wire | Impulse withstand voltage | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THB389E-4P-SP | Socket / Plug | φ7～13.5 | 4P | 1～3mm | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded) | 2.5kV | 39.5 | DXF | DWG | |
| THB389E-4P-PS | Plug / Socket | φ7～13.5 | 4P | 1～3mm | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded) | 2.5kV | 39 | DXF | DWG | |
| THB389E-5P-SP | Socket / Plug | φ7～13.5 | 5P | 1～3mm | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded) | 2.5kV | 41.5 | DXF | DWG | |
| THB389E-5P-PS | Plug / Socket | φ7～13.5 | 5P | 1～3mm | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded) | 2.5kV | 41.5 | DXF | DWG |
