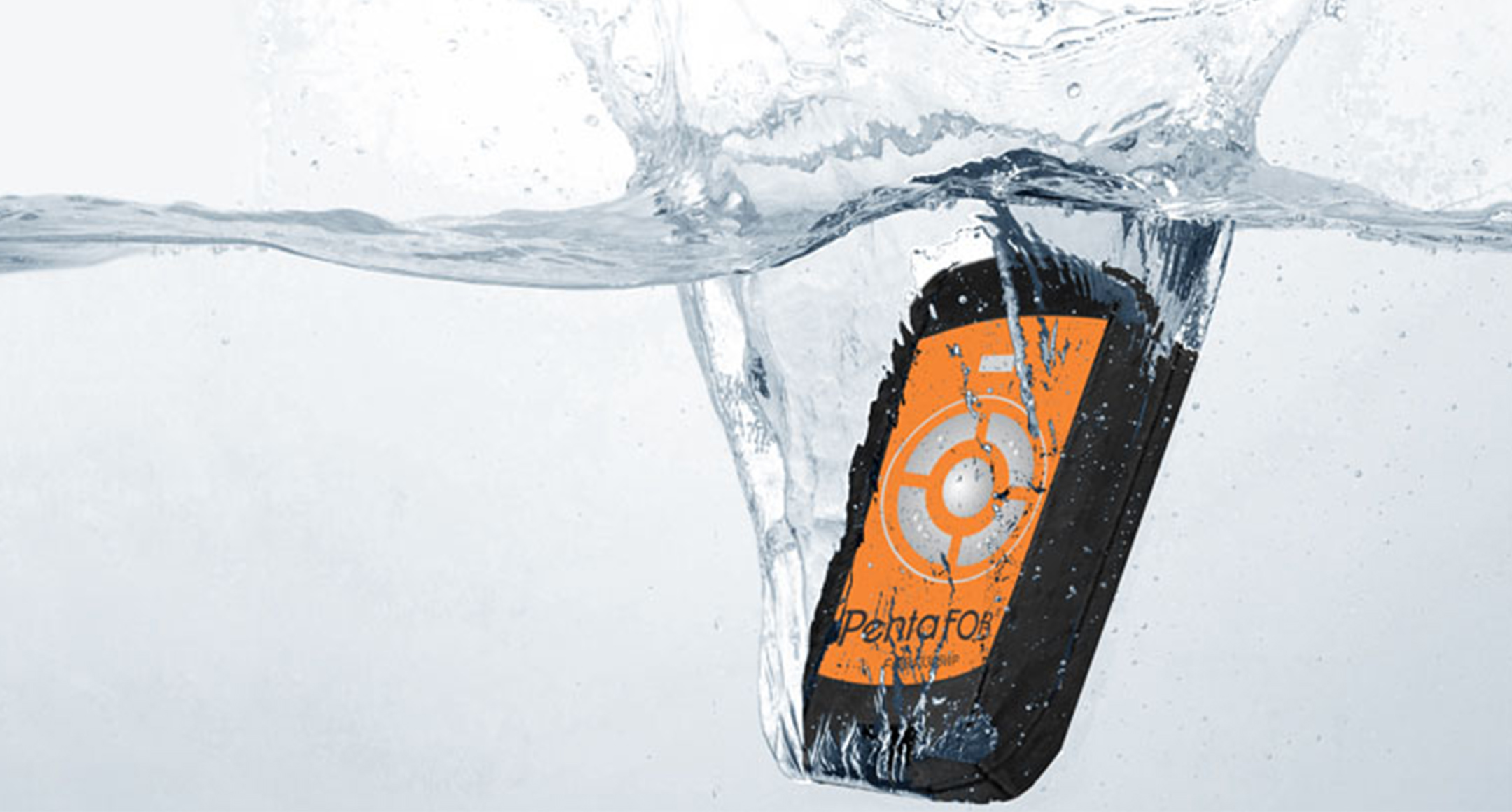

IP67 KEY-FOB PLASTIC ENCLOSURE - WC series


WC Series -PDF

CATEGORY:IP67 handheld enclosures, Waterproof plastic case, Remote controller enclosures, Key fob enclosures, Plastic enclosures with CR2032 Battery compartment

IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series1
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series2
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series3
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series4
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series5
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series6
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series7
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series8
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series9
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series10
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series11
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series12
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series13
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series14
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series15
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series16
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series17
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series18
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series19
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series20

COLOR TYPE

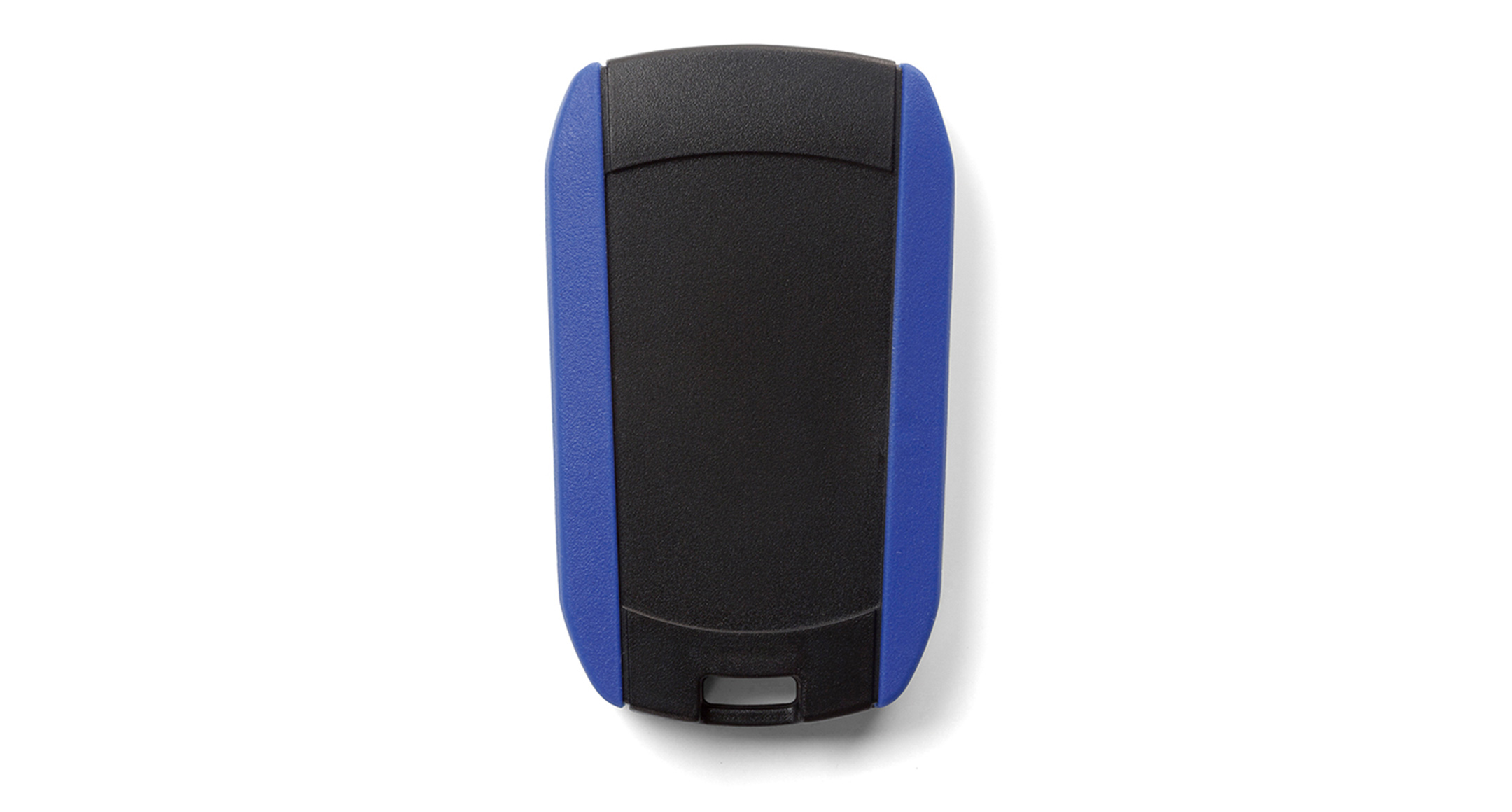

BMBlack/Marine

IP67 KEY-FOB PLASTIC ENCLOSURE - WC series:Black/Marine

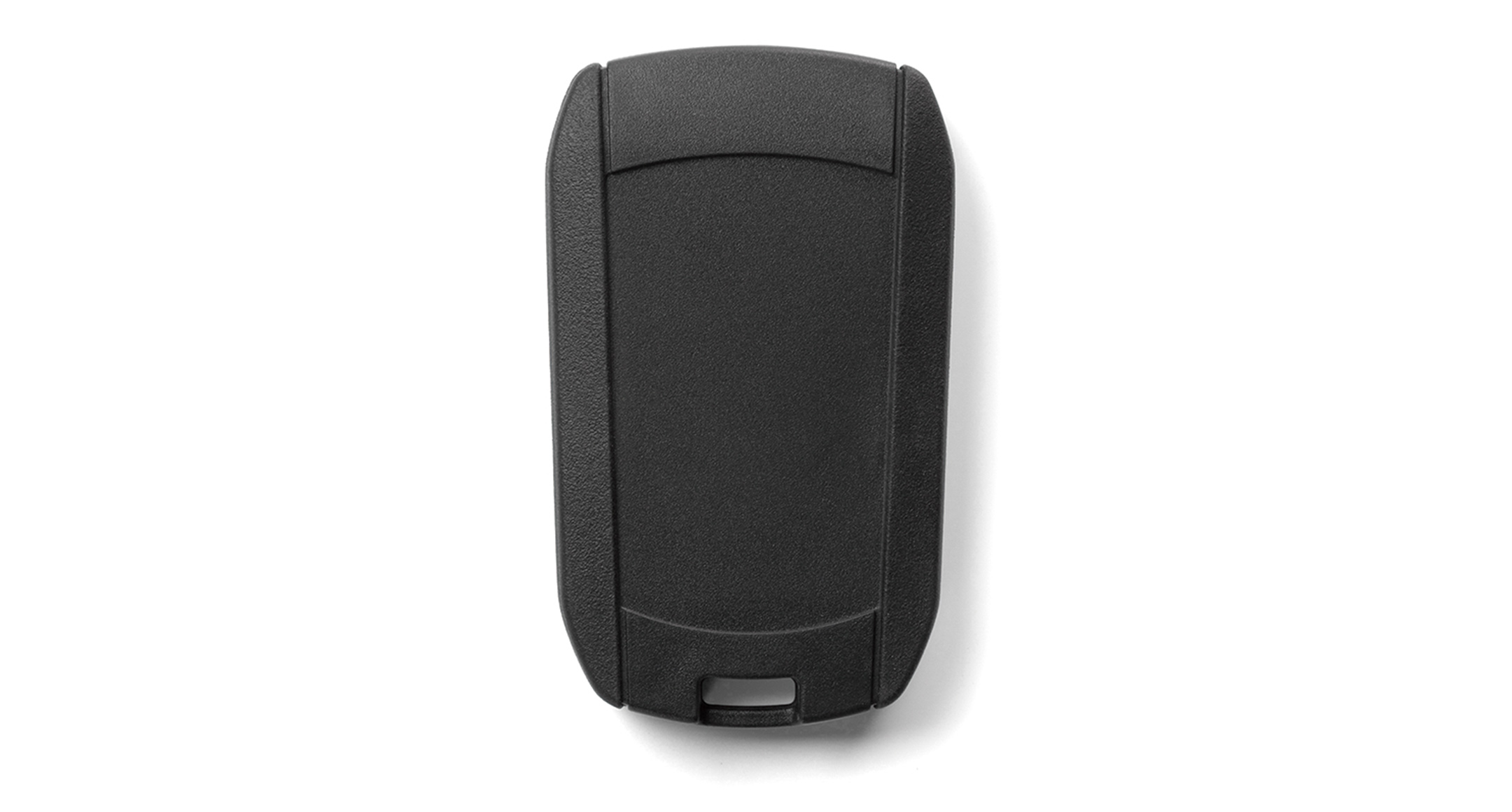

BBBlack/Black

IP67 KEY-FOB PLASTIC ENCLOSURE - WC series:Black/Black

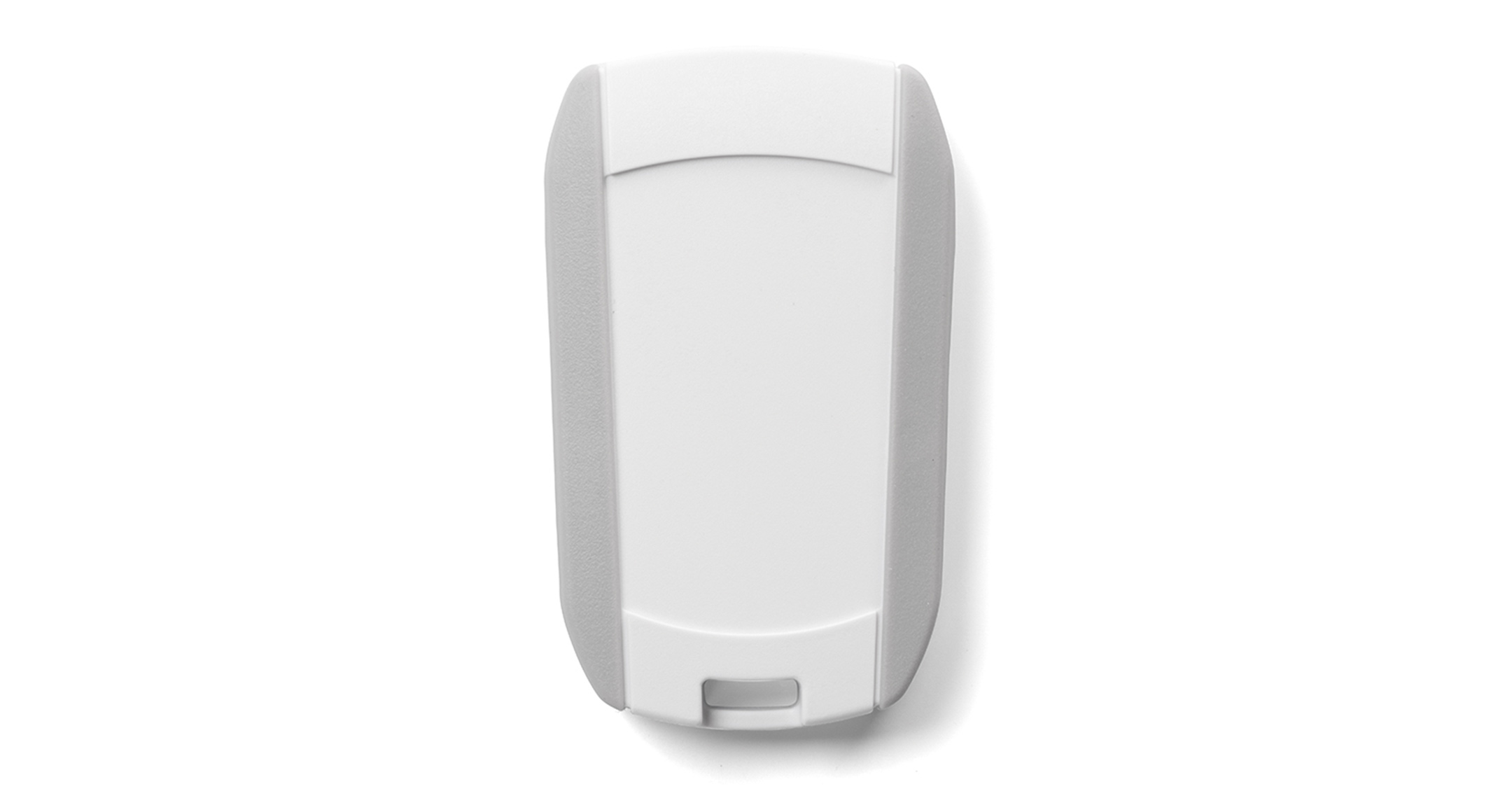

WLWhite/Light gray

IP67 KEY-FOB PLASTIC ENCLOSURE - WC series:White/Light gray
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series:Black/Marine
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series:Black/Black
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series:White/Light gray

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Battery compartment Weight (g) PDF 3D PDF DXF DWG STP
W H D w h d
WC72-15-C-□ 43 15.5 72 23.8 4.9 17.6 CR2032 x 1 22 PDF 3D PDF DXF DWG
WC72-15-N-□ 43 15.5 72 23 5.6 56.8 None 18.5 PDF 3D PDF DXF DWG
WC72-21-C-□ 43 21.5 72 23 9.8 17 CR2032 x 1 25.5 PDF 3D PDF DXF DWG
WC72-21-N-□ 43 21.5 72 22.4 11.5 55.8 None 22 PDF 3D PDF DXF DWG
WC90-15-C-□ 44.2 15.7 90 25 5.2 35.5 CR2032 x 1 26.5 PDF 3D PDF DXF DWG
WC90-15-N-□ 44.2 15.7 90 24.4 5.5 74.7 None 23 PDF 3D PDF DXF DWG
WC90-21-N-□ 44.2 21.7 90 23.8 11.4 73.8 None 27 PDF 3D PDF DXF DWG
WC100-20-N-□ 49 20.5 100 34.9 7.8 76.4 None 35 PDF 3D PDF DXF DWG
WC100-20-R-□ 49 20.5 100 27.6 9.6 31.2 CR2450×1 / CR2477×1 40 PDF 3D PDF DXF DWG
WC105-28-N-□ 50.5 28.2 105 31.4 20 77.3 None 47 PDF 3D PDF DXF DWG
WC105-28-F2-□ 50.5 28.2 105 39.5 13.3 19.6 AAA x 2 58.5 PDF 3D PDF DXF DWG
PC board (Option) PDF DXF DWG STP
WCPB-72 PDF DXF DWG
WCPB-72 PDF DXF DWG
WCPB-90 PDF DXF DWG
WCPB-100 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.

OPTIONAL PARTS

1
STRAP - STPS series
DETAILS
1
PCB for WC - WCPB Series
DETAILS
1
PCB MOUNTING SCREW - EM series
DETAILS
1
NEODYMIUM MAGNET - NMG
DETAILS
1
CR2032 / CR2450 BATTERY CONTACT for CS・CSS・WC - CST
DETAILS

SIMILAR PRODUCT

1
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
DETAILS
1
PORTABLE PLASTIC CASE - CS series
DETAILS
1
IoT SMALL PLASTIC CASE - SIC series
DETAILS
1
ROUND EDGE KEY-FOB PLASTIC ENCLOSURE - PS series
DETAILS
1
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

High speed CNC milling

DETAILS

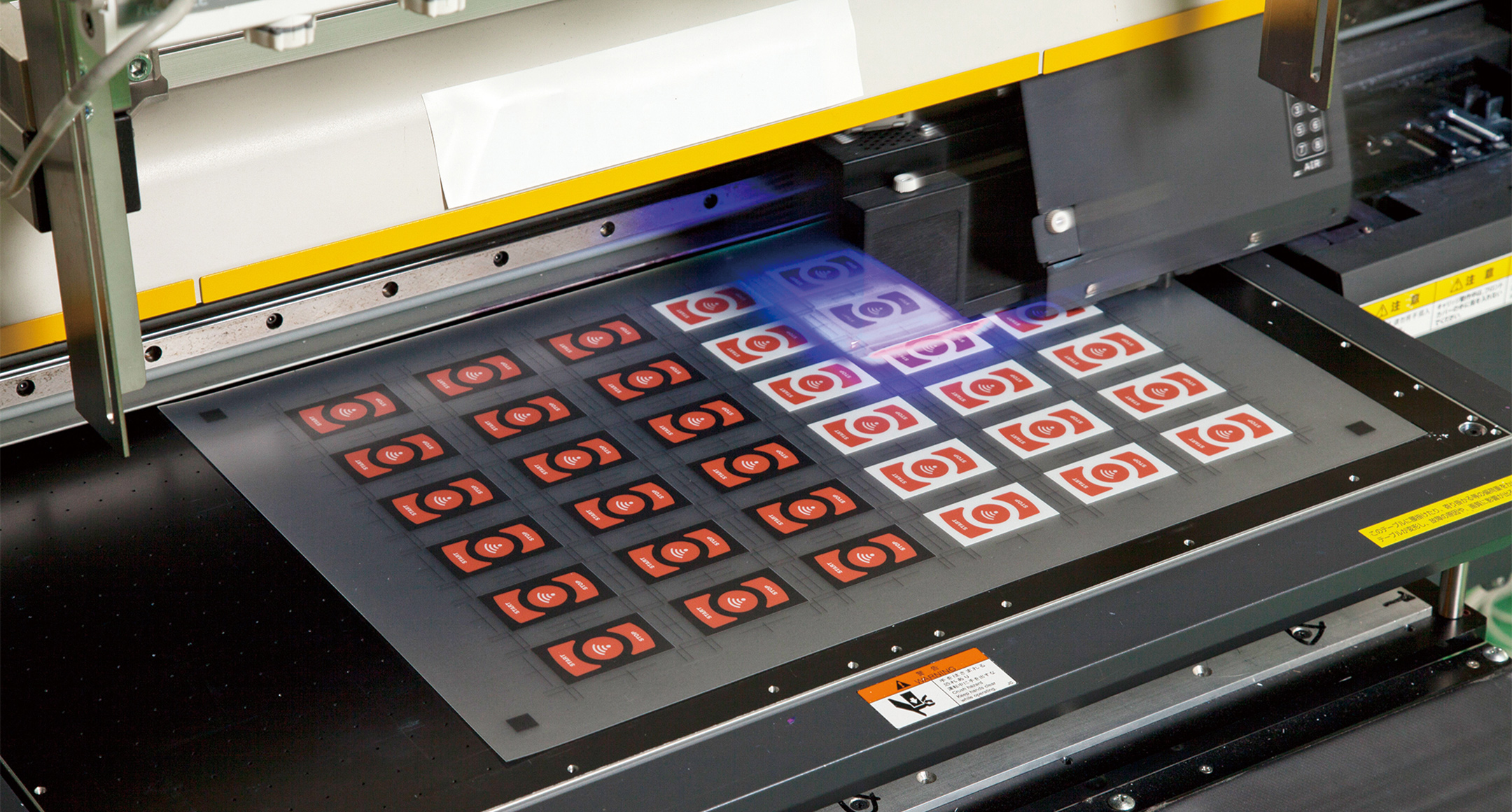

Digital inkjet printing
